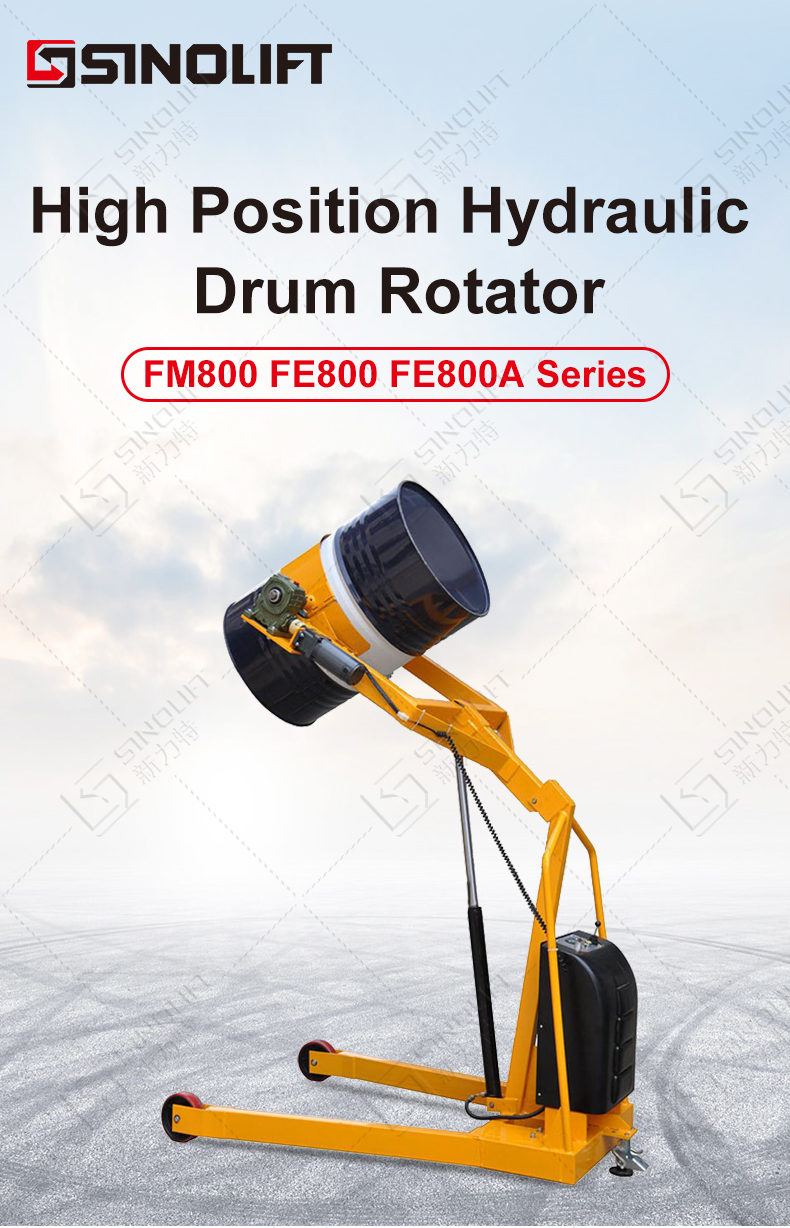

FM800 FE800 FE800A High Position Hydraulic Drum Rotator
FM800 FE800 FE800A
1. It uses a heavy duty steel belt and a quick action over-center clamp to hold the drum in place.
2. 2. Foot-operated hydraulic pump for lifting and a heavy-duty gearbox for controlled tipping of the drum at 320 degrees.
3. 3. The standard machine is designed to handle 205 liter steel drums with two equally spaced bells and whistles along its length.
4. The anti-fall electric design provides safe and labor-saving operation.
2. 2. Foot-operated hydraulic pump for lifting and a heavy-duty gearbox for controlled tipping of the drum at 320 degrees.
3. 3. The standard machine is designed to handle 205 liter steel drums with two equally spaced bells and whistles along its length.
4. The anti-fall electric design provides safe and labor-saving operation.
Quantity:
FM800 FE800 FE800A High Position Hydraulic Drum Rotator
Features:
1. Drum Rotator uses a heavy duty steel belt and a quick action over-center clamp to hold the drum in place.
2. Foot-operated hydraulic pump for lifting and a heavy-duty gearbox for controlled tipping of the drum at 320 degrees.
3. The Drum Rotator is designed to handle 205 liter steel drums with two equally spaced bells and whistles along its length.
4. The anti-fall electric design provides safe and labor-saving operation.
Features of Drum Rotator:
1. High level design with elevator.

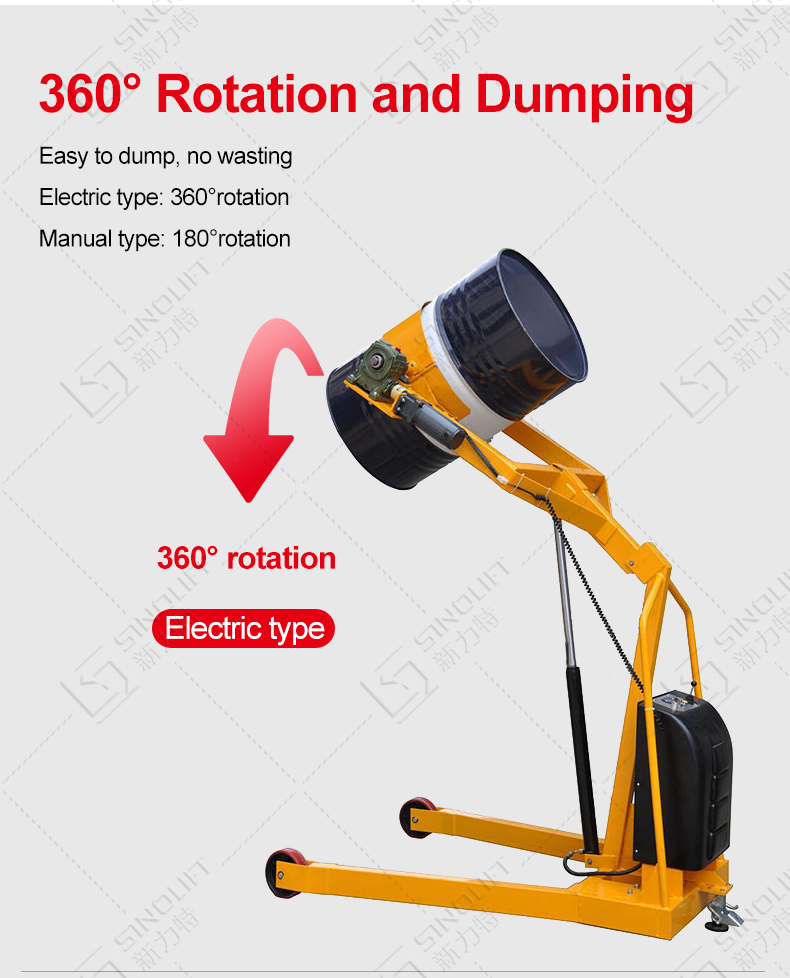

2. Wide choice of manual, worm gear, chain wheel and electric 360 degree turn over.
3. Anti-fall electric design provides safe and labor-saving operation.
| Model | Drum Rotator FM800 | Drum Rotator FE800 | Drum Rotator FE800A | |
| Capacity | kg(lbs) | 365(800) | 365(800) | 365(800) |
| Drum Size | mm | 30~50 gallon steel, 210L plastic | ||
| Rotation Method | Chain Wheel | Chain Wheel | Motor: 12V/250W | |
| Rotating Motor | V/W | - | - | 12V/250W |
| Lifting Method | Foot Pedal | Foot Pedal | Electric | |
| Lifting Motor/Battery | V/W/Ah | - | - | 12V/800W/60Ah |
| Lifting Height | mm | 812-1830(32-72 inch) | 812-1830(32-72 inch) | 812-1830(32-72 inch) |
| Wheel Size | mm | Dia.200/Dia.125 | Dia.200/Dia.125 | Dia.200/Dia.125 |
| Overall Size | mm | 1524x990x1397 | 1524x990x1397 | 1524x990x1397 |
| Net Weight | kg | 248 | 248 | 251a |
