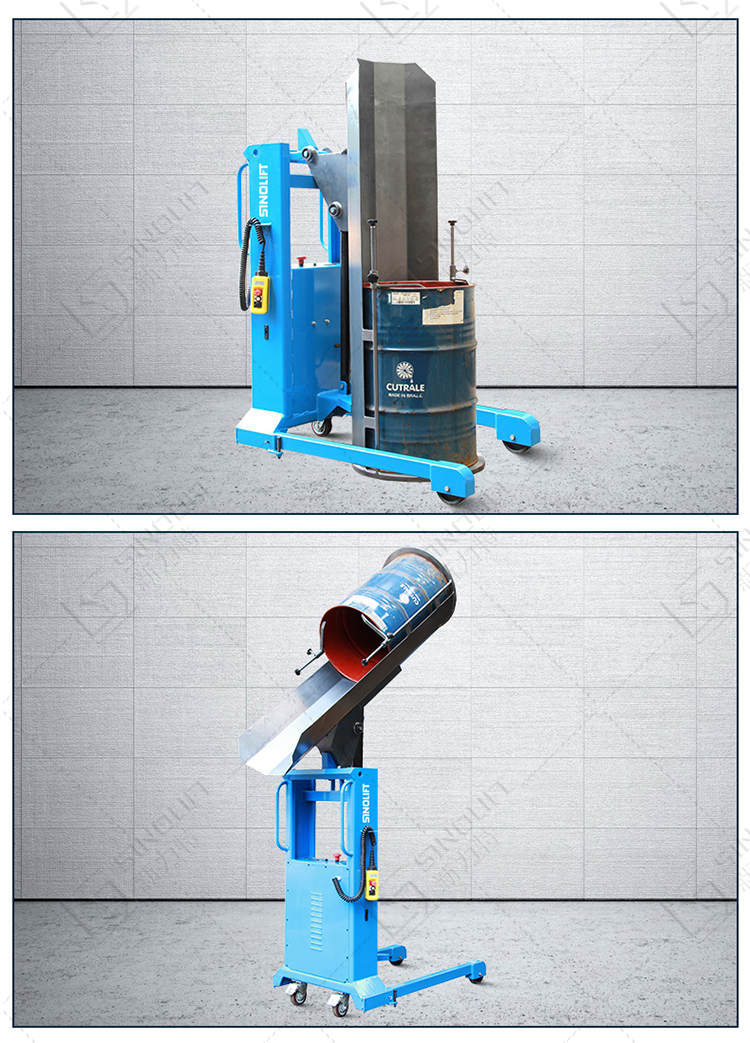

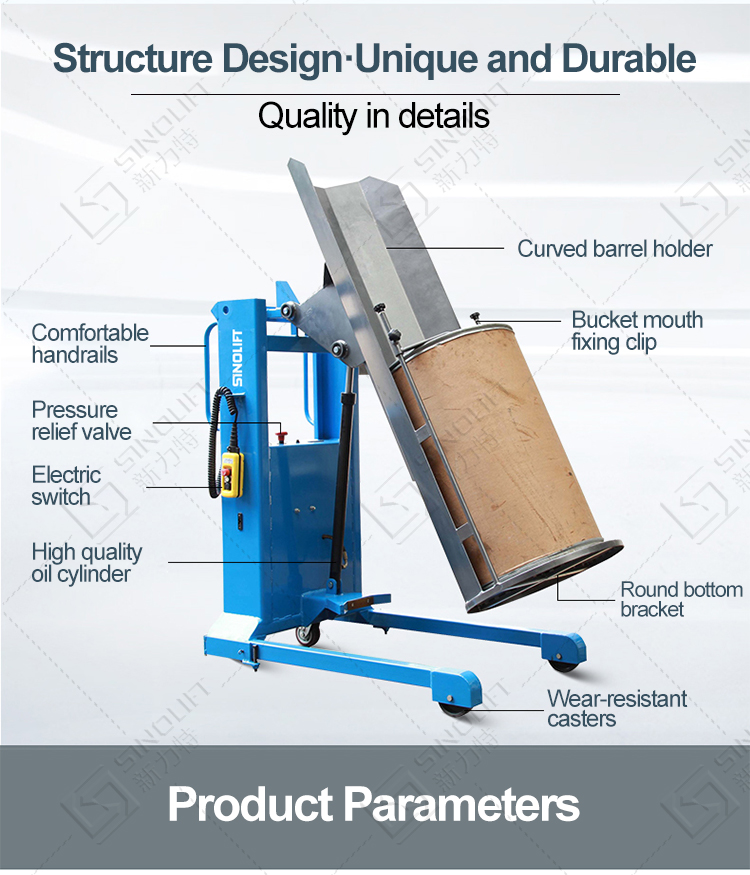

YL400 Hydraulic Drum Dumper
YL400
1. 45° degree tilt angle
2. Rotary switch control to raise the chute
3. gravity lowering system with adjustable flow control to safely lower the chute;

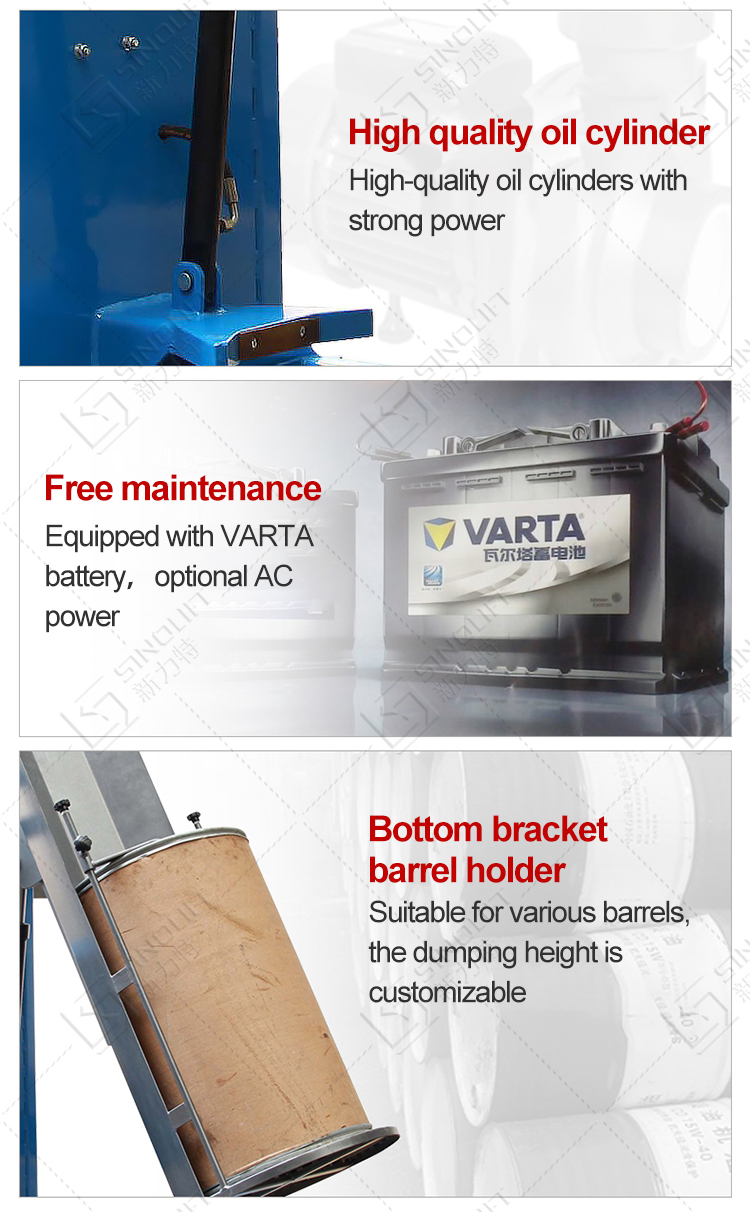

4. heavy-duty carbon steel construction with enamel coating;
5. with integrated hydraulic pump station and high quality hydraulic cylinders;
6. equipped with VARTA maintenance-free batteries;
7. with optional AC power supply;
8. suitable for dumping all kinds of drums;
9. portable unit with two rigid casters and two swivel casters with ground locking screws;

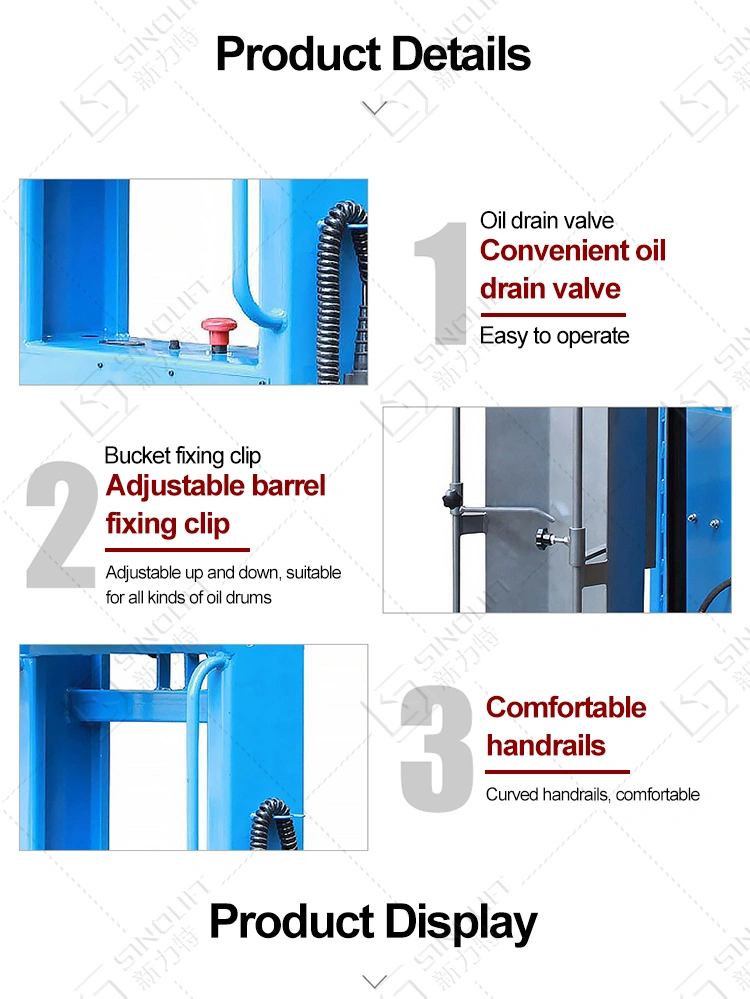

10. adjustable fixtures to keep the container from shifting;
2. Rotary switch control to raise the chute
3. gravity lowering system with adjustable flow control to safely lower the chute;
4. heavy-duty carbon steel construction with enamel coating;
5. with integrated hydraulic pump station and high quality hydraulic cylinders;
6. equipped with VARTA maintenance-free batteries;
7. with optional AC power supply;
8. suitable for dumping all kinds of drums;
9. portable unit with two rigid casters and two swivel casters with ground locking screws;
10. adjustable fixtures to keep the container from shifting;
Quantity:
YL400 Hydraulic Drum Dumper
1. Hydraulic Drum Dumper with 45° degree tilt angle
2. Rotary switch control to raise the chute
3. gravity lowering system with adjustable flow control to safely lower the chute;
4. Hydraulic Drum Dumper with heavy-duty carbon steel construction with enamel coating;
5. with integrated hydraulic pump station and high quality hydraulic cylinders;
6. Hydraulic Drum Dumper is equipped with VARTA maintenance-free batteries;
7. with optional AC power supply;
8. suitable for dumping all kinds of drums;
9. portable unit with two rigid casters and two swivel casters with ground locking screws;
10. adjustable fixtures to keep the container from shifting;
2. Rotary switch control to raise the chute
3. gravity lowering system with adjustable flow control to safely lower the chute;
4. Hydraulic Drum Dumper with heavy-duty carbon steel construction with enamel coating;
5. with integrated hydraulic pump station and high quality hydraulic cylinders;
6. Hydraulic Drum Dumper is equipped with VARTA maintenance-free batteries;
7. with optional AC power supply;
8. suitable for dumping all kinds of drums;
9. portable unit with two rigid casters and two swivel casters with ground locking screws;
10. adjustable fixtures to keep the container from shifting;

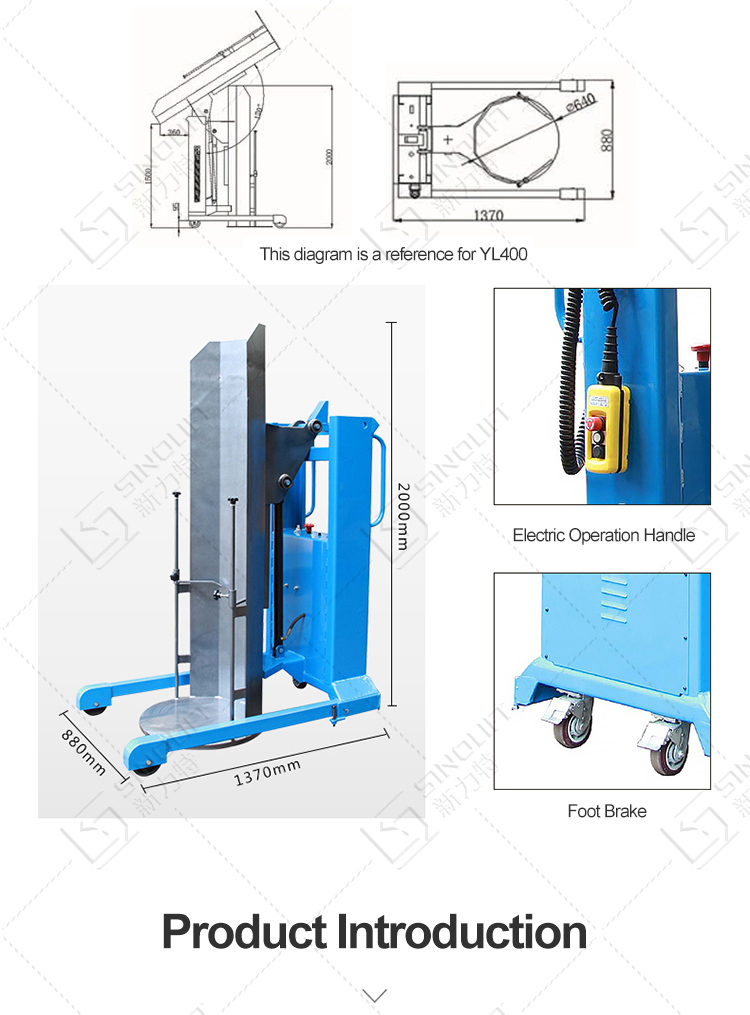

| Model | Hydraulic Drum Dumper YL400 | |
| Rated Load Capacity | kg | 400 |
| Turning Radius | mm | 1600 |
| Pump Station Power | Kw/h | 1.6 |
| Battery | V/Ah | 12/120 |
| Lifting Height | mm | 1500 |
| Wheel Size | mm | ∅200*50 ∅150*50 |
| Rotating Range | ° | 120° |
| Net Weight | kg | 302 |
