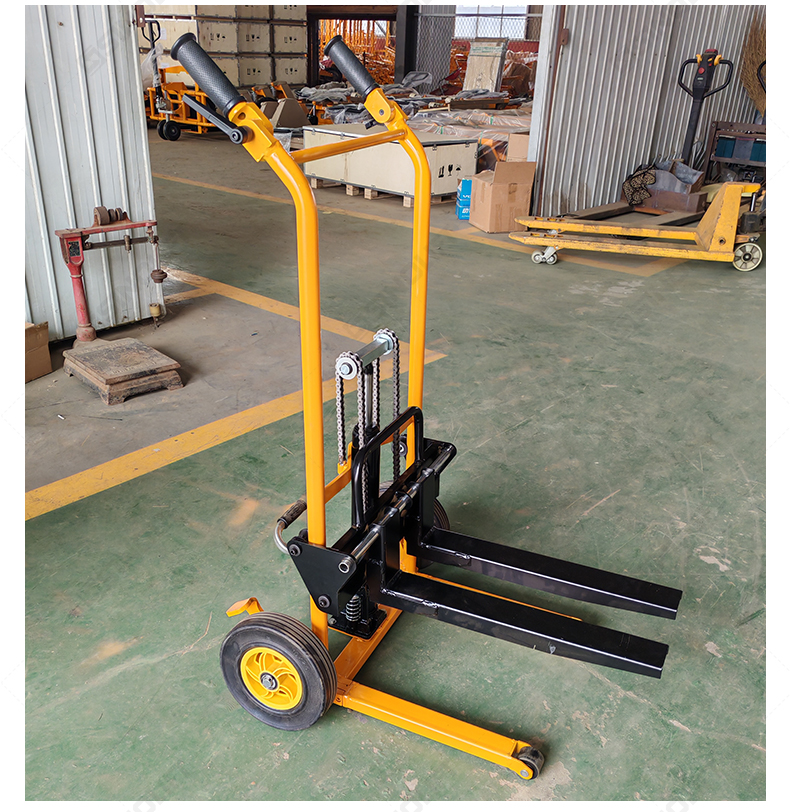

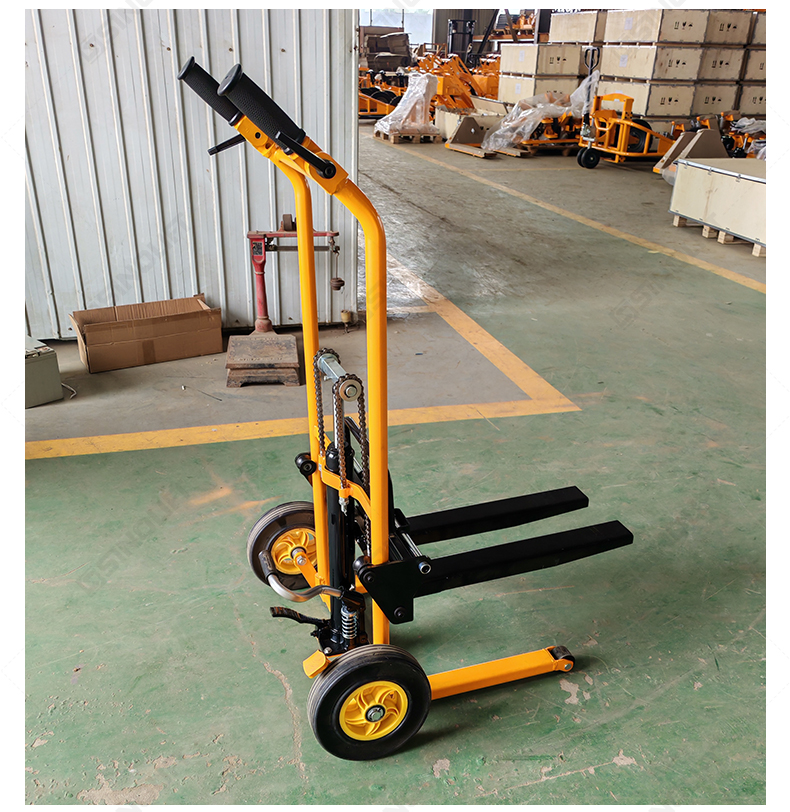

GL20A GL20B Manual Hydraulic Stacker
GL20A GL20B
The GL20A / GL20B Manual Stacker is designed for efficient, flexible, and safe material handling. With a detachable split-frame structure, foldable forks, durable wheels, and an upgraded braking system.
Quantity:
GL20A200 kg
GL20B200 kg / Hand Brake
Product Overview

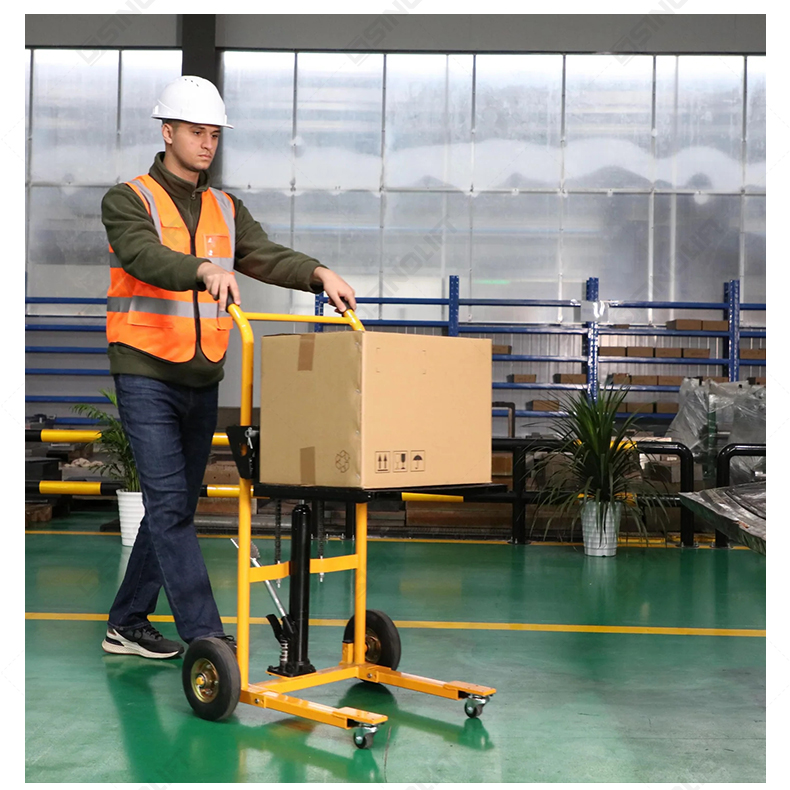

The GL20A / GL20B Manual Stacker is designed for efficient, flexible, and safe material handling. With a detachable split-frame structure, foldable forks, durable wheels, and an upgraded braking system, this manual stacker is easy to transport, assemble, operate, and maintain. It is an ideal solution for warehouses, workshops, logistics centers, and other light-duty handling applications.

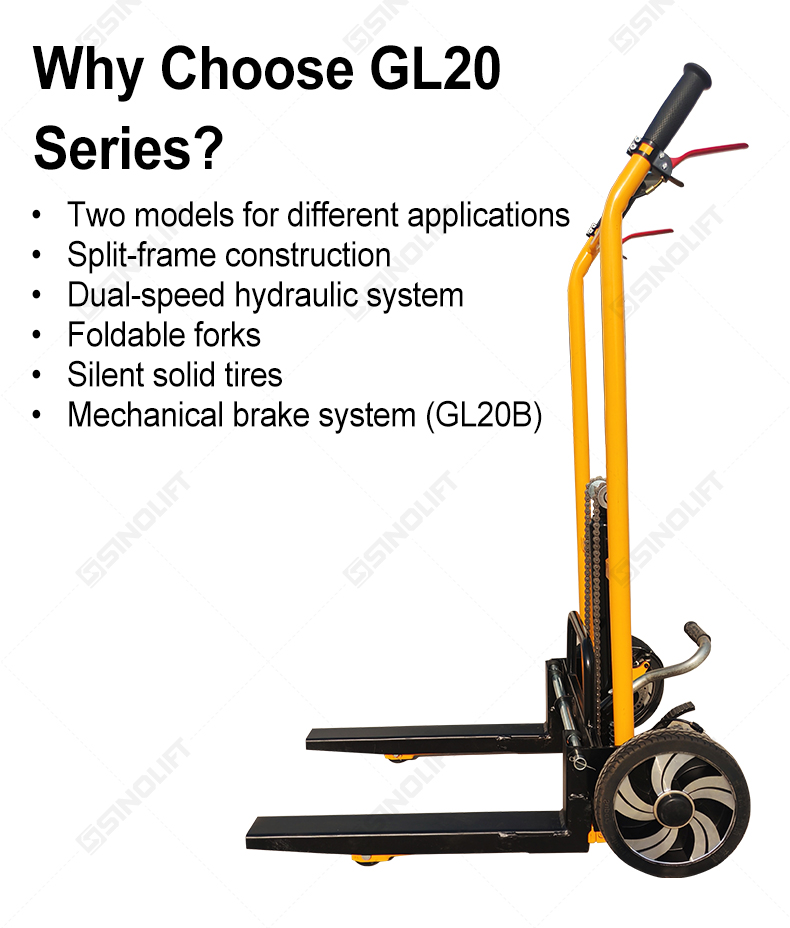

Key Features

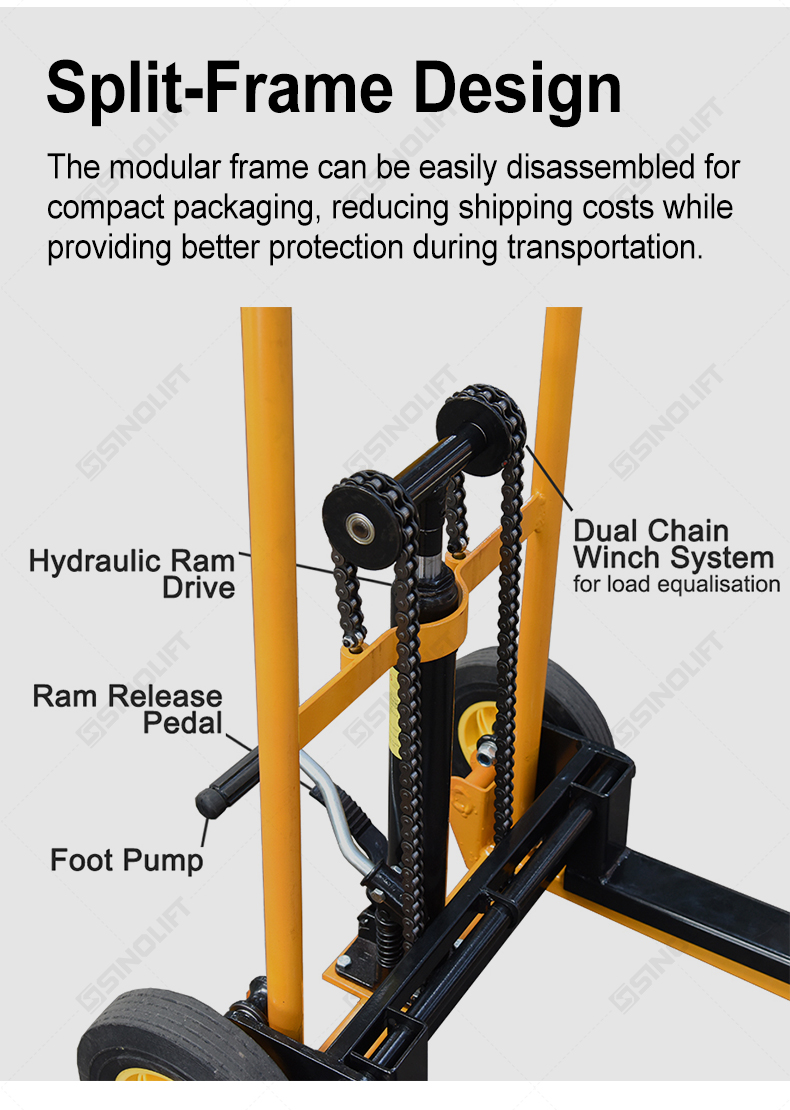

- Detachable Split-Frame Design — The split-body frame can be disassembled for compact carton packaging, making delivery more convenient, reducing freight costs, and helping protect the painted surface during transportation.

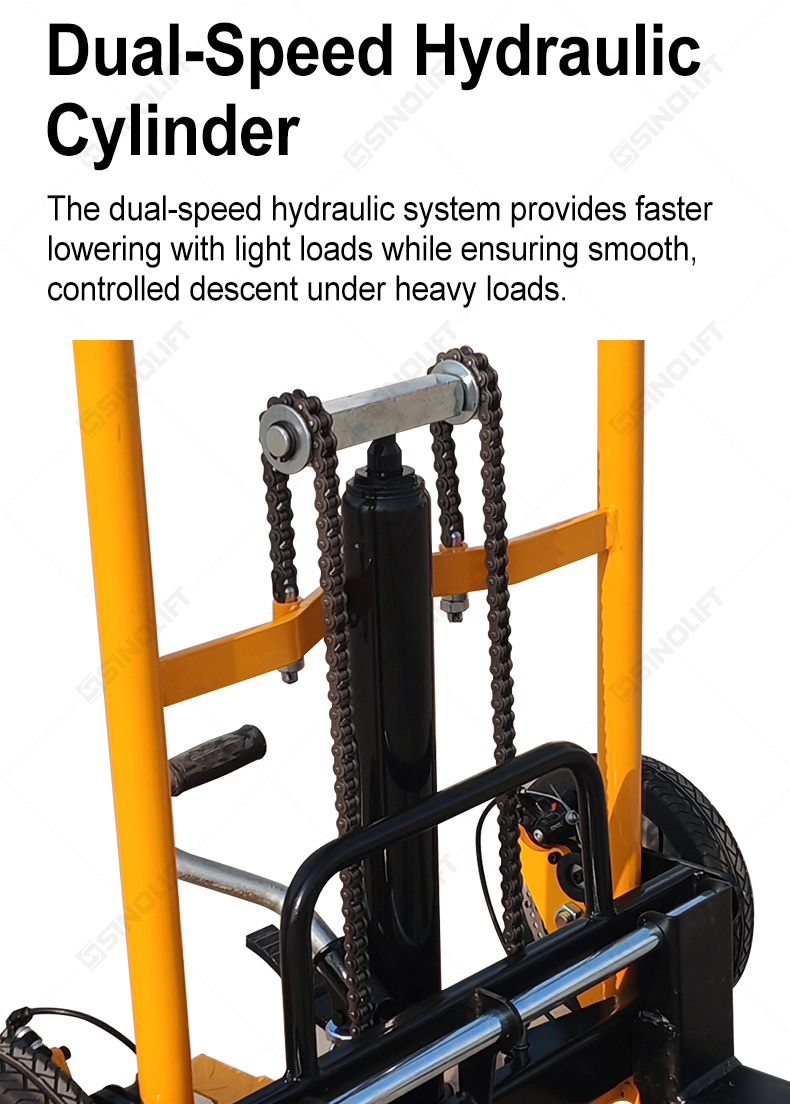

- Dual-Speed Buffer Cylinder — Equipped with a dual-speed hydraulic cylinder. The forks descend quickly under light loads and more slowly under heavy loads, improving both efficiency and operational safety.
- Lightweight and Quiet Operation — Aluminum alloy wheels and pneumatic tires help reduce operating noise, improve maneuverability, and make the stacker easier to move.

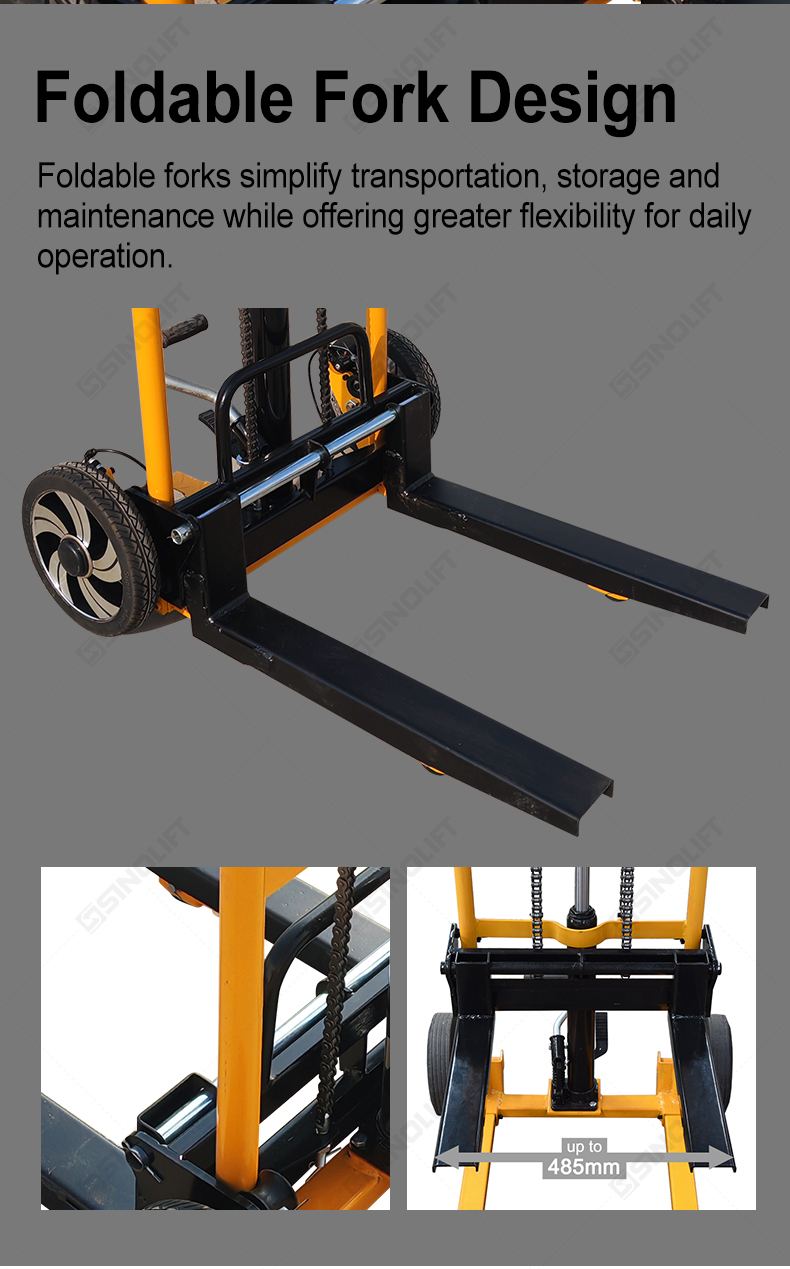

- Foldable Forks — The foldable fork design allows flexible use, easy storage, and convenient disassembly when required.
- Durable Steel-Plated Rollers — High-strength steel-plated rollers provide excellent durability, smooth movement, and a clean appearance.
- Easy Assembly and Maintenance — The axle and wheel bracket adopt a split-type design, allowing quick assembly, easy maintenance, and convenient replacement of parts.
- Patented SINOLIFT Design — This SINOLIFT manual stacker features a patented design. Patent infringement will be pursued in accordance with applicable laws.

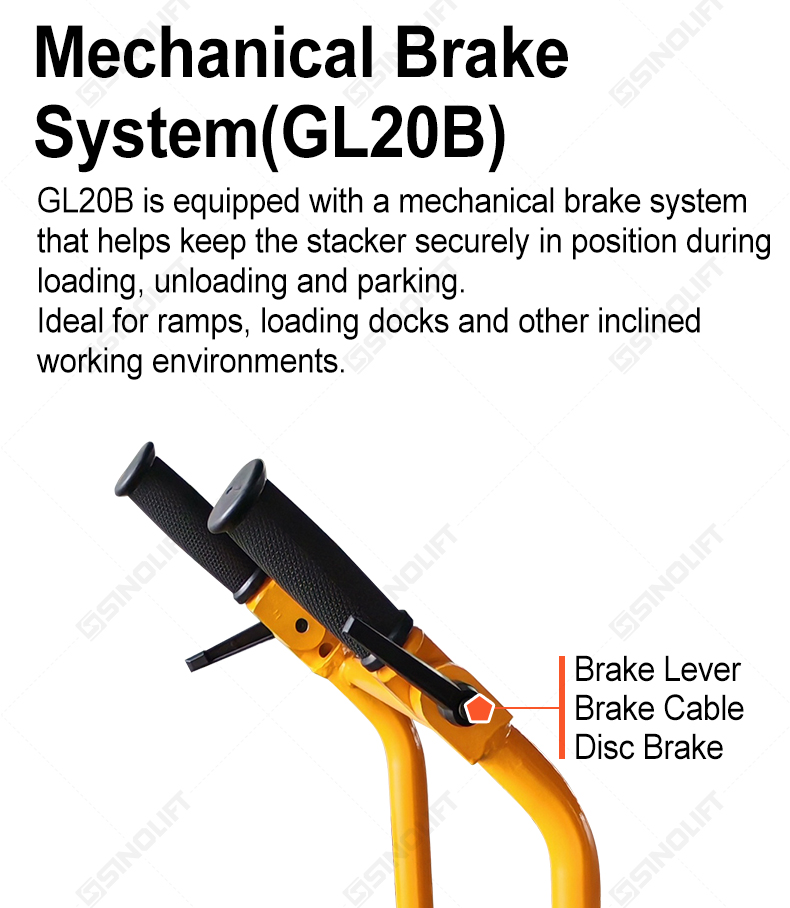

- Upgraded Braking System — The enhanced braking function is suitable for use on ramps or downhill sections. The brake includes a self-locking function for safer and more flexible operation.

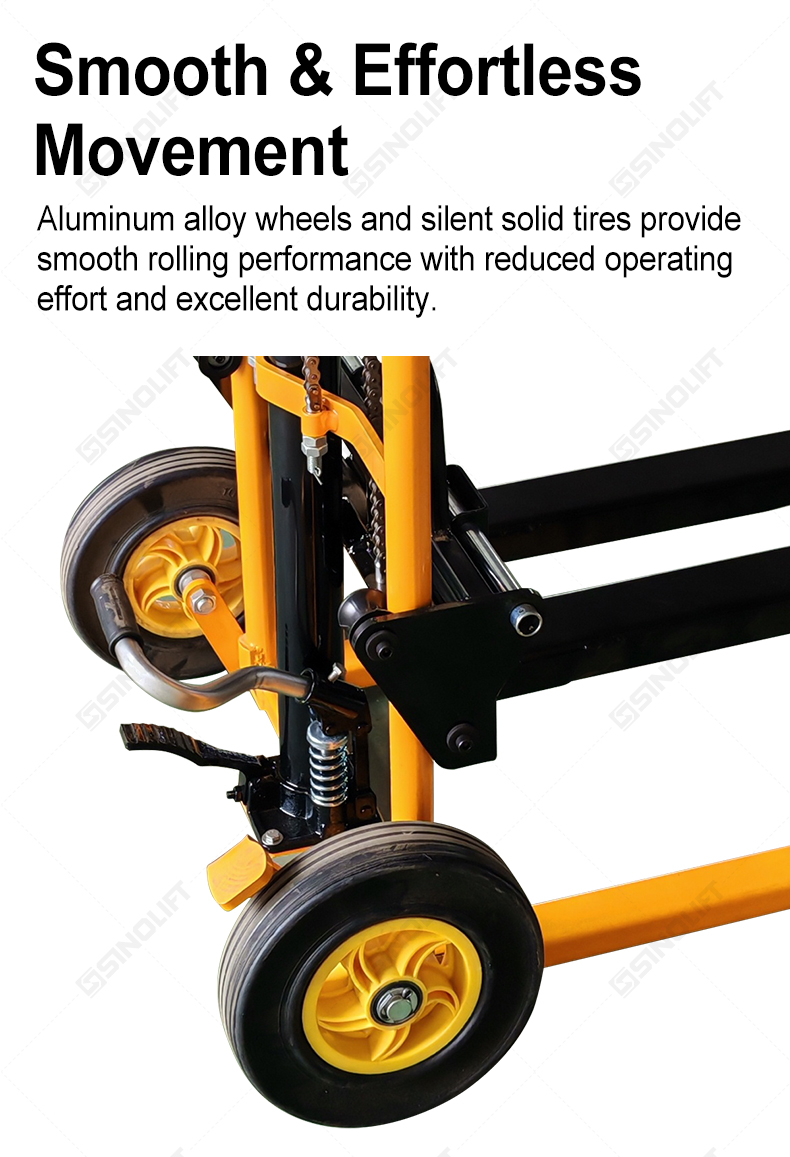

- Silent Solid-Core Tires — The stacker uses silent solid-core tires with aluminum alloy wheels, offering a durable, attractive, and labor-saving user experience.
Applications
- Warehouses & Stockrooms
- Workshops & Production Areas
- Logistics Centers
- Retail Backrooms & Light-Duty Handling
- Loading Docks, Ramps & Uneven Surfaces

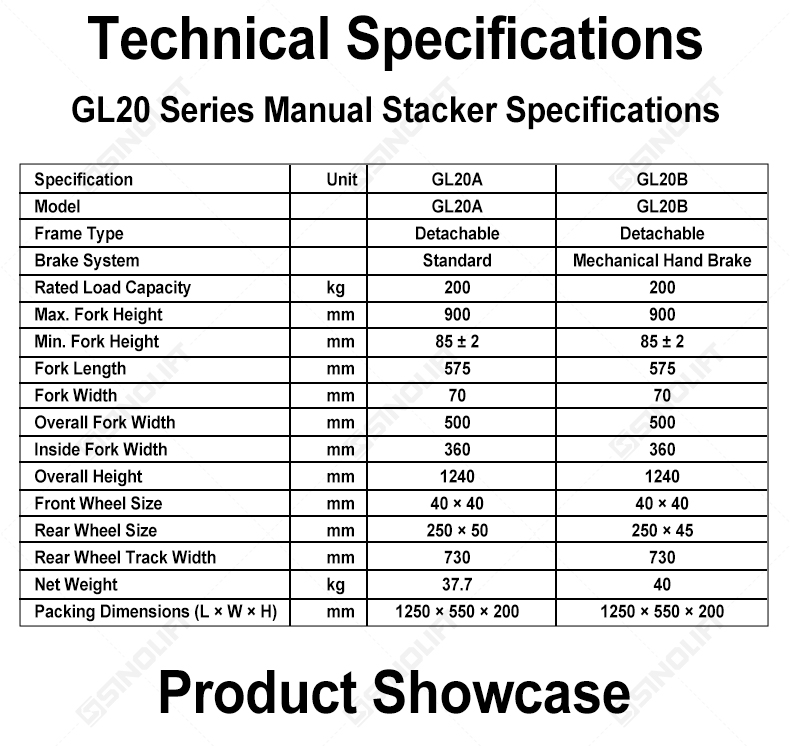

Specifications
General & Performance

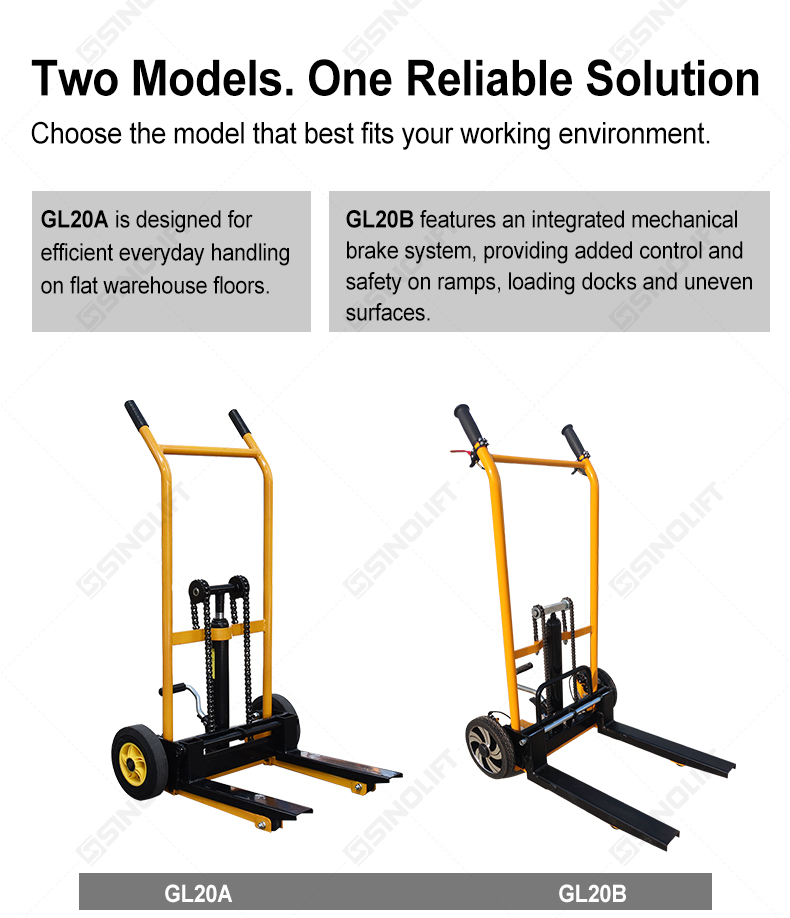

| Specification | Unit | GL20A | GL20B |
|---|---|---|---|
| Model | GL20A | GL20B | |
| Frame Type | Detachable | Detachable | |
| Brake System | Standard | Mechanical Hand Brake | |
| Rated Load Capacity | kg | 200 | 200 |
| Net Weight | kg | 37.7 | 40 |
Fork & Dimensions
| Specification | Unit | GL20A | GL20B |
|---|---|---|---|
| Max. Fork Height | mm | 900 | 900 |
| Min. Fork Height | mm | 85 ± 2 | 85 ± 2 |
| Fork Length | mm | 575 | 575 |
| Fork Width | mm | 70 | 70 |
| Overall Fork Width | mm | 500 | 500 |
| Inside Fork Width | mm | 360 | 360 |
| Overall Height | mm | 1240 | 1240 |
Wheels & Packing
| Specification | Unit | GL20A | GL20B |
|---|---|---|---|
| Front Wheel Size | mm | 40 × 40 | 40 × 40 |
| Rear Wheel Size | mm | 250 × 50 | 250 × 45 |
| Rear Wheel Track Width | mm | 730 | 730 |
| Packing Dimensions (L × W × H) | mm | 1250 × 550 × 200 | 1250 × 550 × 200 |
Specifications are subject to change without notice. Please contact SINOLIFT for the latest technical data or custom configuration requirements.

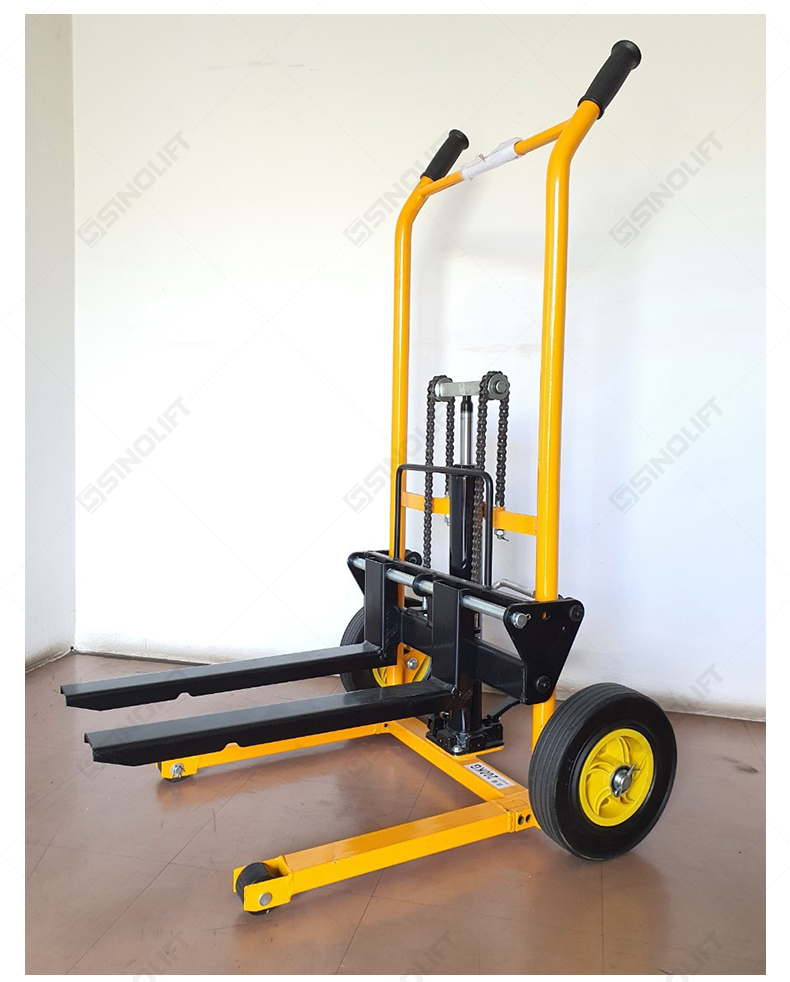

Product Images
