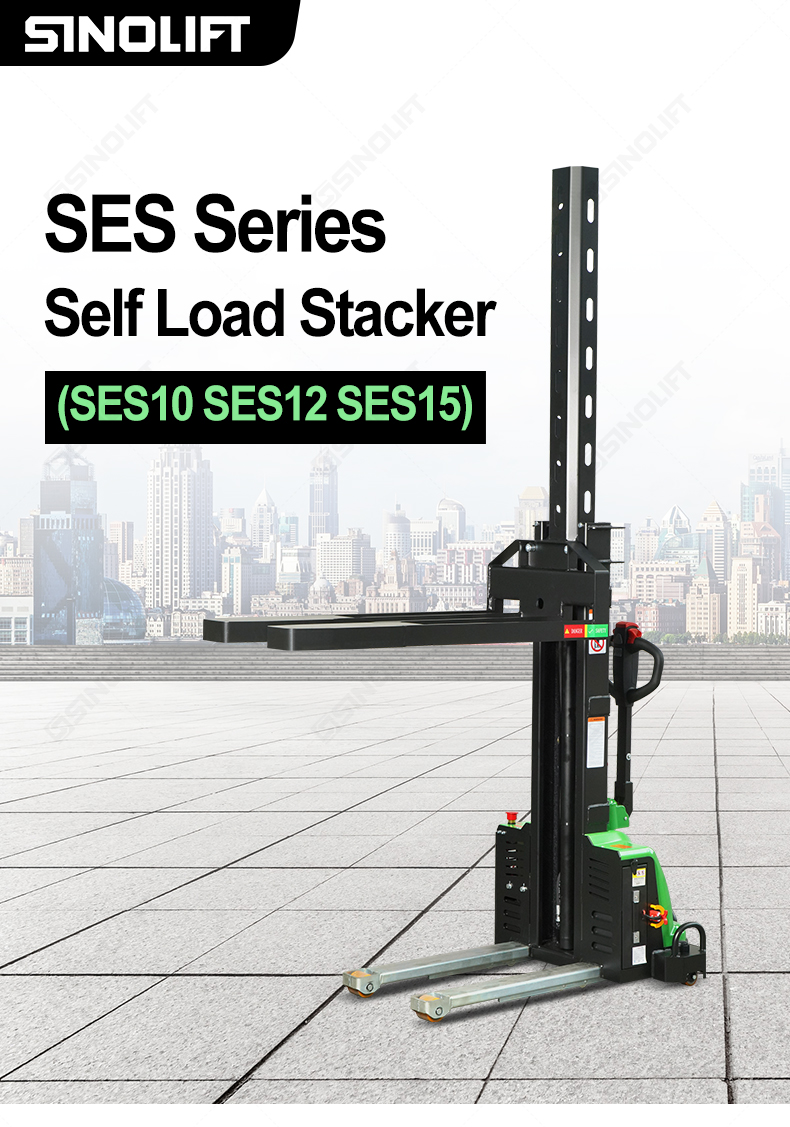

SES Series (SES10 SES12 SES15) Self Load Stacker

Product Name：SES Series (SES10 SES12 SES15) Self Load Stacker

Product Features：

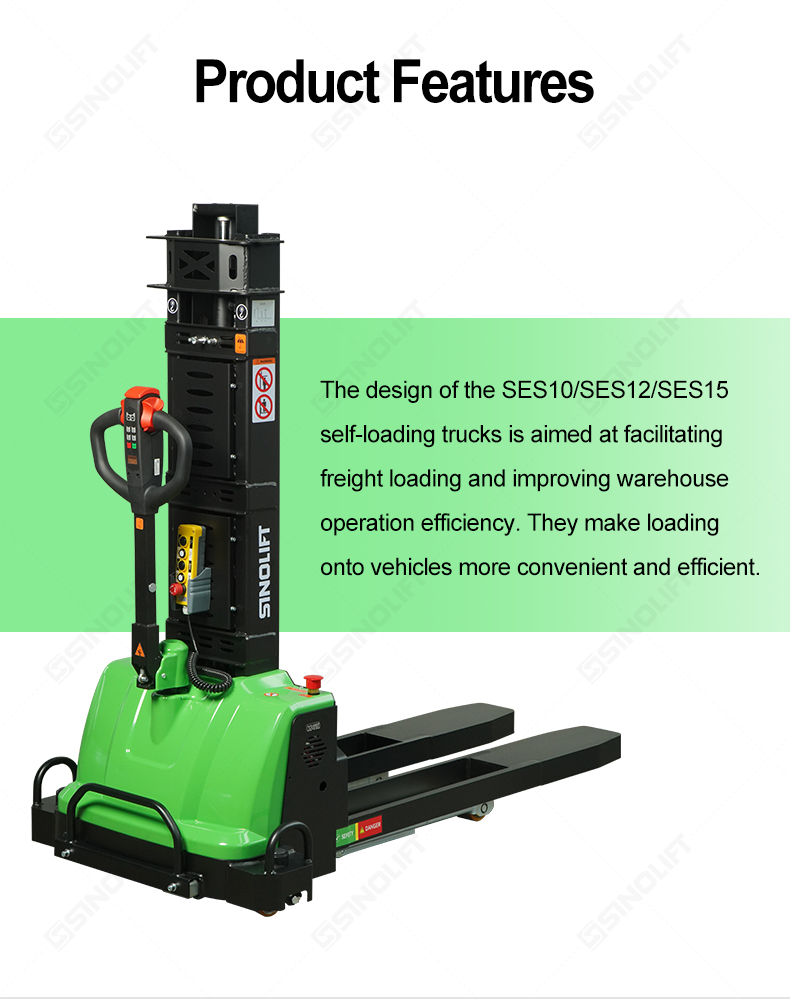

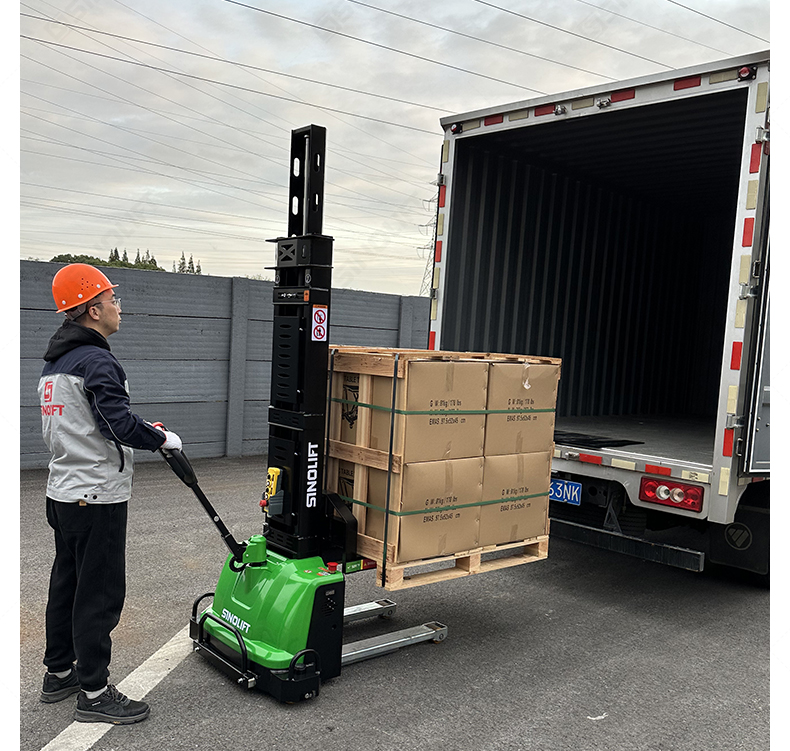

The design of the SES10/SES12/SES15 self-loading trucks is aimed at facilitating freight loading and improving warehouse operation efficiency. They make loading onto vehicles more convenient and efficient.

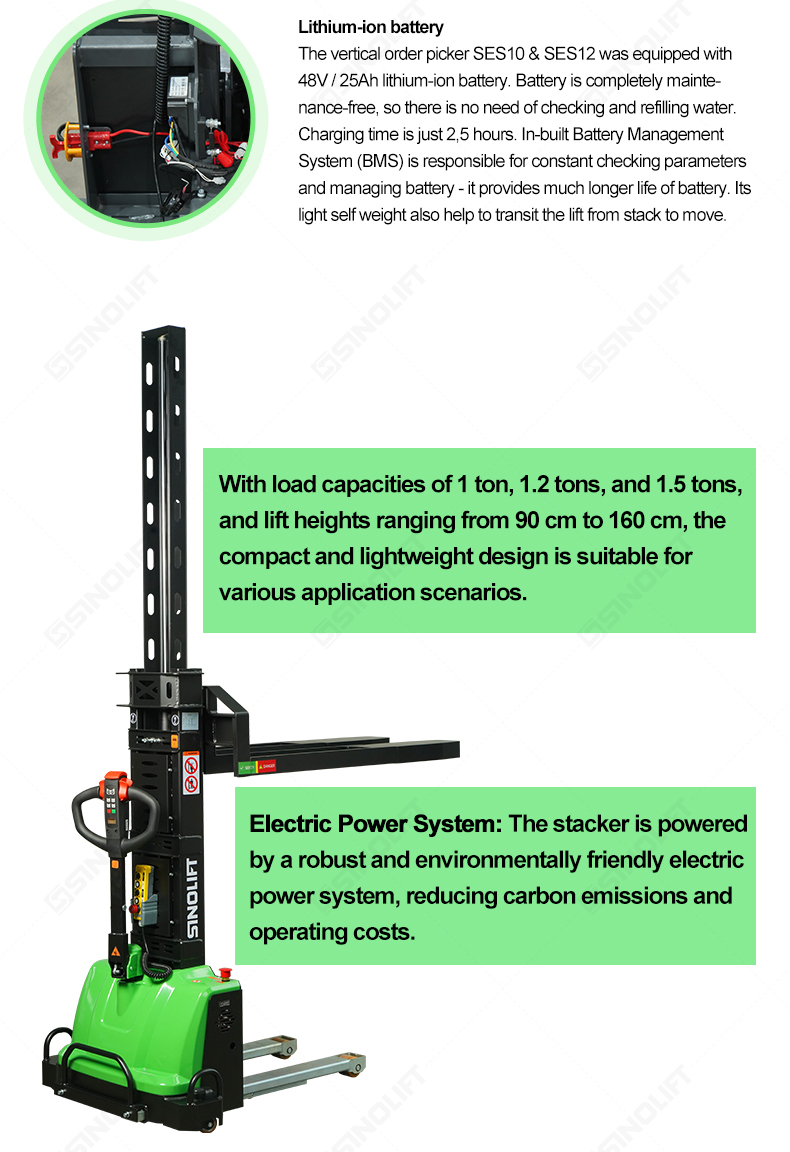

With load capacities of 1 ton, 1.2 tons, and 1.5 tons, and lift heights ranging from 90 cm to 160 cm, the compact and lightweight design is suitable for various application scenarios.

1. Electric Power System: The stacker is powered by a robust and environmentally friendly electric power system, reducing carbon emissions and operating costs.

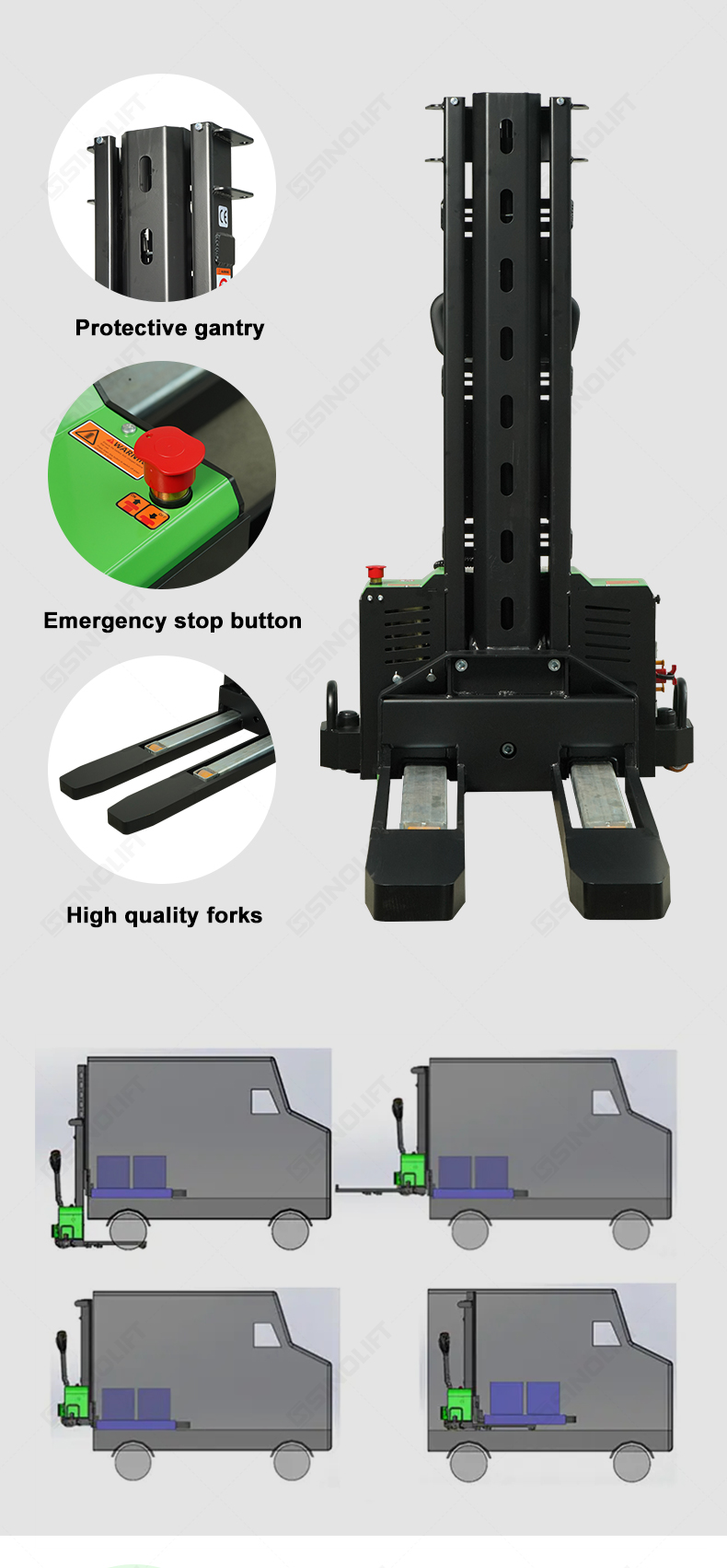

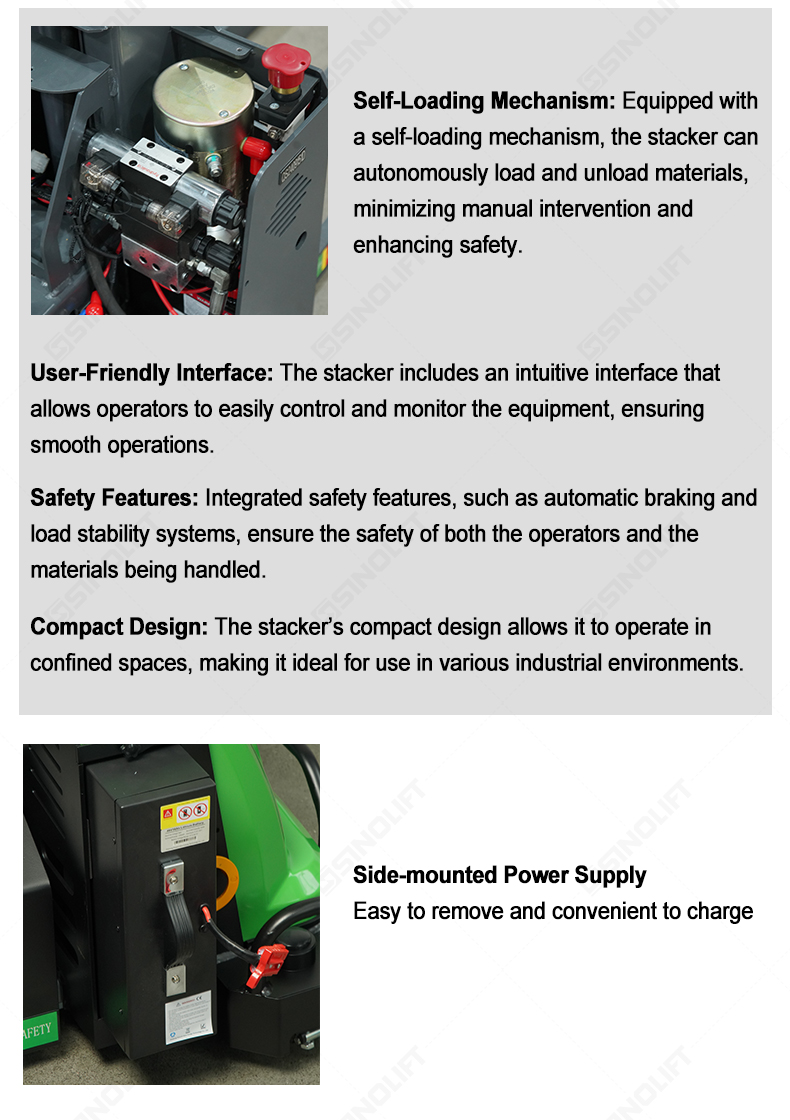

2. Self-Loading Mechanism: Equipped with a self-loading mechanism, the stacker can autonomously load and unload materials, minimizing manual intervention and enhancing safety.
3. High Efficiency: Designed to handle heavy loads with precision, the stacker improves overall productivity in the warehouse by speeding up the material

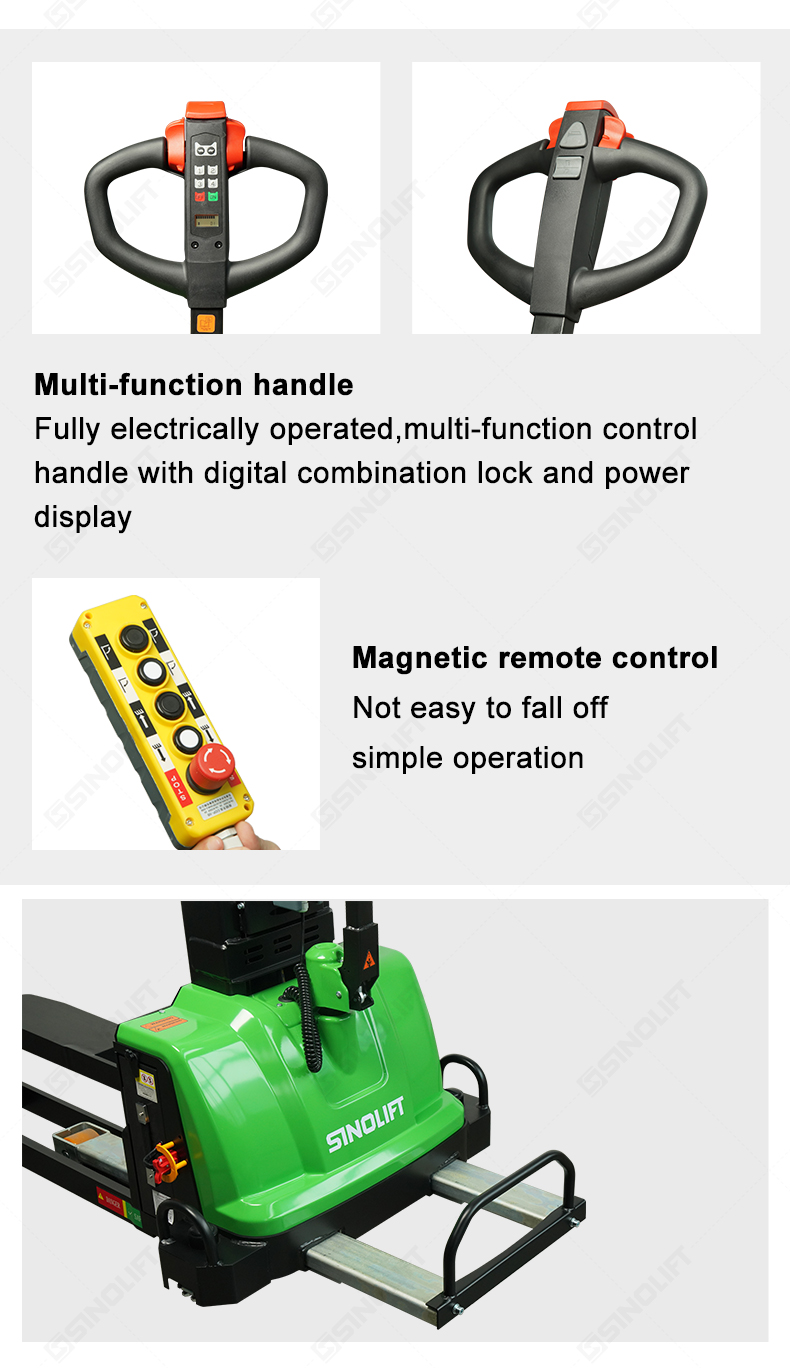

4. User-Friendly Interface: The stacker includes an intuitive interface that allows operators to easily control and monitor the equipment, ensuring smooth operations.
5. Safety Features: Integrated safety features, such as automatic braking and load stability systems, ensure the safety of both the operators and the materials being handled.
6. Compact Design: The stacker’s compact design allows it to operate in confined spaces, making it ideal for use in various industrial environments.

Identifications	1.1	Manufactuer			SINOLIFT
	1.2	Model No			SES10	SES12	SES15
	1.2	Power Type			Electric	Electric	Electric
	1.3	Drive Type			Pedestrain	Pedestrain	Pedestrain
	1.4	Capacity	Q	kg	1000	1200	1500
	1.5	Load Centre	c	mm	400	400	400

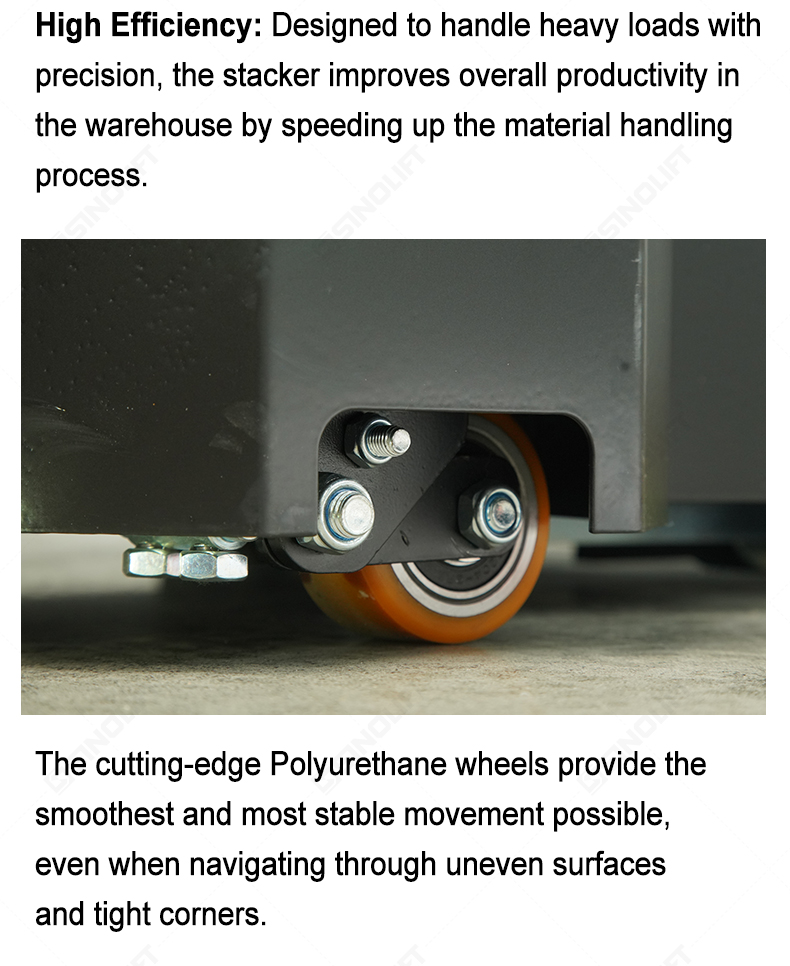

Wheels	3.1	Material of Wheel			Polyurethane	Polyurethane	Polyurethane
	3.2	Size of Drive wheel		mm	Φ190x70	Φ190x70	Φ190x70
	3.3	Size of balance roller		mm	Φ75X35	Φ75X35	Φ75X35
	3.4	Size of load roller		mm	Φ80X70	Φ80X70	Φ80X70
	3.5	Track Width, Drive side	b1	mm	780	780	780
	3.6	Wheelbase	y	mm	980	980	980
Dimensions	4.1	Lifti height	h3	mm	900/1100/1300/1500/1600	900/1100/1300/1500/1600	900/1100/1300/1500/1600
	4.2	Retracted height	h1	mm	1250/1450/1650/1850/1950	1250/1450/1650/1850/1950	1250/1450/1650/1850/1950
	4.3	Vehicle Height during operation	h4	mm	2080/2480/2880/3280/3480	2080/2480/2880/3280/3480	2080/2480/2880/3280/3480
	4.4	Min Fork Height	h13	mm	85	85	85
	4.5	Overall Length	l1	mm	1730	1730	1730
	4.6	Overall width	b1	mm	920	920	920
	4.7	Fork Size	s/e/l	mm	70/195/1200	70/195/1200	70/195/1201
	4.8	Fork Width	b5	mm	560/600	560/600	560/600
	4.9	Ground Clearance	m2	mm	10	10	10
Performance	5.1	Gradeability， loaden/unloaden		%	3/5	3/5	3/5
	5.2	Brake			Electromagnetic Brake	Electromagnetic Brake	Electromagnetic Brake
	5.3	Power of Drive Motor		kw	0.75	0.75	0.75
	5.4	Power of Lifting Motor		kw	2	2	2
	5.5	Battery capacity (Lithium)		V/Ah	48v/25ah (30AH As Option)	48v/25ah (30AH As Option)	48v/25ah (31AH As Option)
	5.6	Weight of battery		kg	30	30	30
	5.7	Steering Power			Mechanical	Mechanical	Mechanical
