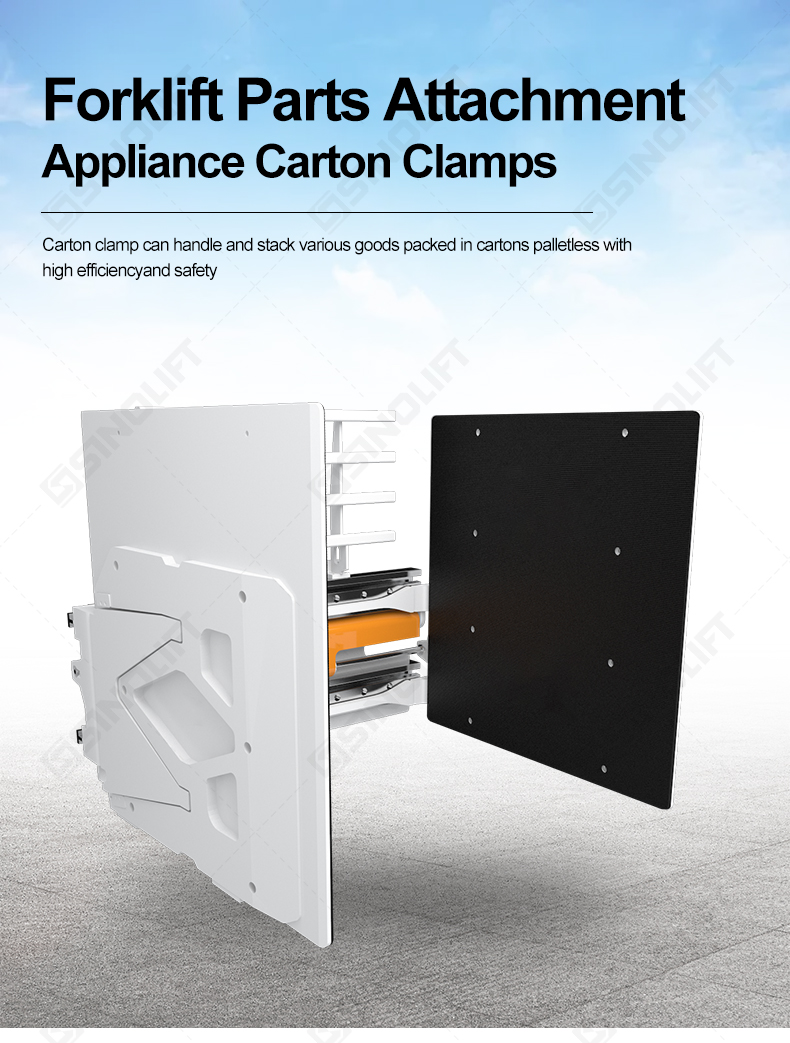

Appliance Carton Clamps

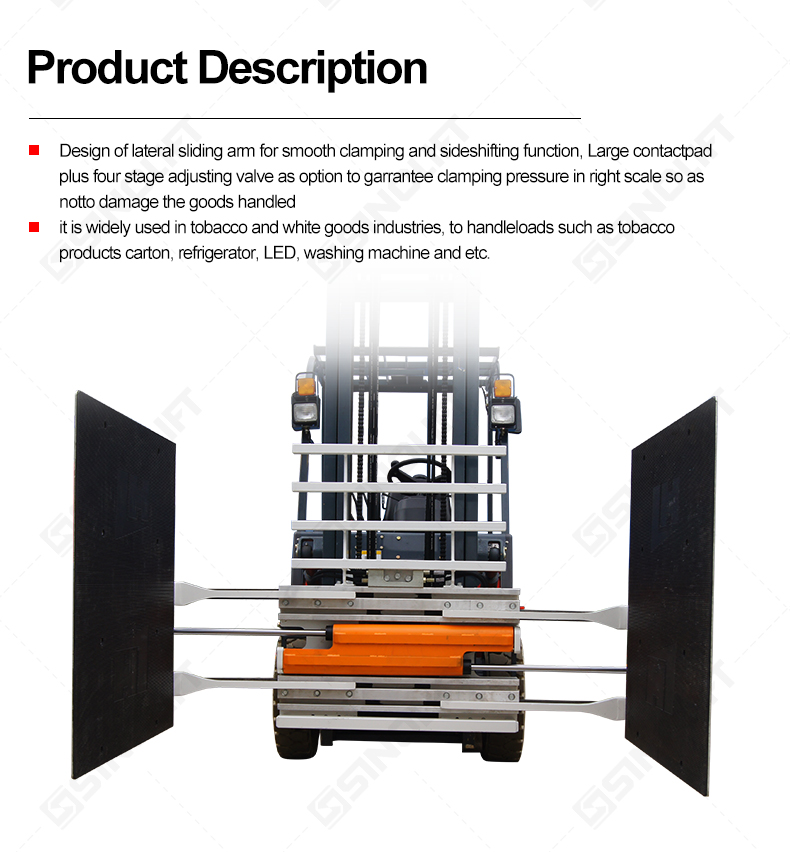

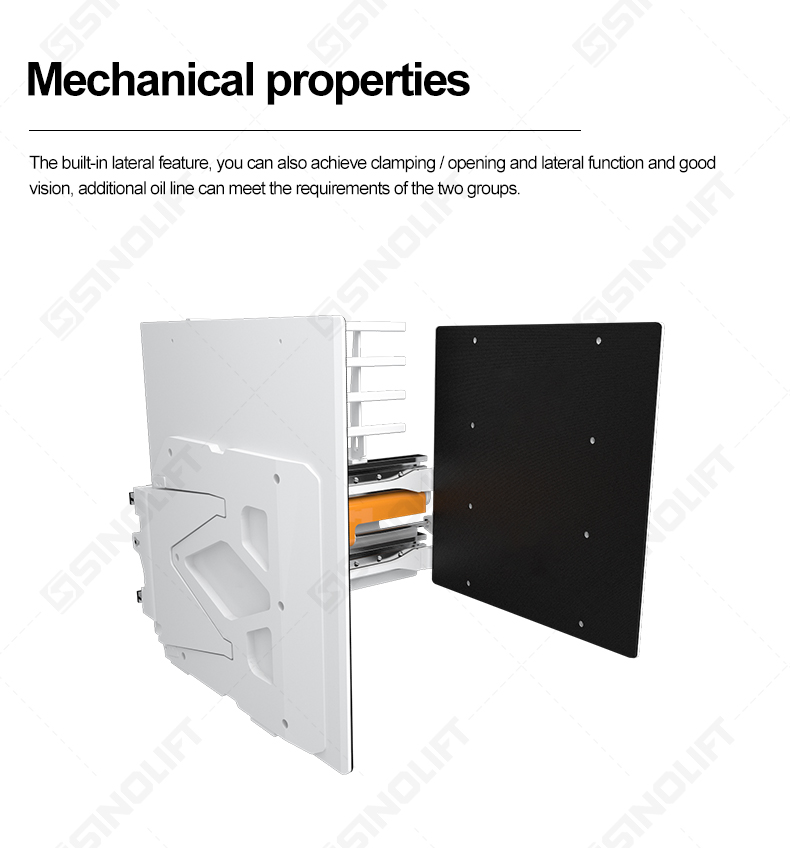

Mechanical properties: The built-in lateral feature, you can also achieve clamping / opening and lateral function and good vision, additional oil line can meet the requirements of the two groups.
Structural parts: The left and right high-performance aluminum alloy splint to reduce weight, interconnect from high-strength sheet thermoforming, anti-distortion performance is good.

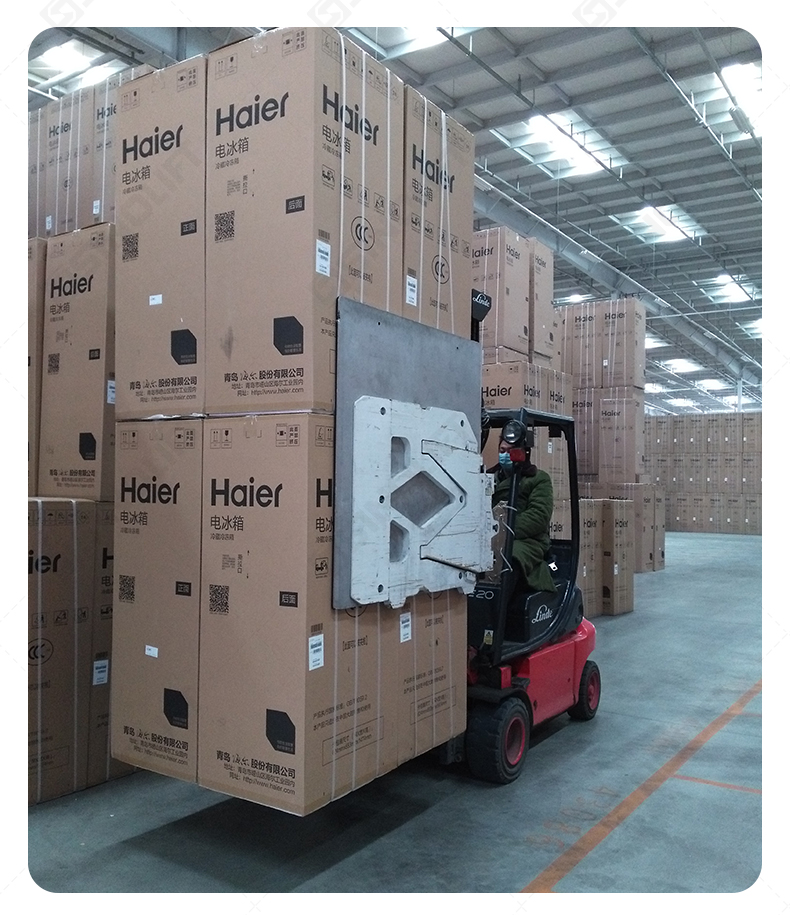

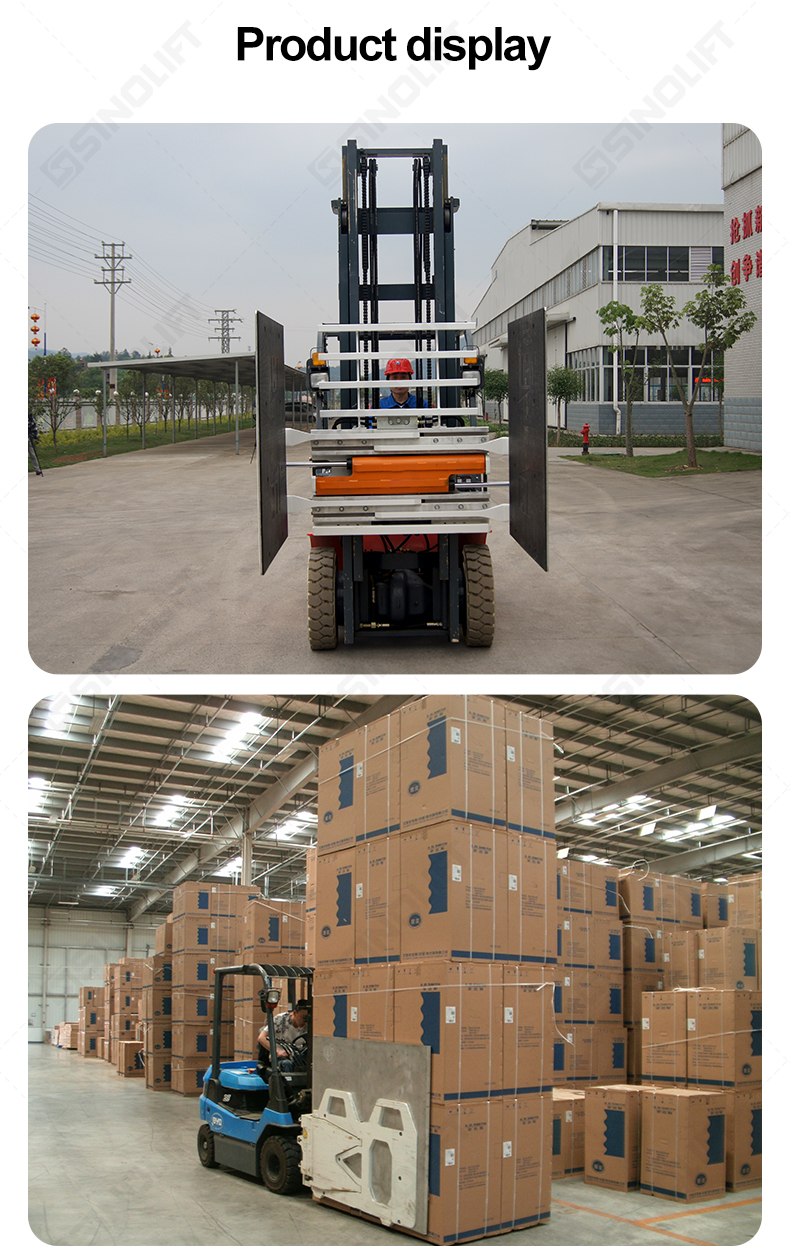

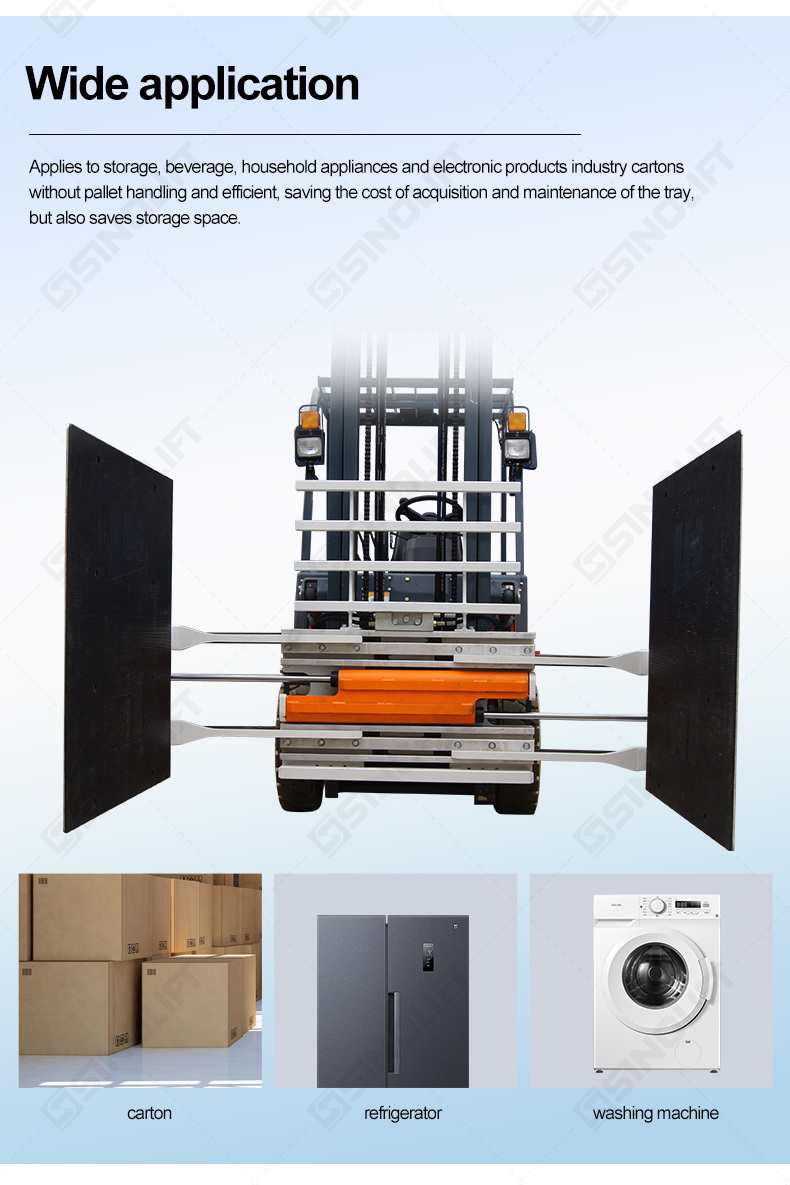

Application: Applies to storage, beverage, household appliances and electronic products industry cartons without pallet handling and efficient, saving the cost of acquisition and maintenance of the tray, but also saves storage space.

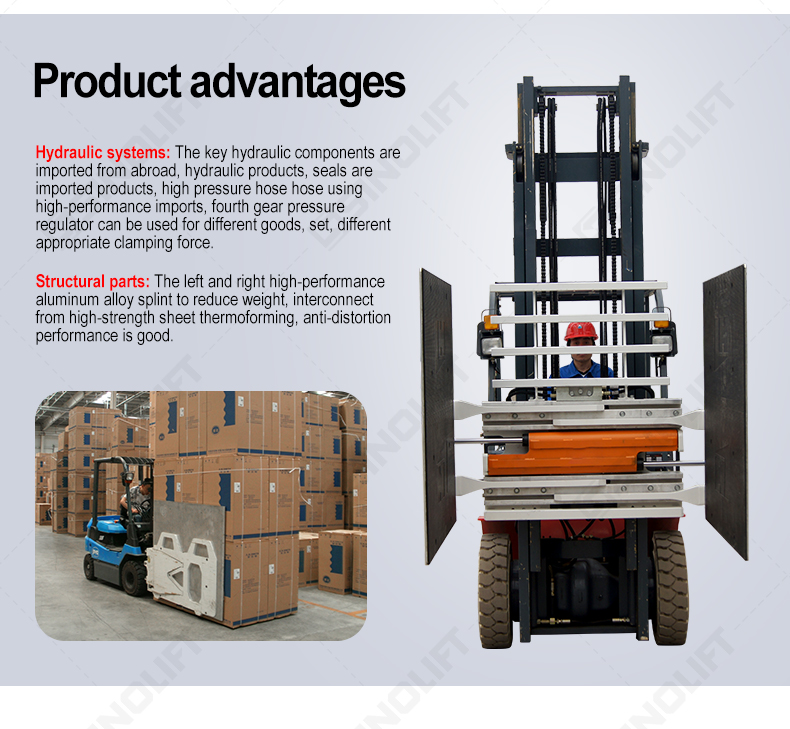

Hydraulic systems: The key hydraulic components are imported from abroad, hydraulic products, seals are imported products, high pressure hose hose using high-performance imports, fourth gear pressure regulator can be used for different goods, set, different appropriate clamping force.
Mechanical properties: The built-in lateral feature, you can also achieve clamping / opening and lateral function and good vision, additional oil line can meet the requirements of the two groups.
Structural parts: The left and right high-performance aluminum alloy splint to reduce weight, interconnect from high-strength sheet thermoforming, anti-distortion performance is good.
Application: Applies to storage, beverage, household appliances and electronic products industry cartons without pallet handling and efficient, saving the cost of acquisition and maintenance of the tray, but also saves storage space.

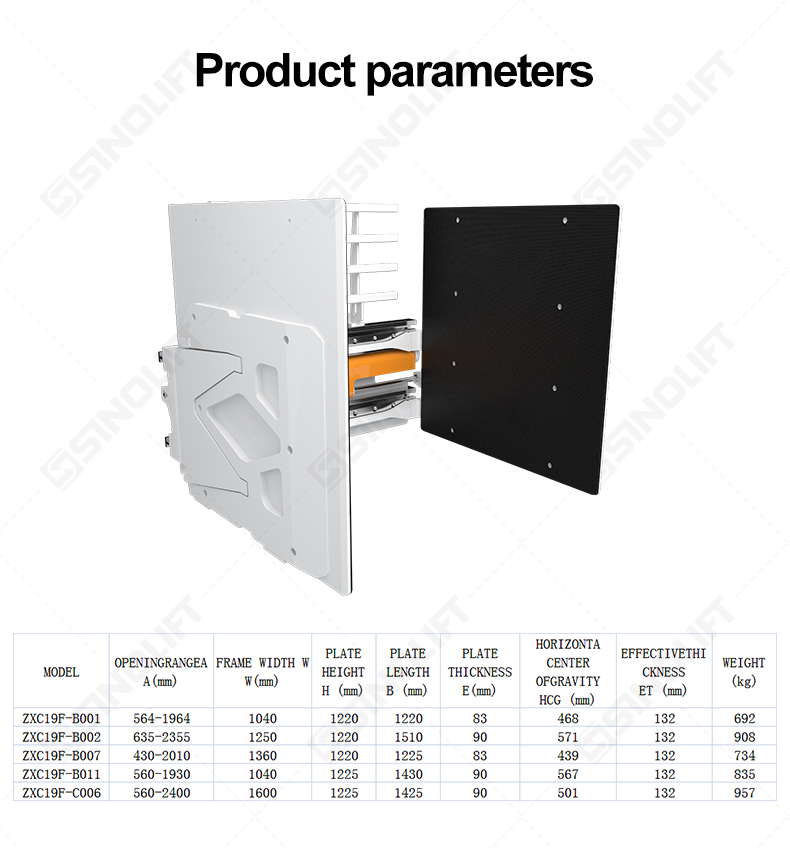

Specifications
LOAD CENTER (kg@mm) | MODEL | OPENINGRANGEA A(mm) | FRAME WIDTH W W(mm) | PLATE HEIGHT H (mm) | PLATE LENGTH B (mm) | PLATE THICKNESS E(mm) | HORIZONTA CENTER OFGRAVITY HCG (mm) | EFFECTIVETHICKNESS ET (mm) | WEIGHT (kg) |
| 1900@500 | ZXC19F-B001 | 564-1964 | 1040 | 1220 | 1220 | 83 | 468 | 132 | 692 |
| 1900@500 | ZXC19F-B002 | 635-2355 | 1250 | 1220 | 1510 | 90 | 571 | 132 | 908 |
| 1900@500 | ZXC19F-B007 | 430-2010 | 1360 | 1220 | 1225 | 83 | 439 | 132 | 734 |
| 1900@500 | ZXC19F-B011 | 560-1930 | 1040 | 1225 | 1430 | 90 | 567 | 132 | 835 |
| 1900@500 | ZXC19F-C006 | 560-2400 | 1600 | 1225 | 1425 | 90 | 501 | 132 | 957 |
