Multi-purpose Clamp forklift attachment

GBC

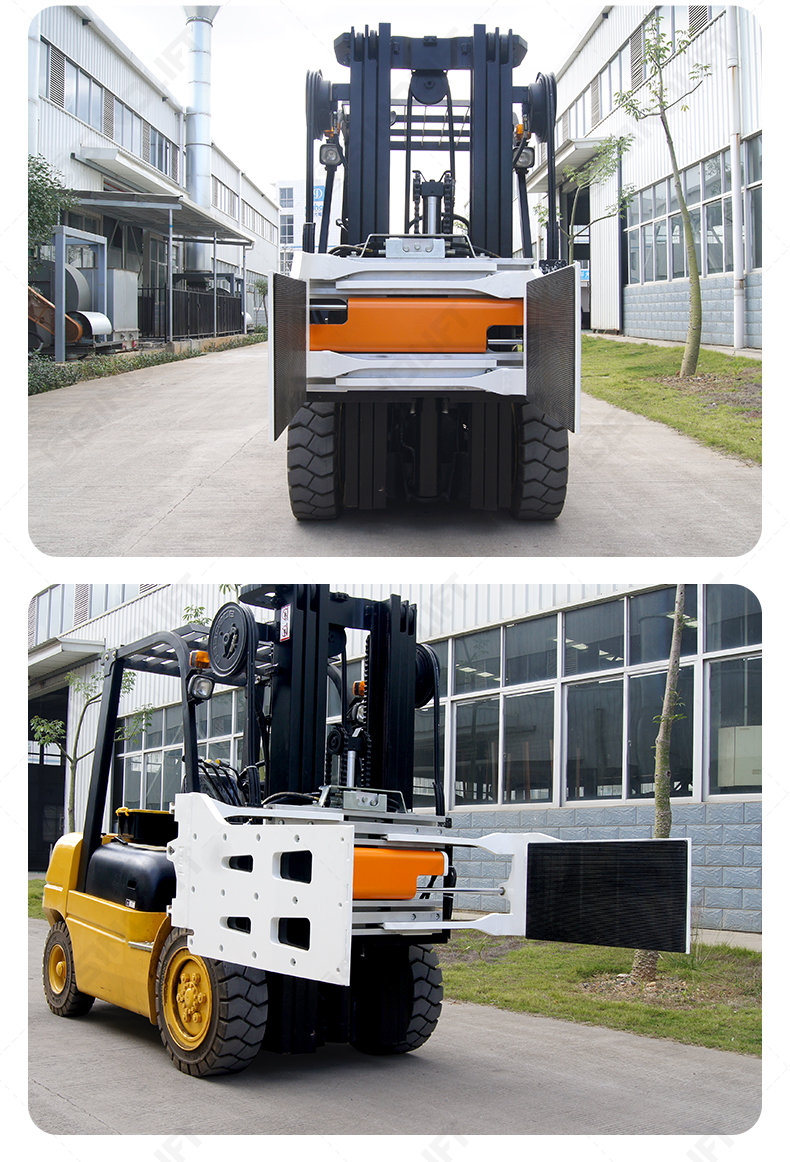

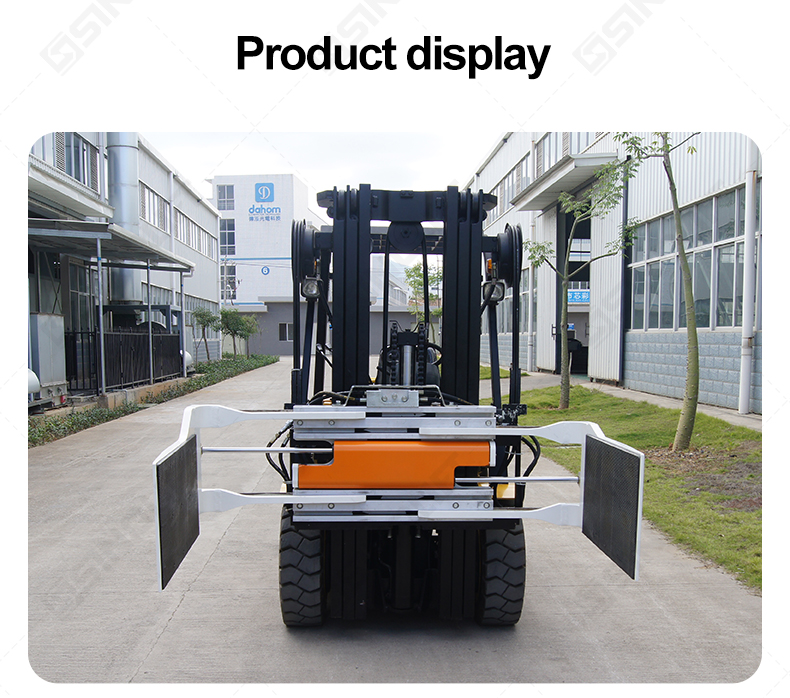

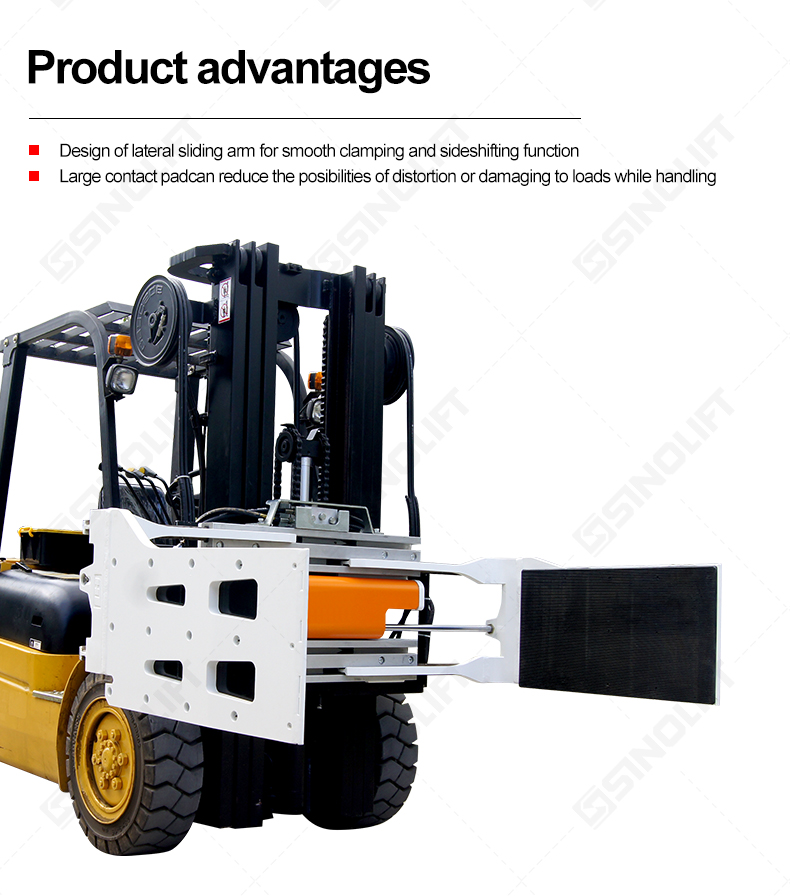

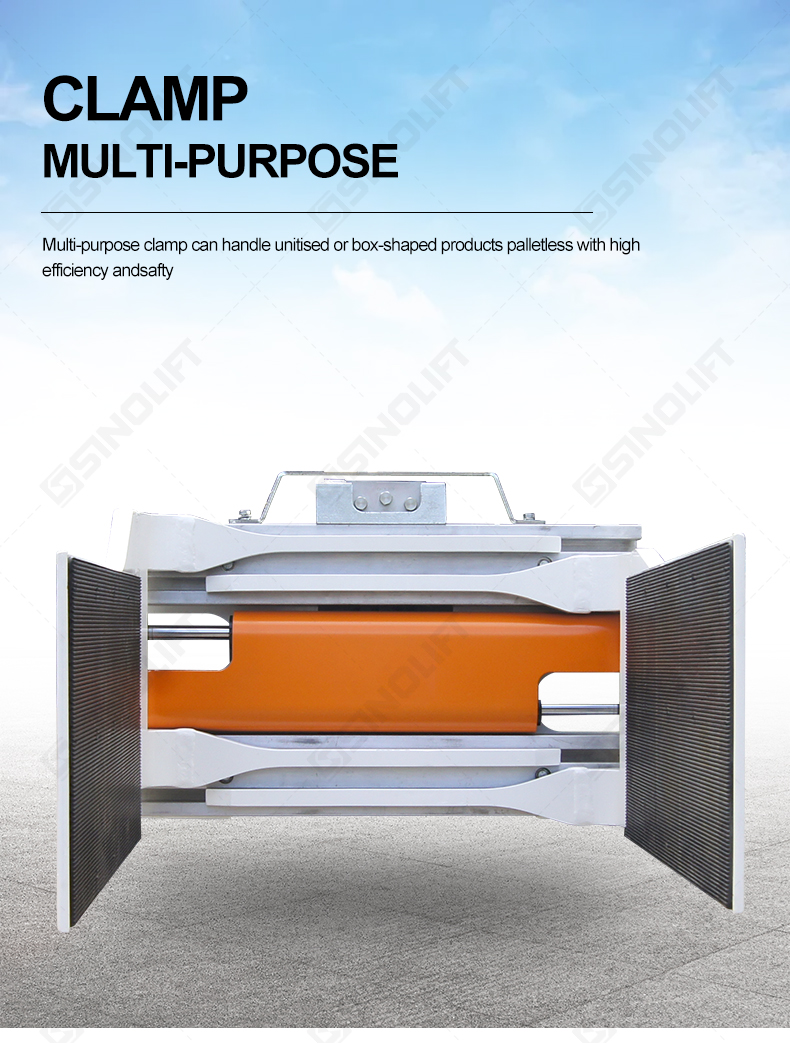

Multi-purpose clamp can handle unitised or box-shaped products palletless with high efficiency andsafty, Design of lateral sliding arm for smooth clamping and sideshifting function, Large contact padcan reduce the posibilities of distortion or damaging to loads while handling, it is widely used intobacco and white goods industries, to handle loads such as tobacco products carton, refrigerator.LED, and etc.

Quantity

Contact Now

add to cart

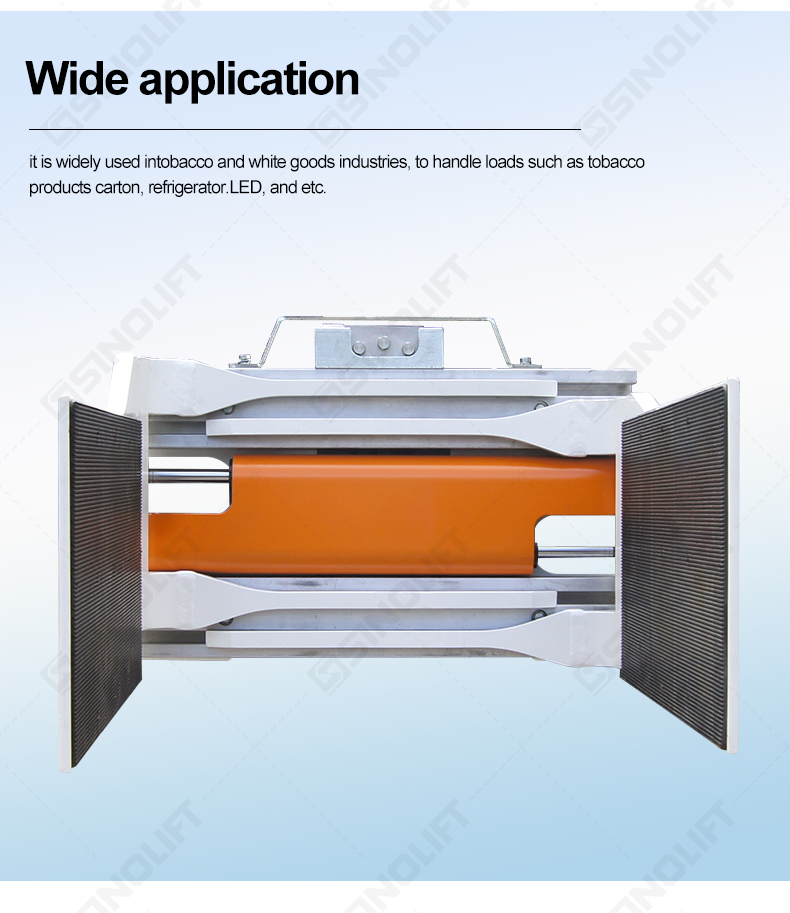

Multi-purpose clamp can handle unitised or box-shaped products palletless with high efficiency andsafty, Design of lateral sliding arm for smooth clamping and sideshifting function, Large contact padcan reduce the posibilities of distortion or damaging to loads while handling, it is widely used intobacco and white goods industries, to handle loads such as tobacco products carton, refrigerator.LED, and etc.

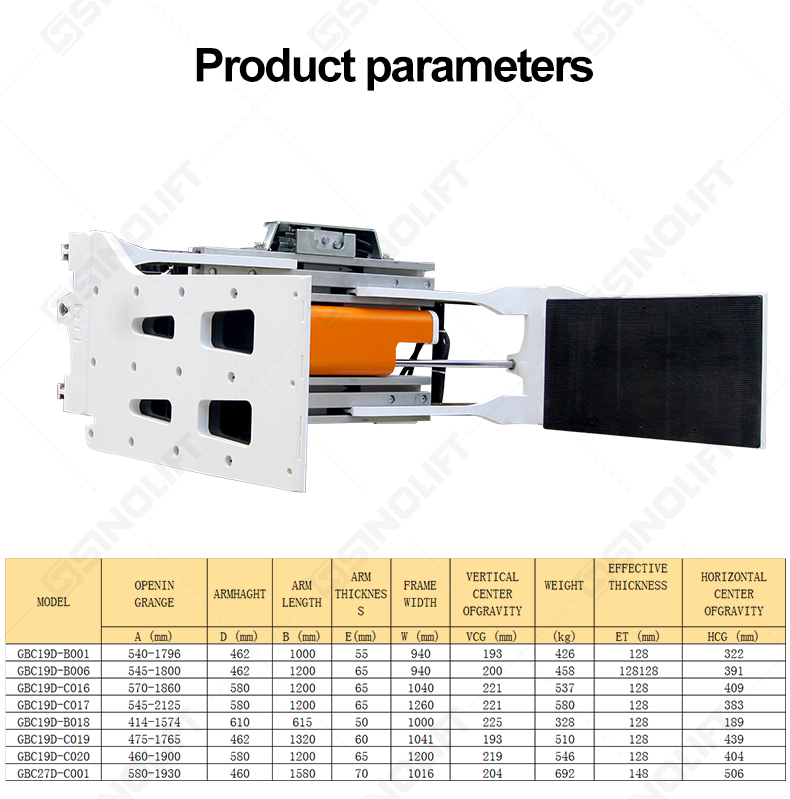

Specifications

MODEL	OPENIN GRANGE	ARMHAGHT	ARM LENGTH	ARM THICKNESS	FRAME WIDTH	VERTICAL CENTER OFGRAVITY	WEIGHT	EFFECTIVE THICKNESS	HORIZONTAL CENTER OFGRAVITY
MODEL	A (mm)	D (mm)	B (mm)	E(mm)	W (mm)	VCG (mm)	(kg)	ET (mm)	HCG (mm)
GBC19D-B001	540-1796	462	1000	55	940	193	426	128	322
GBC19D-B006	545-1800	462	1200	65	940	200	458	128128	391
GBC19D-C016	570-1860	580	1200	65	1040	221	537	128	409
GBC19D-C017	545-2125	580	1200	65	1260	221	580	128	383
GBC19D-B018	414-1574	610	615	50	1000	225	328	128	189
GBC19D-C019	475-1765	462	1320	60	1041	193	510	128	439
GBC19D-C020	460-1900	580	1200	65	1200	219	546	128	404
GBC27D-C001	580-1930	460	1580	70	1016	204	692	148	506
