Multi-purpose Foam Clamp

HMC

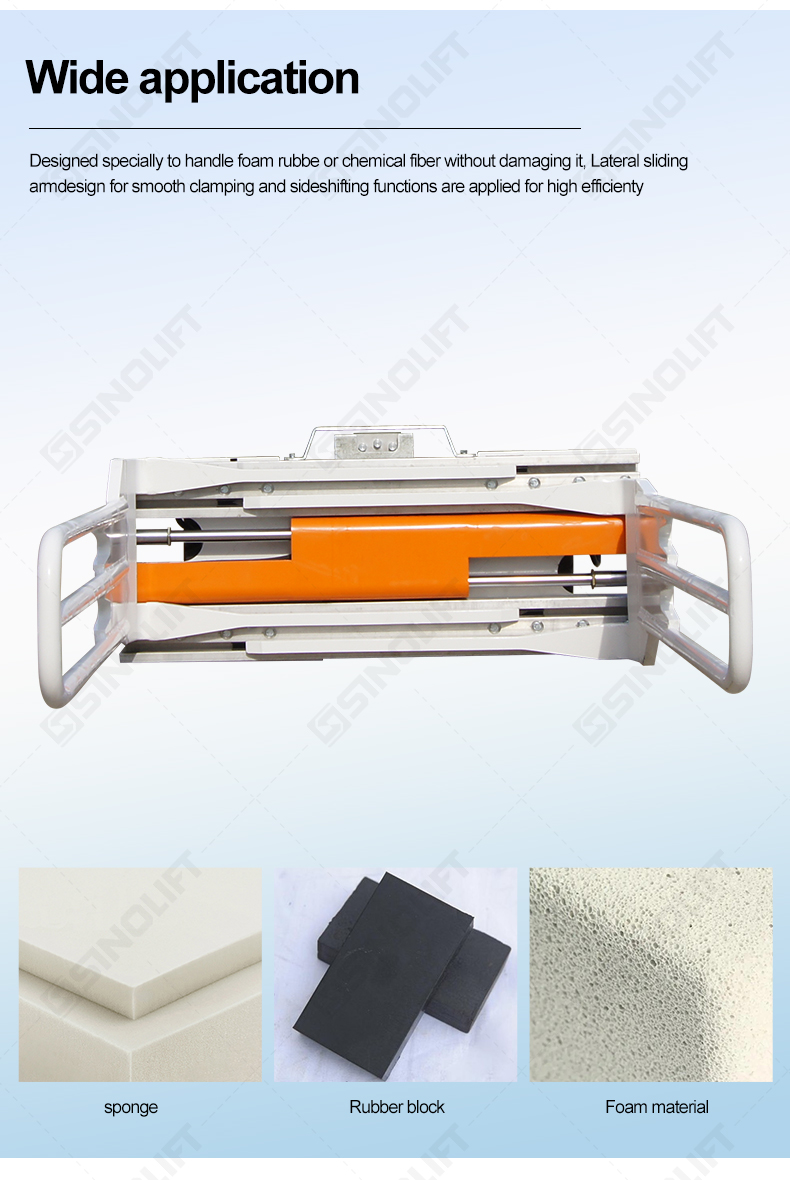

Designed specially to handle foam rubbe or chemical fiber without damaging it, Lateral sliding armdesign for smooth clamping and sideshifting functions are applied for high efficienty, safety, dur-ability and economy, Found in industries that need to handle foam blocks, with high effeciency.Come in wide range of opening and arm design for different load

Quantity

Contact Now

add to cart

Designed specially to handle foam rubbe or chemical fiber without damaging it, Lateral sliding armdesign for smooth clamping and sideshifting functions are applied for high efficienty, safety, dur-ability and economy, Found in industries that need to handle foam blocks, with high effeciency.Come in wide range of opening and arm design for different load

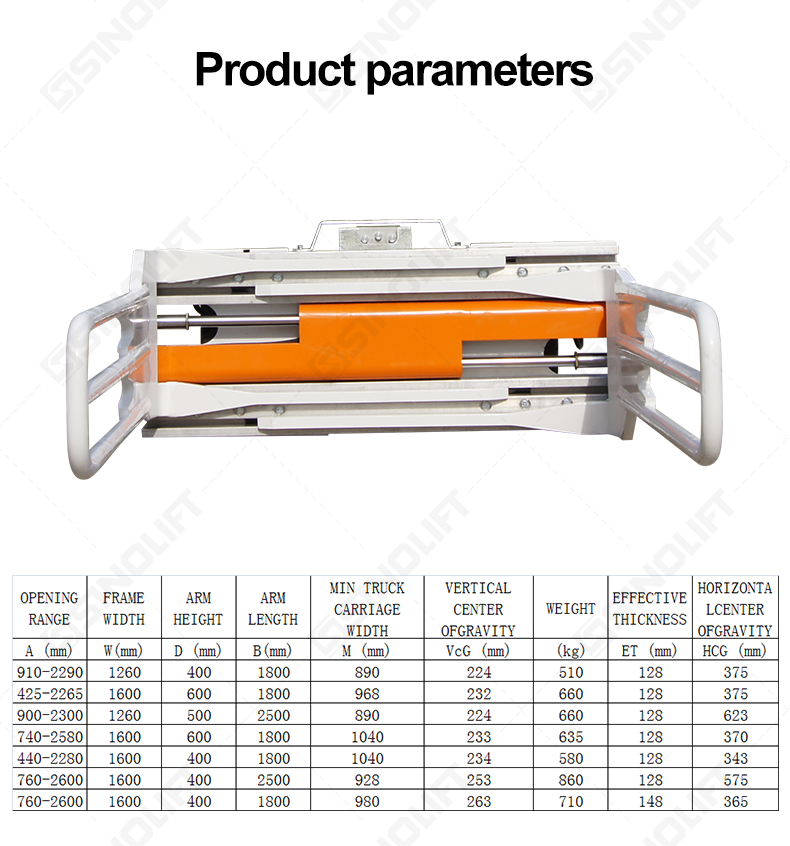

Specifications

CAPACITY@ LOAD CENTER	MODEL	OPENING RANGE	FRAME WIDTH	ARM HEIGHT	ARM LENGTH	MIN TRUCK CARRIAGE WIDTH	VERTICAL CENTER OFGRAVITY	WEIGHT	EFFECTIVE THICKNESS	HORIZONTALCENTER OFGRAVITY
(kg@mm)	MODEL	A (mm)	W(mm)	D (mm)	B(mm)	M (mm)	VcG (mm)	(kg)	ET (mm)	HCG (mm)
1900@500	HMC19D-B002	910-2290	1260	400	1800	890	224	510	128	375
1900@500	HMC19D-B006	425-2265	1600	600	1800	968	232	660	128	375
1900@500	HMC19D-B008	900-2300	1260	500	2500	890	224	660	128	623
1900@500	HMC19D-C001	740-2580	1600	600	1800	1040	233	635	128	370
1900@500	HMC19D-C005	440-2280	1600	400	1800	1040	234	580	128	343
2700@500	HMC27D-B003	760-2600	1600	400	2500	928	253	860	128	575
2700@500	HMC27D-C001	760-2600	1600	400	1800	980	263	710	148	365
