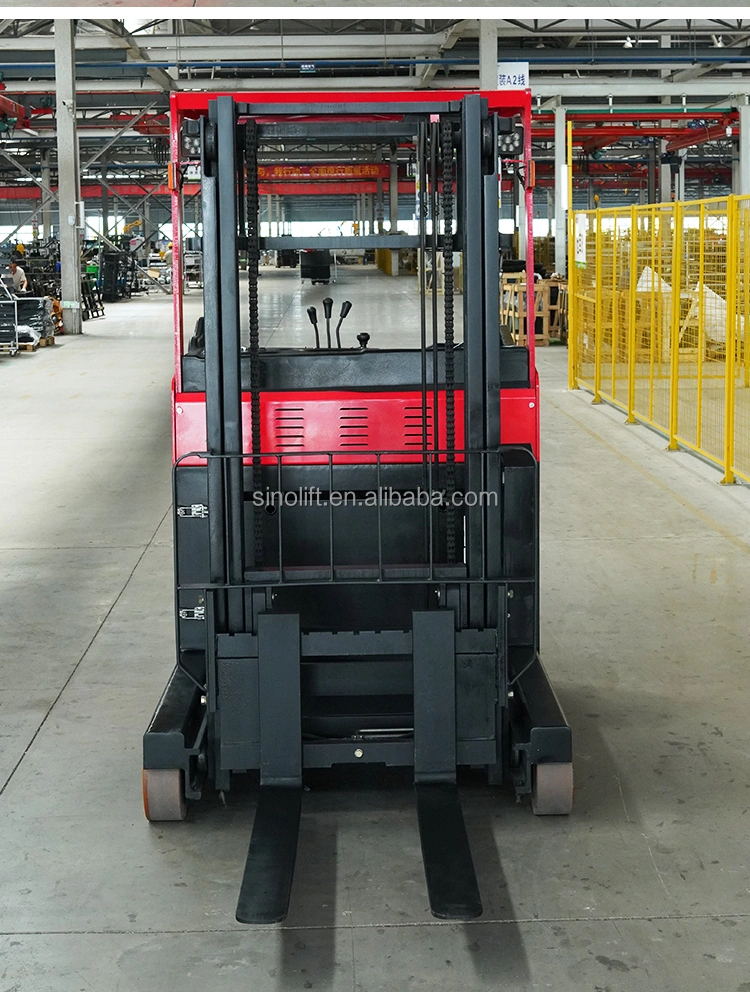

CQD15B CQD20B Electric Reach Truck

CQD15B CQD20B

Industrial Electric Reach Truck are known for their maximum lift height capability. They are so called because among all other forklifts, they are able to reach higher heights than their legs and operate even in harsh working environments. In addition to that, they are highly maneuverable. It has stable legs and a battery design that makes it unnecessary to have counterweights.

Quantity

Contact Now

add to cart

CQD15B CQD20B Electric Reach Truck

Industrial Electric Reach Truck are known for their maximum lift height capability. They are so called because among all other forklifts, they are able to reach higher heights than their legs and operate even in harsh working environments. In addition to that, they are highly maneuverable. It has stable legs and a battery design that makes it unnecessary to have counterweights.

Some industrial Electric Reach Truck have a mechanism that allows their cab to be tilted, giving the operator a more convenient viewing position. Others have a camera with an LCD screen in the cab, while some have an open overhead guard.

Electric Reach Truck are the most common type. This type of forklift operates and moves by allowing the two forks at the front of the truck to slide under the load. They are used where there is only one load per bay. Double deep forklifts have longer forks than stand-up trucks, and they are ideal for warehouses that store a large amount of goods per bay.

"Ergonomic"We further pursue a comfortable operating feeling.
"Energy saving"We will provide our customers with an environmentally friendly material handling environment.
"Smooth turnaround"We support our customers in improving the efficiency of their logistics operations.

Manufacturer Brand	SINOLIFT
Model			CQD15B	CQD20B
Power Type			Electric	Electric
Type of Operation			Stand-on	Stand-on
Steering Mode			Electric Power Steering
Load Capacity/Rated Load	Q	kg	1500	2000
Load Center Distance	c	mm	500	500
Load Distance. center of drive axle to fork	x	mm	160	160
Wheelbase	y	mm	1375	1525
Total Weight (with Battery)		kg	2700	2900
Axle Load (laden):Drive side/Load-bearing Side		kg	/	/
Axle Load (unladen):Drive side/Load-bearing Side		kg	/	/
Overlength (Mast Reached/Mast Retracted)	L1/L2	mm	2820/2355	2970/2360
Frame Length (Without Fork)	L	mm	1760	1910
Overall Width	W1	mm	1270	1270
Height of Overhead Guard	h7	mm	2260	2260
Lift Height	h1	mm	3000	3000
Height with Mast Lowered	h2	mm	2100	2100
Height with Mast Extended	h4	mm	3900	3900
Free Lift Height	h5	mm	L	L
Fork Dimension	I/e/s	mm	1070/100/35	1070/122/40
Type of Fork Carriage A, B Class			2A	2A
Fork Spread Width	b2	mm	225-820	250-820
Fork Carriage Width		mm	868	868
Fork Tilt (Forward/Backward)	a/B	°	3/5	3/5
Distance of Straddle Leg	b3	mm	920	920
Reach Distance	L3	mm	465	610
Height of Straddle Leg	h6	mm	310	310
Ground Clearance at The Center of Wheelbase (Min)	m1	mm	80	80
Turning Radius	Wa	mm	1675	1820
Aisle Width for Pallets 1000 x 1200	Ast	mm	2860	2880
Aisle Width for Pallets 800 x 1200	Ast	mm	2810	2825
Tyre Type			Polyurethane	Polyurethane
Tyre Size (Front)		mm	Ø267X114	Ø267X114
Tyre Size (Auxiliary Wheel)		mm	Ø180X55	Ø180X55
Tyre Size (Driving Wheel)		mm	Ø343X135	Ø343X135
Wheels Quantity, front/rear (x=Diving Wheels)			2/1x+2	2/1x+2
Traveling Speed (laden/unladen)		Km/h	10/12	10/12
Llfting Speed (laden/unladen)		mm/s	270/375	270/375
Lowering Speed(aden/unladen)		mm/s	300/270	310/260
Max. Gradient Performance S2 5min (laden/unladen)		%	10/15	10/15
Service BrakeType			Electromagnetic	Electromagnetic
Parking Brake Type			Electromagnetic	Electromagnetic
Drive Motor Rating (AC) S2-60min		kW	6.5	6.5
Lift Motor Rating (AC)S3-15%		kw	12	12
Battery Voltage/Capacity K5		V/Ah	48/350	48/400
Battery Weight		kg	650	710
Controller Brand			CURTIS	CURTIS
Controller Model			2-1234SE+1222	2-1234SE+1222
Sound Level Driver's Ear According to EN 12053		dB	70	70

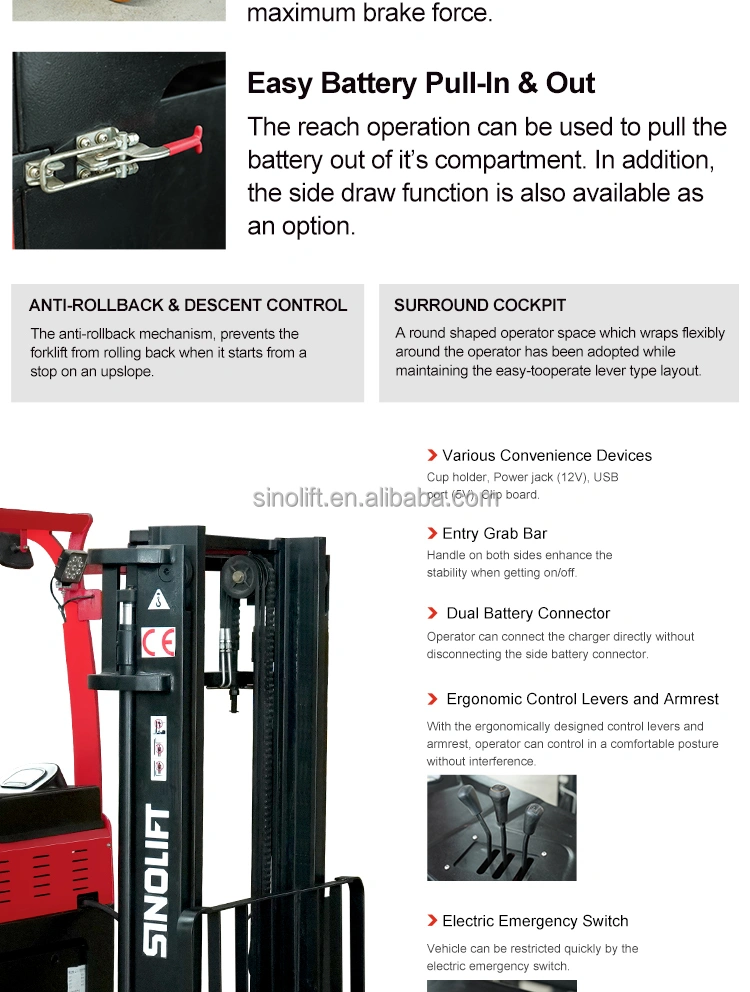

Battery Change			Side Roll Out	Side Roll Out
