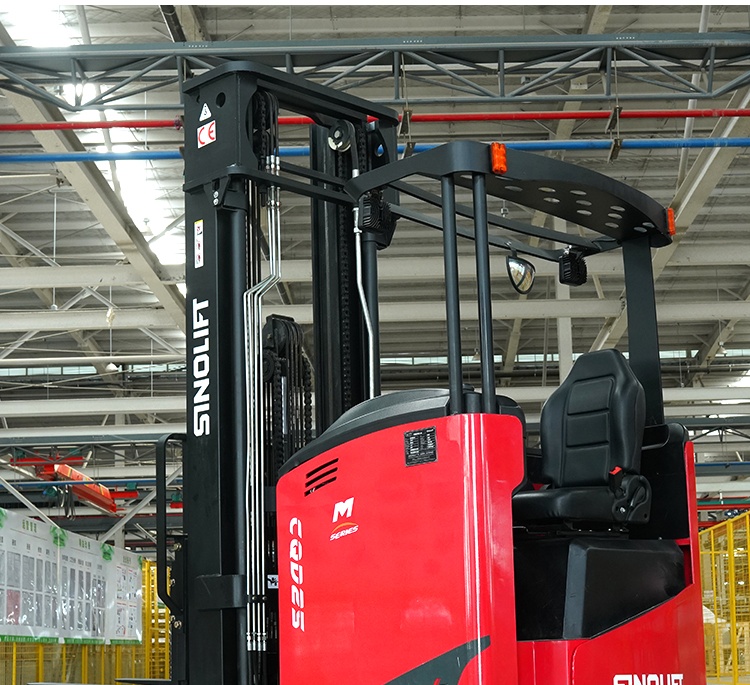

CQD25A Movable Mast Electric Reach Truck With Load 2.5 Ton
CQD25A
The CQD series of reach trucks offer a new dimension of efficiency, energy savings and performance.
Quantity:
CQD25A Movable Mast 2.5t Electric reach truck
CQD25A Mobile Door Frame 2.5t Electric Reach Trucks, Battery Powered Reach Trucks
The CQD series of reach trucks offer a new dimension of efficiency, energy savings and performance.
SINOLIFT's intelligent system reduces speed when turning, recognizes whether the operator is pulling into or out of a curve, analyzes steerer tire angle, driving direction and steering direction, and automatically adjusts speed and acceleration for maximum safety and performance.
Each reach truck is configured to provide the best chassis/battery/mast combination according to the requirements of the application.
The CQD series has many standard configuration details that enhance safety and productivity when the equipment is in use:

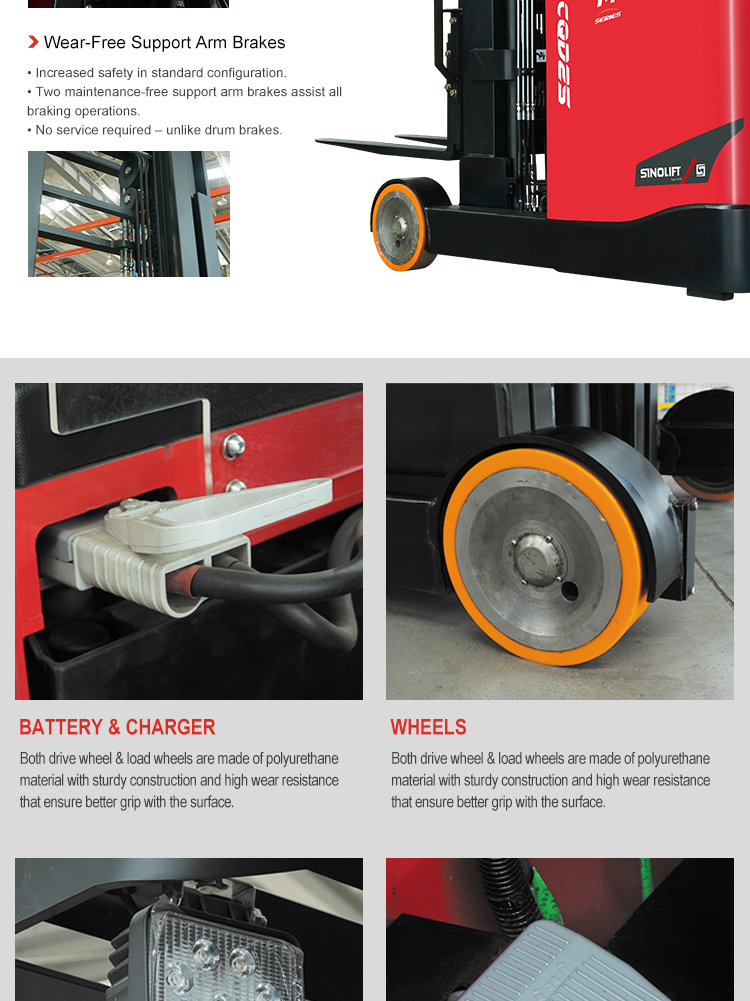

Wear-free support arm brakes
Tilting cargo forklift
High travel speed (up to 10 km/h)

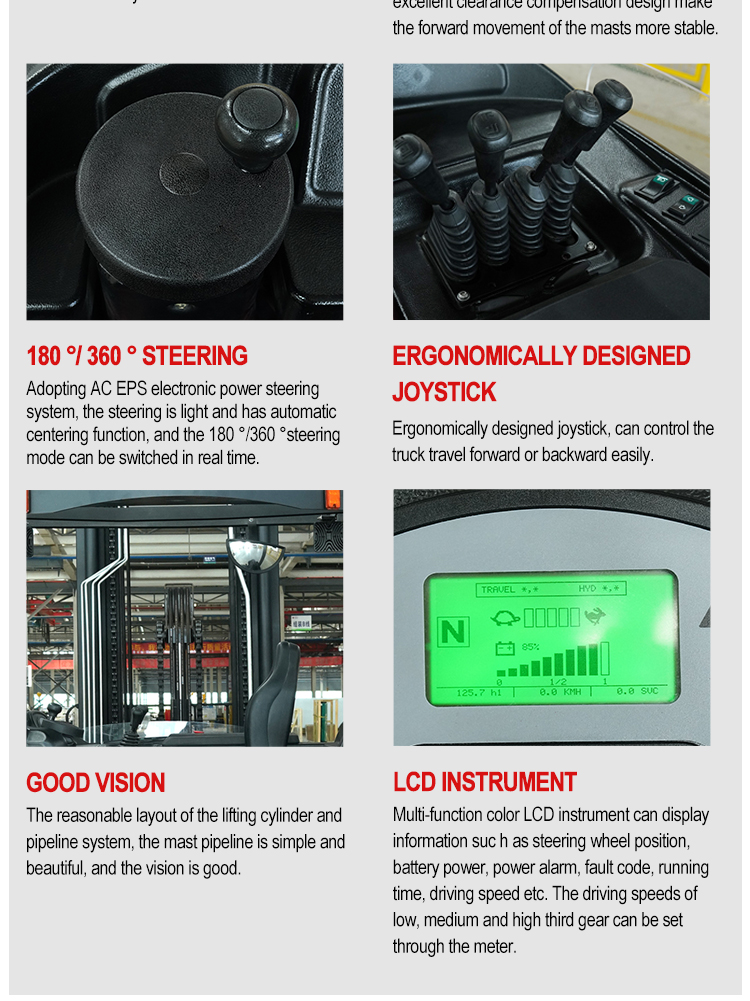

Electronic 180° or 360° steering
Support arm rollers with protective cover

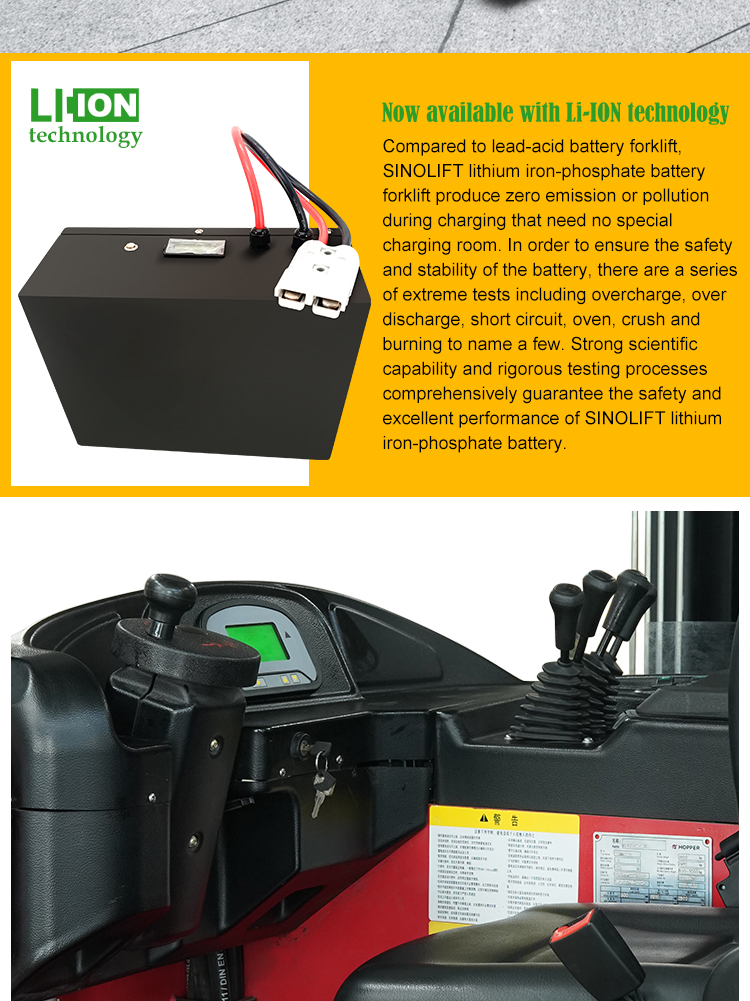

Lateral battery removal via rollers
Battery feeding for easy maintenance
The CQD series of reach trucks offer a new dimension of efficiency, energy savings and performance.
SINOLIFT's intelligent system reduces speed when turning, recognizes whether the operator is pulling into or out of a curve, analyzes steerer tire angle, driving direction and steering direction, and automatically adjusts speed and acceleration for maximum safety and performance.
Each reach truck is configured to provide the best chassis/battery/mast combination according to the requirements of the application.
The CQD series has many standard configuration details that enhance safety and productivity when the equipment is in use:
Wear-free support arm brakes
Tilting cargo forklift
High travel speed (up to 10 km/h)
Electronic 180° or 360° steering
Support arm rollers with protective cover
Lateral battery removal via rollers
Battery feeding for easy maintenance
| Manufacturer Brand | SINOLIFT | ||
| Model | CQD25A | ||
| Power Type | Electric | ||
| Type of Operation | Seated | ||
| Steering Mode | Electric Power Steering | ||
| Load Capacity/Rated Load | Q | kg | 2500 |
| Load Center Distance | c | mm | 600 |
| Load Distance. center of drive axle to fork | x | mm | 160 |
| Wheelbase | y | mm | 1600 |
| Total Weight (with Battery) | kg | 3800 | |
| Axle Load (laden):Drive side/Load-bearing Side | kg | / | |
| Axle Load (unladen):Drive side/Load-bearing Side | kg | / | |
| Overlength (Mast Retracted) | L1 | mm | 2470 |
| Frame Length (Without Fork) | L7 | mm | 2040 |
| Overall Width | b2 | mm | 1270 |
| Height of Overhead Guard | h6 | mm | 2160 |
| Lift Height | h3 | mm | 6500 |
| Height with Mast Lowered | h1 | mm | 2856 |
| Height with Mast Extended | h4 | mm | 7530 |
| Free Lift Height | h5 | mm | 2260 |
| Fork Dimension | I/e/s | mm | 1070/122/40 |
| Type of Fork Carriage A, B Class | 2A | ||
| Fork Spread Width | mm | 250 | |
| Fork Carriage Width | mm | 820 | |
| Fork Tilt (Forward/Backward) | a/B | ° | 2/4 |
| Distance of Straddle Leg | b3 | mm | 924 |
| Reach Distance | L4 | mm | 650 |
| Height of Straddle Leg | h6 | mm | 310 |
| Ground Clearance at The Center of Wheelbase (Min) | m1 | mm | 80 |
| Turning Radius | Wa | mm | 1915 |
| Aisle Width for Pallets 1000 x 1200 | Ast | mm | 2952 |
| Aisle Width for Pallets 800 x 1200 | Ast | mm | 2997 |
| Tyre Type | Polyurethane | ||
| Tyre Size (Front) | mm | Ø350X100 | |
| Tyre Size (Auxiliary Wheel) | mm | Ø180X55 | |
| Tyre Size (Driving Wheel) | mm | Ø343X140 | |
| Wheels Quantity, front/rear (x=Diving Wheels) | 2/1x+2 | ||
| Traveling Speed (laden/unladen) | Km/h | 10/10.5 | |
| Llfting Speed (laden/unladen) | m/s | 0.35/0.6 | |
| Lowering Speed(aden/unladen) | m/s | 0.5/0.5 | |
| Max. Gradient Performance S2 5min (laden/unladen) | % | 10/15 | |
| Service BrakeType | Hydraulic | ||
| Parking Brake Type | Electromagnetic | ||
| Drive Motor Rating (AC) S2-60min | kW | 6.5 | |
| Lift Motor Rating (AC)S3-15% | kw | 13 | |
| Battery Voltage/Capacity K5 | V/Ah | 48/600 | |
| Battery Weight | kg | 650 | |
| Controller Brand | CURTIS | ||
| Controller Model | 2-1234SE+1222 | ||
| Sound Level Driver's Ear According to EN 12053 | dB | 70 | |
| Battery Change | Side Roll Out | ||
