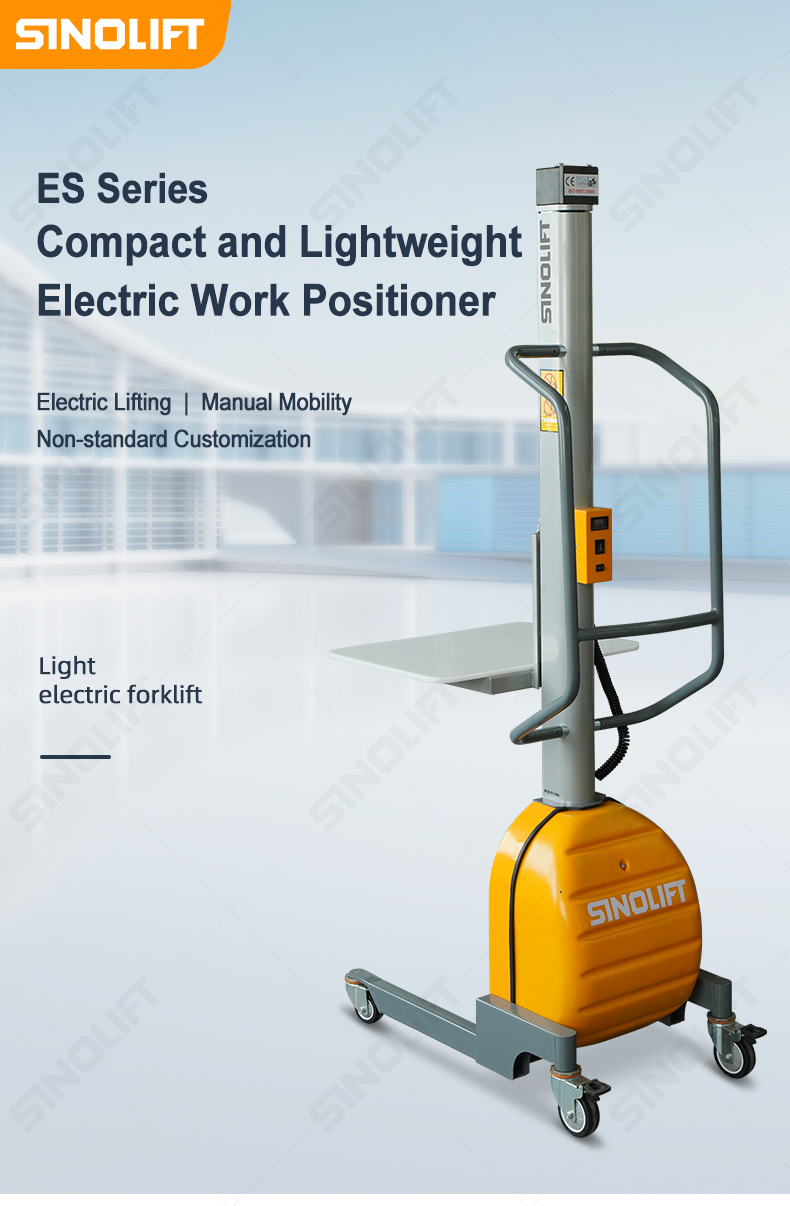

ES100 ES150 ES200 Compact and Lightweight Electric Work Positioner

Stable Lifting and Reliable Performance

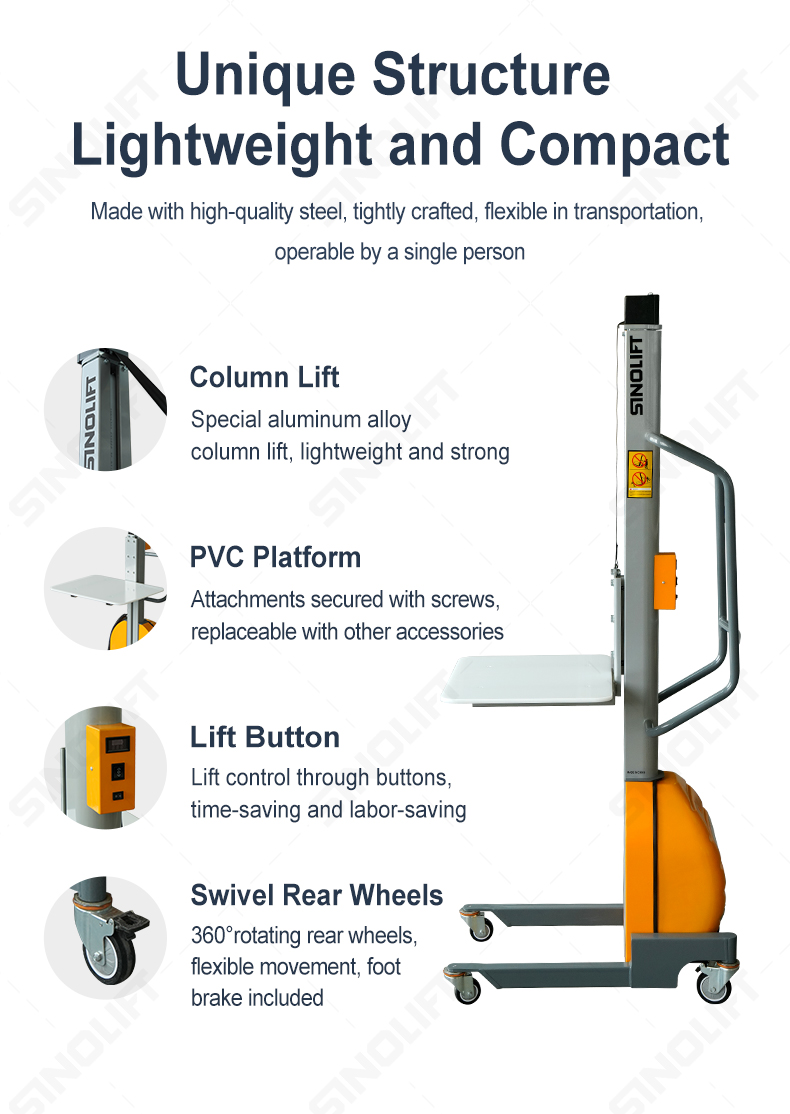

• The vehicle's columns are made of lightweight, high-strength aluminum profiles, ensuring portability and ease of use.

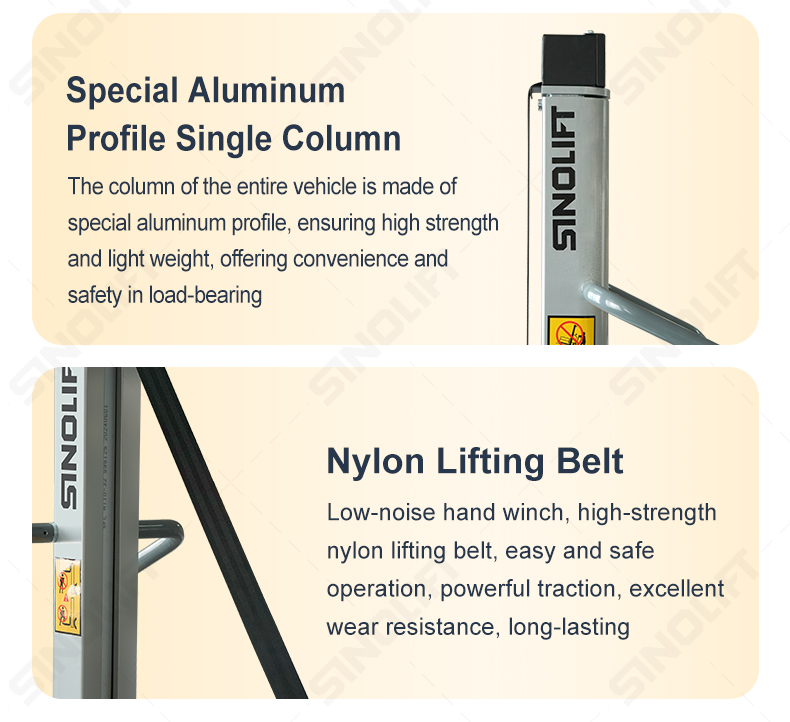

• Special Aluminum Profile Single Column

• The vehicle's columns are made of special aluminum profiles, which are high-strength and lightweight, ensuring portability and safe load-bearing.

Nylon Lifting Strap

• Low-noise hand-crank winch with high-strength nylon lifting strap, easy and safe operation, strong pulling force, excellent wear resistance, and longer service life.

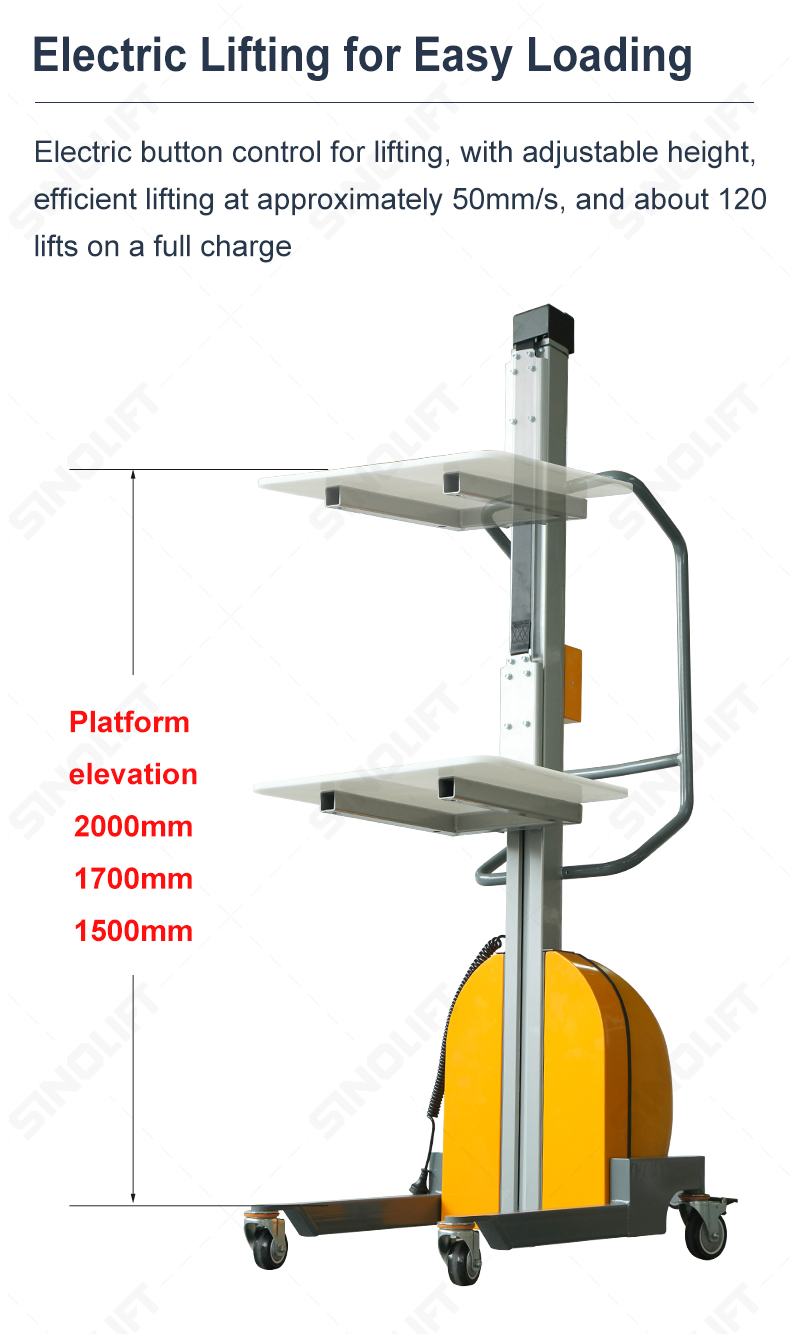

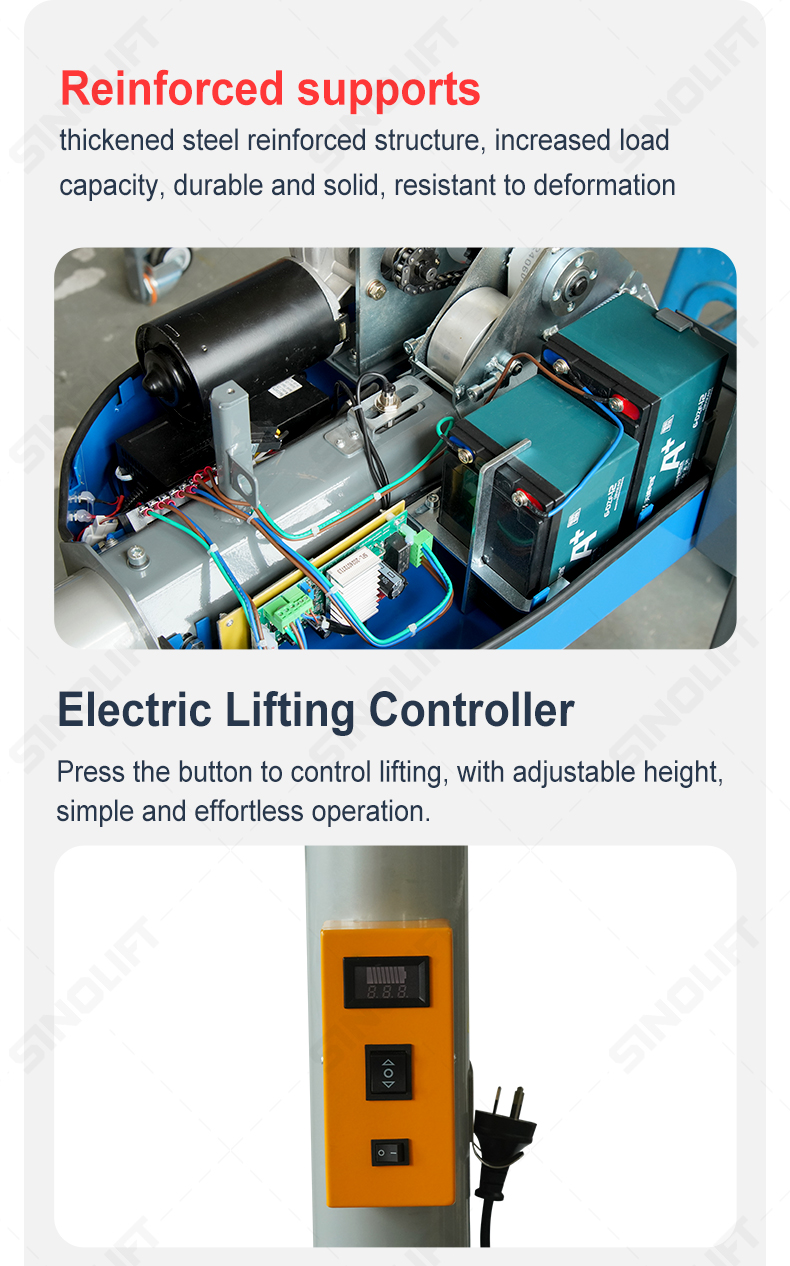

Electric Lifting for Easy Loading

• Electric button control for lifting, with adjustable height, efficient lifting at approximately 50mm/s, and about 120 lifts on a full charge.

.Parameters of ES Series Compact and Lightweight Electric Work Positioner:

Model with Standard Platform		ES100	ES150	ES200

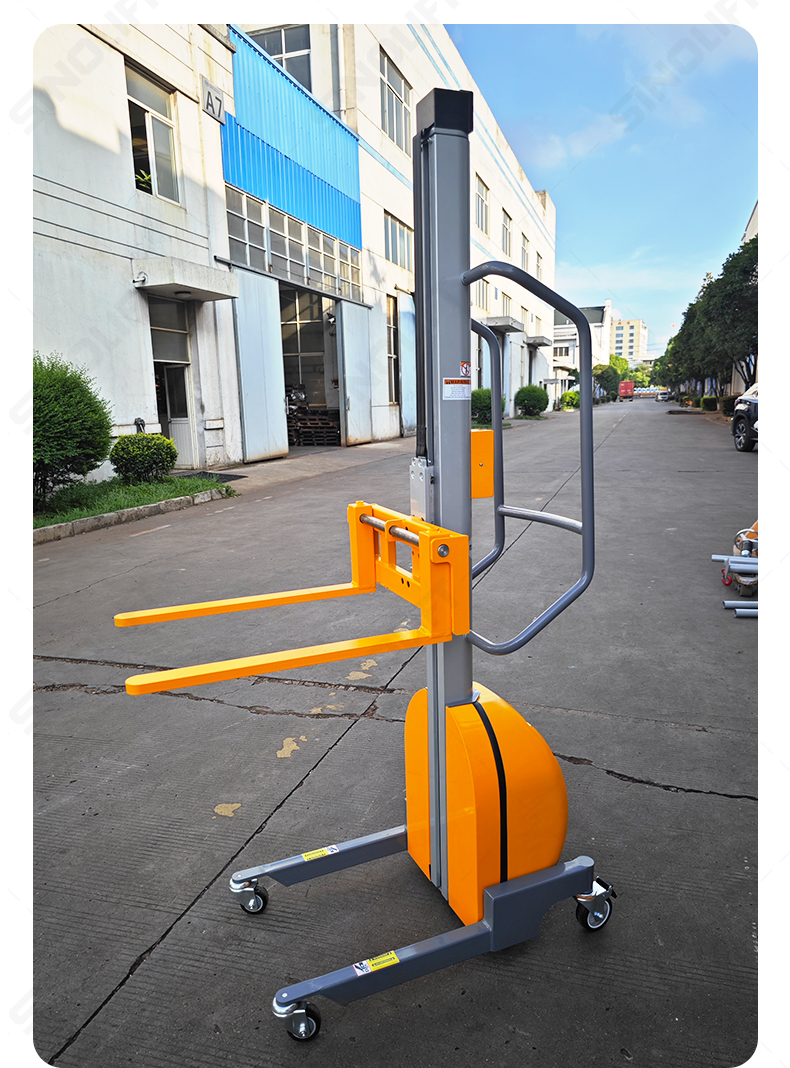

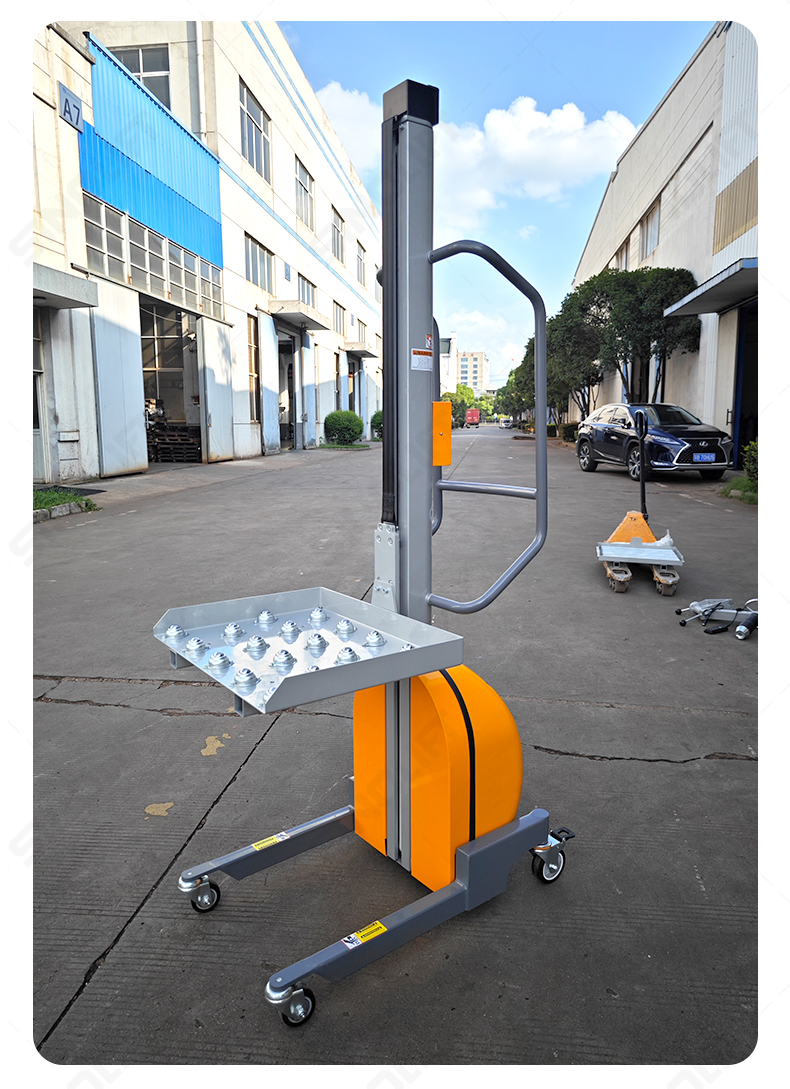

Model with Adjustable Fork		ES100f	ES150f	ES200f
Load Capacity	kg	100	150	200
Load Center	mm	235	235	200
Maximum Platform/Fork Height	mm	1700/2000	1500/1700/2000	1500/1700/2000
Standard Minimum Platform/Fork Height	mm	130	130	130
Optional Minimum Platform/Fork Height	mm	85	85	85

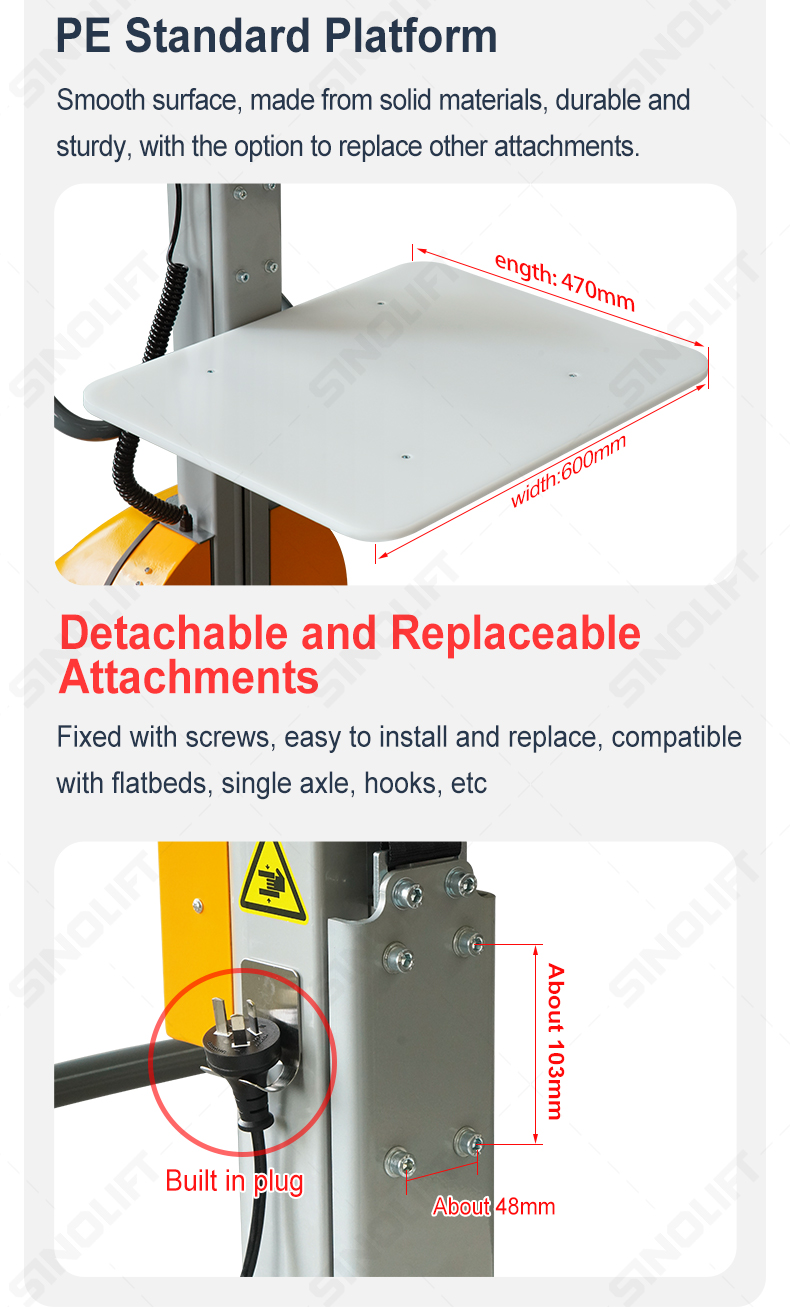

Platform Size	mm	PVC600×470
Fork Length	mm	550
Overall Fork Width	mm	200~520
Loading Roller Diameter	mm	75×20
Lifting/Lowering Speed	mm/s	55
Battery	V/Ah	24/10
Vehicle Length/Width	mm	850×600
Vehicle Height	mm	2165/2465	1965/2165/2465	1965/2165/2465
Net Weight	kg	68/70	72/74/76	84/86/88
