FJCL25 FJCL45 FJCL50 FJCL100 high quality and security certification jib crane forklift
FJCL25 FJCL45 FJCL50 FJCL100

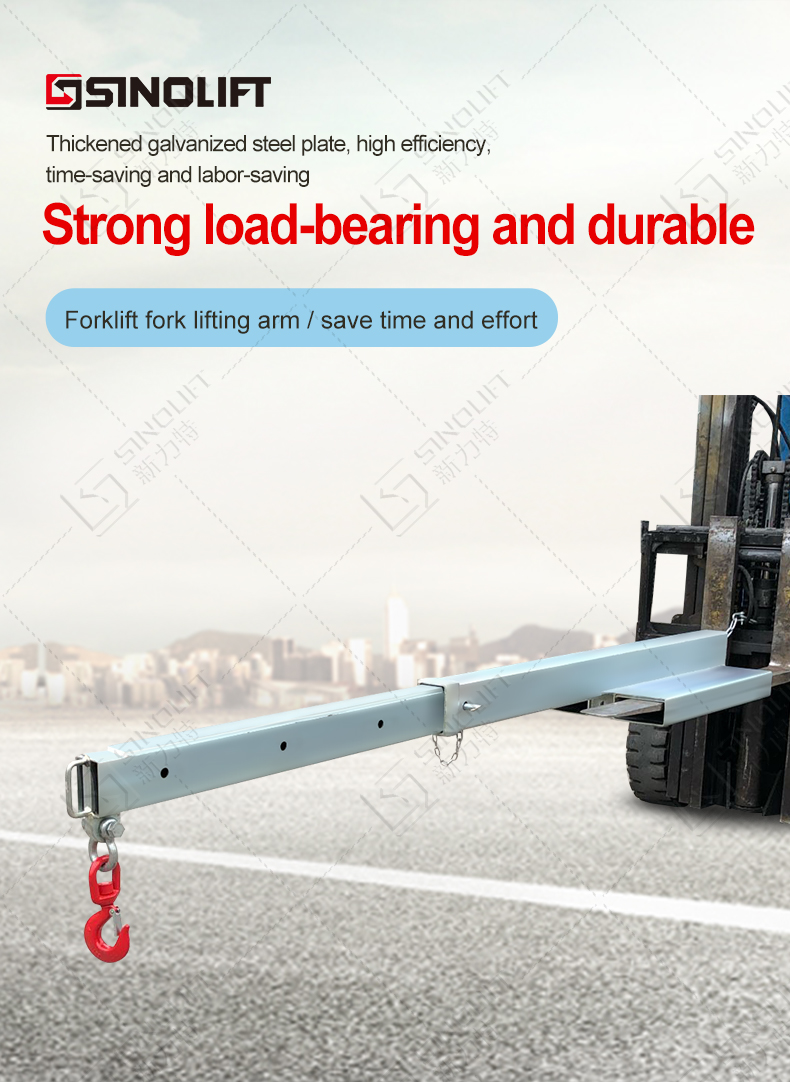

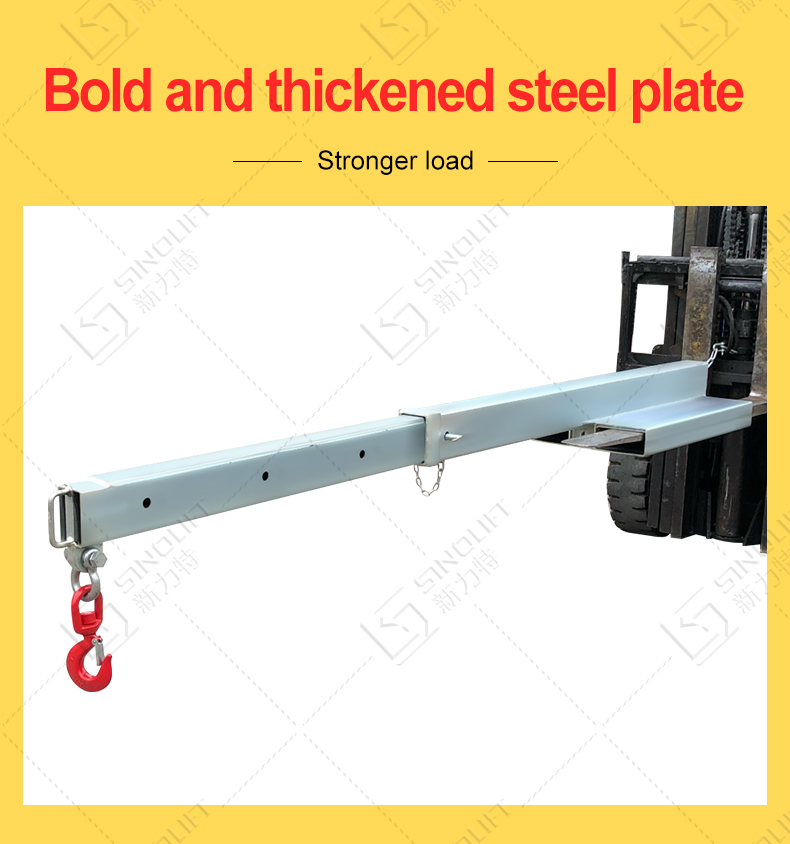

Thicked galvanized steel plate,high efficiency,time-saving and labor-saving
Quantity

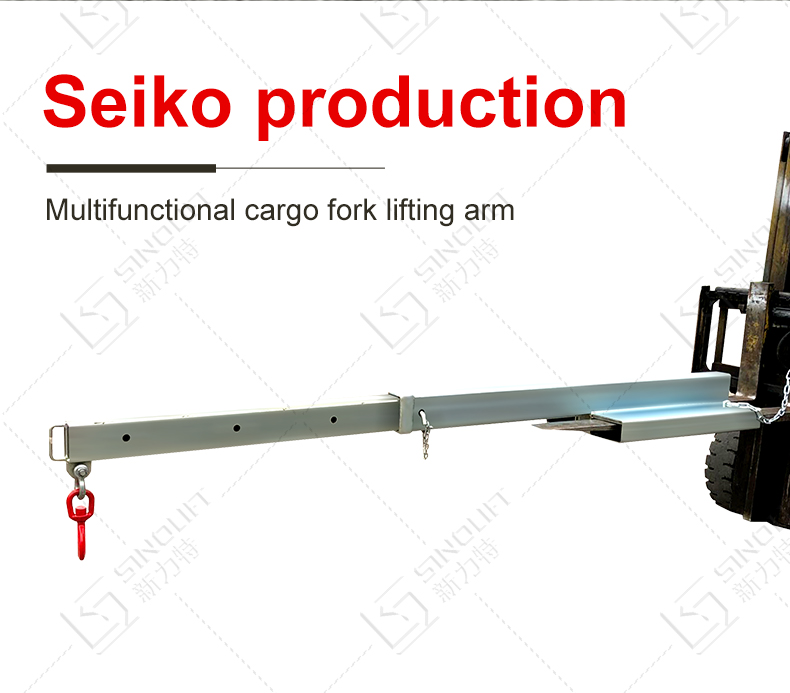

FJCL25 FJCL45 FJCL50 FJCL100 high quality and security certification jib crane forklift
- Small in size and little space taking.

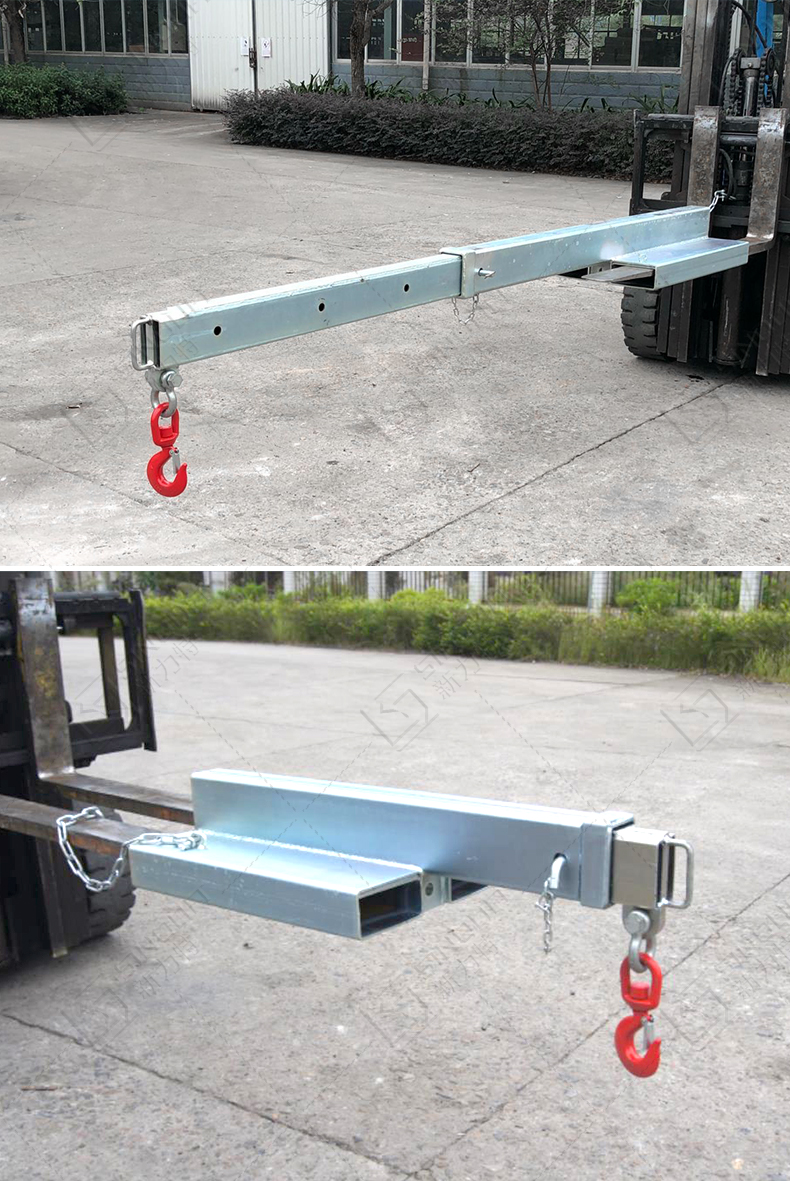

- Easy installation, mainly used for lifting goods in the situation without travelling crane and only forklift available.

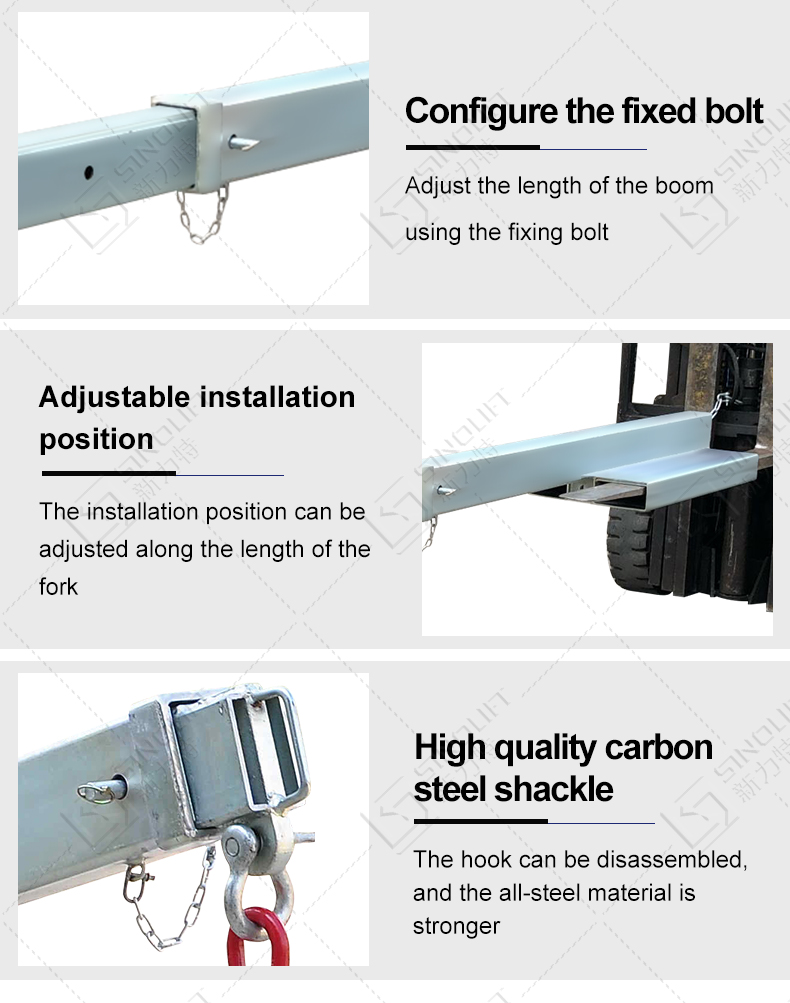

- Telescopic boom design makes flexible lifting length.
- Capacity: 2500kg,4500kg,4750kg,9500kg.

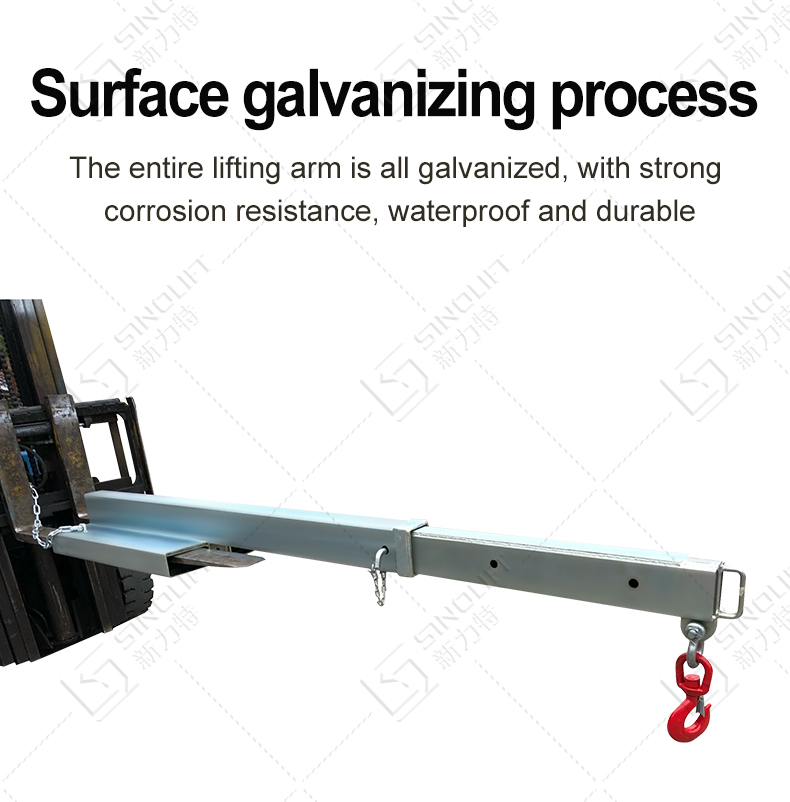

- Surface treatment: painted or galvanized finish.
| Model | FJCL25 | FJCL45 | FJCL50 | FJCL100 |
Overall Length Retracted/Extended(m) | 2.1-3.5 | 2-3.5 | 2.1-3.5 | 2.19-3.56 |
| Max.SWL(kg) | 2500 | 4500 | 4750 | 9500 |
| ForkPocket Size(mm) | 185X65 | 185X65 | 185X75 | 230X110 |
| Unit Weight(kg) | 130 | 140 | 170 | 515 |
| SafeWorkingLoad(SWL)PerPosition(kg/mm) | 2500/950 | 4500/870 | 4750/935 | 9500/920 |
| 2500/1410 | 1300/1945 | 4275/1395 | 8550/1380 | |
| 1900/1870 | 750/2325 | 3800/1855 | 7600/1805 | |
| 1650/2000 | 560/2705 | 3300/2000 | 6600/2045 | |
| 1250/2380 | 380/3085 | 2500/2380 | 5000/2425 | |
| 650/2760 | 200/3465 | 1300/2760 | 2600/2805 | |
| 380/3140 | - | 760/3140 | 1520/3185 | |
| 240/3520 | - | 480/3520 | 960/3565 |
