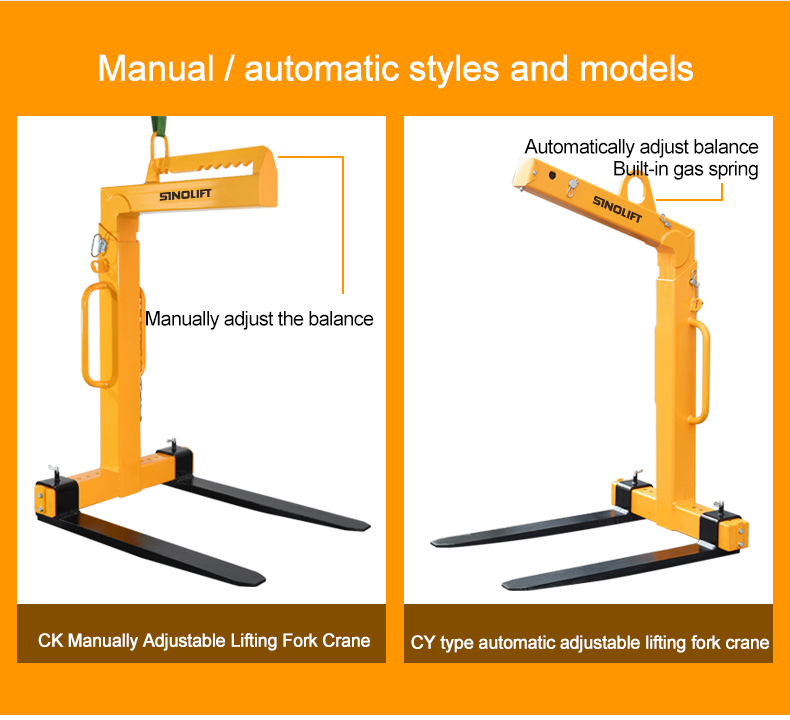

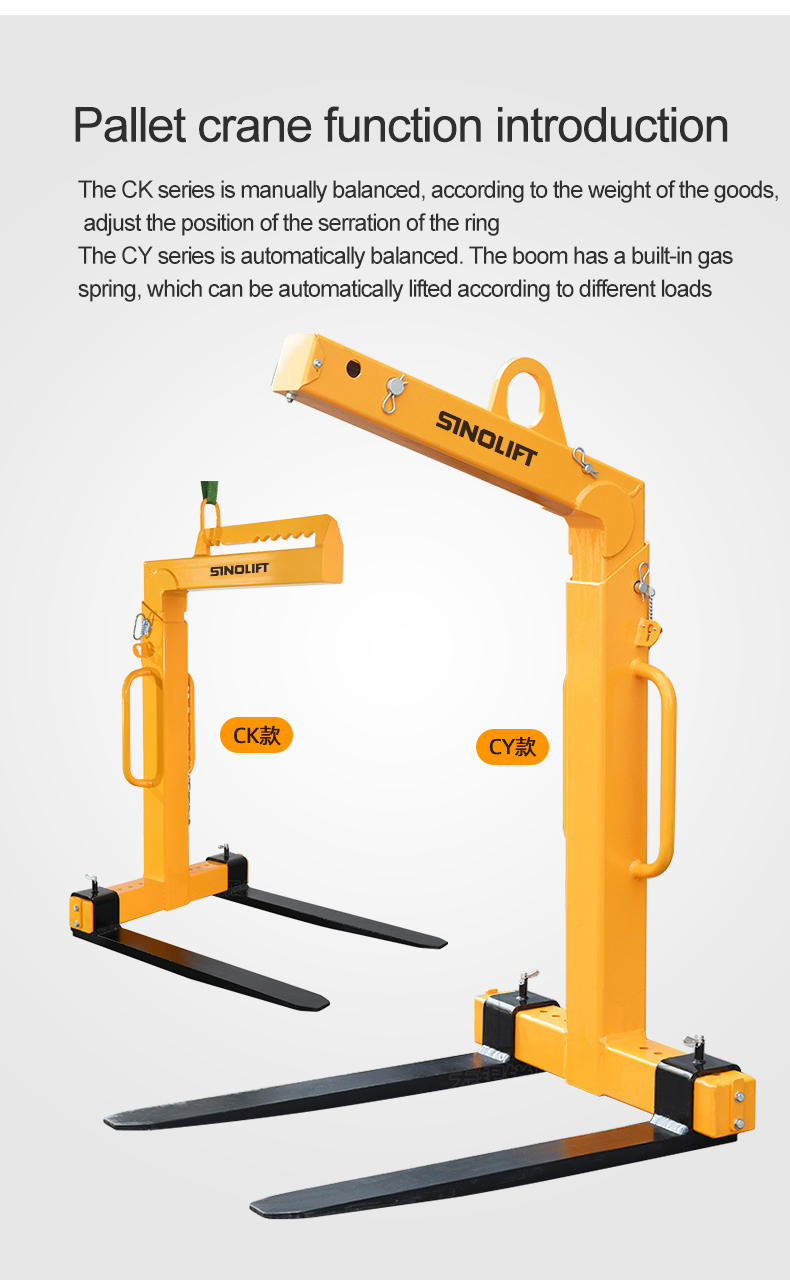

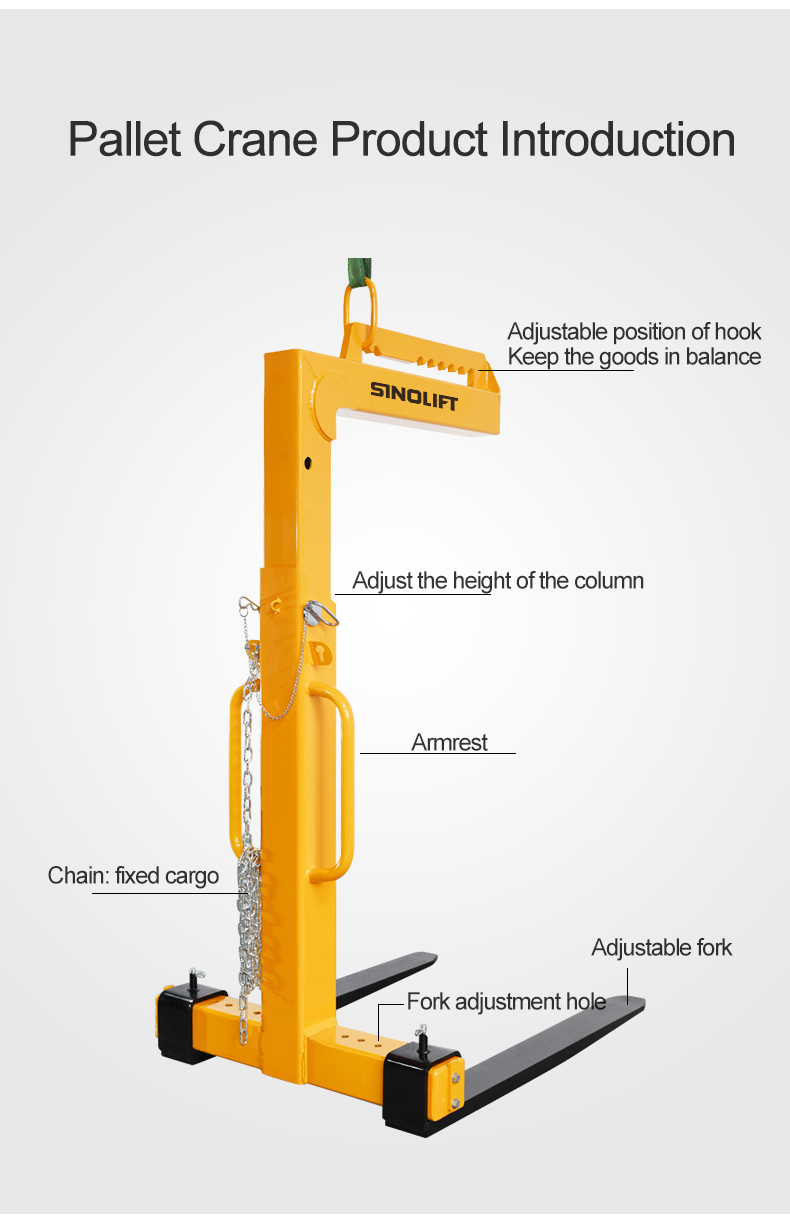

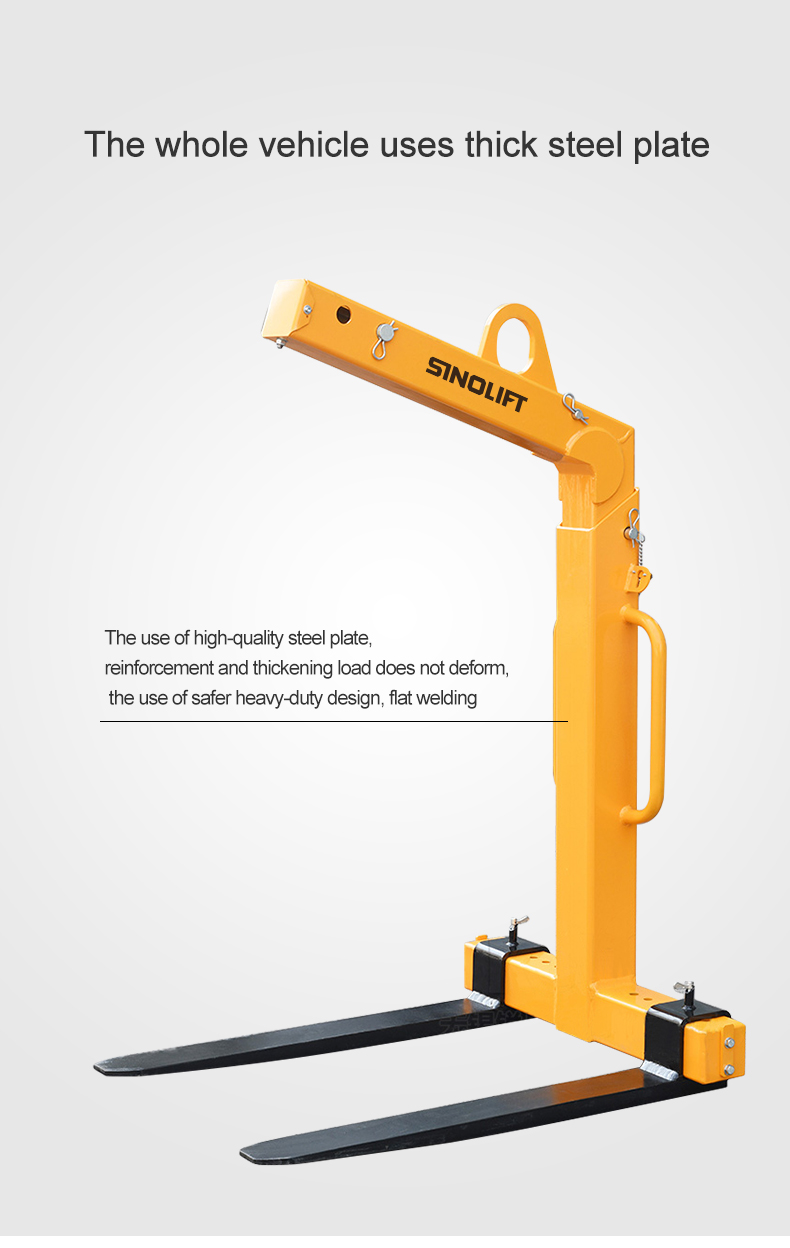

Sinolift Adjustable CK CY CC Crane Fork

No slings or chains necessary.

Crane operator will not need to leave cab of lorry or crane.

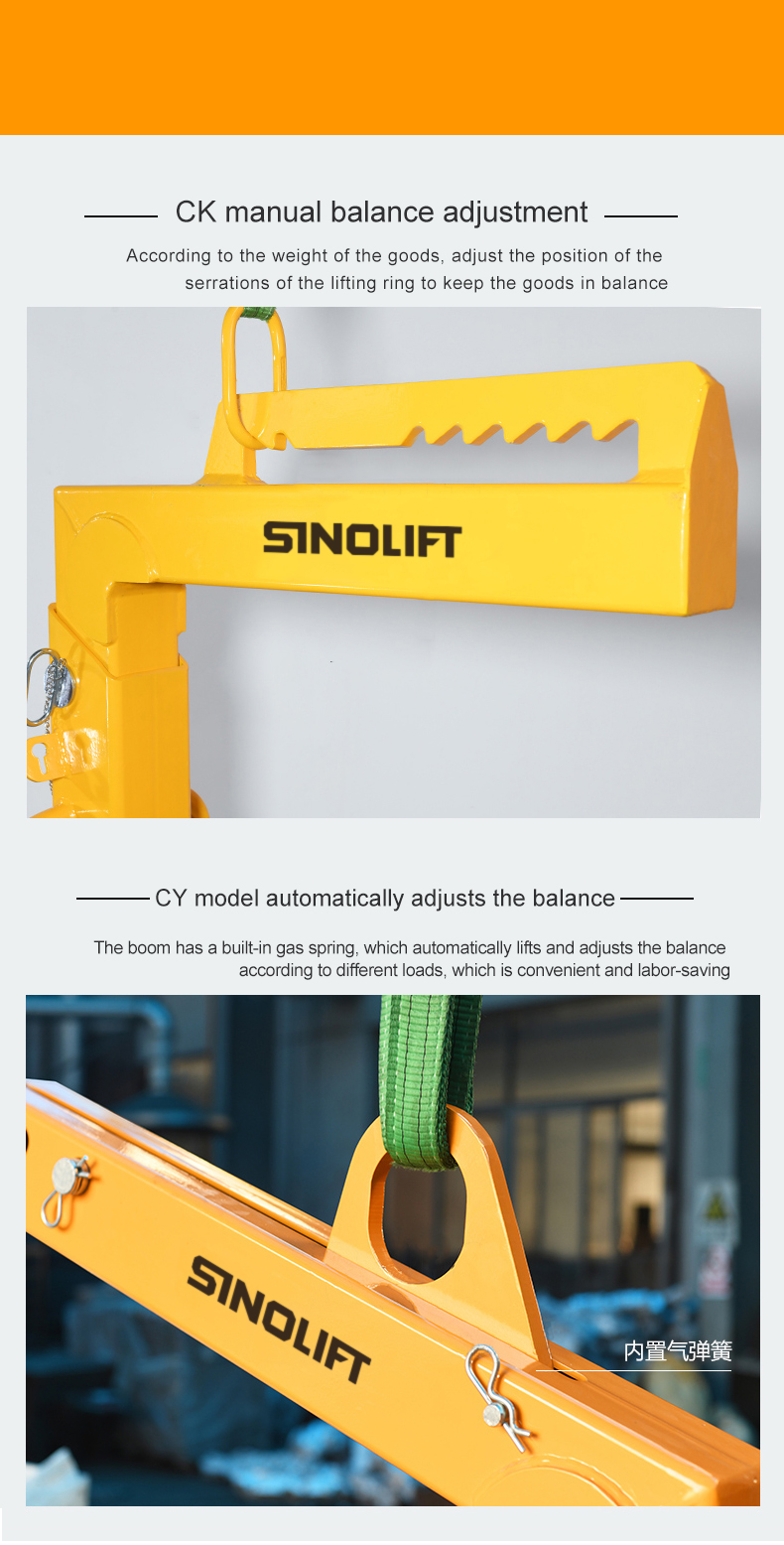

Forks will remain horizontal when loaded and unloaded

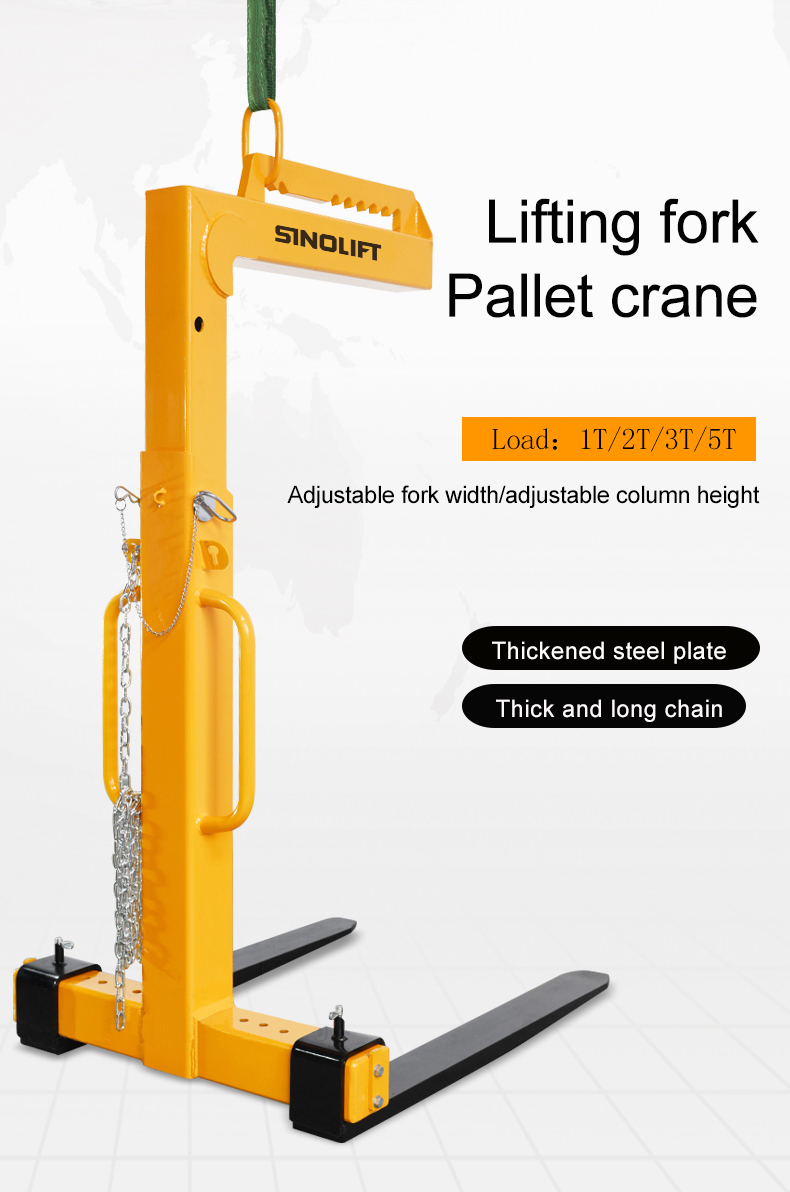

Adjustable fork width.

Adjustable height.

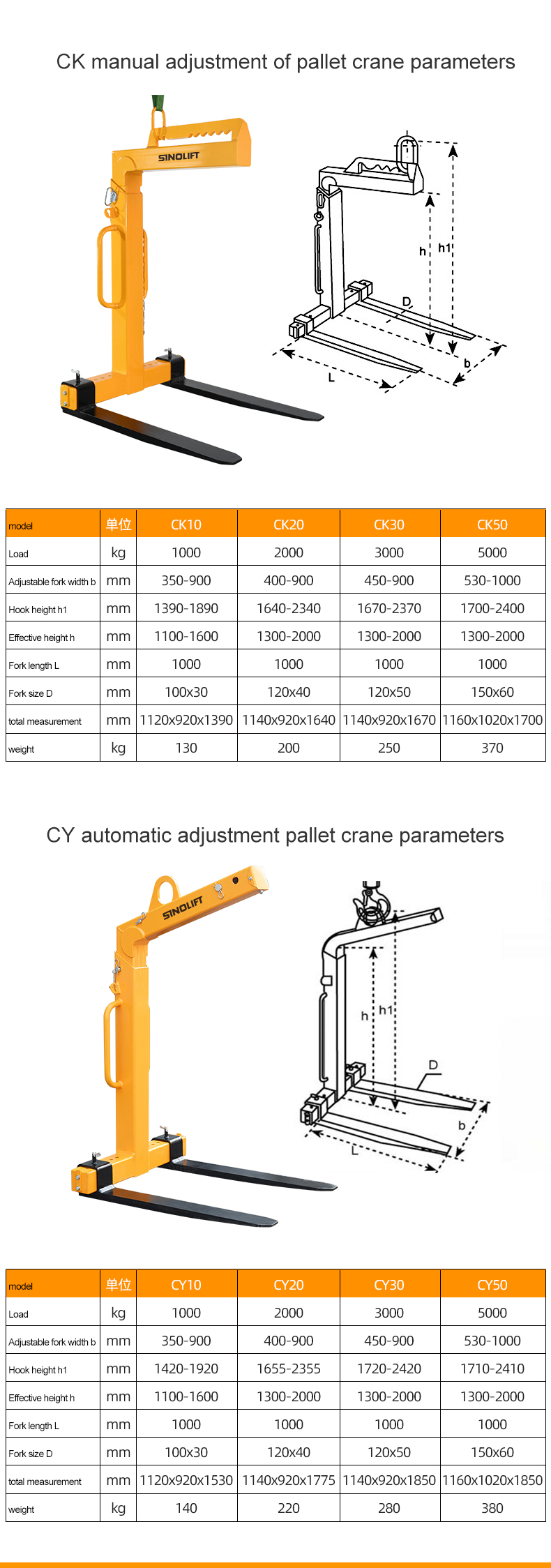

Model		CK10	CK20	CK30	CK50	CY10	CY20	CY30	CY50
Work Load Limit	WLL (t)	1	2	3	5	1	2	3
Work Load LimitAdjustable ForkWidth	b(mm)	350-900	400-900	450-900	530-1000	350-900	400-900	450-900	530-1000
Hook Height	h1(mm)	1390- 1890	1640- 2340	1670- 2370	1700- 2400	1420- 1920	1655- 2355	1720- 2420	1710- 2410
Effective Height	h(mm)	1100- 1600	1300- 2000	1300- 2000	1300- 2000	1100- 1600	1300- 2000	1300- 2000	1300- 2000
Fork Length	L(mm)	1000	1000	1000	1000	1000	1000	1000	1000
Fork Cross	D(mm)	100×30	120×40	120×50	150×60	100×30	120×40	120×50	150×60
Overall Size	L(mm)	1120	1140	1140	1160	1120	1140	1140	1160
	W(mm)	920	920	920	1020	920	920	920	1020
	H(mm)	1390	1640	1670	1700	1775	1775	1850	1850
Net Weight	(kg)	130	200	250	370	140	220	280	380
