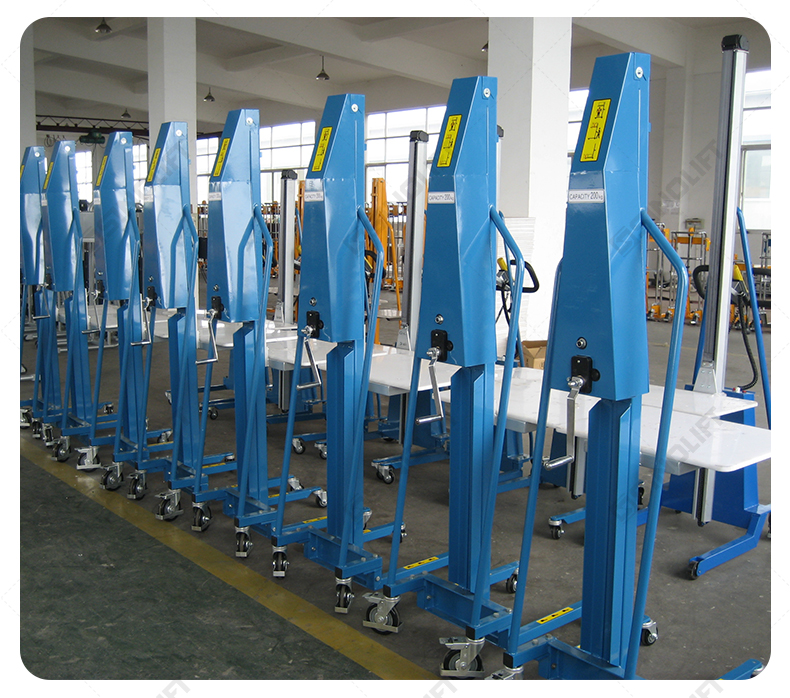

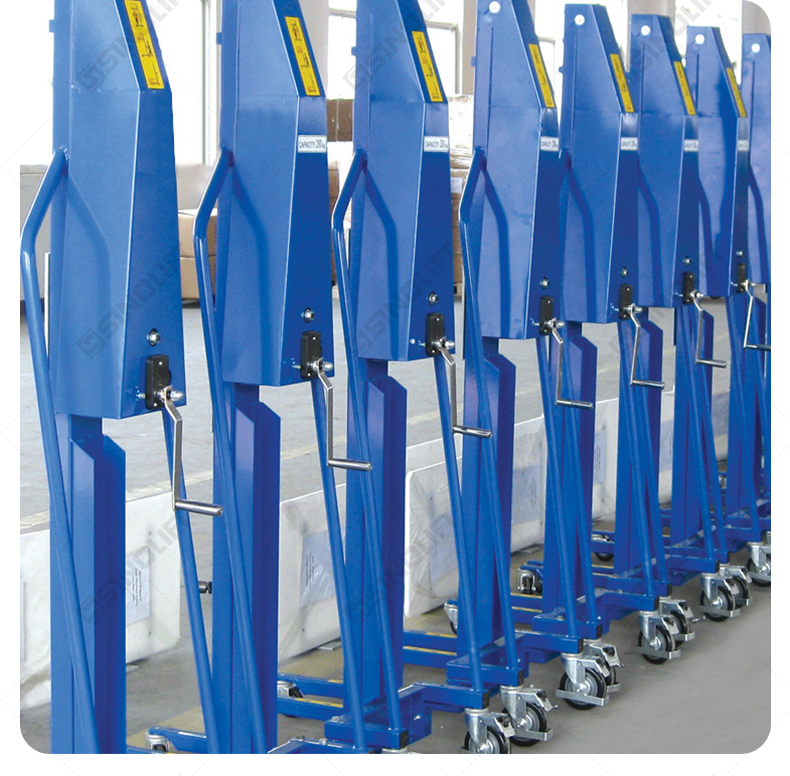

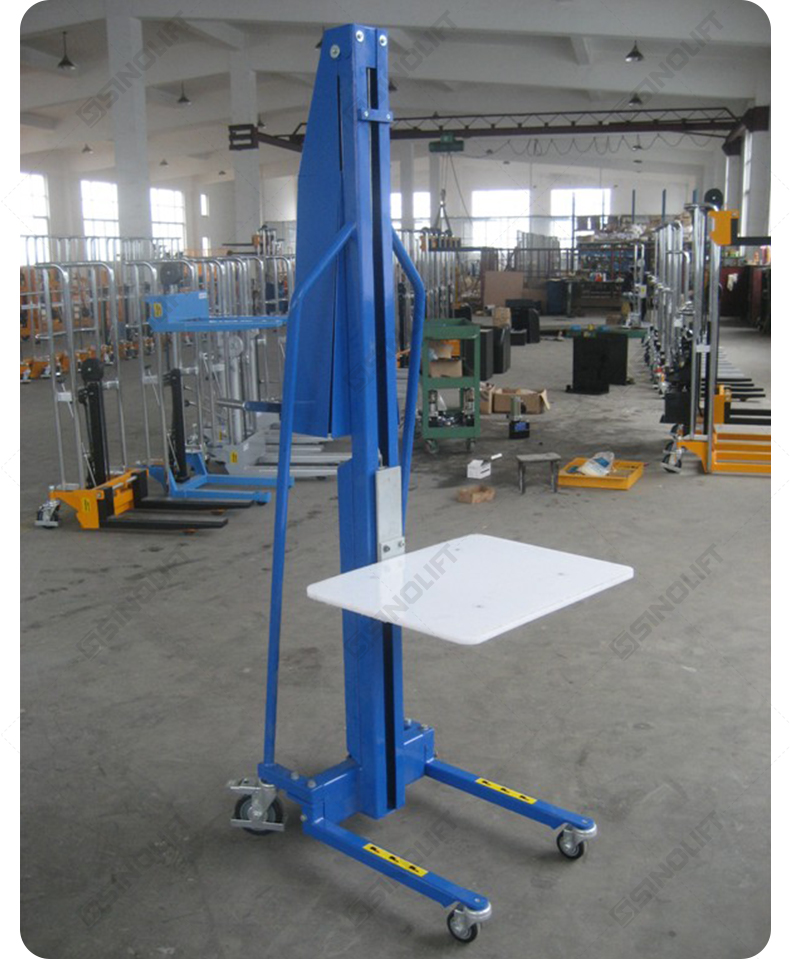

M Series Self-locking Hand Crank Work Positioner
M series
Hand-crank lifting is smooth and fast with precise height control.Environmentally friendly with stable performance and low maintenance
Quantity:
Product Name
M Series Self-locking Hand Crank Work Positioner
1.High precision and easy lifting
Hand-crank lifting is smooth and fast with precise height control
Environmentally friendly with stable performance and low maintenance

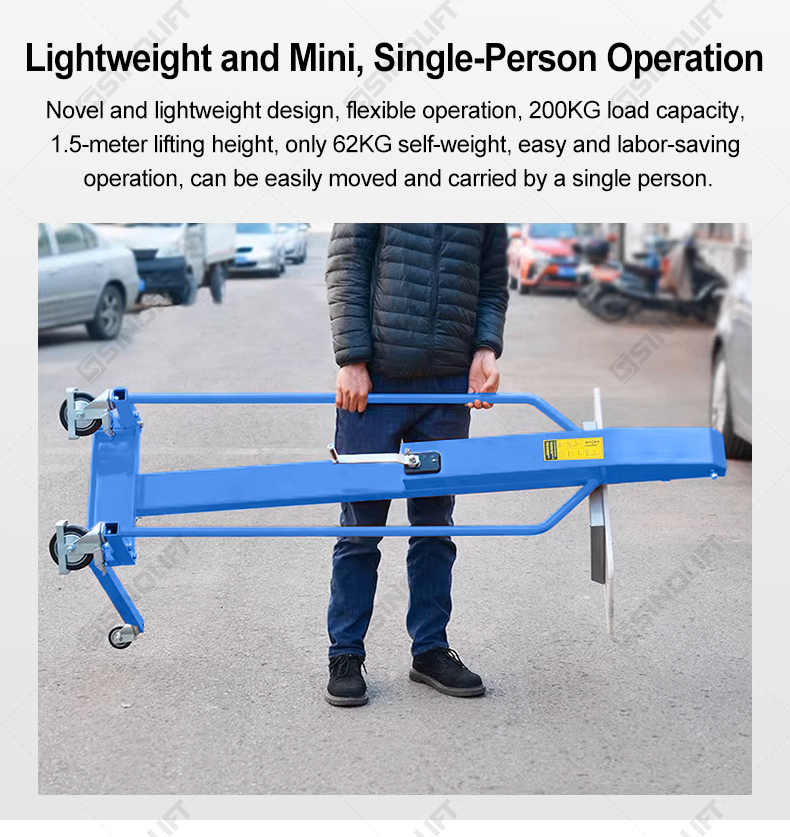

2.Lightweight and portable
Only 62 kg self-weight with 200 kg load capacity
Compact design allows easy operation and movement by one person

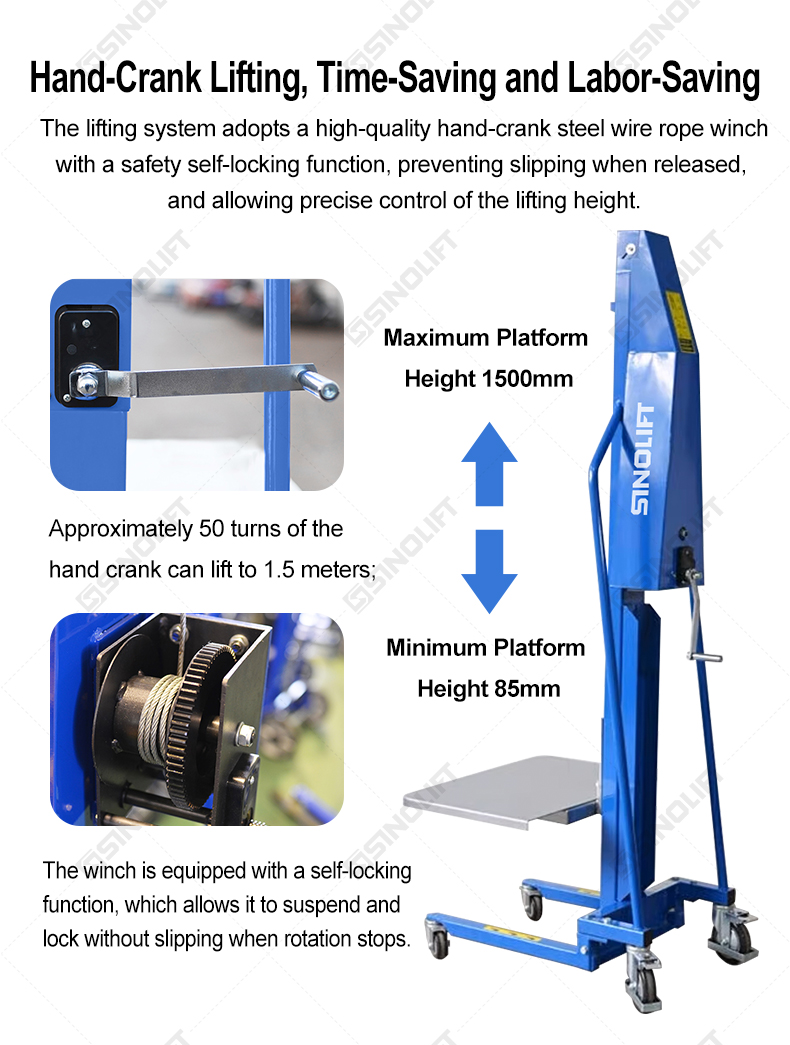

3.Self-locking safety system

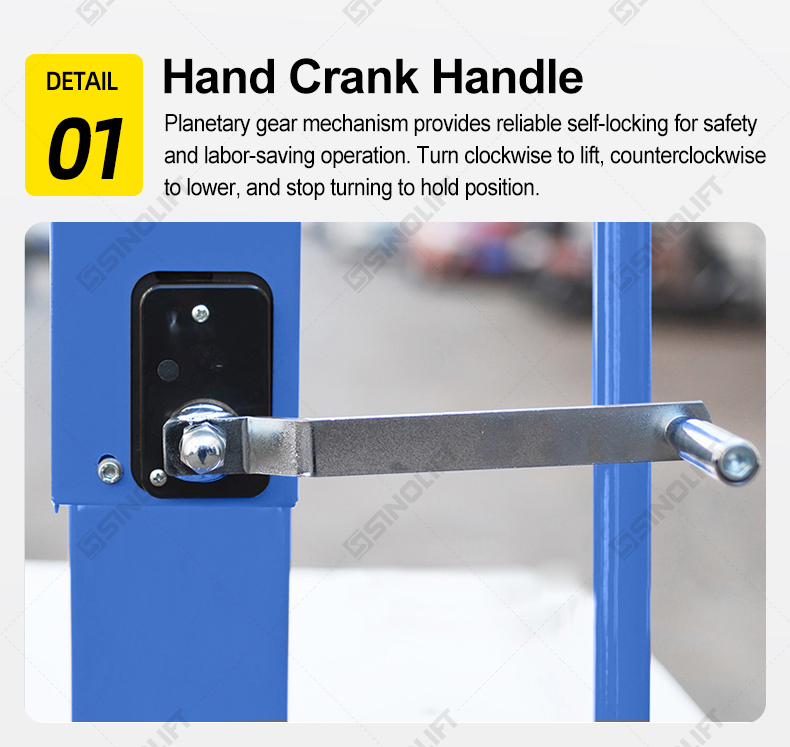

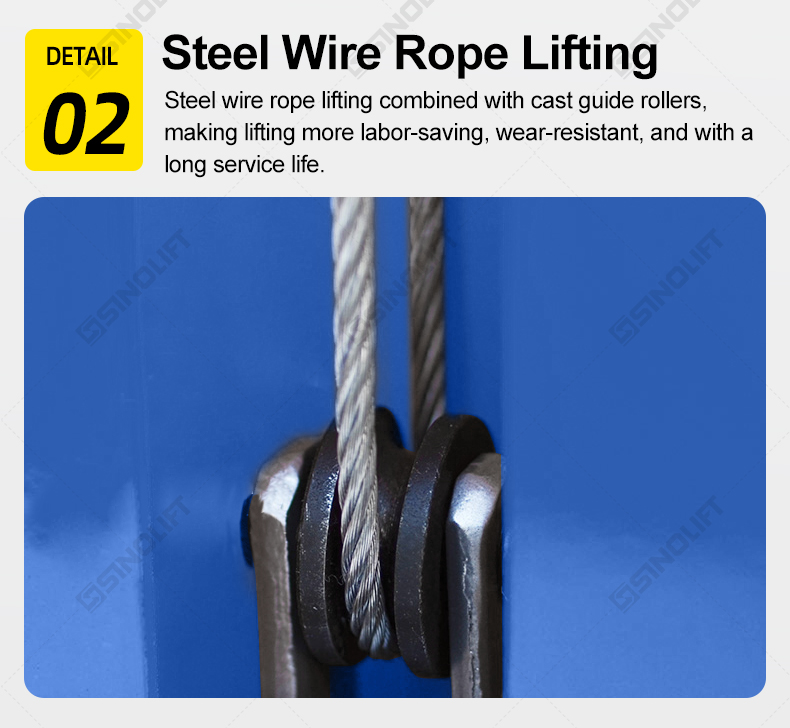

Equipped with a steel wire rope winch featuring a self-locking function
Prevents slipping and ensures accurate height positioning

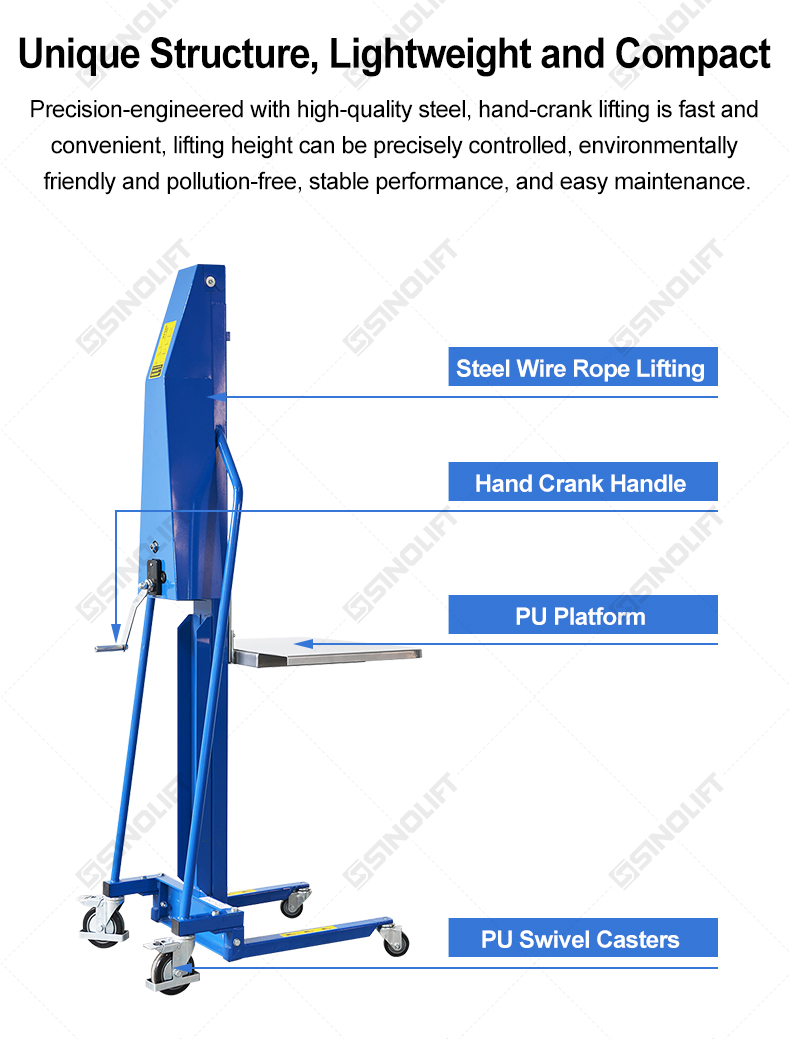

4.Durable construction

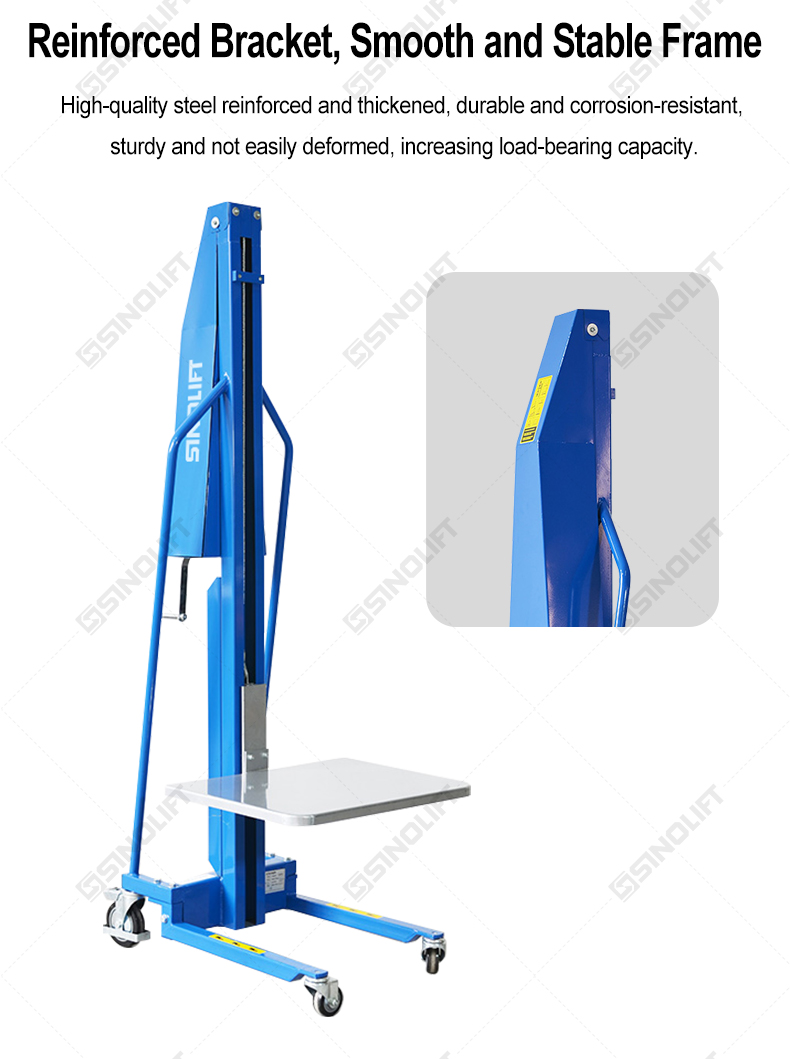

Reinforced and thickened steel frame
Corrosion-resistant and built to last
5.Reliable and easy to use

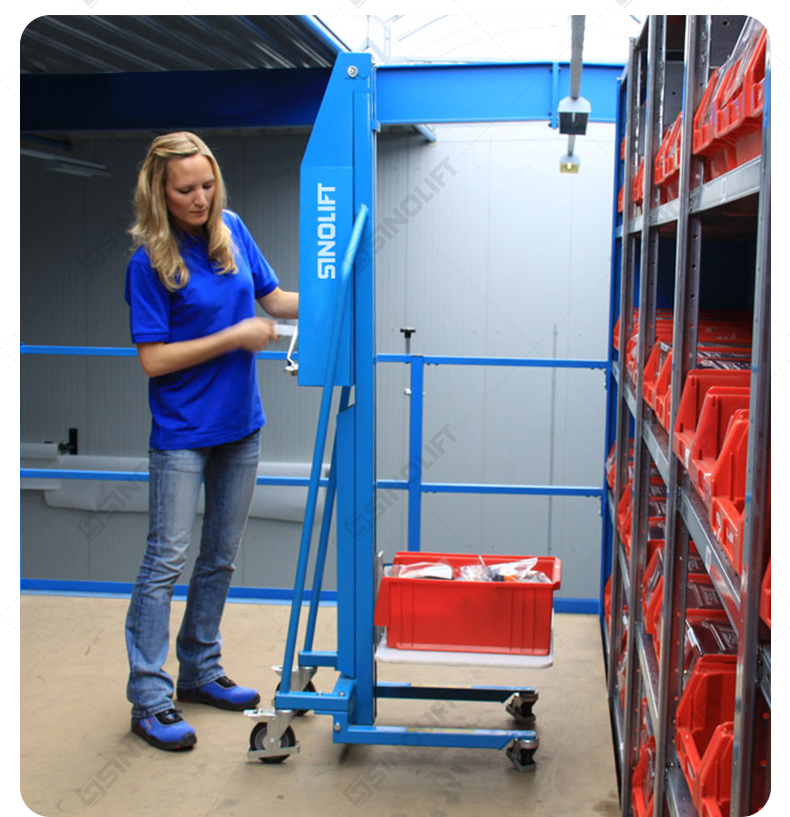

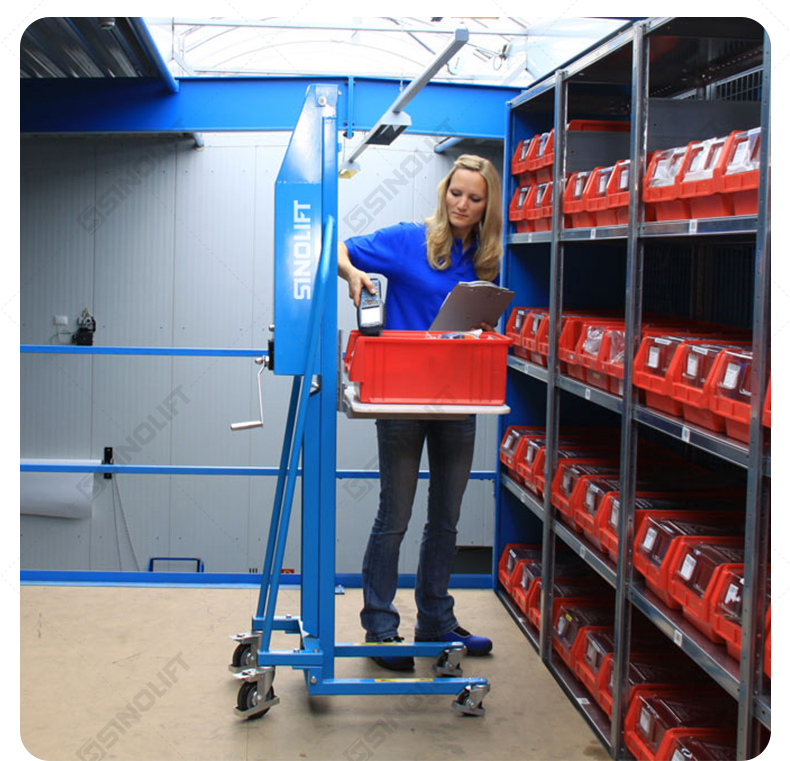

Ideal for lifting tasks in workshops, warehouses and other work environments

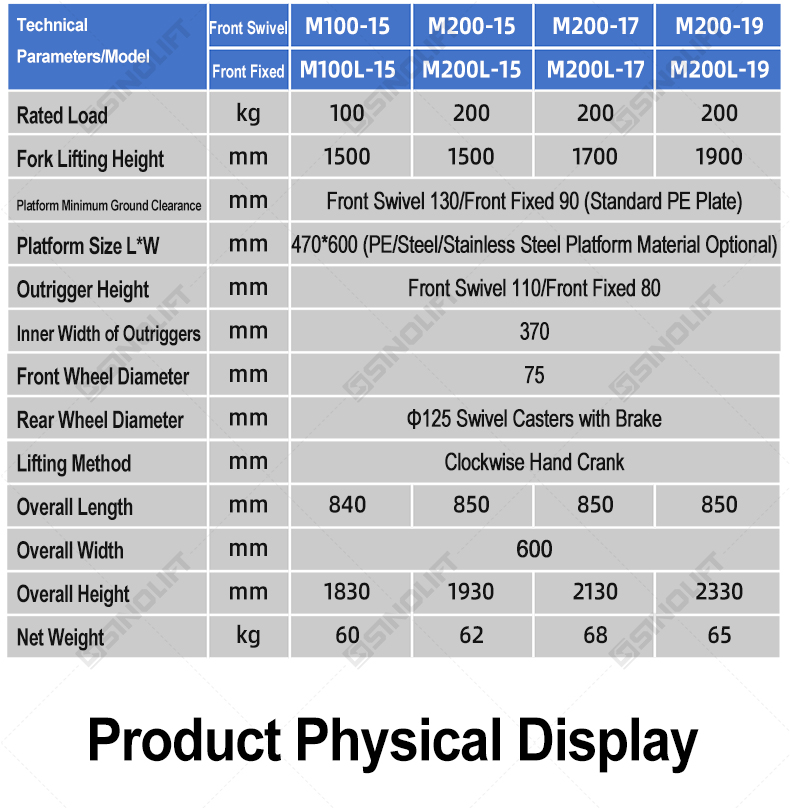

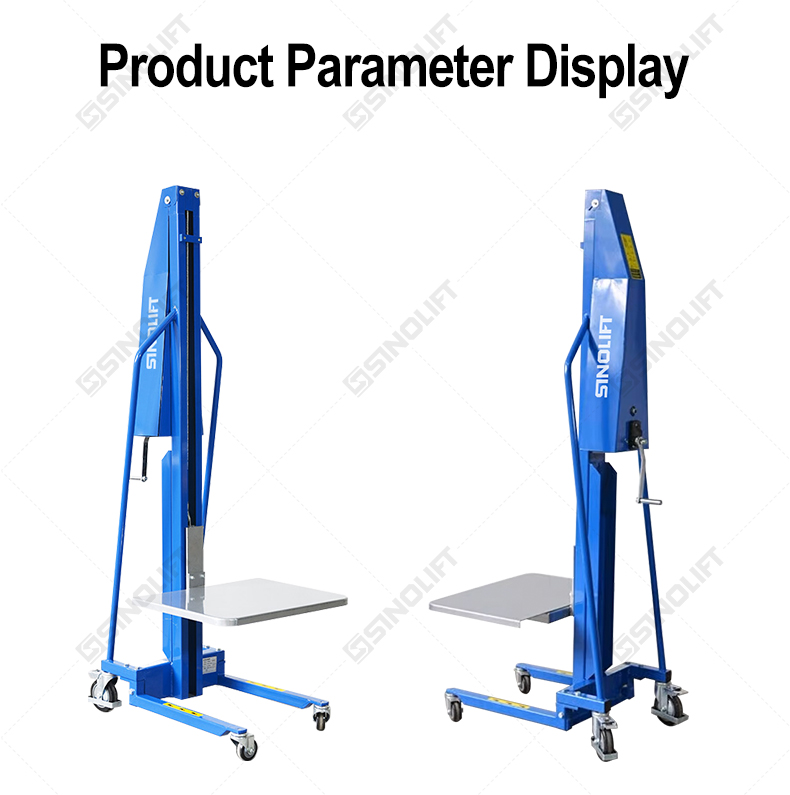

Product Specifications
| Technical Parameters/Model | Unit | Front Swivel | M100-15 | M200-15 | M200-17 | M200-19 |
| Unit | Front Fixed | M100L-15 | M200L-15 | M200L-17 | M200L-19 | |
| Rated Load | kg | 100 | 200 | 200 | 200 | |
| Fork Lifting Height | mm | 1500 | 1500 | 1700 | 1900 | |
| Platform Minimum Ground Clearance | mm | Front Swivel 130/Front Fixed 90 (Standard PE Plate) | ||||

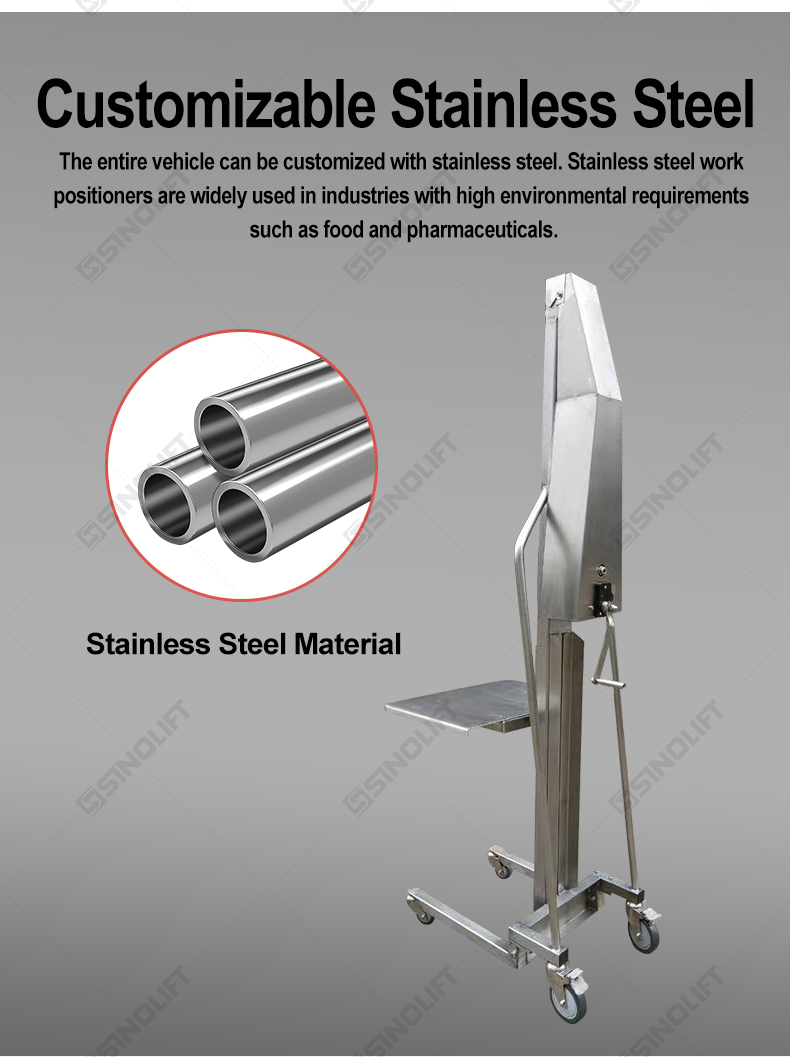

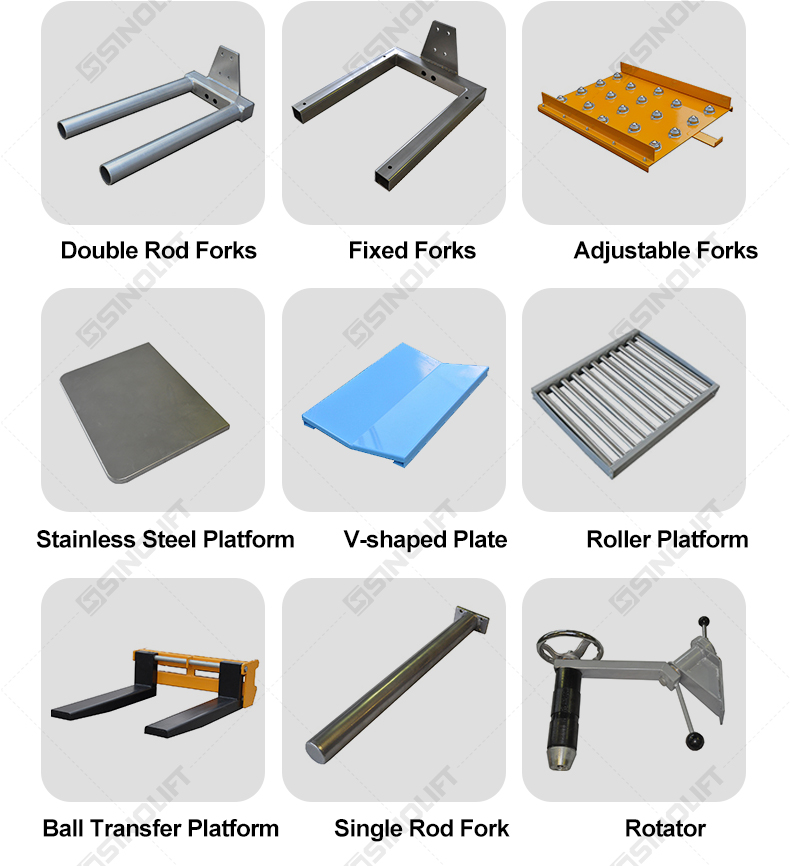

| Platform Size L*W | mm | 470*600 (PE/Steel/Stainless Steel Platform Material Optional) | ||||

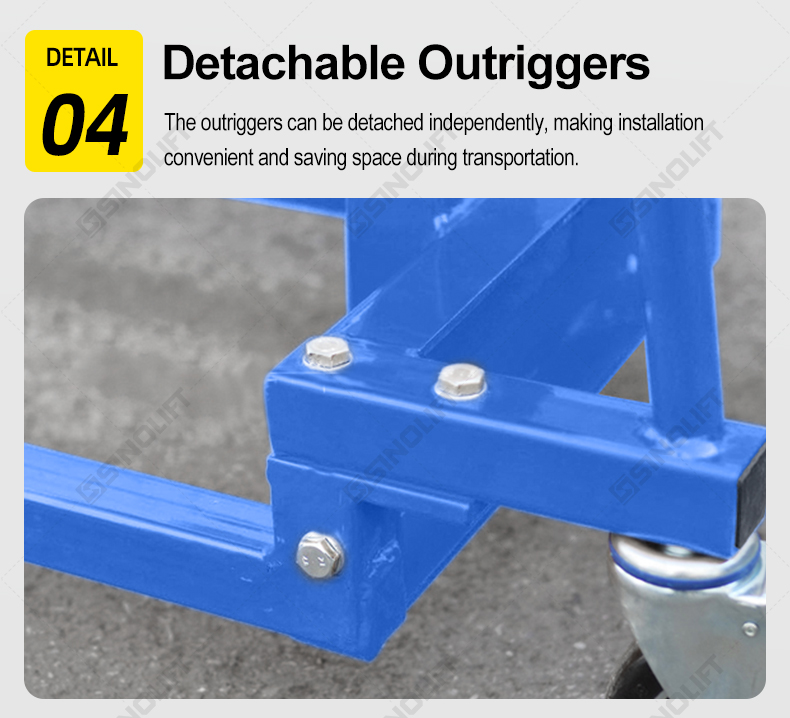

| Outrigger Height | mm | Front Swivel 110/Front Fixed 80 | ||||
| Inner Width of Outriggers | mm | 370 | ||||
| Front Wheel Diameter | mm | 75 | ||||

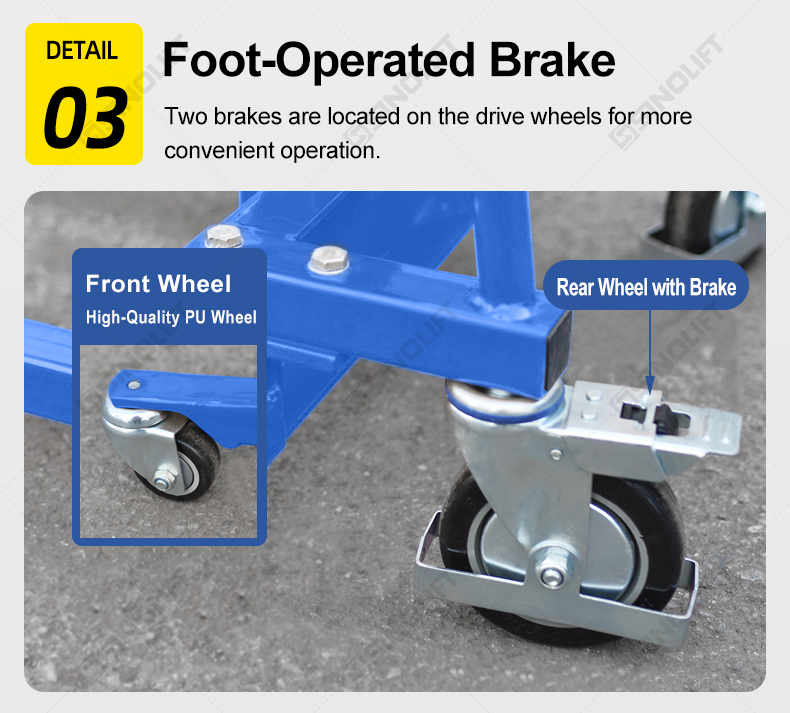

| Rear Wheel Diameter | mm | Φ125 Swivel Casters with Brake | ||||
| Lifting Method | mm | Clockwise Hand Crank | ||||
| Overall Length | mm | 840 | 850 | 850 | 850 | 850 |
| Overall Width | mm | 600 | ||||
| Overall Height | mm | 1830 | 1930 | 2130 | 2330 | 2330 |
| Net Weight | kg | 60 | 62 | 68 | 65 | 65 |
