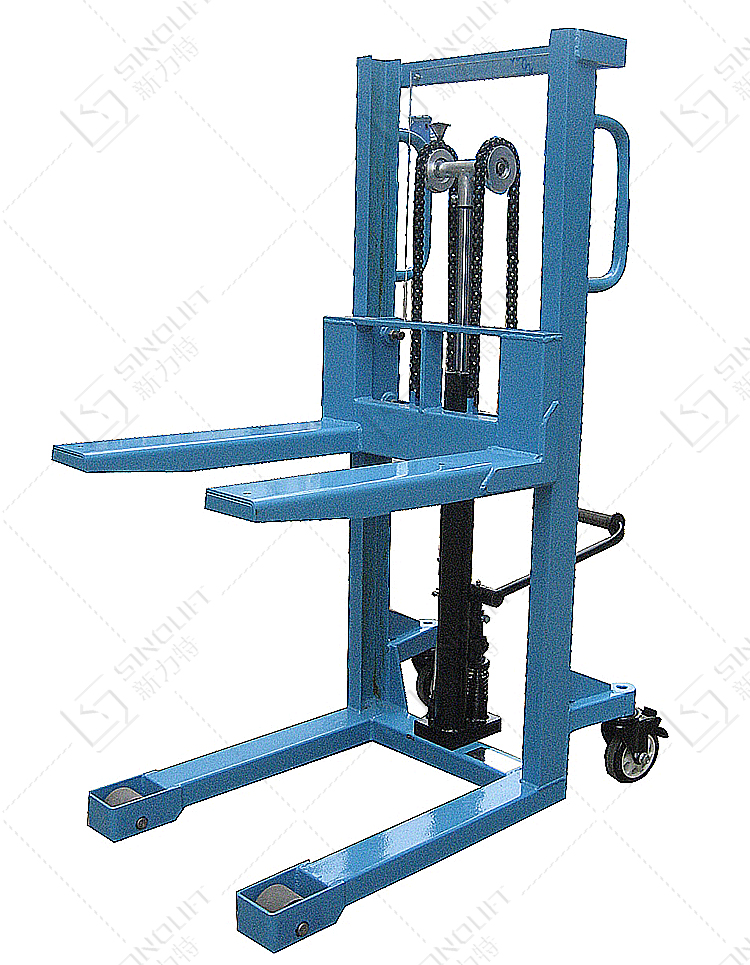

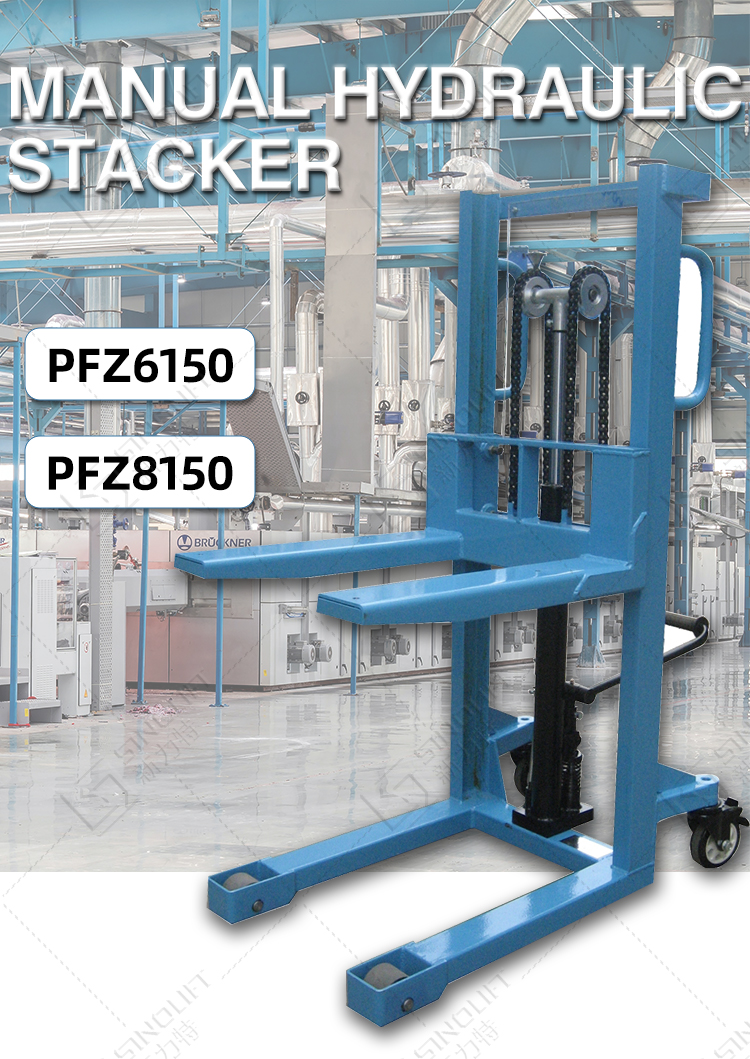

PFZ6150 PFZ8150 Manual Hydraulic Stacker
PFZ6150 PFZ8150
Smooth rolling on Ø125x50 (6" x 2") mold-on-rubber wheels on the back of the lift and Ø75mm (2" dia.) semi-steel wheels, Two swivel front wheels and floor lock are standard on every units.
Quantity:
Name:Manual Stacker

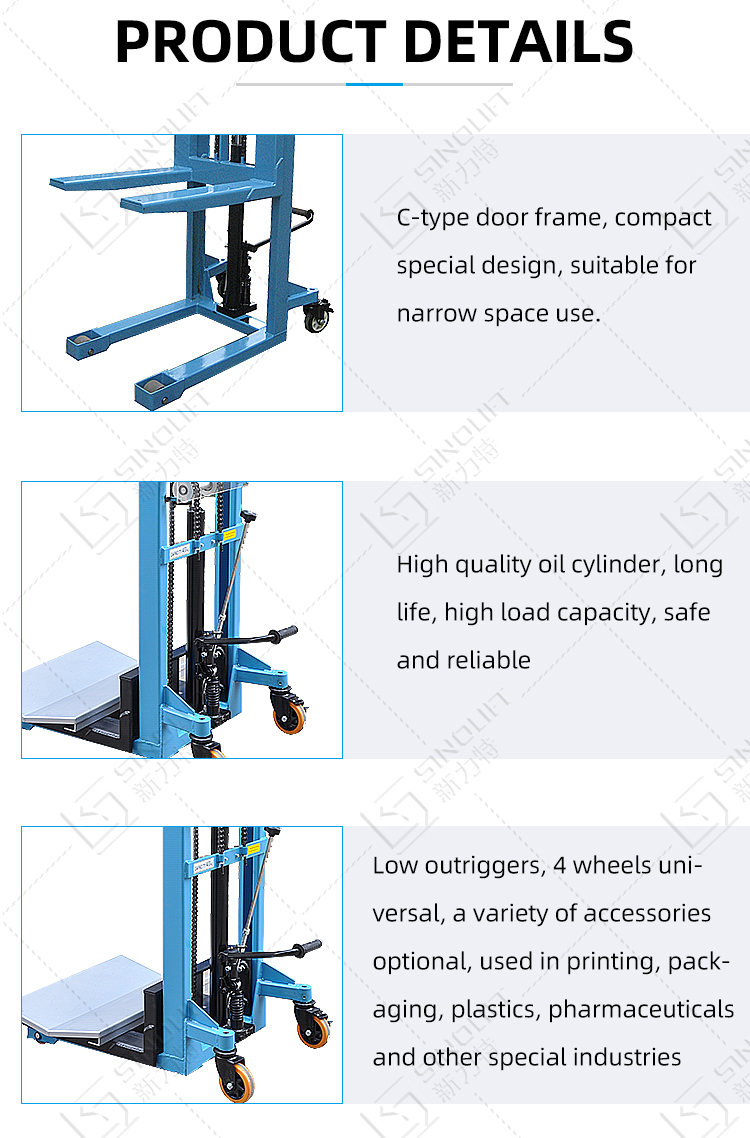

Features of Manual Stacker
Smooth rolling on Ø125x50 (6"x 2") mold-on-rubber wheels on the back of the lift and Ø75mm (2"dia.) semi-steel wheels, Two swivel front wheels and floor lock are standard on every units. Wheels are also at the top of each truck to allow for easy accessibility into delivery trucks. Low Profile units have 6mm (1/4")thick platform with 50mm (2"H. side lips. Horizontal load center is 10". FOB Shanghai Shipping Point. |
Manual Stacker is main active transfer machine in all transfer jobsites. And Manual Stacker suits transfer on upper floor which has load limiting. You can operate of the drive and the lift easily in safety by Centralized control hand device or Electric Device. Manual Stacker can handle any light duty pallets.

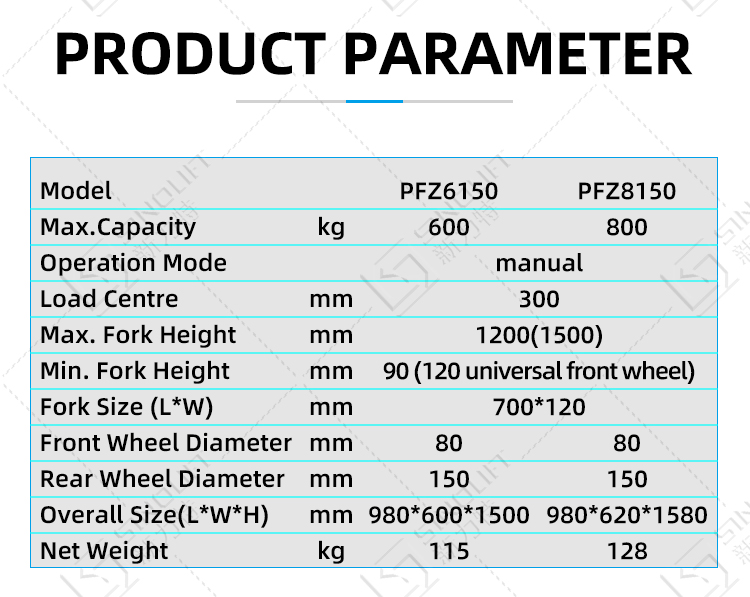

| Model | Manual Stacker PFZ6150 | Manual Stacker PFZ8150 | |
| Max. Capacity | kg | 600 | 800 |
| Operation Mode | manual | ||
| Load Centre | mm | 300 | |
| Max. Fork Height | mm | 1200(1500) | |
| Min. Fork Height | mm | 90 (120 universal front wheel) | |
| Fork Size (L*W) | mm | 700*120 | |
| Front Wheel Diameter | mm | 80 | 80 |
| Rear Wheel Diameter | mm | 150 | 150 |
| Overall Size(L*W*H) | mm | 980*600*1500 | 980*620*1580 |
| Net Weight | kg | 115 | 128 |
