SA Series Compact Mobile Crane (non-foldable)
Product Name
SA Series Compact Mobile Crane (non-foldable)
- Wide Range of Applications

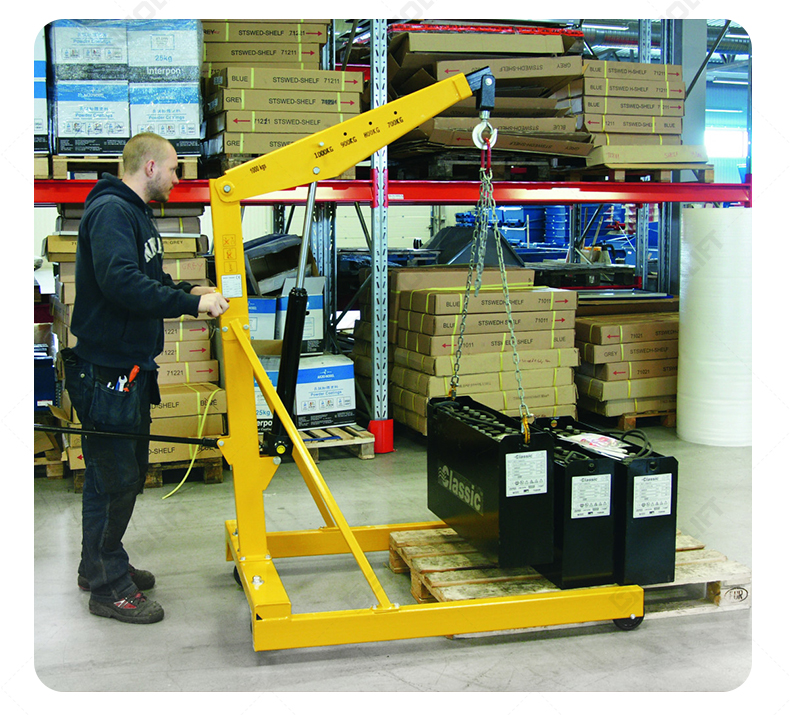

Ideal for dock loading, warehouse transport, construction projects, hydraulic engineering, factory buildings, and cargo handling.

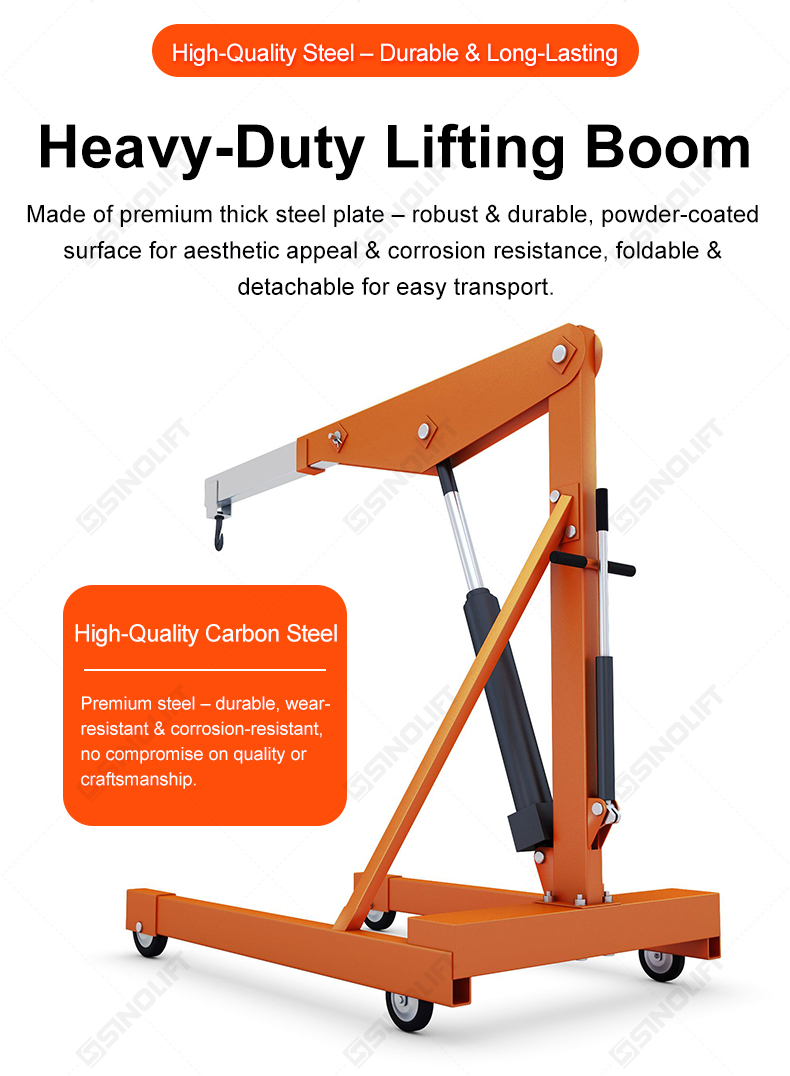

- Premium Quality Craftsmanship

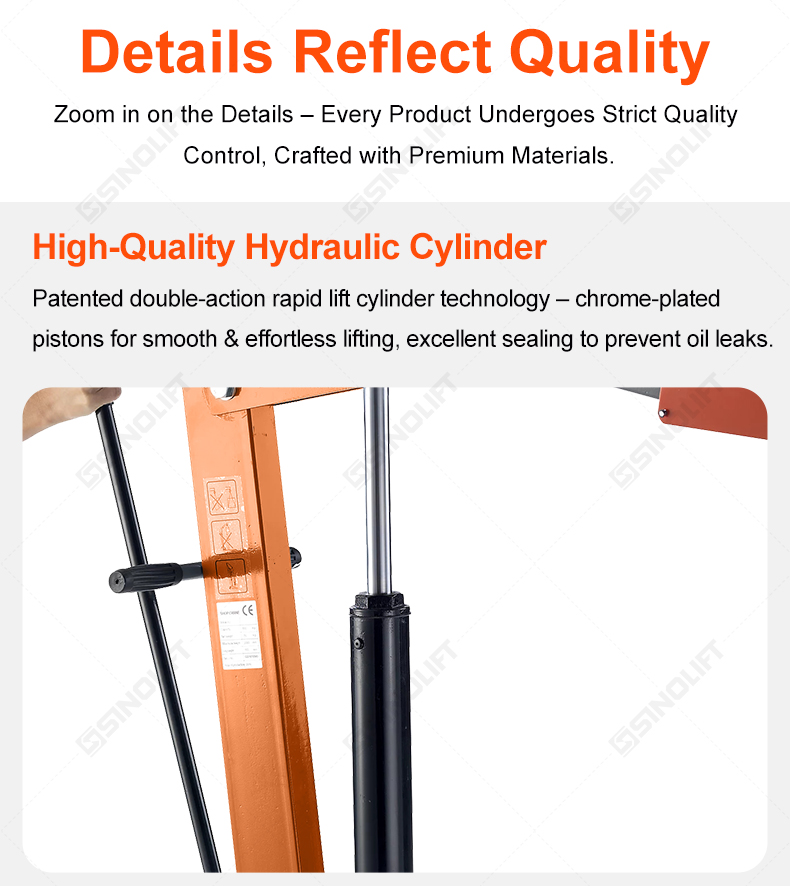

Heavy-duty design, high-quality lifting cylinder, time-saving & effort-saving, 3-position adjustable boom, forged rotating hook, durable & foldable, space-saving.

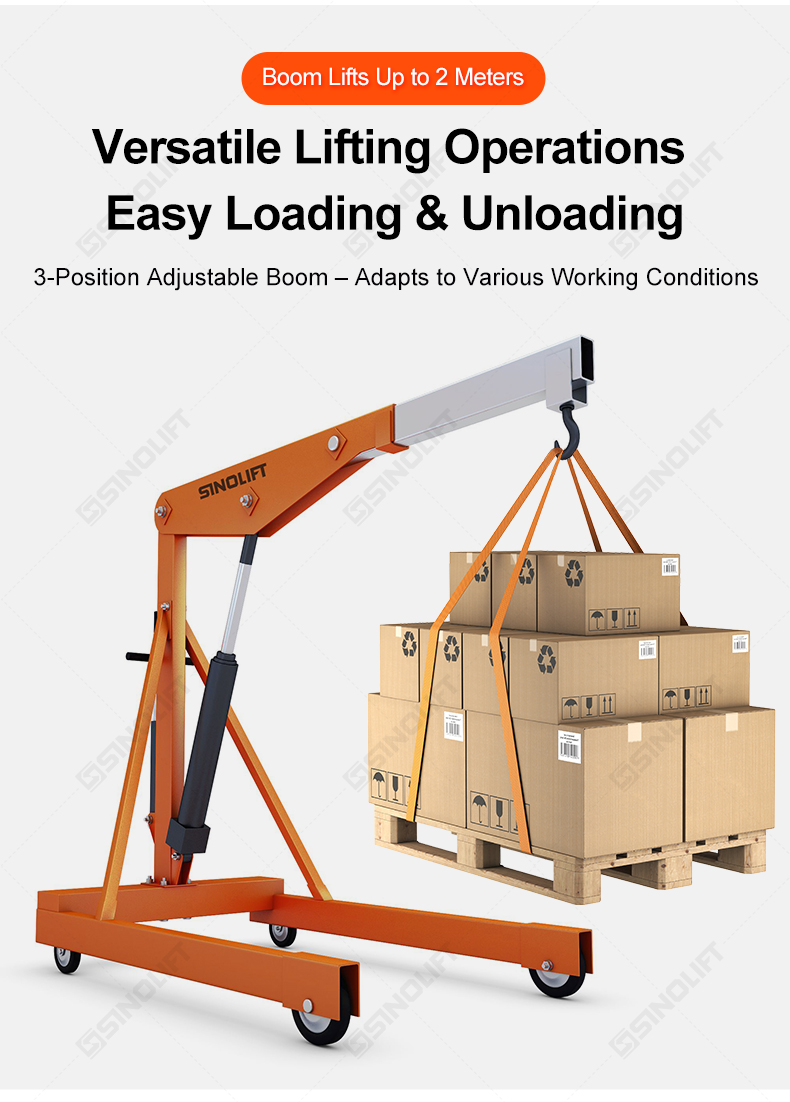

- Position Adjustable/Longer Boom
Adapt to Various Working Conditions - Adjust to Your Needs

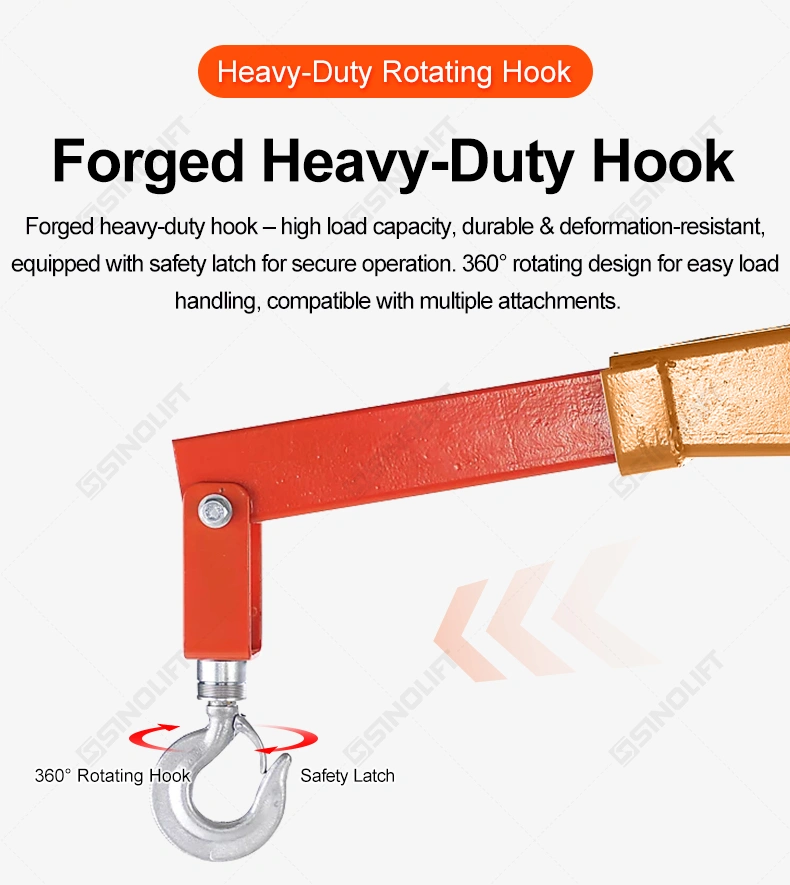

- Forged Heavy-Duty Hook

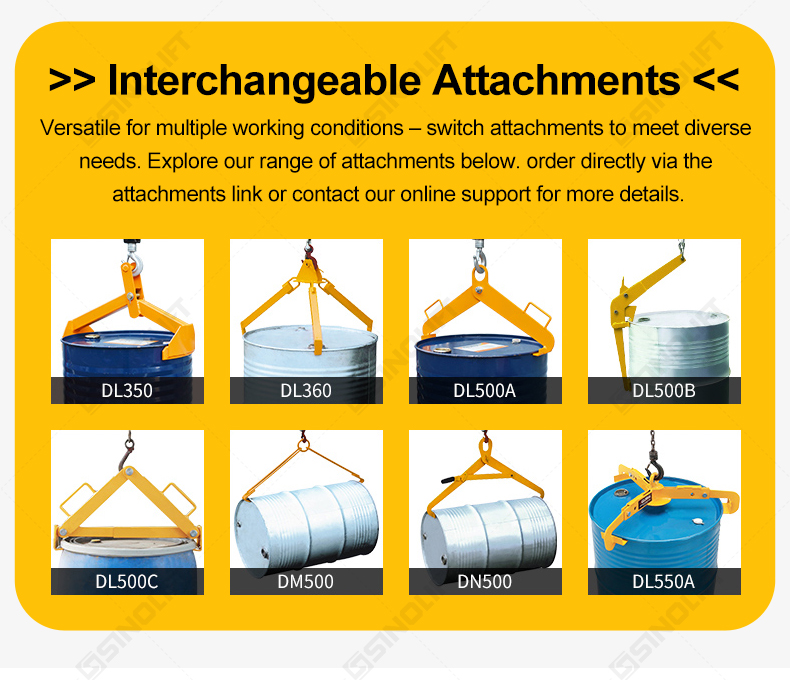

Forged heavy-duty hook - high load capacity, durable & deformation-resistant, equipped with safety latch for secure operation. 360° rotating design for easy load handling, compatible with multiple attachments.
- Sturdy and Durable, Non-Foldable
Robust structure, compact design, providing stable and reliable lifting performance, suitable for scenarios requiring frequent movement and heavy-duty operations.
| Parameter | Unit | SA500 | SA1000 |
| Rated Load Capacity Position 1 | P1 (Kg) | 500 | 1000 |
| Rated Load Capacity Position 2 | P2 (Kg) | 450 | 900 |
| Rated Load Capacity Position 3 | P3 (Kg) | 400 | 800 |
| Rated Load Capacity Position 4 | P4 (Kg) | 350 | 700 |
| Dimension L1 (Boom P4 Position Horizontal Arm Length) | (mm) | 1360 | 1360 |
| Dimension L2 (Boom P1 Position Horizontal Arm Length) | (mm) | 1060 | 1060 |
| Dimension L3 (Outrigger Length) | (mm) | 1395 | 1395 |
| Dimension H1 (Outrigger Height) | (mm) | 155 | 155 |
| Dimension H2 (Boom P4 Position Lowering Ground Clearance) | (mm) | 470 | 470 |
| Dimension H3 (Boom P1 Position Lowering Ground Clearance) | (mm) | 705 | 705 |
| Dimension H4 (Boom P1 Position Lifting Ground Clearance) | (mm) | 2225 | 2225 |
| Dimension H5 (Boom P4 Position Lifting Ground Clearance) | (mm) | 2475 | 2475 |
| Dimension H (Body Horizontal Height) | (mm) | 1595 | 1595 |
| Dimension B2 (Outrigger Inner Width) | (mm) | 840 | 840 |
| Dimension B3 (Outrigger Outer Width) | (mm) | 1000 | 1000 |
| Net Weight | (Kg) | 81 | 103 |
