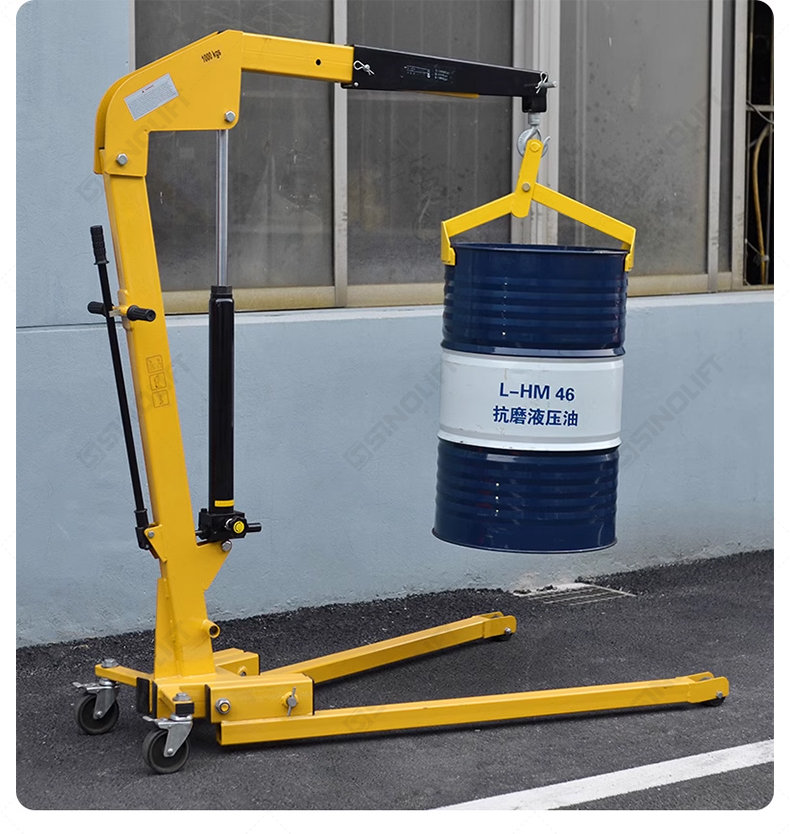

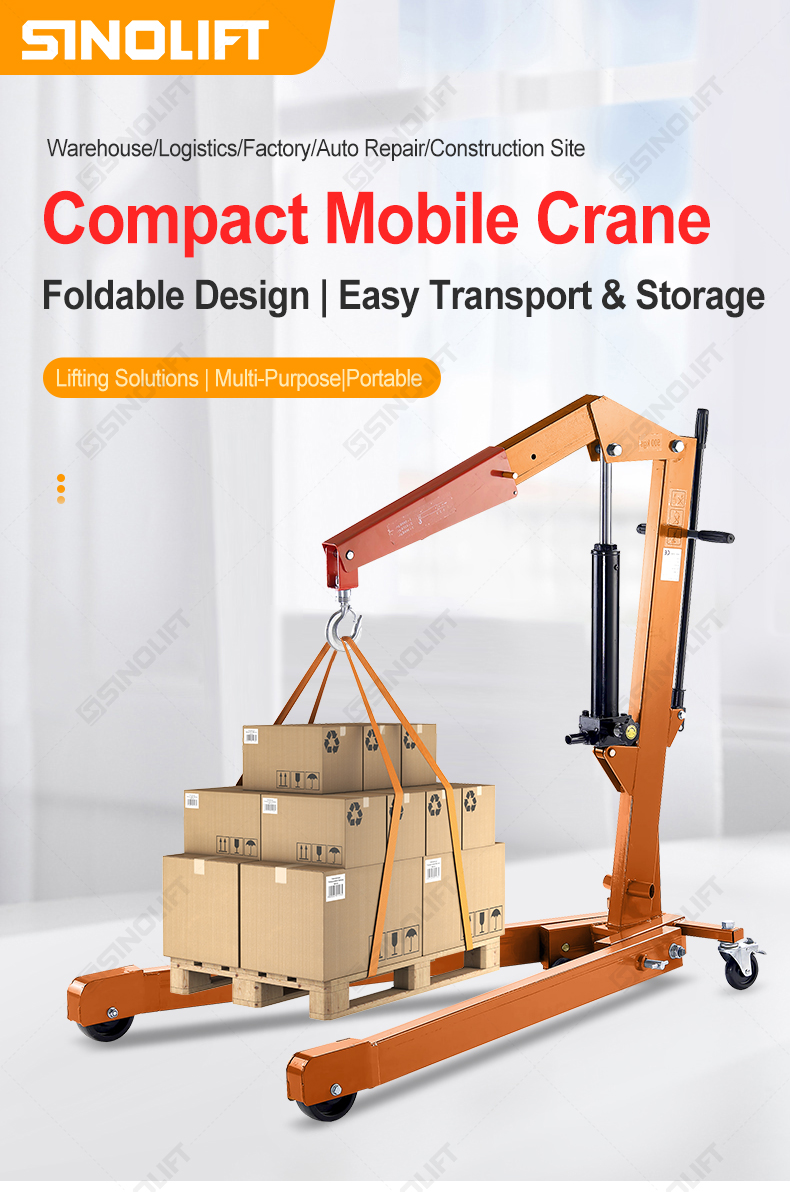

SC Series Compact Mobile Crane (foldable)
Ideal for dock loading, warehouse transport, construction projects, hydraulic engineering, factory buildings, and cargo handling.
Premium Quality Craftsmanship

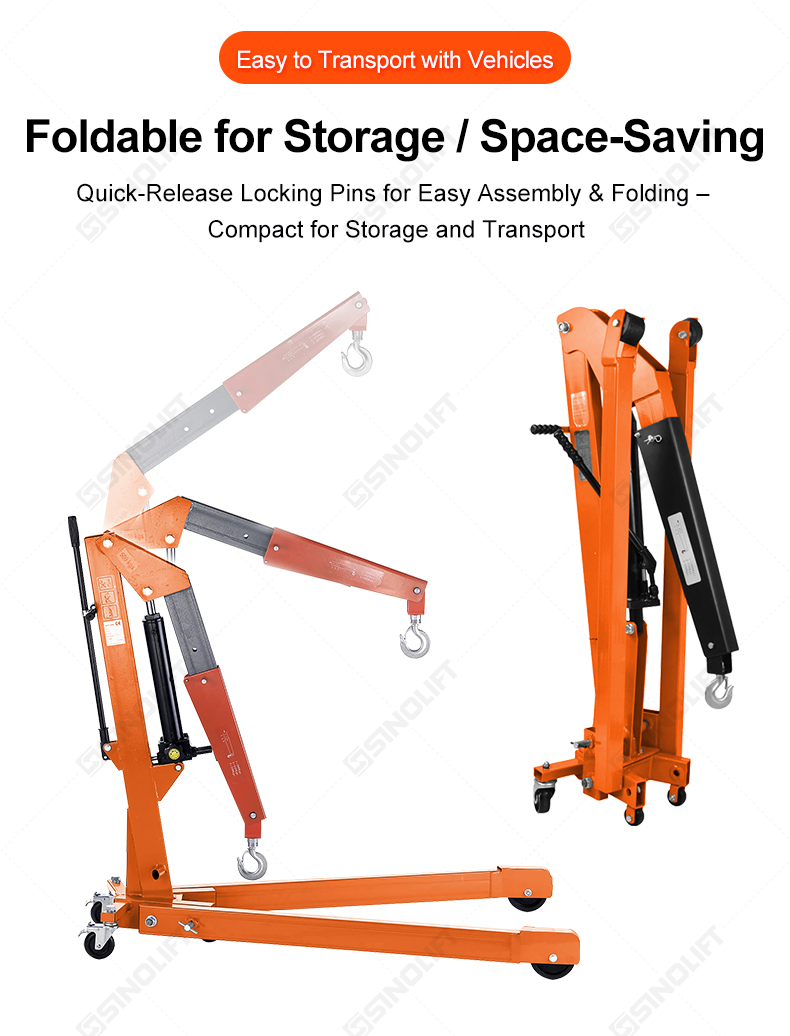

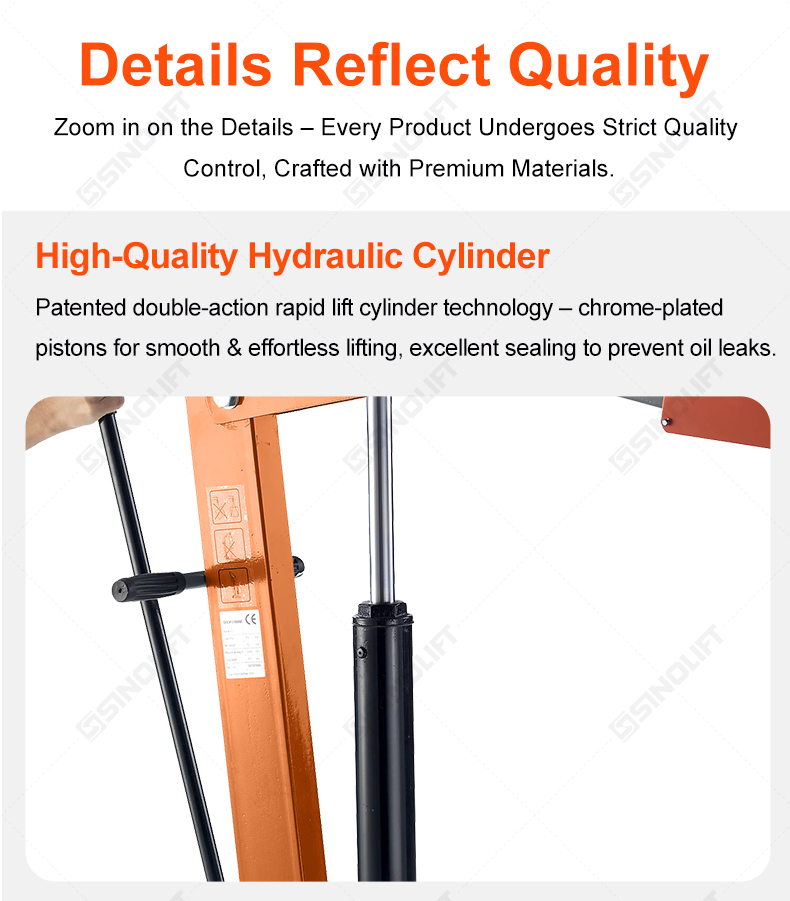

Heavy-duty design, high-quality lifting cylinder, time-saving & effort-saving, 3-position adjustable boom, forged rotating hook, durable & foldable, space-saving.
Product Name
SC Series Compact Mobile Crane (foldable)
- Wide Range of Applications
Ideal for dock loading, warehouse transport, construction projects, hydraulic engineering, factory buildings, and cargo handling.

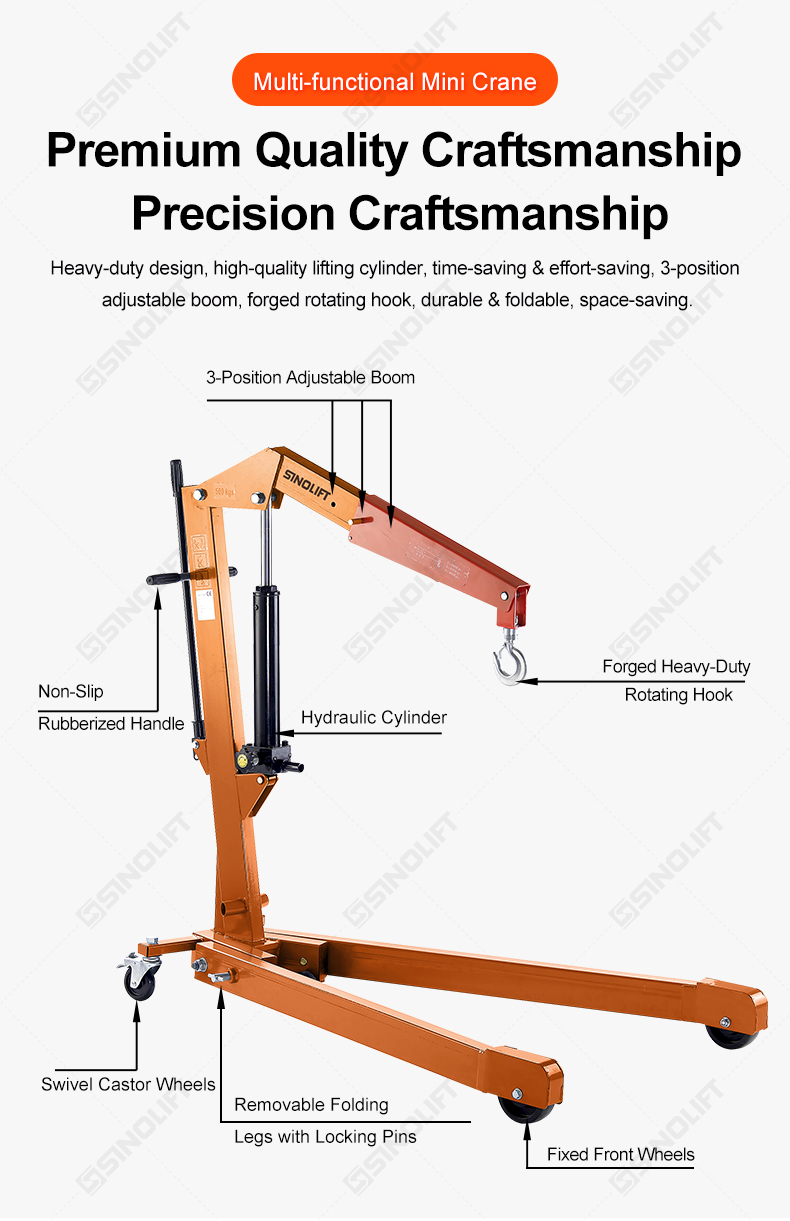

- Premium Quality Craftsmanship
Heavy-duty design, high-quality lifting cylinder, time-saving & effort-saving, 3-position adjustable boom, forged rotating hook, durable & foldable, space-saving.

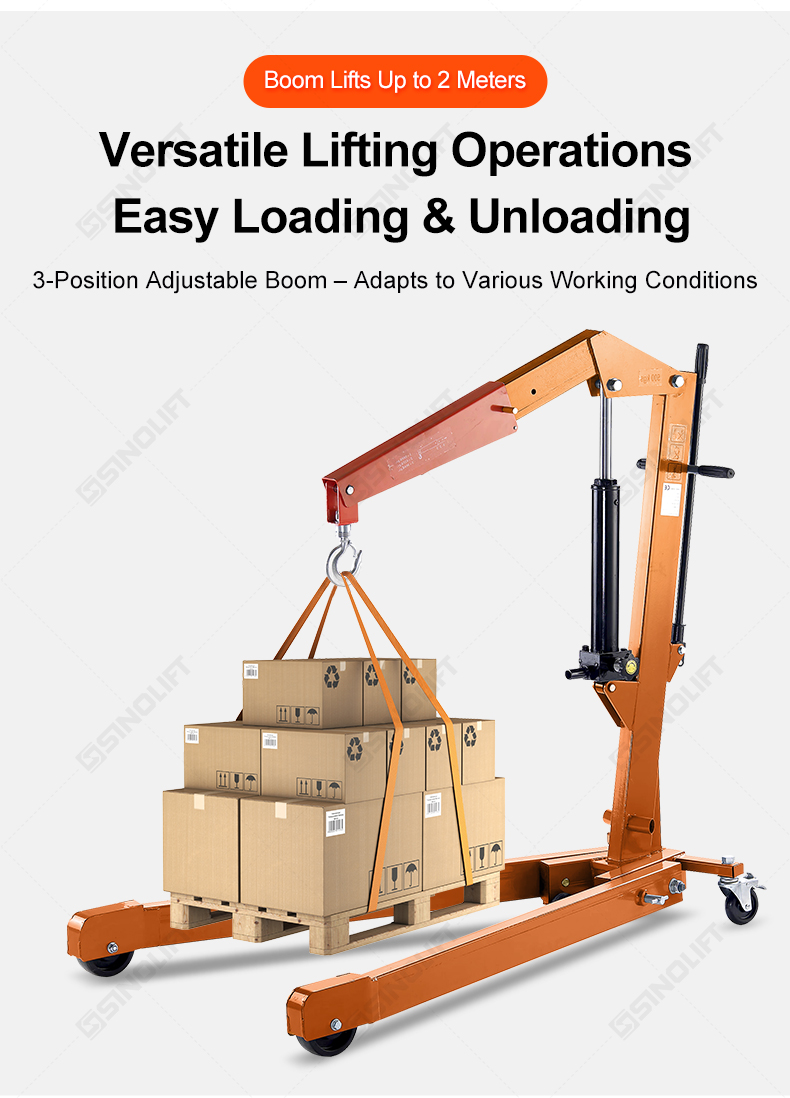

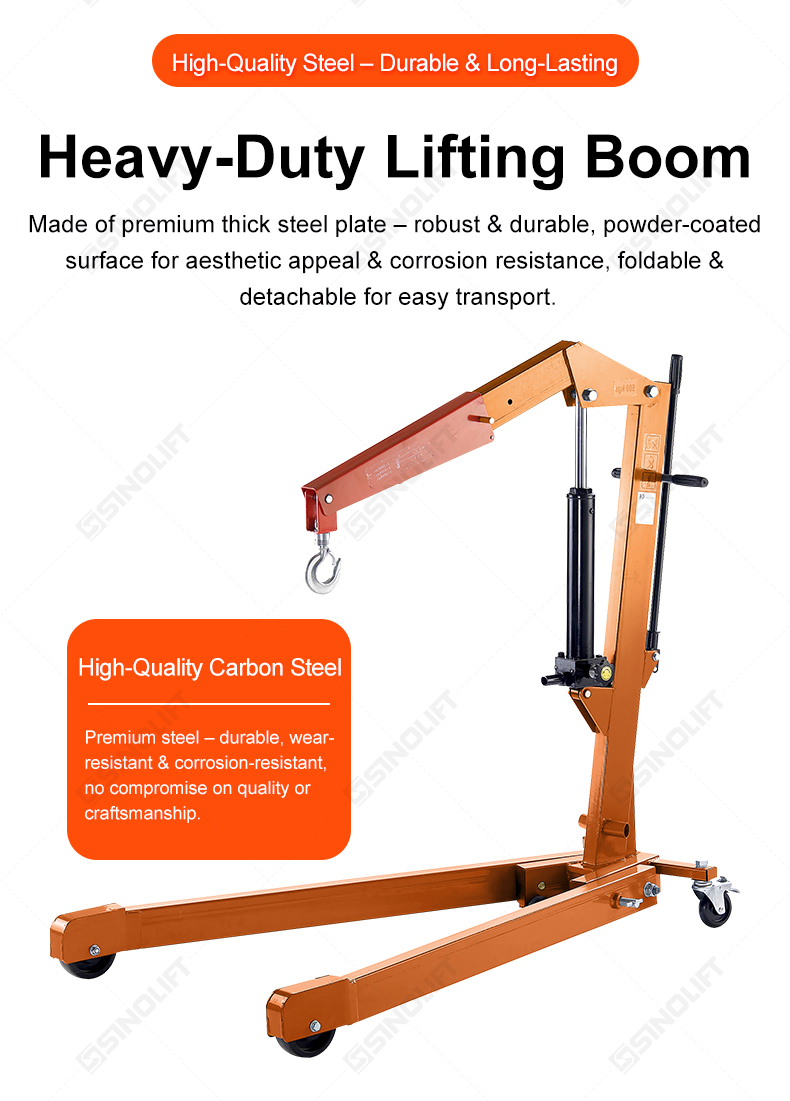

- 3-Position Adjustable/Longer Boom
Adapt to Various Working Conditions - Adjust to Your Needs

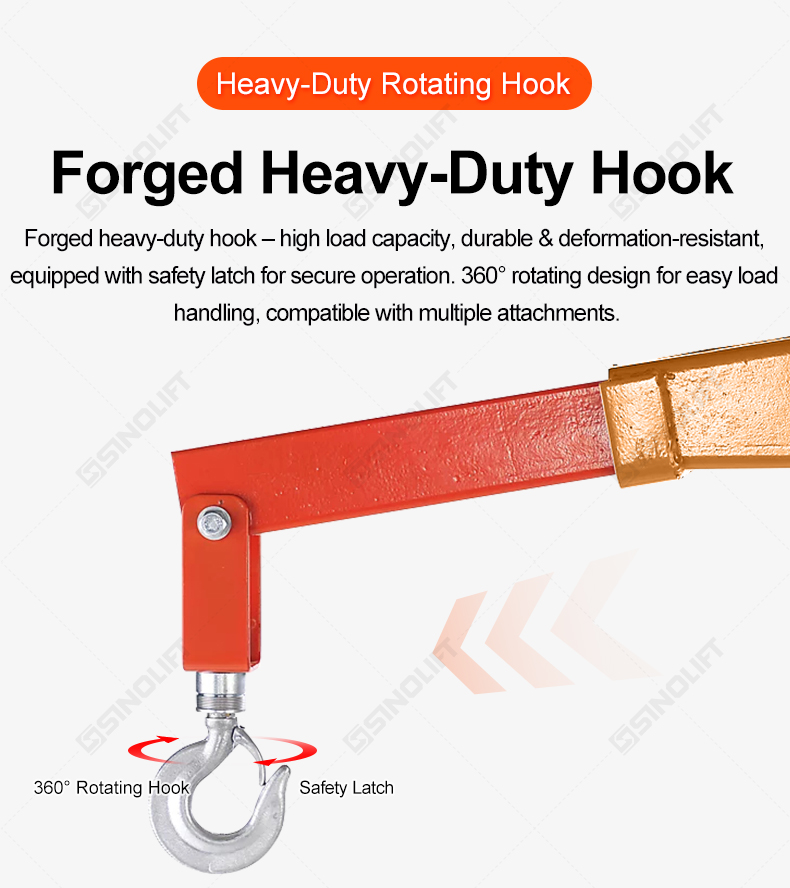

- Forged Heavy-Duty Hook

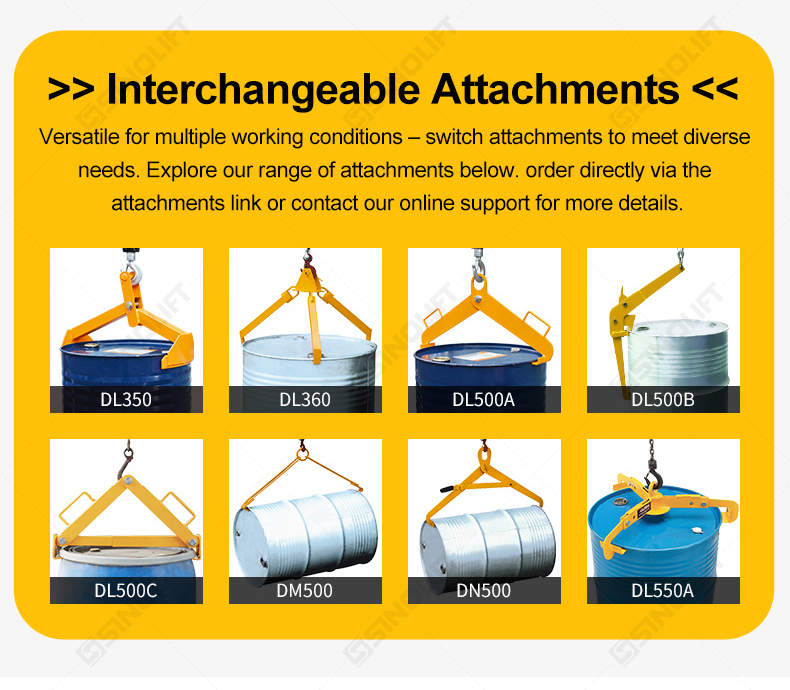

Forged heavy-duty hook - high load capacity, durable & deformation-resistant, equipped with safety latch for secure operation. 360° rotating design for easy load handling, compatible with multiple attachments.
- Sturdy and Durable, Non-Foldable
Robust structure, compact design, providing stable and reliable lifting performance, suitable for scenarios requiring frequent movement and heavy-duty operations.
| Parameter Name | Unit | SA500 | SA1000 |
| Rated Load Capacity Position 1 | P1 (Kg) | 500 | 1000 |
| Rated Load Capacity Position 2 | P2 (Kg) | 450 | 900 |
| Rated Load Capacity Position 3 | P3 (Kg) | 400 | 800 |
| Rated Load Capacity Position 4 | P4 (Kg) | 350 | 700 |
| Dimension L1 (Boom P4 Position Horizontal Arm Length) | mm | 1360 | 1360 |
| Dimension L2 (Boom P1 Position Horizontal Arm Length) | mm | 1060 | 1060 |
| Dimension L3 (Leg Length) | mm | 1395 | 1395 |
| Dimension H1 (Leg Height) | mm | 155 | 155 |
| Dimension H2 (Boom P4 Position Lowered Ground Clearance) | mm | 470 | 470 |
| Dimension H3 (Boom P1 Position Lowered Ground Clearance) | mm | 705 | 705 |
| Dimension H4 (Boom P1 Position Raised Ground Clearance) | mm | 2225 | 2225 |
| Dimension H5 (Boom P4 Position Raised Ground Clearance) | mm | 2475 | 2475 |
| Dimension H (Chassis Horizontal Height) | mm | 1595 | 1595 |
| Dimension B2 (Leg Width) | mm | 840 | 840 |
| Dimension B3 (Leg Width) | mm | 1000 | 1000 |
| Net Weight | Kg | 81 | 103 |
