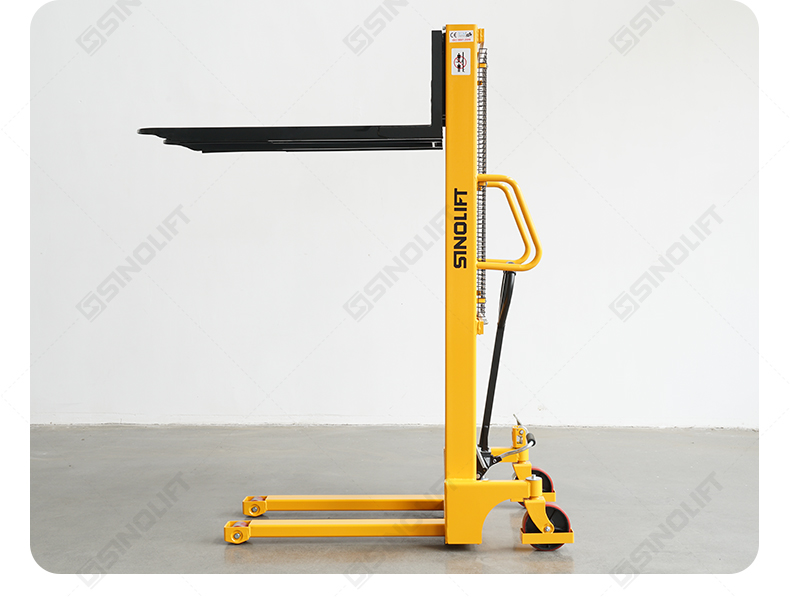

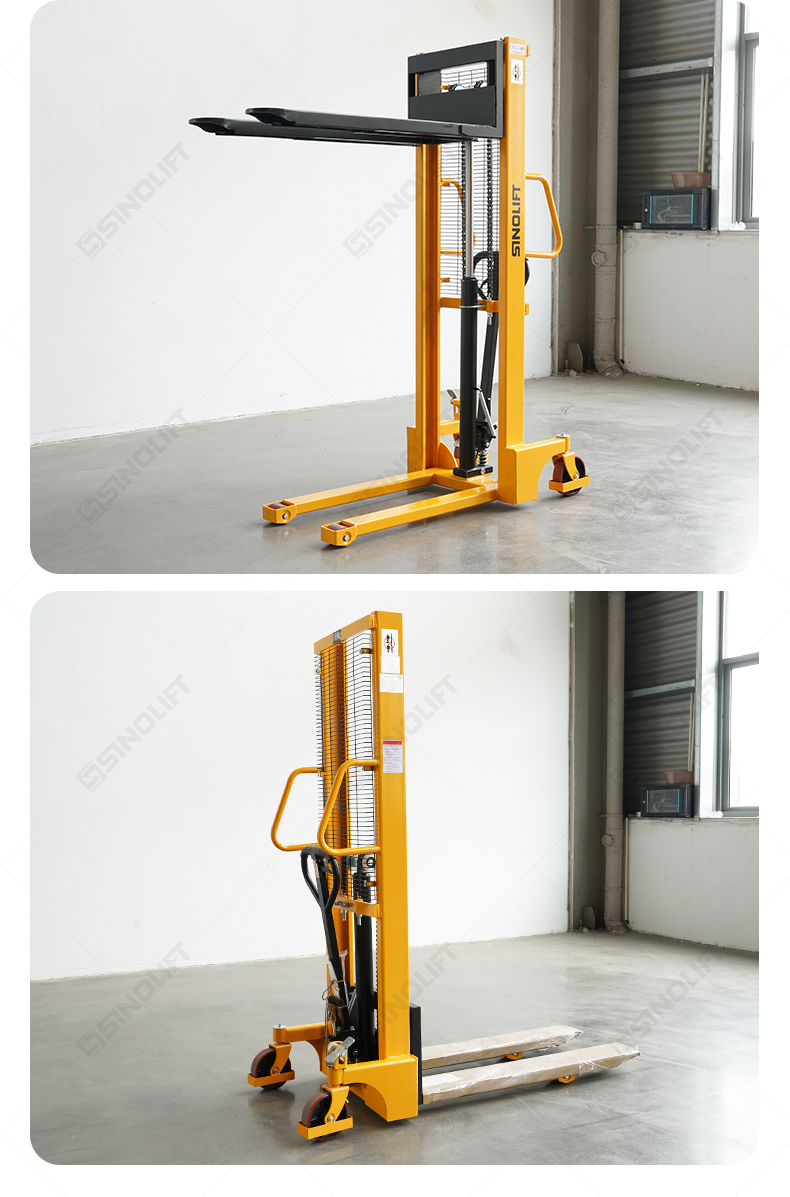

SMS Manual Hydraulic Pallet Stacker with Narrow Legs
SMS Manual Hydraulic Pallet Stacker with Narrow Legs

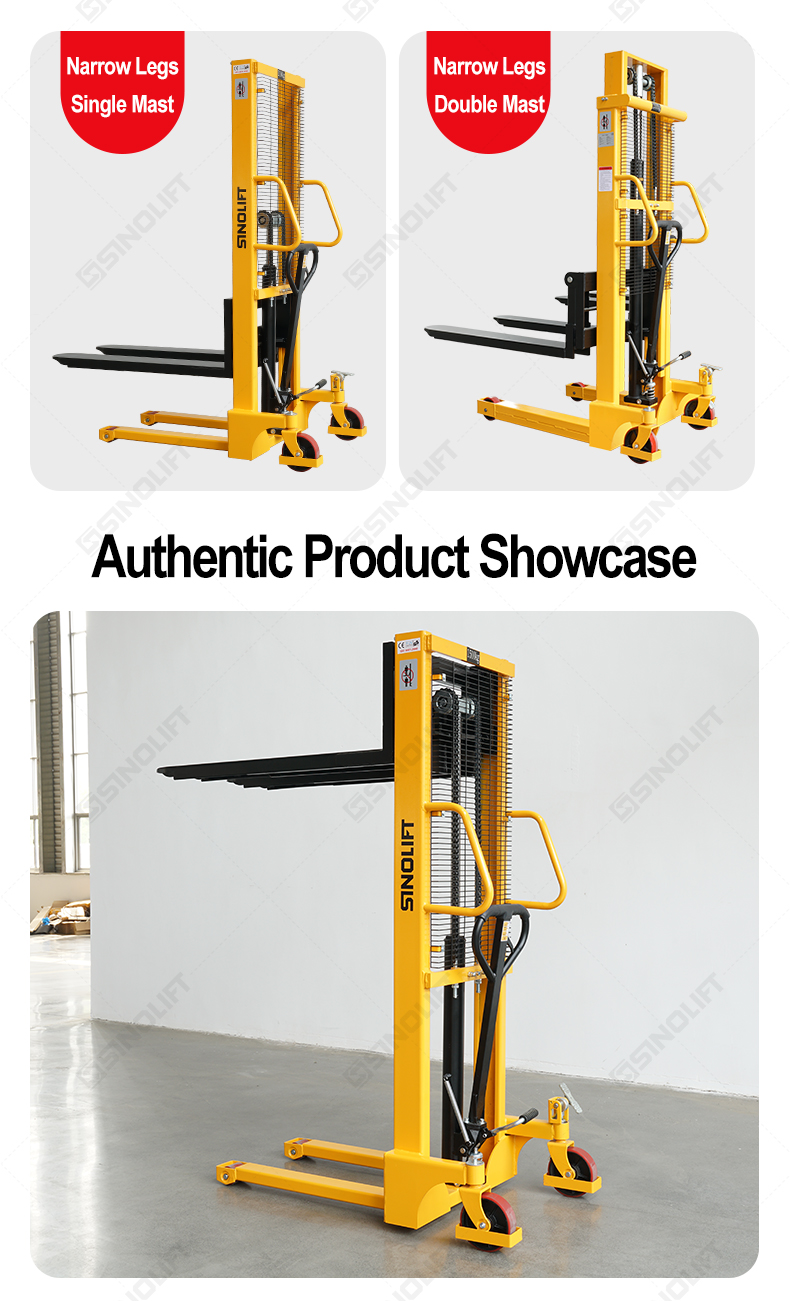

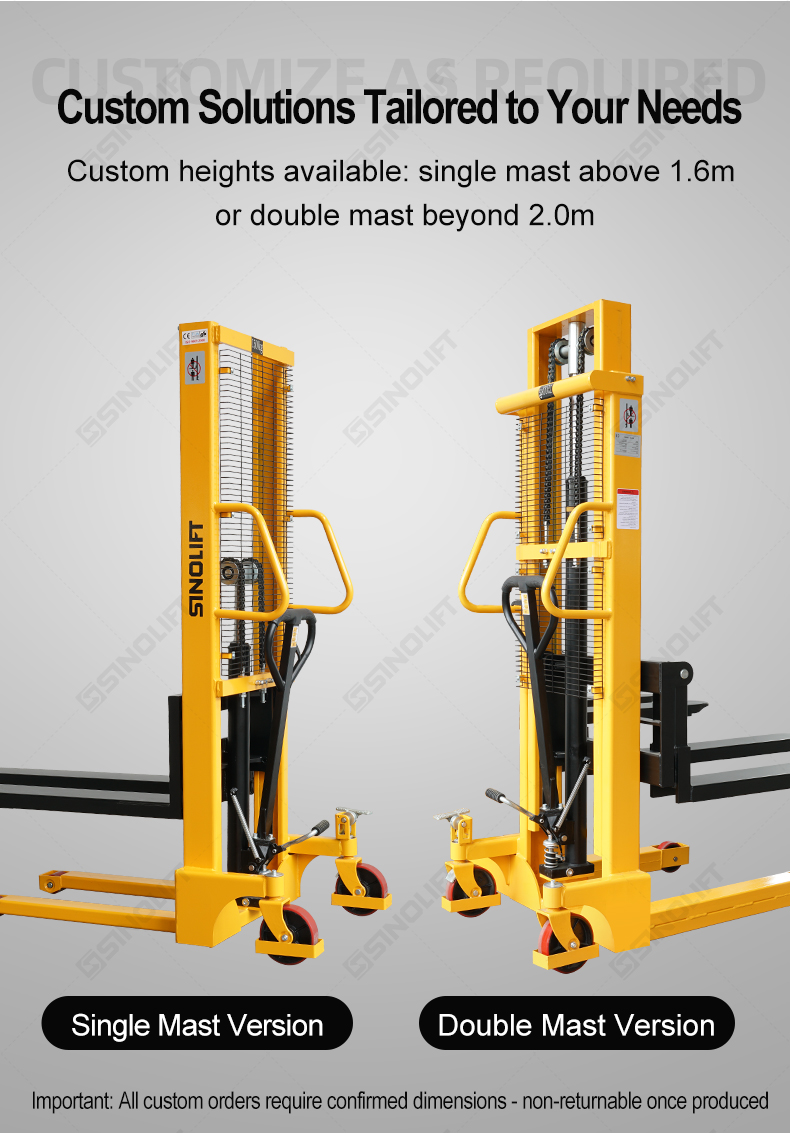

The SMS Manual Hydraulic Stacker is engineered for efficient narrow-aisle material handling, featuring a compact body design (minimum working height of just 85mm)—making it the ideal choice for high-density warehouses, supermarket shelf operations, and confined workspaces. Built with 6-8mm reinforced steel plates, this robust stacker ensures stable lifting capacities of 500-2000kg, combining heavy-duty performance with precision. Ideal for factories, warehouses, and retail environments, the stacker offers custom single/double mast options to suit diverse workflow demands.
Design Highlights:

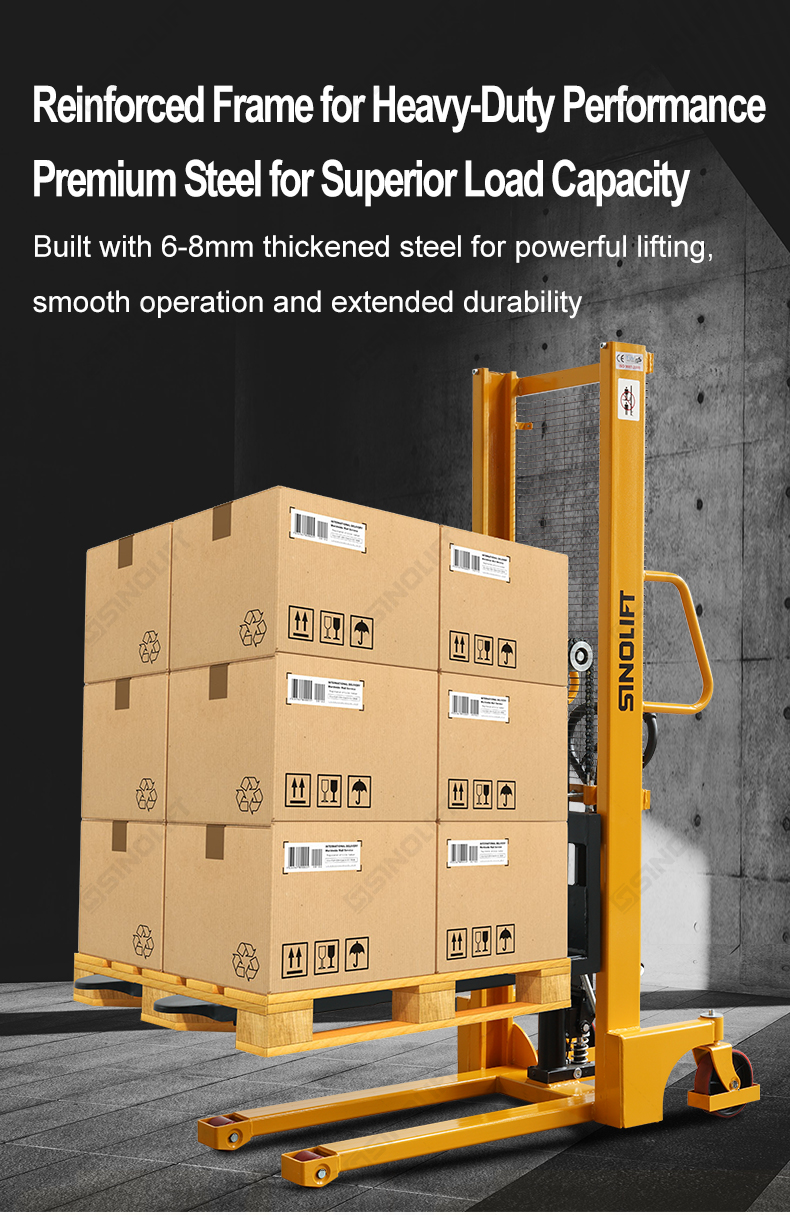

Heavy-Duty Construction - Built with reinforced 6-8mm thick steel for superior load capacity (500-2000kg) and long-term durability
Space-Saving Narrow Leg Design - Optimized for working in tight warehouse aisles and confined spaces

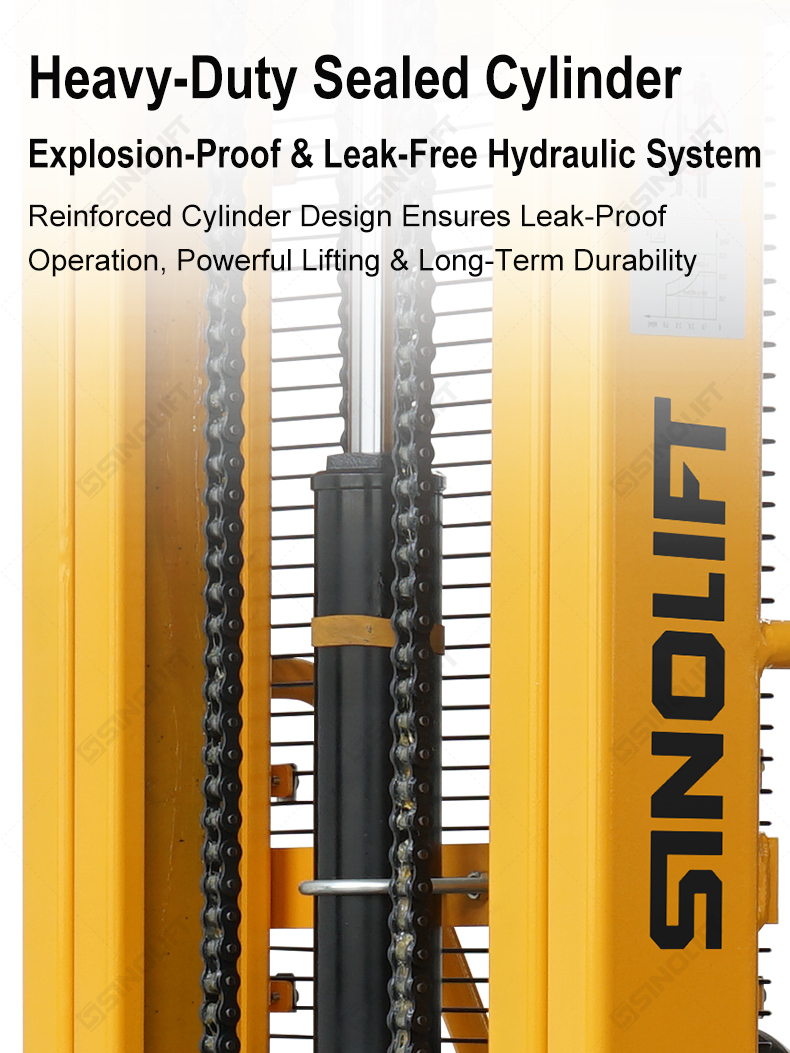

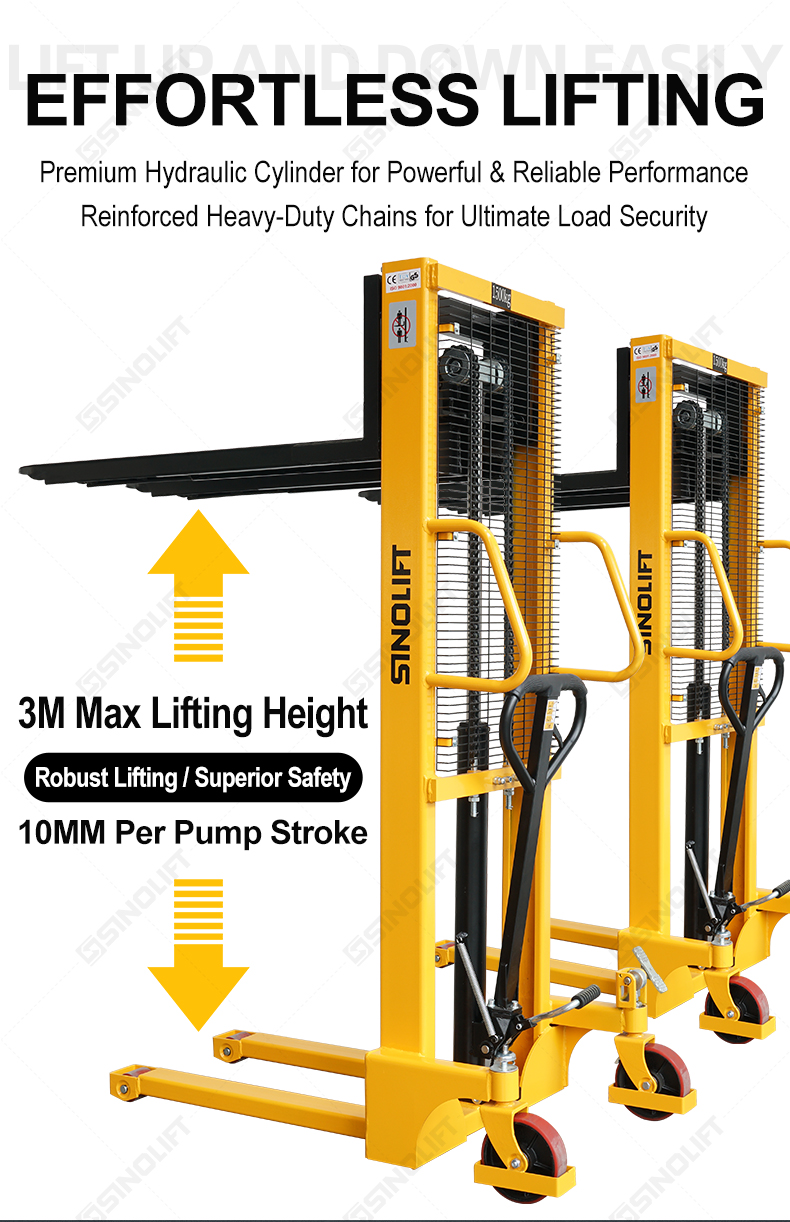

Premium Hydraulic System - Features a sealed, leak-proof cylinder for smooth lifting (up to 3m height) and reliable performance

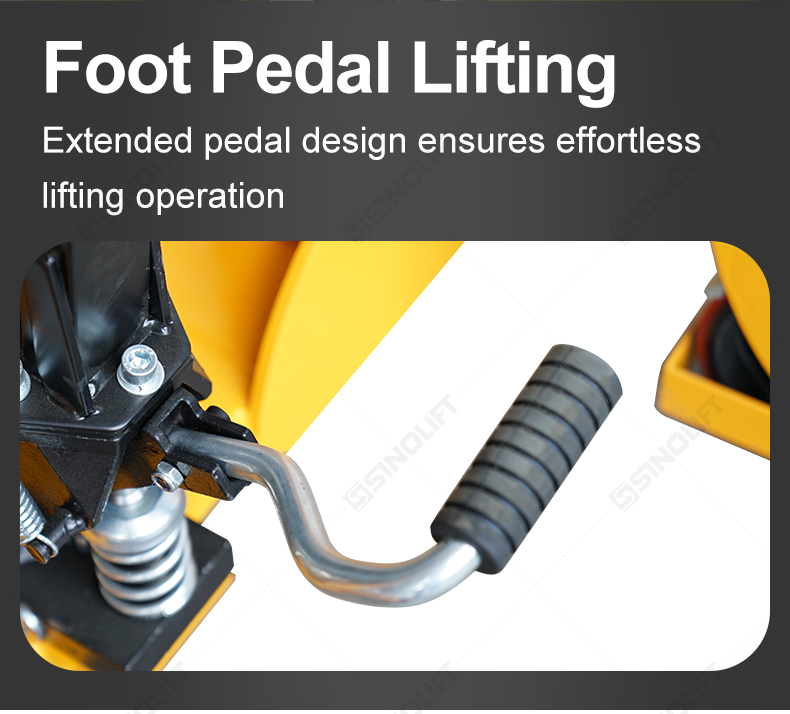

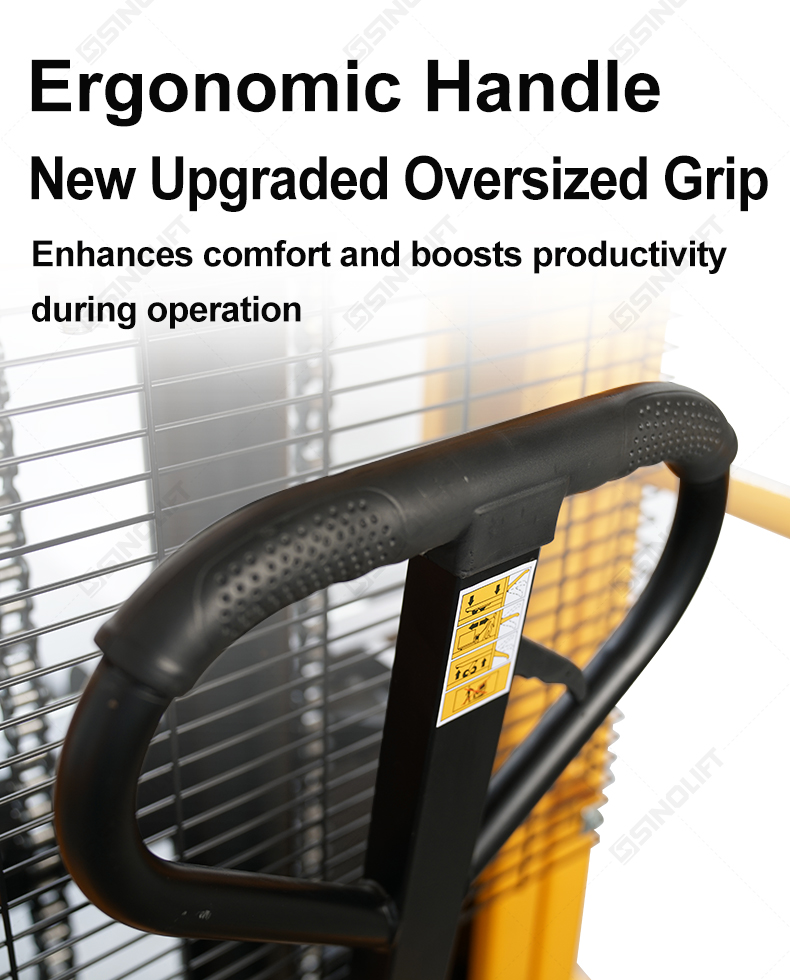

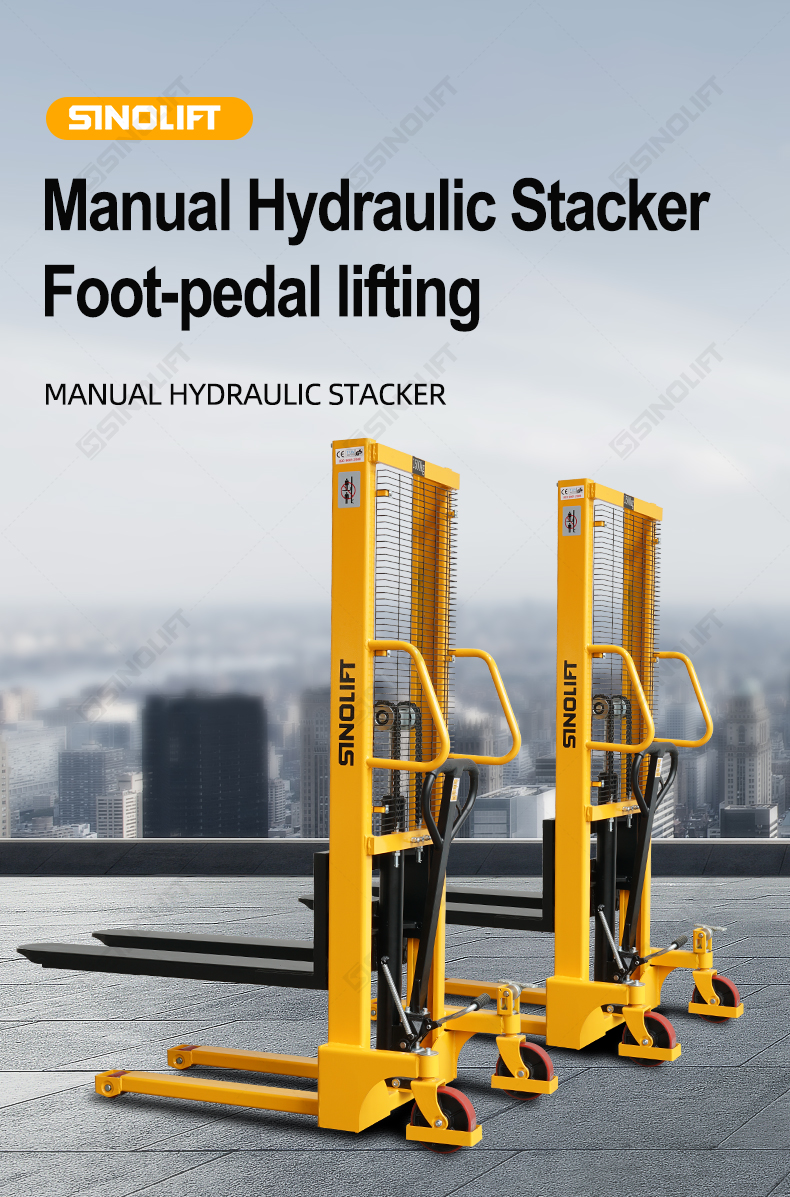

Ergonomic Operation - Foot pedal lifting mechanism and oversized handle reduce operator fatigue

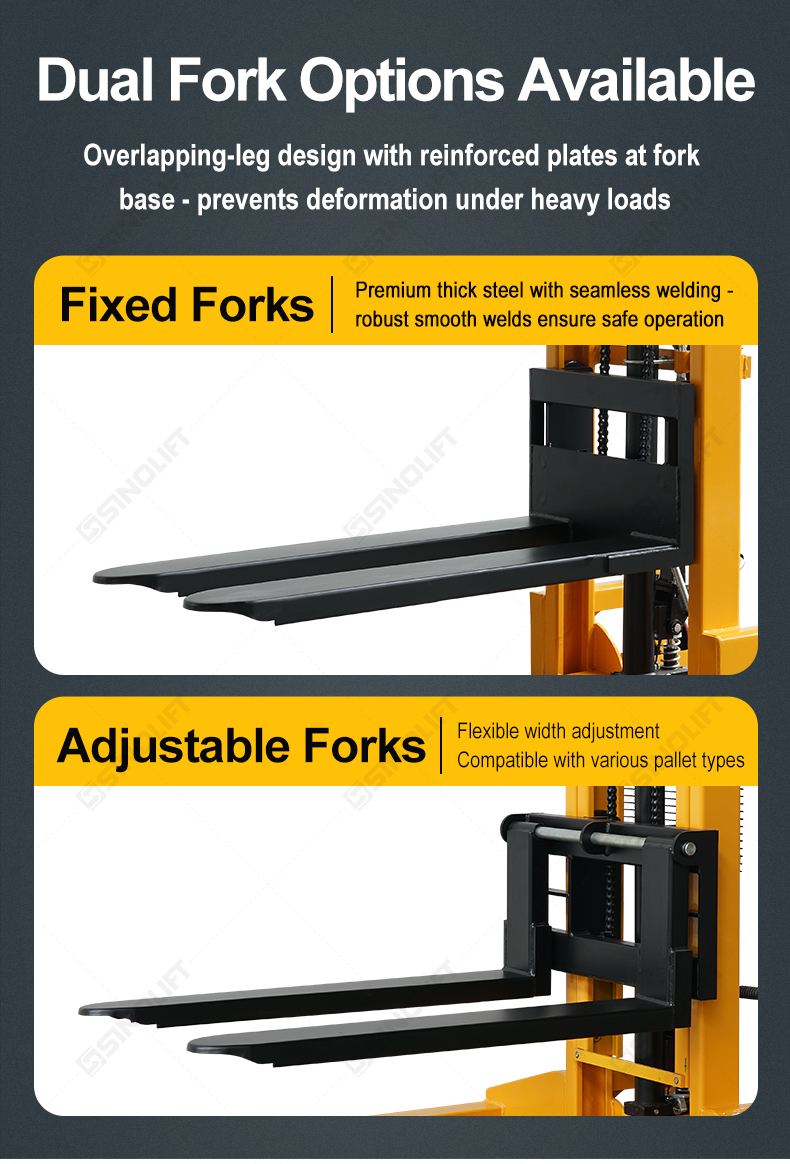

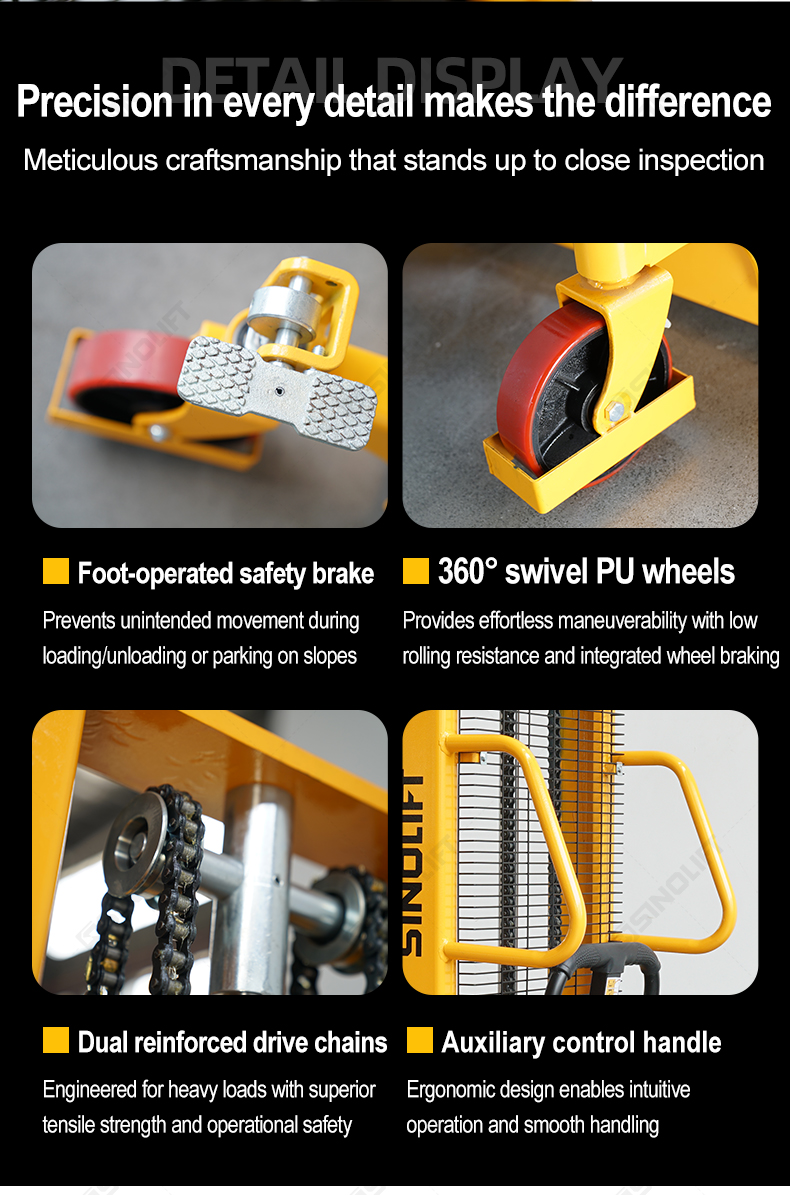

Enhanced Safety Features - Includes reinforced plate chains, fork reinforcement plates, and foot-operated brakes
Applications:
•Warehouse Operations - Ideal for stacking and transporting pallets in narrow aisles
•Retail & Supermarkets - Perfect for shelf restocking and inventory management
•Factory Floors - Efficient handling of materials in production areas
•Logistics Centers - Excellent for loading/unloading and short-distance transport
Product Specifications
| SMS Series - Narrow Leg Single Mast Stacker | ||||
| Model | SMS0512 | SMS1016 | SMS1516 | SMS2016 |
| Load Capacity (kg) | 500 | 1000 | 1500 | 2000 |
| Lifting Height (mm) | 1200 | 1600 | 1600 | 1600 |
| Maximum Height (mm) | 85 | 85 | 85 | 85 |
| Fork Length (mm) | 800 | 1000/1150 | 1000/1150 | 1000/1150 |
| Fork Width (mm) | 330-590/550 | 330-740/550 | 330-740/550 | 330-740/550 |
| Front Load Wheel (mm) | φ80×58 | φ80×58 | φ80×58 | φ80×58 |
| Rear Guide Wheel (mm) | φ150×35 | φ180×50 | φ180×50 | φ180×50 |
| Overall Length (mm) | 1300 | 1600 | 1600 | 1600 |
| Overall Width (mm) | 760 | 760 | 760 | 760 |
| Overall Height (mm) | 1540 | 2030 | 2030 | 2030 |
| Net Weight (kg) | 100 | 224 | 240 | 270 |
| SMS Series - Narrow Leg Double Mast Stacker | |||||||
| Model | SMS1020 | SMS1025 | SMS1030 | SMS1520 | SMS1525 | SMS1530 | SMS2020 |
| Load Capacity (kg) | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 | 2000 |
| Lifting Height (mm) | 2000 | 2500 | 3000 | 2000 | 2500 | 3000 | 2000 |
| Maximum Height (mm) | 85 | ||||||
| Fork Length (mm) | 1000/1150 | ||||||
| Fork Width (mm) | 330-740/550 | ||||||
| Front Load Wheel (mm) | φ74×70 | ||||||
| Rear Guide Wheel (mm) | φ180×50 | ||||||
| Overall Length (mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Overall Width (mm) | 760 | 760 | 760 | 760 | 760 | 760 | 760 |
| Overall Height (mm) | 1580 | 1840 | 2080 | 1580 | 1840 | 2080 | 1580 |
| Net Weight (kg) | 100 | 224 | 240 | 236 | 248 | 270 | 236 |
