Product Name

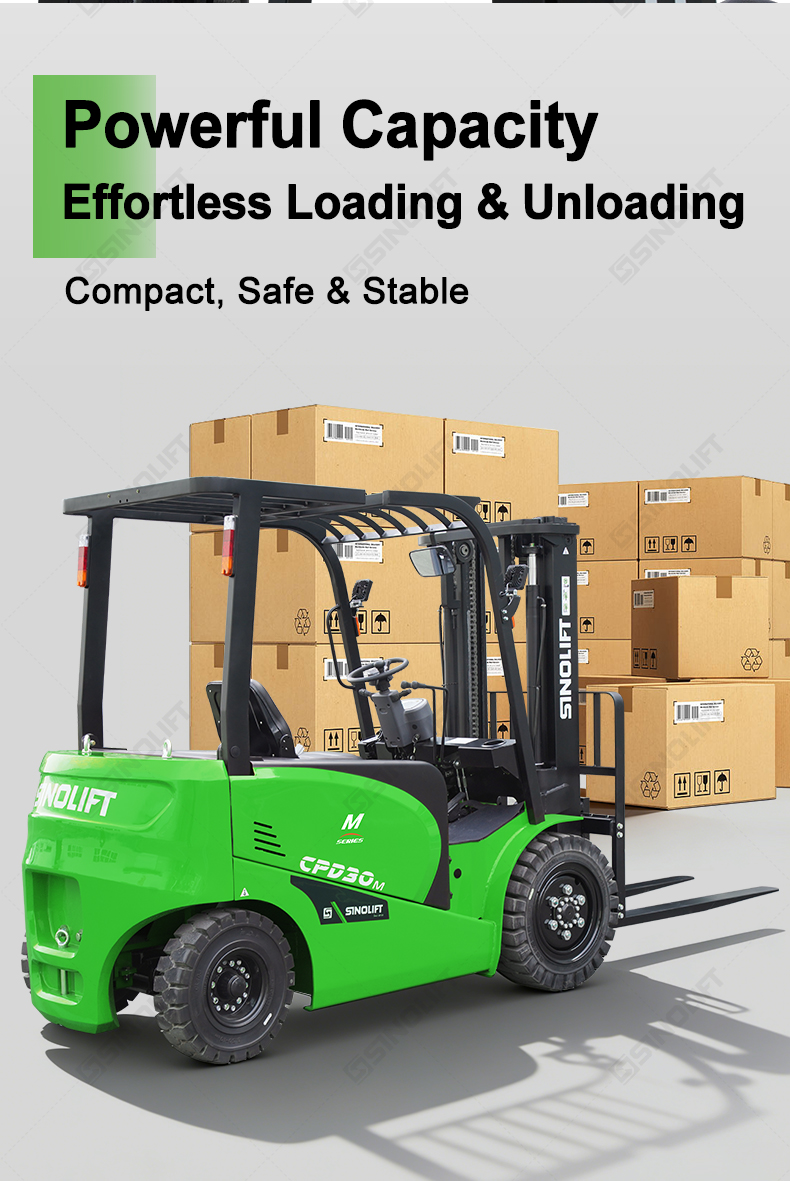

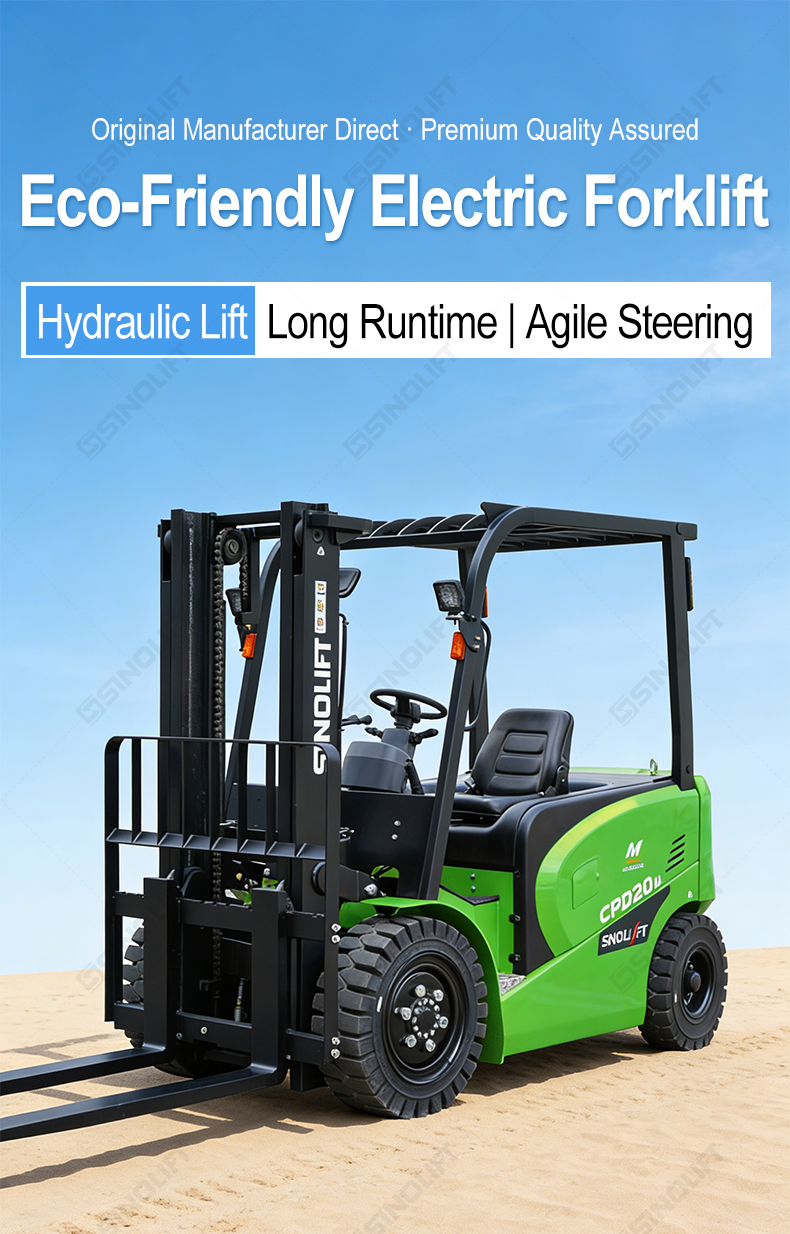

CPD20MA7Li CPD25MA7Li CPD30MA7Li CPD35MA7Li Lithium Electric Forklift Truck

Product Description

The SINOLIFT Lithium Electric Forklift Truck is designed for efficient and environmentally friendly material handling in warehouses, factories, logistics centers, construction sites, and industrial environments.

Powered by a high-performance 76.8V lithium battery and strong drive motor, the forklift delivers stable lifting, long operating endurance, fast charging capability, and excellent maneuverability in narrow aisles.

Featuring a reinforced steel mast, forged adjustable forks, intelligent steering system, and advanced safety controls, it provides reliable performance, operator comfort, and improved working efficiency.

Key Features

• 76.8V lithium battery system
• Powerful electric hydraulic lifting
• 16KW high-power drive motor

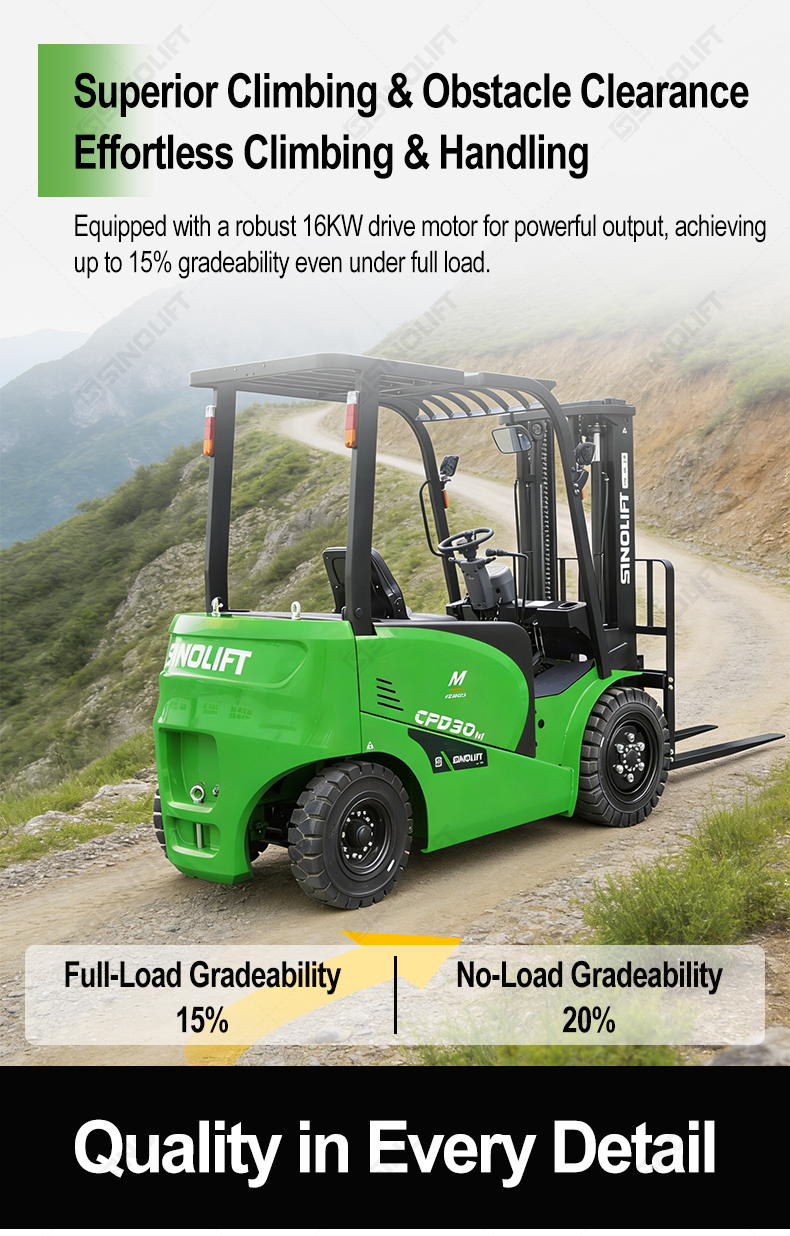

• Up to 15% full-load gradeability
• Fast charging within 1.5–2 hours
• Reinforced heavy-duty C-channel mast

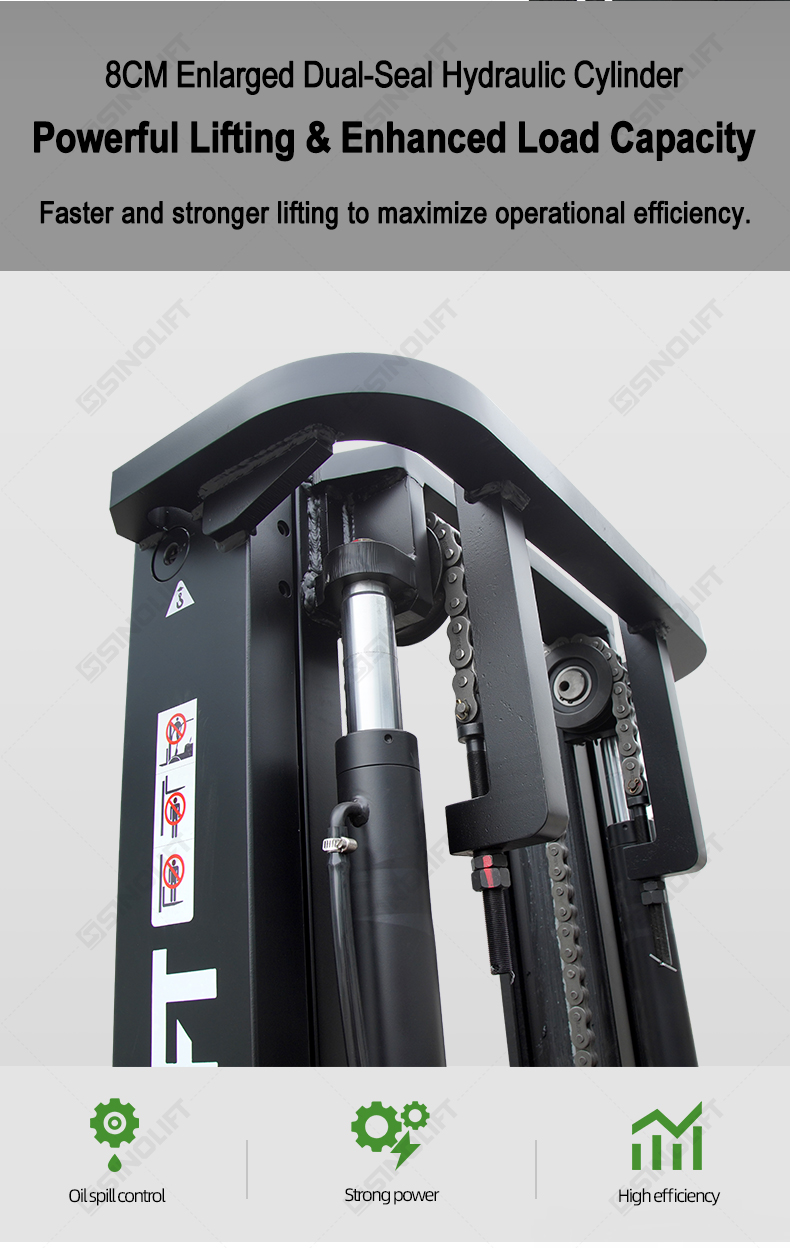

• Enlarged dual-seal hydraulic cylinders
• Solid forged adjustable forks
• Compact body with small turning radius
• Electronic Power Steering (EPS)
• Intelligent CAN bus monitoring system

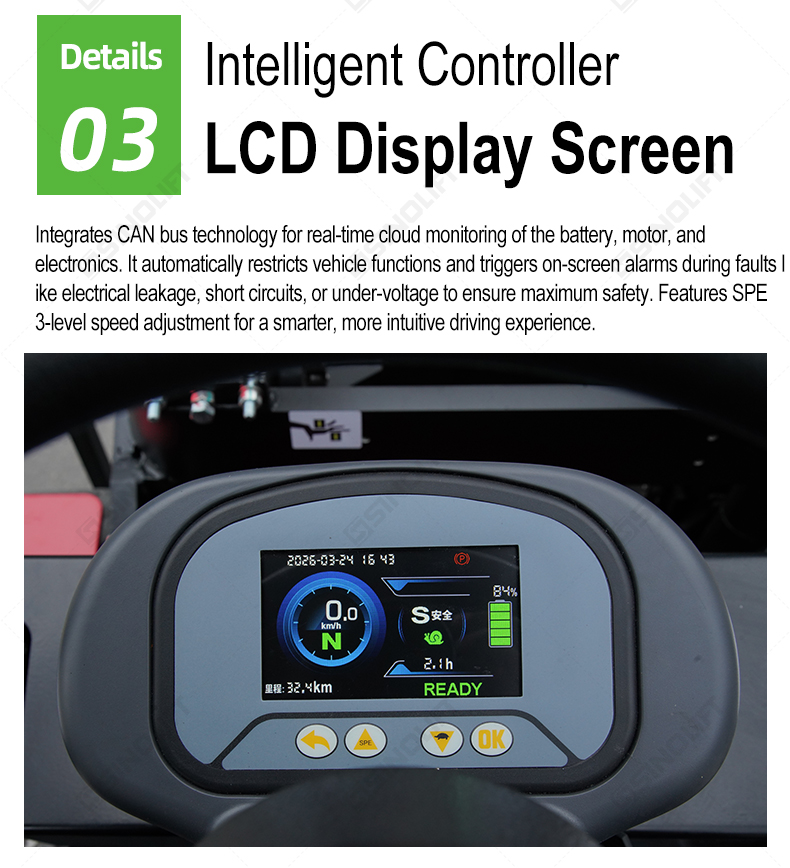

• LCD multifunction display

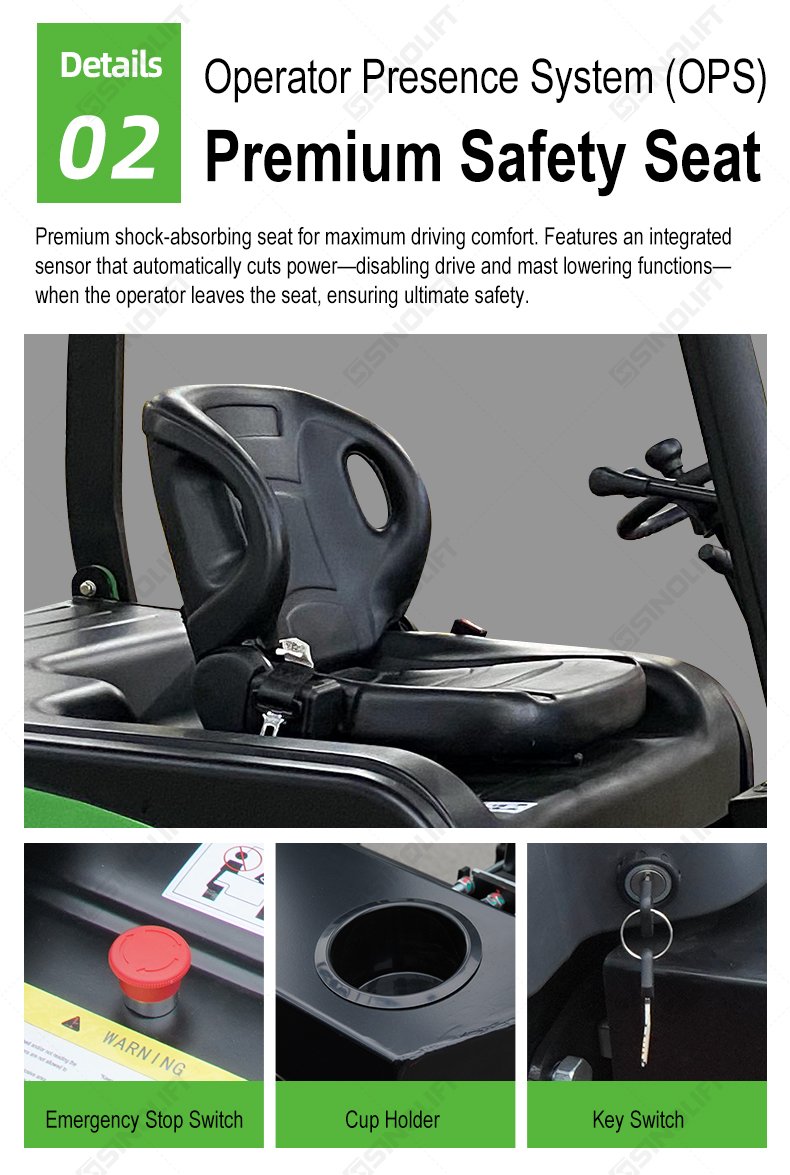

• Operator Presence System (OPS)
• Emergency stop switch

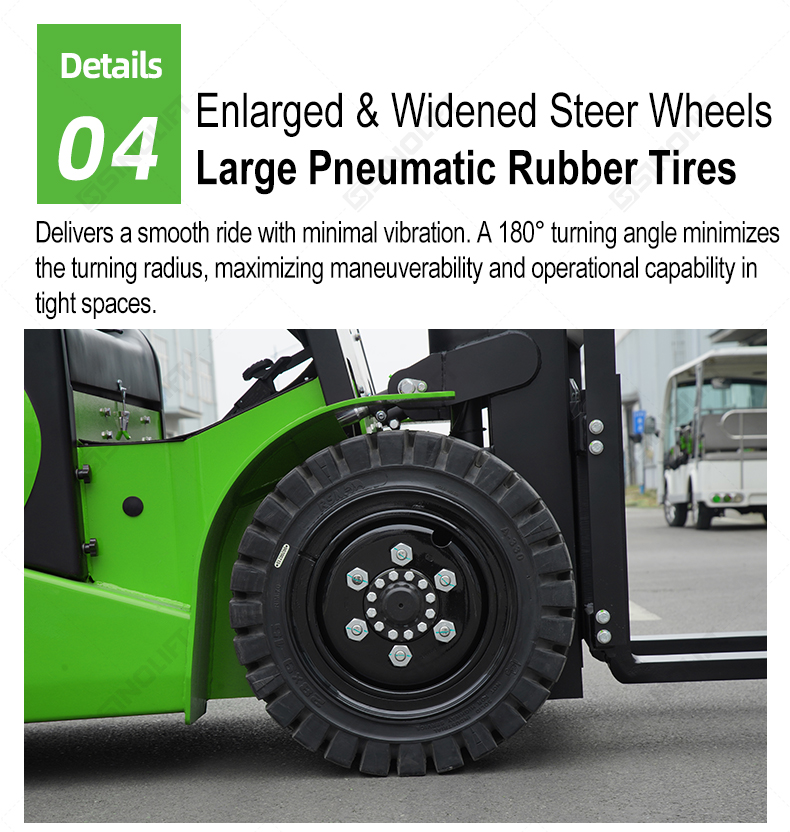

• Large pneumatic rubber tires
• OEM & ODM customization supported

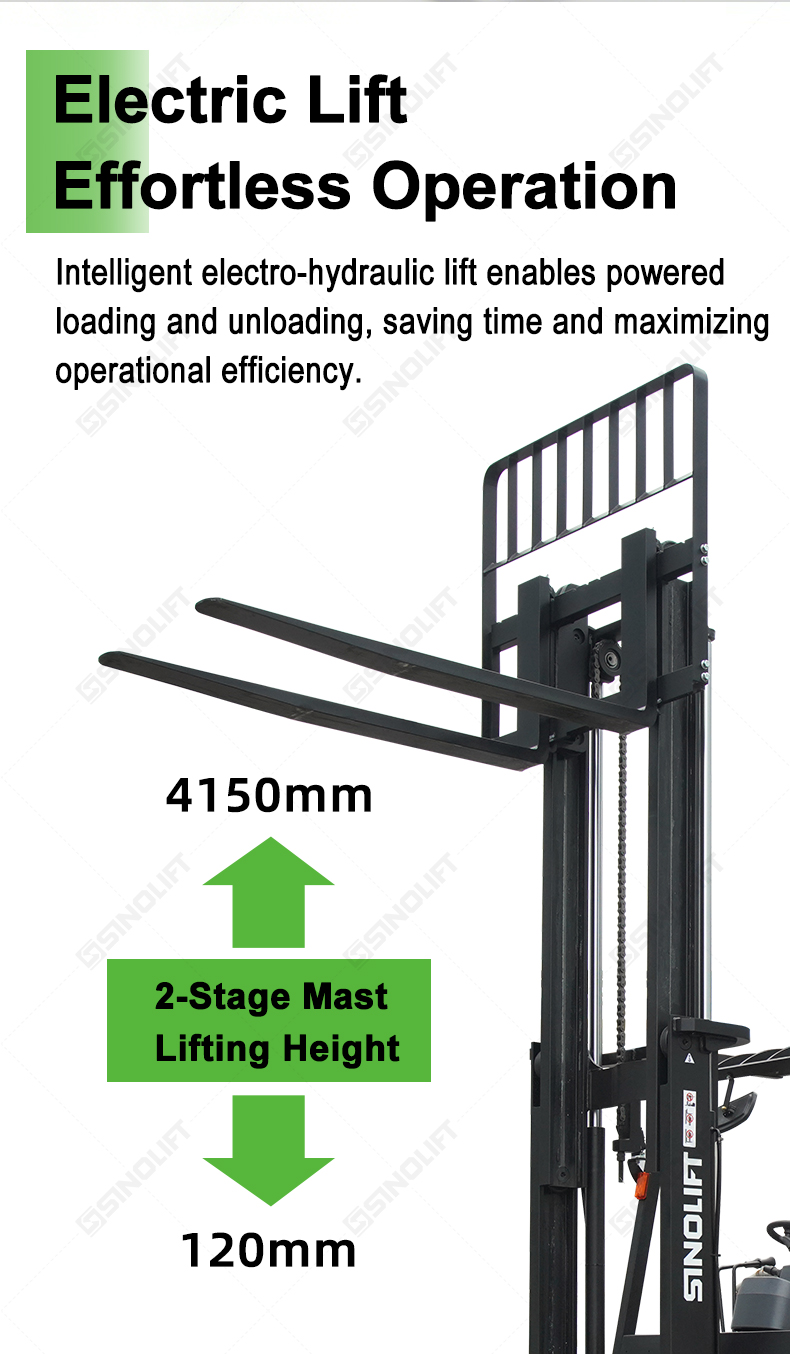

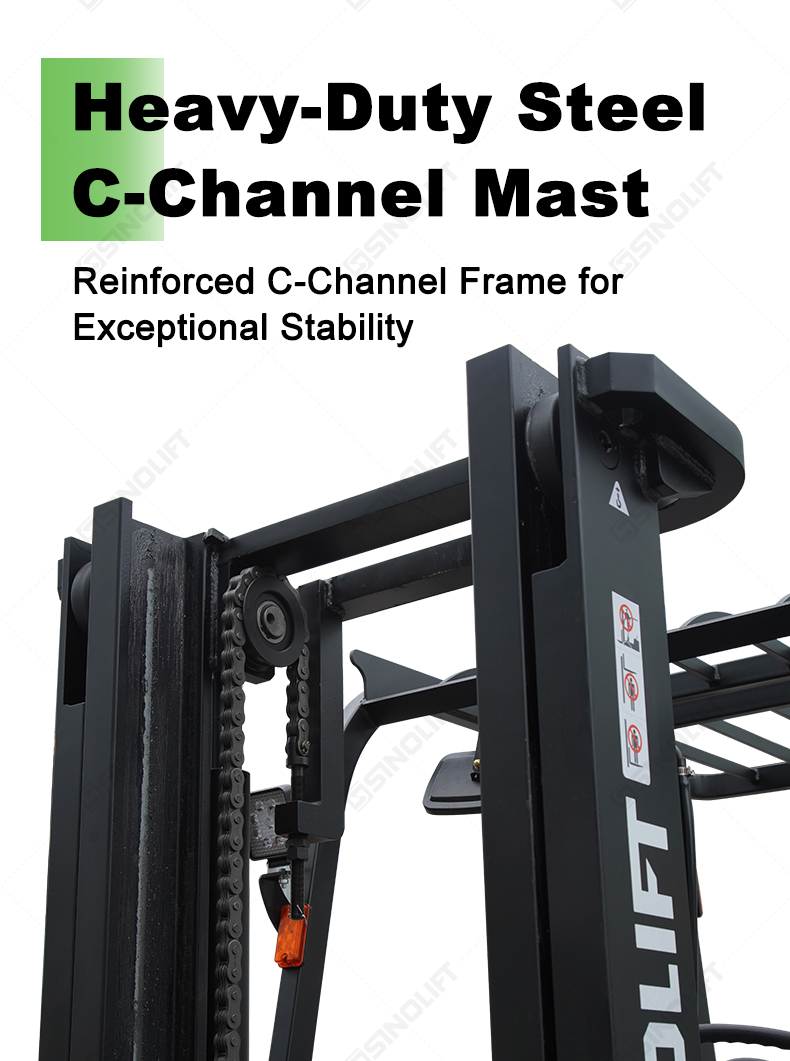

Reinforced Mast Structure

Heavy-duty thickened steel mast ensures stable lifting performance and reliable durability under demanding operations.

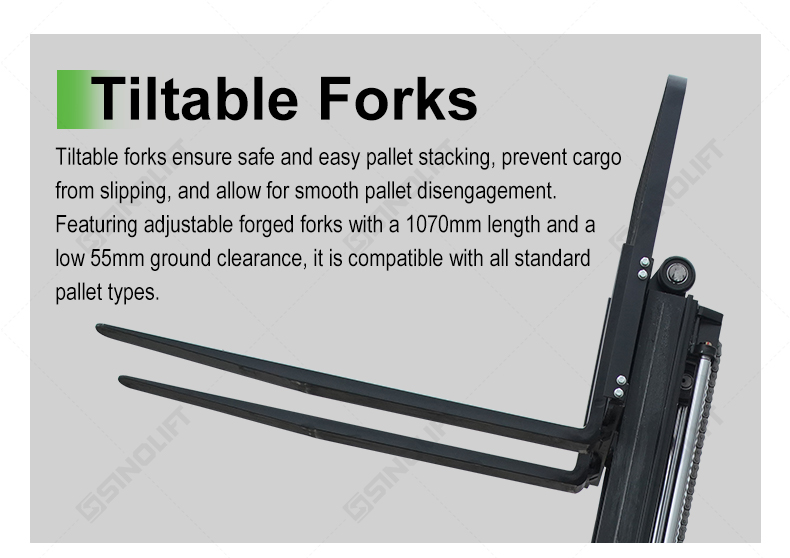

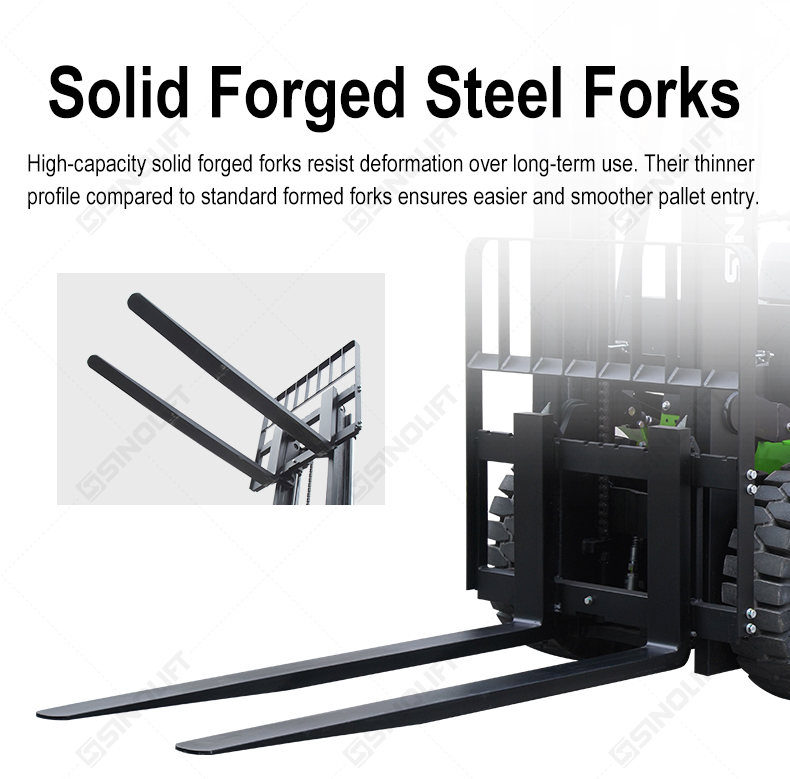

Forged Adjustable Forks

High-strength forged forks provide strong load capacity, anti-deformation performance, and compatibility with multiple pallet types.

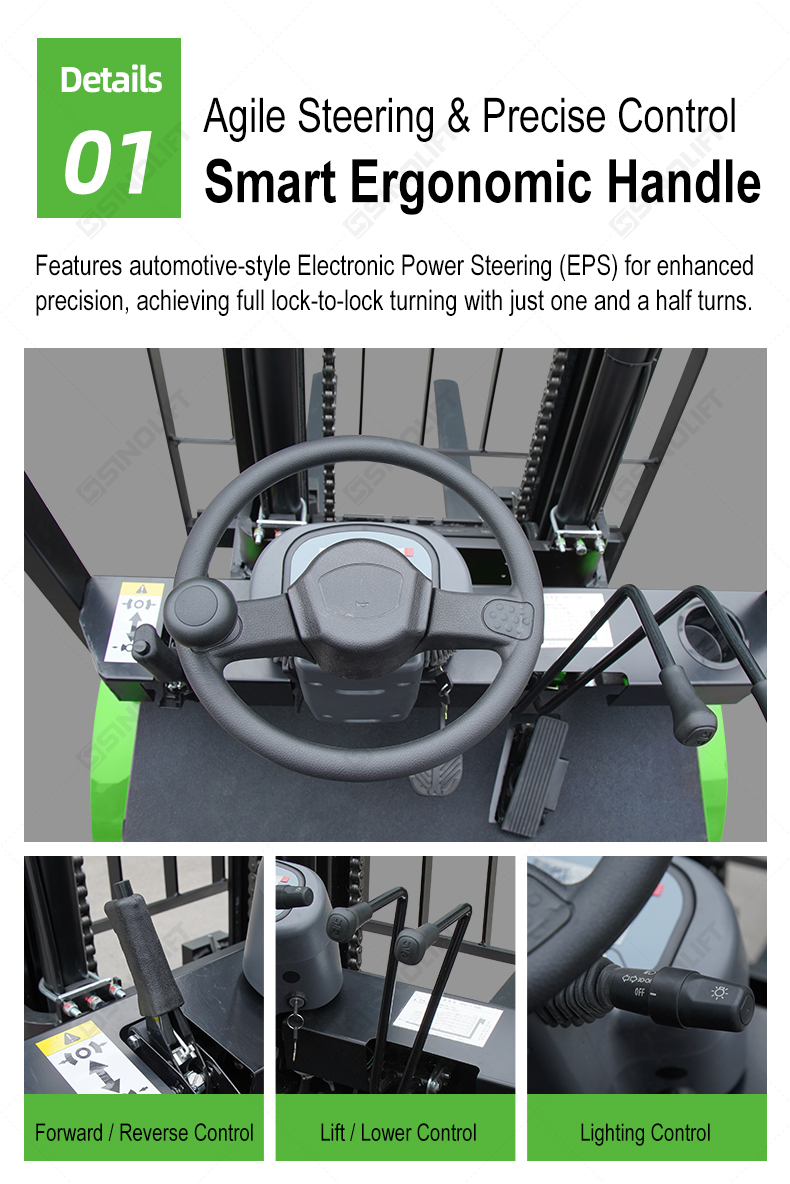

Intelligent Steering System

Electronic Power Steering delivers smooth handling, flexible steering, and improved maneuverability in narrow working spaces.

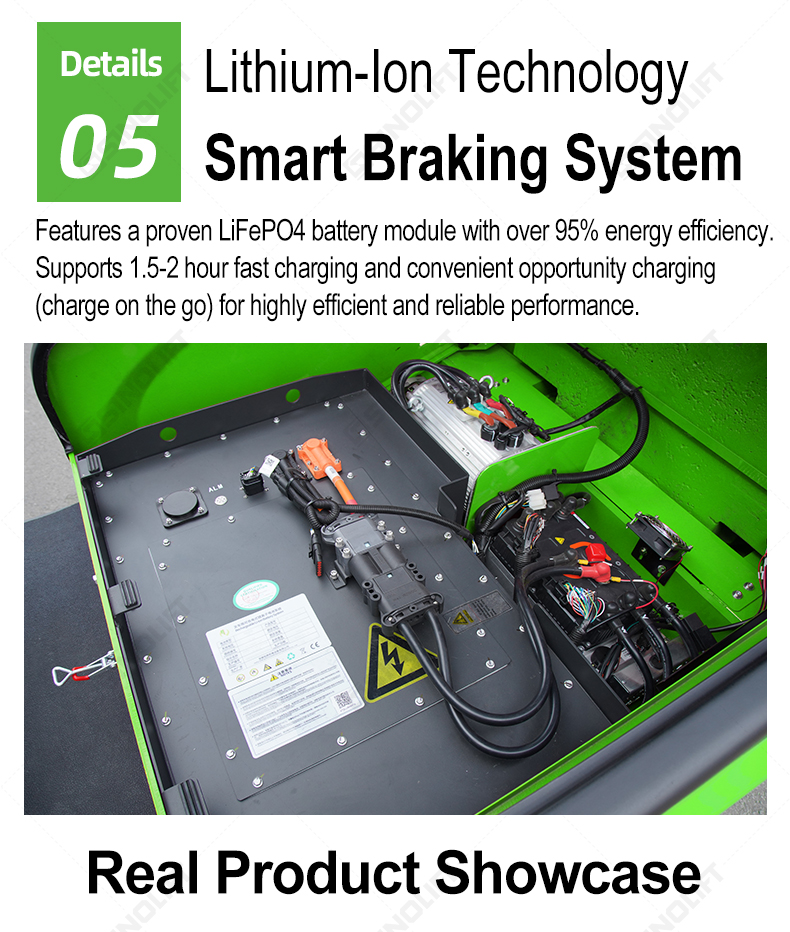

Lithium Battery Technology

Advanced LiFePO4 battery technology offers high energy efficiency, opportunity charging, long service life, and low maintenance requirements.

Applications

• Warehouse logistics
• Manufacturing facilities
• Construction sites
• Retail and supermarkets
• Agriculture and livestock industries
• Logistics and distribution centers
• Loading and unloading operations
• Narrow aisle warehouse handling

Product Specifications

Model			CPD20MA7Li	CPD25MA7Li	CPD30MA7Li	CPD35MA7Li
Power Type			Electric	Electric	Electric	Electric
Operation Type			Seated	Seated	Seated	Seated
Rated Capacity	Q	kg	2000	2500	3000	3500
Load Centre	c	mm	500	500	500	500
Front Overhang	L2	mm	445	445	475	490
Wheelbase	L1	mm	1620	1620	1750	1750
Mast Tilt Angle	α/β	°	6/12	6/12	6/10	6/10
Mast Lowered Height	H1	mm	2050	2050	2080	2080
Free Lift Height	H3	mm	120	120	150	150
Standard Mast Lift Height	H	mm	3000	3000	3000	3000
Mast Extended Height	H2	mm	4045	4045	4150	4150
Overhead Guard Height	H4	mm	2120	2120	2150	2150
Distance from Botoom to Seat		mm	1070	1070	1070	1070
Traction Bolt Height		mm	300	300	300	300
Overall Length (include forks)	L	mm	3555	3555	3740	3760
Length to Face of Fork	L'	mm	2485	2485	2670	2690
Overall Width	W1	mm	1175	1175	1235	1235
Fork Size	TxWxL4	mm	40/100/1070	40/122/1070	45/125/1070	50/125/1070
Fork Type			ISO2328 2A	ISO2328 2A	ISO2328 3A	ISO2328 3A
Fork Carriage Outline Width		mm	1038	1038	1100	1100
Fork carriage spread width	W5	mm	225-972	247-995	250-1090	250-1090
Ground Clearance Under Mast Laden	H5	mm	100	100	110	110
Ground Clearance at Center of the Wheelbase	H6	mm	125	125	135	135

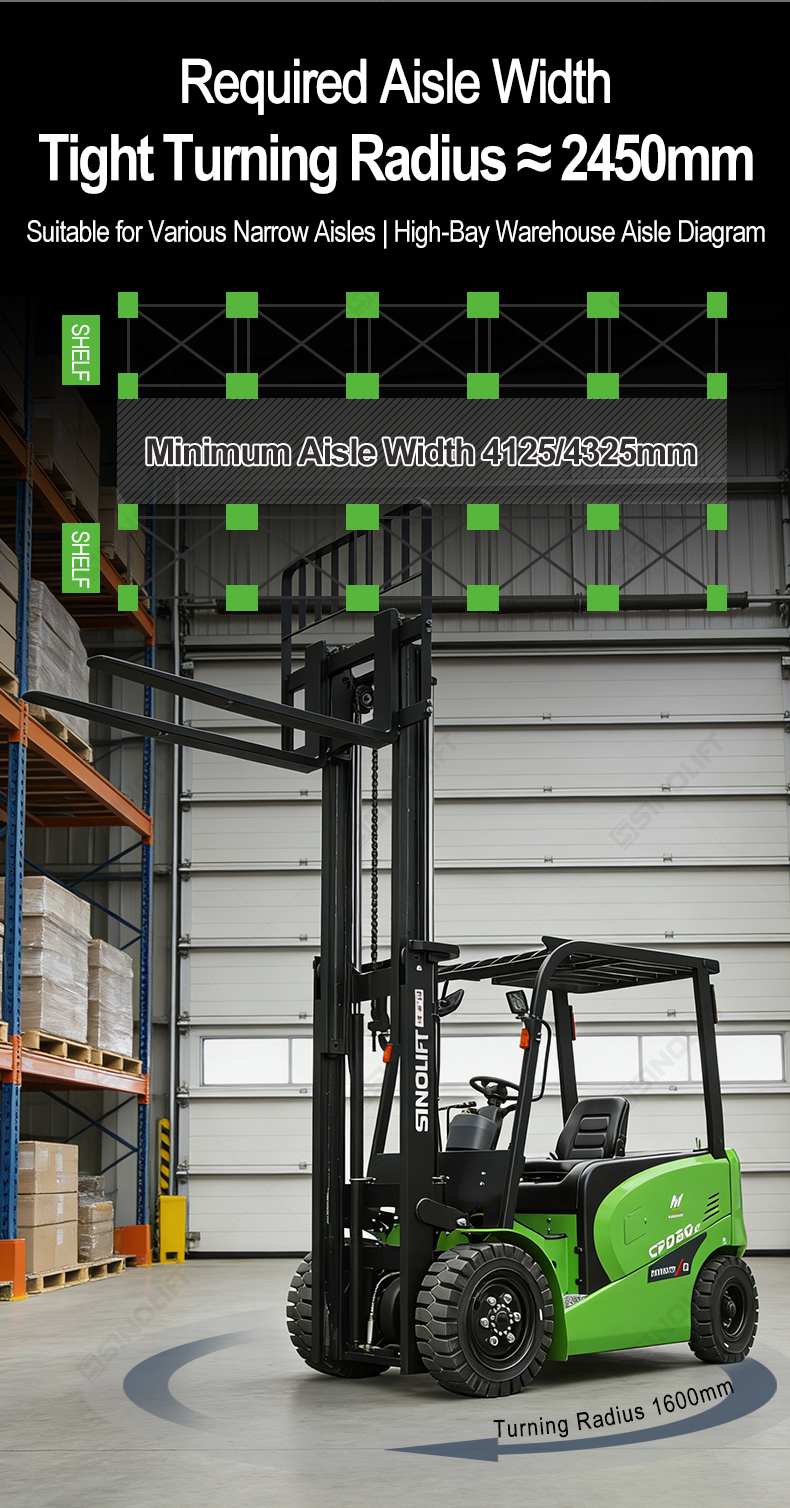

Min. Right Angle Stacking Aisle Width (Pallet 1000x1000)	Ast	mm	3895	3895	4125	4140
Min. Right Angle Stacking Aisle Width (Pallet 1200x1200)	Ast	mm	4095	4095	4325	4340
Turing Radius	r	mm	2250	2250	2450	2450
Service Weight		kg	3300	3600	4300	4650
Front Axle Rated Load Capacity with laden		kg	4720	5430	6640	7415
Rear Axle Rated Load with Laden		kg	580	670	660	735
Rated Load Capacity with unladen		kg	1290	1400	2020	2185
Rear Axle Rated Load with unladen		kg	2010	2160	2280	2465
Tyre Type			Pneumatic	Pneumatic	Pneumatic	Pneumatic
Tyre Size (Front)			7.00-12NHS-12PR	7.00-12NHS-12PR	28×9-15-14PR	28×9-15-14PR
Tyre Size (Rear)			6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
Wheel Number (x=Drive Wheel)			2x/2	2x/2	2x/2	2x/2
Front Tread		mm	970	970	1000	1000
Rear Thread		mm	980	980	980	980
Max. Travel Speed (Laden/Unladen)		km/h	15/15	15/15	15/15	15/15
Lifting Speed (Laden/Unladen)		mm/s	330/360	310/360	340/420	320/210
Lowering Speed (Laden/Unladen)		mm/s	400/340	420/340	400/360	420/360
Max. Gradeability (Laden/Unladen)		%	15/20	15/20	15/20	15/20
Service Brake Type			Hydraulic	Hydraulic	Hydraulic	Hydraulic
Parking Brake Type			Mechanical	Mechanical	Mechanical	Mechanical
Drive Motor Rating S2 60min		kW	16	16	16.6	16.6
Lifting Motor Rating at S315%		kW	18	18	22.6	13/13.5
Battery Voltagl/Capacicty K5		V/Ah	76.8/202	76.8/202	76.8/280	76.8/280
Battery Weight		kg	216	216	259	259
Maximum Allowable Battery Size		mm	964x580x675	964x580x675	675x780x964	675x780x964
Controller Brand			CURTIS	CURTIS	CURTIS	CURTIS
Controller Model			1234SE+1232SE	1234SE+1232SE	1236SE+1253	1236SE+1234SE
Attachment Pressure		bar	140	140	140	140
Attachment Oil Volume		L/min	65	65	65	65
Hydraulic oil tank volume		L	35	35	>=35	>=35
Sound Level at Driver's Ear According to EN 12 053		dB	72	72	72	72
