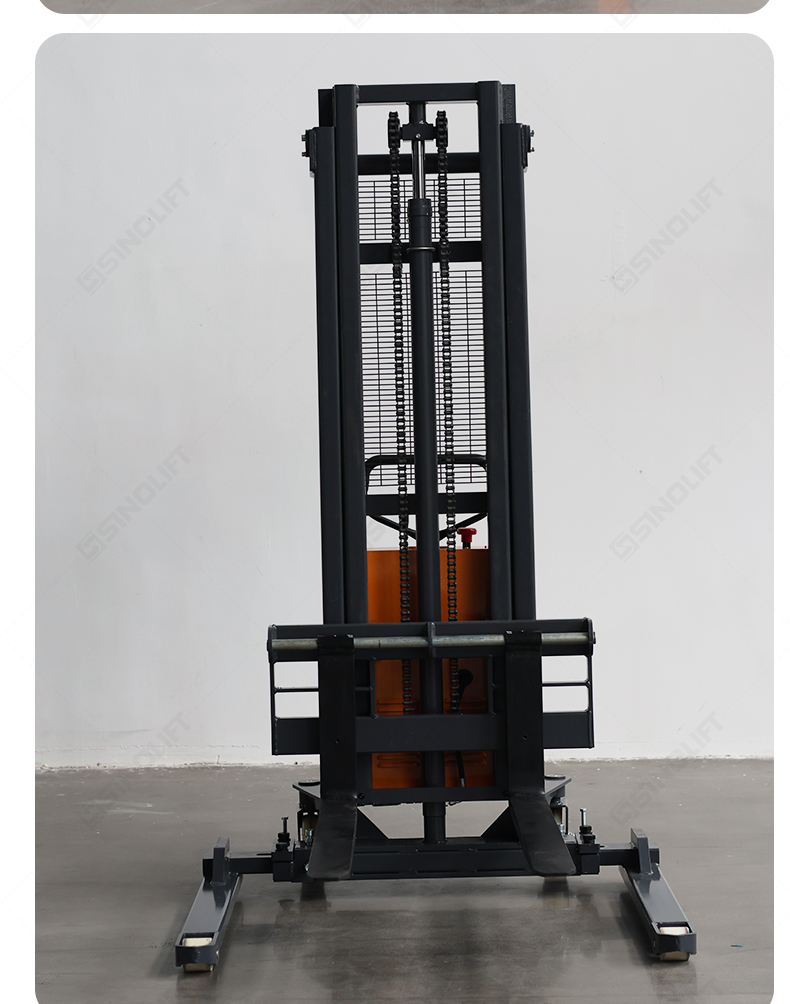

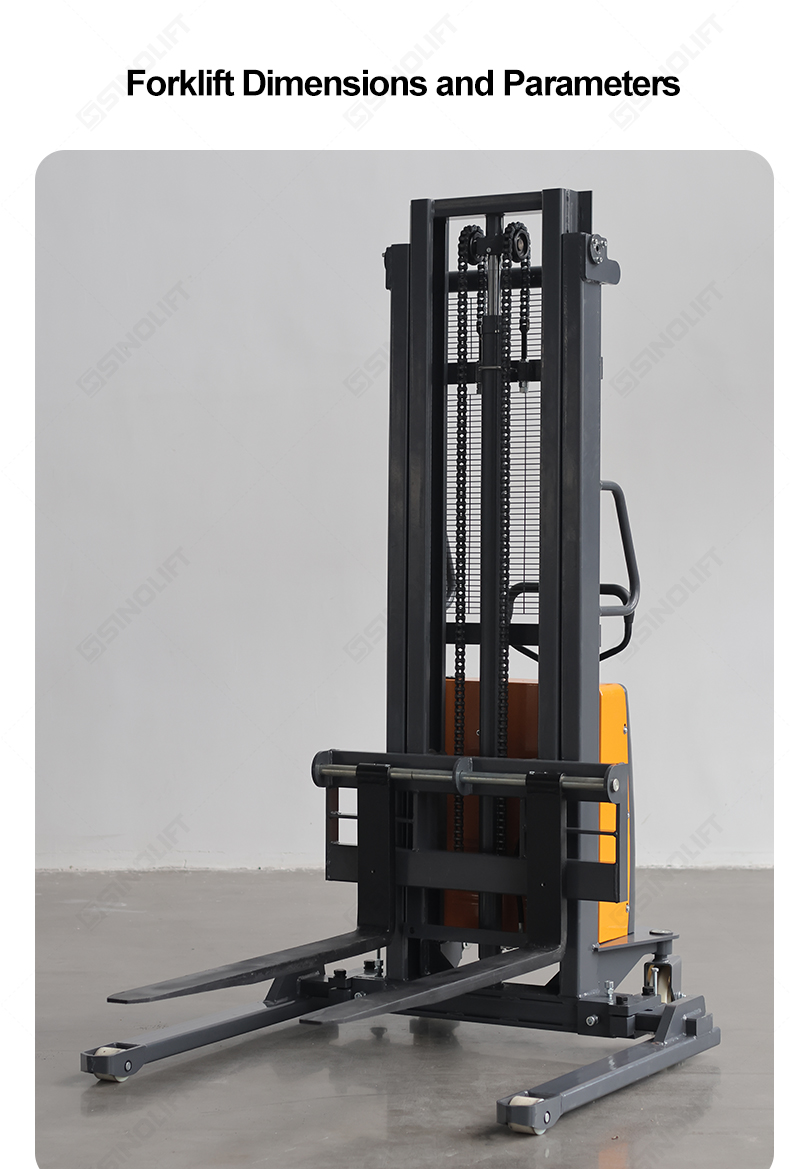

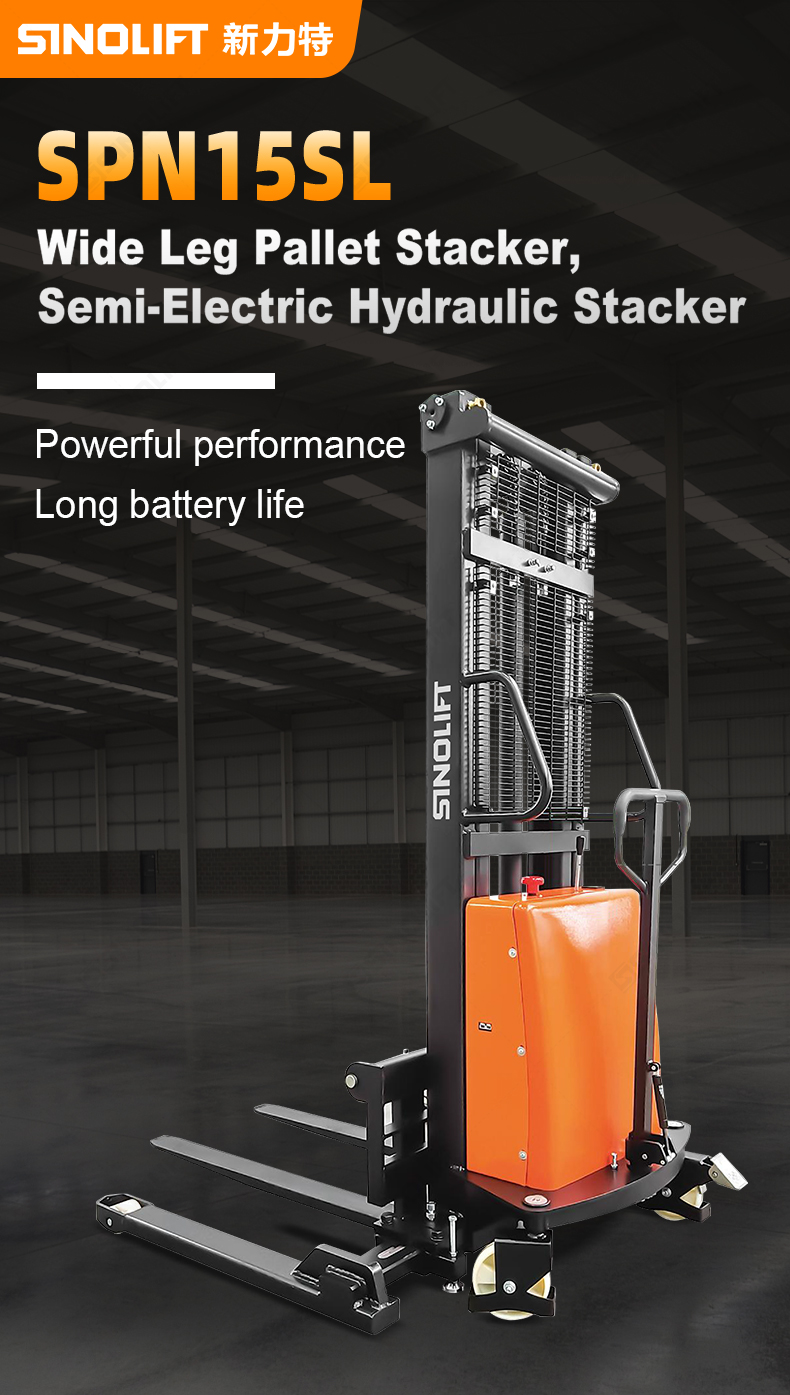

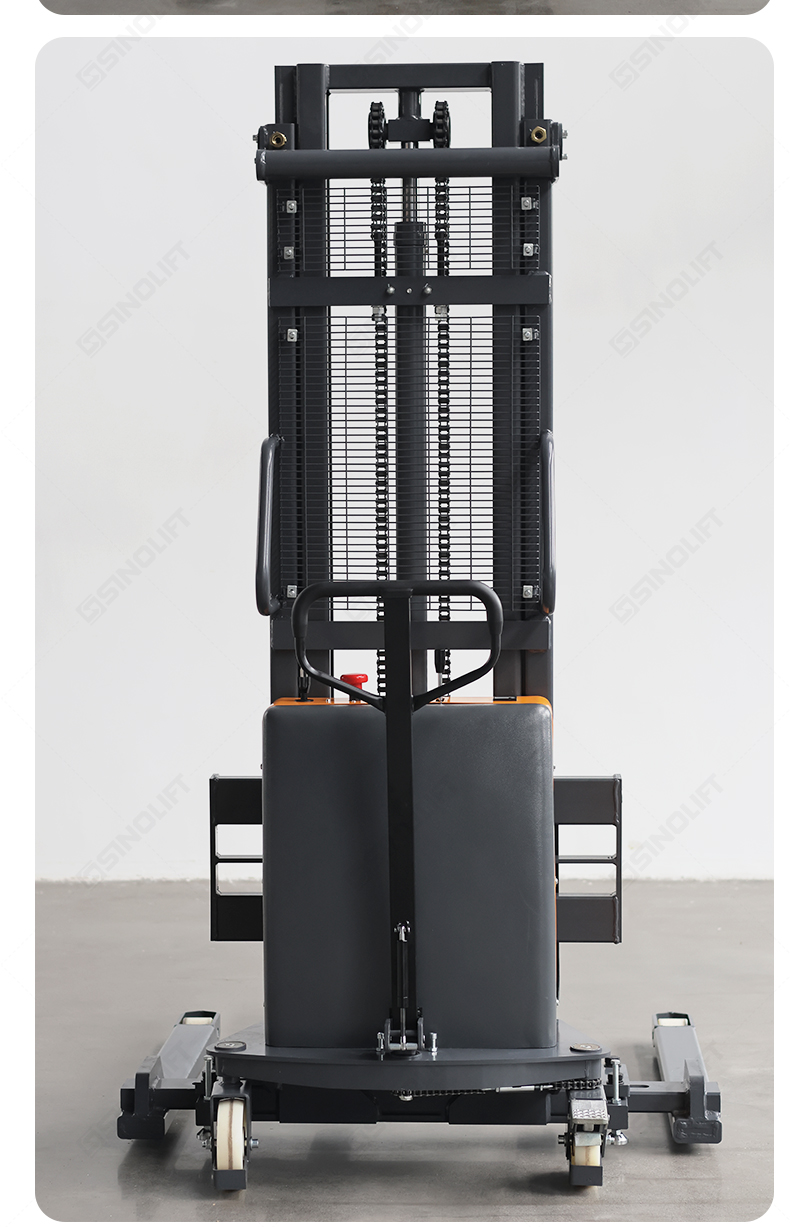

SPN15SL semi-electric stacker truck with straddle legs

The SPN semi-electric stacker truck is ideal for low-frequency stacking operations. With a maximum lifting height of 3000mm, it offers an economical alternative to vehicles equipped with drive motors. Featuring a series of masts (1600, 3000, 3300) and a powerful 1.6KW lifting motor, it's a versatile tool suitable for both stacking and workbench applications.

Key Features:

•  Lifting System

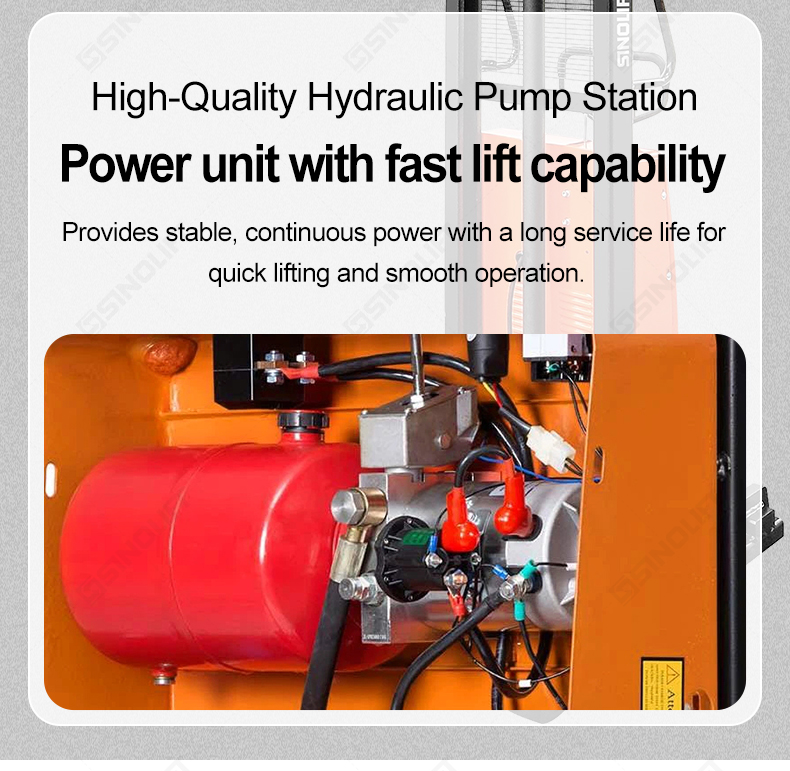

• High-power pump station motor reduces lifting time and improves work efficiency
• Automatic deceleration during heavy load descent for smooth pallet placementControl Panel
• External charger with advanced aviation connector, offering high safety, easy operation, and durability

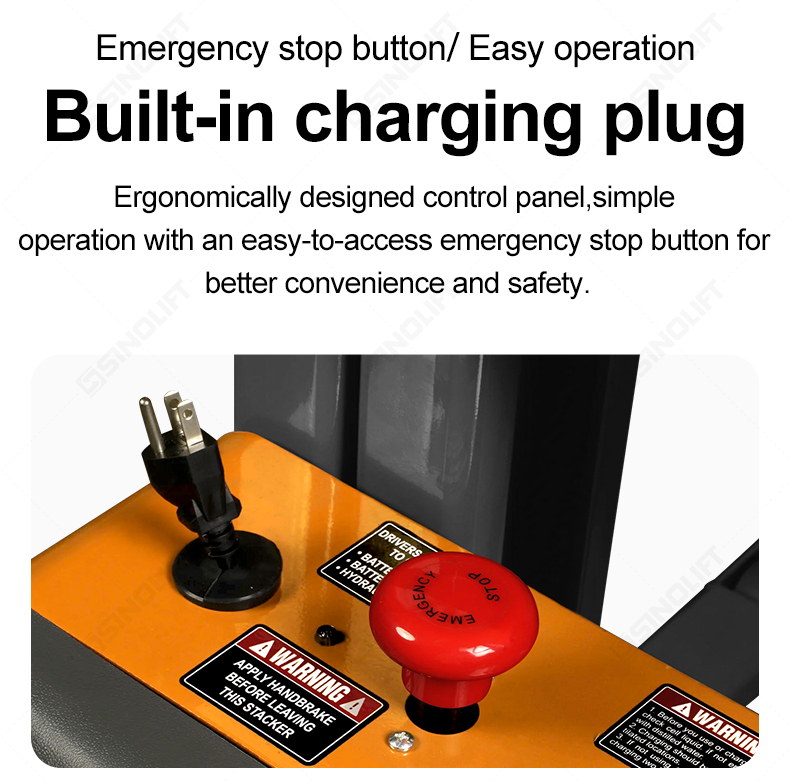

• Emergency stop button for safety assurance
• Precise battery level indicator
• Wheels and Braking
• Mechanical brake ensures safe stopping under all conditions
• High-strength all-nylon steering wheels, high load capacity and flexibility, size 180*50
• Universal wheel protection and safety guards for secure operation

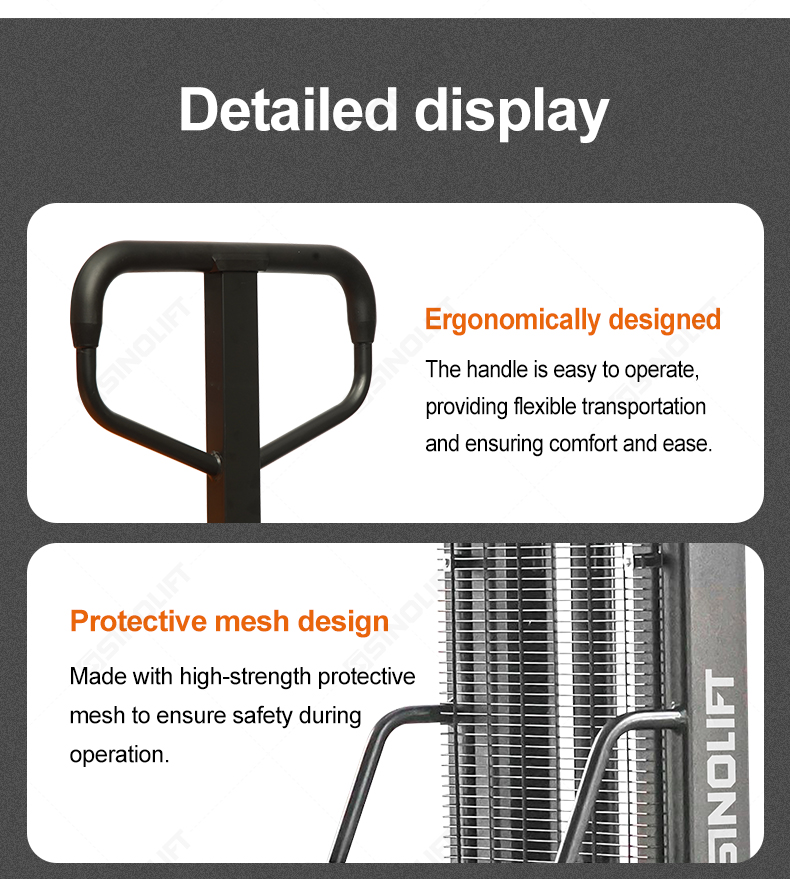

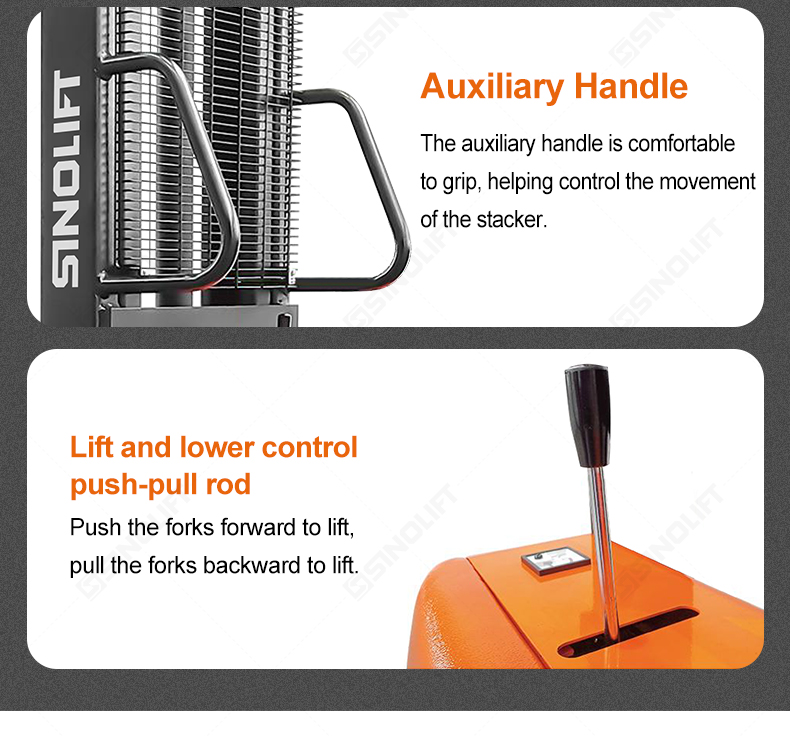

• Ergonomically designed rubber-coated handle with gas spring return

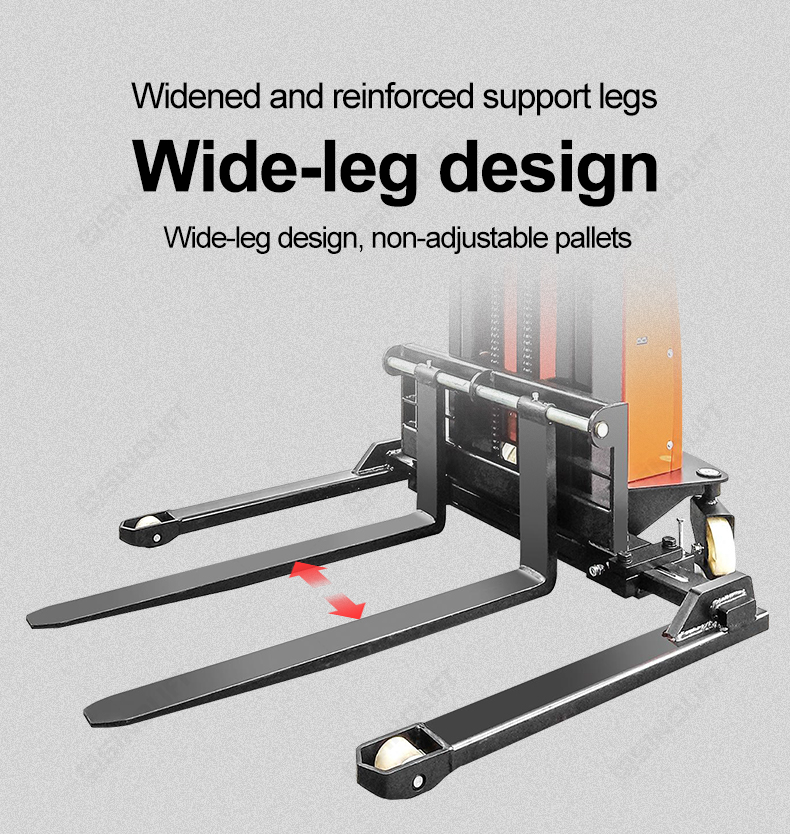

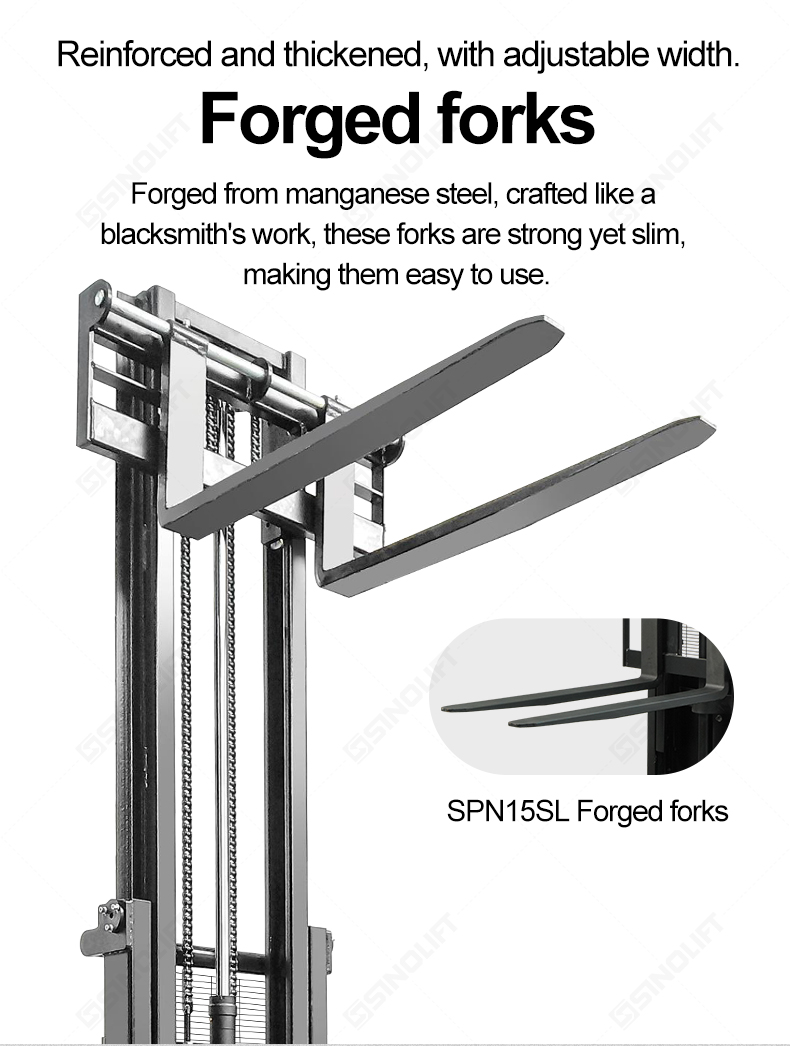

• Forks
• Integrated stamped steel plate forks with cover plate design
• Minimum height of 85mm
• Adjustable fork width from 330 to 640mm

Specifications	Manufactuer				SINOLIFT					SINOLIFT
	Model				SPN15 (Fork over)					SPN15SL (Straddle leg)
	DistinguishingClassification type				SPN1516	SPN1520	SPN1525	SPN1530	SPN1535	SPN1516SL	SPN1520SL	SPN1525SL	SPN1530SL	SPN1535SL
	1.1	Drive			Manual + Electric					Manual + Electric
	1.2	Operator type			Pedestrian					Pedestrian

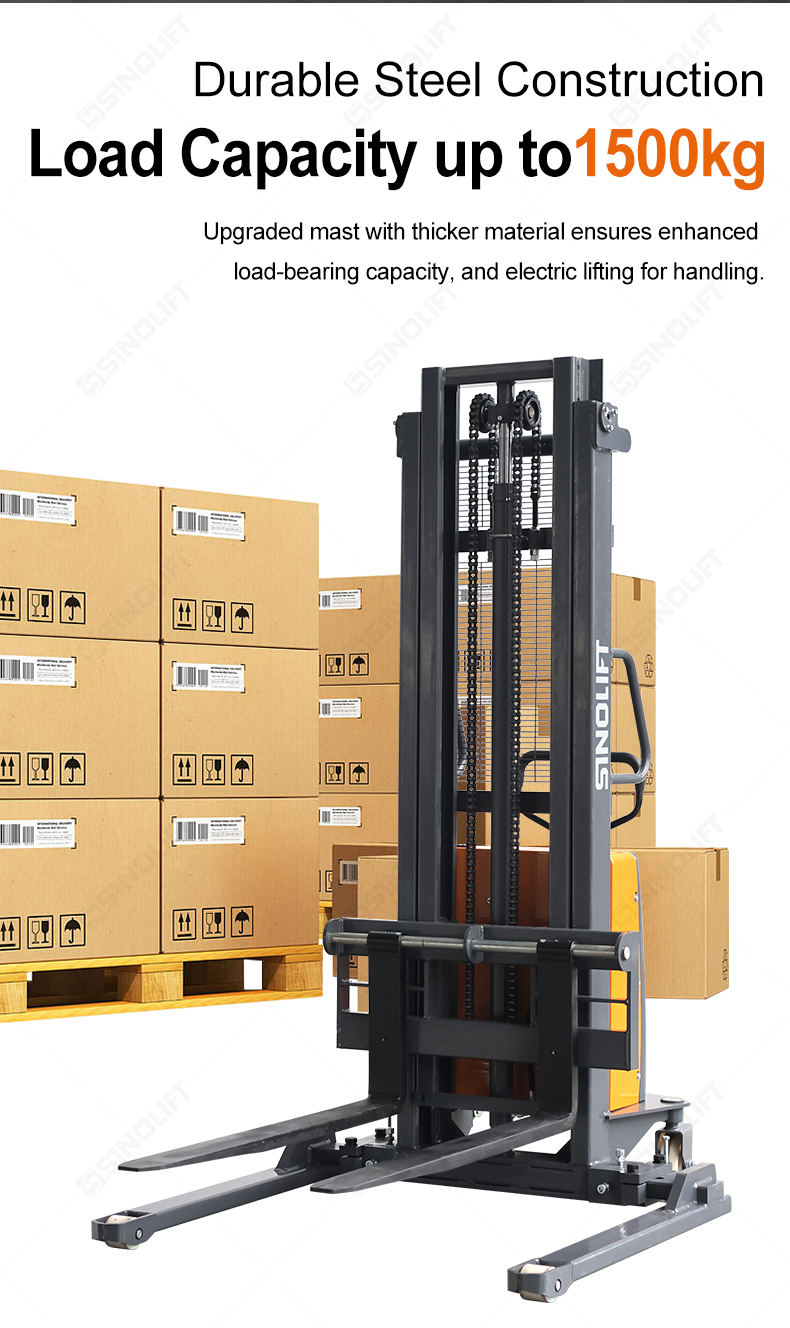

	1.3	Load capacity/ Rated load	Q	kg	1500					1500
	1.4	Load centre distance	c	mm	600					600
	1.5	Load distance, centre of drive axle to fork	x	mm	730					693
	1.6	Wheelbase	y	mm	1253					1209
Weight	2.1	Service weight (Without battery)		kg	350	377	411	445	467	470	497	531	565	587
	2.2	Battery weight		kg	34					34
	2.3	Axle loading, laden front/rear		kg	//					1815/3500
	2.4	Axle loading, unladen front/rear		kg	//					1232/780
Tyres,Chassis	3.1	Tires			PU					PU
	3.2	Tires size. Front	pxy	mm	180 x 50					180 x 50
	3.3	Tires size. Rear	pxy	mm	80 x 70					80 x 70
	3.4	Additional wheels(Dimensions)	pxy	mm	180 x 50					180 x 50
	3.5	Wheel number, Drive wheel/Load Wheel/Balanced wheel (x=drive wheel)			2/2					2/2
	3.6	Tread, front, Drive side	b10	mm	714					714
	3.7	Tread, rear, Load side	b11	mm	390 (490)					1000 ~ 1400
Dimensions	4.1	Lowered mast height	h1	mm	2135	1635	1885	2135	2385	2135	1635	1885	2135	2385
	4.2	Free lift height	h2	mm	0					0

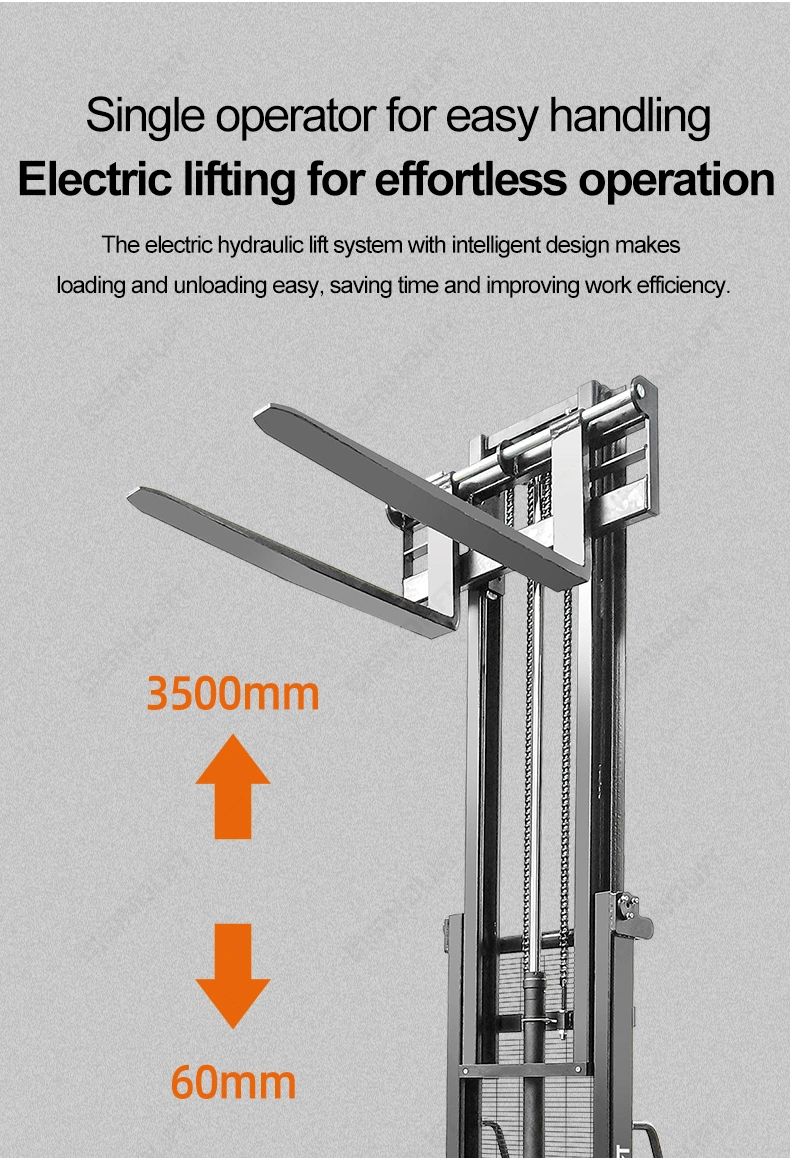

	4.3	Lift Height	h3	mm	1600	2000	2500	3000	3500	1600	2000	2500	3000	3500
	4.4	Extended mast height	h4	mm	2135	2605	3105	3605	4105	2135	2605	3105	3605	4105
	4.5	Height of tiller in drive position min./max.	h14	mm	//					//
	4.6	Height, lowered	h13	mm	85					60
	4.7	Overall length	l1	mm	1745					1875
	4.8	Length to face of forks	l2	mm	676					633
	4.9	Overall width	b1/b5	mm	820/550 (650)					820/(1100-1500)
	4.11	Length of leg		mm	1080					1140
	4.12	Fork dimensions	s/e/l	mm	35/160/1100					35/100/1150

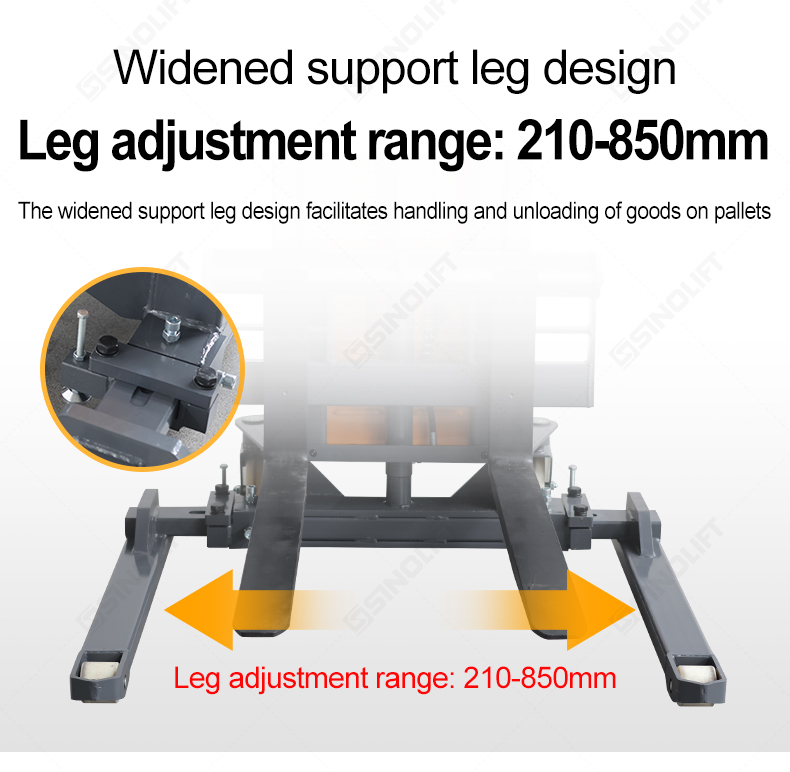

	4.13	Distance between fork-arms	b5	mm	550 (650)					210-850
	4.14	Ground Clearance, centre of wheelbase	m2	mm	30					40
	4.15	Aisle width for pallets 1000x1200 crossways	Ast	mm	2130					2409-2443
	4.16	Aisle width for pallets 800x1200 lengthways	Ast	mm	2030					2317-2443

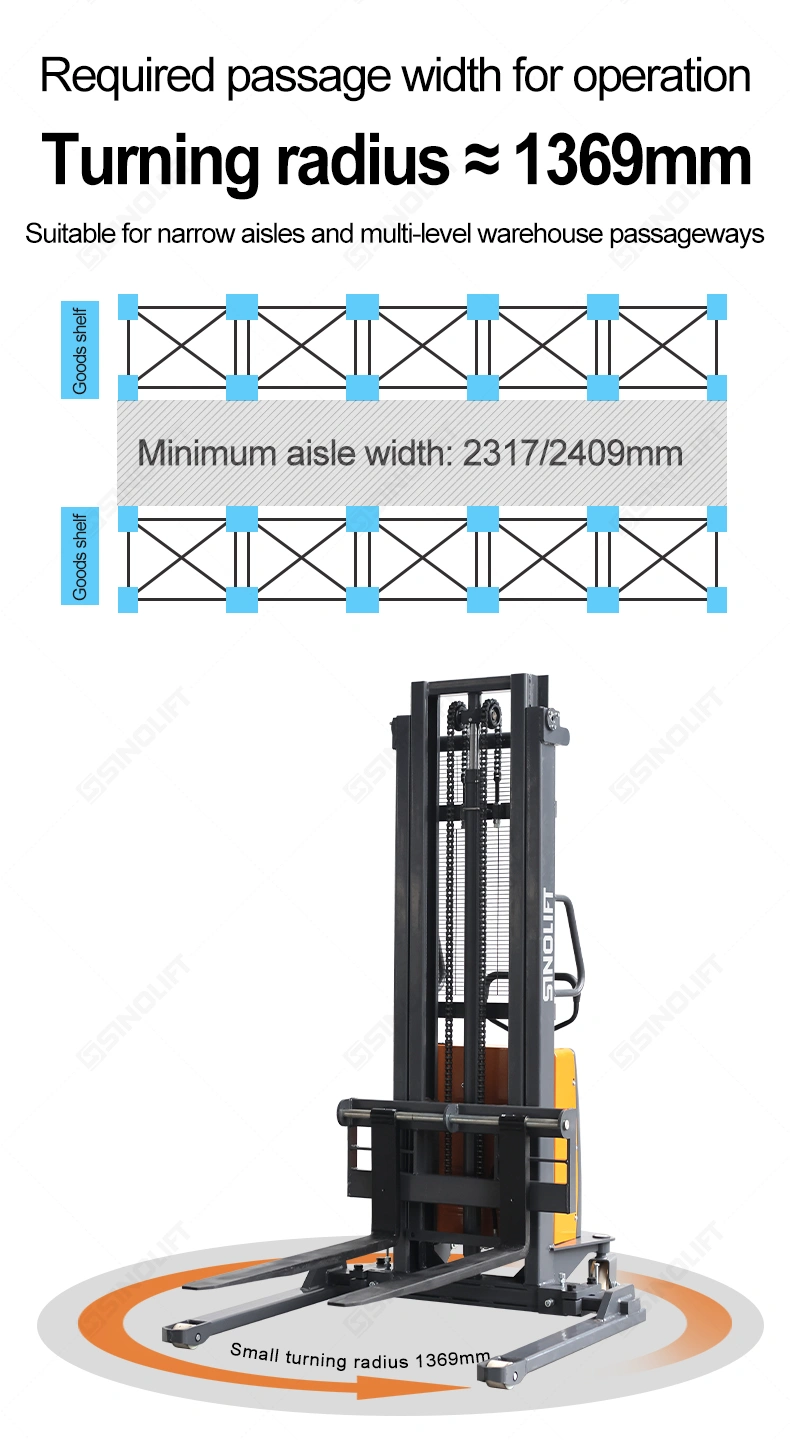

	4.17	Turnign radius	Wa	mm	1513					1369
Performance	5.1	Travel speed, laden/unladen		mph	//					//
	5.2	Lift speed, laden/unladen		mm/s	68(114)	65(102)	65(102)	65(102)	65(102)	68(114)	65(102)	65(102)	65(102)	65(102)
	5.3	Lowering speed, laden/unladen		mm/s	115(89)	113(89)	113(89)	113(89)	113(89)	115(89)	113(89)	113(89)	113(89)	113(89)
	5.4	Max. Gradeability, laden/unladen		%	//					//
	5.5	Service brake			Mechancial					Mechancial
Electric motor	6.1	Drive motor rating		kw	//					//
	6.2	Lift motor rating		kw	2.2					1.6
	6.3	Battery voltage, nominal capacity		V/AH	Lead-acid 1*12V/120AH (150Ah as option)					Lead-acid 1*12V/120AH (150Ah as option)
	6.5	Type of control			//					//
	6.6	Sound level at driver's ear acc. to EN12053		dB(A)	65					65
