SINOLIFT Single-Mast Inclinable Aluminum Alloy Aerial Work Platform
customized01

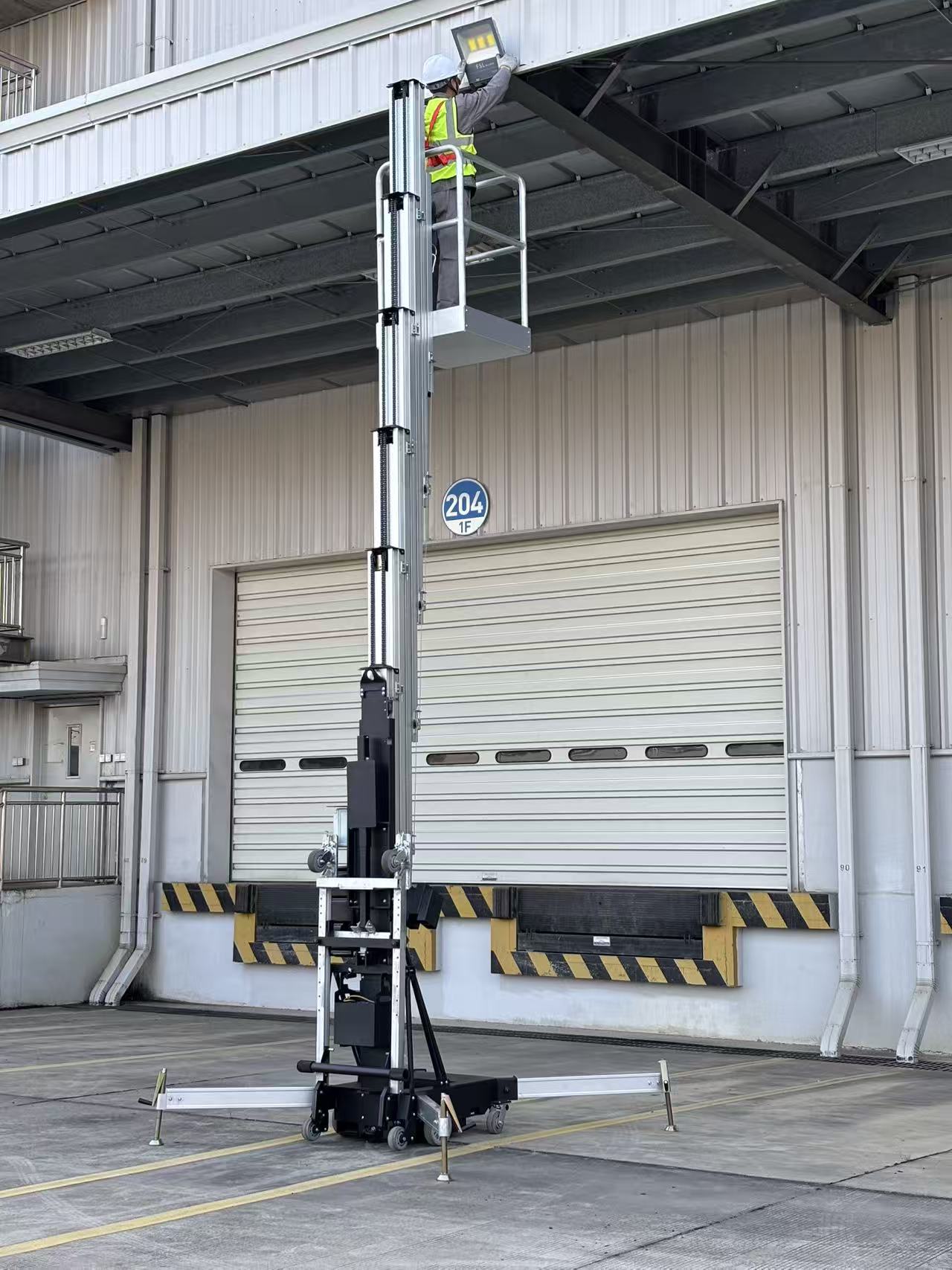

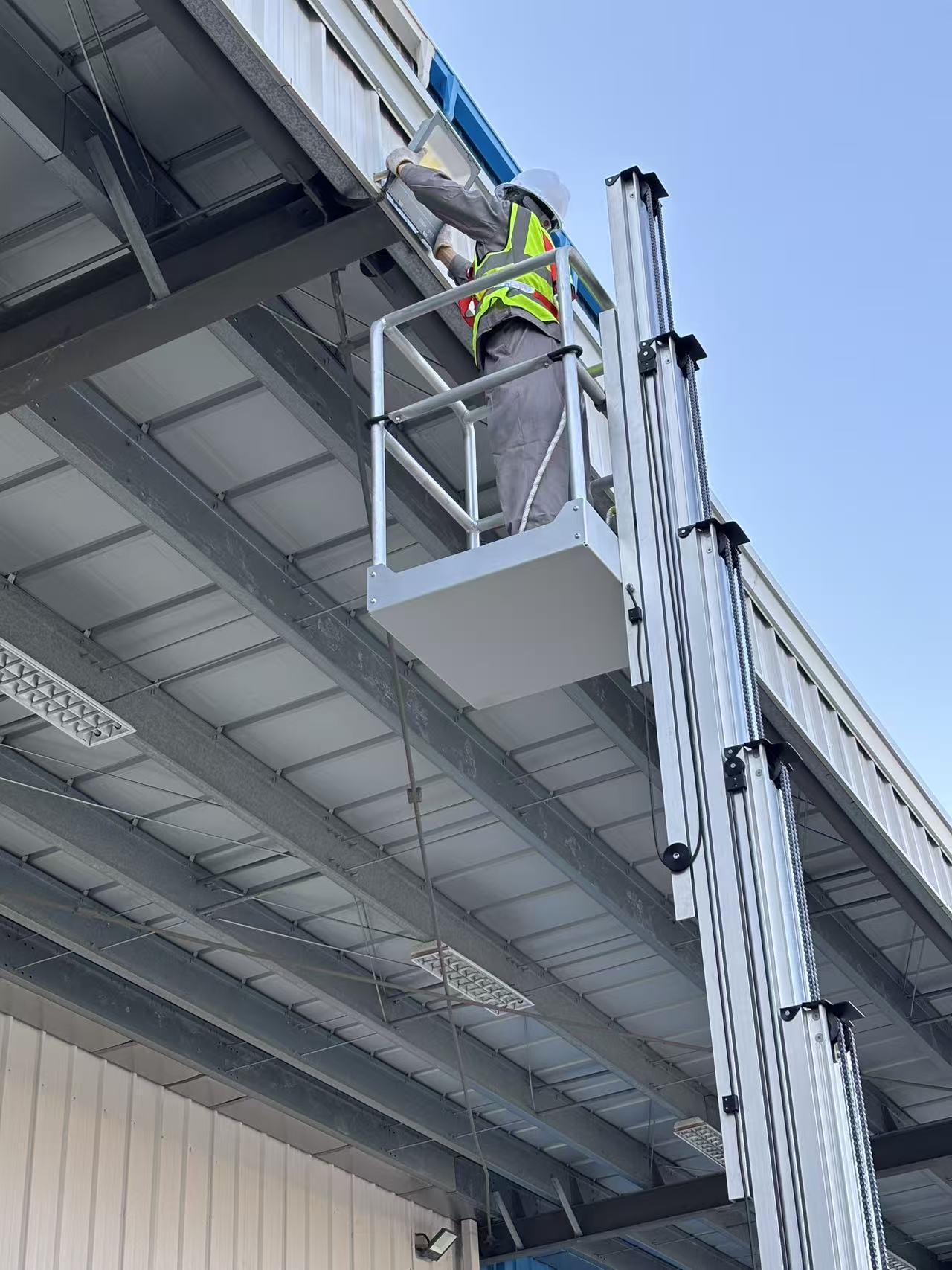

A compact, lightweight elevated work platform engineered for maximum maneuverability in confined and space-restricted environments. With a maximum working height of 12 meters, this platform combines an advanced inclinable mast structure, ergonomic design, and dual-control operation to deliver superior accessibility, safety, and efficiency across a wide range of industrial applications.
Quantity:
Videos
Product Overview
A compact, lightweight elevated work platform engineered for maximum maneuverability in confined and space-restricted environments. With a maximum working height of 12 meters, this platform combines an advanced inclinable mast structure, ergonomic design, and dual-control operation to deliver superior accessibility, safety, and efficiency across a wide range of industrial applications.
Key Features

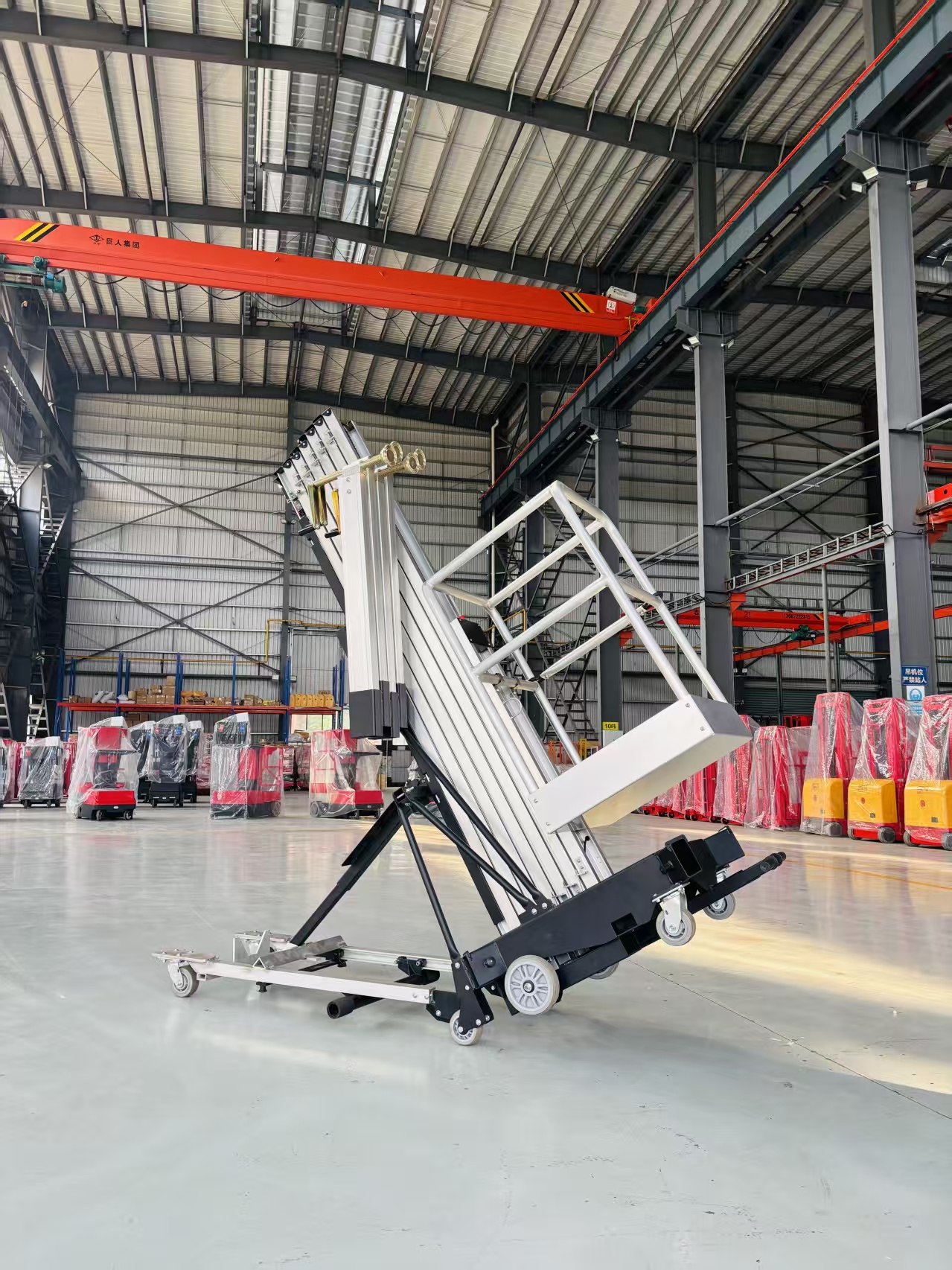

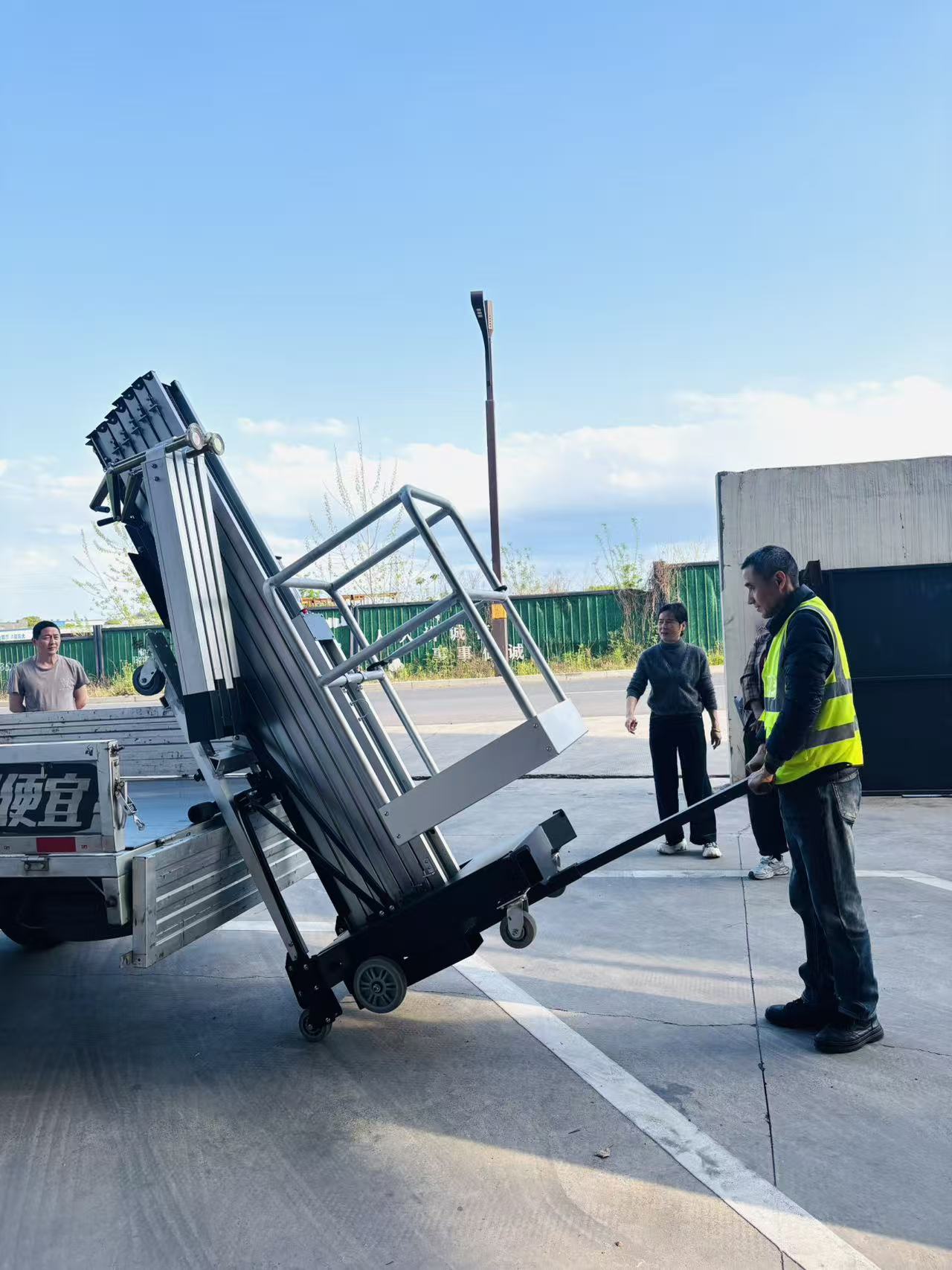

- Inclinable Mast Design — Tilts for easy loading/unloading onto transport vehicles, enabling fast and hassle-free site-to-site relocation
- Low-Clearance Access — Inclinable mast allows entry into restricted areas and low-headroom spaces where conventional platforms cannot operate
- Compact & Lightweight Build — Designed for smooth manual maneuverability in narrow and confined work environments
- Plug-and-Play Charging System — Enables quick and convenient battery charging prior to operation, minimizing downtime
- High-Stability Outrigger System — Integrated outriggers enhance stability and safety throughout the full lifting range
- Ergonomic Platform Entry — Safe and effortless boarding and alighting experience for improved operator workflow
- Ground-Level Control Panel — Allows intuitive equipment operation directly from ground level
- Dual-Control Configuration — Supports simultaneous platform and ground-level operation for enhanced on-site coordination
Applications
- Warehouse Maintenance & Facility Management
- Inventory Management & Shelving Operations
- Interior Installation & Overhead Fitting
- Construction in Confined / Low-Clearance Spaces
- Industrial Inspection & Equipment Servicing
Specifications
Dimensions
| Parameter | Value |
|---|---|
| Max. Safe Working Height | 1,2000 mm |
| Max. Platform Height | 1,1000 mm |
| Overall Machine Length | 1,390 mm |
| Overall Machine Width | 750 mm |
| Overall Height (Tilted) | 2,650 mm |
| Overall Storage Height | 2,350 mm |
| Outrigger Extended Length | 2,260 mm |
| Outrigger Extended Width | 2,240 mm |
| Extension Bracket Extended Width | 2,150 mm |
| Platform Length | 680 mm |
| Platform Width | 680 mm |
| Ground Clearance (Folded/Raised) | 55 mm |
| Machine Weight (DC) | 500 kg |
| Swivel Caster Size | Φ127×50 mm |
| Fixed Caster Size | Φ203×50 mm |
Electrical & Hydraulic
| Parameter | Value |
|---|---|
| Voltage | 12V DC |
| Lift Motor | 12V DC / 1.6 KW |
| Battery | 12V / 60 Ah |
| Charger | 12V DC / 15A |
Performance
| Parameter | Value |
|---|---|
| Safe Working Load | 136 kg |
| Max. Occupants (Indoor / Outdoor) | 1 |
| Max. Allowable Manual Force | 200 N |
| Raise / Lower Time | 26–40 s |
Specifications are subject to change without notice. Please contact SINOLIFT for the latest technical data or custom configuration requirements.
