SINOLIFT ELGA-DC Semi-Electric Aluminum Material Lift
Product Overview
The SINOLIFT ELGA-DC Semi-Electric Aluminum Material Lift is a compact, powerful, and easy-to-operate material lift designed for indoor material handling. The ELGA Series is a lightweight yet heavy-duty lifting solution for safely raising, positioning, and installing materials at elevated heights.
Featuring a DC electric lifting system combined with manual maneuverability, the ELGA Series significantly reduces operator effort while improving lifting efficiency for construction, maintenance, HVAC installation, warehousing, and industrial applications. Its high-strength aluminum alloy mast provides excellent rigidity while keeping the structure lightweight for easy transportation and storage.
Key Features
- DC Electric Lifting System — Powered by a reliable 24V DC electric winch for smooth, stable lifting with minimal operator effort.
- Lightweight Aluminum Mast — High-strength aluminum alloy delivers excellent structural stability while reducing overall machine weight.
- Multiple Lifting Heights — Available with lifting heights from 3.5 m to 7.0 m for different working environments.
- Compact Foldable Design — The telescopic mast folds into a compact transport size for loading into vans, small trucks, and storage areas.
- Stable Outrigger System — Four heavy-duty adjustable outriggers provide excellent stability during lifting operations.
- Easy One-Person Operation — Semi-electric lifting enables one operator to safely lift and position heavy materials with minimal physical effort.
- Smooth Mobility — Large transport wheels and swivel casters support easy movement across workshops, warehouses, and construction sites.
- Durable Industrial Construction — Industrial-grade aluminum profiles, reinforced steel chassis, and high-quality lifting components support long service life.

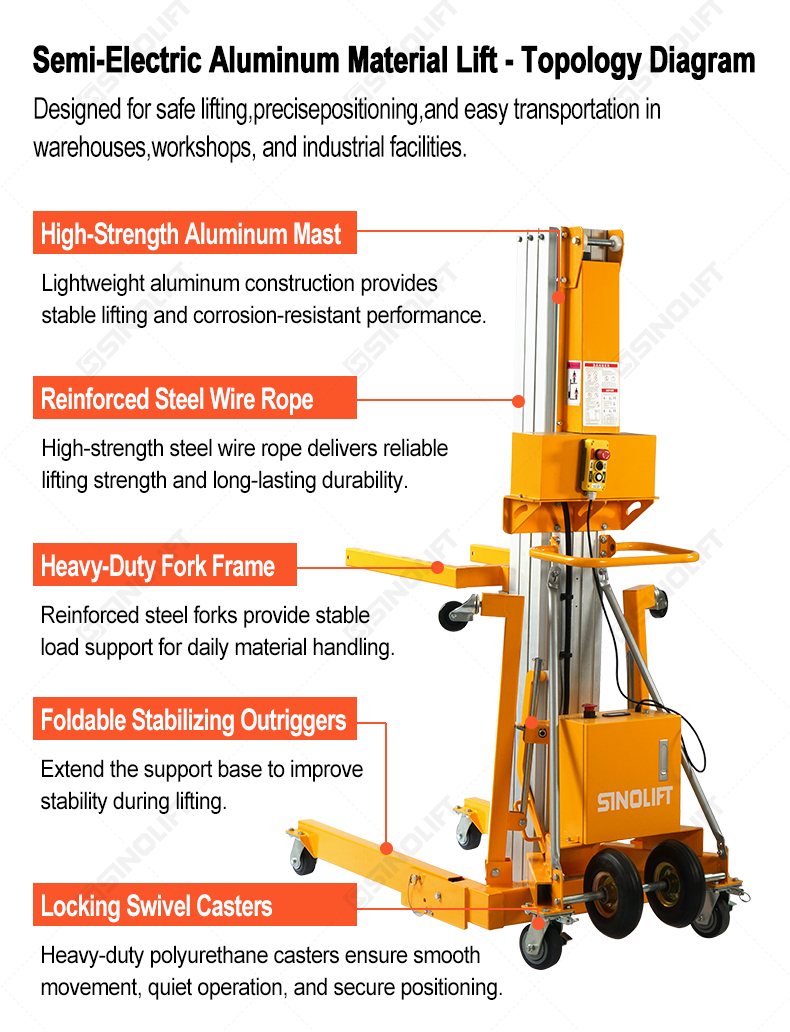

Product Details
- Electric Winch System — Reliable DC-powered lifting mechanism delivers smooth and efficient vertical lifting while reducing manual labor.

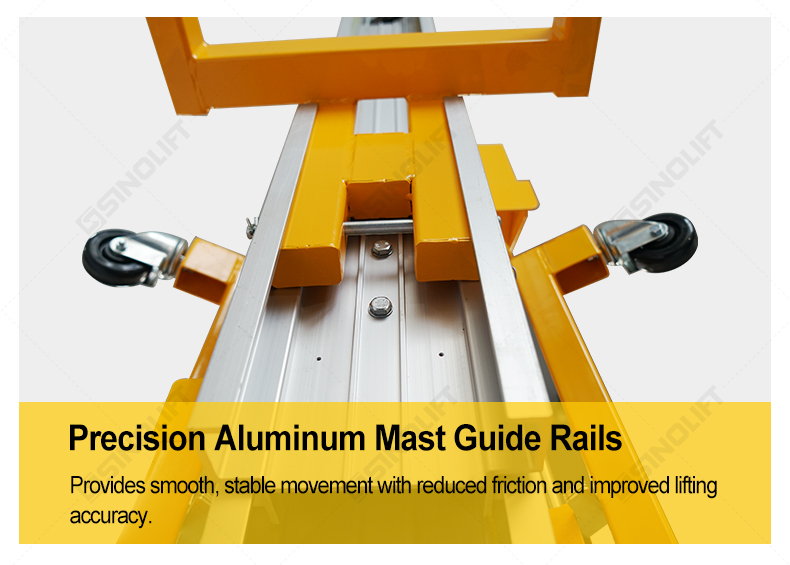

- Telescopic Aluminum Mast — Lightweight aluminum construction provides rigidity, corrosion resistance, and stable lifting performance.
- Adjustable Outriggers — Heavy-duty stabilizers quickly deploy to ensure maximum safety during lifting operations.

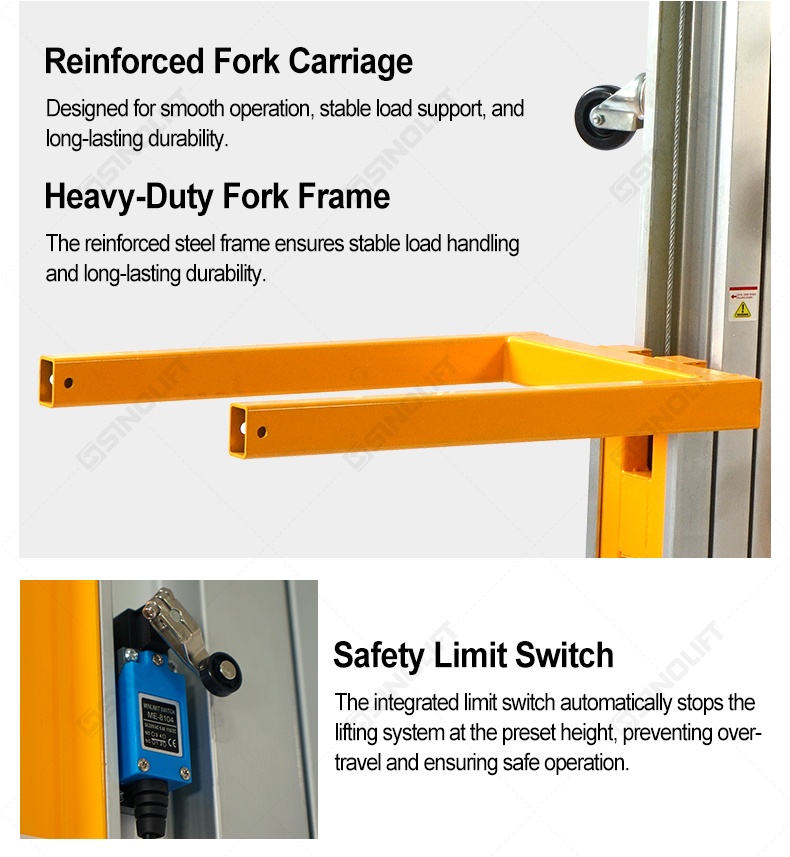

- Spacious Loading Platform — The 700 × 500 mm platform accommodates HVAC equipment, construction materials, machinery parts, ducting, and industrial components.
- Compact Transportation — The foldable mast and compact chassis fit through standard doors and move easily between job sites.

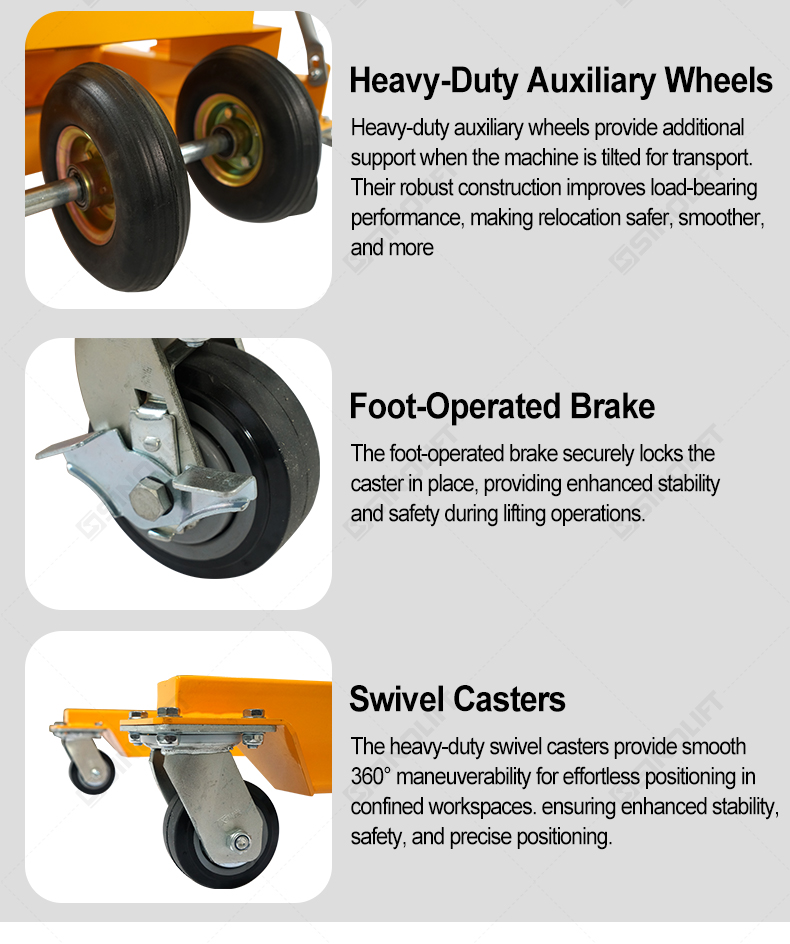

- Swivel Casters with Brakes — High-quality wheels provide smooth maneuverability and secure positioning during operation.
Applications
- HVAC installation
- Air conditioning equipment installation
- Glass and curtain wall installation
- Construction material lifting
- Warehouse material handling
- Industrial equipment installation
- Electrical installation
- Maintenance projects
- Manufacturing workshops
- Logistics centers
Advantages
- Electric lifting reduces operator fatigue
- Lightweight aluminum construction
- Compact foldable design
- Easy one-person operation
- High lifting efficiency
- Excellent transportability
- Stable outrigger support
- Low maintenance
- Indoor and outdoor applications
- Multiple lifting height options
Specifications

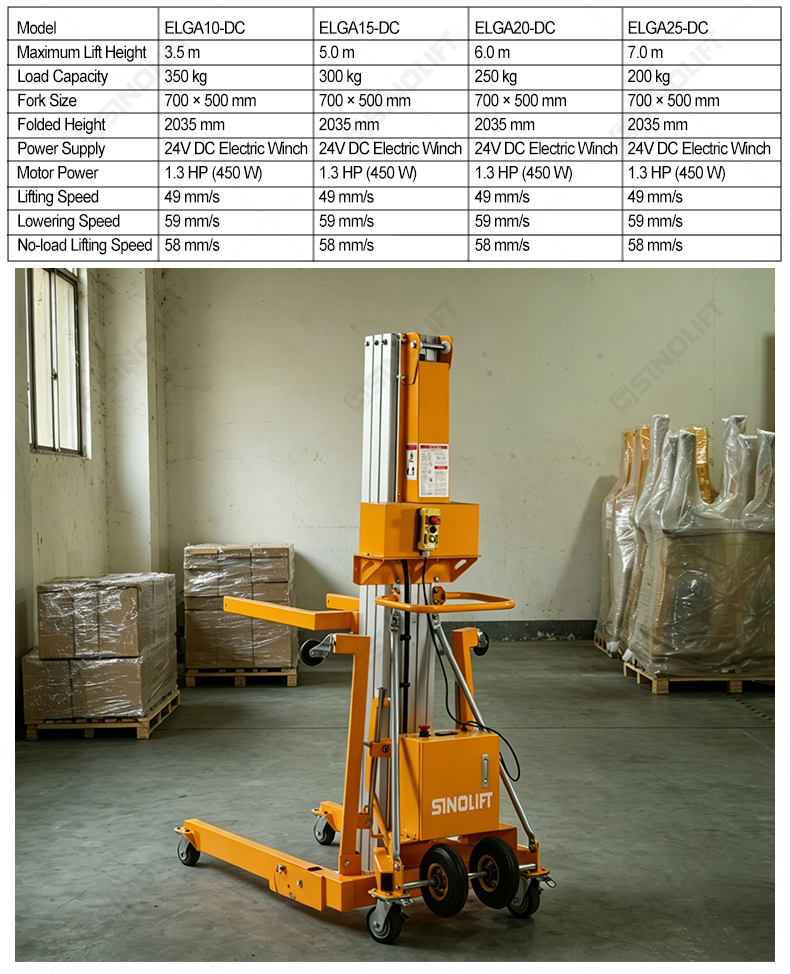

Model Parameter Table
| Parameter | ELGA10-DC | ELGA15-DC | ELGA20-DC | ELGA25-DC |
|---|---|---|---|---|
| Maximum Lift Height | 3.5 m | 5.0 m | 6.0 m | 7.0 m |
| Load Capacity | 350 kg | 300 kg | 250 kg | 200 kg |
| Fork Size | 700 × 500 mm | 700 × 500 mm | 700 × 500 mm | 700 × 500 mm |
| Folded Height | 2035 mm | 2035 mm | 2035 mm | 2035 mm |
| Power Supply | 24V DC Electric Winch | 24V DC Electric Winch | 24V DC Electric Winch | 24V DC Electric Winch |
| Motor Power | 1.3 HP (450 W) | 1.3 HP (450 W) | 1.3 HP (450 W) | 1.3 HP (450 W) |
| Lifting Speed | 49 mm/s | 49 mm/s | 49 mm/s | 49 mm/s |
| Lowering Speed | 59 mm/s | 59 mm/s | 59 mm/s | 59 mm/s |
| No-load Lifting Speed | 58 mm/s | 58 mm/s | 58 mm/s | 58 mm/s |
Specifications are based on the ELGA Series parameter sheet. Please confirm the final model configuration with SINOLIFT before ordering.
Frequently Asked Questions
1. What is the maximum lifting height of the ELGA Series?
The ELGA Series includes ELGA10-DC, ELGA15-DC, ELGA20-DC, and ELGA25-DC with maximum lifting heights of 3.5 m, 5.0 m, 6.0 m, and 7.0 m.
2. What is the lifting capacity?
The rated load capacity is 350 kg for ELGA10-DC, 300 kg for ELGA15-DC, 250 kg for ELGA20-DC, and 200 kg for ELGA25-DC.
3. Is the ELGA fully electric?
The ELGA is semi-electric. It uses a 24V DC electric winch for lifting, while movement and positioning are manual.
4. What materials can the ELGA lift?
It is suitable for HVAC units, ductwork, pipes, glass panels, electrical equipment, machinery components, construction materials, and warehouse goods.
5. Can one person operate the lift?
Yes. The lightweight aluminum frame, electric lifting system, and compact design support safe and efficient one-person operation.
6. What safety features does the ELGA include?
It includes adjustable outriggers, a high-strength aluminum telescopic mast, locking swivel casters, and a reliable DC electric lifting system.
7. Is the ELGA suitable for indoor use?
Yes. Its compact folded dimensions allow it to pass through most standard doorways for warehouses, factories, commercial buildings, and indoor construction sites.
8. Why choose the ELGA Semi-Electric Material Lift?
Compared with manual material lifts, the ELGA reduces physical effort, improves lifting efficiency, and enhances workplace safety while remaining portable.
