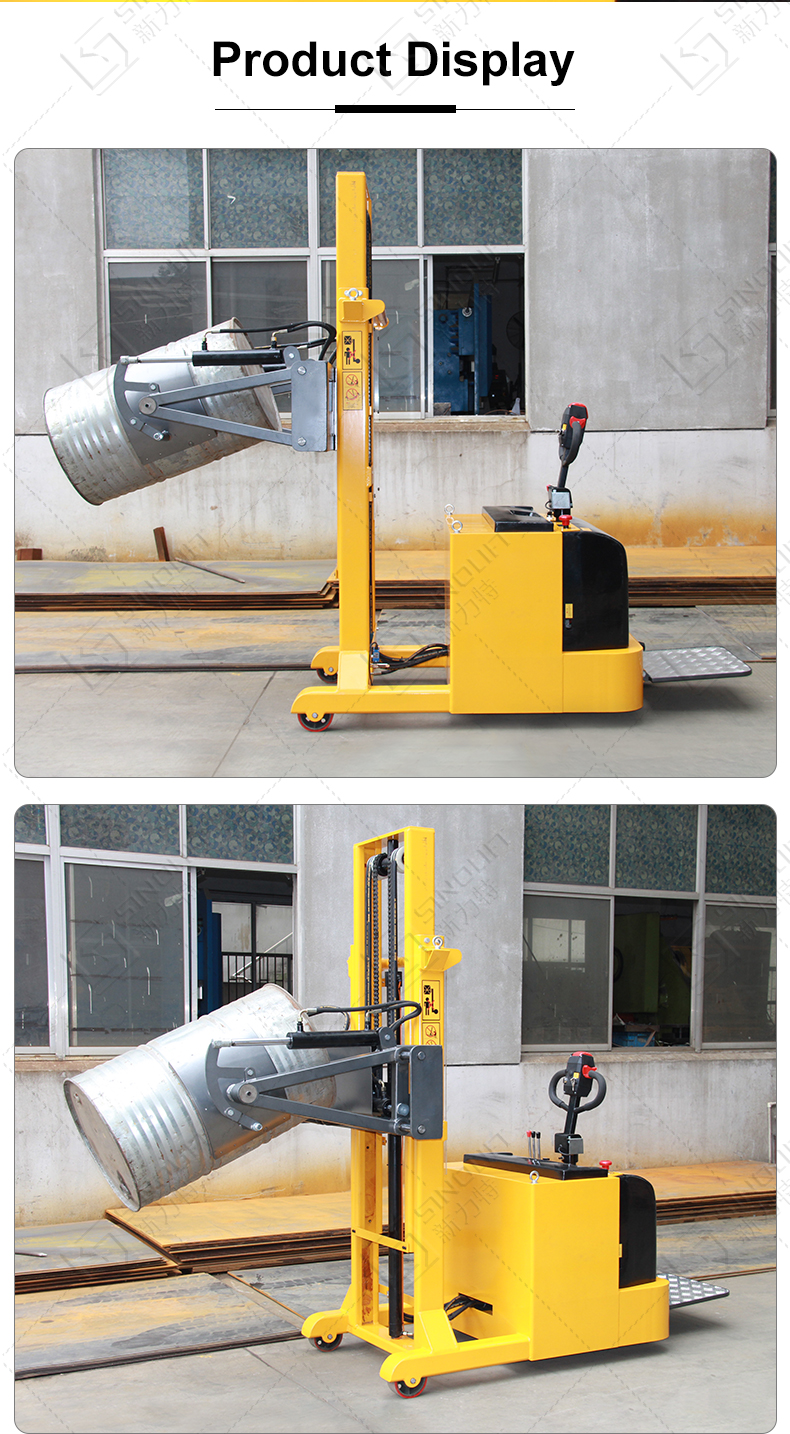

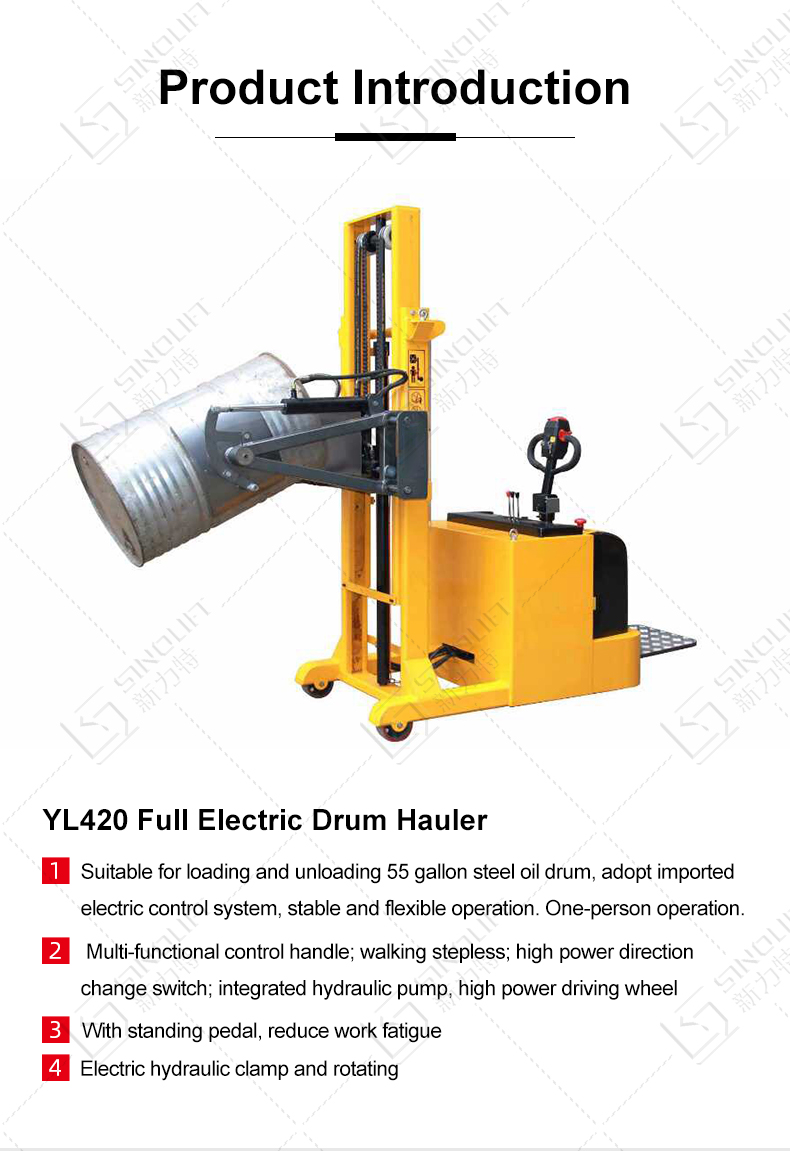

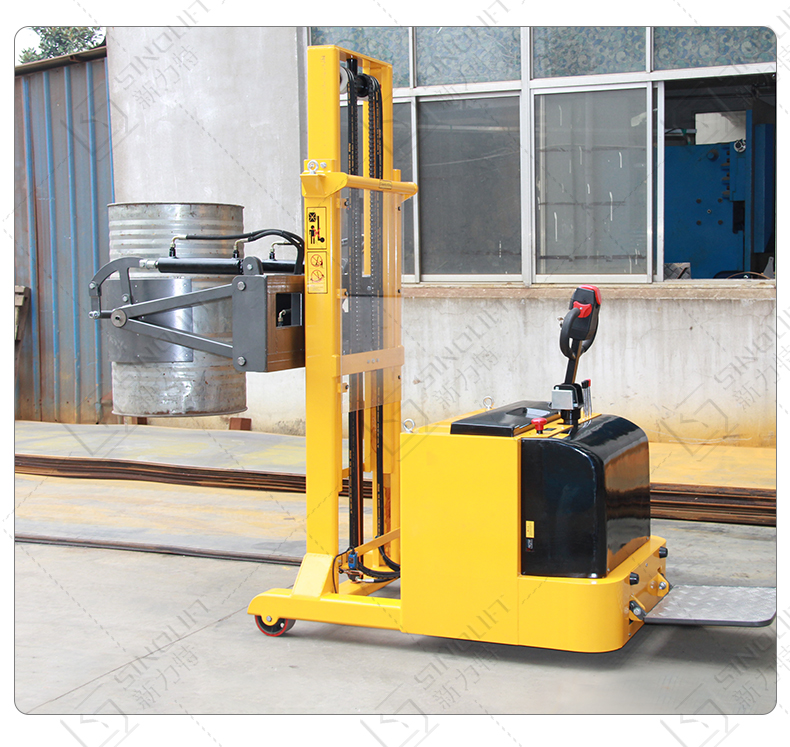

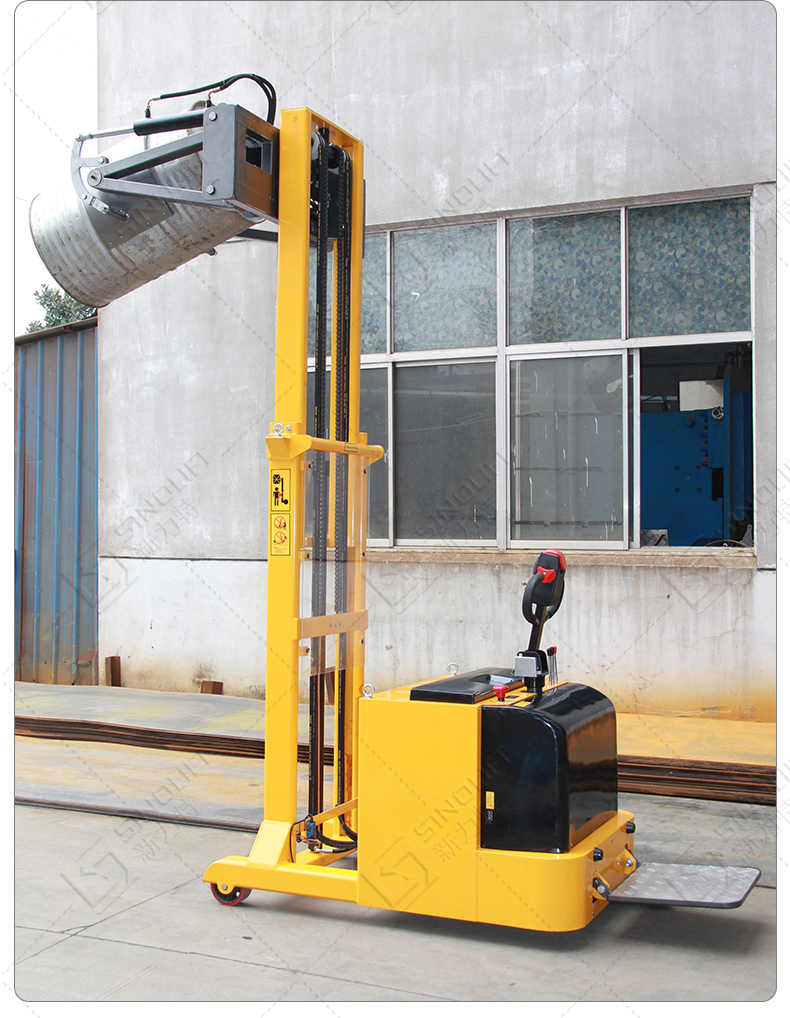

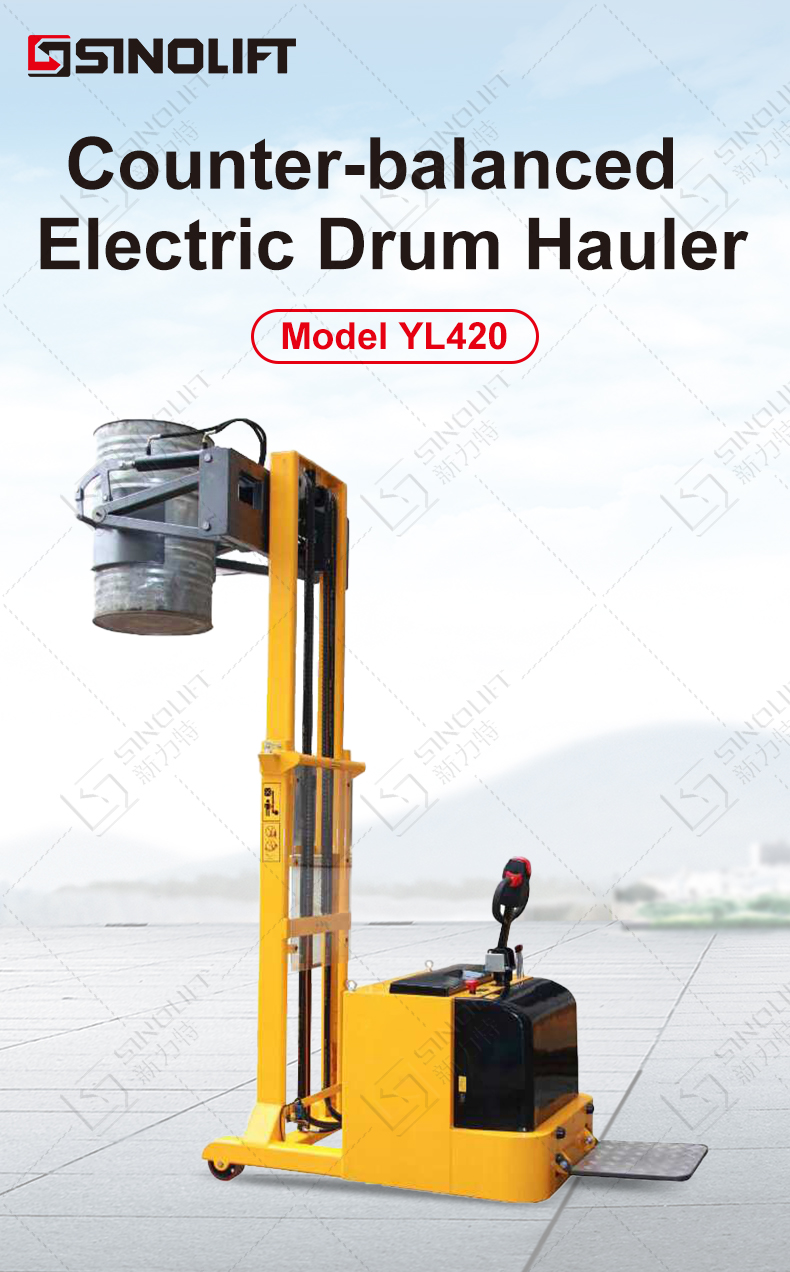

YL420 Electric Counter Weight Drum Handler
YL420
1. The DRUM-HAULER makes the task of transporting drums in and out of trucks or up and down ramps easy. Designed to align directly with palettes, storage cabinets and sealed skids.
2. Its large industrial battery can operate continuously for up to 8 hours.
3. 3. The unit's compact size and transistorized speed controller provide significant tight aisle maneuverability.
2. Its large industrial battery can operate continuously for up to 8 hours.
3. 3. The unit's compact size and transistorized speed controller provide significant tight aisle maneuverability.
Quantity:
Features of Electric Counter Weight Drum Handler:
1. The Drum Handler makes the task of transporting drums in and out of trucks or up and down ramps easy. Designed to align directly with palettes, storage cabinets and sealed skids.
2. Electric Counter Weight Drum Handler large industrial battery can operate continuously for up to 8 hours.
3. The unit's compact size and transistorized speed controller provide significant tight aisle maneuverability.
Main features of Electric Counter Weight Drum Handler:

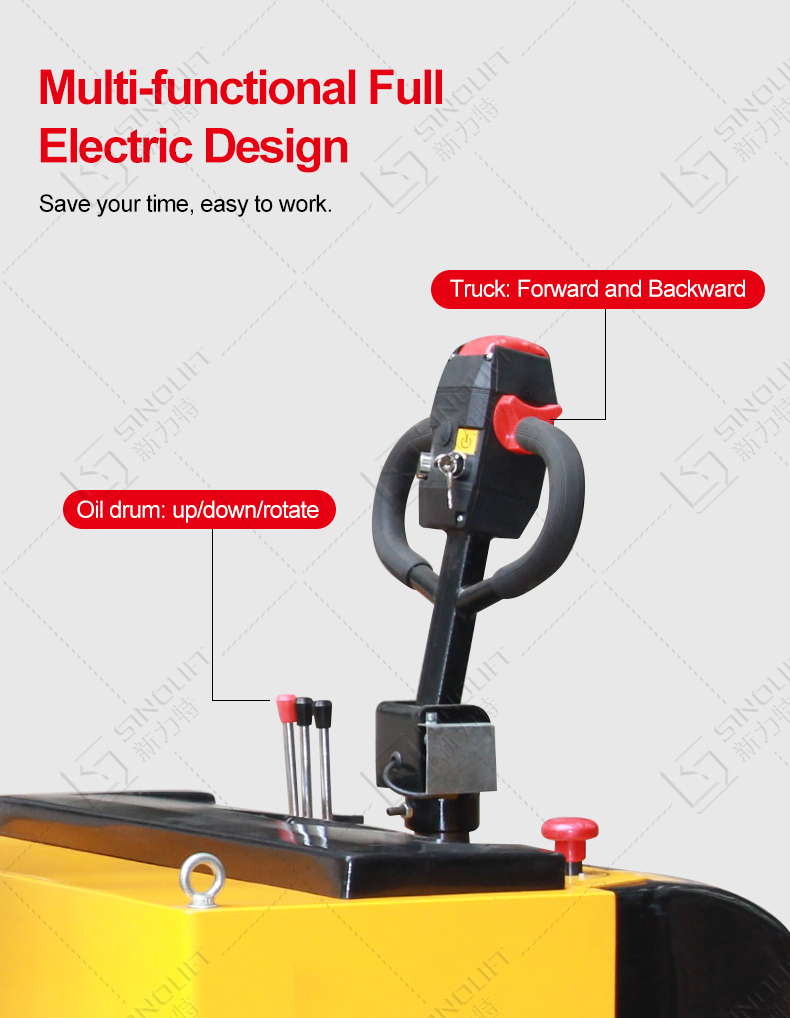

- 4. MOS 90 transistor speed controller provides infinitely variable speed.
- Brake: Adjustable electromagnetic disc type.
- Safety reversing switch with horn on handle, safe and stable casters
- Battery discharge indicator - instrument type
| Model | Electric Counter Weight Drum Handler YL420 | |
| Drive Type | Full Electric | |
| Operating Type | Walkie/Pedestrian | |
| Rated Load Capacity | kg | 420 |
| Drum Size | 55 gallon (Ø572x900) steel | |
| Lifting Height | mm | 2400 |
| Turning Radius | mm | 2120 |
| Max. Grade ability (laden/unladen) | % | 3/5 |
| Driving Wheel Size | mm | Ø250*80 |
| Tire | Polyurethane | |
| Controlling Type | Electromagnetic brake | |
| Drive Motor Power | KW | 1.2 |
| Lifting Motor Power | KW | 2.2 |
| Noise Level | db(A) | <70 |
| Battery | V/Ah | 24/210 |
| Charger | V/A | 24/30 |
| Rotating Range (degree) | ° | 135° |
| Overall Size | mm | 2270x1170x1860 |
| Net Weight | kg | 1100 |
