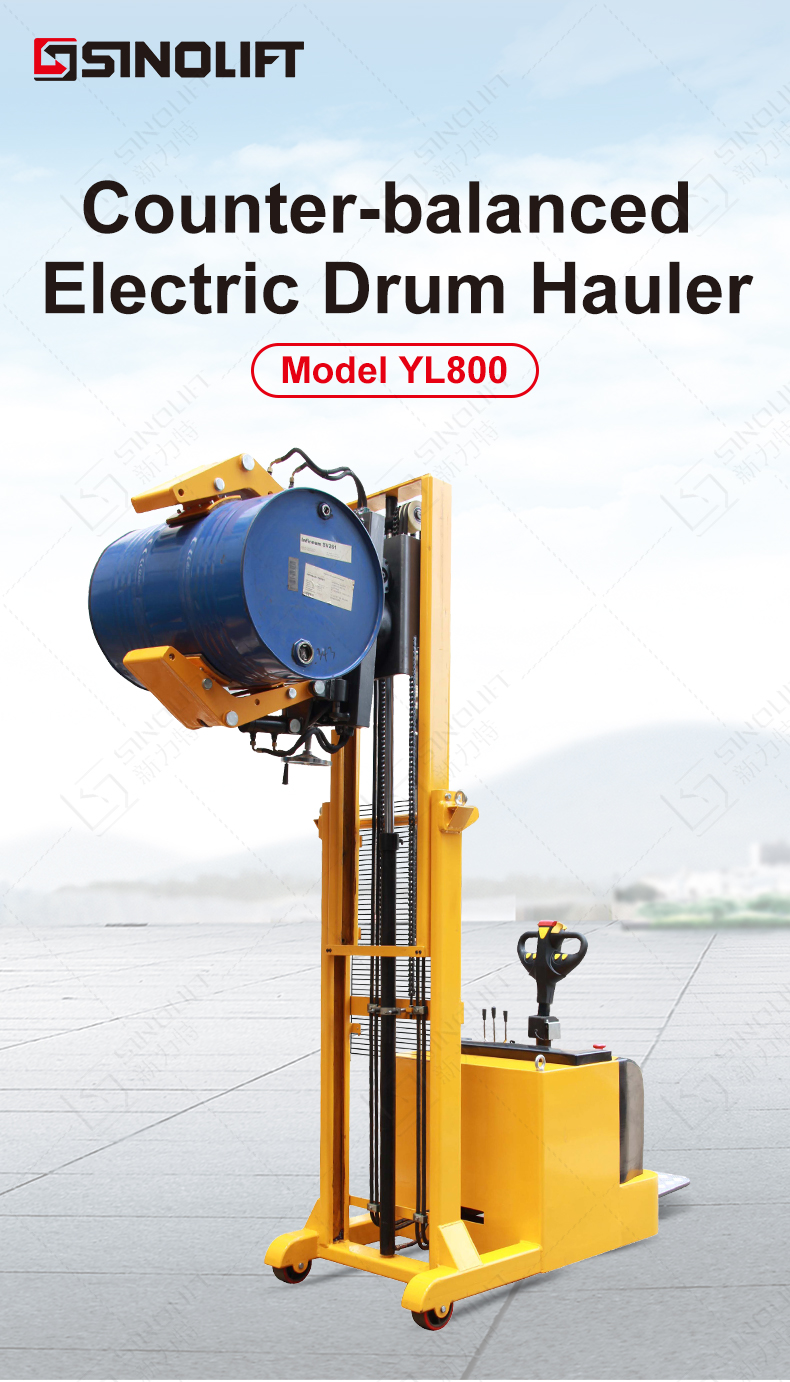

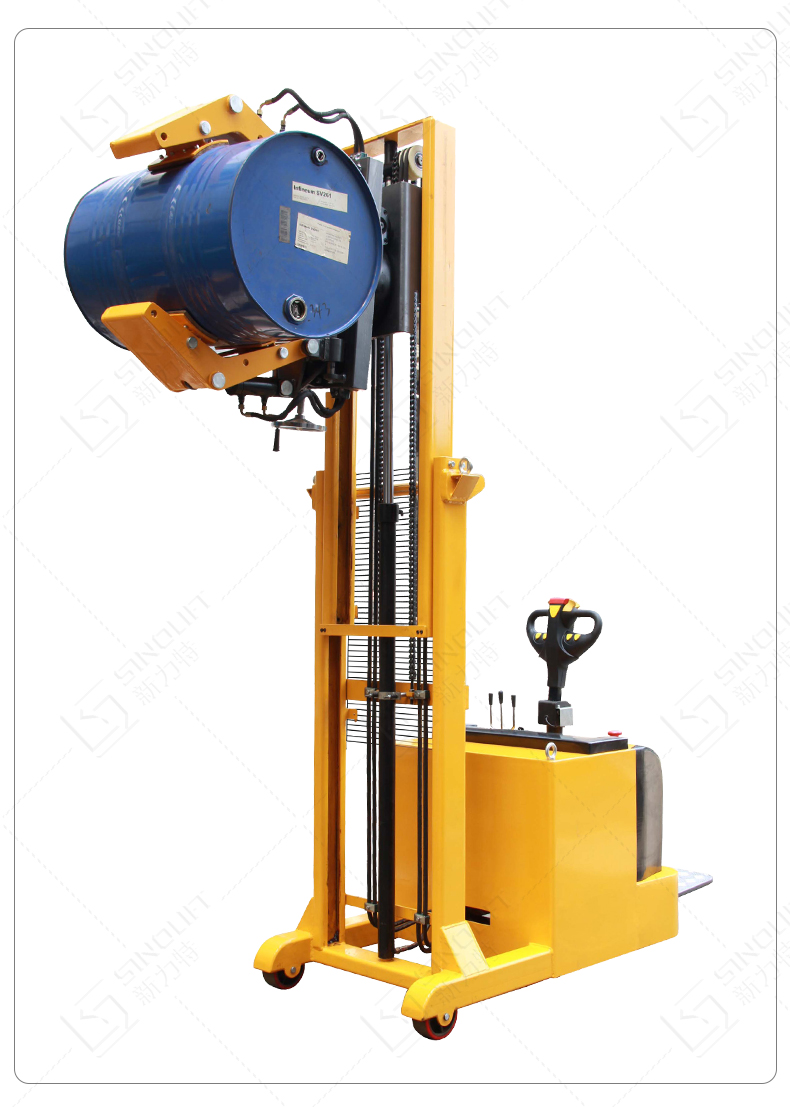

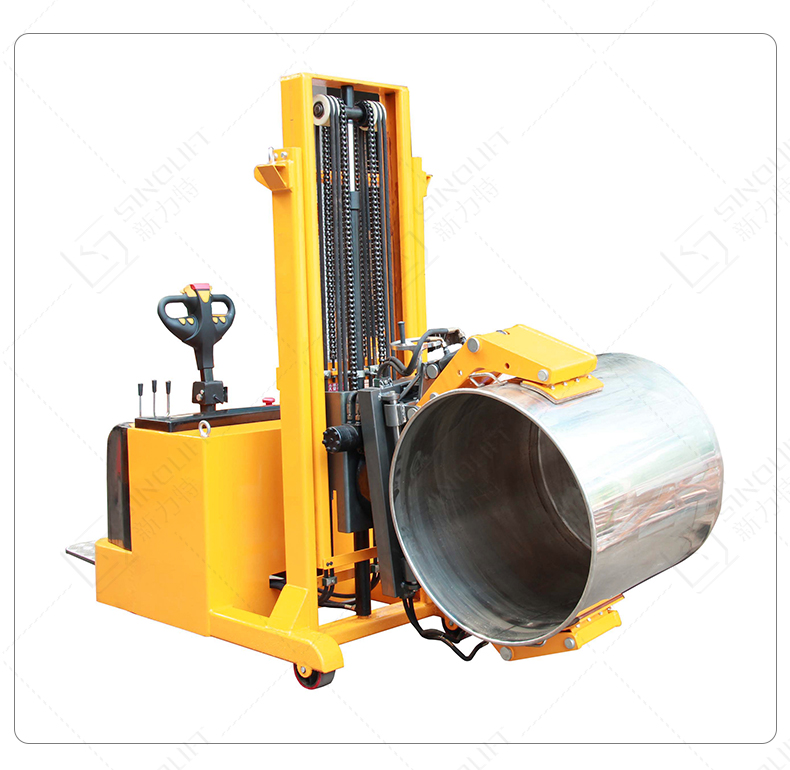

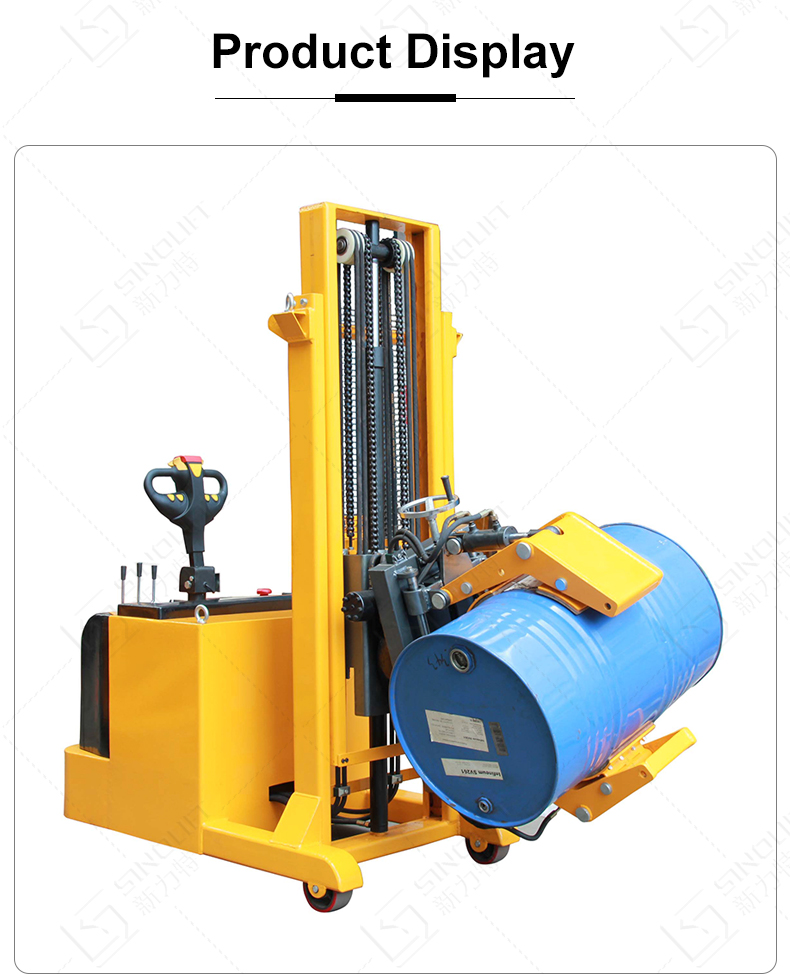

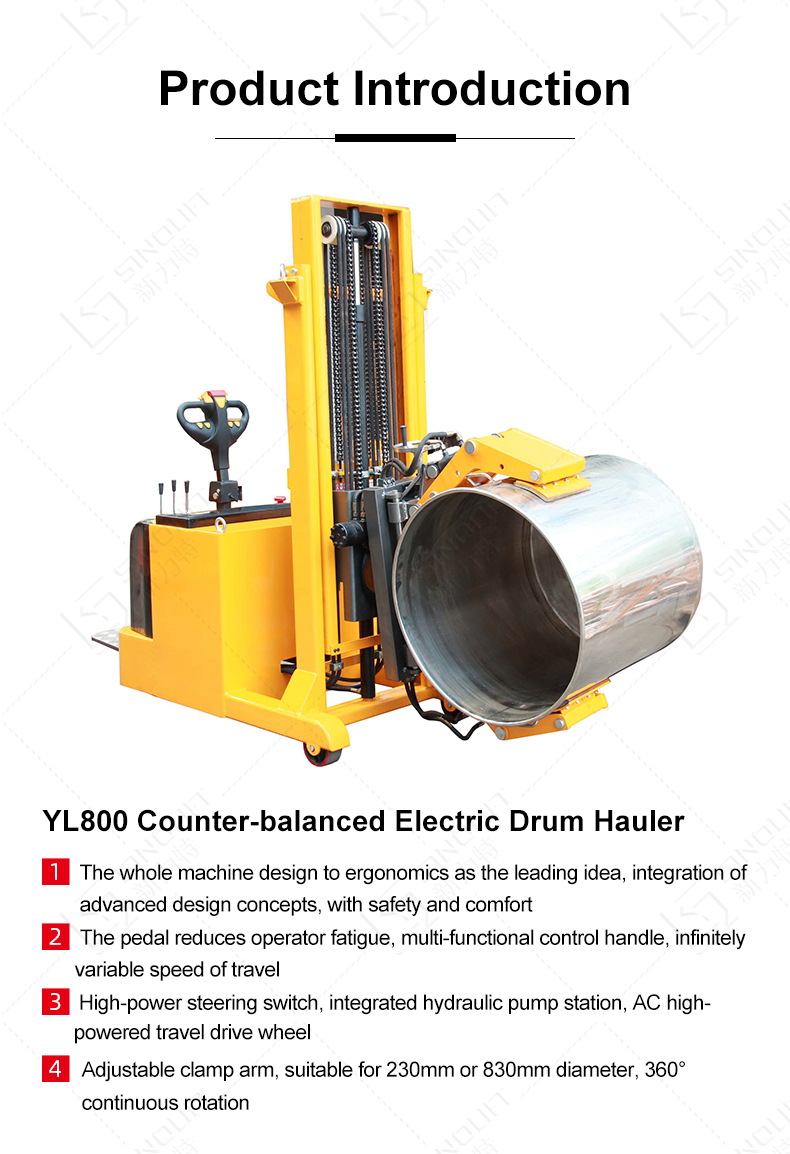

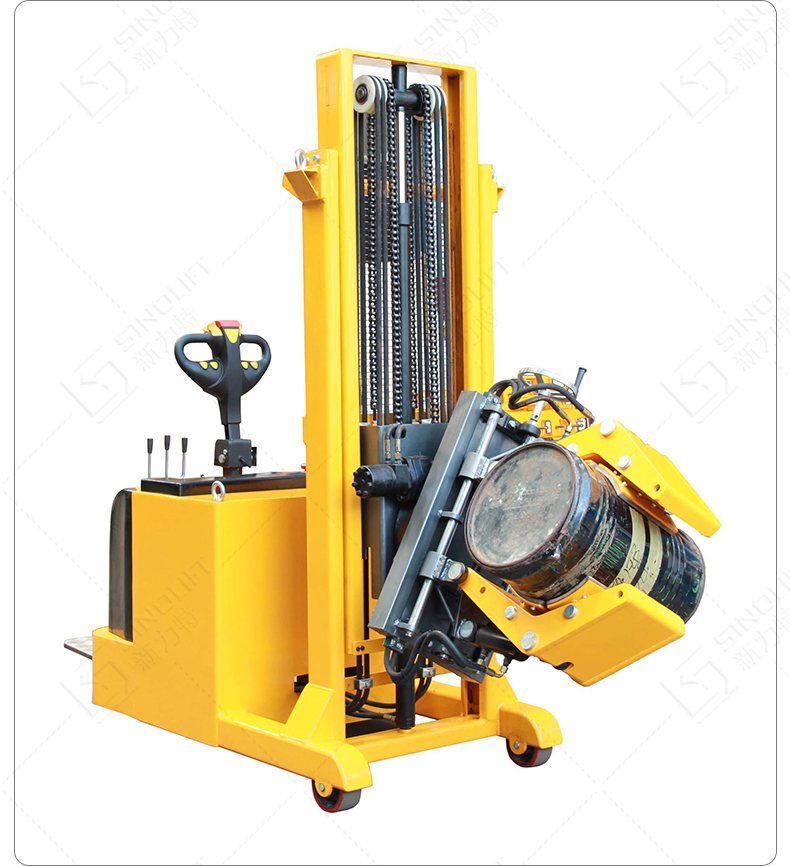

YL800 Counter-balanced Electric Drum Hauler
YL800
1. Max. Load capacity of 800 kg;
2. Adjustable clamping arms for any drums with diameters of φ230-830mm;

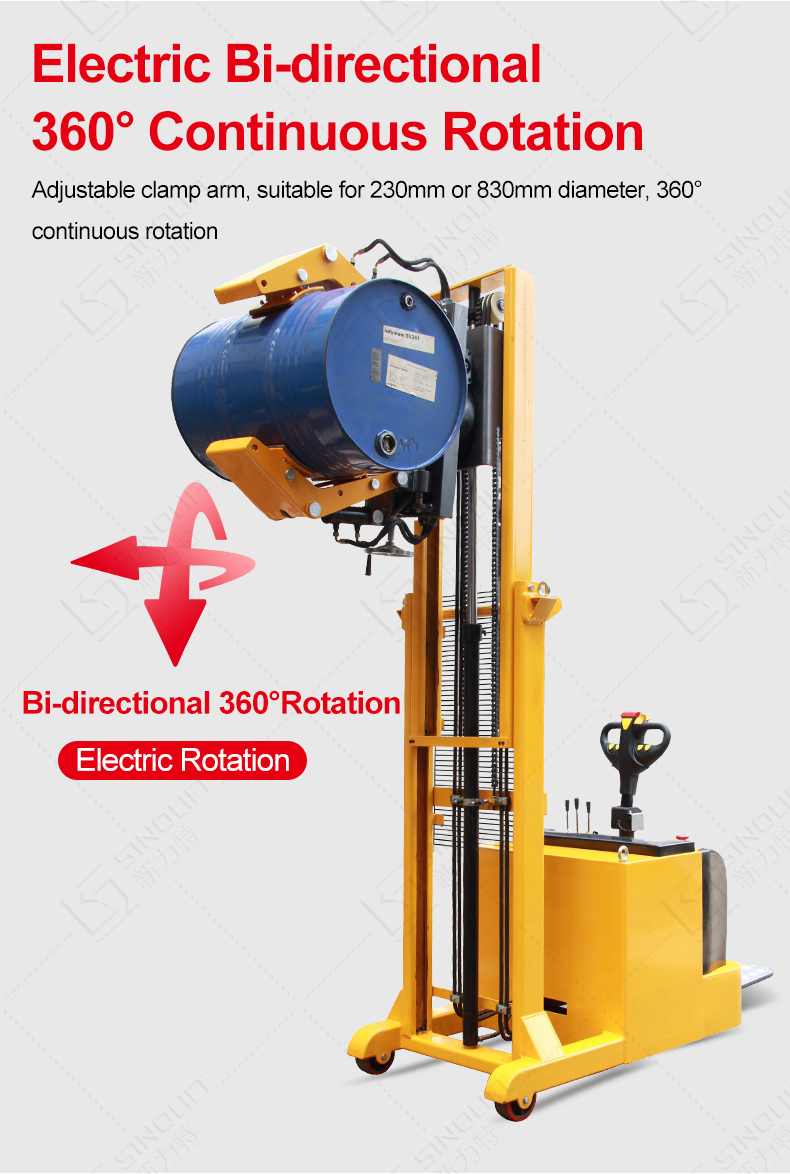

3. Round drums can be rotated 360 degrees continuously in both directions;
4. The clamp arm can be operated at any angle;
5. Power-driven, transport, and lifting and tilting of 55-gallon steel and stainless steel drums;

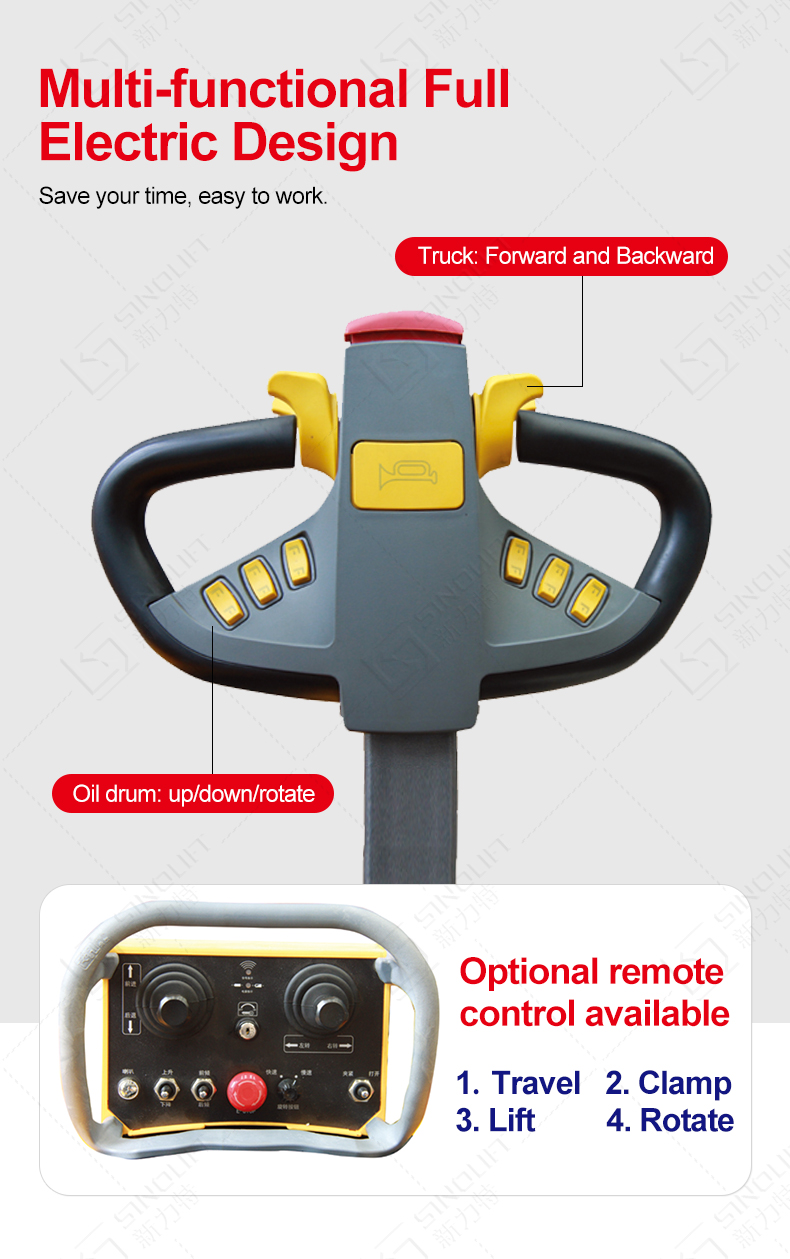

6. Manual pedal can be operated by one person, saving labor & efficiency;
7. With stepless governor, high power reversing switch, integrated hydraulic pump station, power travel drive wheels;
2. Adjustable clamping arms for any drums with diameters of φ230-830mm;
3. Round drums can be rotated 360 degrees continuously in both directions;
4. The clamp arm can be operated at any angle;
5. Power-driven, transport, and lifting and tilting of 55-gallon steel and stainless steel drums;
6. Manual pedal can be operated by one person, saving labor & efficiency;
7. With stepless governor, high power reversing switch, integrated hydraulic pump station, power travel drive wheels;
Quantity
YL800 Counter-balanced Electric Drum Hauler
1. Electric Drum Hauler Max. Load capacity of 800 kg;
2. Adjustable clamping arms for any drums with diameters of φ230-830mm;
3. Electric Drum Hauler Round drums can be rotated 360 degrees continuously in both directions;
4. The clamp arm of Electric Drum Haulercan be operated at any angle;
5. Power-driven, transport, and lifting and tilting of 55-gallon steel and stainless steel drums;
6. Manual pedal can be operated by one person, saving labor & efficiency;
7. With stepless governor, high power reversing switch, integrated hydraulic pump station, power travel drive wheels;
| Model | Electric Drum Hauler YL800 | |
| Drive type | / | Full Electric |
| Operating type | / | Standing operation |
| Rated load capacity | kg | 800 |
| Turning radius | mm | 1500 |
| Max. Grade ability (Fully-loaded/no-loaded) | % | 3/5 |
| Driving wheel size | mm | Ø250*80 |
| Wheel | / | Polyurethane |
| Controlling type | / | Electromagnetic braking |
| Steering type | / | EPS |
| Drive motor power | KW | 1.2 |
| Lifting motor power | KW | 2.2 |
| Noise level | db(A) | <70 |
| Battery voltage/capacity | V/Ah | 24/210 |
| Charger | V/A | 24/30 |
| Net weight | kg | 1190 |
| Rotating range | ° | 360° |
