Bespoke Case: Lifting and Rotating Cylindrical Loads into Position

The Handling Challenge

The task involved loads weighing up to 500 kg, with diameters ranging from 350 to 800 mm. Alongside lifting capability, the equipment needed to provide continuous rotation in either direction so the operator could bring the load into the required position.

The specified maximum rotation-centre height was 1,700 mm. This dimension refers to the height of the centre around which the clamped load rotates—a useful reference when matching the equipment to a receiving position or workstation.

Access around the load also mattered. The support-leg arrangement needed to be considered together with the clamping range, making the chassis dimensions part of the handling solution.

The SINOLIFT Solution

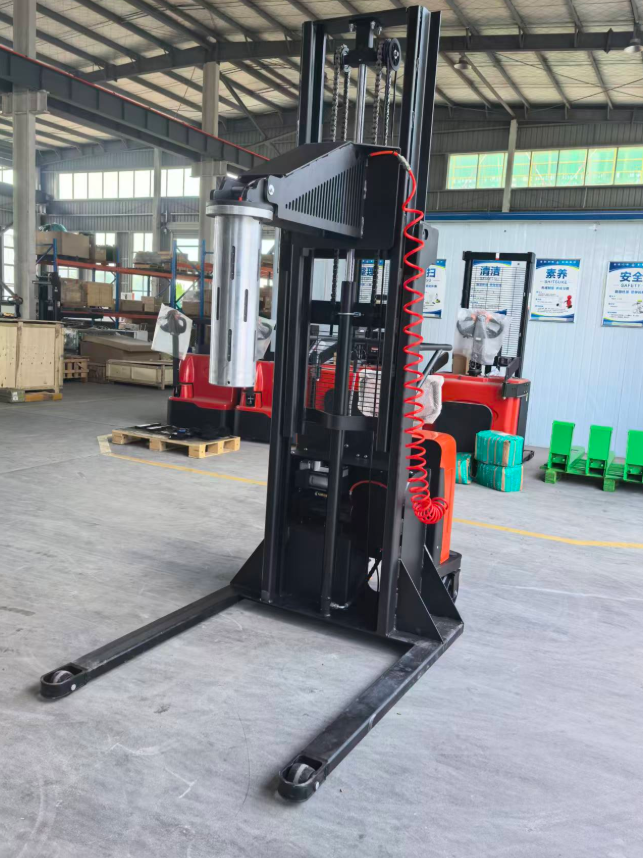

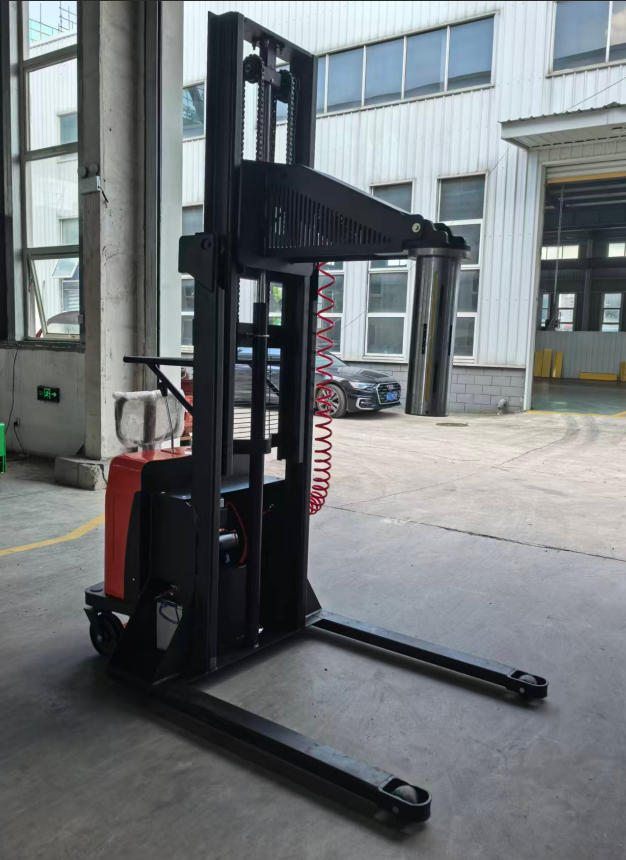

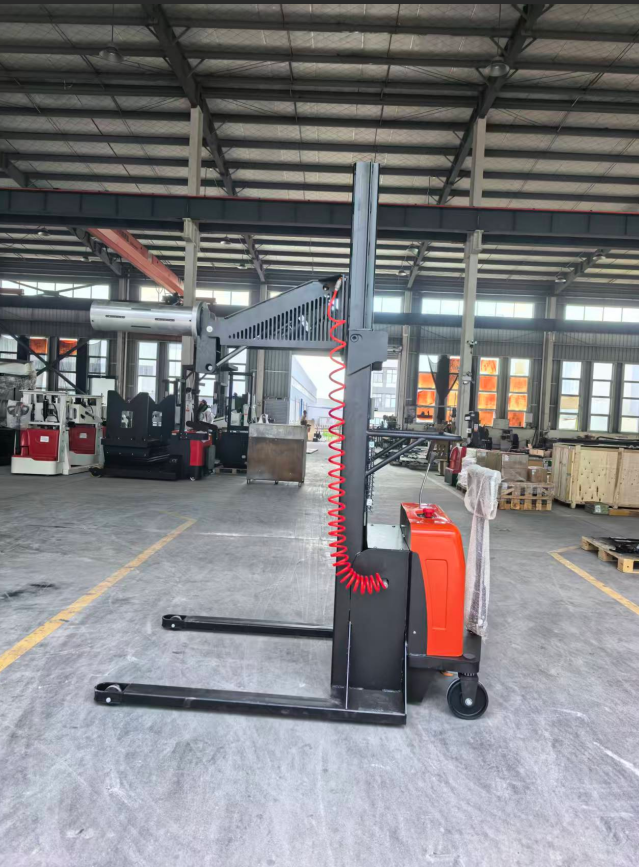

The SINOLIFT Semi-Electric Rotating Clamp Truck combines a 500 kg rated capacity with a clamping and rotating assembly for cylindrical loads.

Its Ø350–800 mm clamping range accommodates the specified range of load diameters. When selecting a configuration, the load’s surface, construction, and weight distribution also help determine whether the gripping arrangement suits the application.

With continuous 360° rotation in either direction, the clamp allows the load’s orientation to be adjusted without a fixed rotational end position. This gives the operator flexibility when bringing the material into alignment for the next handling step.

The truck provides a maximum rotation-centre height of 1.7 m and an inner leg width of 920 mm. Together, these dimensions help define how the equipment can approach and position a load within the intended working area.

Bringing Lifting and Positioning Together

The value of this configuration lies in addressing two connected requirements: raising the load and adjusting its orientation.

By combining these functions in one truck, the solution supports a handling sequence in which a cylindrical load can be gripped, raised, and rotated into position. Its suitability depends on the complete application, including load dimensions, the required turning clearance, and access to the workstation.

For SINOLIFT, bespoke handling starts with these practical details. Capacity is one part of the specification; how the material needs to move determines the rest.

Have a similar lifting and rotating requirement? Share your load weight, dimensions, required positioning height, and application photos with SINOLIFT to discuss a suitable configuration.
