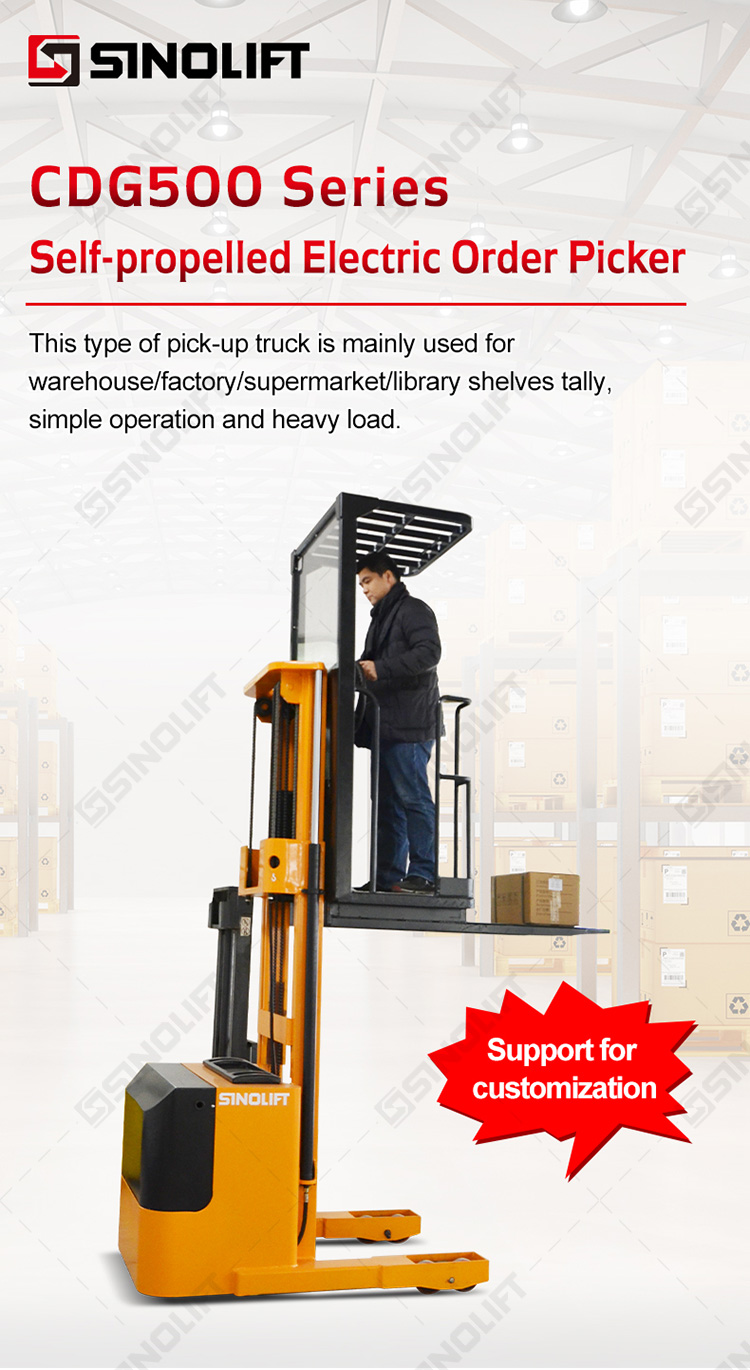

CDG500 Series Self-propelled Electric Order Picker
You can drive this model, even when selecting the operator to ride this model. You can operate, reduce the lift and lower the operating floor to improve work productivity
Small volume
This product is mostly used in a narrow space, with a short length and a small turning radius, to improve the efficiency of working in a narrow space
Strong endurance
Using high-quality drive system and pump station, lifting and operation is smooth and powerful. Configured with large capacity traction battery, power durable, durable, reliable.
Security configuration
Safety belt, safety belt is closely connected to the roof, to ensure the safety of operators suitable for the state Treasury, workshop, supermarkets, stadiums and other aerial operation or maintenance operations
Simplicity of operator.You can drive this model, even when selecting the operator to ride this model. You can operate, reduce the lift and lower the operating floor to improve work productivity

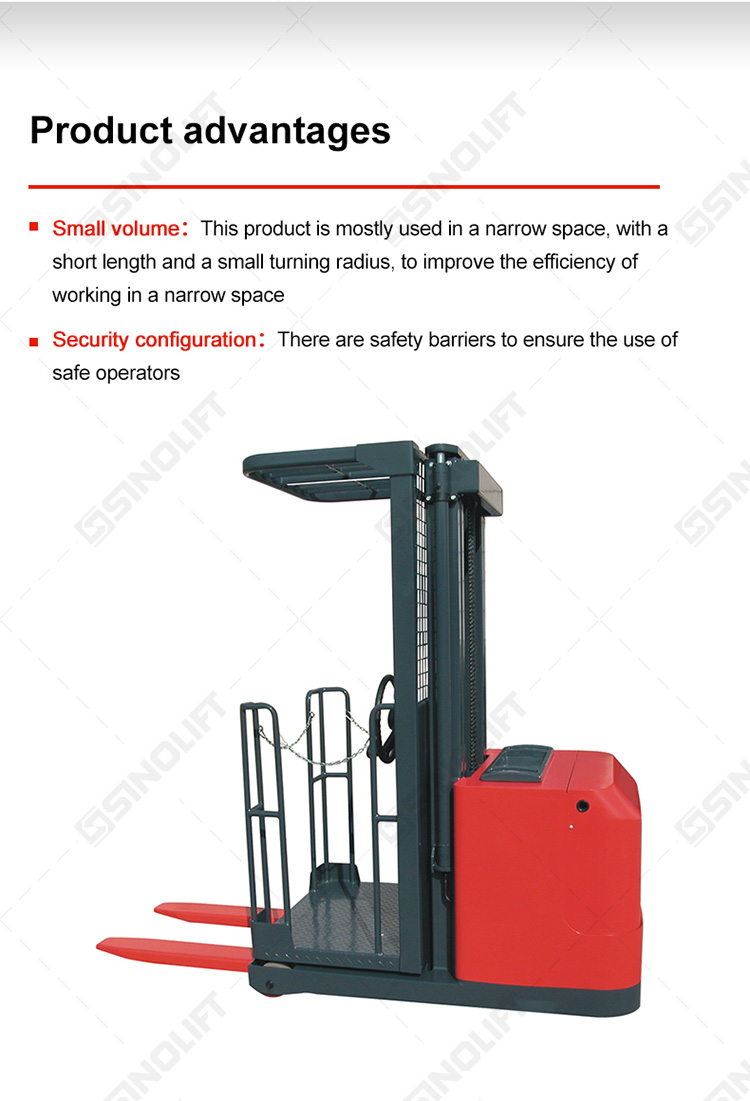

Small volume.This product is mostly used in a narrow space, with a short length and a small turning radius, to improve the efficiency of working in a narrow space

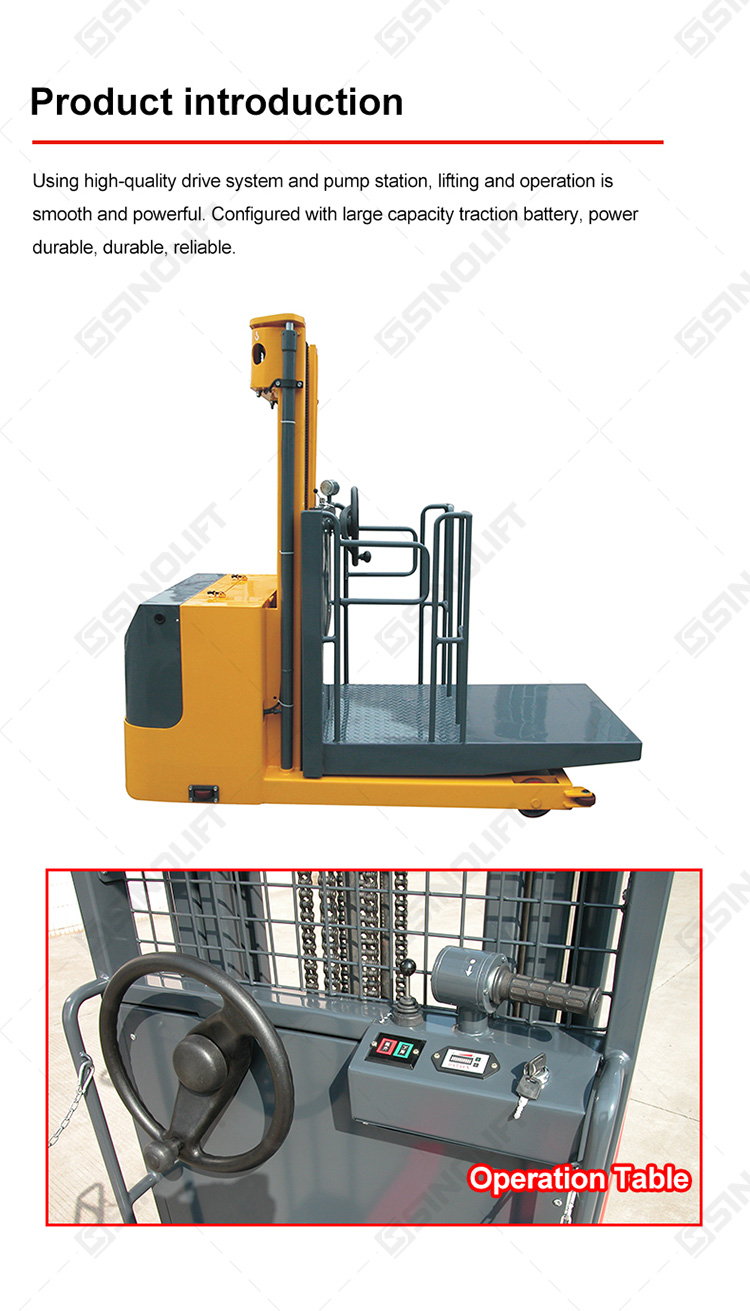

Strong endurance.Using high-quality drive system and pump station, lifting and operation is smooth and powerful. Configured with large capacity traction battery, power durable, durable, reliable.
Security configuration.Safety belt, safety belt is closely connected to the roof, to ensure the safety of operators suitable for the state Treasury, workshop, supermarkets, stadiums and other aerial operation or maintenance operations

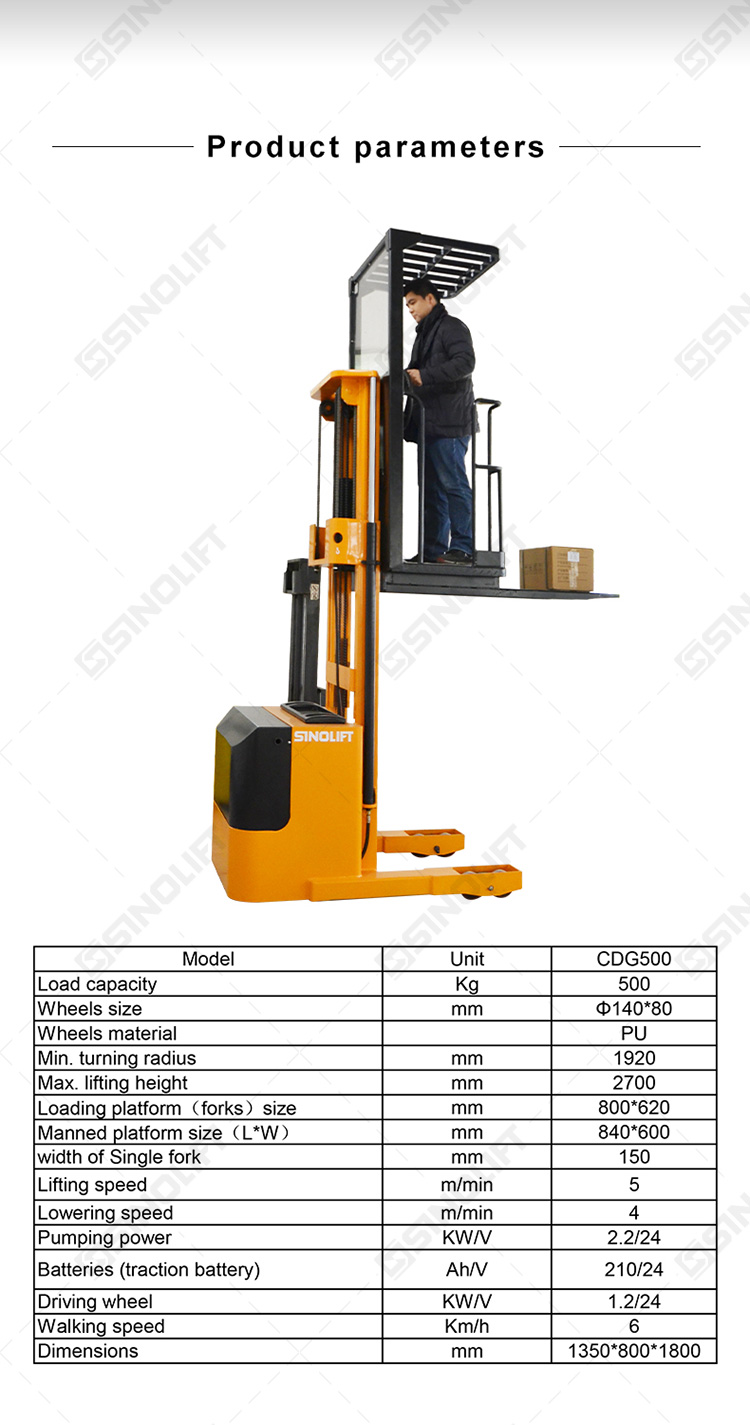

Specifications
| Model | Unit | CDG500 |
| Load capacity | kg | 500 |
| Wheels size | mm | Φ140*80 |
| Wheels material | PU | |
| Min. turning radius | mm | 1920 |
| Max. lifting height | mm | 2700 |
| Loading platform（forks）size | mm | 800*620 |
| Manned platform size（L*W） | mm | 840*600 |
| width of Single fork | mm | 150 |
| Lifting speed | m/min | 5 |
| Lowering speed | m/min | 4 |
| Pumping power | kw/v | 2.2/24 |
| Batteries (traction battery) | ah/v | 210/24 |
| Driving wheel | kw/v | 1.2/24 |
| Walking speed | km/h | 6 |
| Dimensions | mm | 1350*800*1800 |
