CPD08M CPD10M CPD12M CPD16M Mini Electric Forklift Truck

CPD08M CPD10M CPD12M CPD16M

The ideal arrangement of components ensures easy and convenient maintenance.Even though electric forklift truck cost just a little more than diesel trucks, they soon start paying for themselves.

Quantity

Contact Now

add to cart

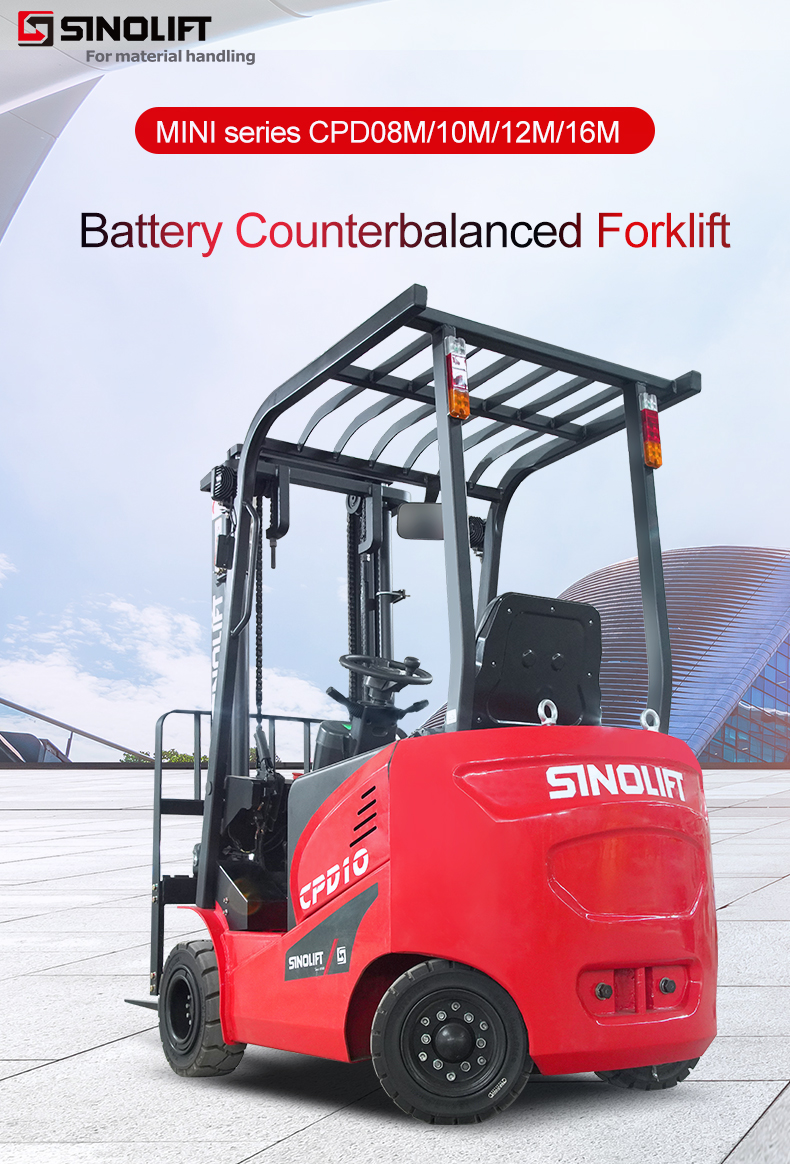

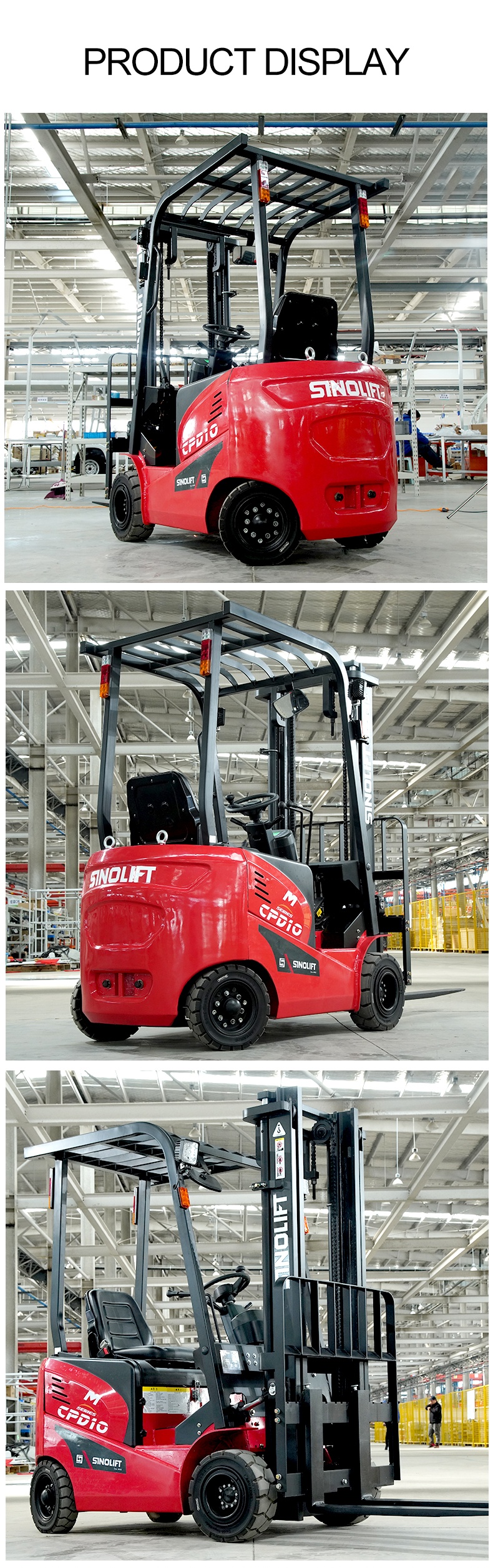

CPD08M CPD10M CPD12M CPD16M Electric Forklift Truck

Compact Electric Forklift Truck with proven AC technology.
The ideal arrangement of components ensures easy and convenient maintenance.Even though electric forklift truck cost just a little more than diesel trucks, they soon start paying for themselves.

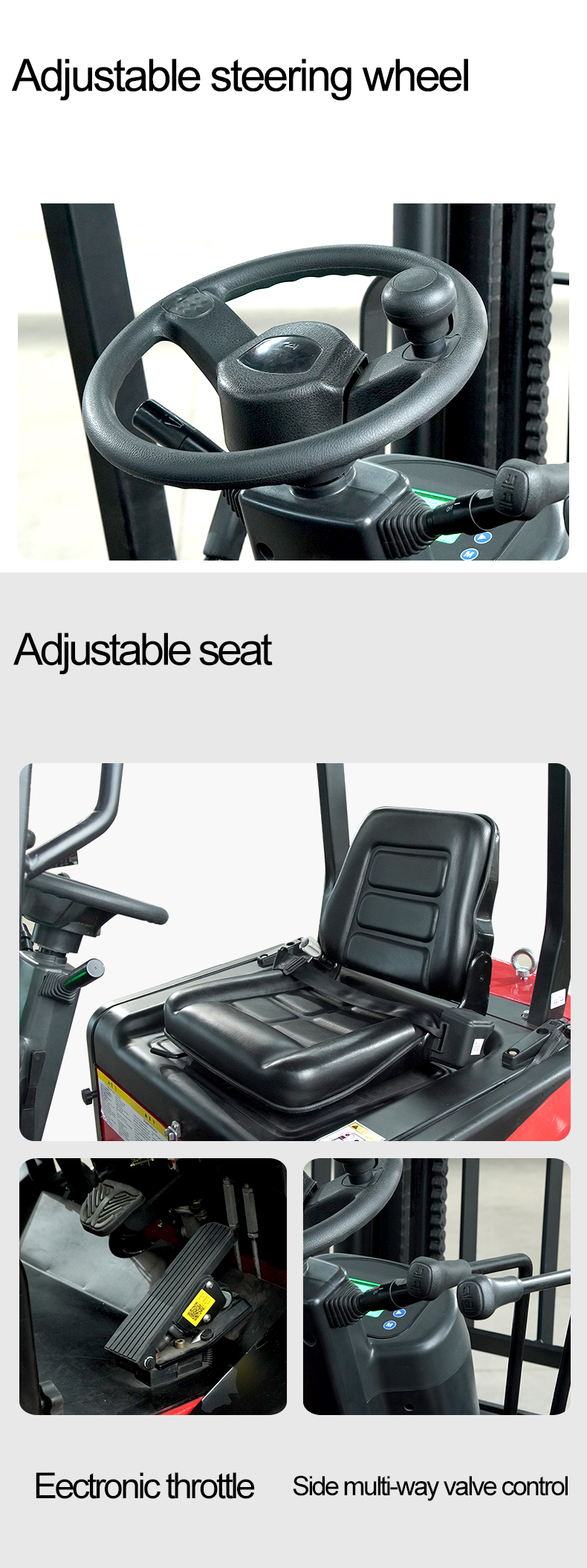

Larger, more comfortable operators compartment than a traditional electric forklift truck

Manufacturing environmentally friendly, efficient, dependable and durable Electric Forklift Truck

Our electric forklift trucks are suitable for a wide range of purposes.

Our electric forklift trucks are as effective working inside within pallet racking aisles as they are working outside in the yard or in a loading bay.

Manufacturer	SINOLIFT
Model			CPD08M	CPD10M	CPD12M	CPD16M
Power Type			Electric
Type of operation			Seated
Load capacity/rated load	Q	kg	800	1000	1200	1 600
Load center distance	C	mm	400		400
Loaddistance, center of drive axle to fork	L2	mm	314		354
Wheelbase	L1	mm	1150		1250
Mast/fork carriage tilt forward/backward	a/B		5/8		5/8
Mast lowered height	H1	mm	1990		2020
Free lift height	H3	mm	/		/
Standard mast lifting height	H	mm	3000		3000
Extended mast height	H2	mm	4090		4075
Overhead load guard height	H4	mm	2000		2100
Seat height		mm	920		1020
Coupling height		mm	300		320
Overall length (with fork)	L	mm	2580		2800
Overall length (without fork)	L"	mm	1810		2030
Overall width	W1	mm	990		990
Fork dimension	TxWxL4	mm	30x100x770		30x100x770
Type of fork carriage			ISO23282A		ISO2328 2A
Fork carriage width		mm	1060		1060
Fork carriage spread width	W5	mm	970		970
Ground clearance under mast laden	H5	mm	100		130
Ground clearance from center of wheelbase	H6	mm	130		140

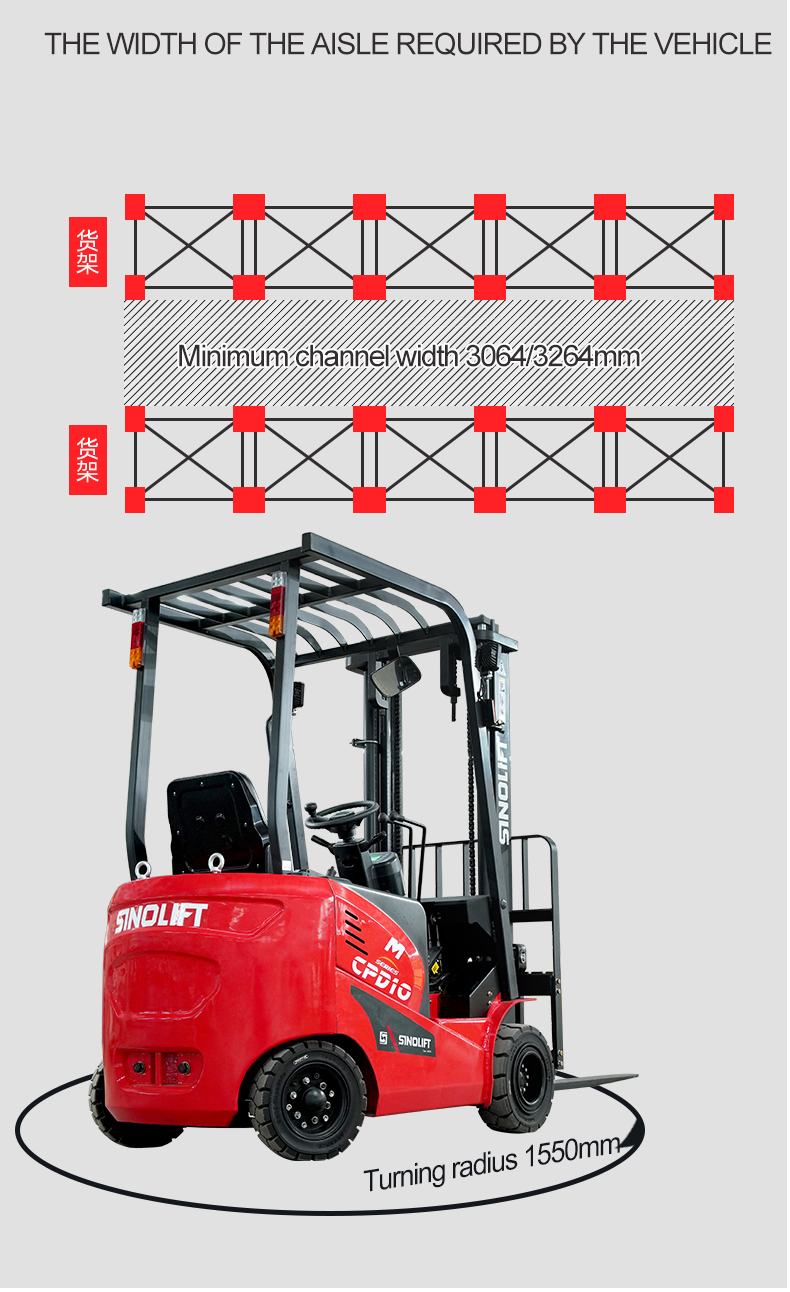

Min. Right Angle Stacking Aisle Width (pallet size 1000x1000)	Ast	mm	3264		3454
Min. Right Angle Stacking Aisle Width (pallet size 1200x1200)	Ast	mm	3064		3254
Turning radius	r	mm	1550		1700
Weight (with battery)		kg	1585	1645	2010	2070
Front axle rated load (laden)		kg	2225	2480	3010	3460
Rear axle rated load (laden)		kg	160	165	200	210
Front axle rated load (unladen)		kg	665	690	845	870
Rear axle rated load (unladen)		kg	920	955	1165	1200

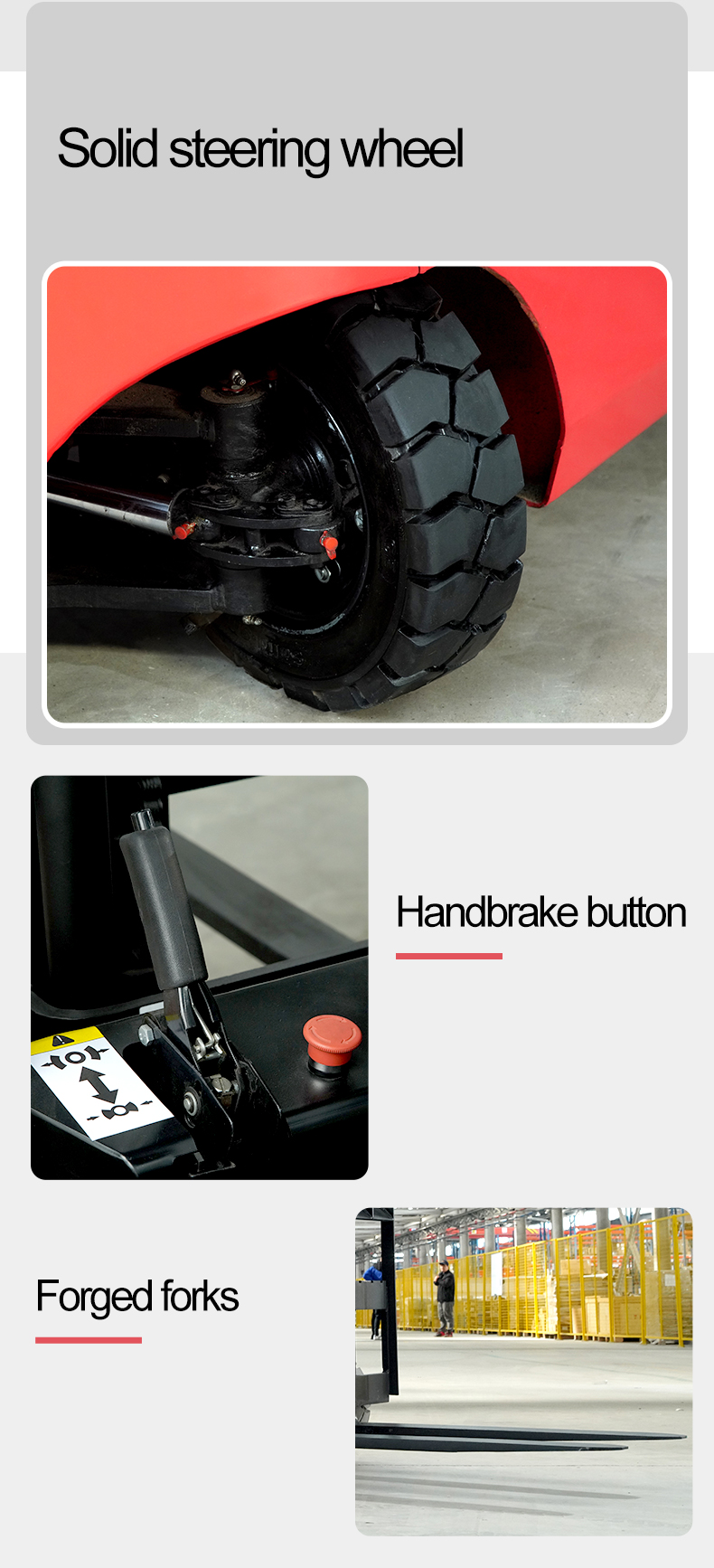

Tyre type			Solid tyre		Solid tyre
Front tyre size			459x157		21x7x15
Rear tyre size			15x4.5-8/3.00D-8		5.00-8-8PR/3.00D-8
Tyre quantity (x=driving wheels)			2x/2		2x/2
Front-wheel span		mm	915		930
Rear-wheel span		mm	815		810
Travel speed (laden/unladen)		km/h	12/13		12/13
Lift speed (laden/unladen)		mm/s	192/200		200/217
Lowering speed (laden/unladen)		mm/s	400/294		370/265
Max. Gradeability (Laden/Unladen)		%	12/15		12/15
Service brake			Hydraulic		Hydraulic
Parking brake			Mechanical		Mechanical
Drive motor rating S260min		kW	3.7kw permanent magnet synchronous motor		5.5kw permanent magnet synchronous motor
Lift motor rating at S315%		kW	3.7kw permanent magnet synchronous motor		5.5kw permanent magnet synchronous motor

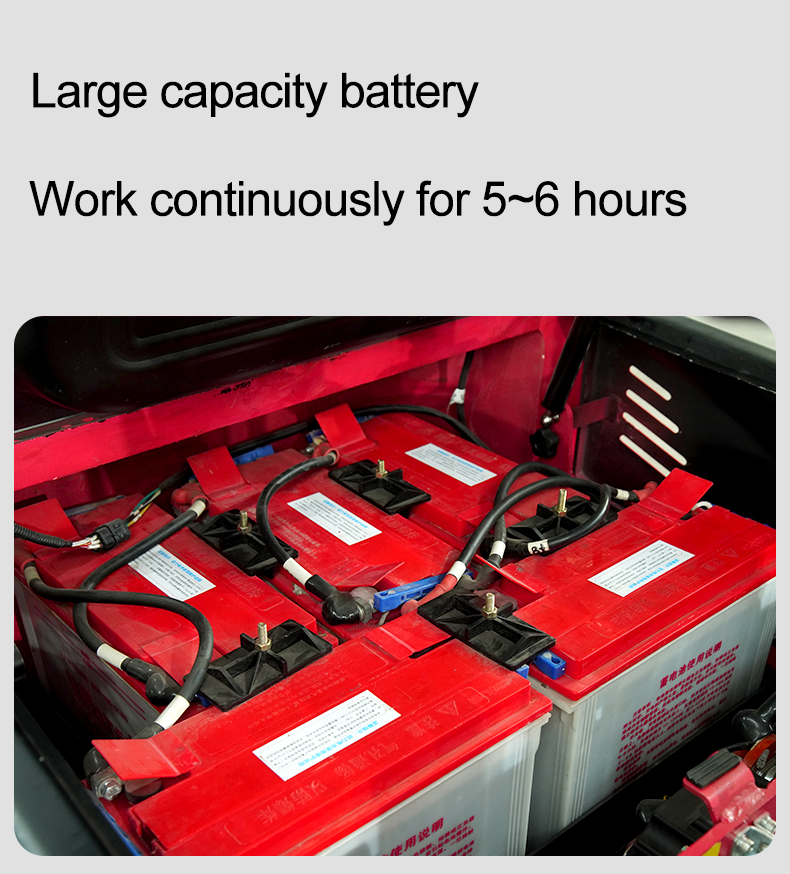

Battery voltage/normal capacity K5		V/Ah	60V/120AH	60V/150AH	60V/180AH	60V/200AH
Battery weight		kg	195	195	345	345
Maximum allowable battery size		mm	/	/	/	/
Drive controller manufacture			TIANFU	TIANFU	TIANFU	TIANFU
Type of drive controller			TFCB60400-CAN	TFCB60400-CAN	TFCB60500-CAN	TFCB60500-CAN
Operating pressure for attachments		bar	74	92	110	147
Oil volume for attachments		L/min	/	/	/	/
Hydraulicoil tank volume		L	18.3	18.3	18.3	18.3
Sound level at driver's ear according to EN 12 053		dB	70	70	70	70
