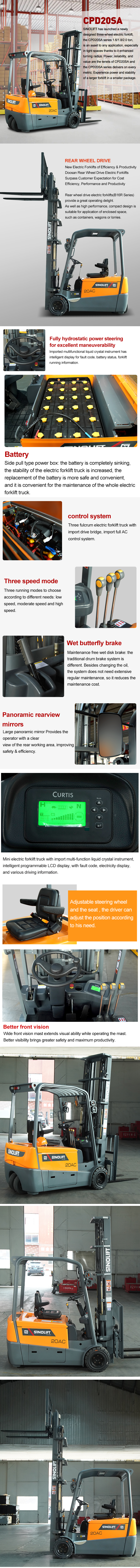

CPD20SA Three Wheel Electric Forklift Truck
- User-friendly
The CPD20SA forklift conception enables all drivers, experts, to master all functions of the truck easily and quickly.The mechanical levers and the position of controls are intuitive and comfortable.
- Easy to maintain
The access to the components is really important to ensure quick and efficient maintenance. the major elements are reached with a minimum of handling. Popular brands components are mostly standardized to facilitate the spareparts management.
- Easy access and driving
The CPD20SA basics are quick to master. the controls are ergonomic: the mechanical levers ensure a good right arm position and the small steering wheel limits efforts.The car-like pedals are really intuitive even for inexperimented operators.
The access to the driver's seat is easy thanks to a wide and low step and a long handgrip on the left forward upright.
- Safety
The CPD20SA complies with current regulations, particularly the lSO 3691 norm which requires a cut off of movements(translation and lifting) as soon as the operator leaves his seat.The SINOLlFT standard forklift trucks are equipped with a complete lights kit: front and rear, indicators and flashing beacon.Noiseless by nature, it is important for electric forklifts to be seen in their environment.
| Model | CPD20SA-16 | CPD20SA-18 | CPD20SA-20 | |
| Drive | Dual Front Drive Wheel | Dual Front Drive Wheel | Dual Front Drive Wheel | |
| Operation type | seated | seated | seated | |
| Capacity/rated load | Q(kg) | 1600 | 1800 | 2000 |
| Load centre distance | c(mm) | 500 | 500 | 500 |
| Lift height | h3(mm) | 3000-6200 | 3000-6200 | 3000-6200 |
| Load distance,centre of drive axle to fork | x(mm) | 358 | 358 | 358 |
| Wheelbase | Y(mm) | 1362 | 1362 | 1465 |
| Service weight(with battery) | kg | 3220 | 3280 | 3450 |
| Axle loading,laden front/rear | kg | 3955/865 | 4166/914 | 4469/981 |
| Axle loading,unladen front/rear | kg | 1425/1795 | 1455/1826 | 1625/1997 |
| Height,mast lowered | h1(mm) | 2000-2660 | 2000-2660 | 2000-2660 |
| Free lift | h2(mm) | Option | Option | Option |
| Height,mast extended | h4(mm) | 4050-7250 | 4050-7250 | 4050-7250 |
| Overall length | l1(mm) | 2880 | 3000 | 3100 |
| Overall width | b1(mm) | 1070 | 1130 | 1130 |
| Fork dimensions | s/e/l(mm) | 35*100*950 | 40*100*1070 | 40*120*1070 |
| Aisle width for pallets 1000*1200 crossways | Ast(mm) | 3120 | 3120 | 3200 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 3220 | 3220 | 3300 |
| Turning radius | Wa(mm) | 1552 | 1552 | 1652 |
| Travel speed,laden/unladen | Km/h | 14/14 | 14/14 | 13/13 |
