Customized CTY1000-M700 Manual Hydraulic Roll Lifter for Paper Roll Handling

Project Overview

A mid-sized printing facility faced challenges in safely and efficiently handling heavy paper rolls in their compact warehouse with narrow aisles and low ceilings. Standard forklifts were too cumbersome, and manual handling led to frequent workplace injuries. SINOLIFT delivered a tailored solution with the CTY1000-M700 Manual Hydraulic Roll Lifter, customizing its fork length, mast height, and roll cradle to perfectly align with the client’s operational needs and spatial constraints.

Product Highlights

1.Load capacity: 1000 kg, ideal for handling standard paper rolls in printing and packaging industries.

2.Max lifting height: 1600 mm, suited for low-tier storage racks.

3.Fork length: 700 mm, customized for compact paper roll sizes.

4.Simplex telescopic design: Single mast structure with ‘C’ channel section, supported by heavy-duty deep-grooved guide rollers for stability.

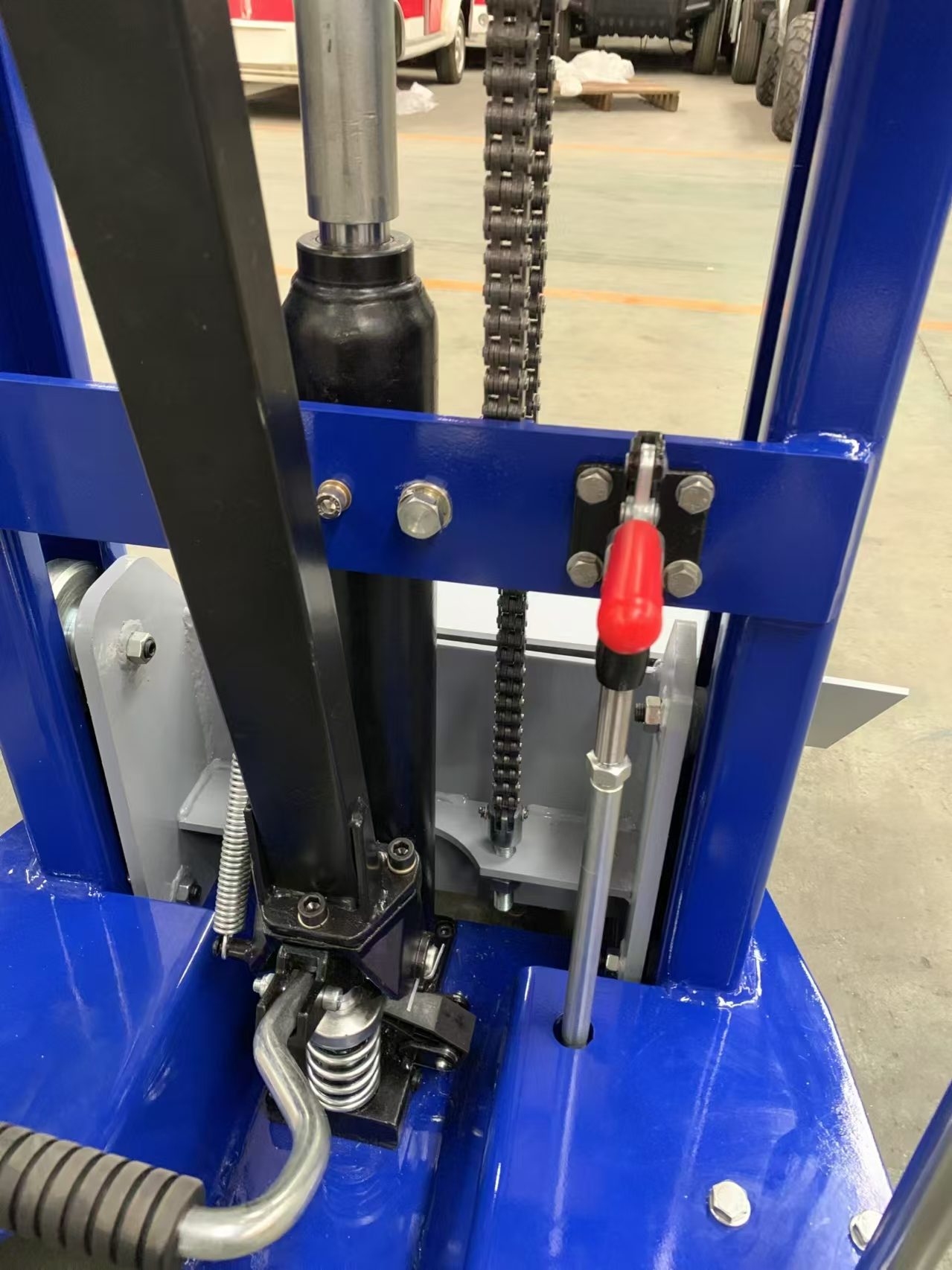

5.Hydraulic system: Single-acting honed hydraulic cylinder with a hard-chrome plated piston, actuated by a hand pump for smooth, reliable lifting.

6.Wheels: 2 front 150x50 mm white virgin nylon wheels and 2 rear 78x70 mm load roller wheels, all with double ball bearings for effortless movement.

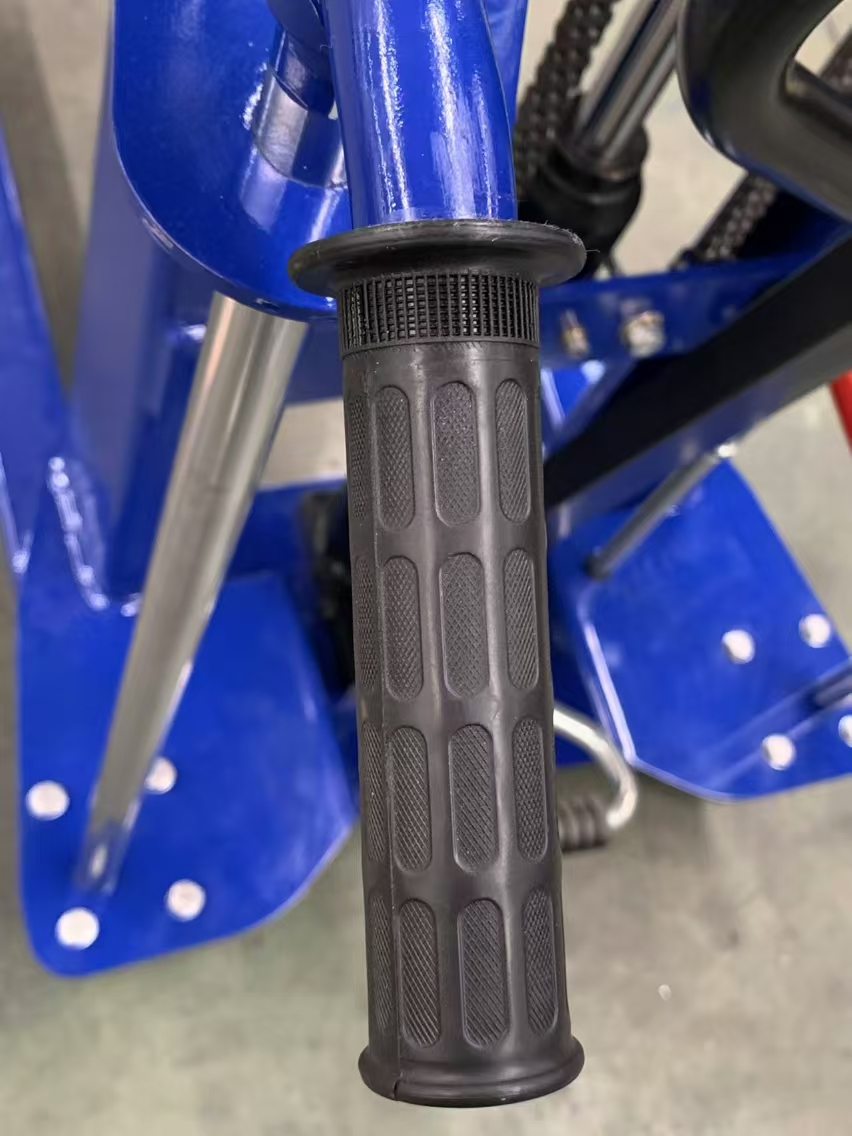

7.Handle: Inverted double ‘U’ shape for ergonomic push-pull action.

8.Paint: One primer coat and two auto-finish paint coats for enhanced durability in semi-outdoor environments.

Customization Details

• 700 mm forks with roll cradle: Shortened from standard 900 mm and fitted with a specialized roll cradle to securely grip paper rolls up to 600 mm in diameter, improving handling precision.
• Adjusted mast height: Modified to operate under 2-meter ceiling heights, ensuring compatibility with the client’s low-clearance storage area.
• Reinforced paint coating: Applied a high-durability finish to withstand frequent exposure to dust and humidity in the printing facility.
• Process: SINOLIFT collaborated closely with the client, conducting on-site measurements and design iterations to ensure seamless integration into their workflow.

Application Scenarios

Printing press supply lines: Efficiently transports paper rolls from storage to printing machines, minimizing downtime.

Packaging material warehouses: Handles rolls in tight spaces, streamlining material flow.

Roll storage and retrieval: Simplifies stacking and retrieval of rolls on low-tier racks in confined areas.

Production workshops: Supports safe distribution of paper rolls to cutting and processing stations.

Customer Benefits

Increased efficiency: Reduced roll handling time by 40%, boosting production line uptime.

Enhanced safety: Ergonomic handle and hydraulic pump eliminated manual lifting, cutting workplace injuries by 50%.

Cost savings: Replaced costly forklifts for short-distance tasks, saving 25% on operational costs.

Client feedback: “The CTY1000-M700 has transformed our roll handling process, making it faster, safer, and more cost-effective.”

Low maintenance: Robust design and durable coating ensure long-term reliability with minimal upkeep.

Conclusion

The CTY1000-M700 Manual Hydraulic Roll Lifter demonstrates SINOLIFT’s expertise in delivering customized material handling solutions for specialized needs. Its compact design, precise roll handling, and tailored features make it an ideal choice for printing and packaging facilities. Ready to streamline your paper roll handling? Contact SINOLIFT today to explore customized solutions for your warehouse!
