E SERIES ROTATOR

XZQ25E XZQ35E XZQ45E XZQ60E XZQ80E

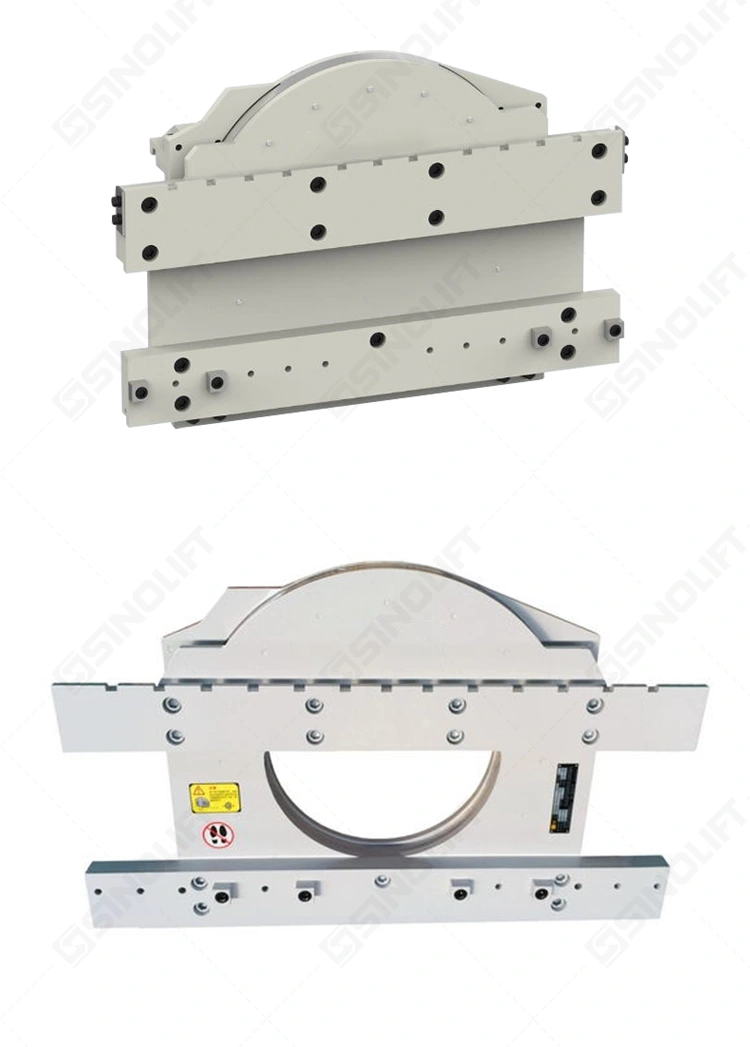

The e series rotator driven by hydraulic power, widely used in situations where goods need to be tilted for operations. The component is circular, predominantly white, with a central circular hole and various bolt holes around its perimeter, indicating it is designed for attachment to other components.

Quantity:

Contact Now

add to cart

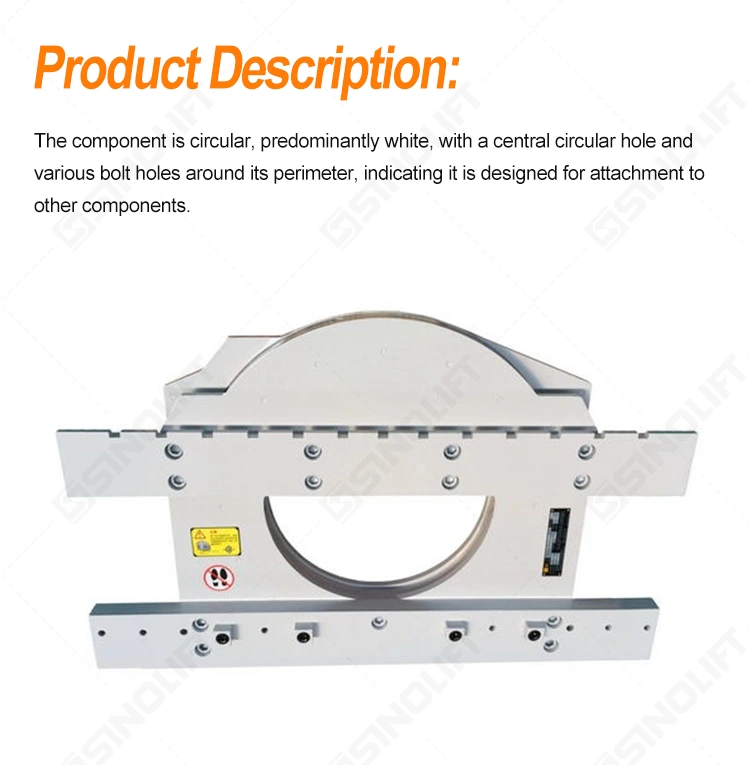

The e series rotator driven by hydraulic power, widely used in situations where goods need to be tilted for operations. The component is circular, predominantly white, with a central circular hole and various bolt holes around its perimeter, indicating it is designed for attachment to other components.

Features:

Hydraulic-driven rotation for convenient and efficient operation.
Widely used for tilting goods, enhancing work efficiency.
Sturdy design suitable for industrial environments.
Advantages:

Made of high-strength materials, sturdy and durable.
360-degree rotation design, with adjustable angle, applicable to a wide range of vehicles.
Easy to operate and install, improving work efficiency.
Ensures vehicle stability, providing a safer working environment.
Found in paper mills,newspaper printing,correct or steel pipe,logictics warehouse,converters and any industries that handles paper rolls or rolls.

Parameters:

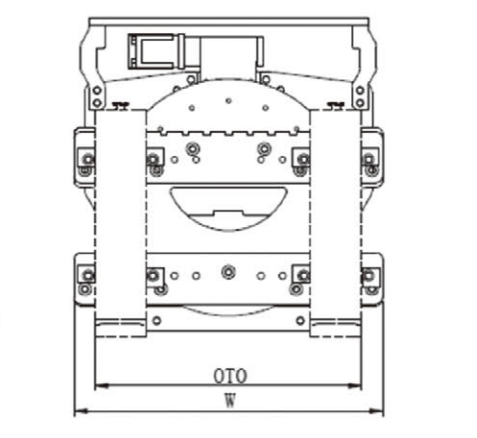

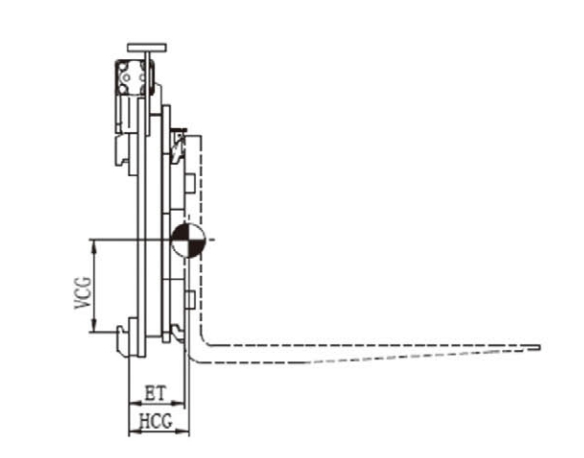

CAPACITY@	MODEL	FORKLIFT	FORK	CARRIAGE	FORK MAX.	MIN.TRUCK	VERTICAL	ACTUAL WEIGHT	WEIGHT	EFFECTIVE	HORIZONTAL
LOAD CENTER		MOUNTING	MOUNTING	WIDTH	SPACING OTO	CARRIAGE WIDTH	CENTER OF			THICKNESS	CENTER OF
		CLASS	CLASS				GRAVITY				GRAVITY
(kg@mm)				W(mm)	0T0(mm)	(mm)	VCG(mm)	(kg)	(kg)	ET(mm)	HCG(@mm)
2500@600	XZQ25E-B001	II	II	965	880	800	299	296	296	160	89
2500@600	XZQ25E-B002	II	II	1115	1030	800	298	300	300	160	91
2500@600	XZQ25E-B003	II	II	1040	955	800	296	298	298	160	90
2500@600	XZQ25E-B004	II	II	890	805	800	302	290	290	160	88
2500@600	XZQ25E-B005	II	II	1100	1015	800	298	300	300	160	91
2500@600	XZQ25E-B007	II	II	1000	915	800	298	297	297	160	90
2500@600	XZQ25E-B008	II	II	1400	1315	800	286	330	330	160	96
3500@600	XZQ35E-C001	III	III	1100	1030	800	306	337	337	218	140
3500@600	XZQ35E-C002	III	III	1115	1045	800	301	340	340	218	143
3500@600	XZQ35E-C003	III	III	1150	1080	800	302	343	343	218	138
3500@600	XZQ35E-C004	III	III	1200	1130	800	300	350	350	218	141
3500@600	XZQ35E-C006	III	III	1300	1230	800	286	364	364	218	140
3500@600	XZQ35E-C007	III	III	1350	1280	800	286	370	370	218	141
4500@600	XZQ45E-C001	III	III	1200	1030	800	286	550	550	178	145
3500@600	XZQ35E-C008Z	III	III	1600	1530	800	293	475	475	218	145
4500@600	XZQ45E-C001	III	III	1200	1094	1016	326	480	480	178	98
4500@600	XZQ45E-C002	III	III	1300	1194	1016	324	497	497	178	99
4500@600	XZQ45E-C003	III	III	1150	1044	1016	326	472	472	178	99
4500@600	XZQ45E-C005	III	III	1350	1269	1016	322	502	502	178	99
4500@600	XZQ45E-C006Z	III	III	1200	1094	1016	325	325	518	178	99
4500@600	XZQ45E-C007	III	III	1250	1144	1016	325	325	490	178	97
5000@600	XZQ50E-D002	IV	IV	1200	1200	1016	286	286	560	232	145
6000@600	XZQ60E-D001	IV	IV	1200	1200	1016	310	310	577	236	143
6000@600	XZQ60E-D002	IV	IV	1500	1500	1016	305	305	622	236	145
6000@600	XZQ60E-D003	IV	IV	1250	1250	1016	307	307	590	236	142
6000@600	XZQ60E-D004	IV	IV	1550	1550	1016	305	305	650	236	138
6000@600	XZQ60E-D006	IV	IV	1525	1525	1016	300	300	650	236	146
7000@600	XZQ70E-D001	IV	IV	1550	1550	1150	380	380	820	272	130
7000@600	XZQ70E-D002	IV	IV	1700	1700	1150	336	336	840	272	170
7000@600	XZQ70E-D003	IV	IV	1450	1450	1150	336	336	810	272	166
7000@600	XZQ70E-D005	IV	IV	1845	1845	1150	325	325	875	272	174
8000@600	XZQ80E-D001	IV	IV	1800	1800	1300	343	343	1025	264	157
8000@600	XZQ80E-D002	IV	IV	1200	1200	1300	350	350	880	264	147
8000@600	XZQ80E-E001	V	V	1800	1800	1300	380	380	1100	276	165
