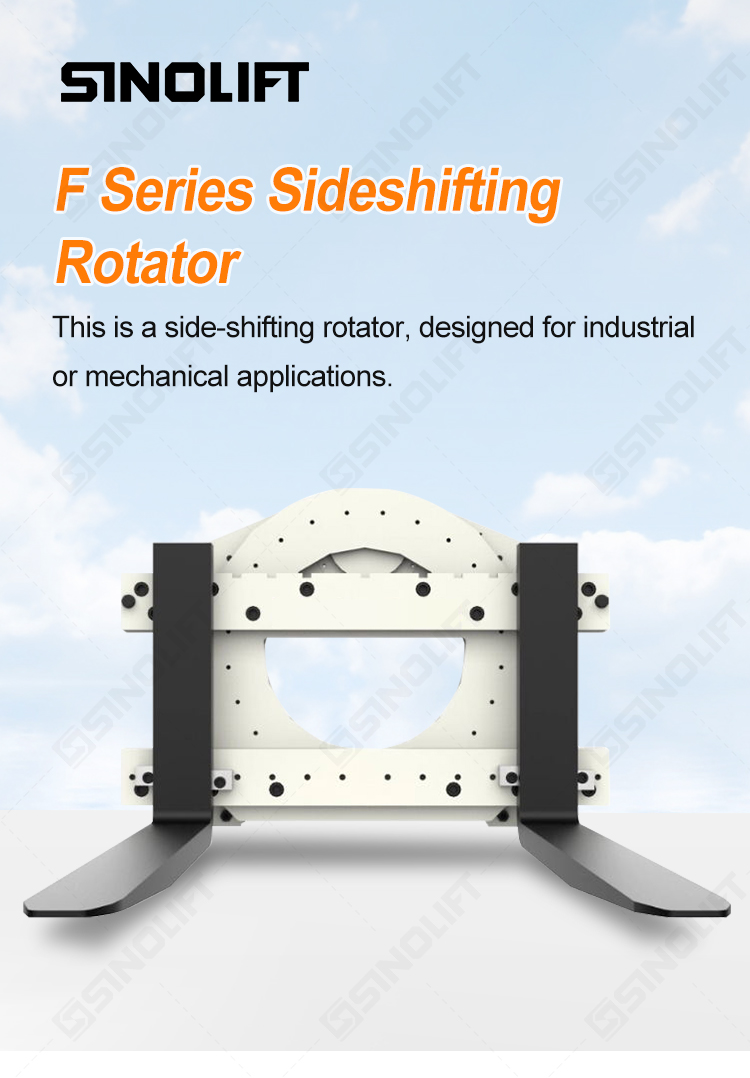

F SERIES ROTATOR SIDESHIFTING

XZQ25F-B001 XZQ35F-C010

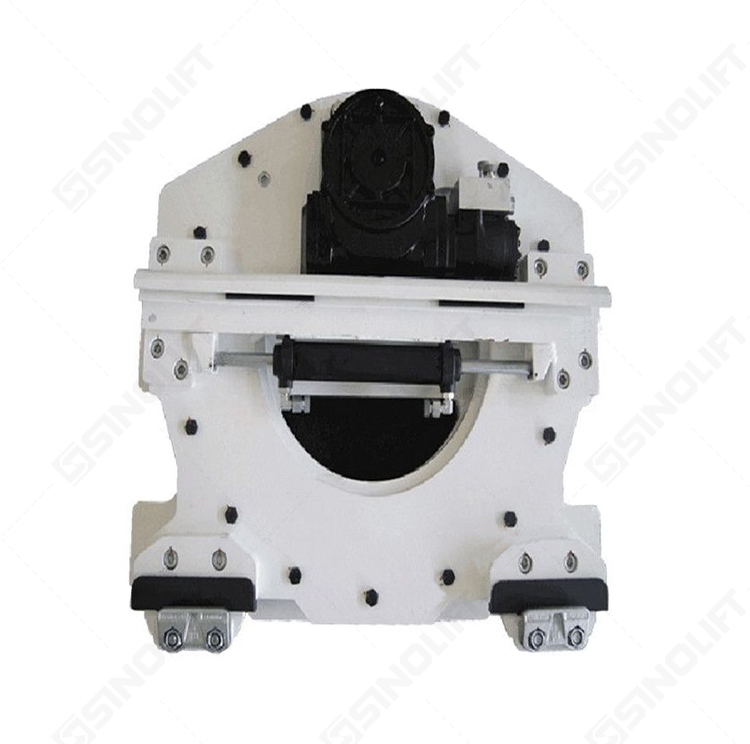

The side-shifting rotator, designed for industrial or mechanical applications. It features a sturdy and robust construction with a light grey color and black accents such as screws. The main structure consists of an arched top piece connected to a base by vertical side plates, providing stability and support. The base has multiple holes for mounting and securing the component.

Quantity

Contact Now

add to cart

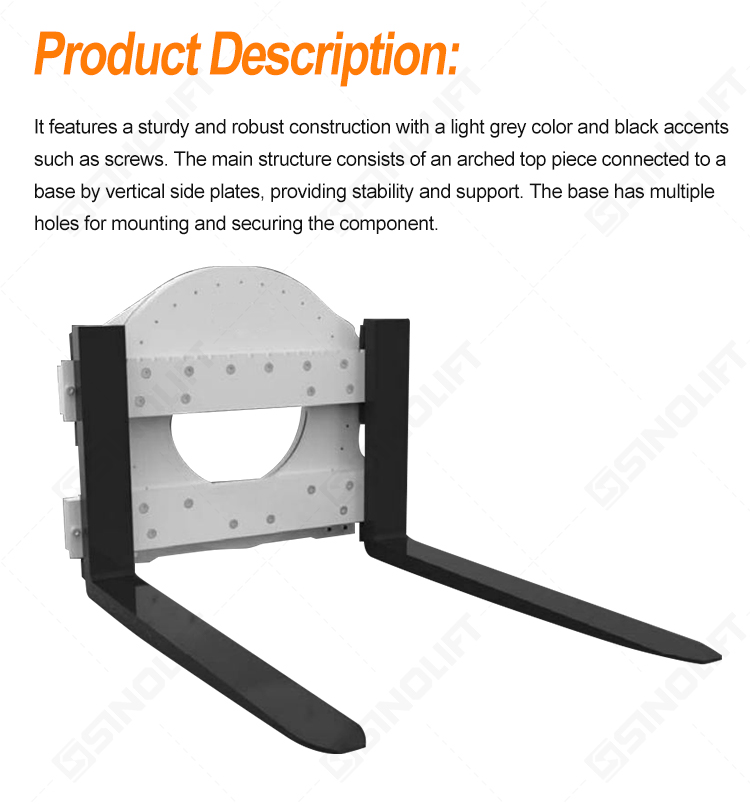

The side-shifting rotator, designed for industrial or mechanical applications. It features a sturdy and robust construction with a light grey color and black accents such as screws. The main structure consists of an arched top piece connected to a base by vertical side plates, providing stability and support. The base has multiple holes for mounting and securing the component.

Features:

Suitable for loading, unloading, and stacking operations to enhance work efficiency.
Lateral movement feature for easy horizontal adjustment of cargo position.
Sturdy and durable metal construction suitable for industrial environments.

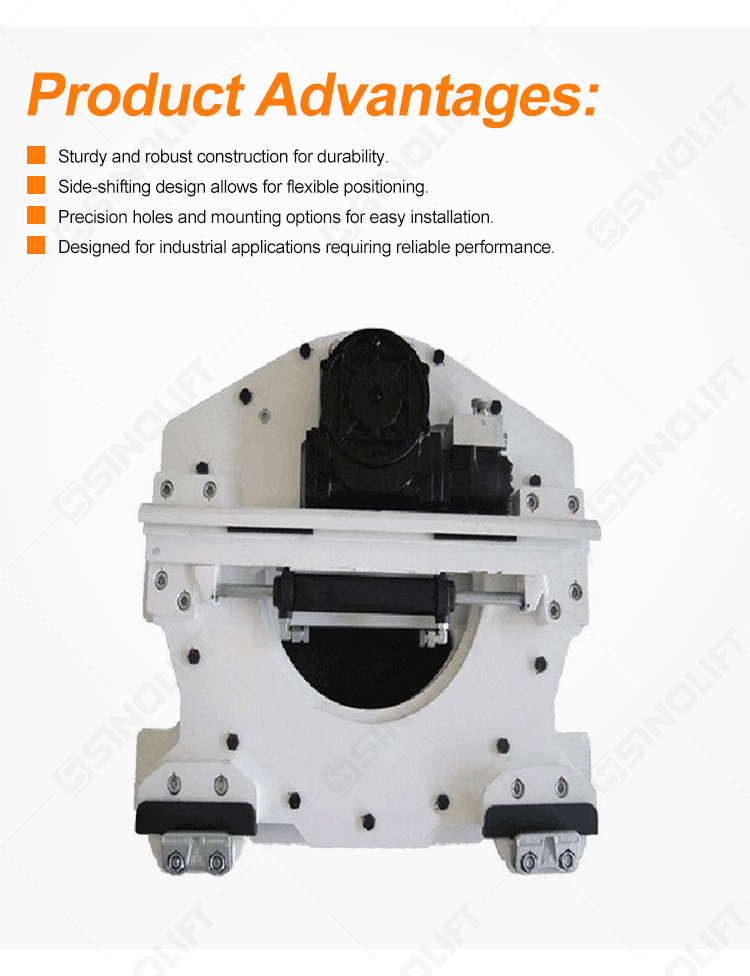

Advantages:

Sturdy and robust construction for durability.
Side-shifting design allows for flexible positioning.
Precision holes and mounting options for easy installation.
Designed for industrial applications requiring reliable performance.

Parameters:

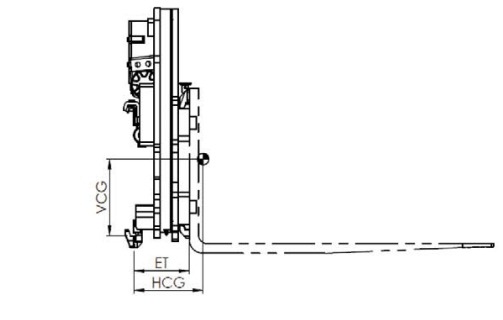

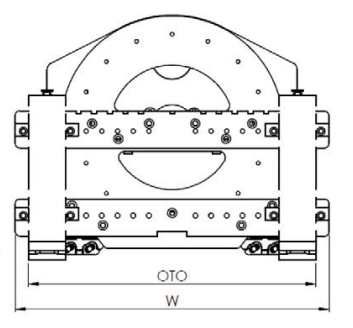

CAPACITY@	MODEL	SIDESHIFTING	ROTATOR	FORK	CARRIAGE	FORK MAX.	MIN.TRUCK	VERTICAL	WEIGHT	EFFECTIVE	HORIZONTAL
LOAD CENTER			MOUNTING	MOUNTING	WIDTH	SPACING	CARRIAGE WIDTH	CENTER OF		THICKNESS	CENTER OF
			CLAS	CLASS				GRAVITY			GRAVITY
(kg@mm)					w(mm)	0T0(mm)	(mm)	VCG(mm)	(kg)	ET(mm)	HCG(@mm)
2500@500	XZQ25F-B001	±100	II	II	890	805	900	323	315	182	99
2500@500	XZQ25F-B002	±100	II	II	1020	935	900	315	325	182	102
2500@500	XZQ25F-B003	±100	II	II	965	880	800	308	296	160	83
2500@500	XZQ25F-B004	±100	II	II	1040	955	900	316	330	182	104
3500@600	XZQ35F-C001	±100	III	III	1100	1030	1150	304	400	240	142
3500@600	XZQ35F-C002	±100	III	III	1100	1030	1150	303	435	226	133
3500@600	XZQ35F-C006	±100	III	III	1300	1230	1150	304	420	240	142
3500@600	XZQ35F-C009Z	±100	III	III	1450	1380	1150	293	475	228	140
3500@600	XZQ35F-C010	±100	III	III	1400	1330	1150	294	460	240	152
3500@600	XZQ35F-C011	±100	III	III	1500	1430	1150	294	470	240	150
4500@600	XZQ45F-C001	±100	III	III	1200	1094	1200	324	600	238	135
4500@600	XZQ45F-C004	±100	III	III	1350	1244	1200	379	628	238	117
6000@600	XZQ60F-D001	±100	IV	IV	1200	1021	1200	384	660	263	152
