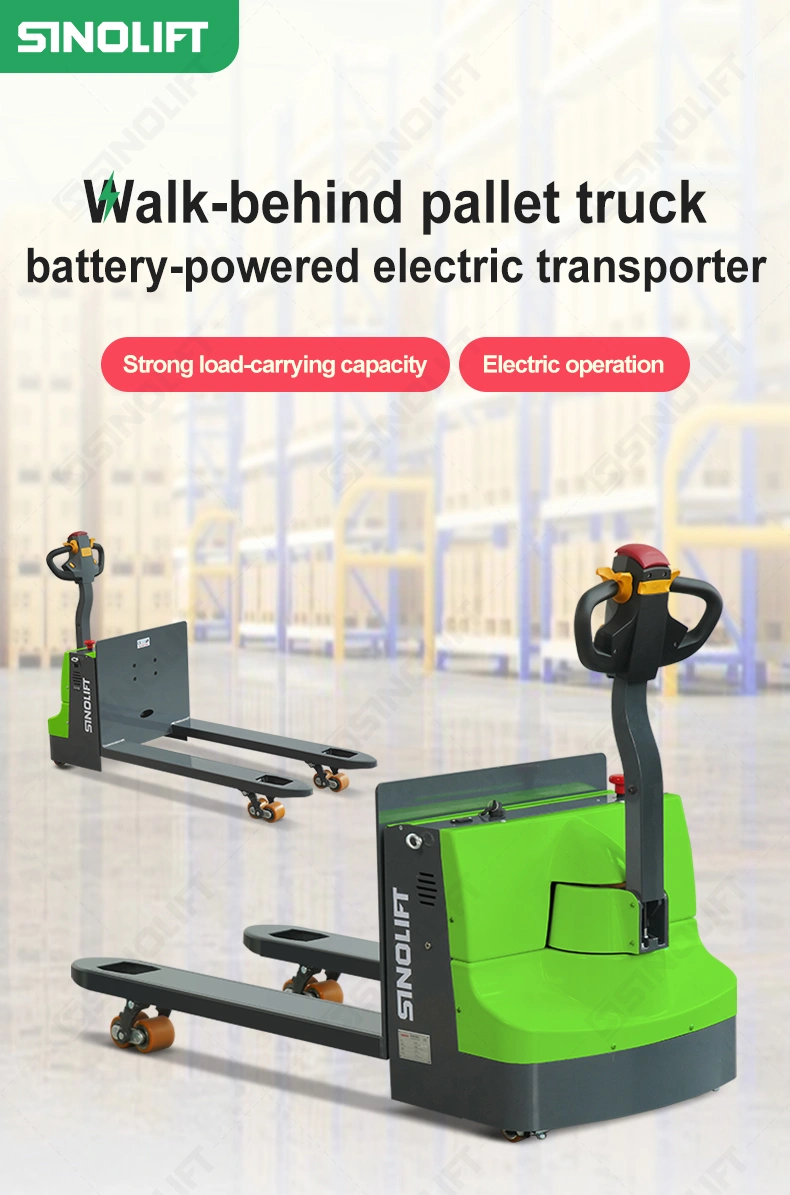

EPT20K EPT20K-Li PEDESTRIAN ELECTRIC PALLET TRUCK

Name:EPT20K EPT20K-Li PEDESTRIAN ELECTRIC PALLET TRUCK

Features of EPT20K EPT20K-Li PEDESTRIAN ELECTRIC PALLET TRUCK

Highly Maneuverable, Easily Serviceable, Broadly Flexible, Extremely DependableDesigned to maneuver in and out of tight spaces, manufactured to deliver more productivity on every shift, built to last and equipped with ergonomic features that optimize oper-ator comfort, visibility and efficiency-the EPT20K/EPT20K-Li combines amazing eff-ciency with the superior reliability you get from forklifts built by SINOLIFT.

• AC drive motor requires virtually no maintenance.
• Two 24-volt sealed lead-acid batteries or Lithium-lon battery do not require watering Entry and exit rollers allow for easy entering and exiting of pallets .
• High ground clearance for working around transitions and uneven surfaces.

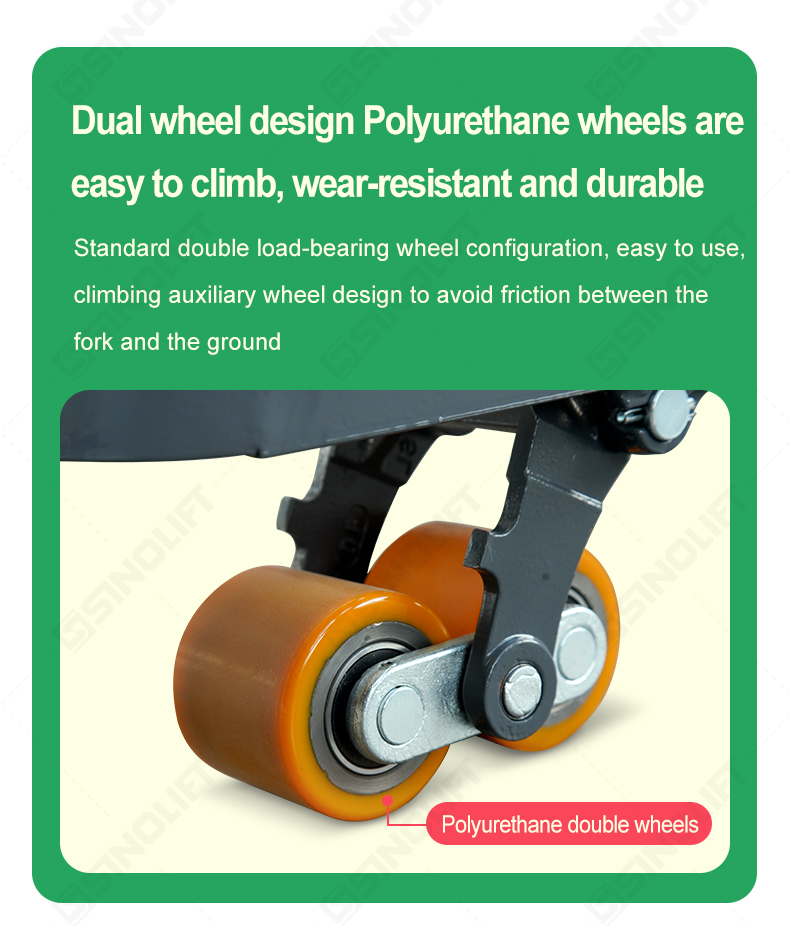

• Polyurethane drive tires for low noise.
• Built-in charger with easily accessible charging cord.

Manufacturer	SINOLIFT
Model	EPT20K			EPT20-Li
Power Type			AGM	LEP
Type of Operation			Pedestrian	Pedestrian

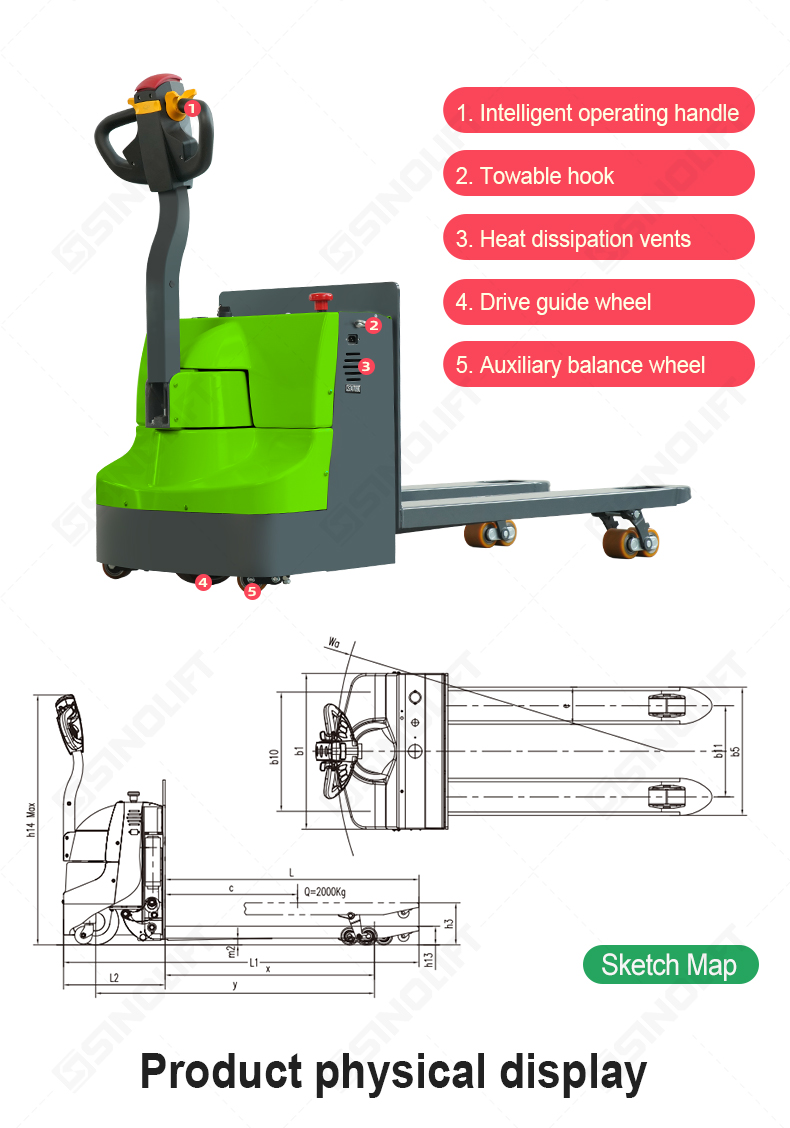

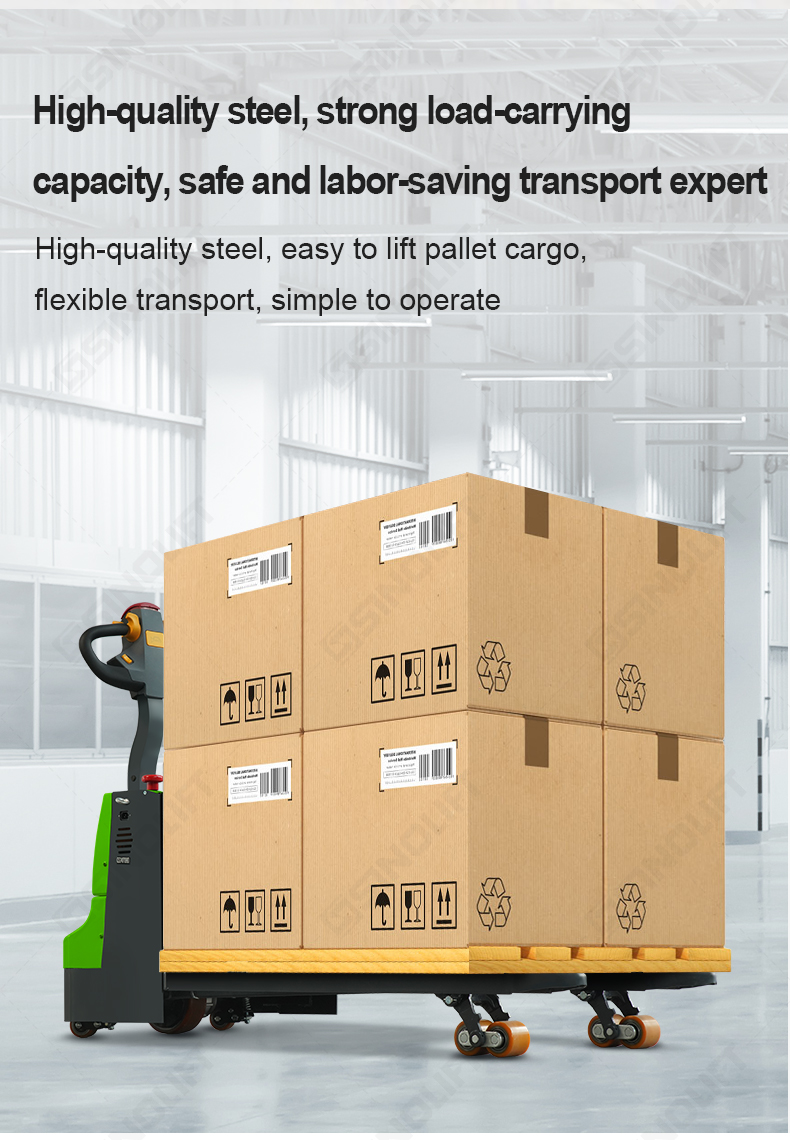

Load capacity/Rated load	q	kg	2000	2000
Load Center Distance	c	mm	600	600
Alex centre to Fork Face	x	mm	948	948
Wheelbase	y	mm	1265	1265
Total Weight (with battery		kg	340	335
Tyre Type			Polyurethane	Polyurethane
Tyre Size( Load Wheel)Tandem		mm	φ80x60	φ80x60
Tyre Size (Load Wheel) Single		mm	φ210x70	φ210x70
Tyre Size (Drive Wheel)		mm	φ70x36	φ230x75
Wheels Quantity, front/rear (x=Driving Wheels			4/1x+2	4/1x+2
Track Width,Front,Driving Side		mm	520	520
Track Width,Rear,Loading Side		mm	400	400

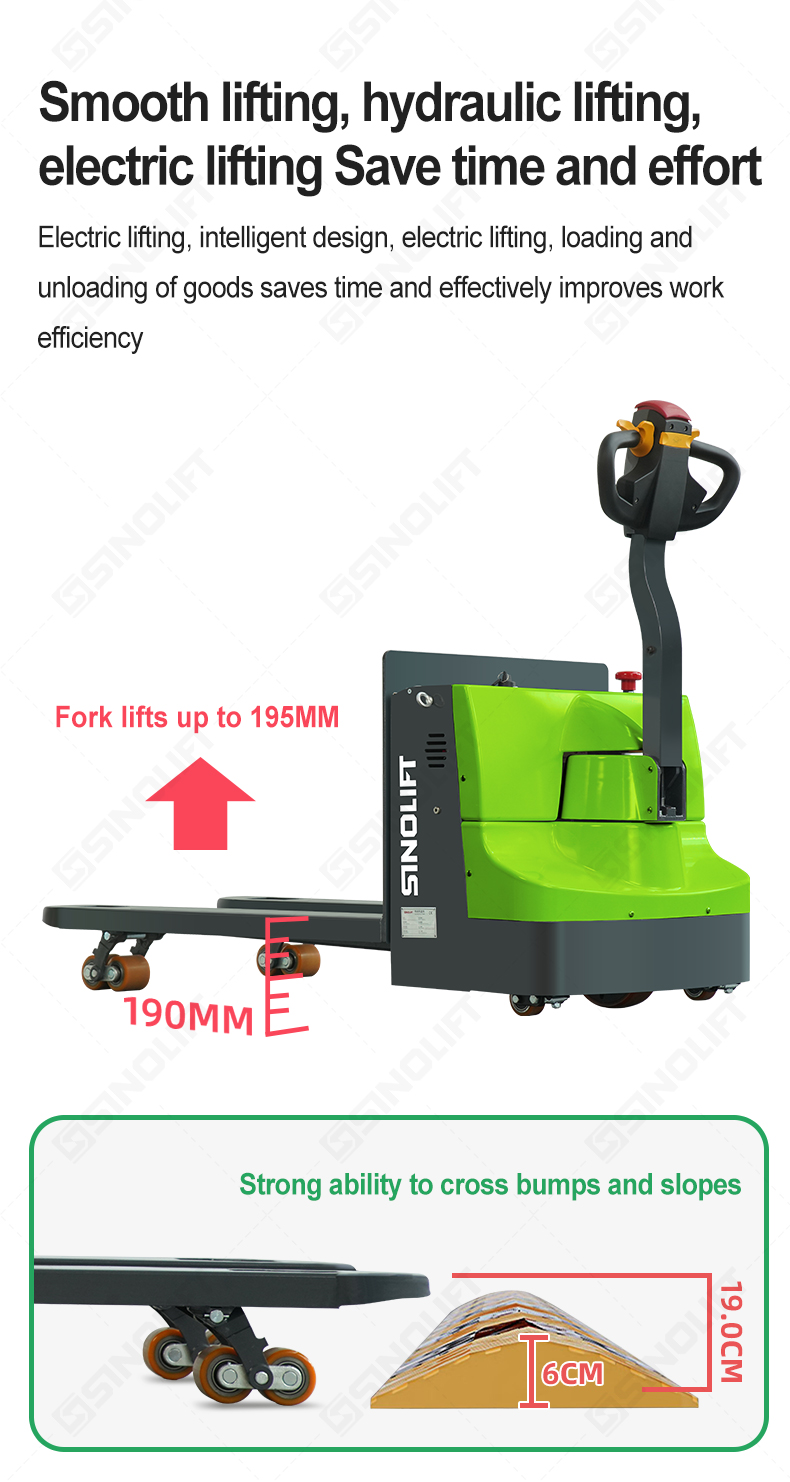

Lifting Height	b10	mm	190	190

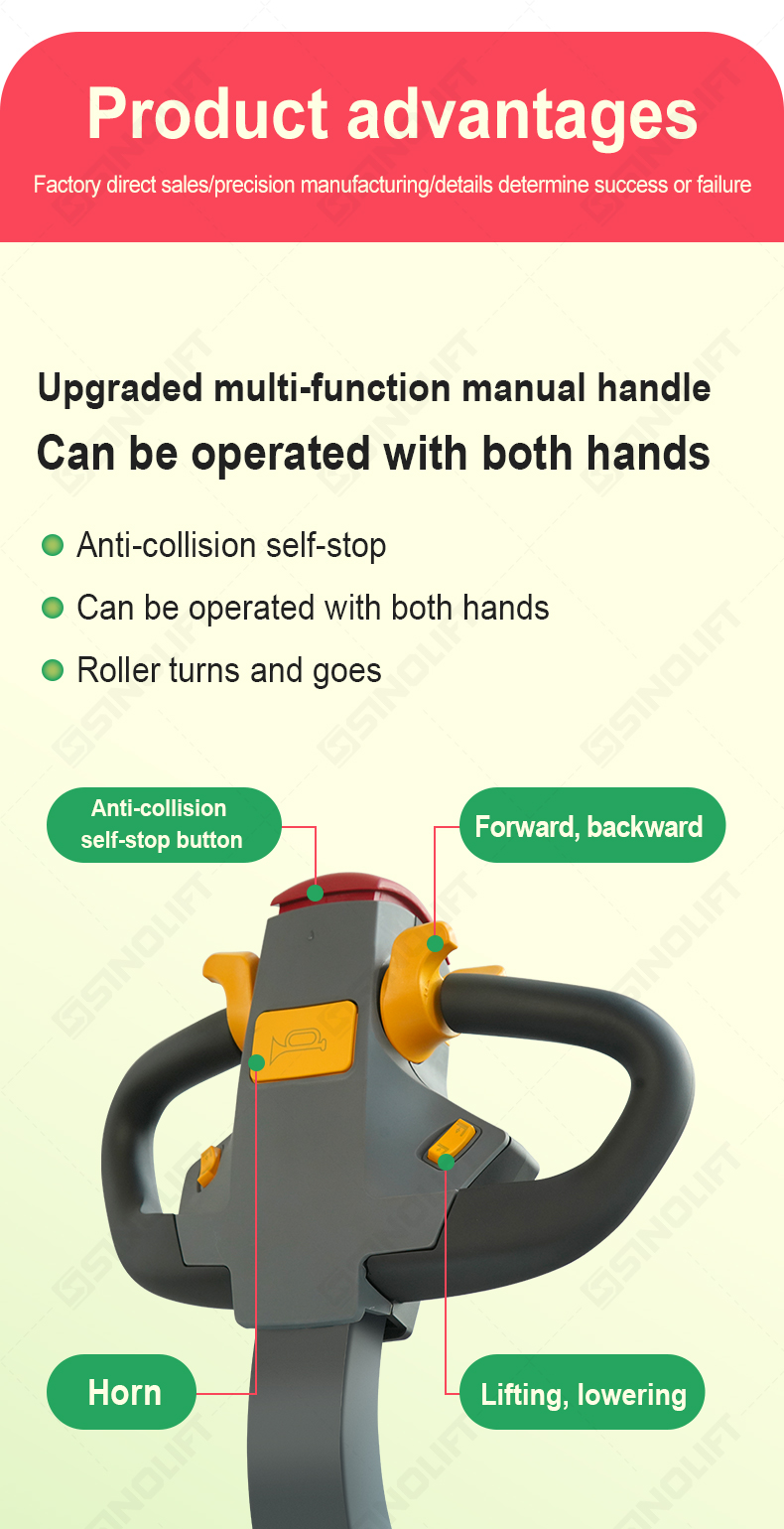

Height of Tiller Arm in Driving Position, Min.-Max.	b11	mm	950-1250	950-1250
Lowered Height	h3	mm	85	85
Overall Length	h14	mm	1620	1620)
Length to Fork Face	h13	mm	460	460
Overall Width	l1	mm	680	680

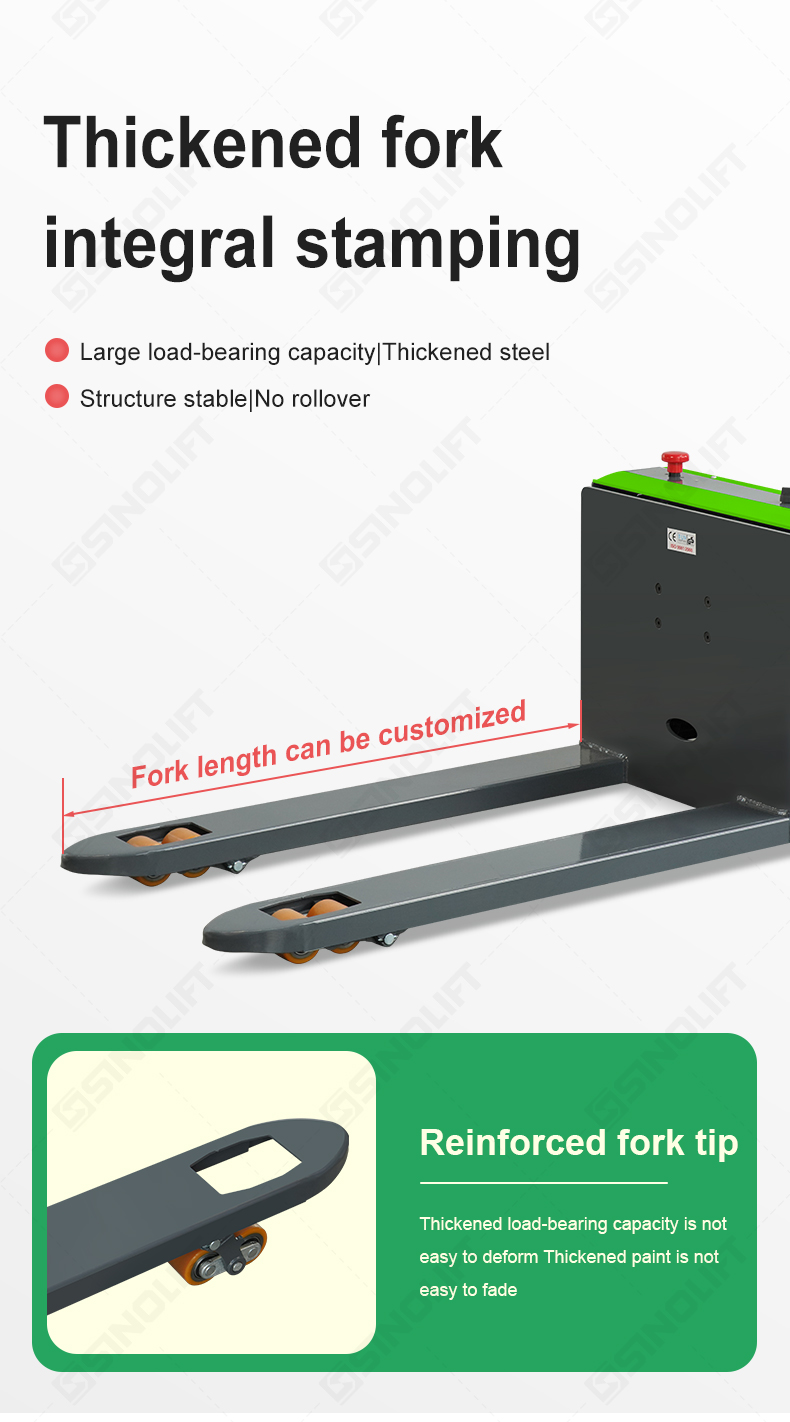

Fork Dimension	l2	mm	54x160x1150(1220)	54x160x1150(1220)
Fork Spread Width	b1	mm	560/680	560/680
Ground Clearance at Center of WVheelbase (Min)	s/e/l	mm	27	27
Aisle Width for Pallets 1000x1200 Crossways	b5	mm	2415	2415
Aisle Width for Pallets 800x1200 Crossways	m2	mm	2316	2315
Turning Radius	Ast	mm	1430	1430
Traveling Speed (Laden/Unladen)	Ast	km/h	2.5/3	2.5/3
Lifting Speed (Laden/Unladen)	Wa	mm/s	35/45	35/45
Lowering Speed (Laden/Unladen)		mm/s	50/40	50/40

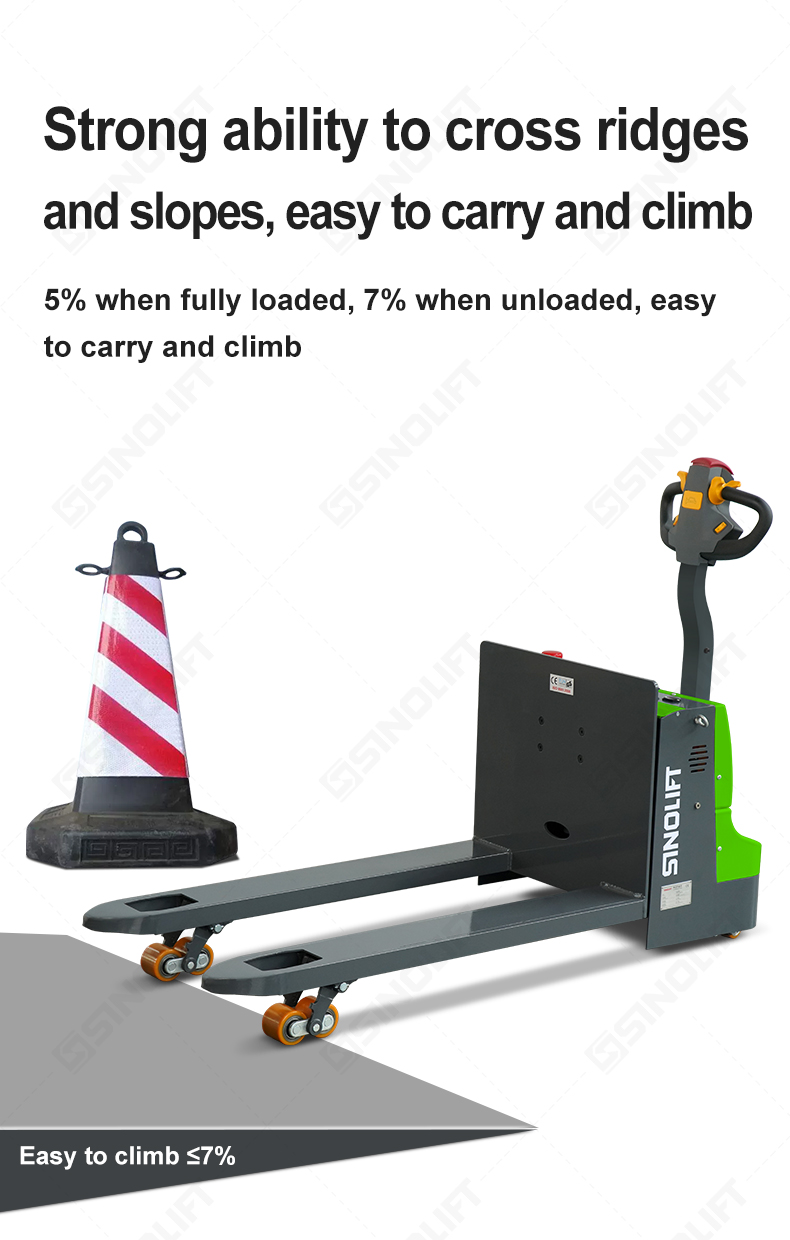

Max.Gradient Performance (Laden/Unladen)		%	5/8	5/8
Service Brake Type			Electromagnetic	Electromagnetic

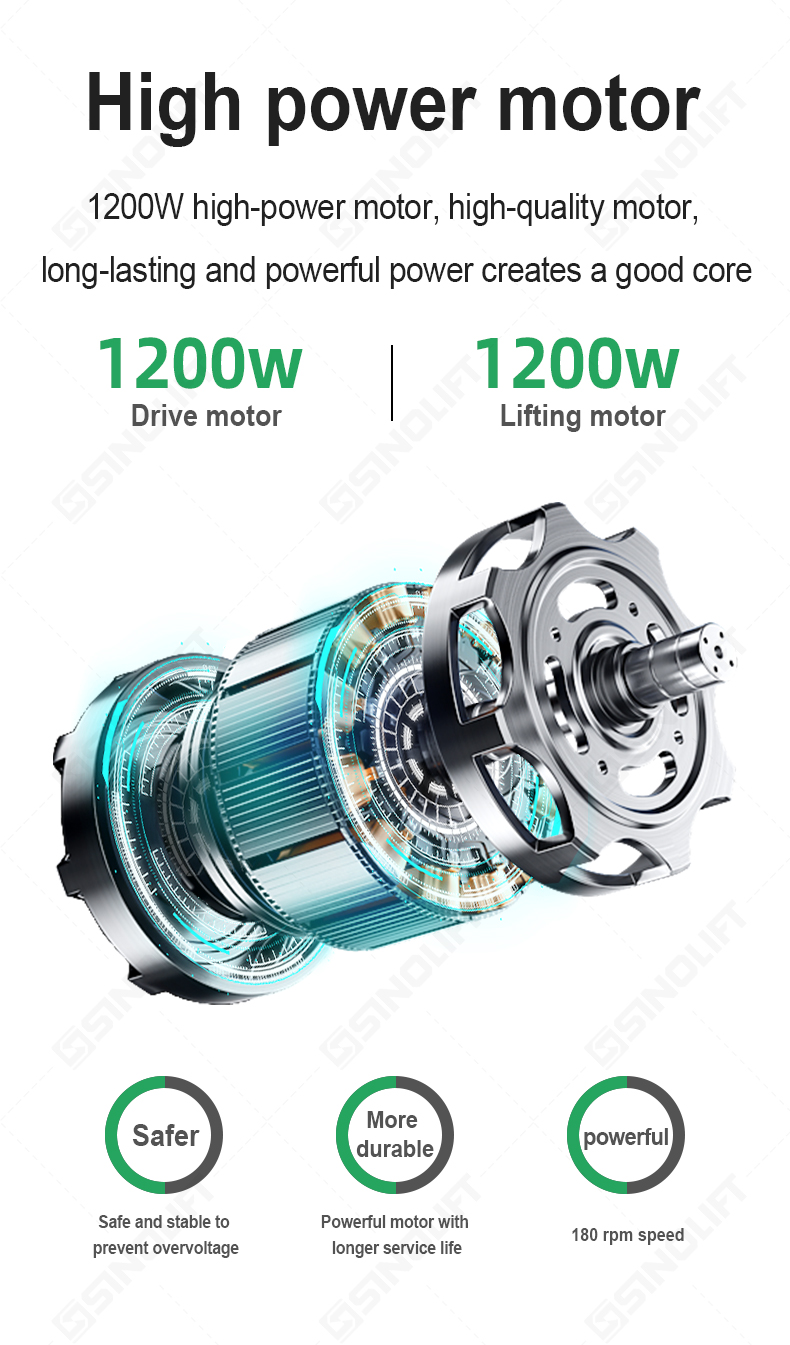

Driving Motor Rating (DC) S2 60min		kw	0.75	0.75
Lifting Motor Rating S3 15%		kw	0.8	0.8
Battery Type			Acid	Li-ion

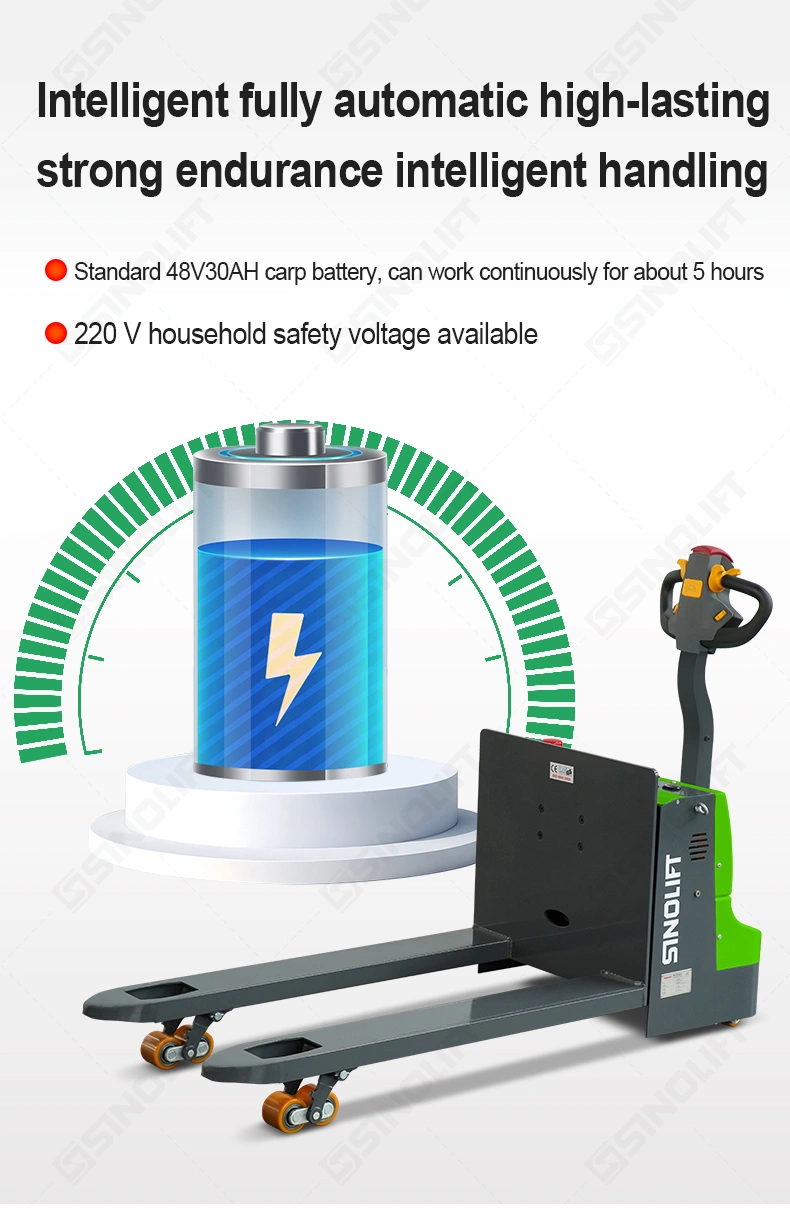

Battery Voltage/Capacity K5		V/Ah	24/100(518*276*240mm)	48/30(size:120*220*340mm)
Battery Weight		kg	54	50
Charger		V/A	24/15	48/16
Controller Model			DC CURTIS	DC CURTIS
Steering Type			Mechanical	Mechanical
Sound level atdriver's ear according to EN 12 053		db(A)	70	70
