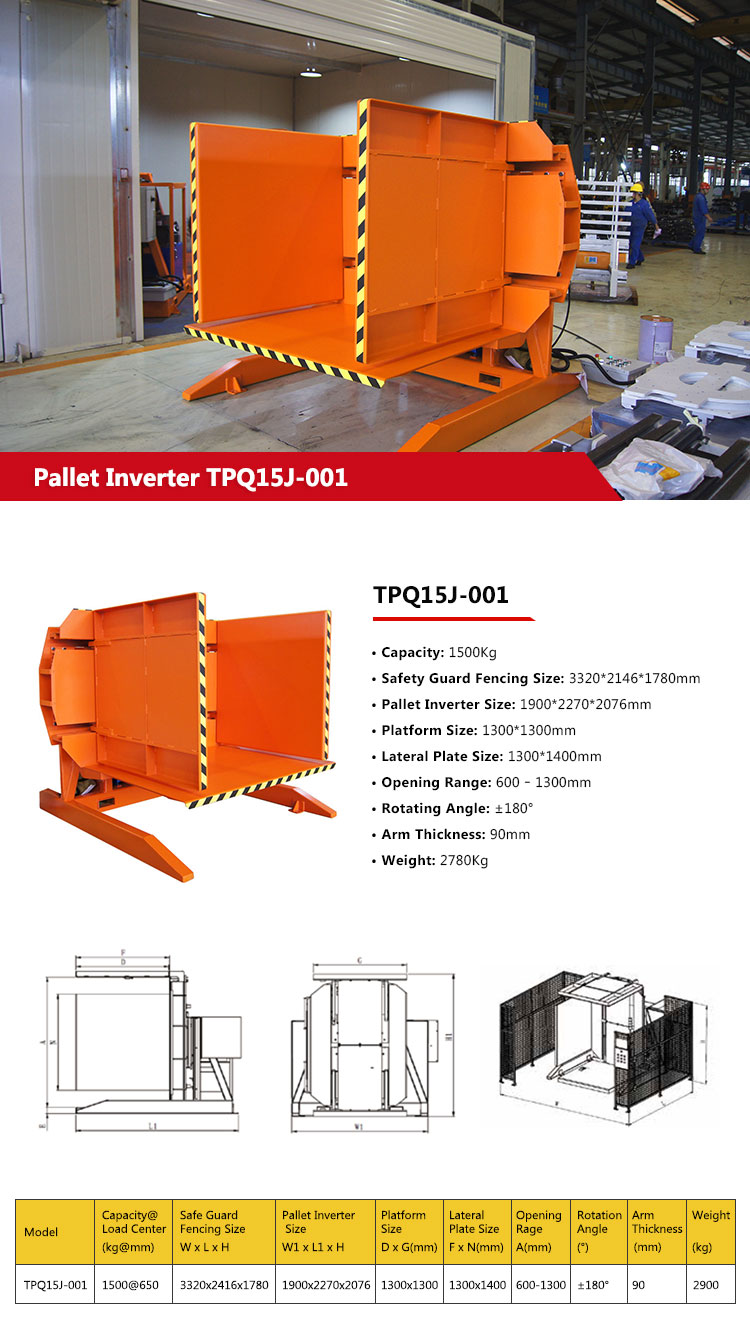

Pallet inverter TPQ15J-001
TPQ15J-001
Floor flush design to enable loading of load by pallet trucks. Enable changing of pallet for stable load. Specially design for changing pallets without inverting load. Simple and safe to operate. Available in optional automatic sequencing control and fully automated in-line design.
Quantity

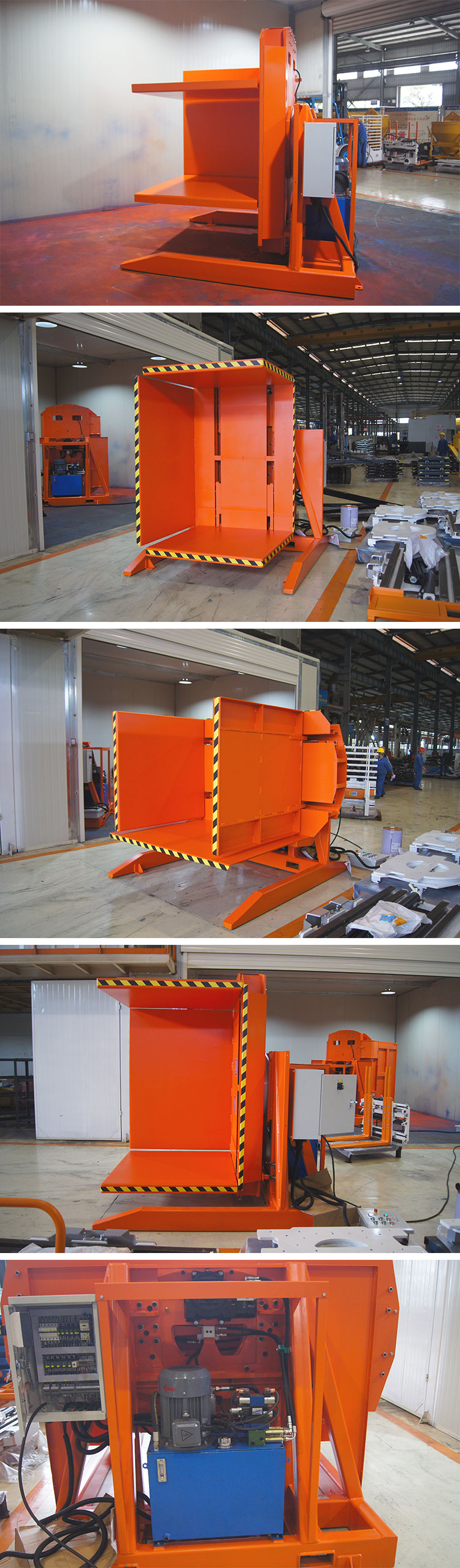

Pallet inverter TPQ15J-001 designed for the safe and effortless rotation of pallet loads where exchange of pallets or inversion is required.
- Capacity: 1500Kg
- Safety Guard Fencing Size: 3320*2416*1780mm
- Pallet Inverter Size: 1900*2270*2076mm
- Platform Size: 1300*1300mm
- Lateral Plate Size: 1300*1400m
- Opening Range: 600 – 1300mm
- Rotating Angle: ±180°
- Arm Thickness: 90mm
- Weight: 2780Kg
Recommend Hydraulic Flow: 20L/min
Pressure: 16 Bar
Model | Capacity@Load Center (kg@mm) | Safe Guard Fencing Size (WxLxH) | Pallet Inverter Size (WxLxH) | Plat form Size DxG(mm) | Lateral Plate Size FxN(mm) | Opening Race A(mm) | Rotation Angle (°) | Weight (kg) | Arm Thickness (mm) |
TPQ15J-001 | 1500@650 | 3320x2416x1780 | 1900x2270x2076 | 1300x1300 | 1300x1400 | 600-1300 | ±180° | 2800 | 90 |
