LT10E Electric Pallet Tilter

LT10E

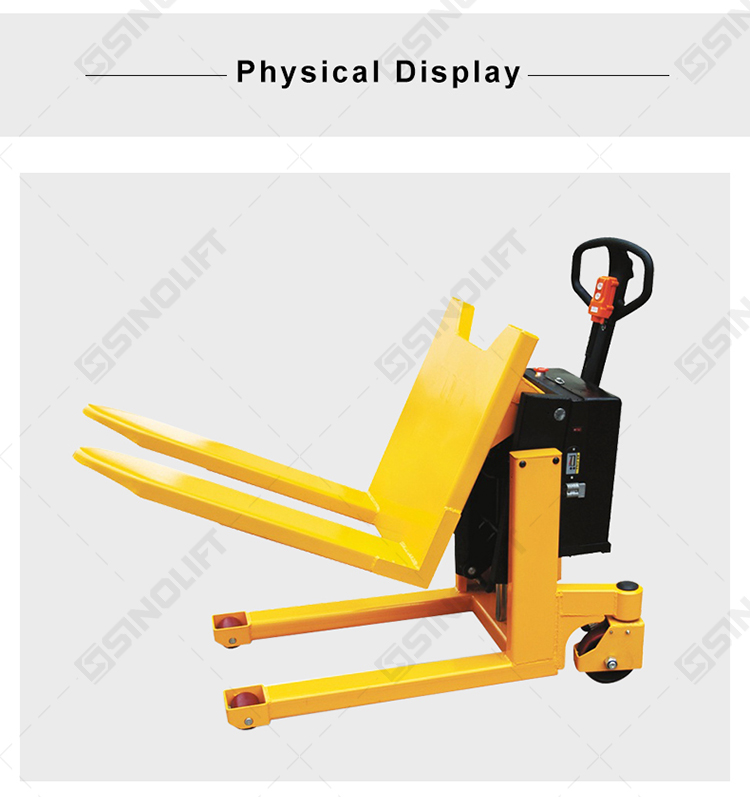

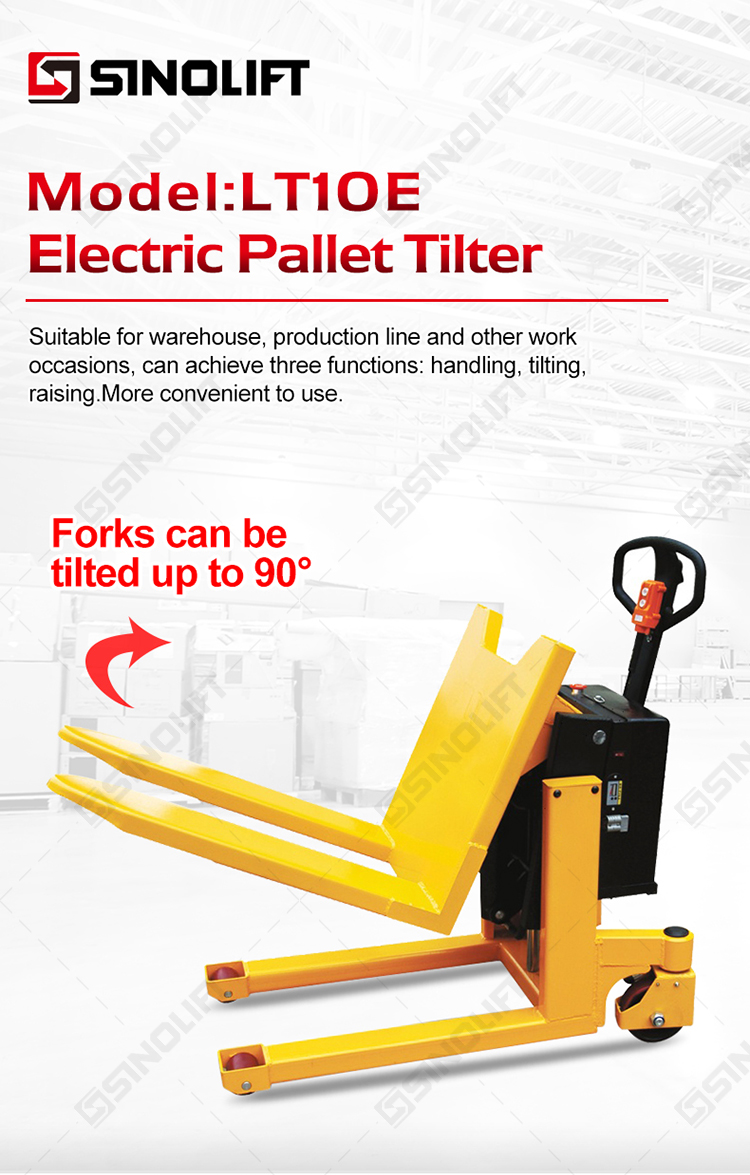

LT10E is an electric tilter that allows a single operator to tilt and transport open bottom pallets & skids, containers, totes, and boxes. This powerful pallet tilter can tilt 1,000kg of material up to 90° allowing the operator to access the load without excessive bending or reaching. A 12V battery and external battery charger come standard.
Quantity:
Contact Now
add to cart
All Products

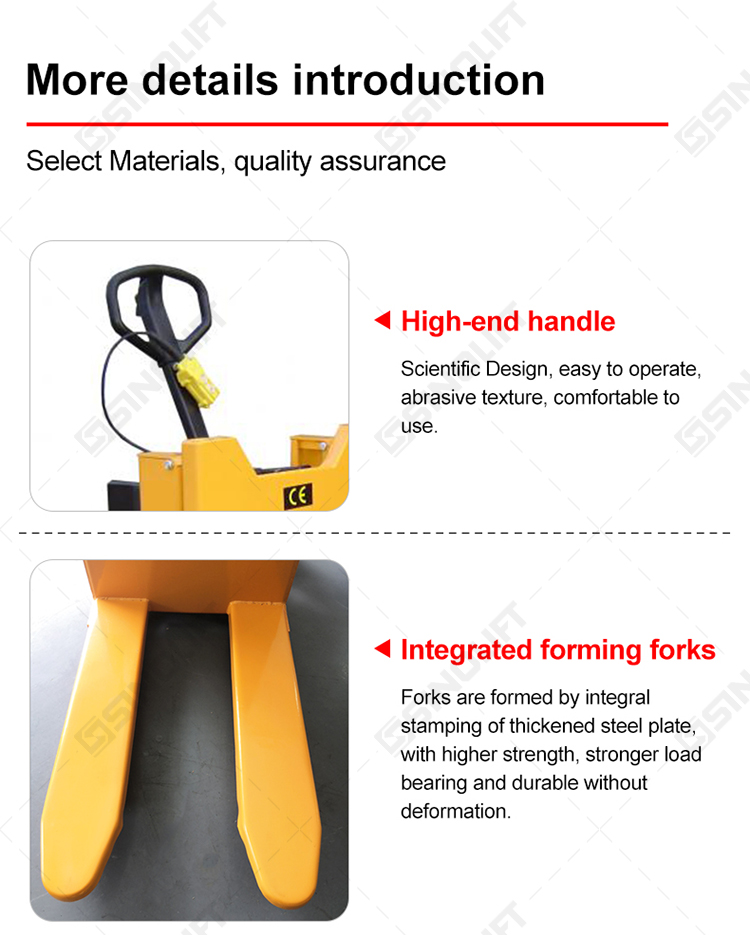

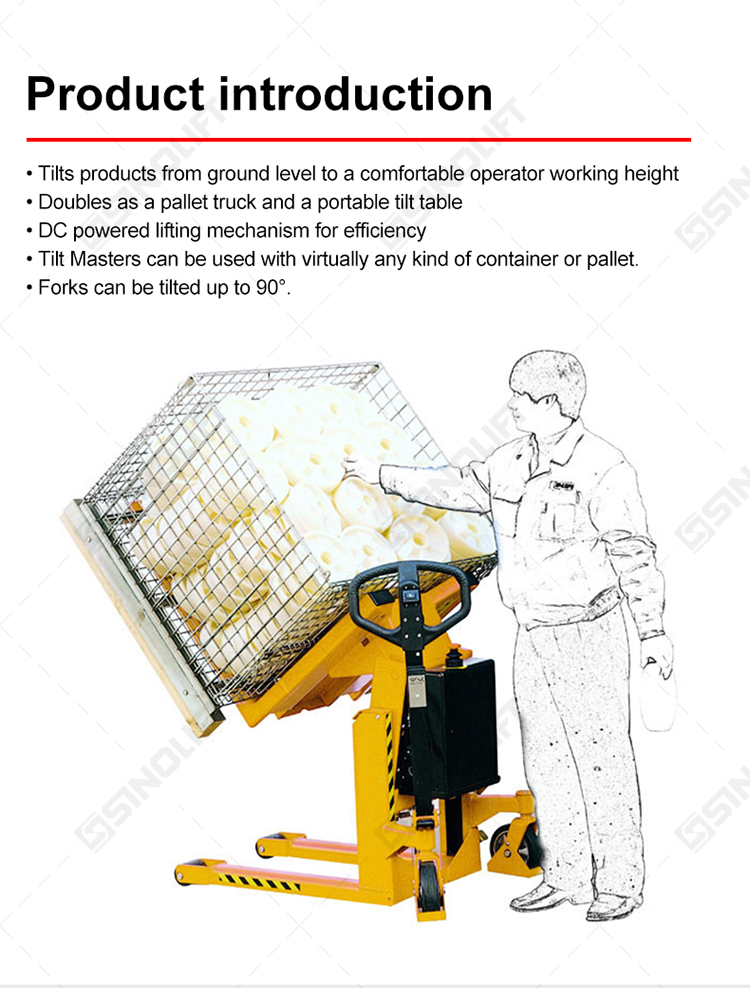

LT10E is an electric tilter that allows a single operator to tilt and transport open bottom pallets & skids, containers, totes, and boxes. This powerful pallet tilter can tilt 1,000kg of material up to 90° allowing the operator to access the load without excessive bending or reaching. A 12V battery and external battery charger come standard. This container tilter features an ergonomic handle which can be folded down when not in use, an emergency on/off switch and hand control for the tilt. This skid tilter is made of steel with powder coated yellow finish for years of service.

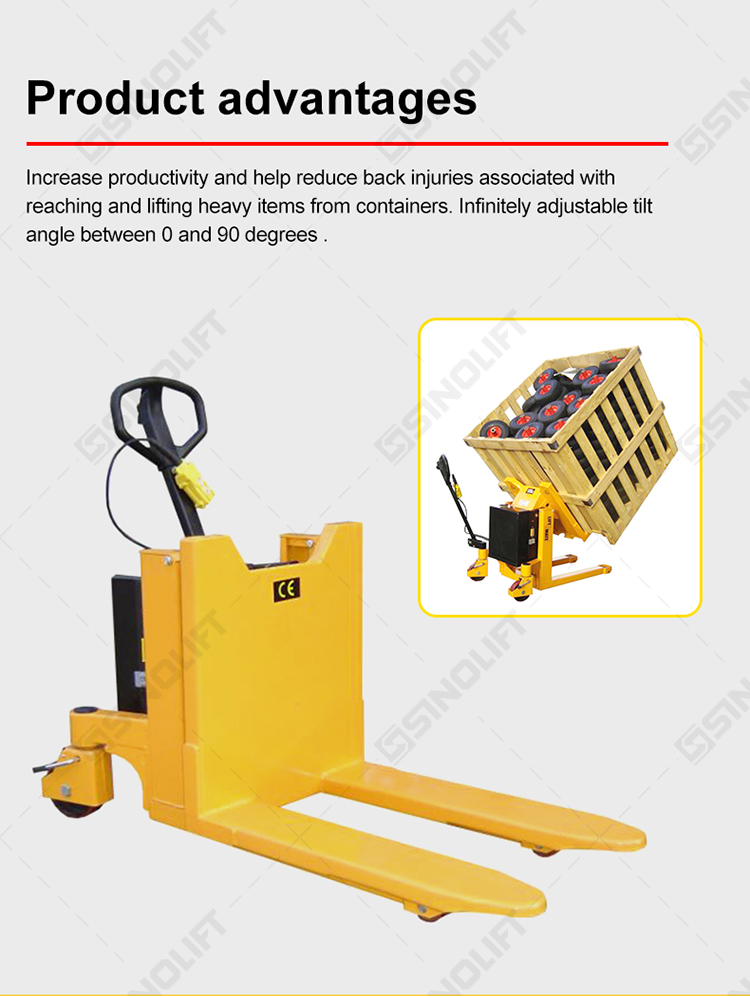

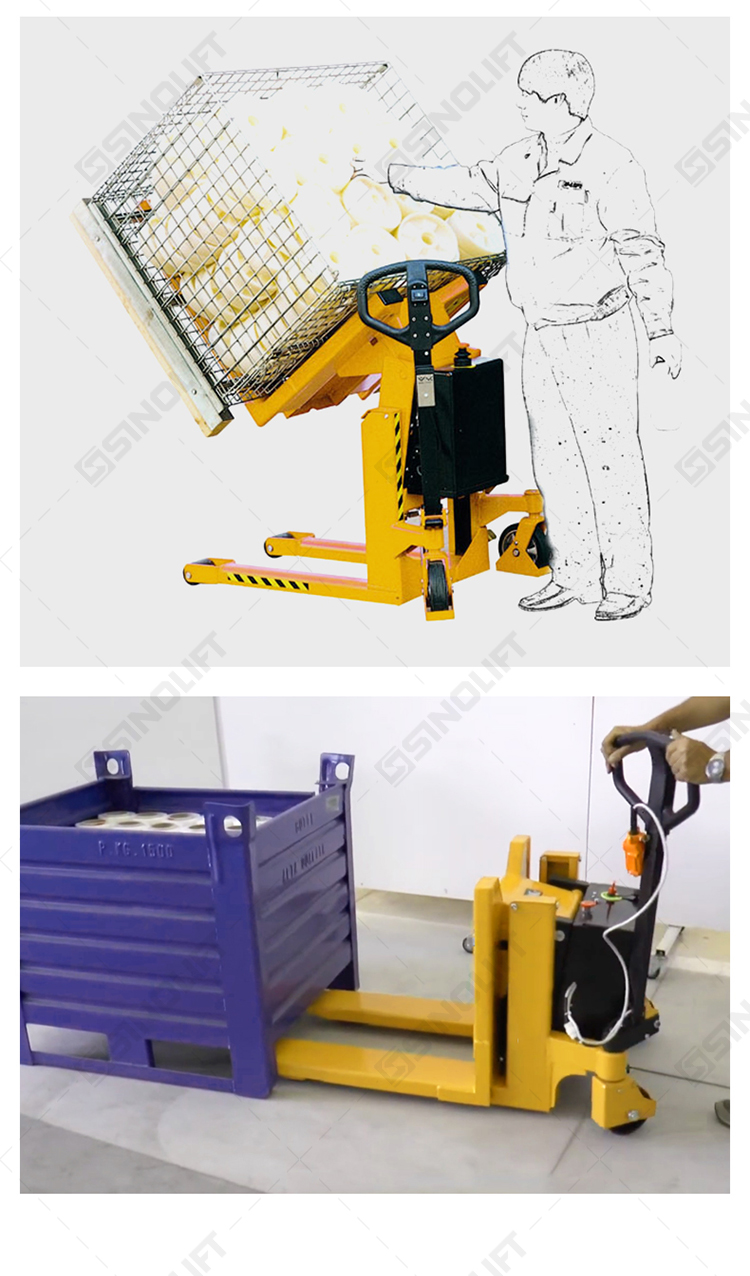

Increase productivity and help reduce back injuries associated with reaching and lifting heavy items from containers. Infinitely adjustable tilt angle between 0 and 90 degrees and short operator reach allows easy access to containers, baskets or totes.

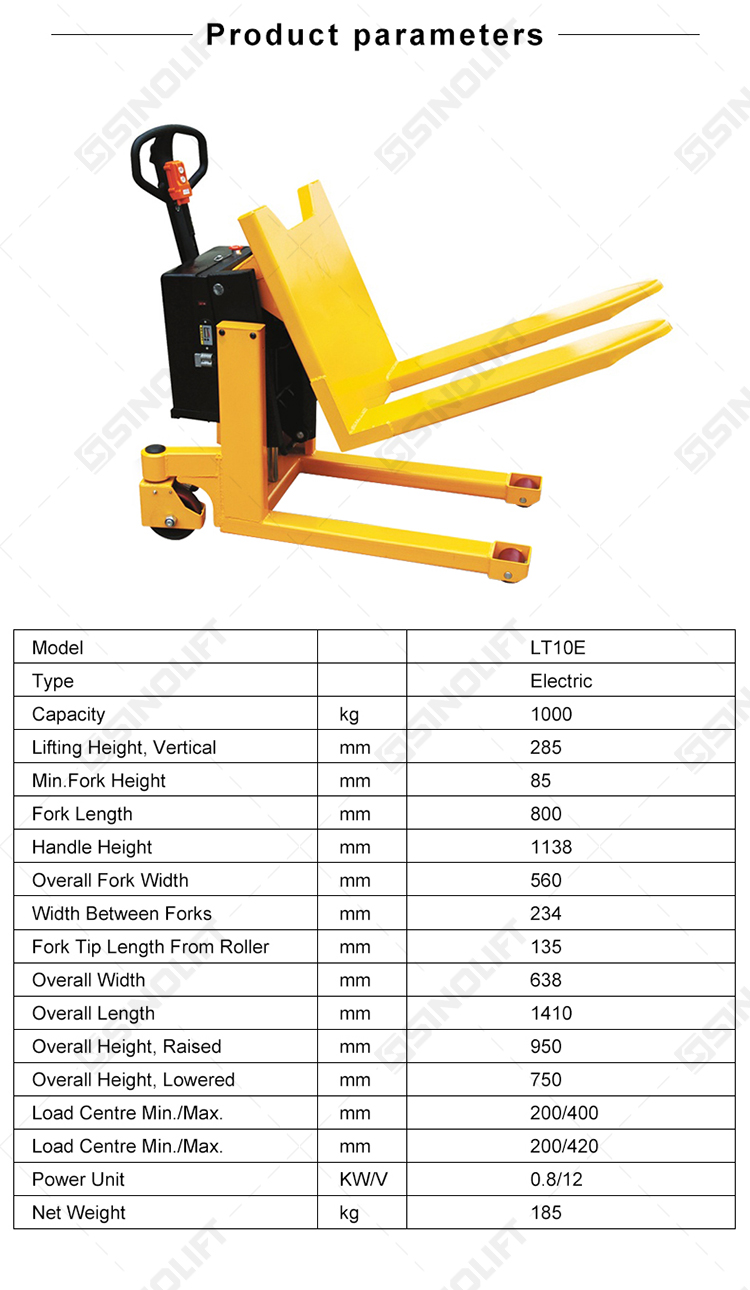

Model LT10E
Type Electric
Capacity(kg)1000
Lifting Height, Verticalh (mm)285
Min.Fork Heighth1 (mm)85
Fork Lengthl (mm)800
Handle HeightL1 (mm)1138
Overall Fork Widthb (mm)560
Width Between Forksb1 (mm)234
Fork Tip Length From RollerL2 (mm)135
Overall WidthB (mm)638
Overall LengthL (mm)1410
Overall Height, RaisedH (mm)950
Overall Height, LoweredH (mm)750
Load Centre Min./Max.C1 (mm)200/400
Load Centre Min./Max.C2 (mm)200/420
Power Unit(KW/V)0.8/12
Net Weight(kg)185
