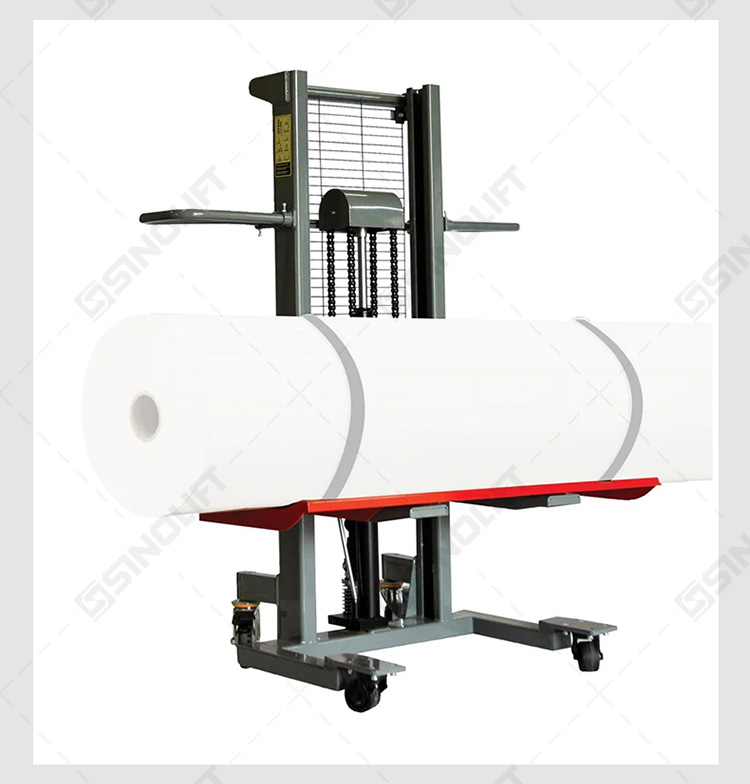

EFR3050L Roll & Reel Hydraulic Stacker
EFR
This versatile lifter fits laminators and many other printers requiring 54" lift height.The power DC motor enables users to effortlessly lift rolls as heavy as 660 lbs. (300kg)) and as wide as 13 feet (400 cm.)
Quantity
This versatile lifter fits laminators and many other printers requiring 54"lift height.
·The power DC motor enables users to effortlessly lift rolls as heavy as 660 lbs. (300kg)) and as wide as 13 feet (400 cm.)

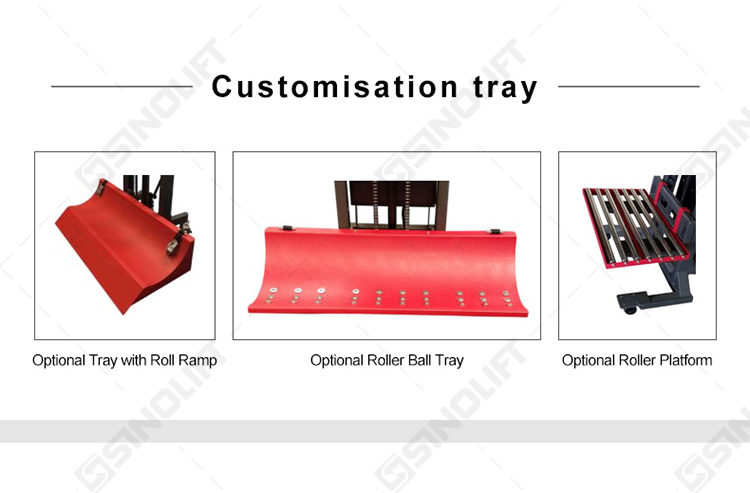

·The flat roll loading tray fits most laminators and easily reaches the upper loading shaft height. Two adjustable roll
wedges position rolls on the tray and can be easily removed for loading and unloading.
| SPECIFICATIONS | 61565 |
| Roll Weight Capacity | 660 lbs (300 kg) |
| Lift Height | 54"H (135 cm) |
| Max. Roll Width | 13"(400 cm) |
| Max. Roll Diameter | 15.75"(40 cm) |
| Overall Media Lifter Dimensions (W x D x H) | 47.25"W x 35.5"D x 68"H |
| (120 x 90.3 x 173 cm) | |
| Media Lifter Weight | 271 lbs (123 kg) |
| Bottom Fork Clearance | 3.25"(8.25 cm) |
| Front Swivel Castors | 2"(5 cm) |
| Rear Swivel Castors | 5"(12.7 cm) |
| Electric | 12V/60AH DC motor USA |
| (220V/50HZ DC motor Europe) | |
| Battery | Maintenance free lead acid battery |
| Charger | Built-In 110V AC charger USA |
| (Built-In 220V AC charge Europe) |
