SINOLIFT EPR4080-080 Light-Duty Electric Hydraulic Roll Lifter with a 300 kg capacity
Product Name

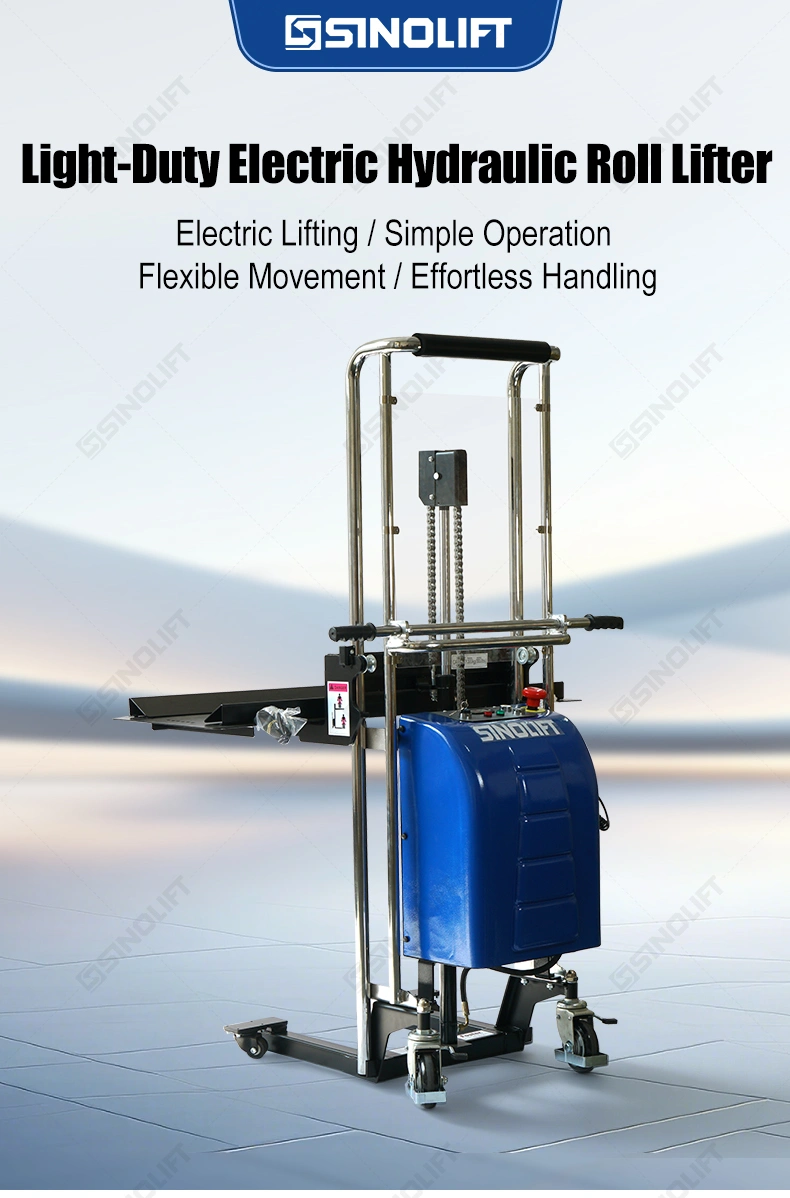

SINOLIFT EPR4080-080 Light-Duty Electric Hydraulic Roll Lifter
Product Description

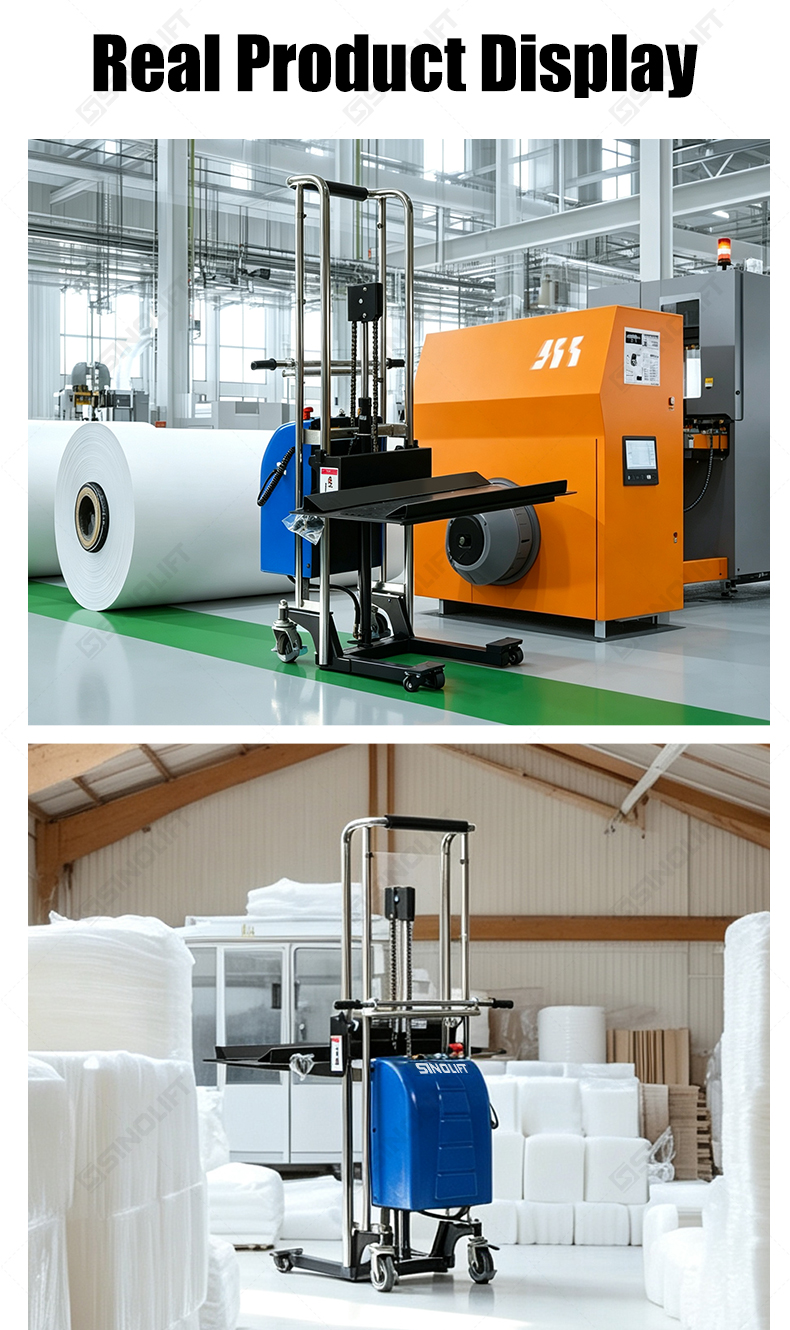

The SINOLIFT EPR4080-080 Light-Duty Electric Hydraulic Roll Lifter is designed to lift, position and transfer cylindrical materials such as paper rolls, film rolls and other compatible rolled stock. With a 300 kg rated load and push-button electric hydraulic lifting, it helps operators adjust the roll-support platform between 88 mm and 810 mm with less manual effort. A compact wheeled base, rear foot brakes and a chrome-plated steel tube mast support practical roll-handling tasks in production and warehouse environments.
Key Features
Electric Hydraulic Lifting: Push-button up/down control provides convenient height adjustment for roll loading, unloading and positioning.

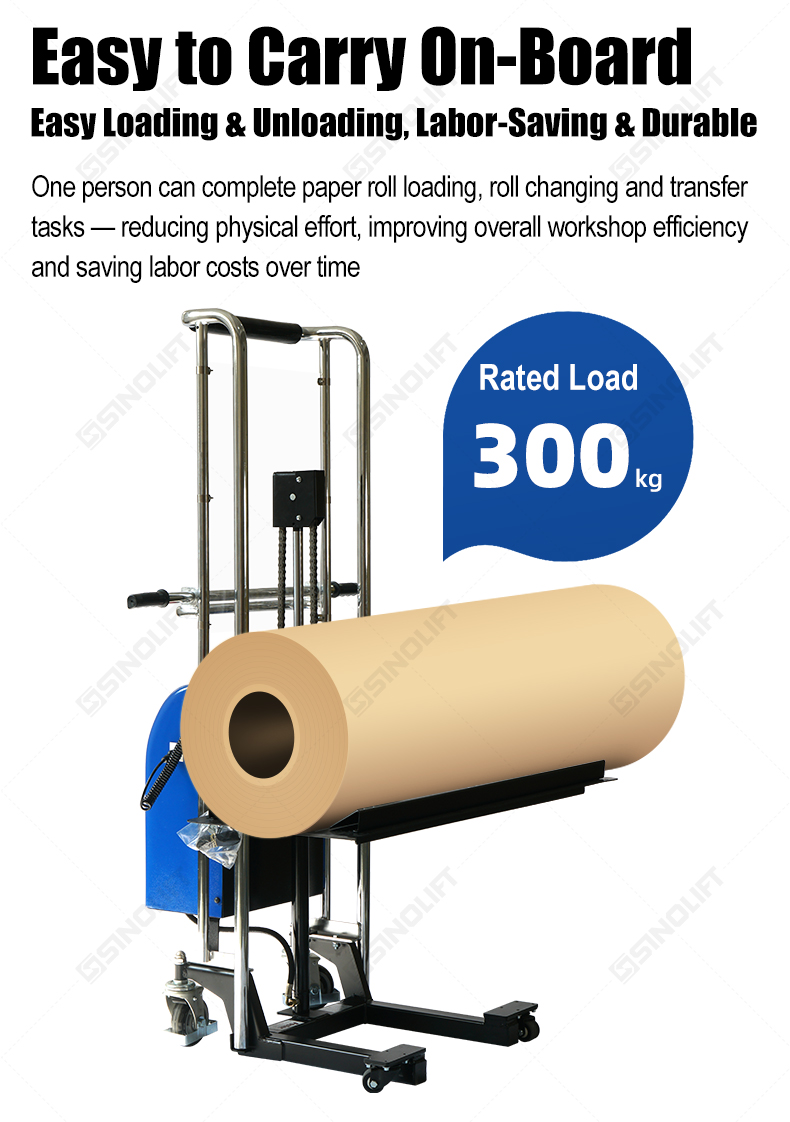

300 kg Load Capacity: The roll-support platform is rated for loads up to 300 kg, subject to correct loading and operating conditions.

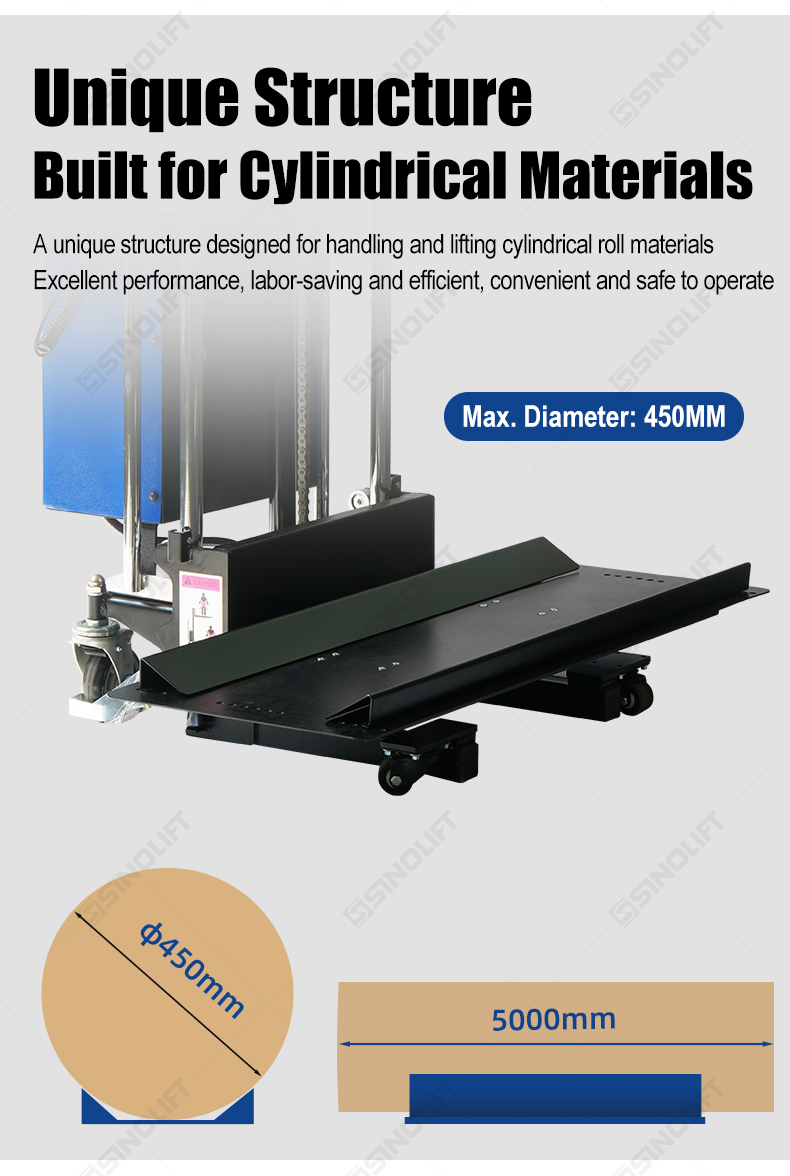

Purpose-Built Roll Support: A dedicated platform supports cylindrical materials with a specified roll diameter of 450 mm.

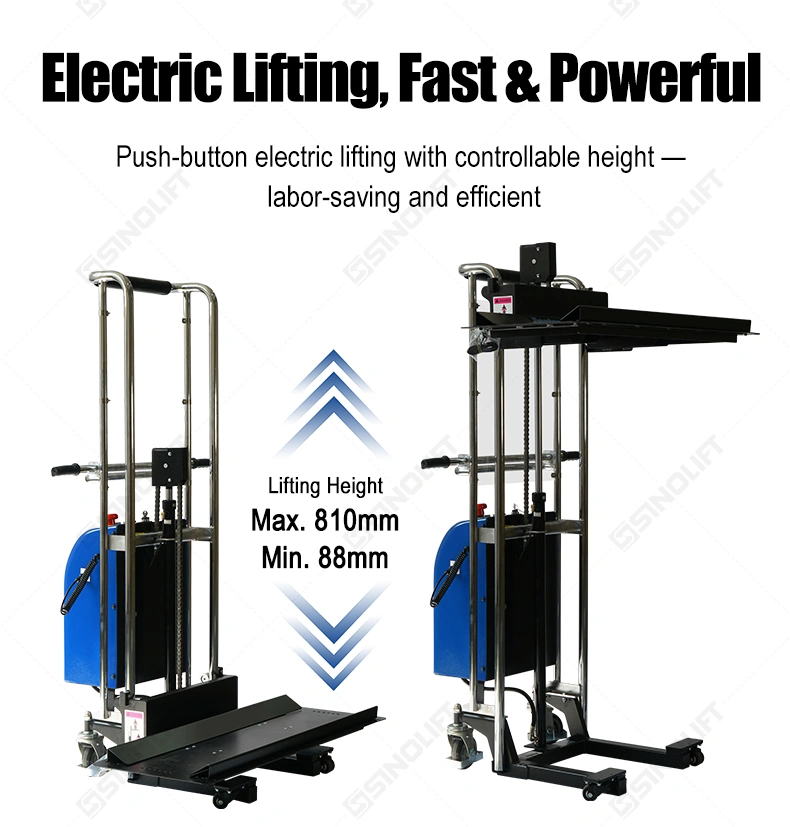

Practical Lifting Range: The platform operates from a minimum height of 88 mm to a maximum height of 810 mm.
Battery-Powered Operation: A 12 V / 60 Ah battery powers the hydraulic lifting system; a battery status indicator is integrated into the control panel.

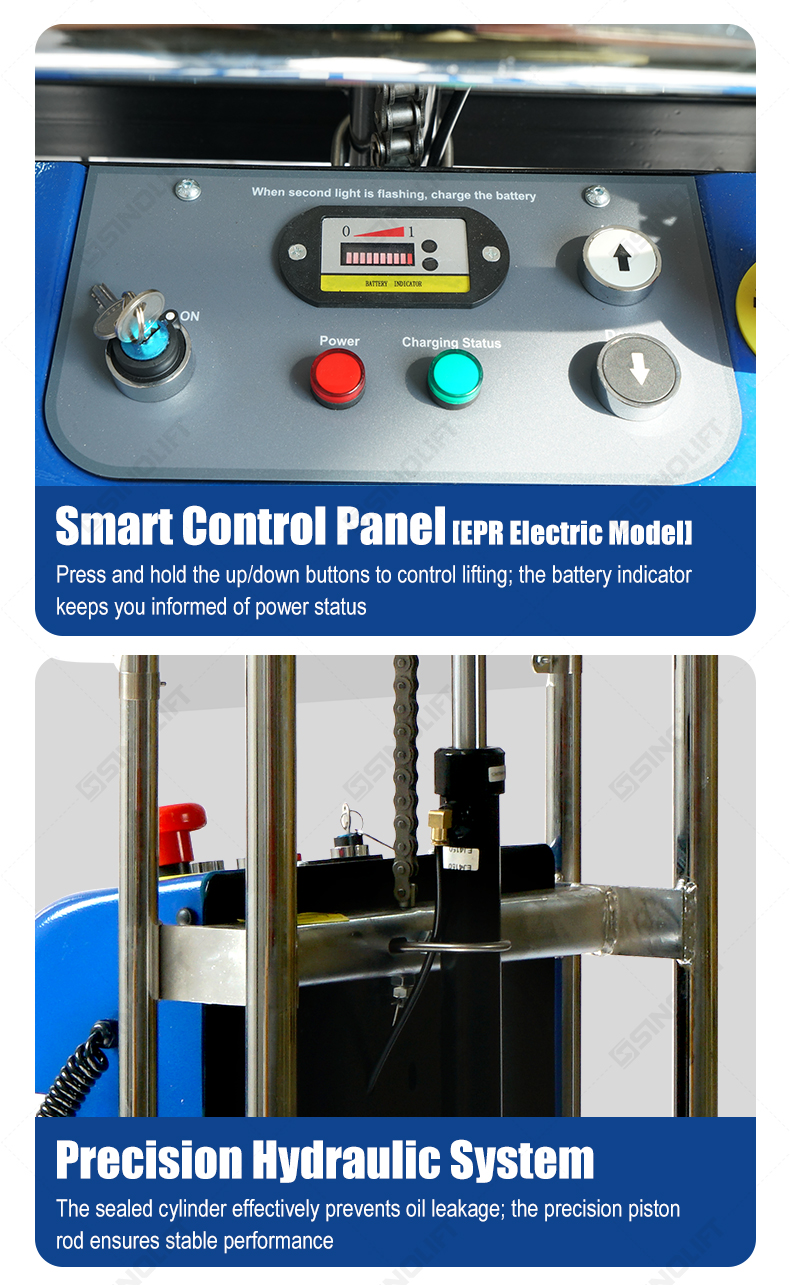

Smart Control Panel: The electric model provides up/down buttons, a key switch and status indicators for convenient operation.

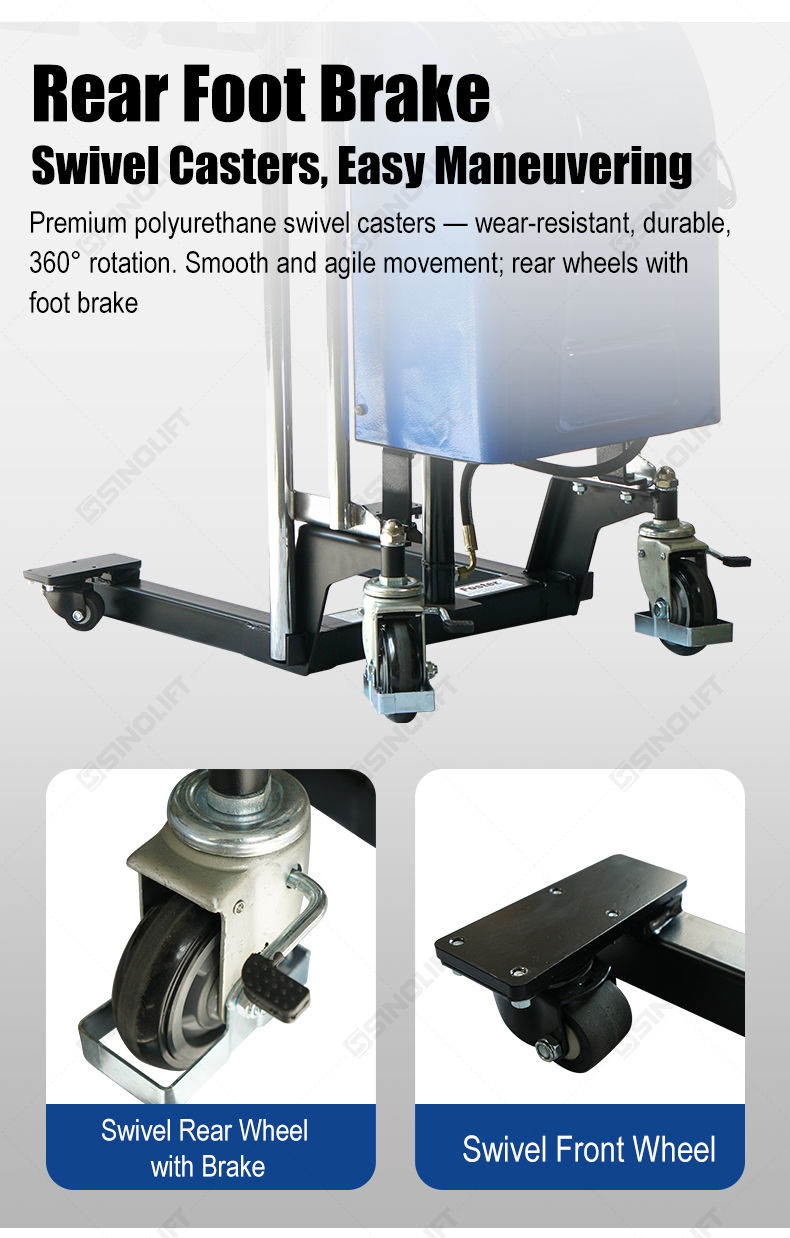

Maneuverable Casters with Brakes: Swivel casters help with manual positioning, while foot brakes on the rear wheels secure the machine when stationary.

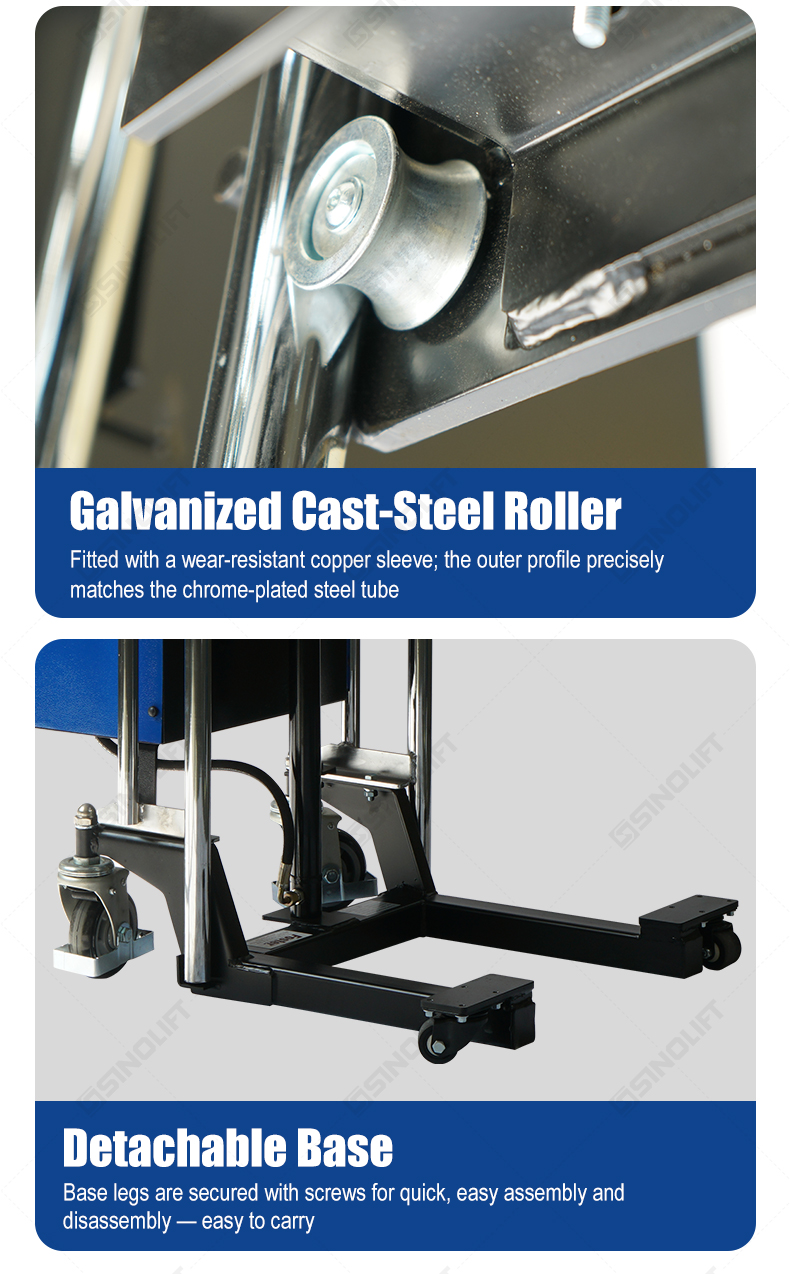

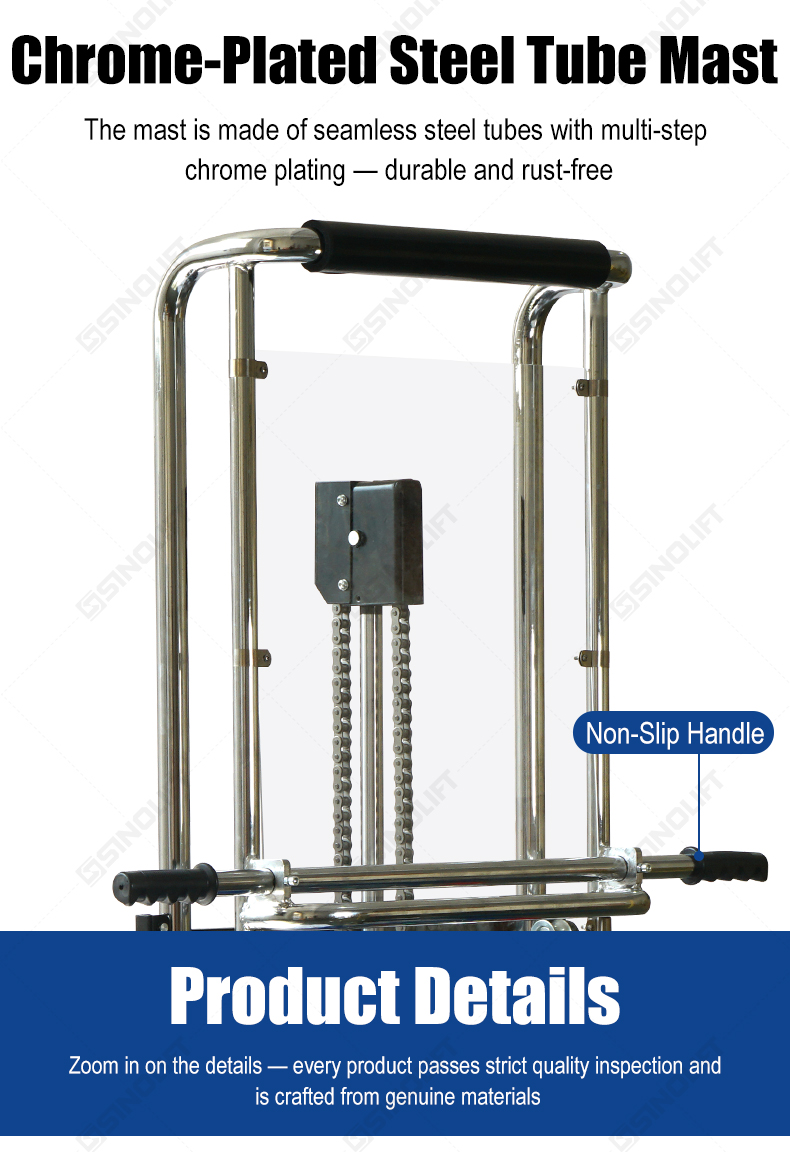

Chrome-Plated Mast and Guided Rollers: Chrome-plated steel tube construction and guided rollers support smooth, stable platform movement.
Detachable Base: Screw-fastened base legs can be removed for assembly, disassembly and transport.

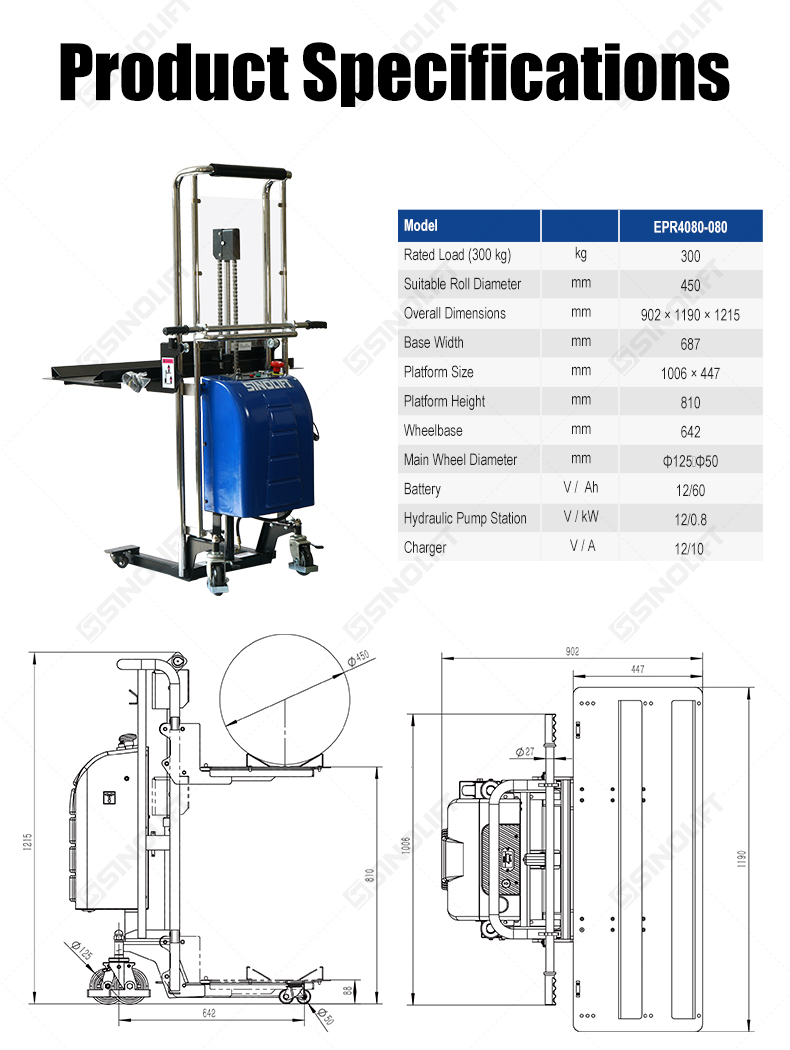

Product Specifications
| SINOLIFT EPR4080-080 | Electric Hydraulic Roll Lifter | ||
| Parameter | Unit | EPR4080-080 |
| Rated Load | kg | 300 |
| Suitable Roll Diameter | mm | 450 |
| Overall Dimensions (L x W x H) | mm | 902 x 1190 x 1215 |
| Base Width | mm | 687 |
| Platform Size | mm | 1006 x 447 |
| Minimum Platform Height | mm | 88 |
| Maximum Platform Height | mm | 810 |
| Wheelbase | mm | 642 |
| Main Wheel / Small Wheel Diameter | mm | 125 / 50 |
| Battery | V / Ah | 12 / 60 |
| Hydraulic Pump Station | V / kW | 12 / 0.8 |
| Charger | V / A | 12 / 10 |
FAQ
What is the rated load of the EPR4080-080?
The rated load is 300 kg.
What roll diameter is specified?
The product specification lists a suitable roll diameter of 450 mm. Confirm other roll sizes and load distribution before use.
What is the platform lifting range?
The platform can be positioned from approximately 88 mm to 810 mm above the floor, according to the product illustrations.
How is the platform raised and lowered?
The electric hydraulic system uses push-button up/down controls on the machine.
What battery and charger does it use?
The listed battery is 12 V / 60 Ah, and the charger is specified as 12 V / 10 A.
Can the machine be moved manually?
Yes. The unit has wheels for manual maneuvering and rear wheel foot brakes for parking.
What materials can it handle?
It is intended for compatible cylindrical stock such as paper rolls and film rolls, provided the load is within the rated capacity and fits the platform.
Is the base removable?
Yes. The product details describe screw-fastened detachable base legs.
