SINOLIFT QZA15 Electric Roll Lifter with Expanding Mandrel

QZA15

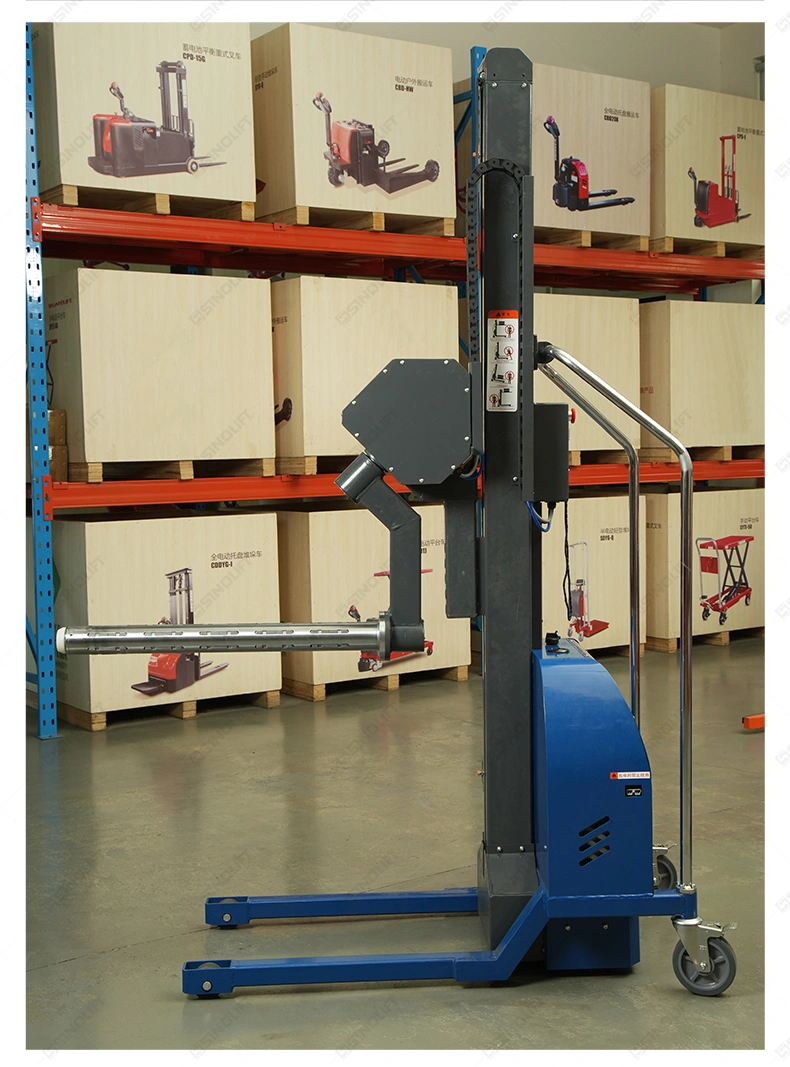

The SINOLIFT Electric Roll Lifter with Expanding Mandrel is a compact electric lifting device designed for loading and transferring paper rolls, film rolls, and other rolled materials. It features a single-column lifting structure and an expanding shaft that is inserted into the roll core and expanded to secure the material. Electric lifting and adjustable roll orientation help operators handle, position, load, and unload rolls while reducing the physical effort required for manual lifting.
Quantity:
Contact Now
add to cart
All Products

Product Description

The SINOLIFT Electric Roll Lifter with Expanding Mandrel is a compact electric lifting device designed for loading and transferring paper rolls, film rolls, and other rolled materials. It features a single-column lifting structure and an expanding shaft that is inserted into the roll core and expanded to secure the material. Electric lifting and adjustable roll orientation help operators handle, position, load, and unload rolls while reducing the physical effort required for manual lifting.

Key Features

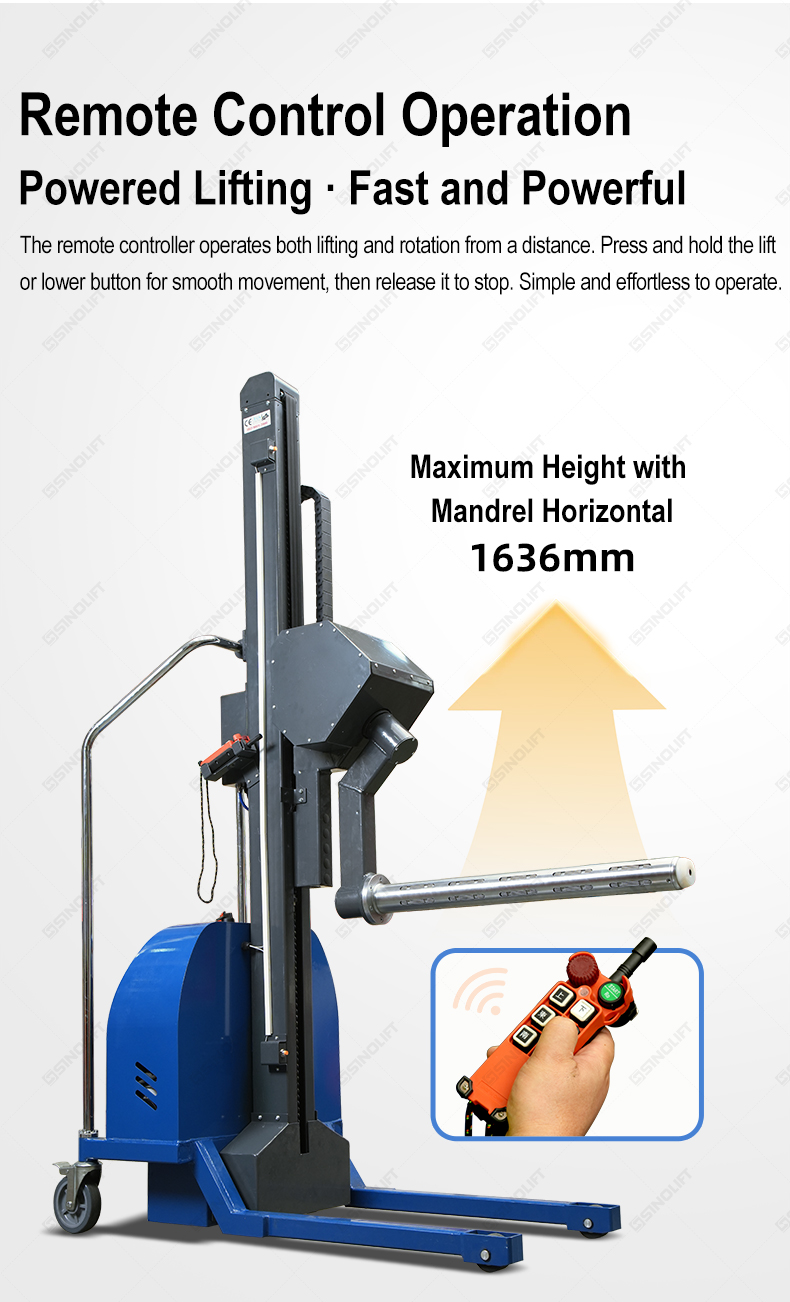

Electric lifting for convenient positioning: Lifting and lowering can be controlled using the remote control. Press and hold the button to operate, and release it to stop, making it easier to adjust the loading height. The images specify a maximum height of 1636 mm for the horizontally positioned shaft.

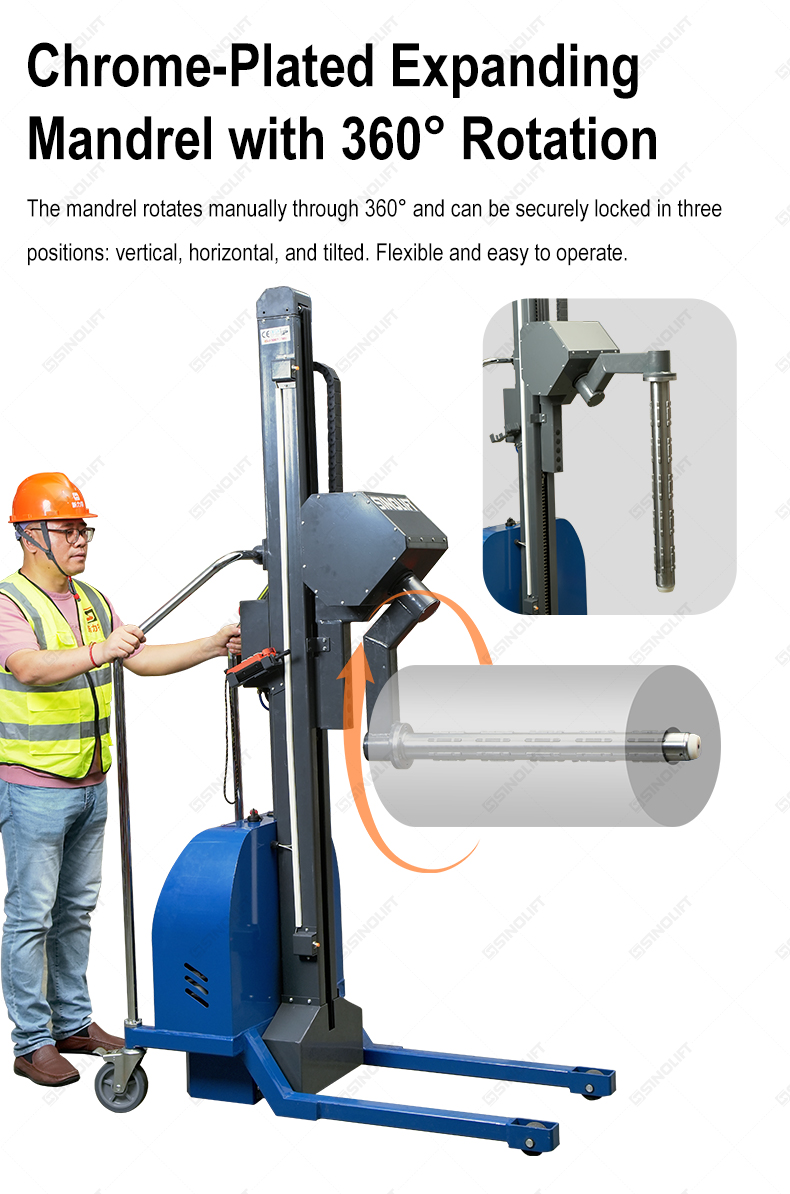

Flexible roll orientation: The expanding shaft supports 360° rotation and can be secured in vertical, horizontal, and inclined positions to accommodate different loading and unloading requirements.

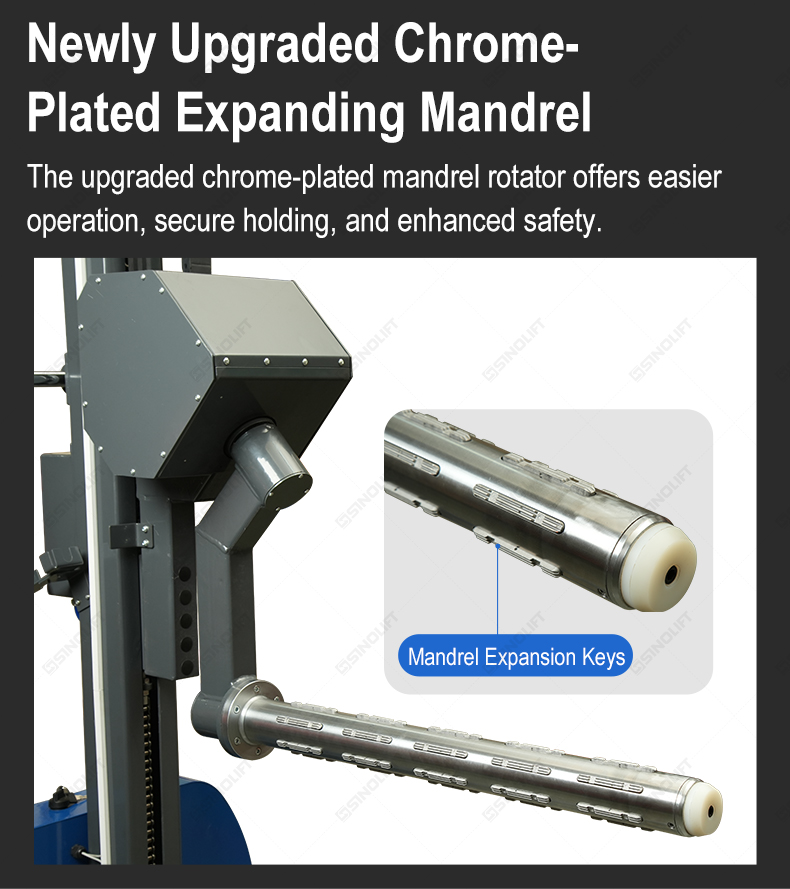

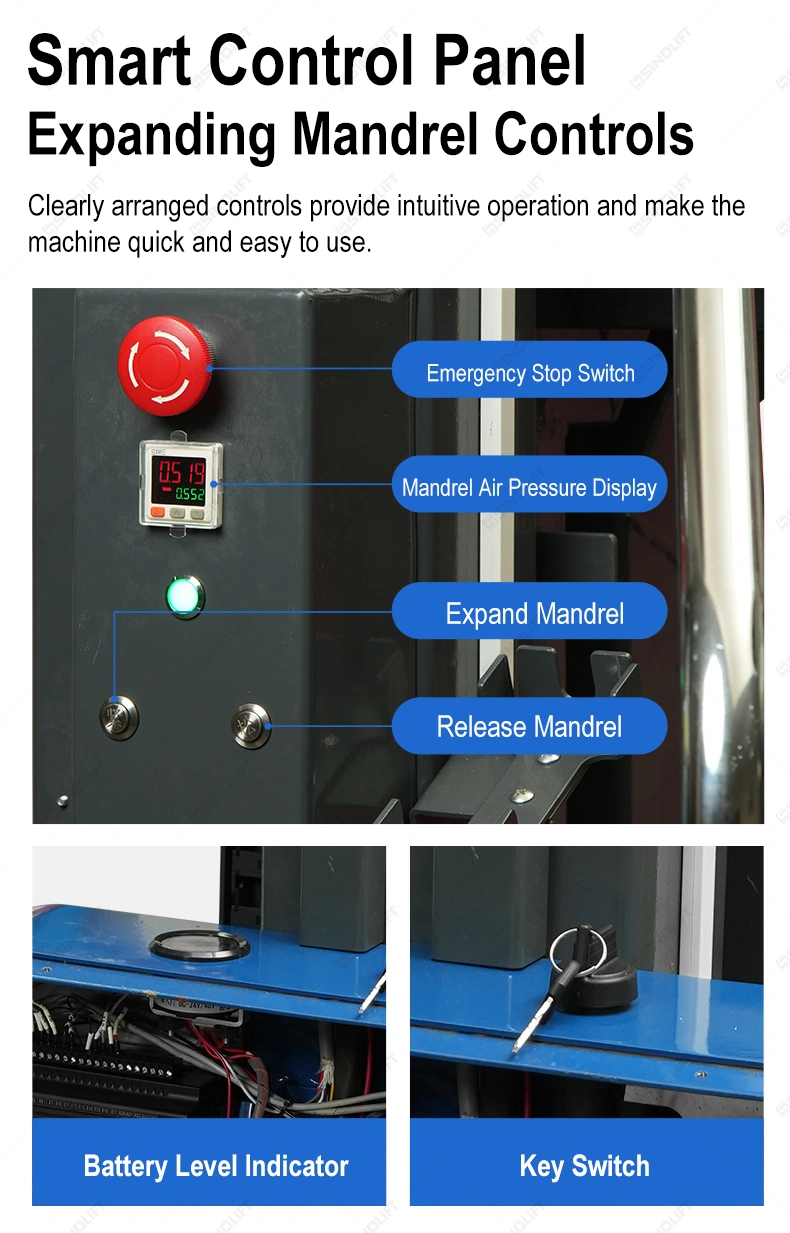

Secure roll holding and intuitive operation: The chrome-plated expanding shaft holds the roll securely. The control panel includes shaft expansion and release controls, along with an air pressure display, making it convenient to secure and release rolls.

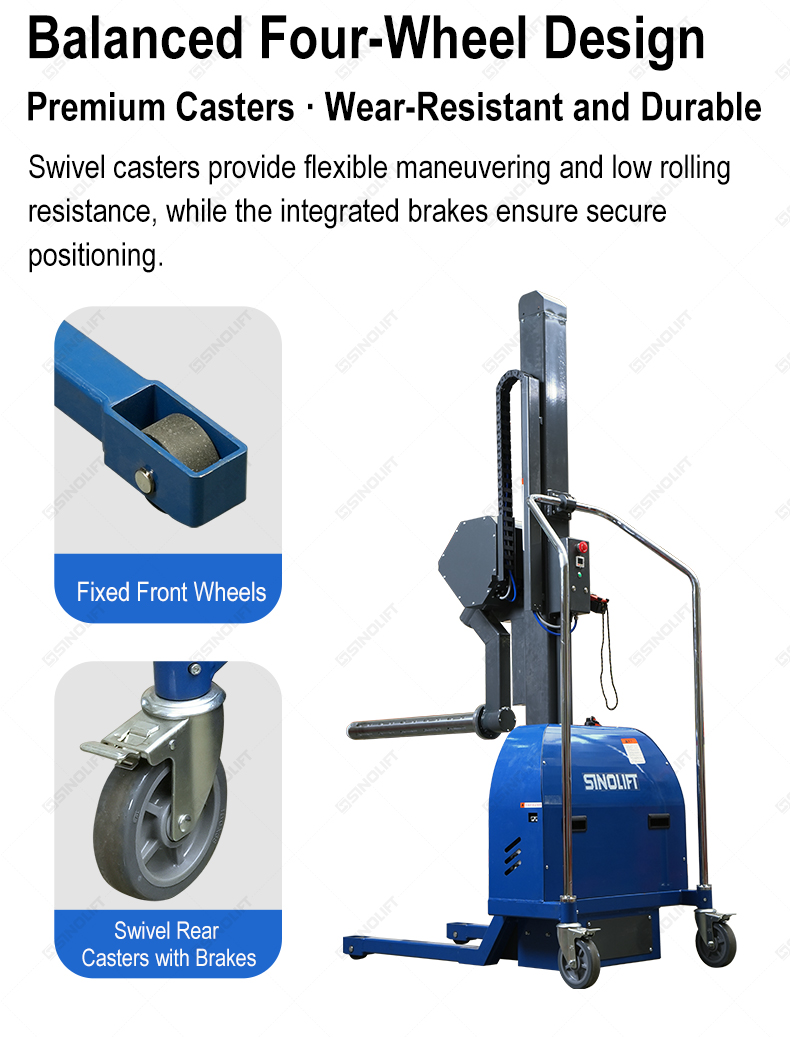

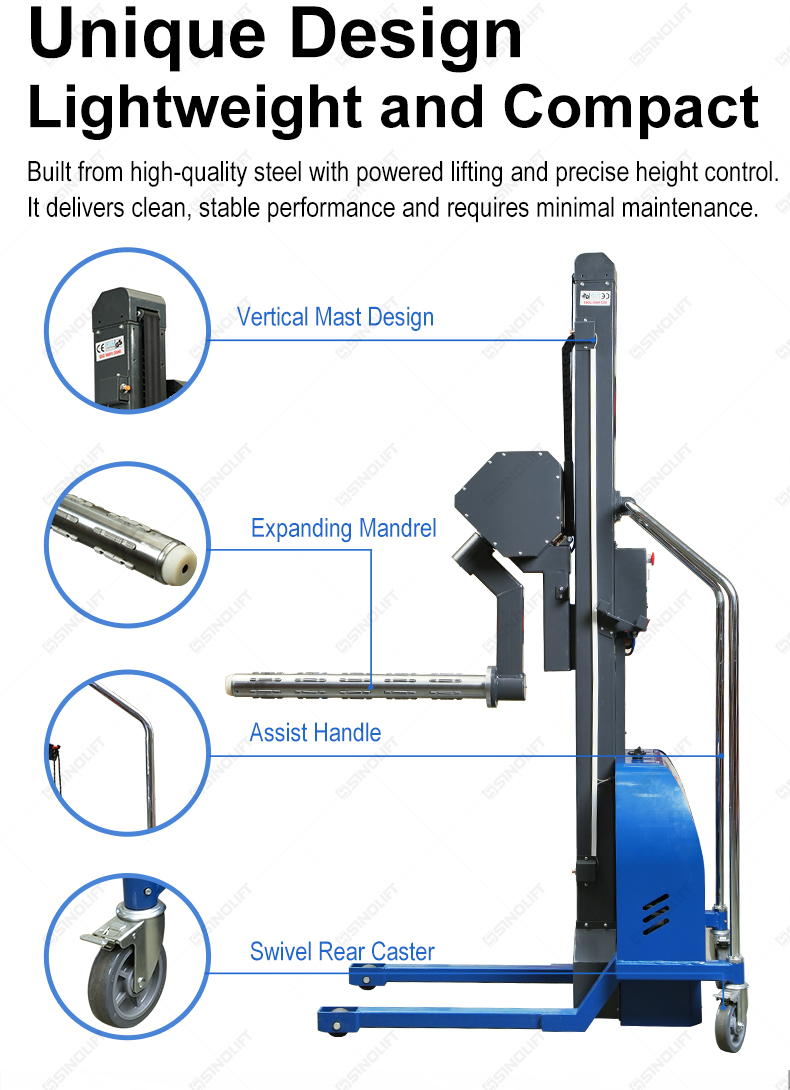

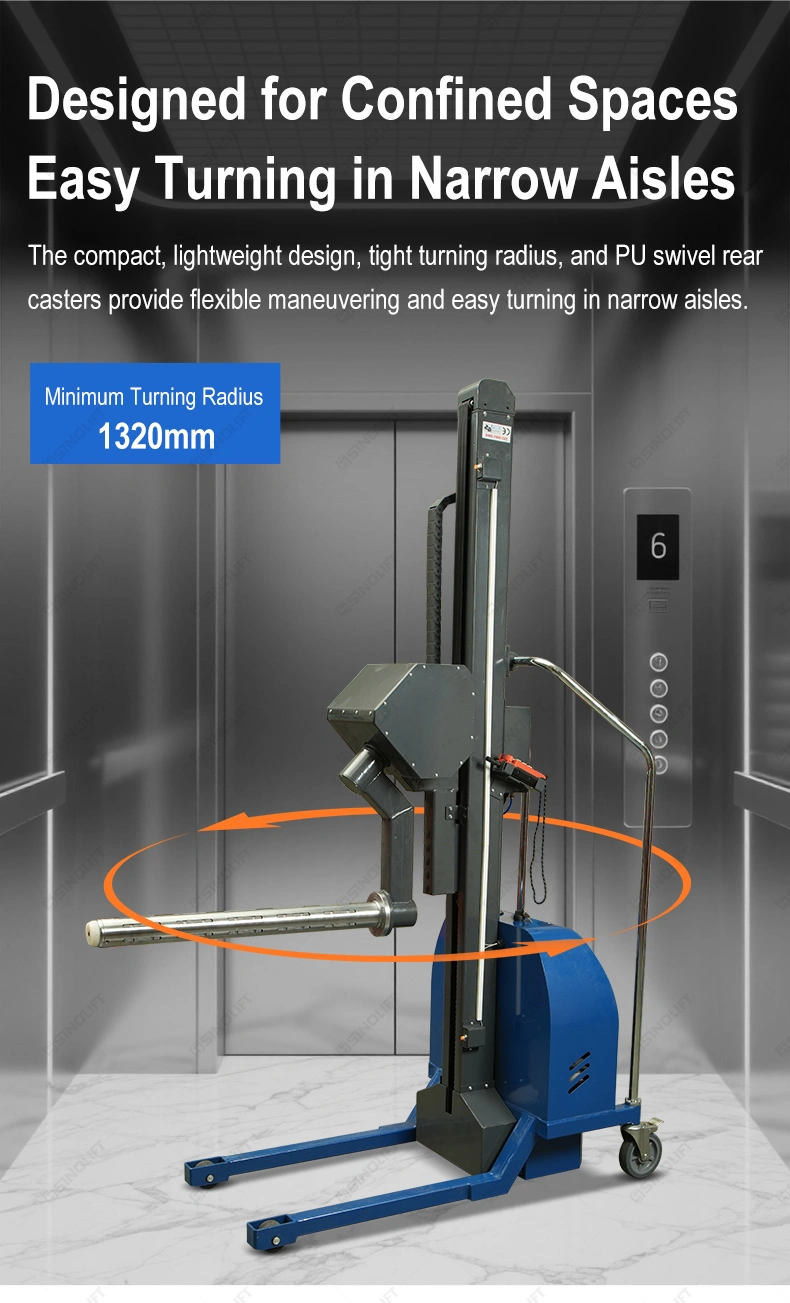

Lightweight structure and easy maneuvering: The single-column structure is combined with a four-wheel chassis, fixed front wheels, and rear swivel casters with brakes for convenient workshop transfers. The images specify a minimum turning radius of 1320 mm.

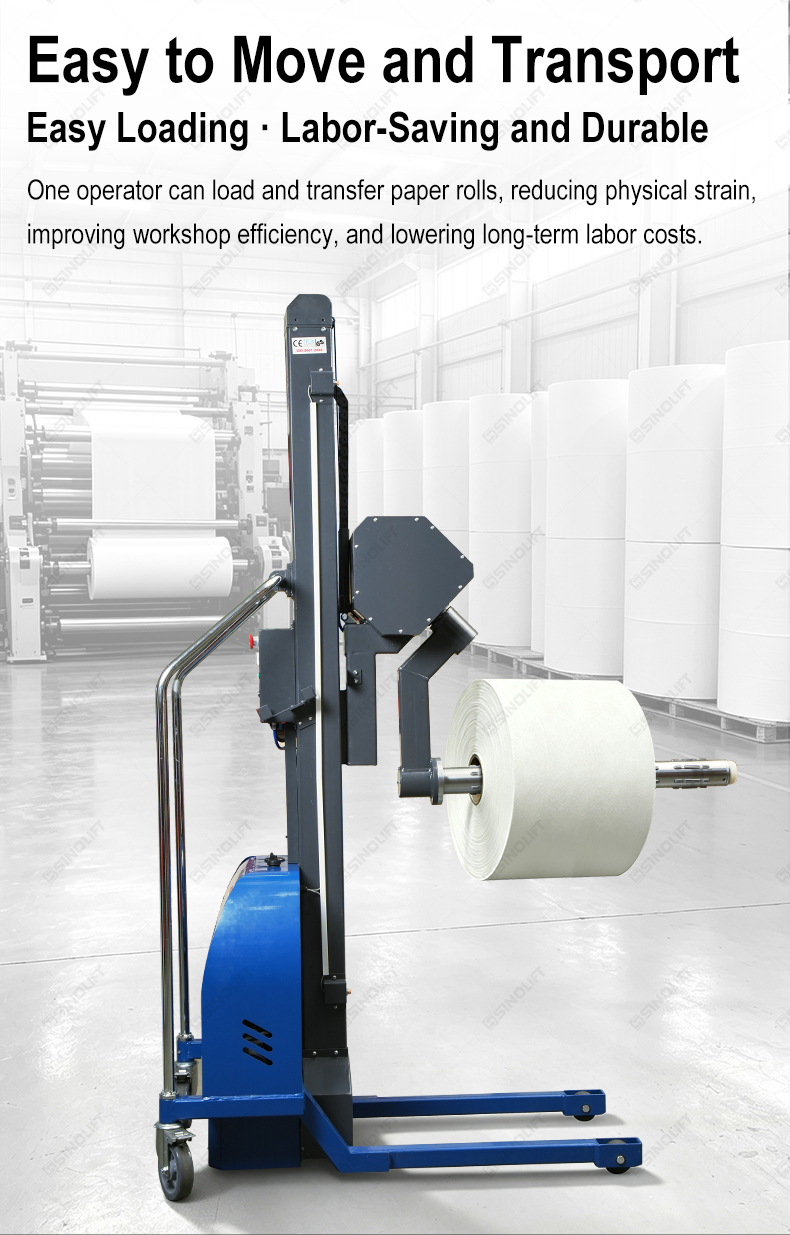

Reduced manual lifting: A single operator can load and transfer paper rolls, helping improve working efficiency and reduce labor requirements.

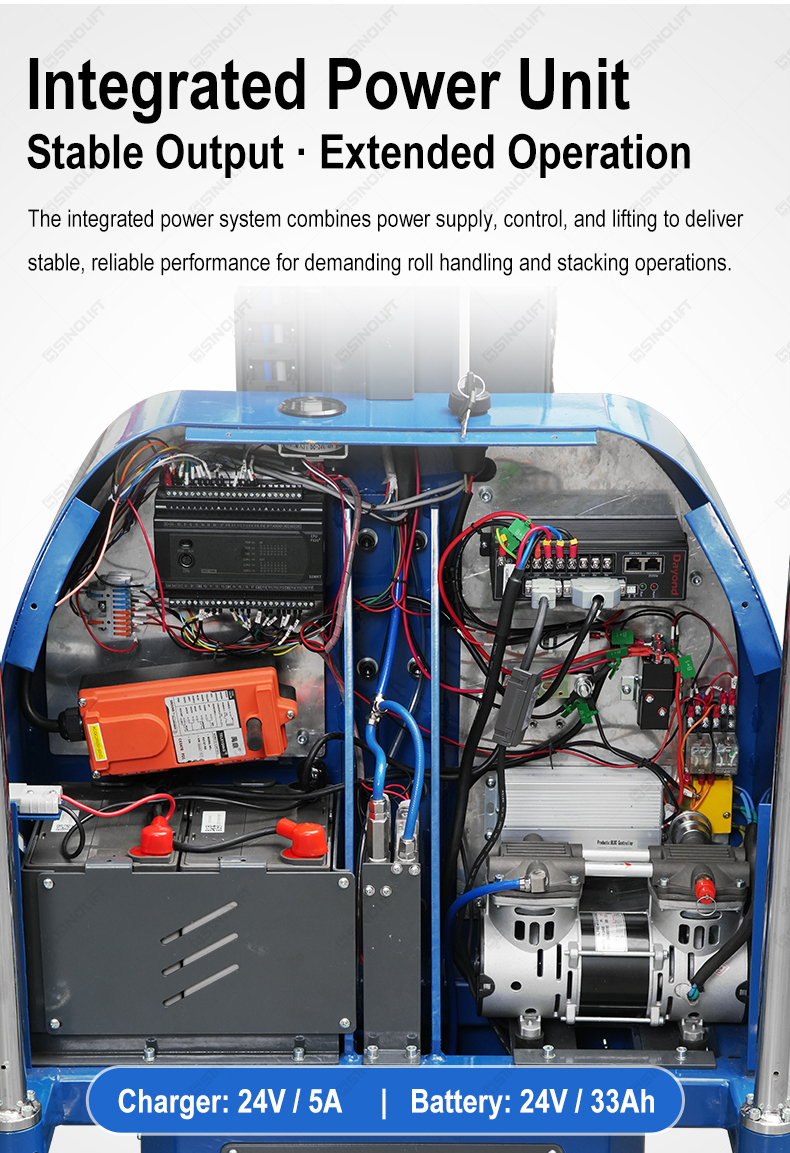

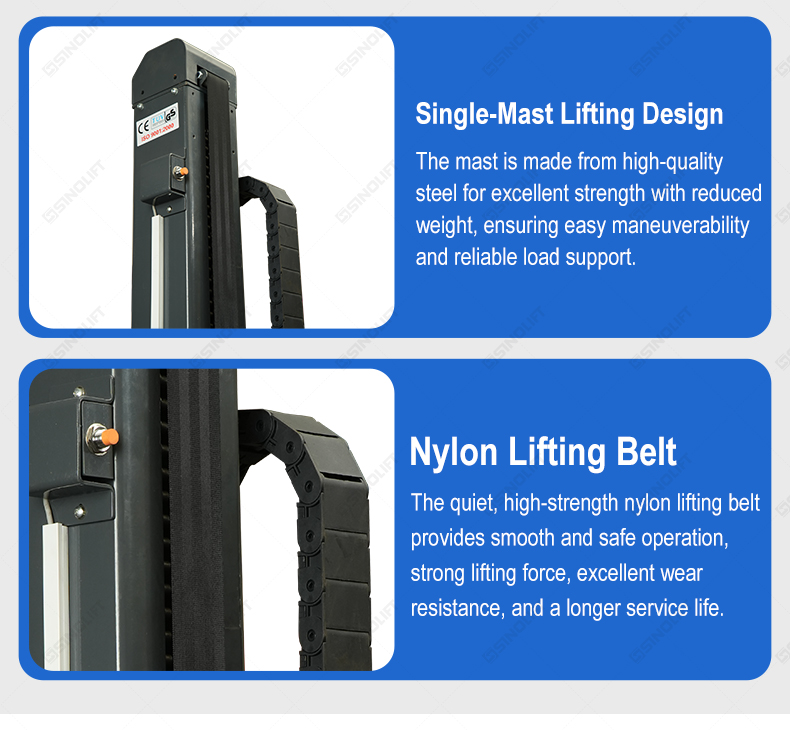

Durability and operational safety: Quality steel and a high-strength nylon lifting belt are combined with an emergency stop switch, key switch, and battery level indicator for convenient daily operation and management.

Product Applications

  • Paper manufacturing and converting workshops: Suitable for paper roll handling, roll changes, loading, and transfers between workstations.
  • Printing and packaging production lines: Raises paper rolls or packaging film rolls to the equipment loading position and assists with alignment, loading, and unloading.
  • Film processing workshops: Suitable for transferring plastic film rolls and other rolled materials, as well as assisting with loading slitting and rewinding equipment.
  • Warehouse and workshop material handling: Supports short-distance transport of rolled materials with compatible cores, particularly in work areas with limited space that require flexible maneuvering.

Product Applications

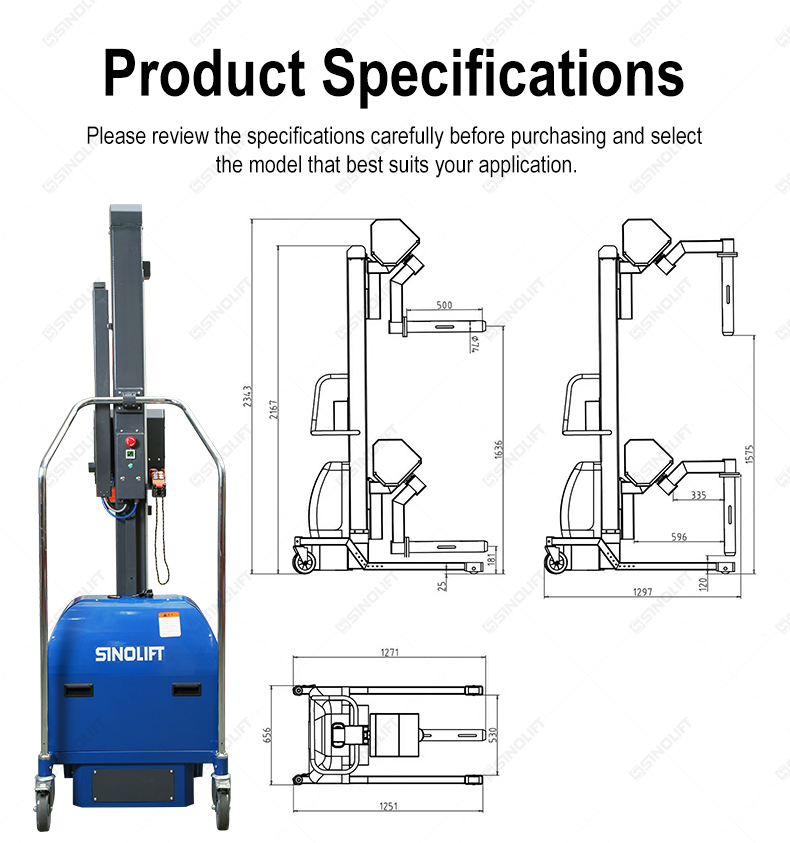

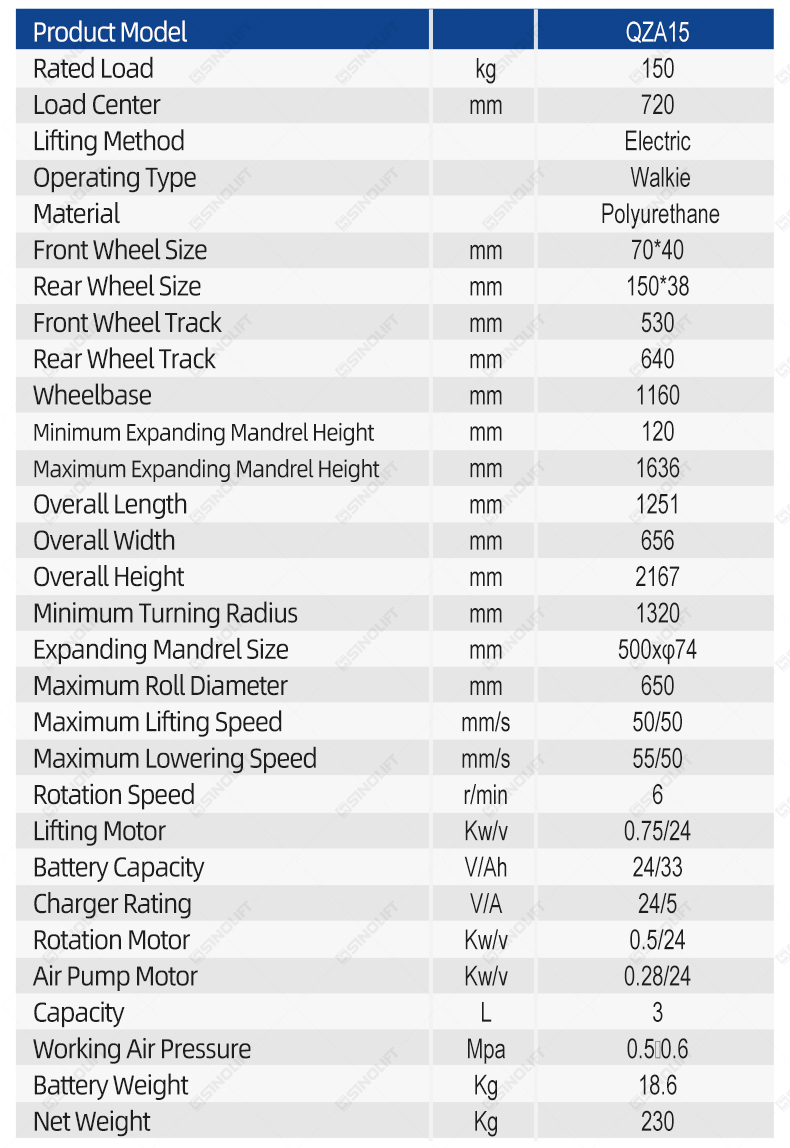

Product ModelQZA15
Rated Loadkg150
Load Centermm720
Lifting MethodElectric
Operating TypeWalkie
MaterialPolyurethane
Front Wheel Sizemm70*40
Rear Wheel Sizemm150*38
Front Wheel Trackmm530
Rear Wheel Trackmm640
Wheelbasemm1160
Minimum Expanding Mandrel Heightmm120
Maximum Expanding Mandrel Heightmm1636
Overall Lengthmm1251
Overall Widthmm656
Overall Heightmm2167
Minimum Turning Radiusmm1320
Expanding Mandrel Sizemm500xφ74
Maximum Roll Diametermm650
Maximum Lifting Speedmm/s50/50
Maximum Lowering Speedmm/s55/50
Rotation Speedr/min6
Lifting MotorKw/v0.75/24
Battery CapacityV/Ah24/33
Charger RatingV/A24/5
Rotation MotorKw/v0.5/24
Air Pump MotorKw/v0.28/24
CapacityL3
Working Air PressureMpa0.5□0.6
Battery WeightKg18.6
Net WeightKg230
