Product Name

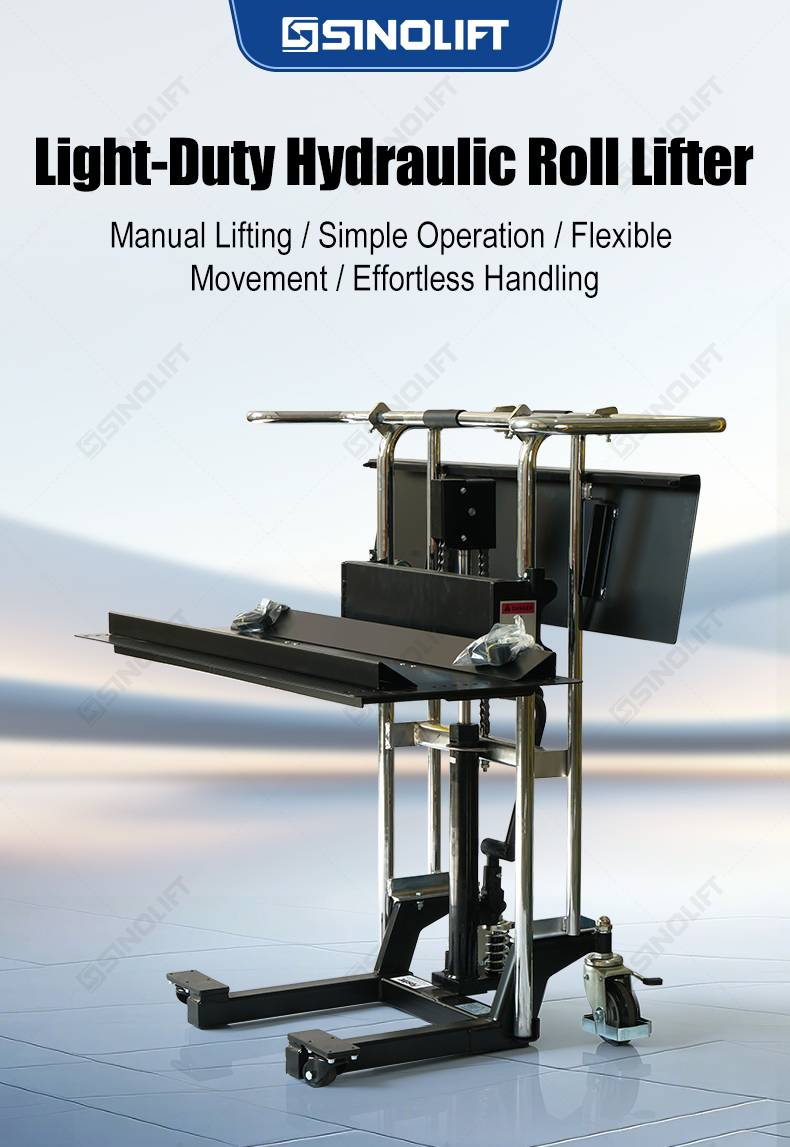

SINOLIFT PR4080-80 Light-Duty Hydraulic Roll Lifter

Product Description

The SINOLIFT PR4080-80 Light-Duty Hydraulic Roll Lifter is a manually maneuvered roll-handling solution designed for lifting, transferring and positioning cylindrical materials in workshops, printing facilities and packaging operations. With a rated capacity of 300 kg and a platform height range of 88–810 mm, it helps operators position paper rolls, film rolls and other compatible roll stock. Its compact caster base, detachable legs and hydraulic lifting arrangement support practical day-to-day material handling.

Key Features

Manual Hydraulic Lifting: Foot-pedal-operated hydraulic lifting and a rotary release valve support controlled lifting and lowering. Confirm operating mechanism against final production configuration.

Designed for Cylindrical Loads: A horizontal support platform is intended for handling roll stock, paper rolls and film rolls, subject to load size and stability checks.

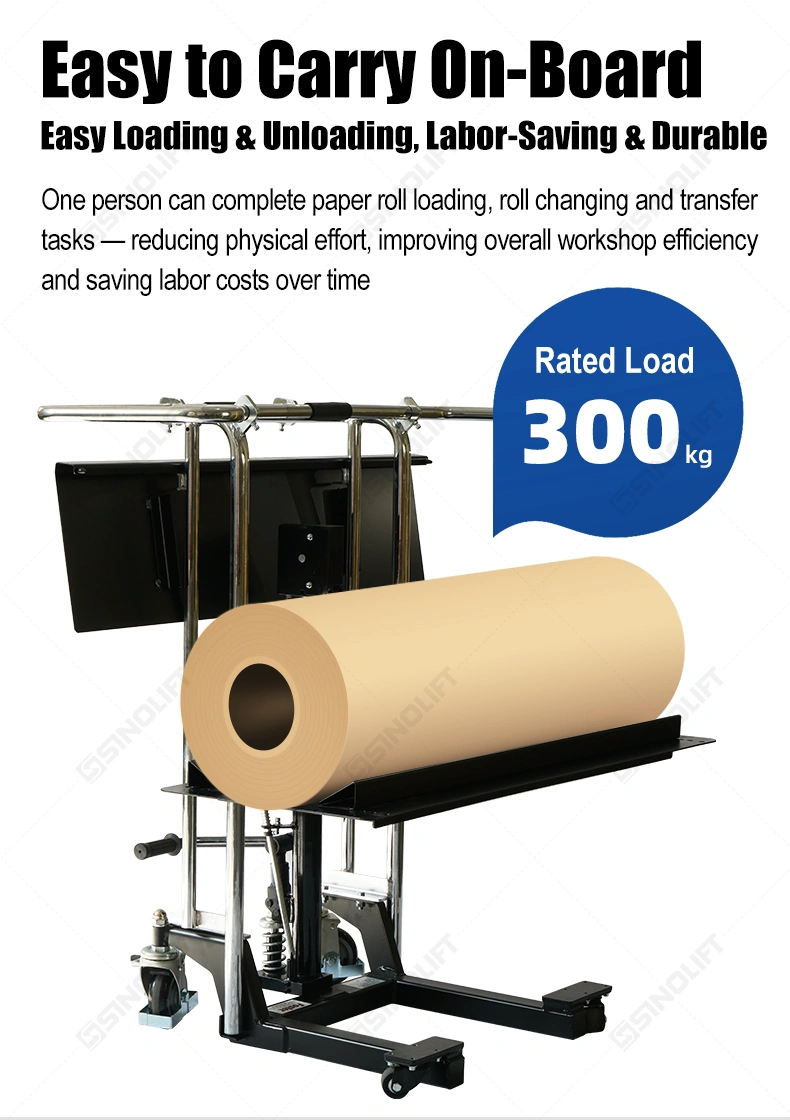

300 kg Rated Capacity: Supports loads up to 300 kg within the manufacturer-rated operating conditions.

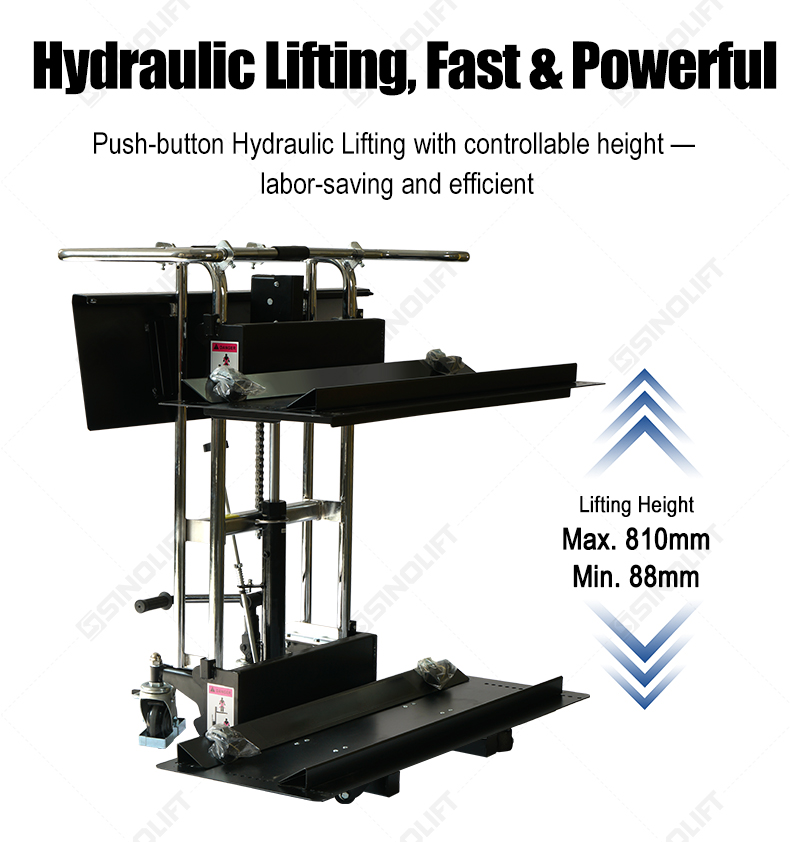

Compact Working Height: Platform height adjusts from 88 mm to 810 mm for loading, transfer and roll positioning.

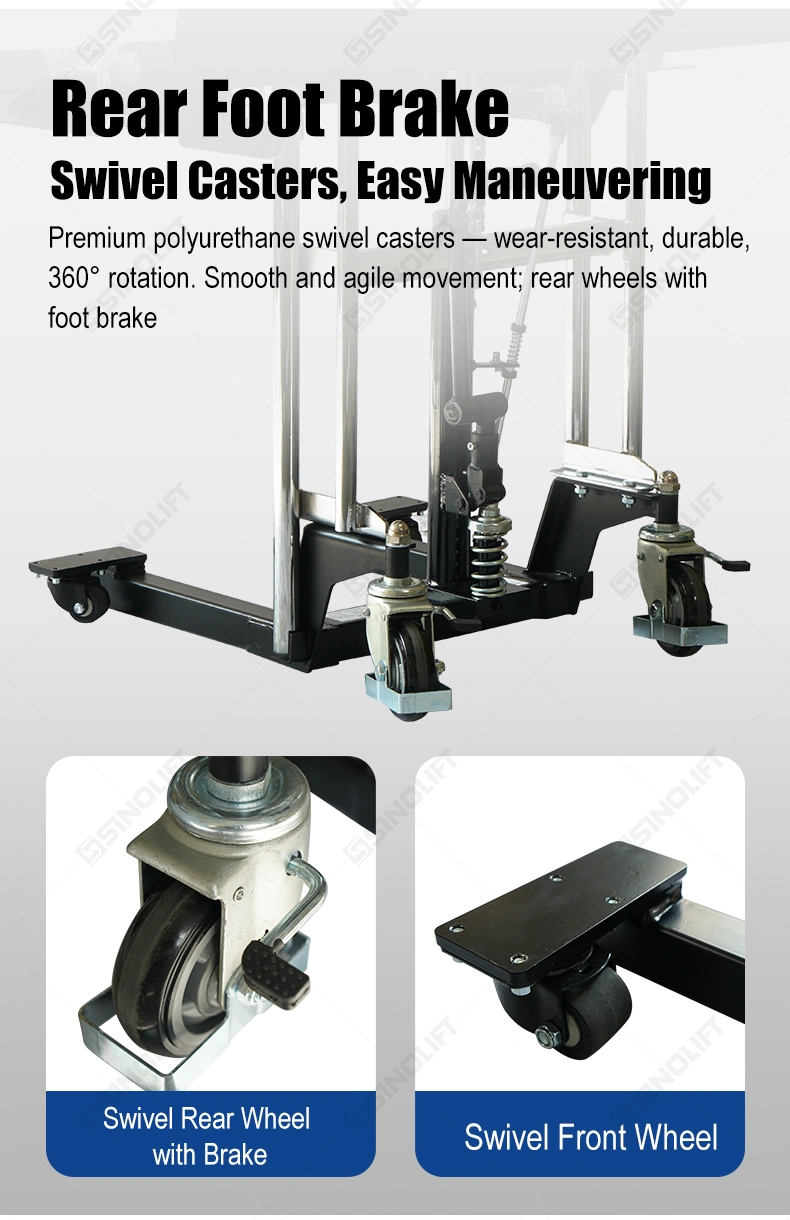

Maneuverable Caster Base: Swivel casters assist positioning, while rear foot-operated brakes secure the equipment when stationary.

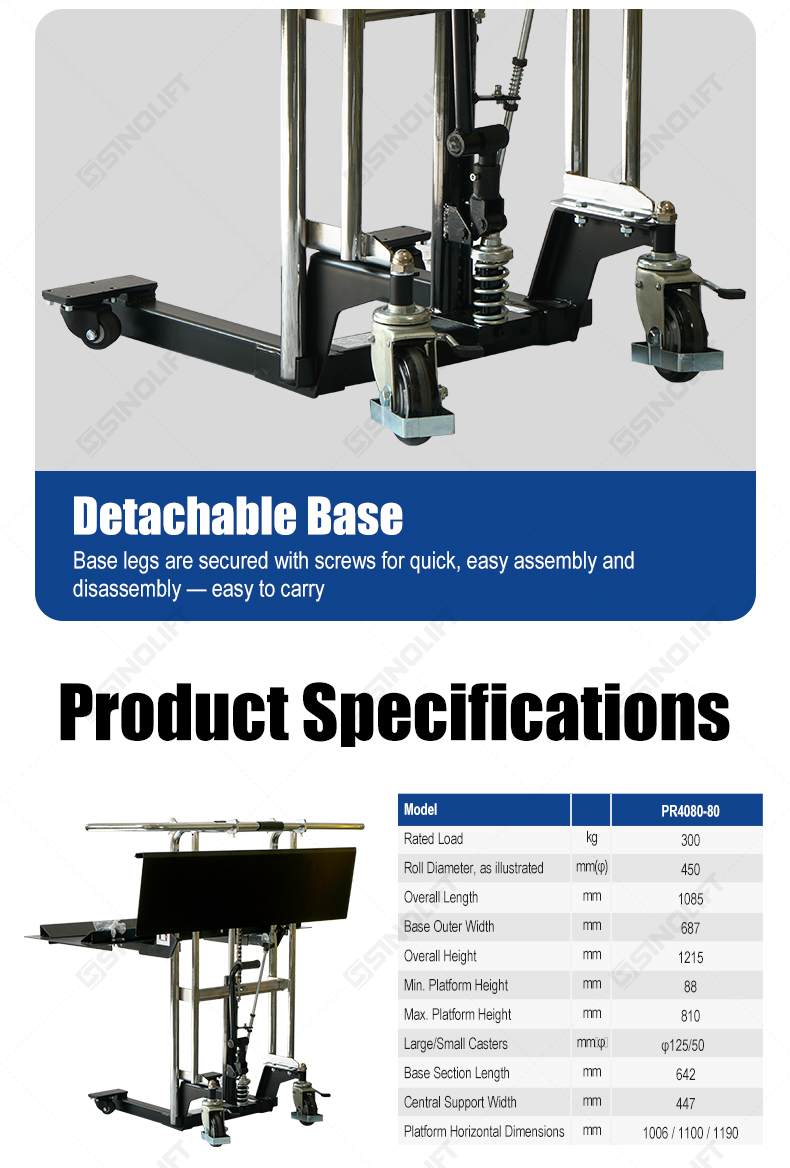

Detachable Base Legs: Screw-fastened base legs facilitate assembly, disassembly and transport.

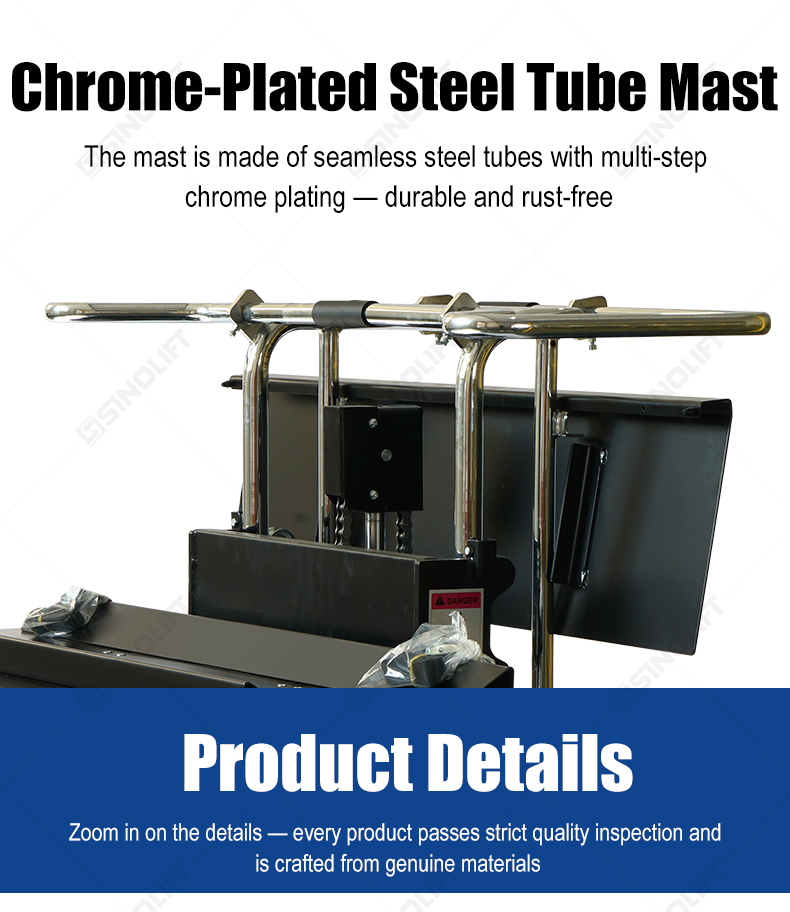

Chrome-Plated Steel Tube Mast: Seamless steel tubes with chrome plating provide a durable guiding structure.

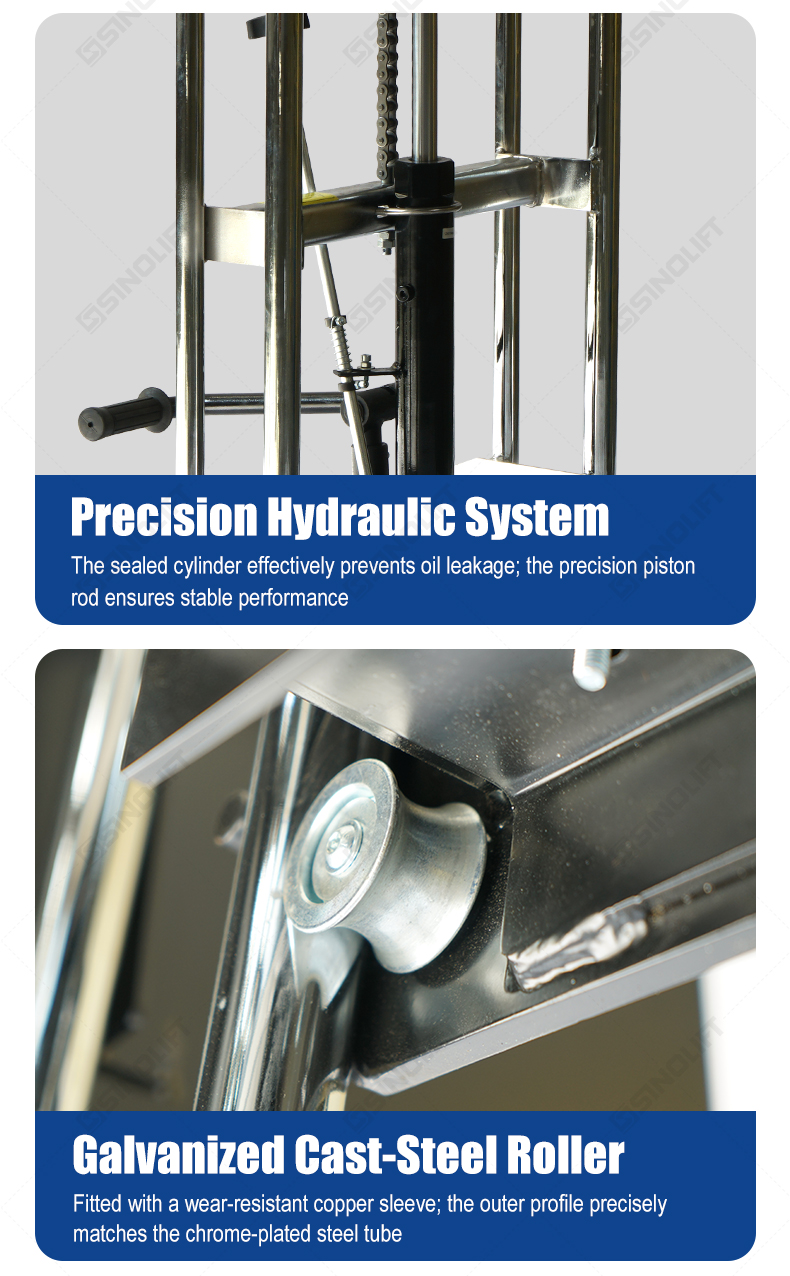

Hydraulic and Guide Components: Sealed hydraulic cylinder, reinforced spring and wear-resistant guide roller are featured in the product imagery.

Product Specifications























FAQ

What materials can the PR4080-80 handle?

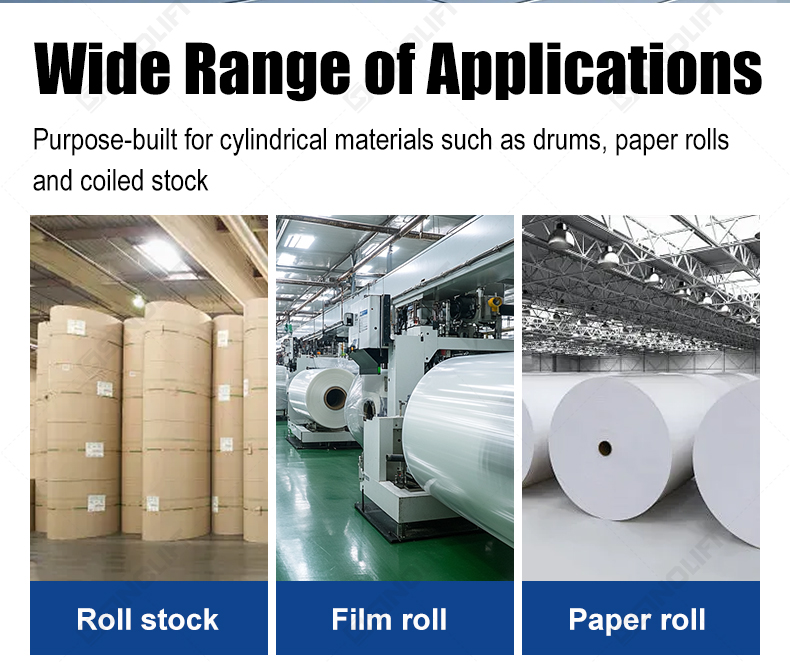

It is designed for cylindrical materials such as paper rolls, film rolls and other roll stock. Confirm the roll dimensions, center of gravity and support compatibility before use.

What is the maximum rated load?

The stated rated load is 300 kg.

What is the platform height range?

The platform height ranges from 88 mm to 810 mm.

What roll diameter is supported?

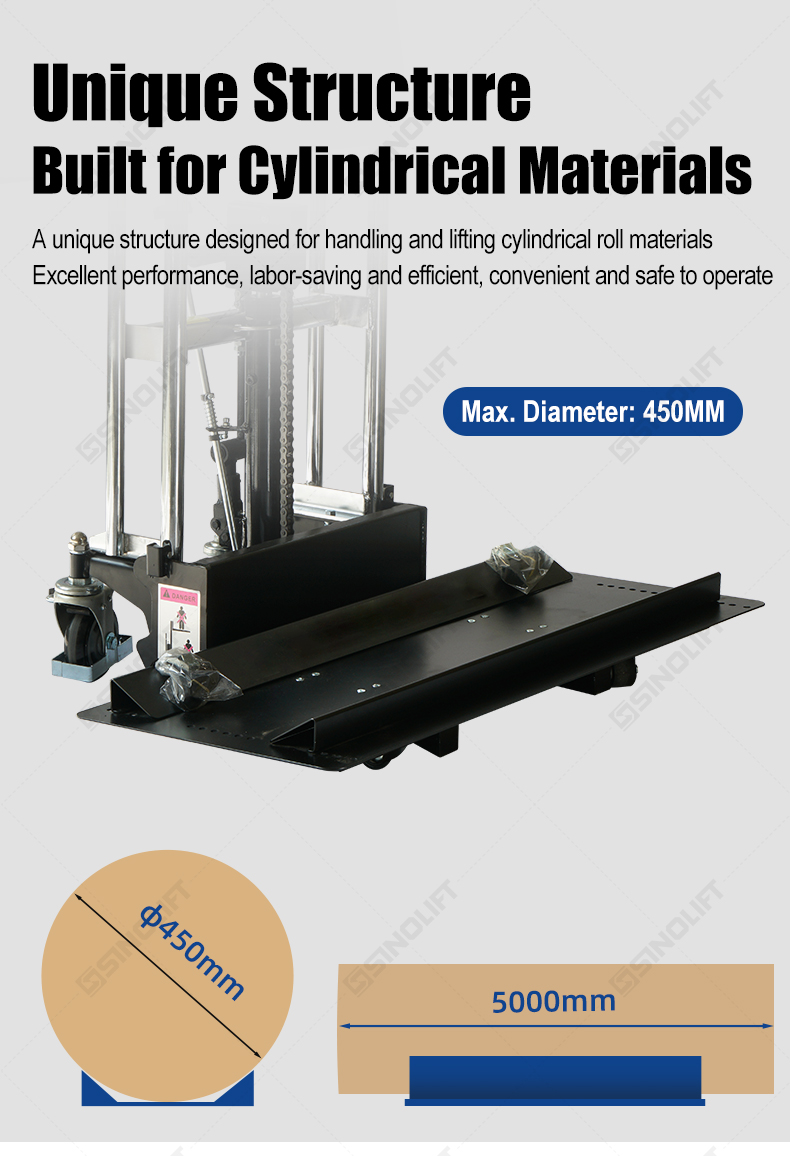

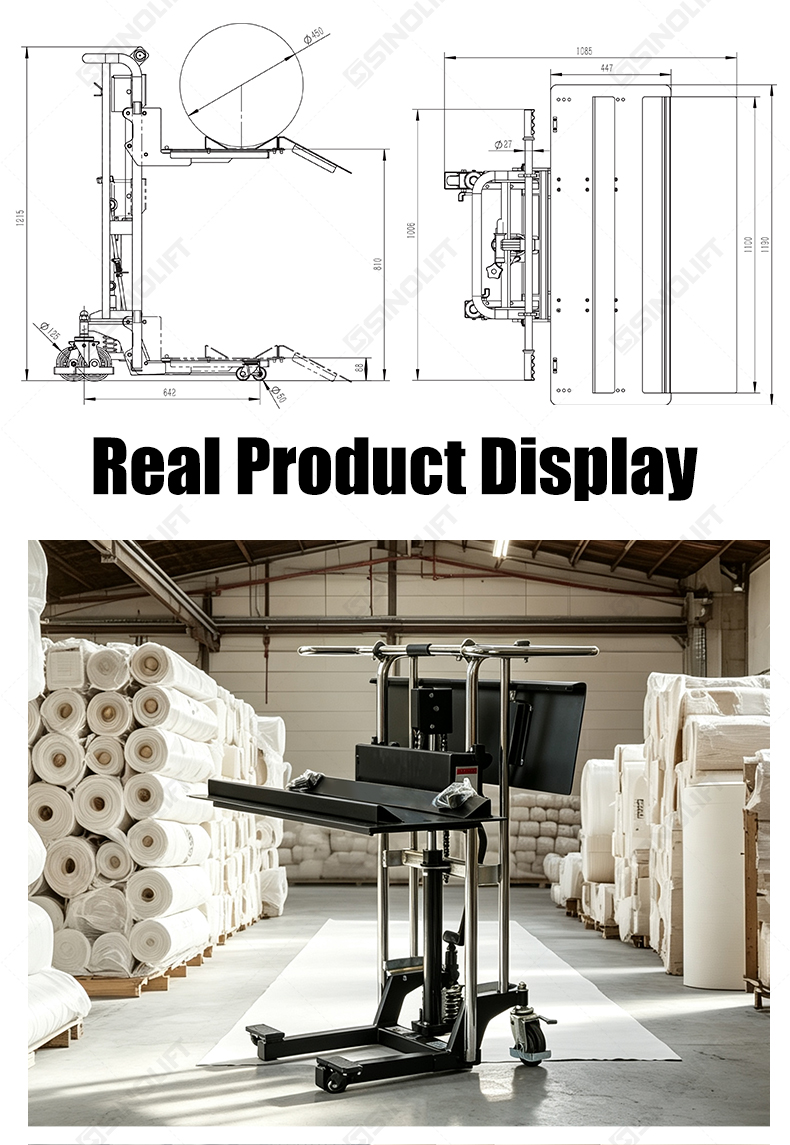

The product specification illustrates a 450 mm roll diameter. Confirm whether this is a maximum or a reference size before publishing a maximum-diameter claim.

How is the platform raised and lowered?

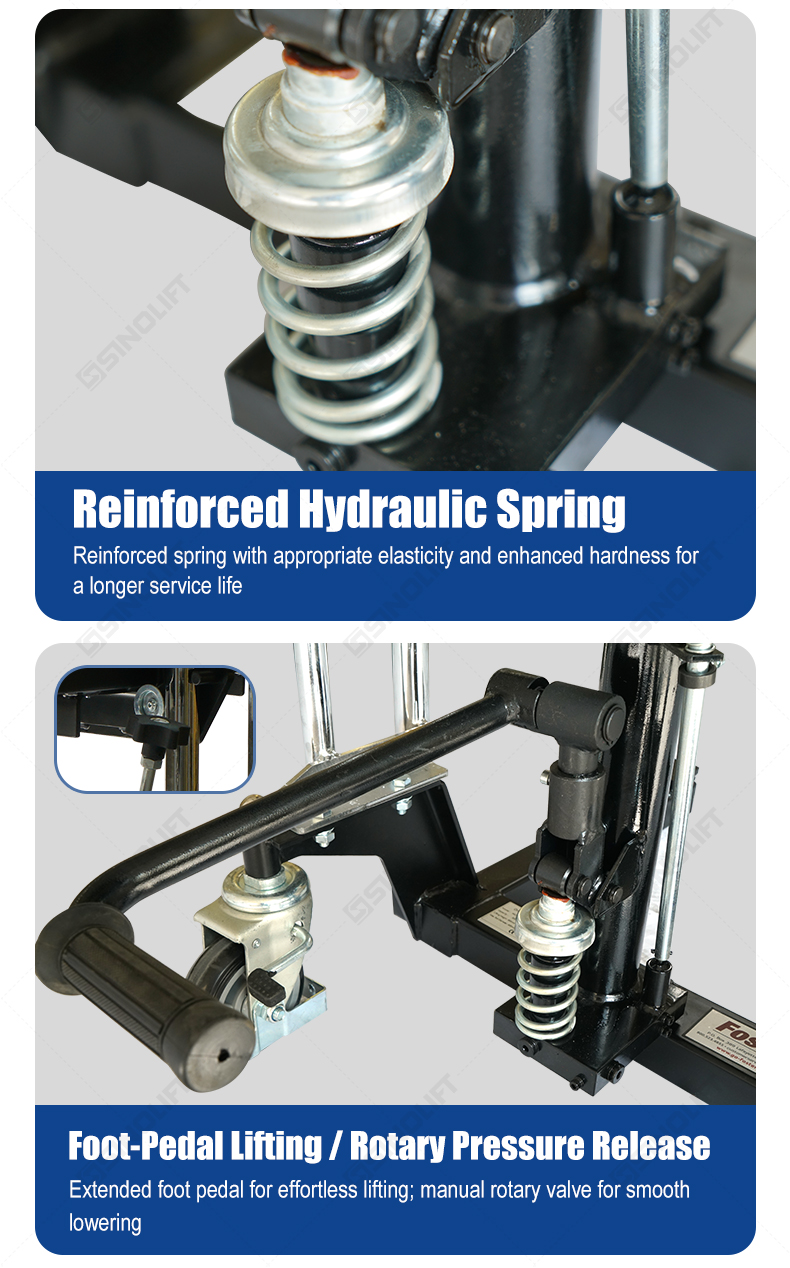

The detail image describes foot-pedal lifting and a manual rotary pressure-release valve for lowering. Another image mentions push-button lifting; the final operating mechanism should be verified.

Can the base be disassembled?

Yes. The base legs are shown as screw-fastened and detachable.

Does it have wheel brakes?

Yes. The rear swivel casters are described as having foot brakes.
