BBF1500A big bag lifter telescopic arm lifting device.
BBF1500A

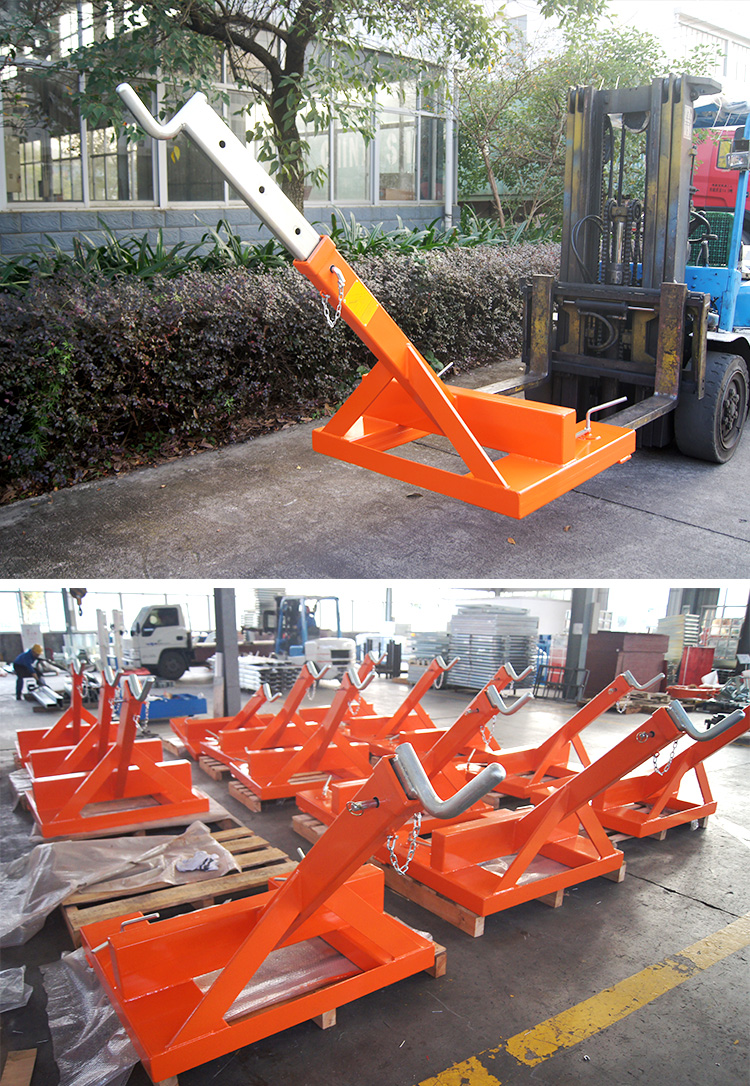

Big bag lifter with telescoping arm for easy and safe handling of large big bags.
Quantity
BBF1500A big bag lifter is suitable for forklift trucks and big bags
- economical way to handle single big bag.
- Safe working load:1500kg
- The maximum size of fork:228*60mm
- Installation method: Slip-on
- Unit weight: 147.5kg
- Surface treatment: Painted finish.

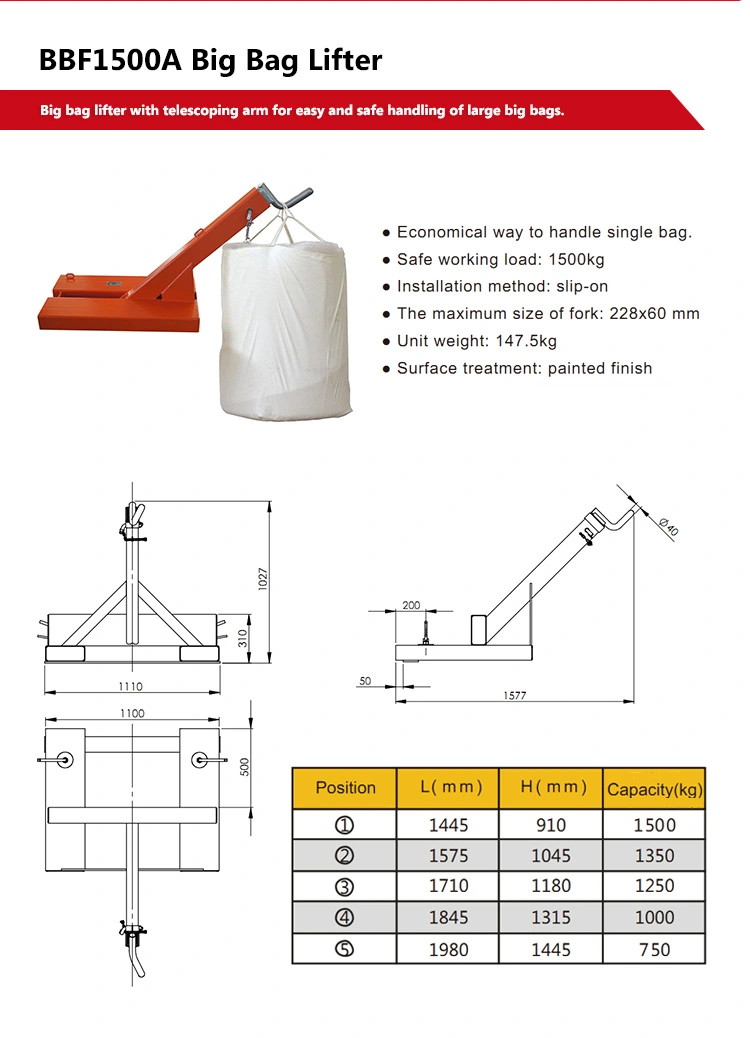

Inner Position | L(mm) | H(mm) | Capacity(kg) |
1 | 1445 | 910 | 1500 |
2 | 1575 | 1045 | 1350 |
3 | 1710 | 1180 | 1250 |
4 | 1845 | 1315 | 1000 |
5 | 1980 | 1445 | 750 |
