SC500A SC1000A SC2000A European Style Shop Crane
SC500A SC1000A SC2000A
Quantity
Name:SC500A SC1000A SC2000A European Style Shop Crane

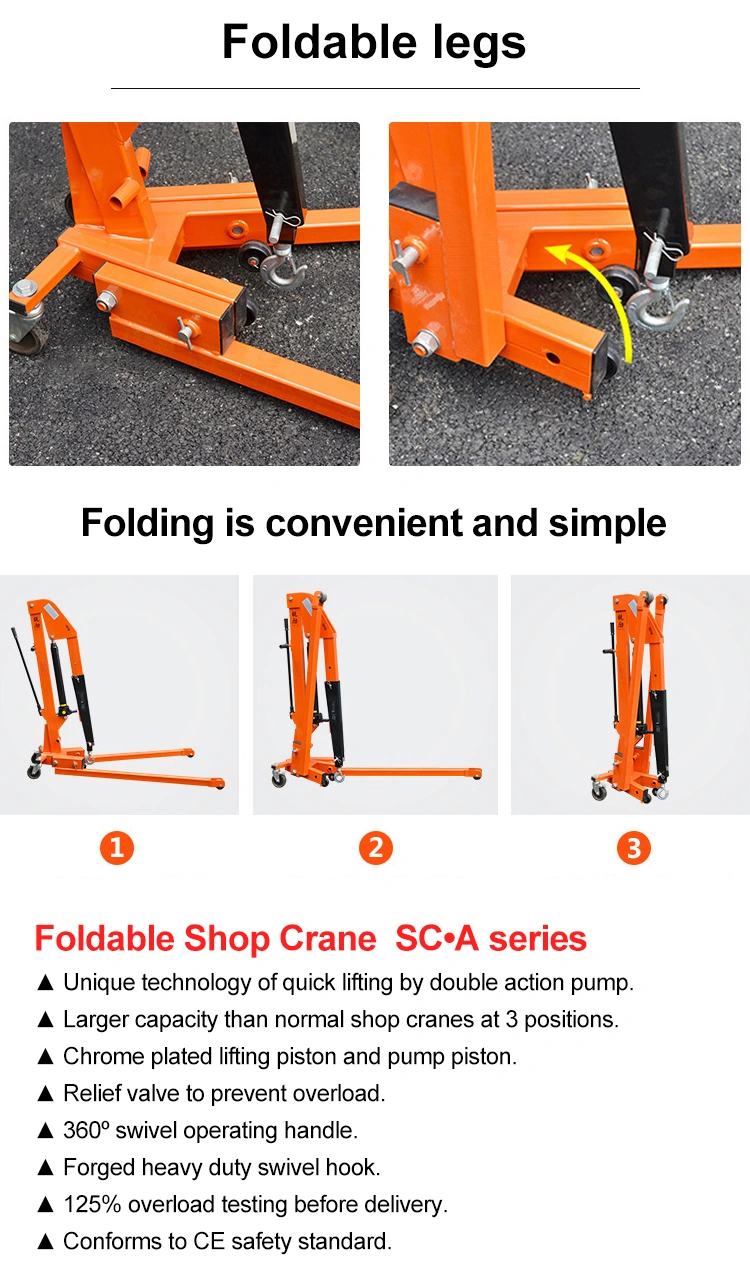

Features of Shop Crane:

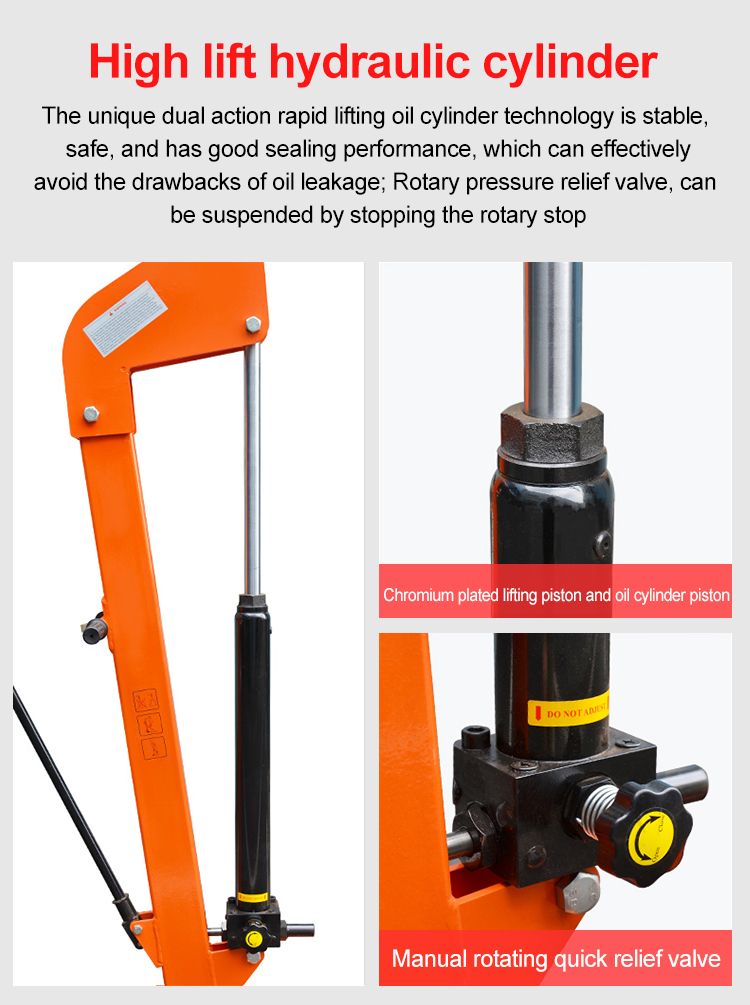

▲ Unique technology of quick lifting by double action pump.
▲ Larger capacity than normal shop cranes at 3 positions.
▲ Chrome plated lifting piston and pump piston.
▲ Relief valve to prevent overload.

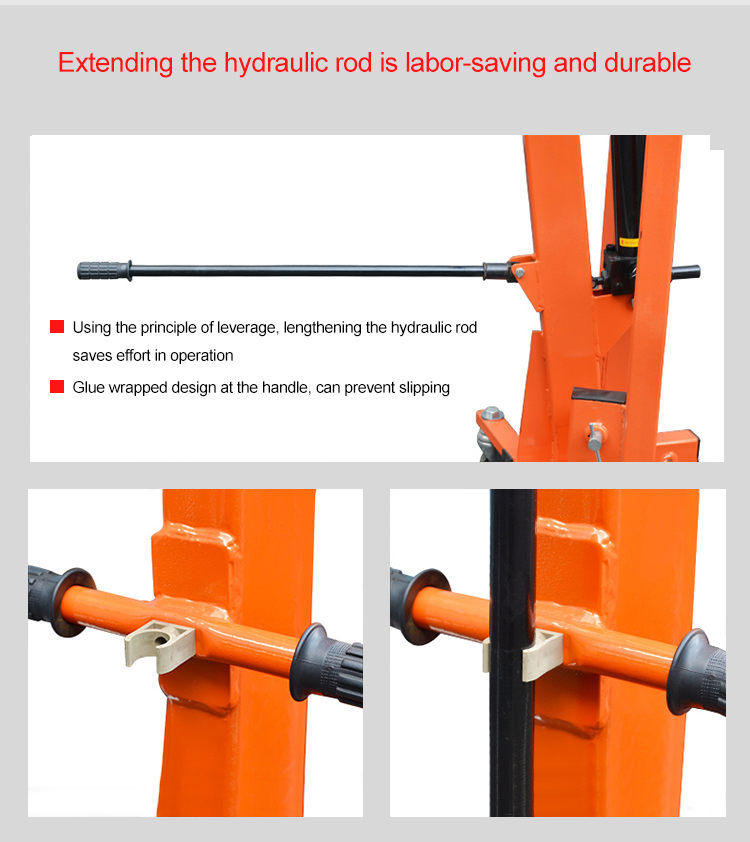

▲ 360º swivel operating handle.
▲ Forged heavy duty swivel hook.
▲ 125% overload testing before delivery.
▲ Conforms to CE safety standard.

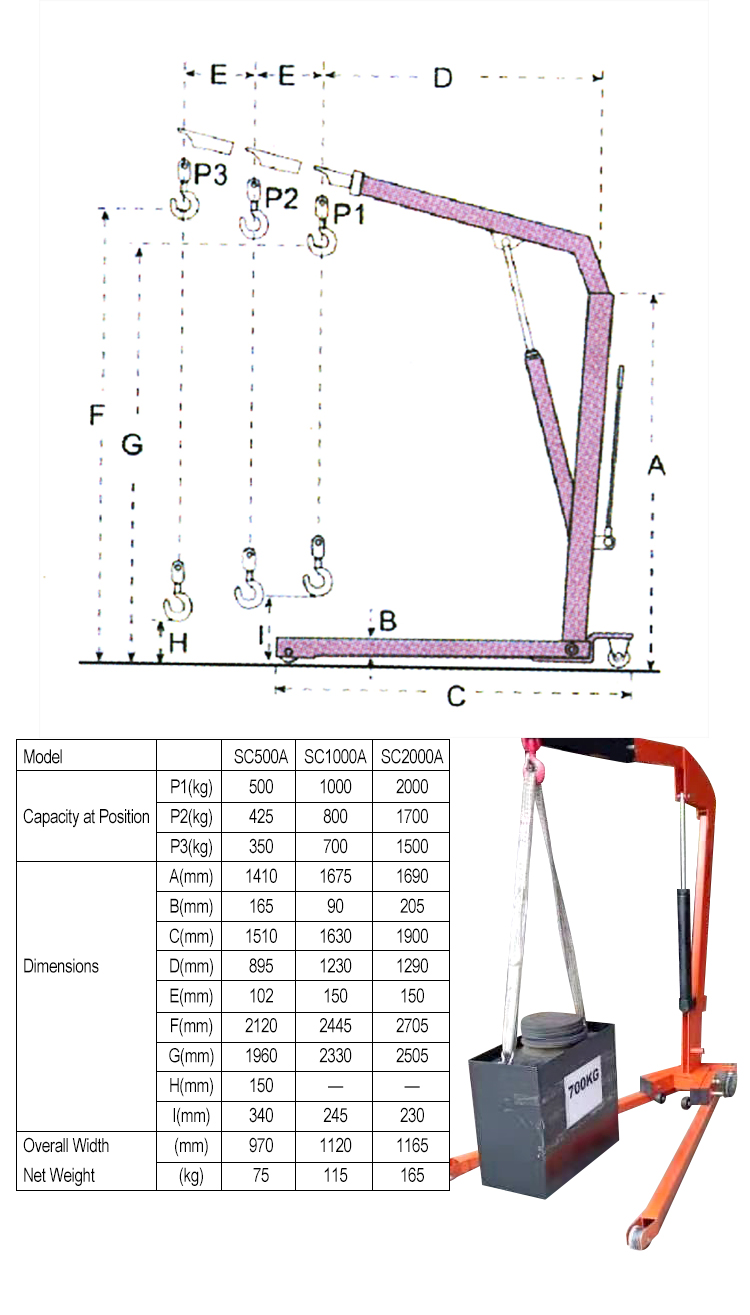

| Model | Shop CraneSC500A | Shop CraneSC1000A | Shop CraneSC2000A | |
| Capacity at Position | P1(kg) | 500 | 1000 | 2000 |
| P2(kg) | 425 | 800 | 1700 | |
| P3(kg) | 350 | 700 | 1500 | |
| Dimensions | A(mm) | 1410 | 1675 | 1690 |
| B(mm) | 165 | 90 | 205 | |
| C(mm) | 1510 | 1630 | 1900 | |
| D(mm) | 895 | 1230 | 1290 | |
| E(mm) | 102 | 150 | 150 | |
| F(mm) | 2120 | 2445 | 2705 | |
| G(mm) | 1960 | 2330 | 2505 | |
| H(mm) | 150 | — | — | |
| I(mm) | 340 | 245 | 230 | |
| Overall Width | (mm) | 970 | 1120 | 1165 |
| Net Weight | (kg) | 75 | 115 | 165 |
