SP500F SP1000F SP2000F Foldable Shop Crane

SP500F SP1000F SP2000F
Quantity:
Contact Now
add to cart
All Products

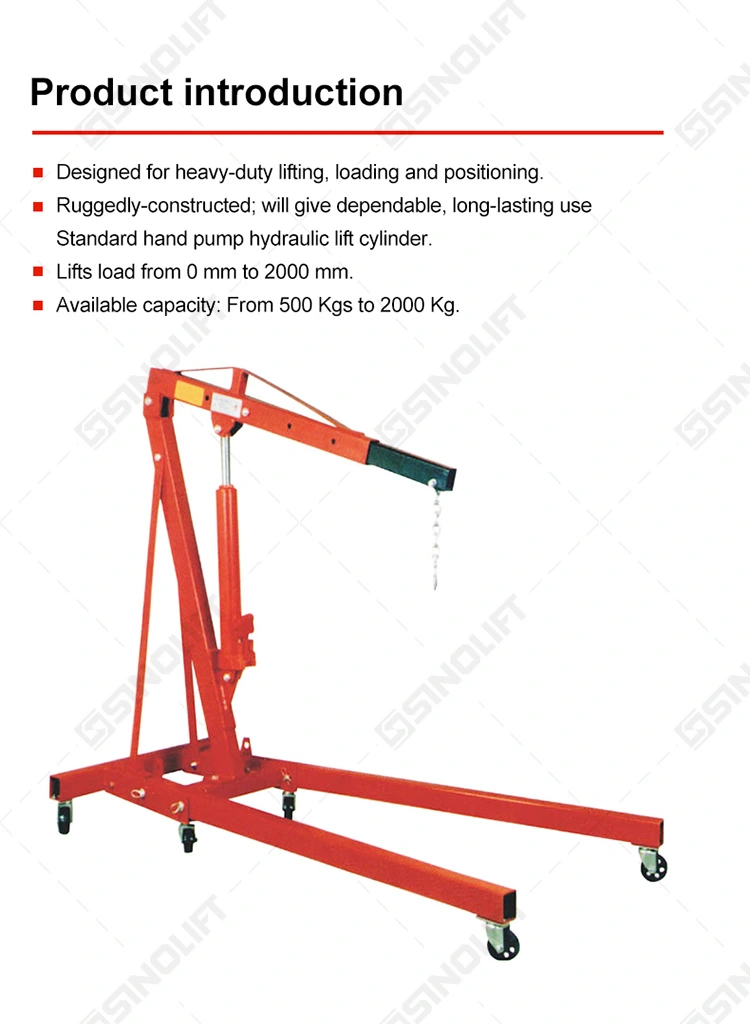

SP500F SP1000F SP2000F Foldable Shop Crane

Designed for heavy-duty lifting, loading and positioning.

Ruggedly-constructed; will give dependable, long-lasting use Standard

hand pump hydraulic lift cylinder.

Lifts load from 0 mm to 2000 mm.

Available capacity: From 500 Kgs to 2000 Kgs.

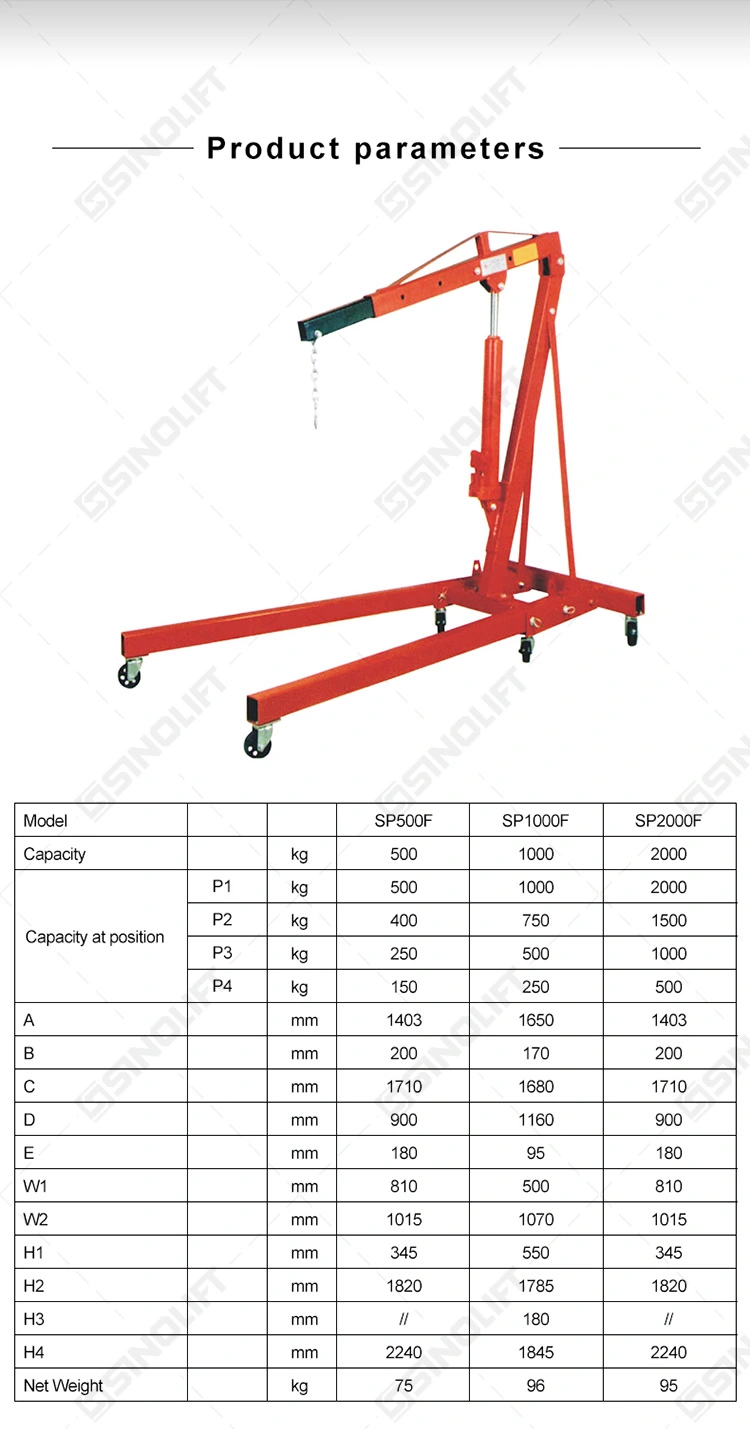

Model SP500FSP1000FSP2000F

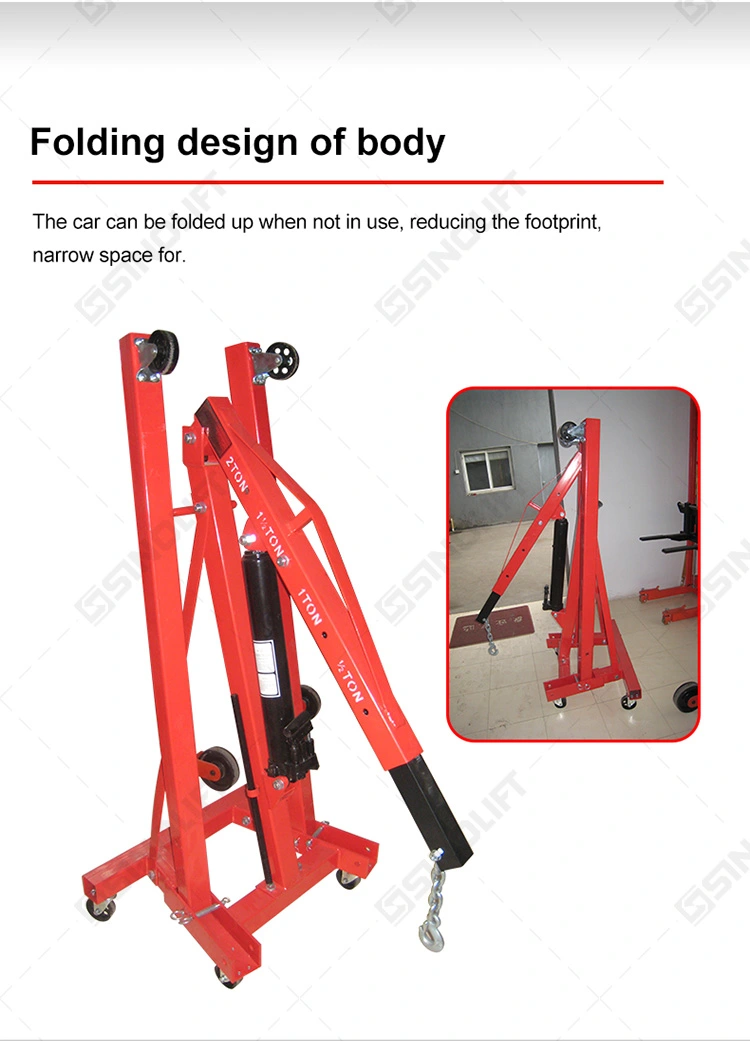

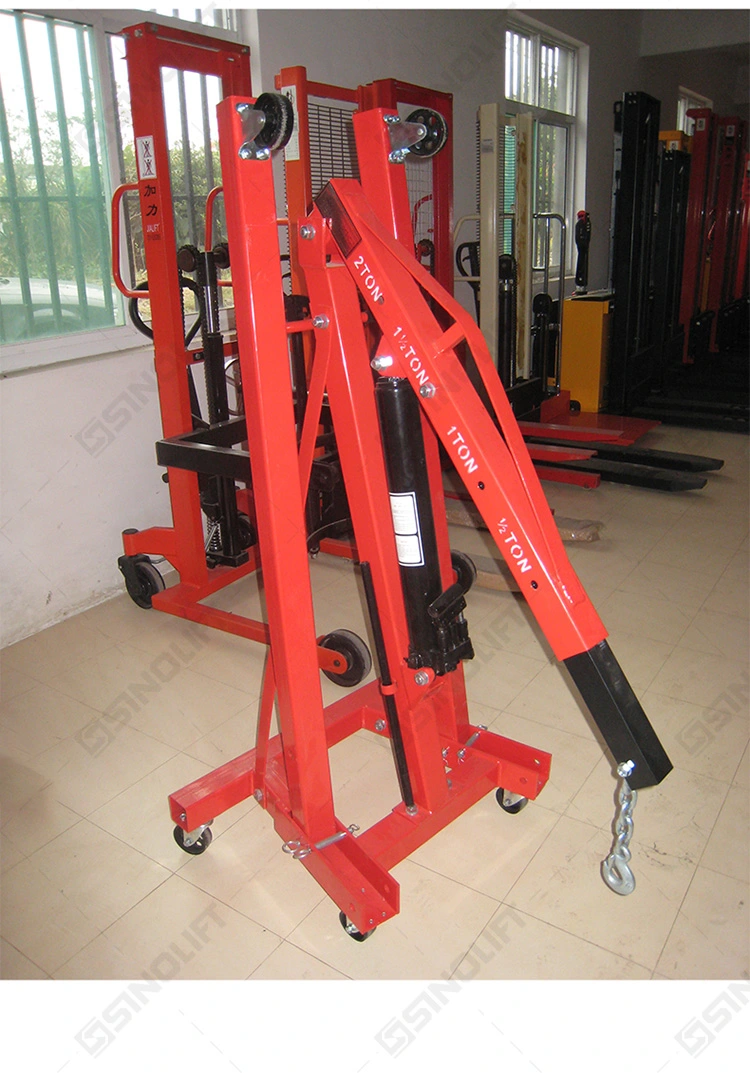

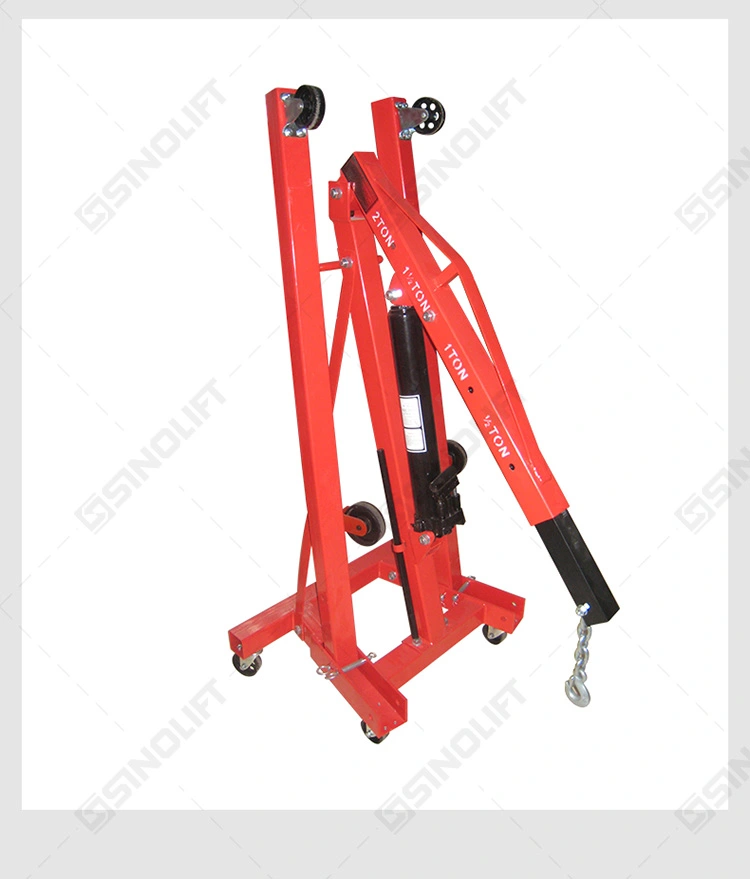

Foldable Yes
Capacitykg50010002000

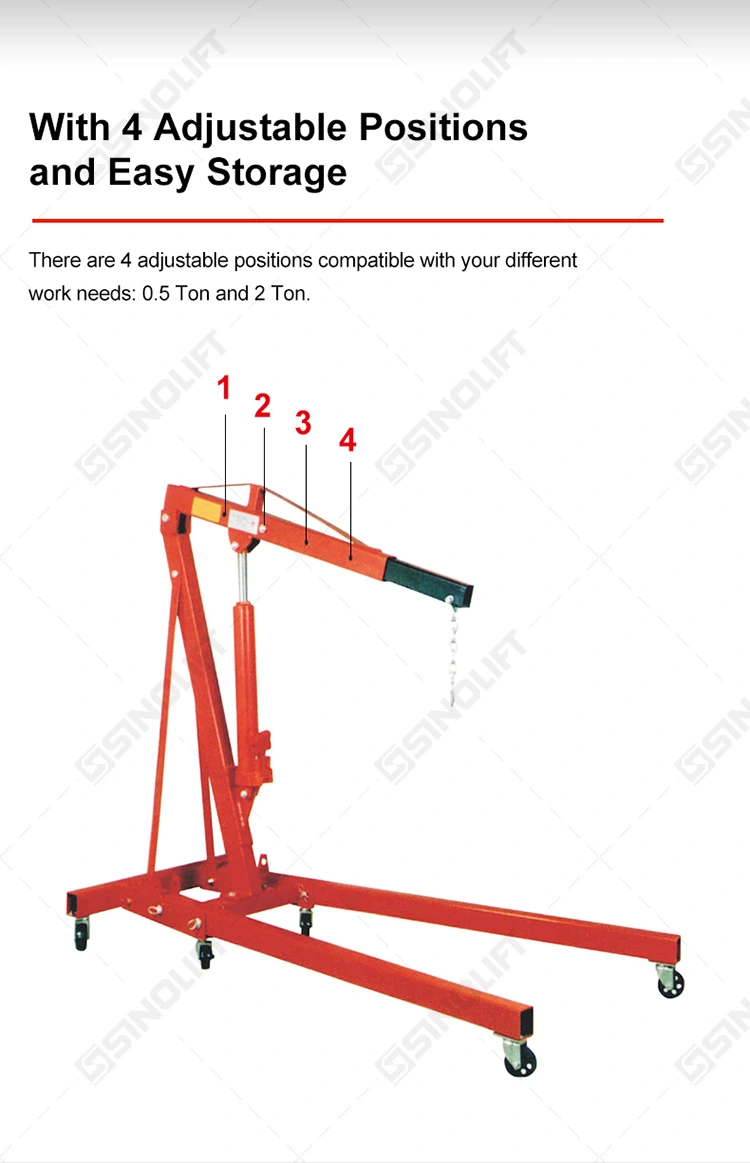

Capacity at positionP150010002000
P24007501500
P32505001000
P4150250500

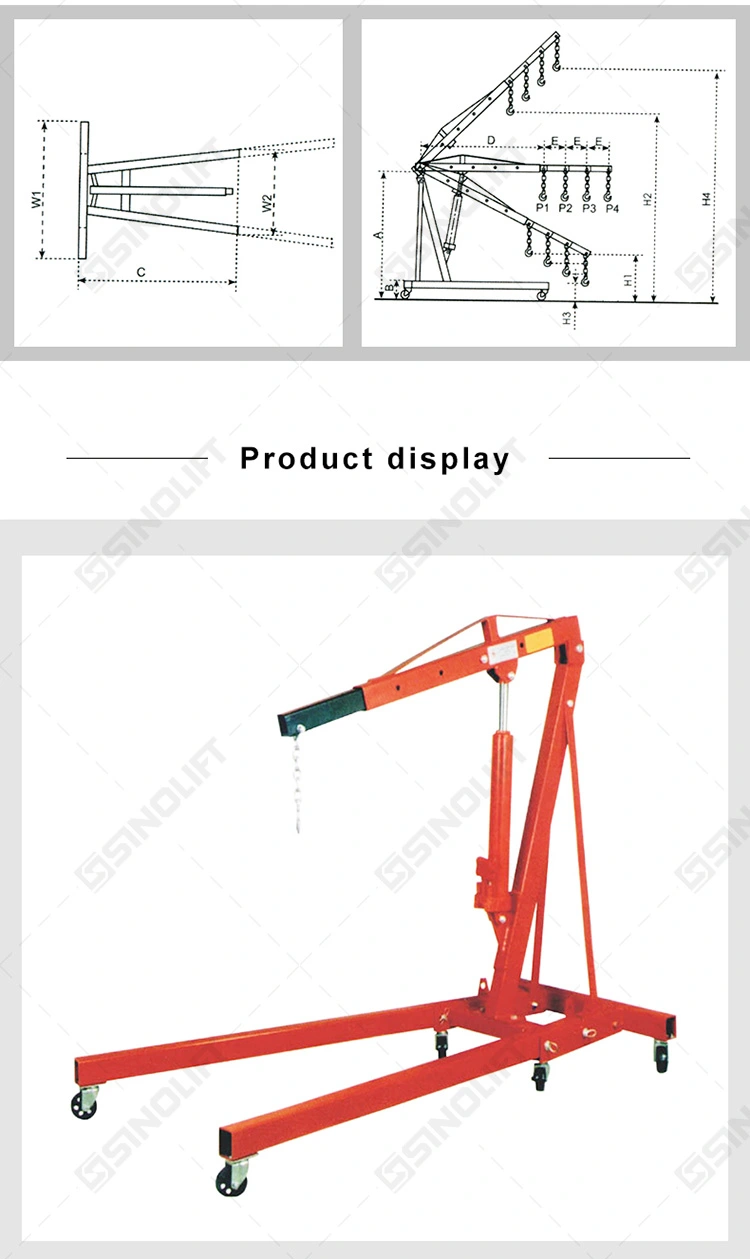

Amm140316501403
Bmm200170200
Cmm171016801710
Dmm9001160900
Emm18095180
W1mm810500810
W2mm101510701015
H1mm345550345
H2mm182017851820
H3mm//180//
H4mm224018452240
Net Weightkg759695
