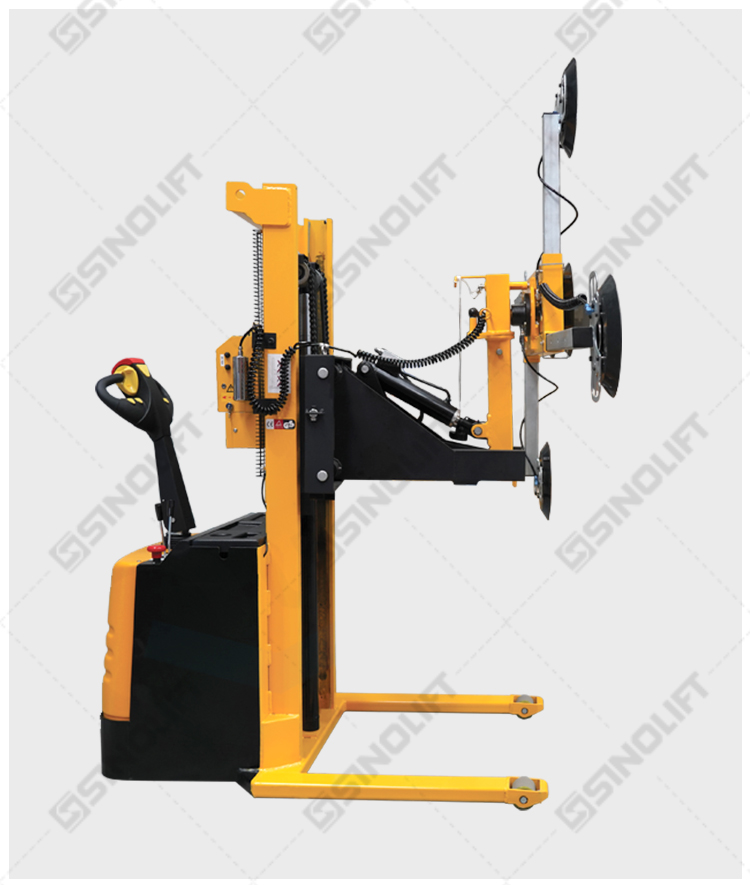

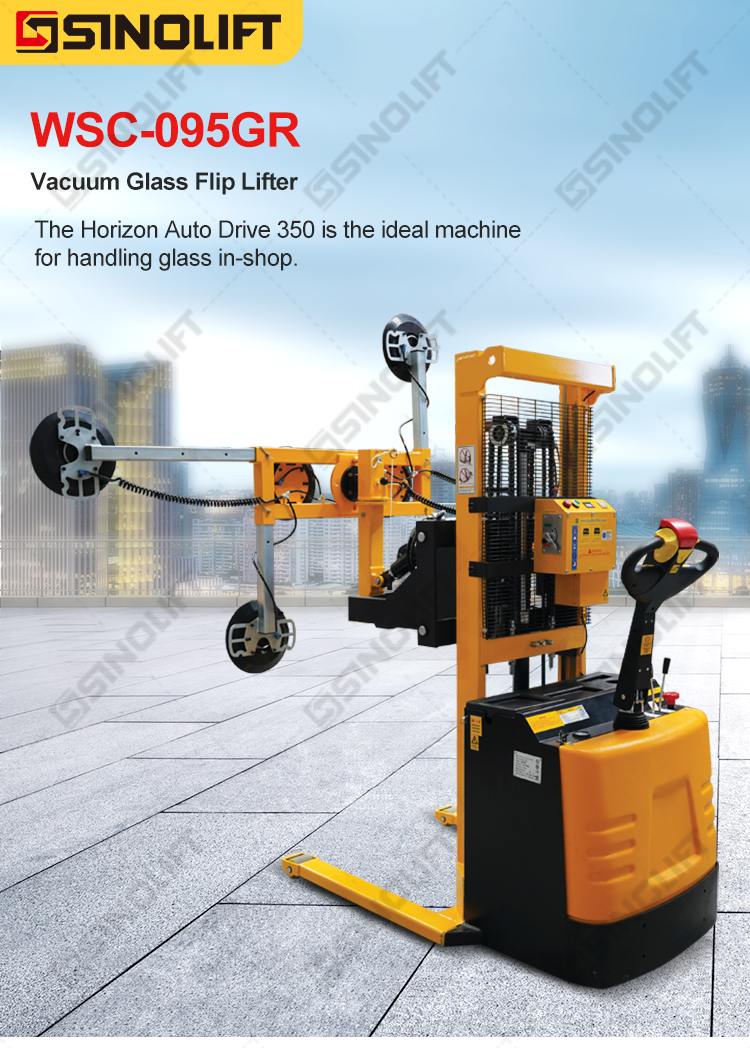

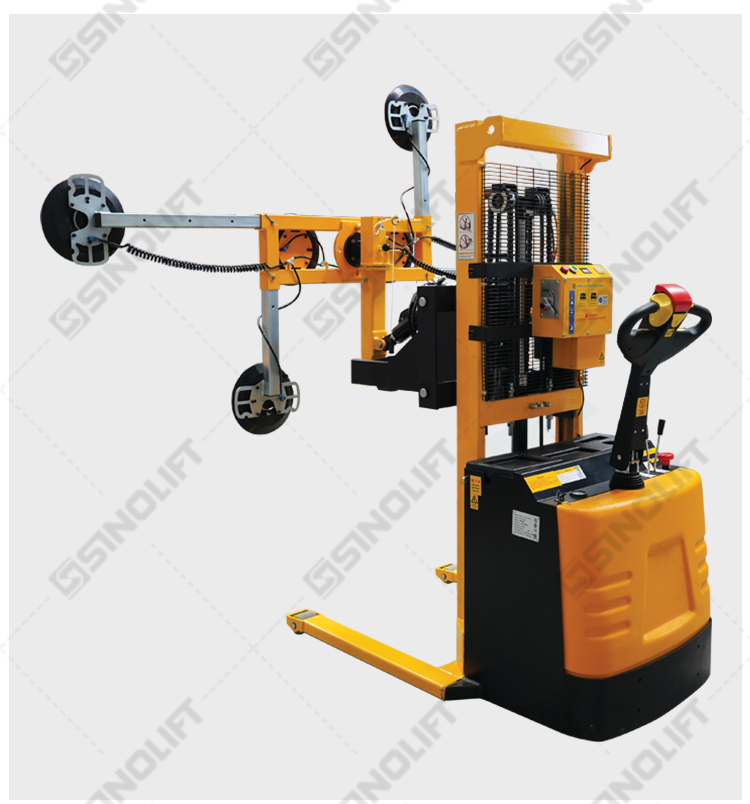

WSC-095GR Automatic powered electric glass Vacuum Glass Flip handling Lifter

Wideusage

Suitable for glass, steel plate, marble, plate handling, lifting operations. Suitable for placing glass / window on the cutting table, in loading truck, edge processing machinery and furnaces, a variety of supporting specifications are: four suction cups, six suction cups, eight suction cups, etc., suction cup can be turned 360 degrees twice; various specifications are suitable for different working environment to meet different working requirements.

 Fully function

Glass suction cup products are composed of two control systems the suction cup finished word type to control the car lifting and turn glass, marble and other plane goods, through the operation of the control suction cup, can absorb, lift the flip flat plate. With: electric before and after walking, electric hydraulic lifting, suction cup suction guarantee system, electric flip and other functions. Sucker suction guarantee system,

High quality configuration

Independent 12V vacuum system, 24V100AH battery. The foam vacuum pad, horizon automatic drive 350 is ideal for handling a glass machine. The lifting capacity can reach up to 350 kg, and the self-propelled electric rear drive wheel can move accurately horizontally, meeting the requirements of accurate accuracy when assembling glass. The whole  can rotate 360 degrees and 70 degrees transverse index. Charging is convenient, and the car is equipped with an intelligent charger, which is convenient to supplement the truck power at any time.

Simple operation

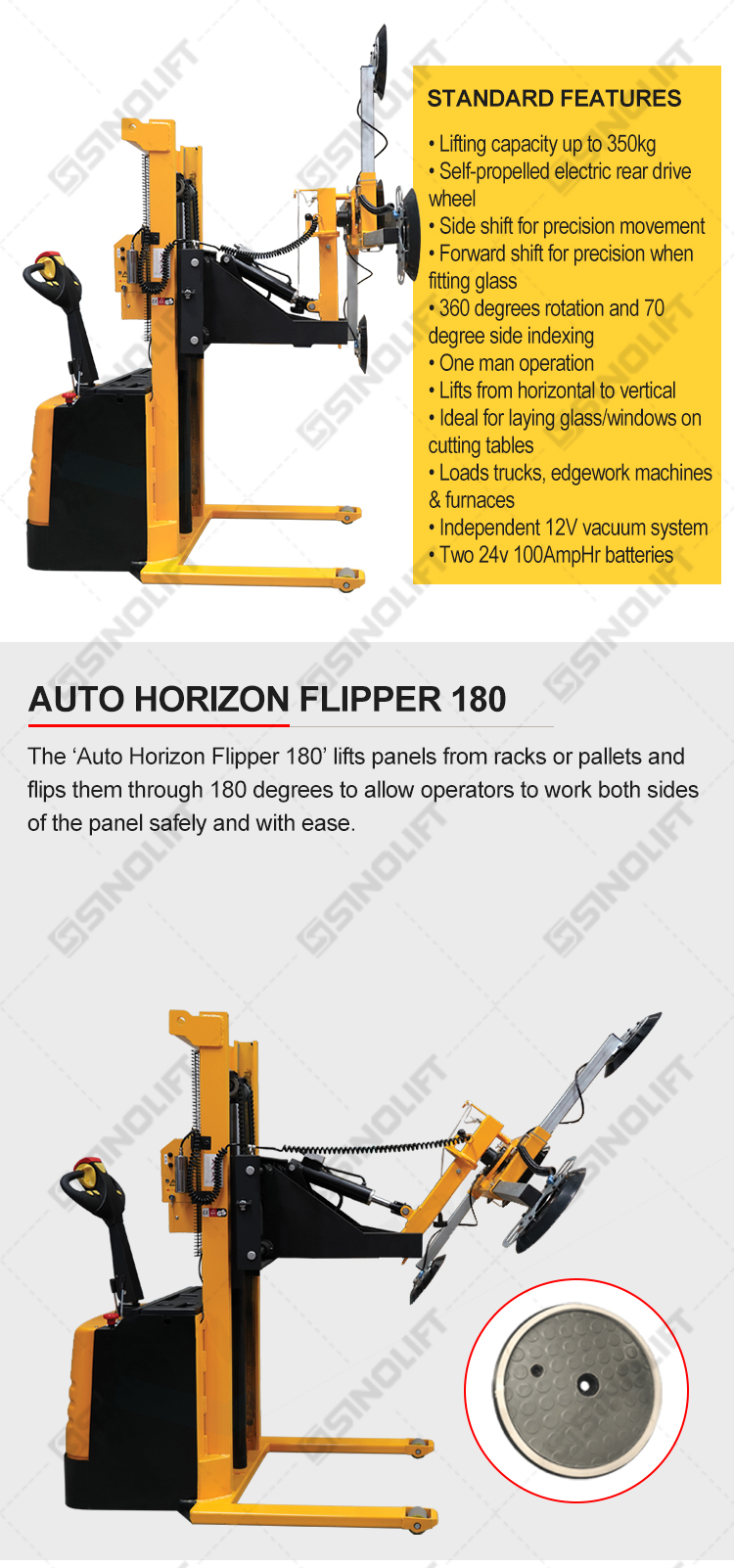

Turn the glass / panel at 180 degrees from horizontal to vertical, at one time if the other, the automatic horizon flip 180 lifts the panel by 180 degrees from the rack or tray and lip, allowing the operator to work safely and easily on both sides of the panel. Lifting capacity of up to 350 kg / 770 lb, self-propelled electric rear drive wheel, with 360 degrees of rotation

Convenient and small product appearance; easy to and out of the elevator.

Smart design

focusing the multi-function keys on the control handle. Easy movement; electric walk, electronic stepless speed regulation, walking walk, high power drive motor, to ensure the safety of carrying glass

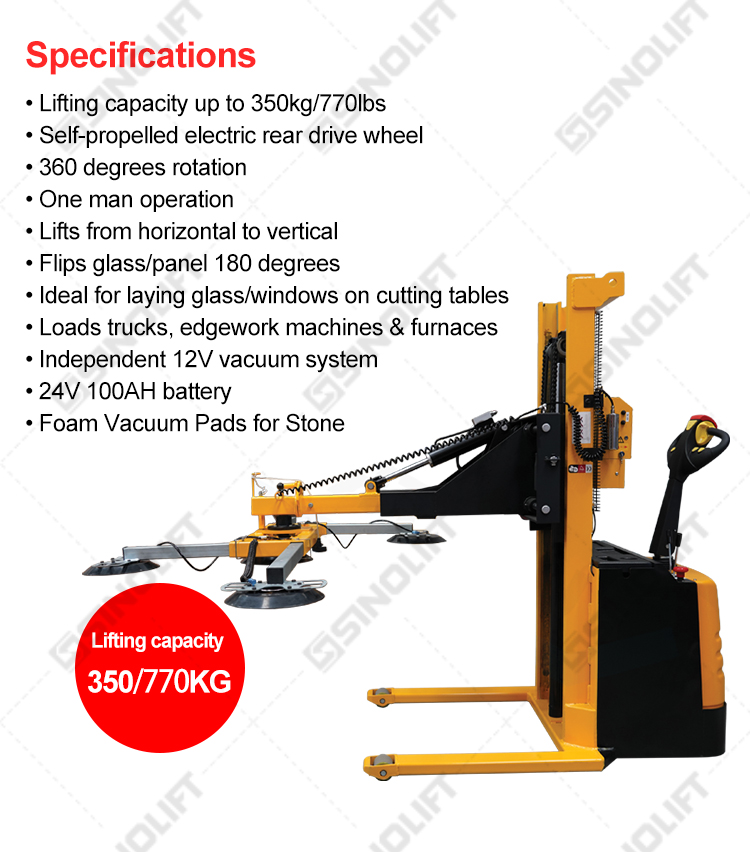

Specification
