SINOLIFT CTD350-R720 Semi-electric Clamping Truck

CTD350-R720

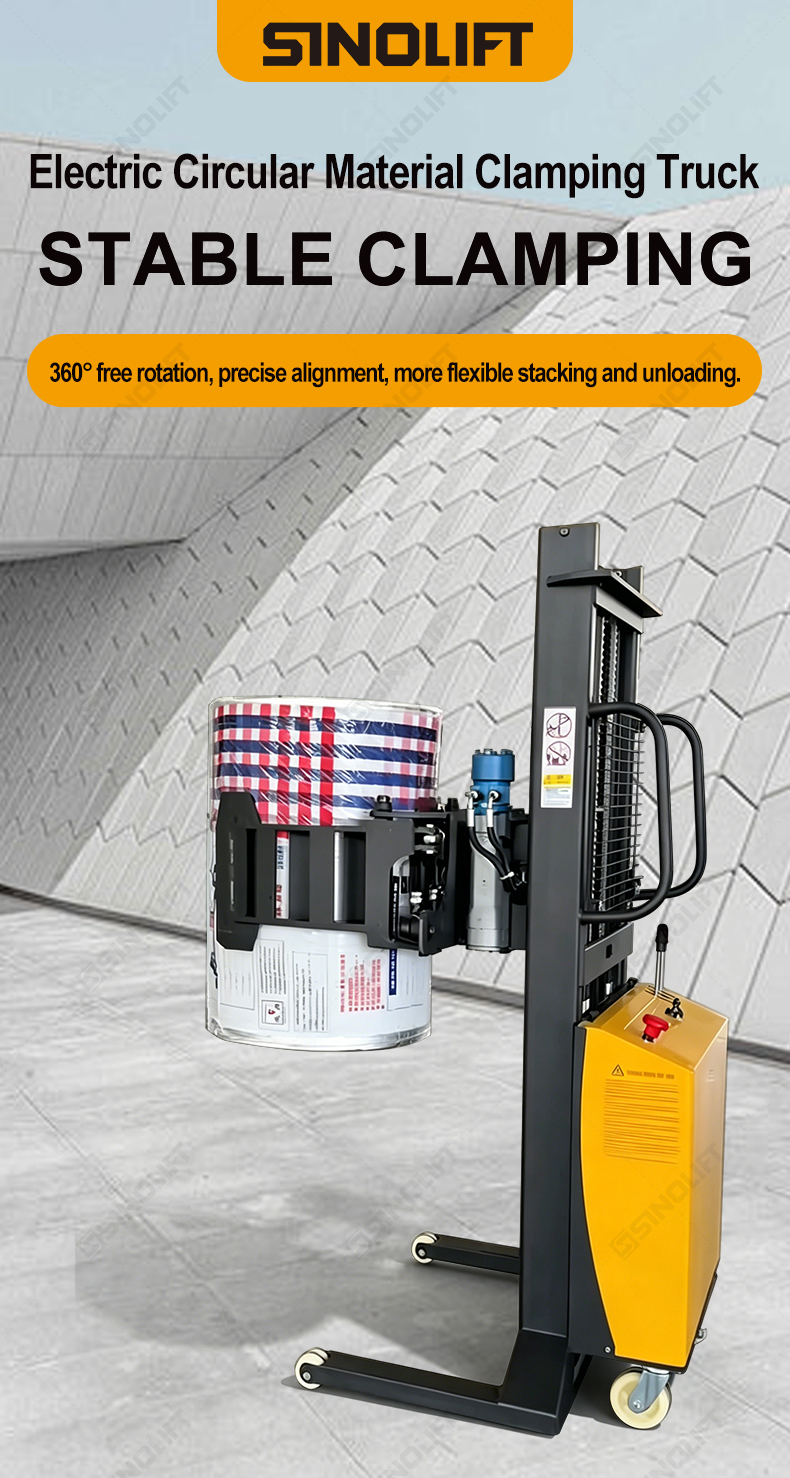

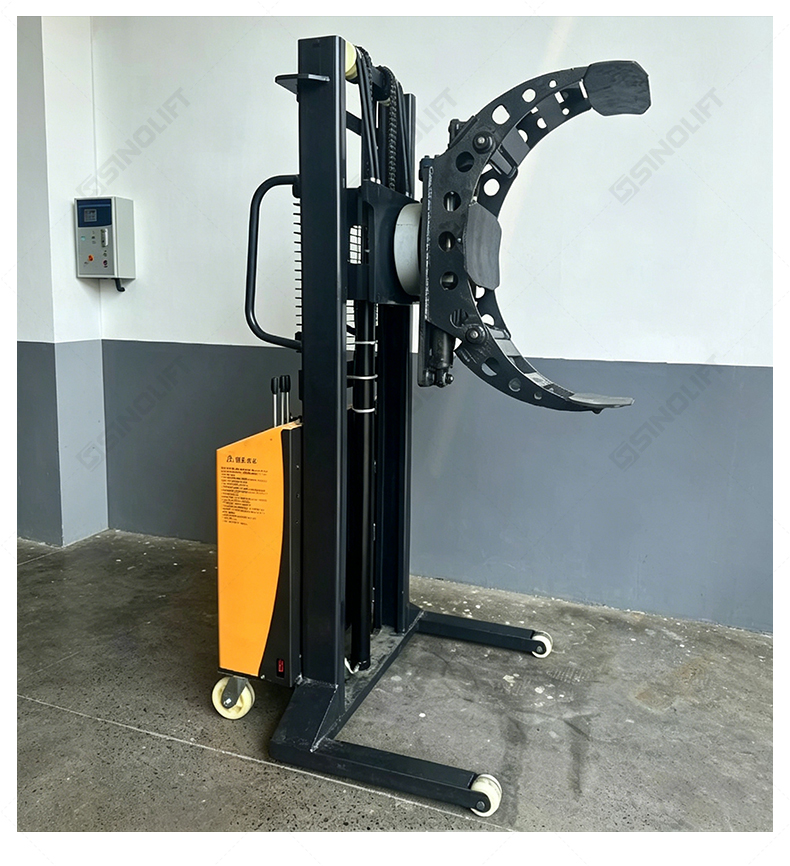

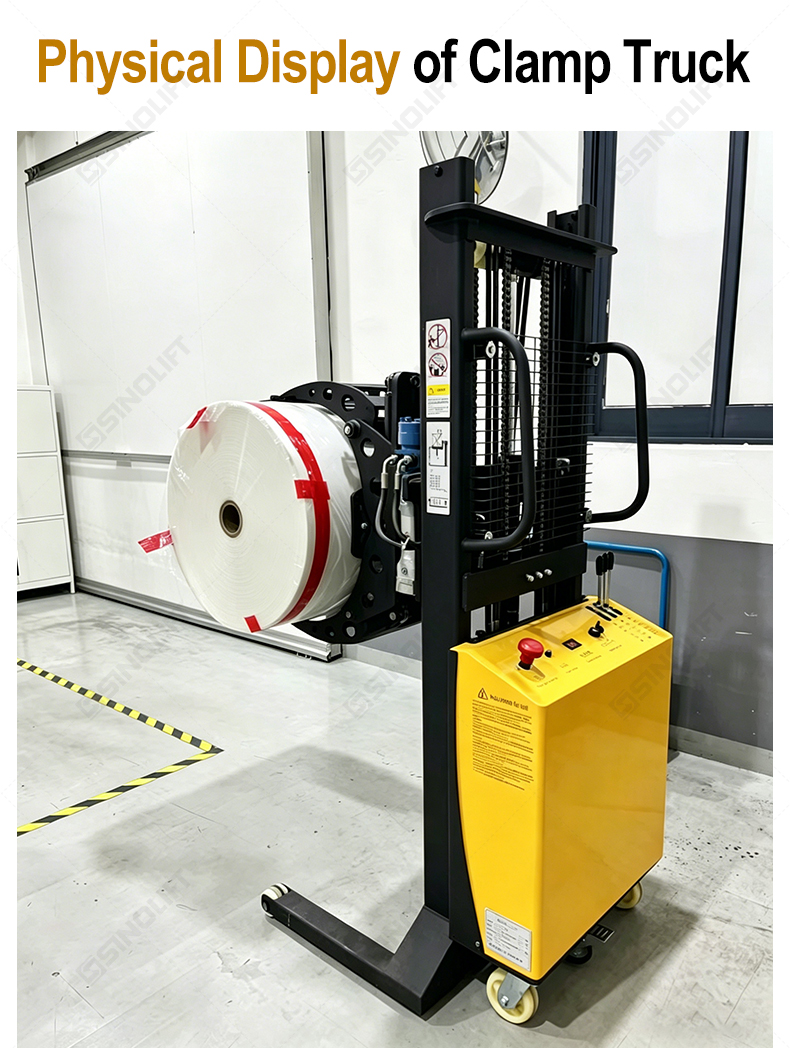

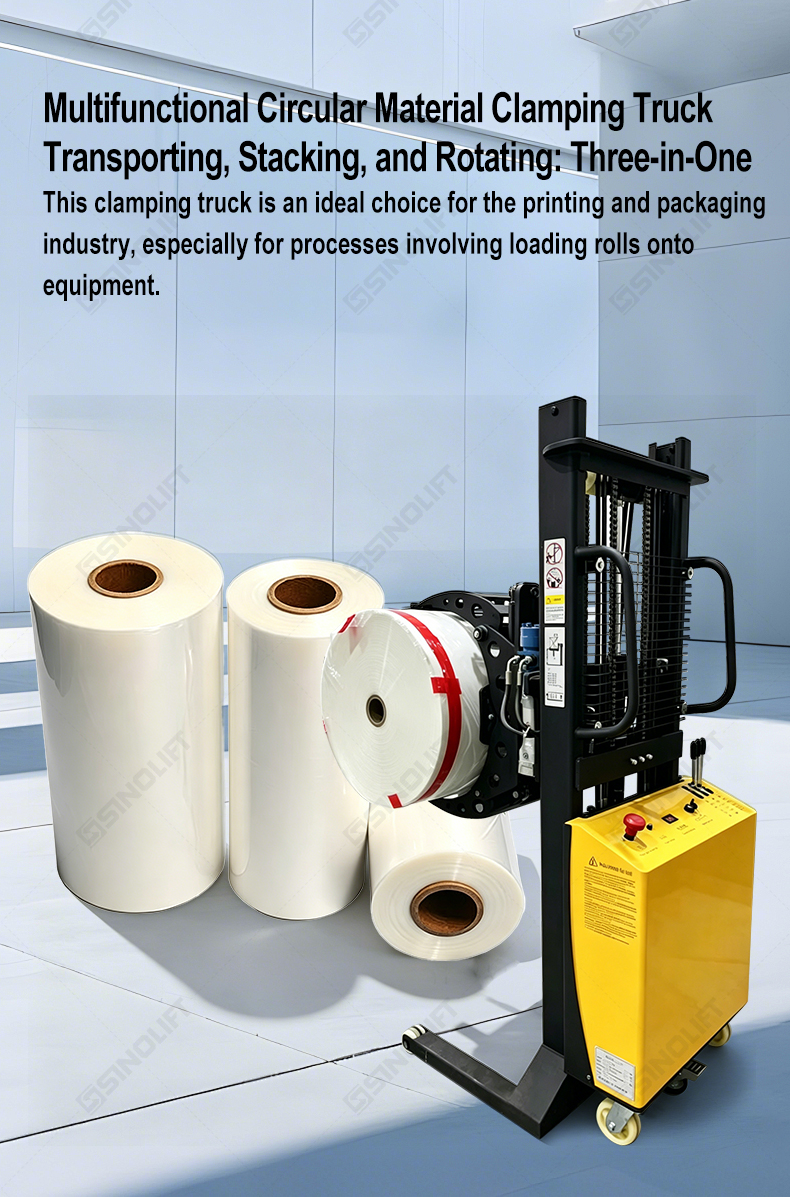

The SINOLIFT CTD350-R720 Semi-electric Clamping Truck is specially designed for handling cylindrical materials such as paper rolls, film rolls, drums, and coil materials. Combining transporting, stacking, clamping, and rotating functions in one machine, it enables operators to safely pick up rolls from the floor or pallets, lift them to the required height, and rotate them for precise positioning.

Quantity:

Contact Now

add to cart

Product Name

SINOLIFT CTD350-R720 Semi-electric Clamping Truck

Product Description

The SINOLIFT CTD350-R720 Semi-electric Clamping Truck is specially designed for handling cylindrical materials such as paper rolls, film rolls, drums, and coil materials. Combining transporting, stacking, clamping, and rotating functions in one machine, it enables operators to safely pick up rolls from the floor or pallets, lift them to the required height, and rotate them for precise positioning. The truck features electric lifting, hydraulic clamping, and 360° rotation, making it an ideal solution for printing, packaging, and manufacturing industries.

Key Features

• Semi-electric design with electric lifting and manual travel

• Secure hydraulic clamping system for cylindrical materials

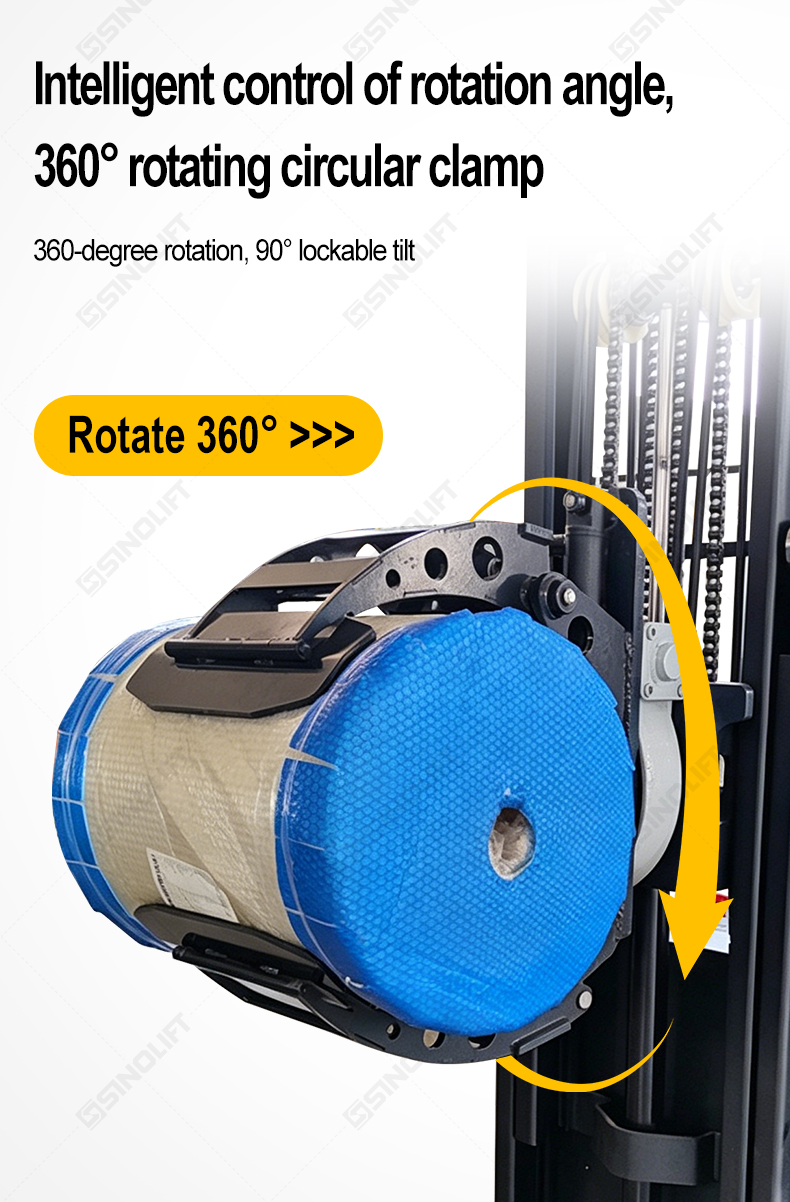

• 360° powered rotation with 90° lockable tilt

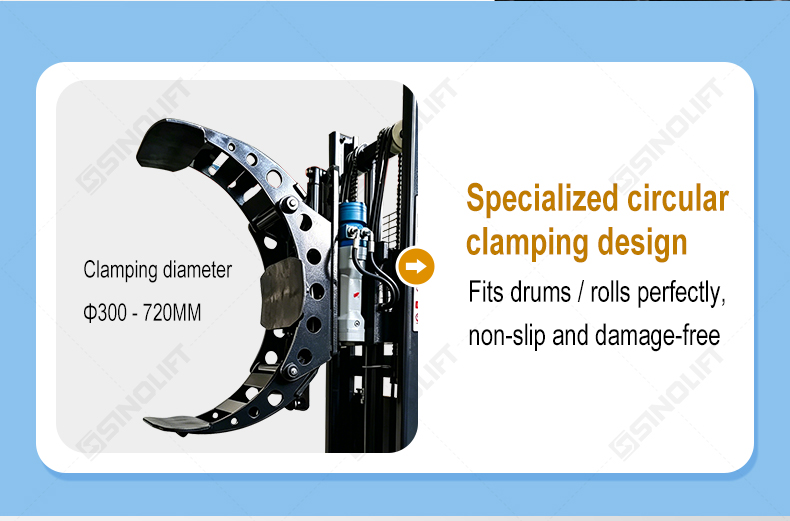

• Clamping diameter range: Φ300-720 mm

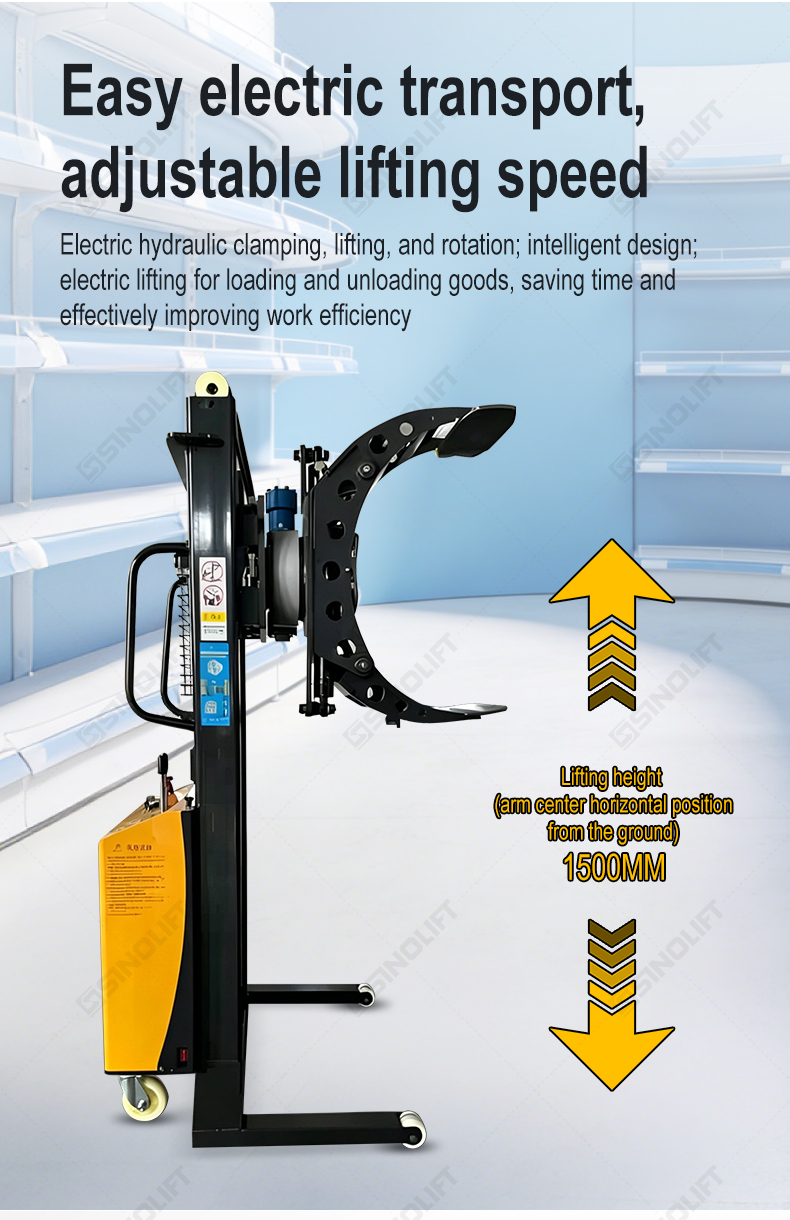

• Lifting height up to 1500 mm (arm center height)

• Specialized circular clamp design prevents slipping and material damage

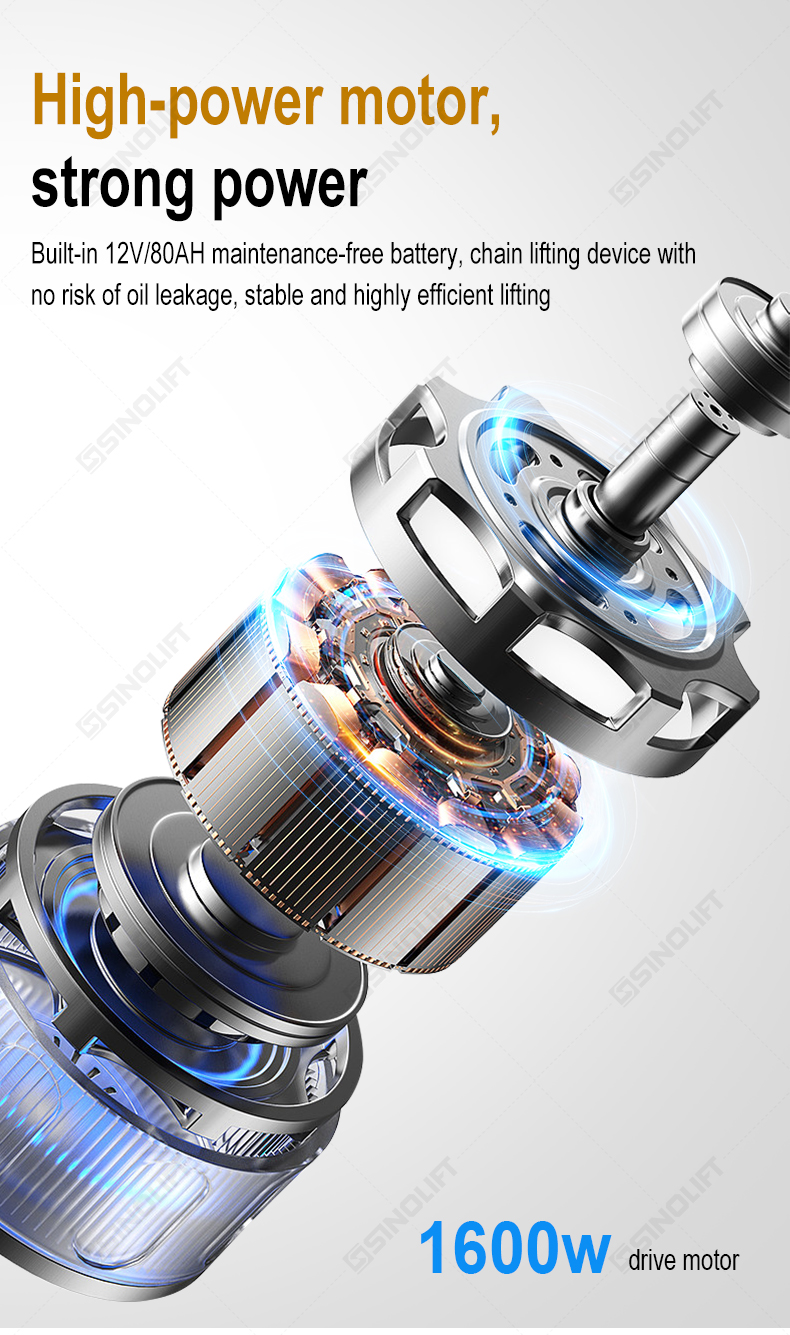

• High-power motor for stable and efficient operation

• Maintenance-free 12V/80Ah battery

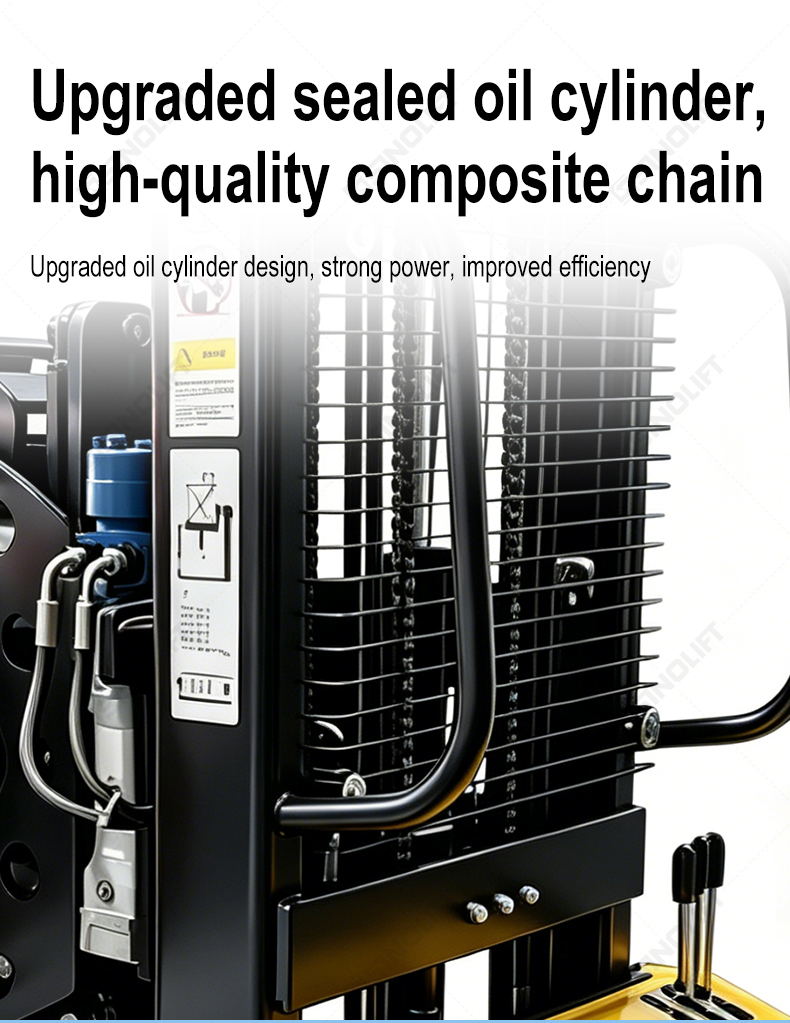

• Upgraded sealed oil cylinder and durable composite chain

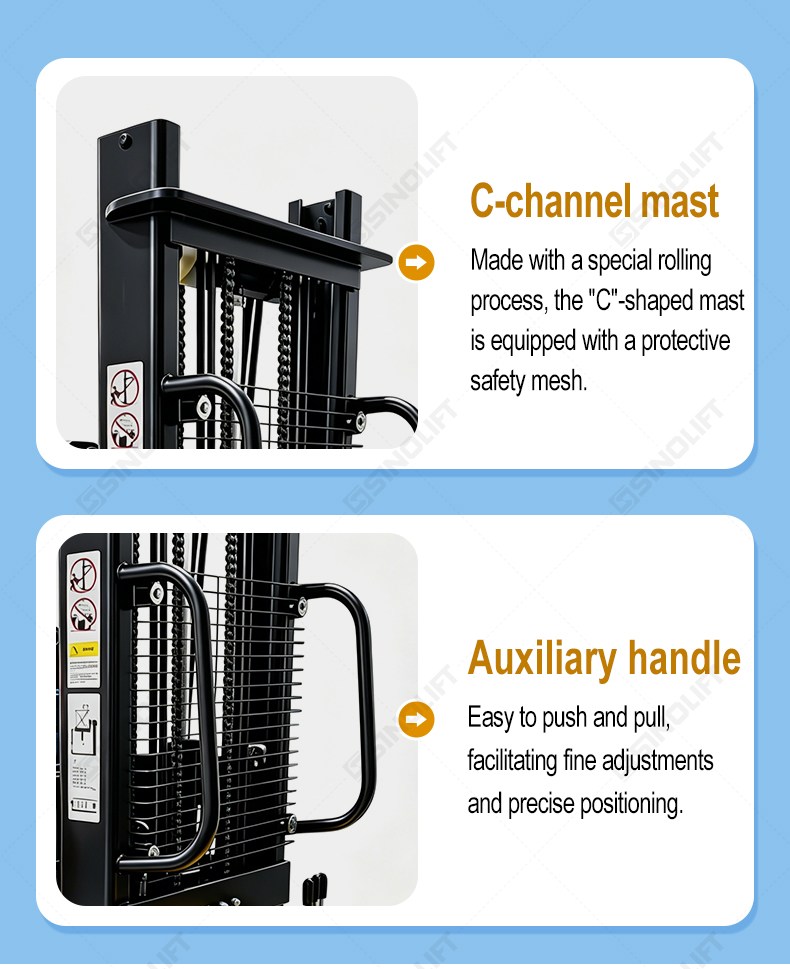

• C-channel mast with protective safety mesh

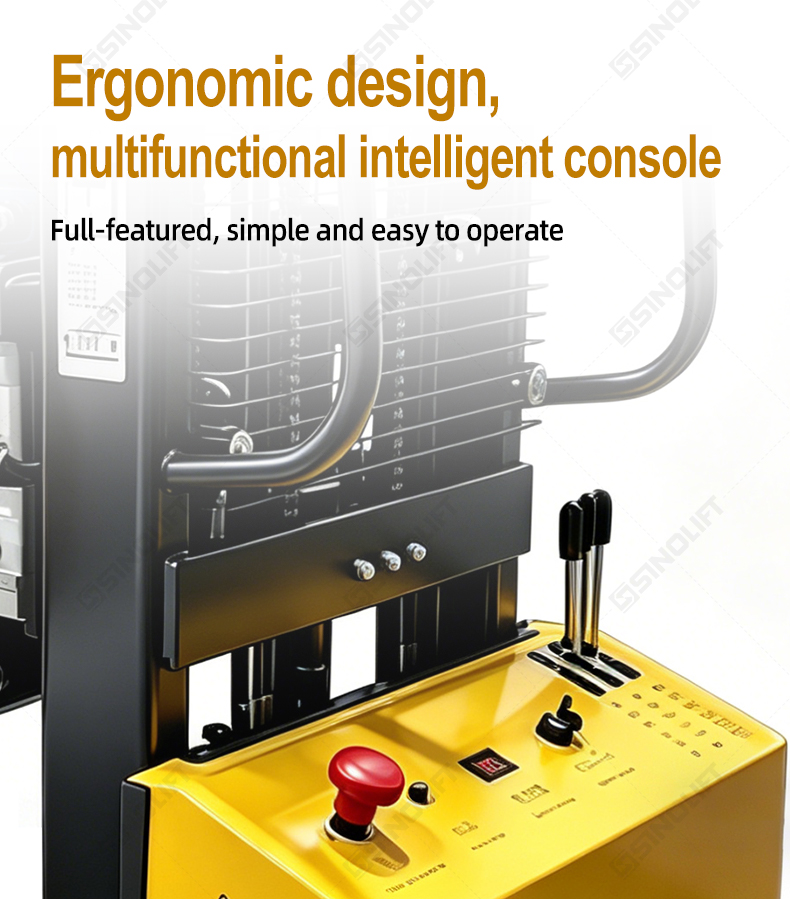

• Auxiliary handle for precise positioning and easy maneuverability

Applications

• Printing industry

• Packaging industry

• Paper roll handling

• Film and plastic processing

• Textile roll transportation

• Warehouses and logistics centers

• Manufacturing workshops

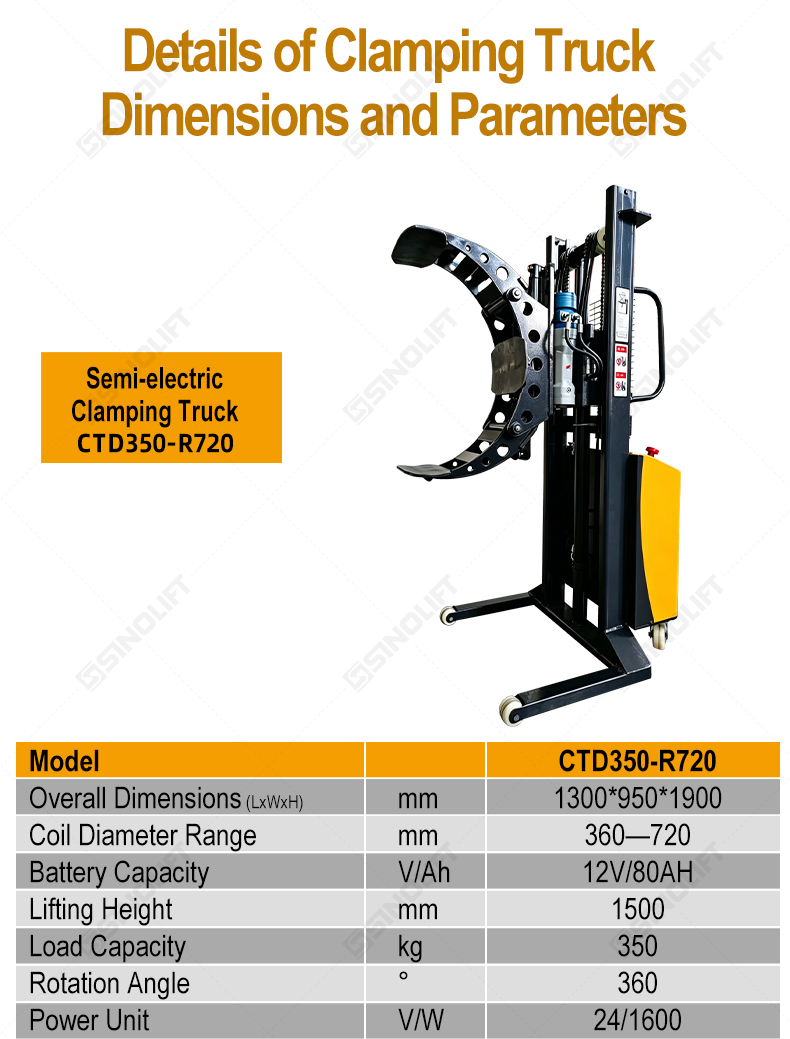

Product Specifications

Model	CTD350-R720
Overall Dimensions (LWH) (mm)	13009501900
Coil Diameter Range (mm)	360-720
Battery Capacity (V/Ah)	12V/80AH
Lifting Height (mm)	1500
Load Capacity (kg)	350
Rotation Angle (°)	360
Power Unit (V/W)	24/1600
