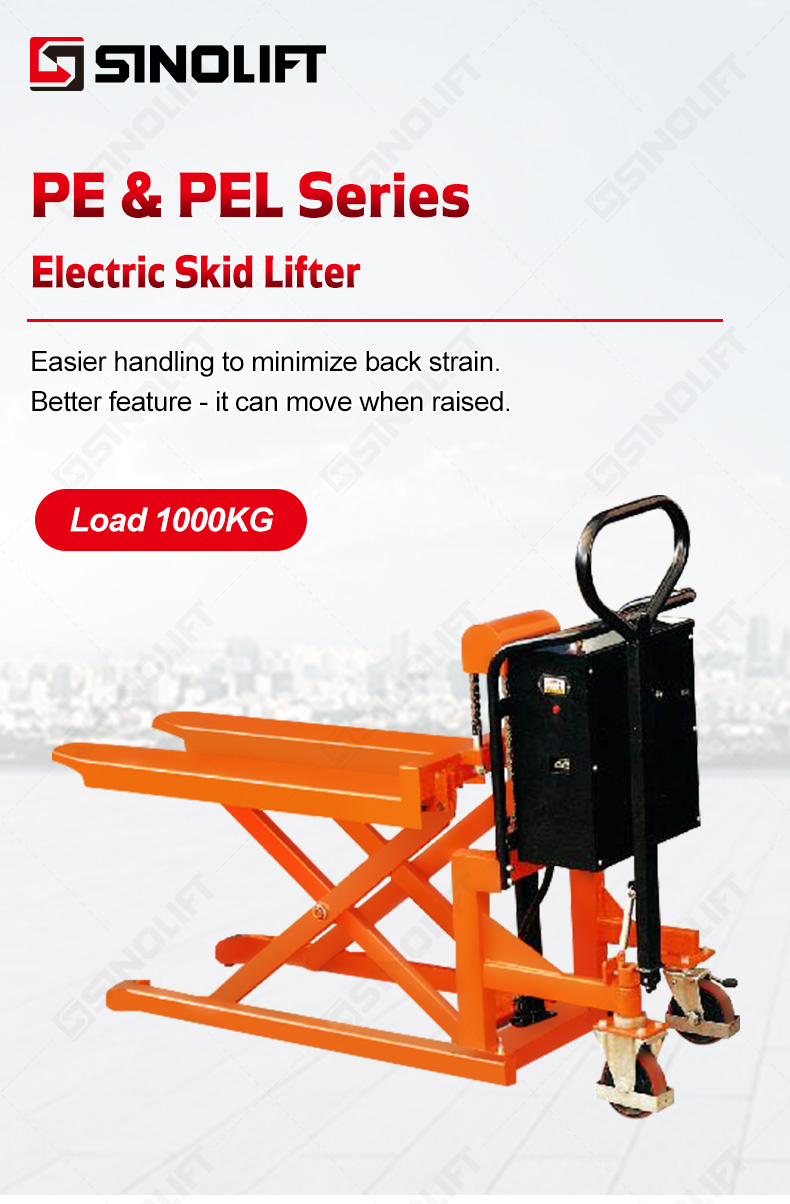

PE & PEL Series Electric Skid Lifter

Feature：
Easier handling to minimize back strain.

Better feature - it can move when raised.

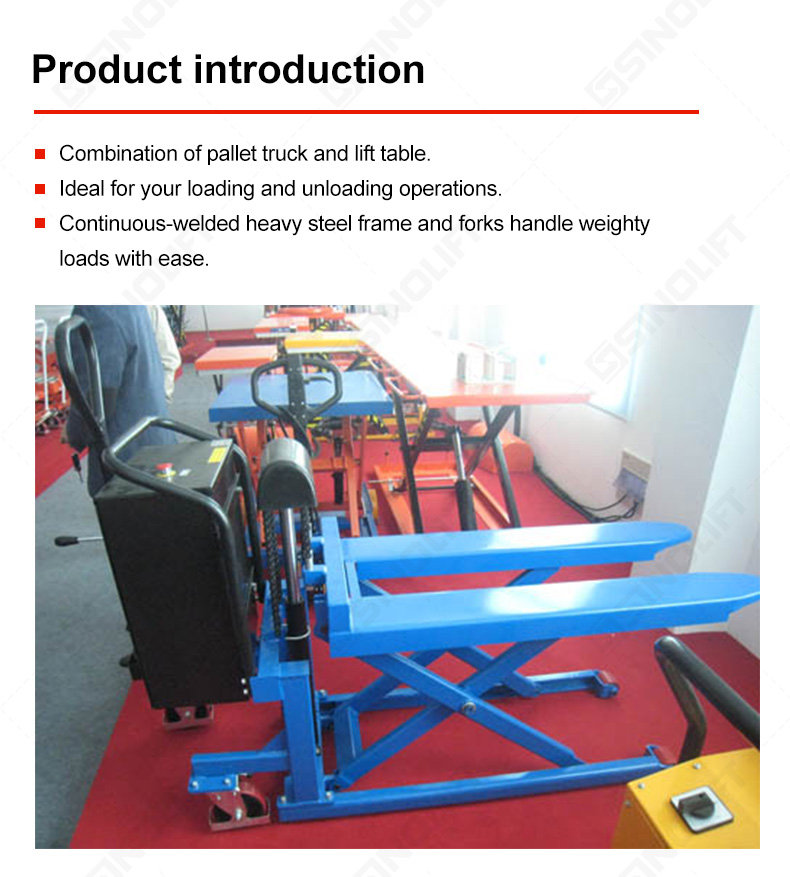

Combination of pallet truck and lift table.

Ideal for your loading and unloading operations.

Continuous-welded heavy steel frame and forks handle weighty loads with ease.

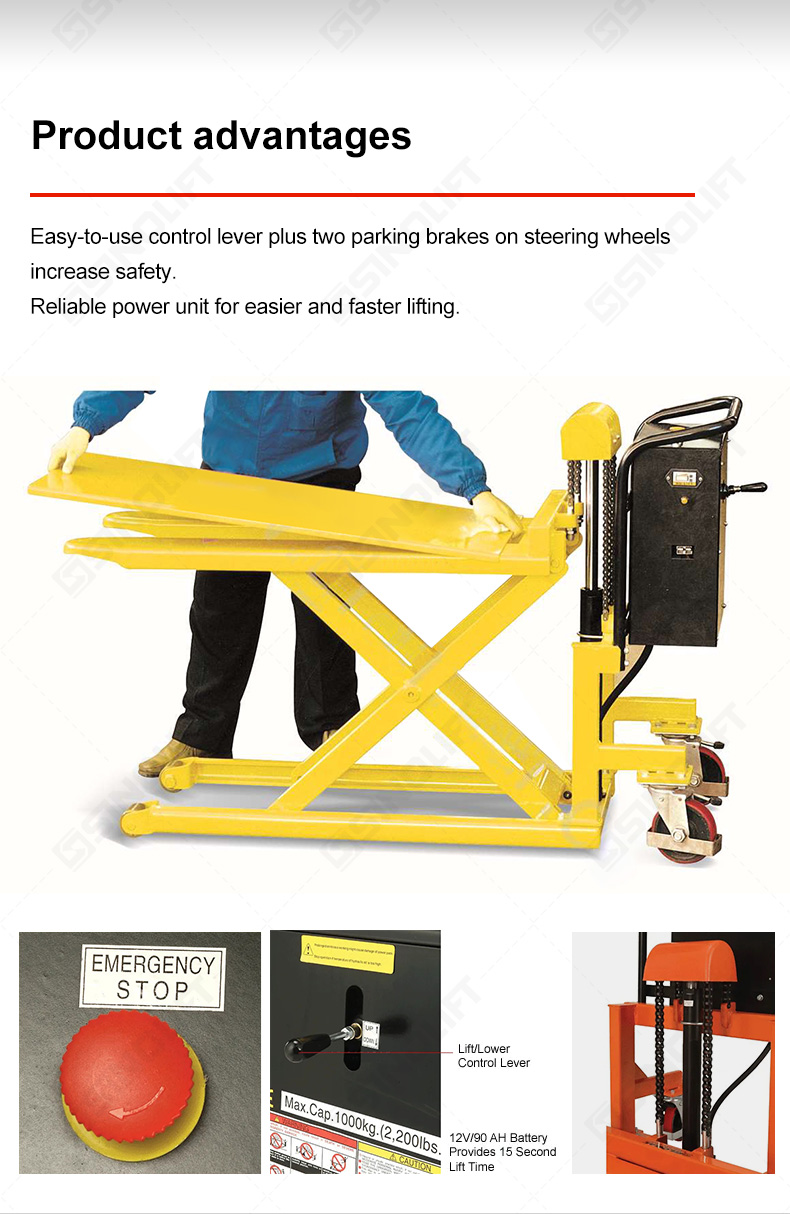

Easy-to-use control lever plus two parking brakes on steering wheels increase safety.

Reliable power unit for easier and faster lifting.

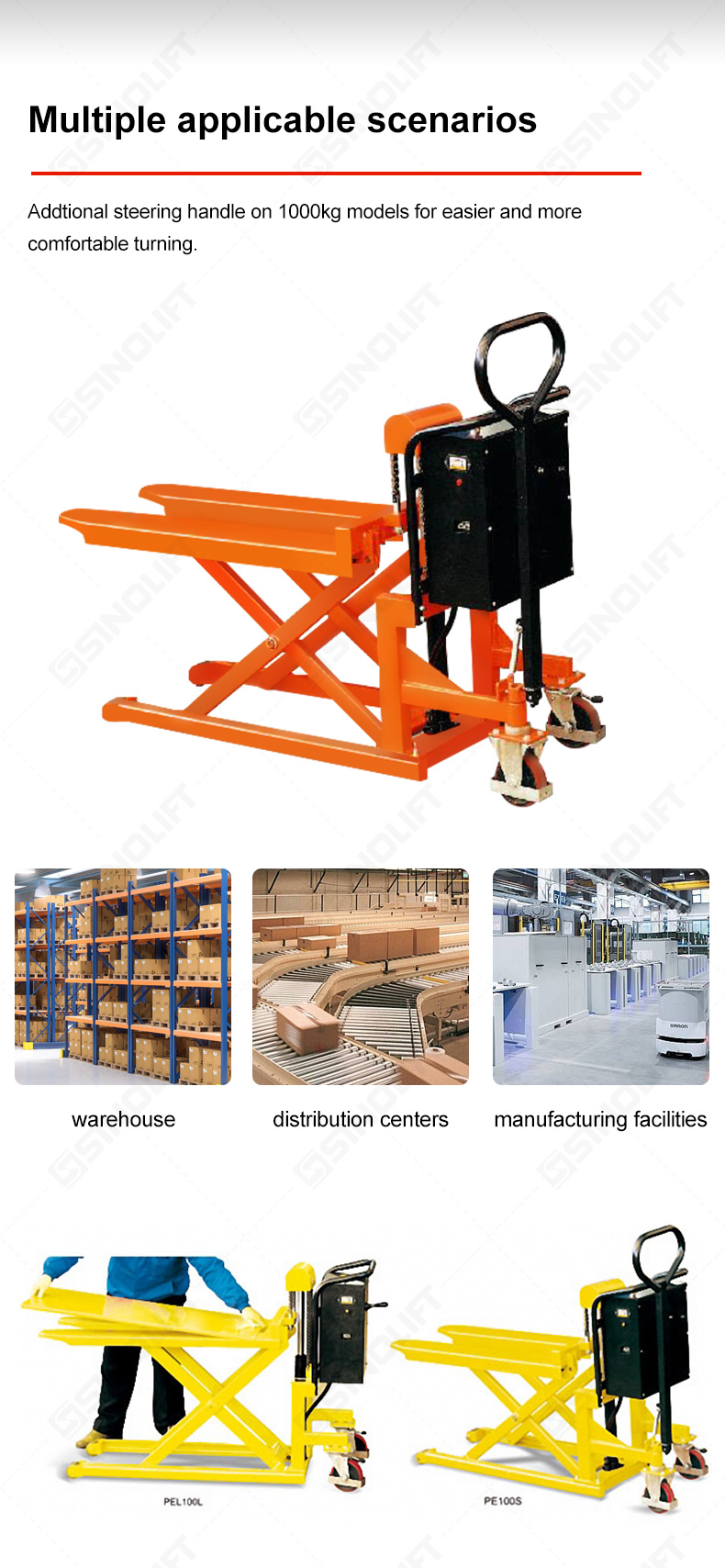

Addtional steering handle on 1000kg models for easier and more comfortable turning.

Quantity

Contact Now

add to cart

Easier handling to minimize back strain.

Better feature - it can move when raised.

Combination of pallet truck and lift table.

Ideal for your loading and unloading operations.

Continuous-welded heavy steel frame and forks handle weighty loads with ease.

Easy-to-use control lever plus two parking brakes on steering wheels increase safety.

Reliable power unit for easier and faster lifting.

Addtional steering handle on 1000kg models for easier and more comfortable turning.

Specifications

Model		PE50S	PE50L	PE100S	PE100L	PEL50S	PEL50L	PEL100S	PEL100L
Load	kg	500	500	1000	1000	500	500	1000	1000
Min. Fork Height	mm	85	85	85	85	88	88	88	88
Max. Fork Height	mm	830	830	830	830	833	833	833	833
Fork/Platform Width W(mm)	mm	526	690	526	690	538	703	538	703
Fork/Platform Length L(mm)	mm	1115	1115	1115	1115	1115	1115	1115	1115
Overall Length	mm	1620	1620	1740	1740	1620	1620	1740	1740
Overall Width	mm	580	740	550	720	580	752	556	726
Overall Height	mm	1050	1050	1307	1307	1050	1050	1307	1307
Front Roller	mm	φ75×68	φ75×68	φ75×68	φ75×68	φ75×68	φ75×68	φ75×68	φ75×68
Steering Whee	mm	φ150×40	φ150×40	φ150×40	φ150×40	φ150×40	φ150×40	φ150×40	φ150×40
Battery	Ah/V	Dec-66	Dec-66	Dec-66	Dec-66	Dec-66	Dec-66	Dec-66	Dec-66
Net Weight	kg	172	176	174	180	180	184	182	188
