Product Name

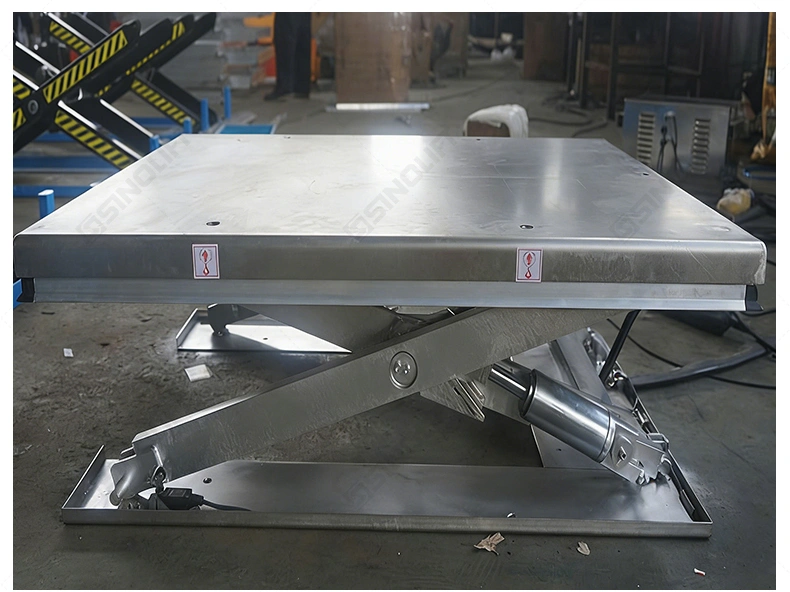

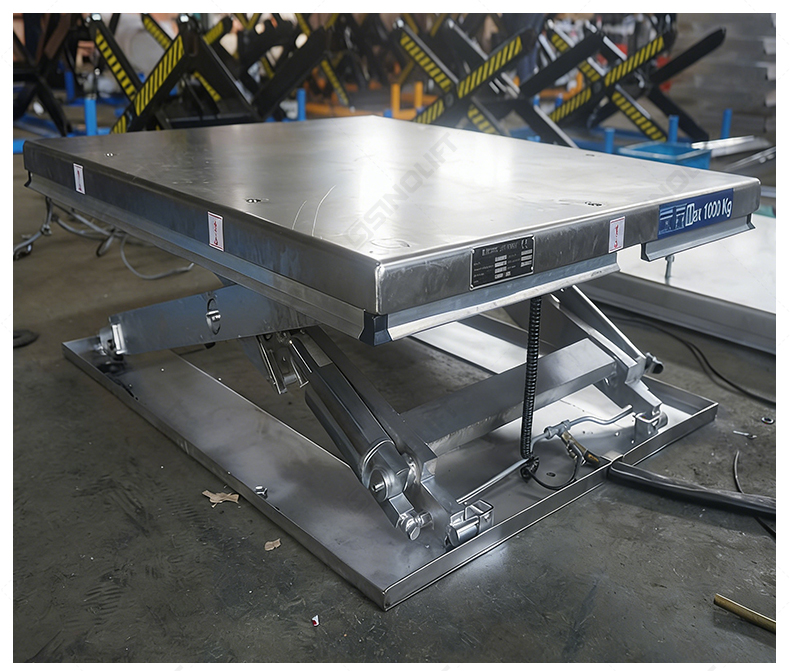

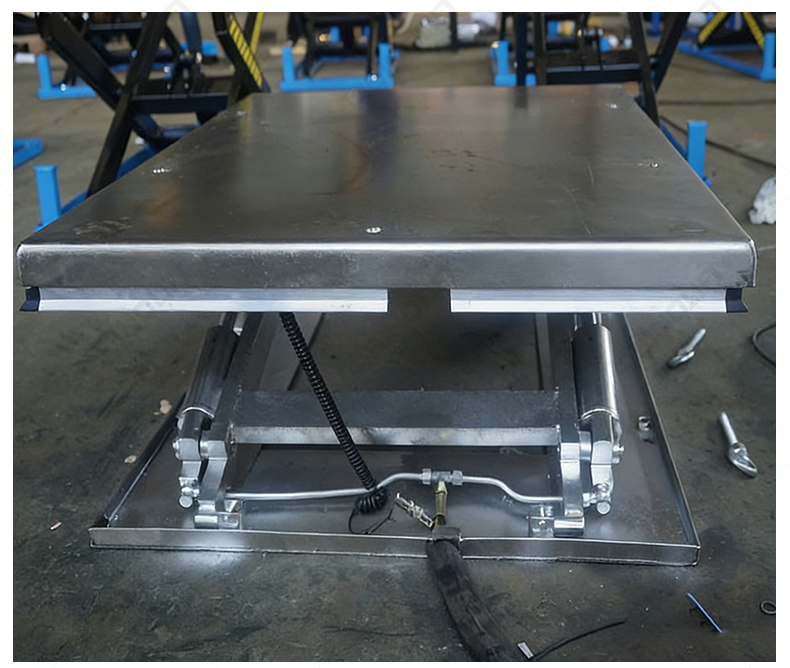

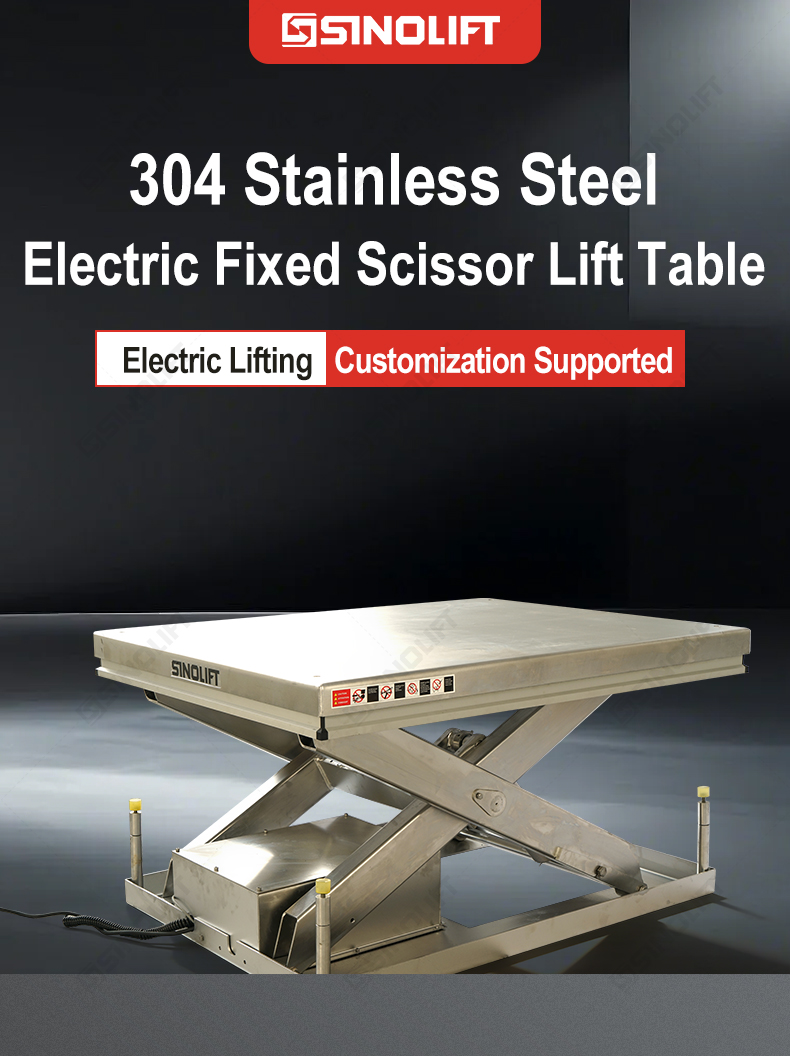

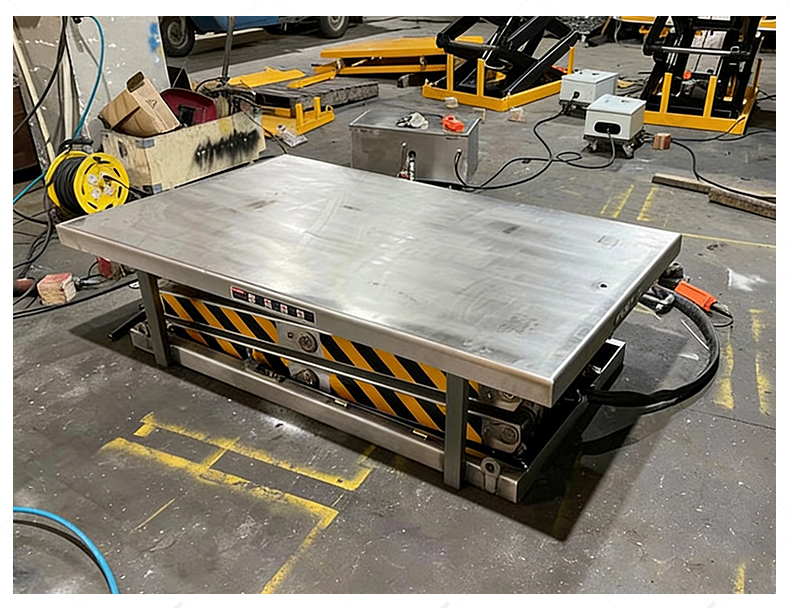

SINOLIFT HW-S 304 Stainless Steel Electric Fixed Scissor Lift Table

Product Description

The SINOLIFT HW-S 304 Stainless Steel Electric Fixed Scissor Lift Table is specially designed for hygienic, corrosive, and heavy-duty industrial environments. Constructed with premium 304 stainless steel, the lift table offers outstanding corrosion resistance, structural durability, and long-term operational reliability.

Featuring a reinforced scissor structure, thickened stainless steel platform, sealed hydraulic cylinders, and powerful electric lifting system, the HW-S series ensures smooth lifting performance, strong load-bearing capacity, and stable operation even under full-load conditions.

Its waterproof and leak-proof design makes it ideal for food processing, chemical industries, pharmaceutical workshops, warehouses, docks, and other demanding applications requiring cleanliness and durability.

Key Features

• Full 304 stainless steel construction
• Corrosion-resistant and rust-proof design

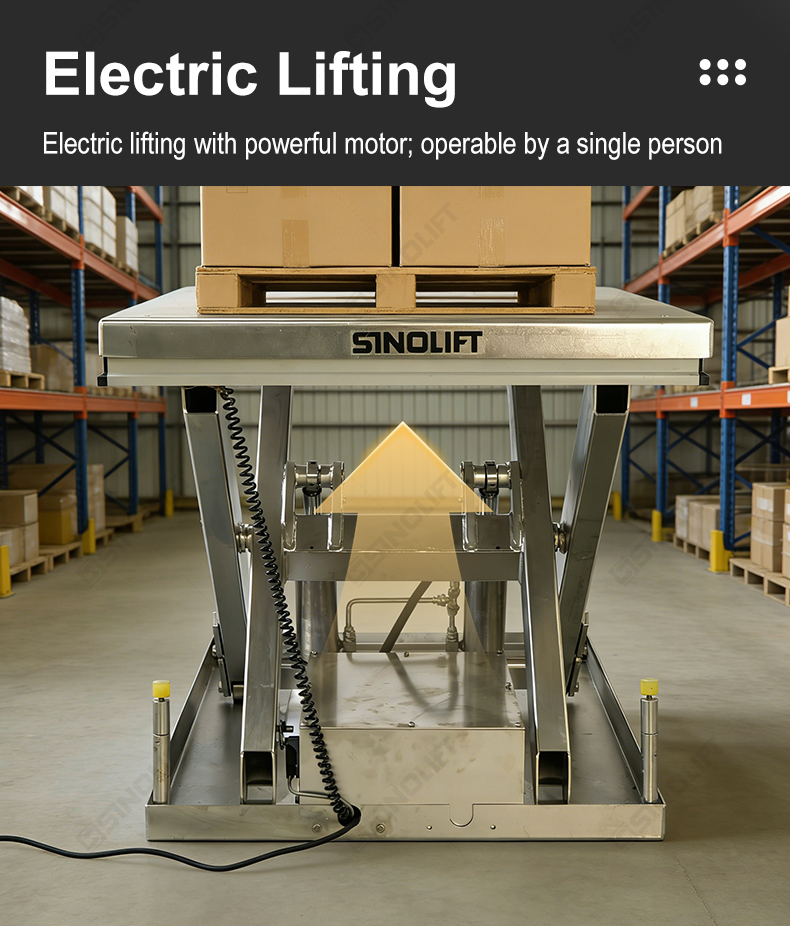

• Electric lifting with powerful motor drive
• Heavy-duty reinforced scissor structure
• Thickened stainless steel platform with reinforcing ribs
• Smooth and stable lifting performance
• No tilt or shaking under full load
• Dual stainless steel hydraulic cylinders
• Sealed leak-proof hydraulic system

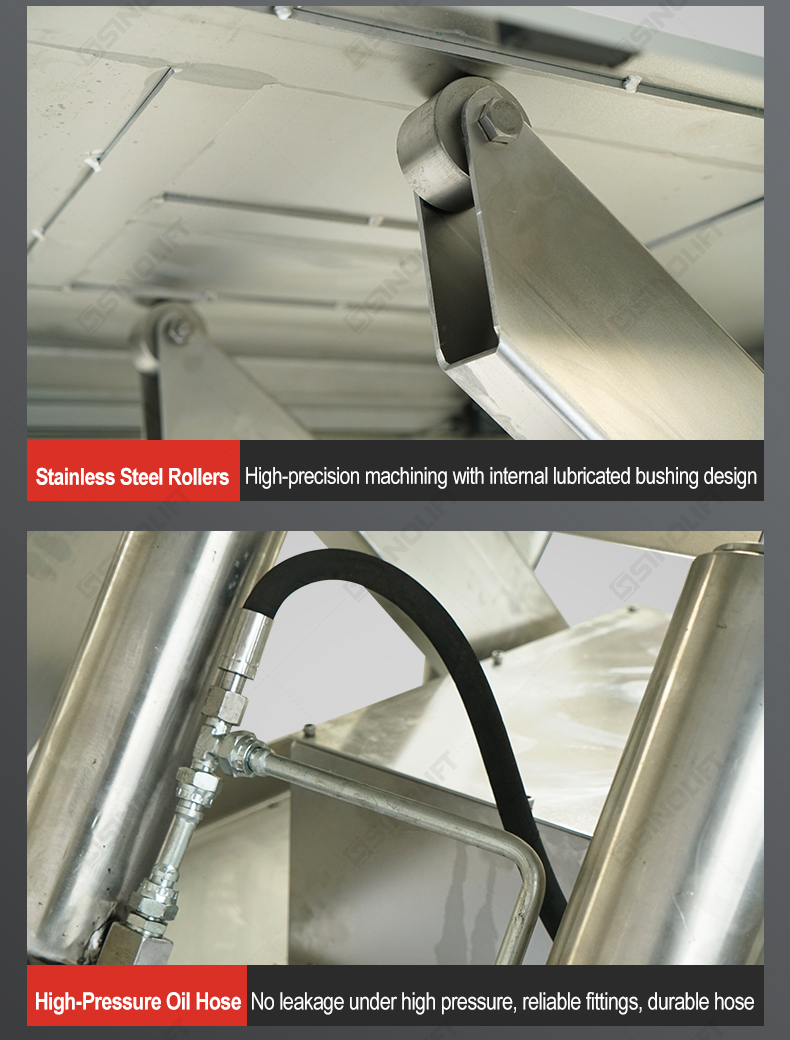

• Durable high-pressure oil hose
• High-precision stainless steel rollers
• Easy operation with remote control system
• Stable load-bearing performance
• OEM and ODM customization supported

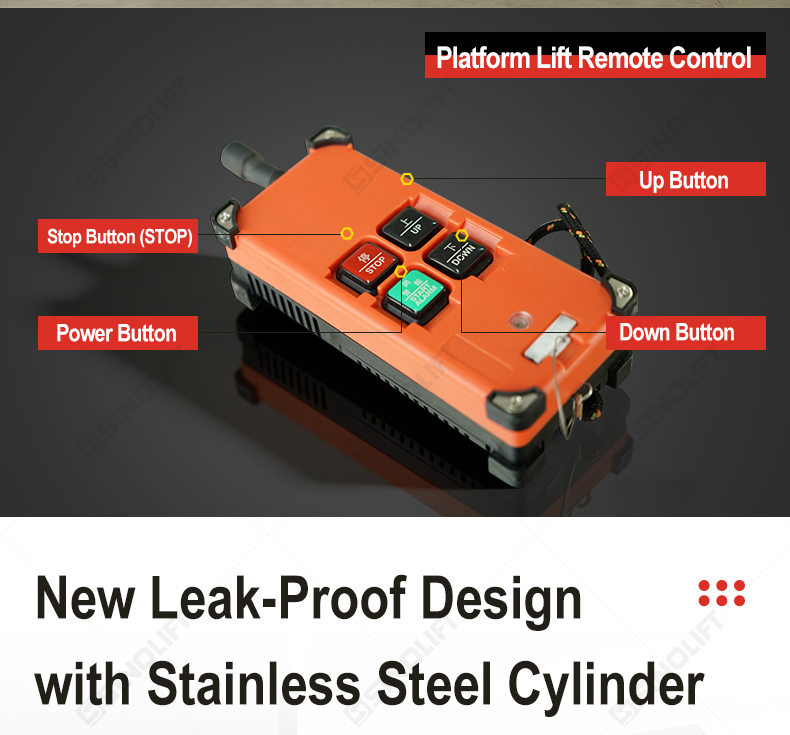

Remote Control Functions

• STOP Button
• POWER Button
• UP Button
• DOWN Button

Simple and convenient operation for efficient lifting control.

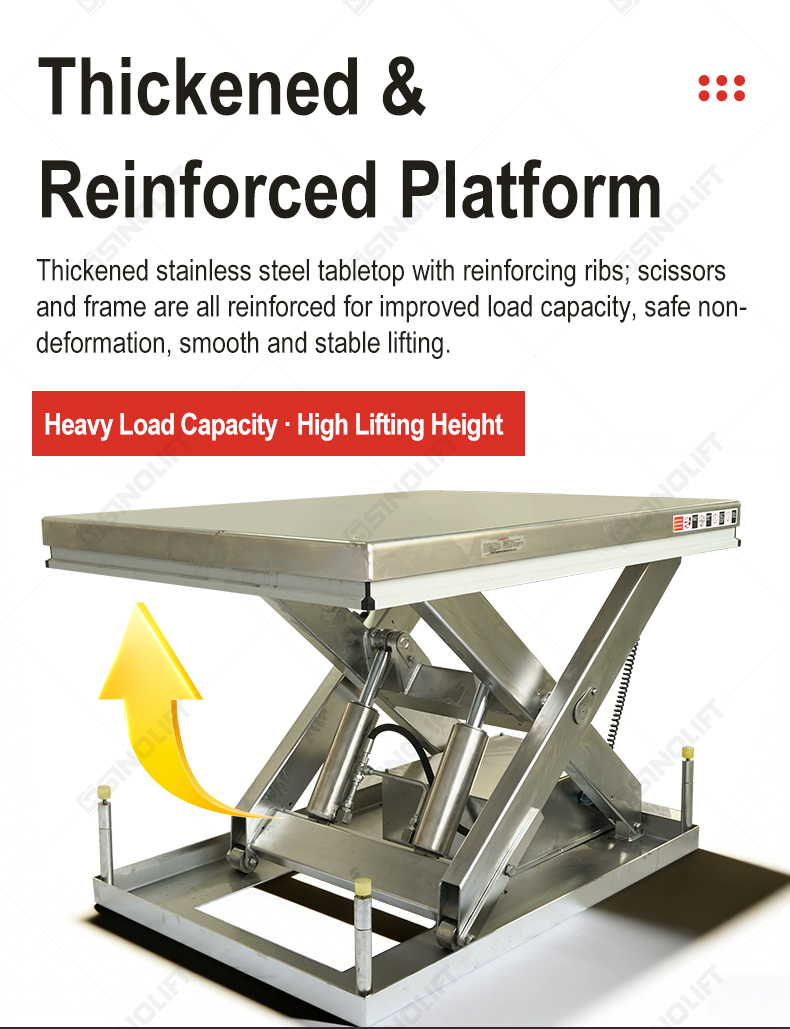

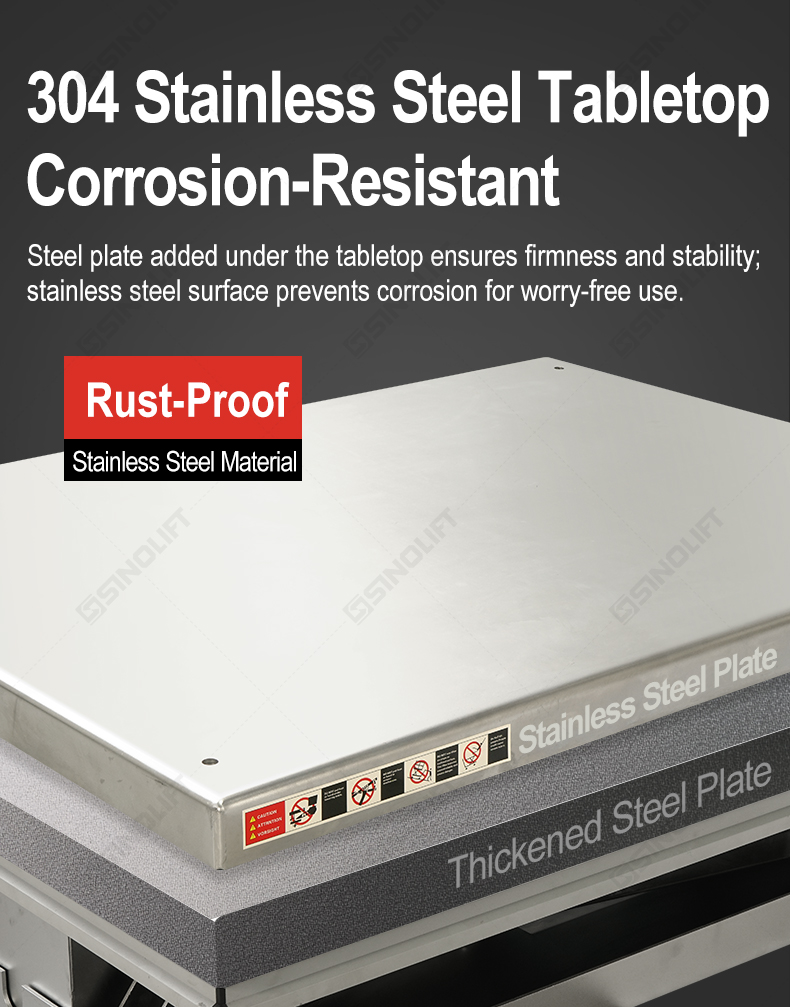

Reinforced Stainless Steel Platform

The thickened stainless steel tabletop is reinforced with additional steel support underneath, significantly improving strength, stability, and load-bearing performance while preventing deformation during operation.

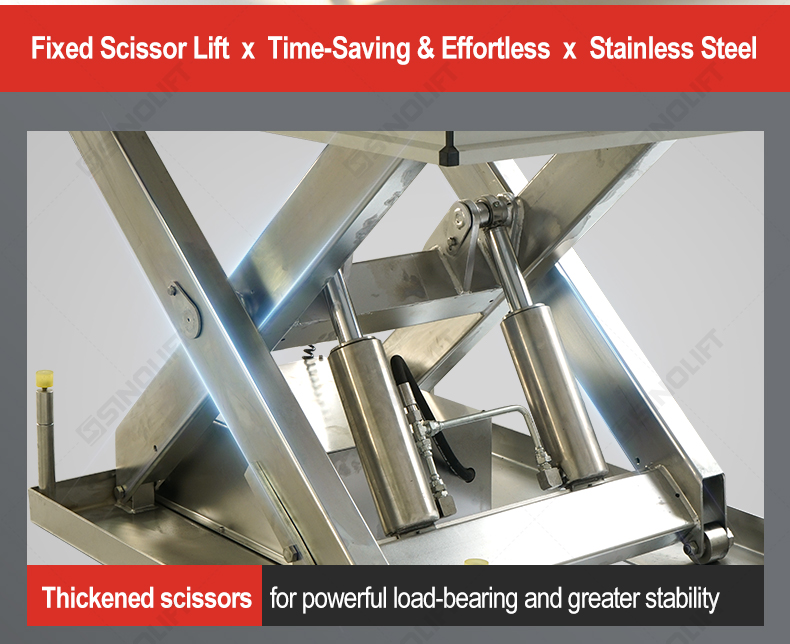

Heavy-Duty Scissor Design

The reinforced scissor mechanism provides smoother lifting, greater stability, and reliable support for heavy materials during lifting and lowering operations.

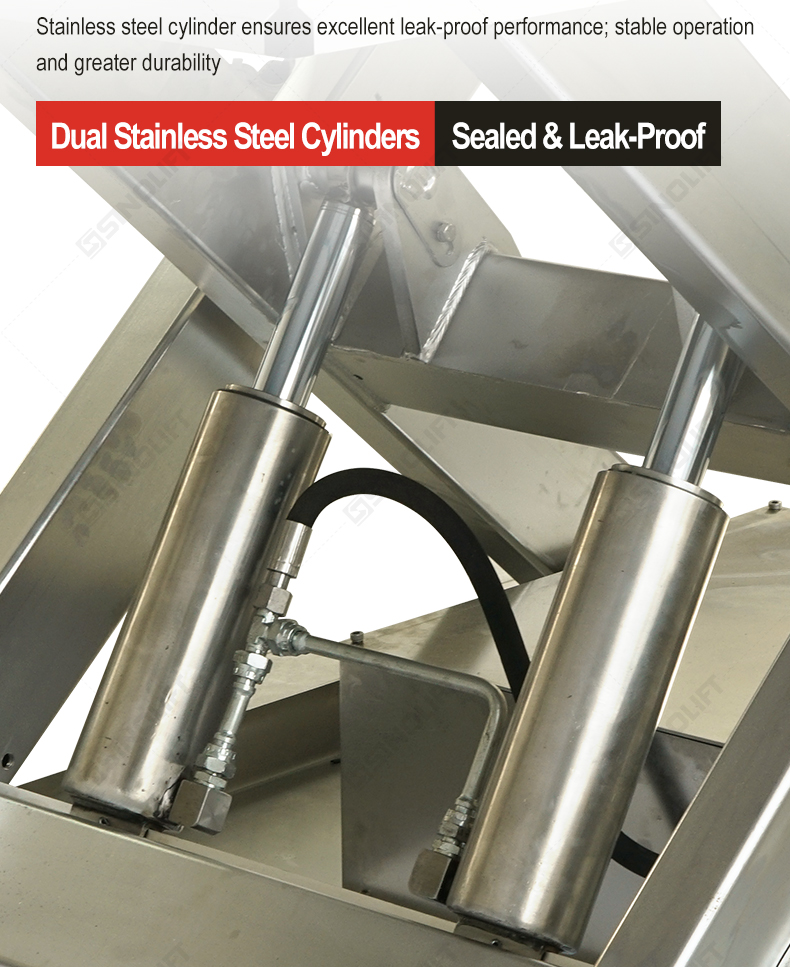

Sealed Stainless Steel Hydraulic Cylinders

Equipped with dual stainless steel hydraulic cylinders for superior sealing performance, leak prevention, and long-lasting durability in wet or corrosive environments.

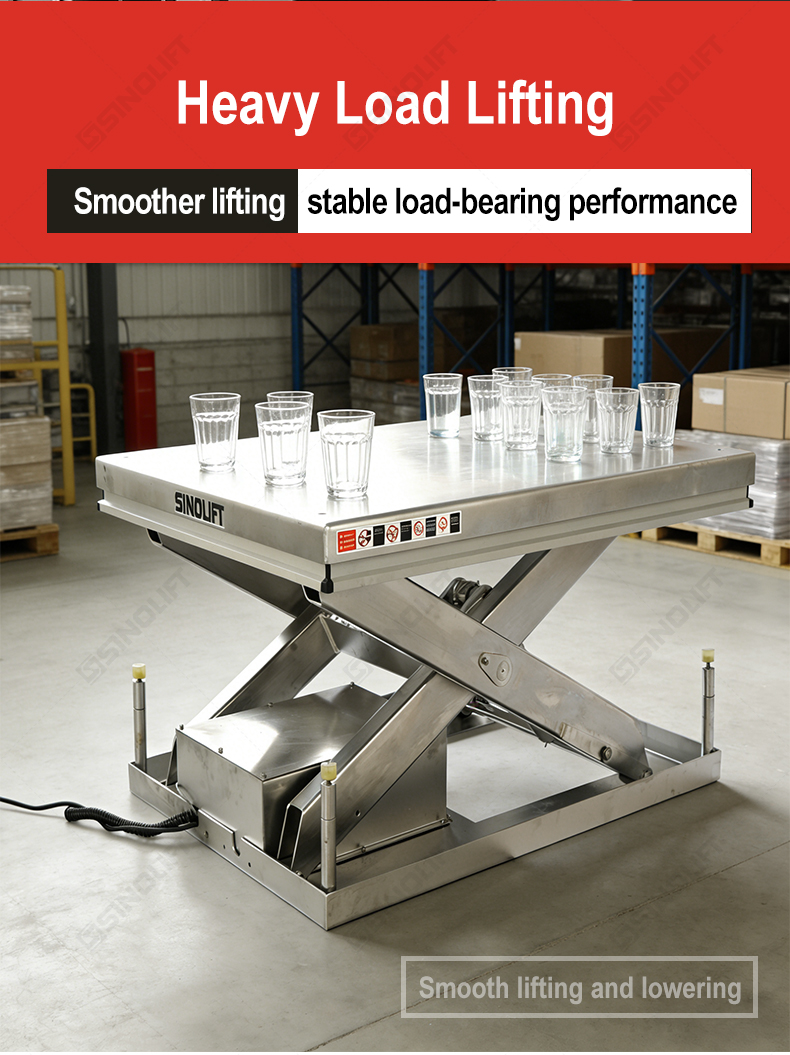

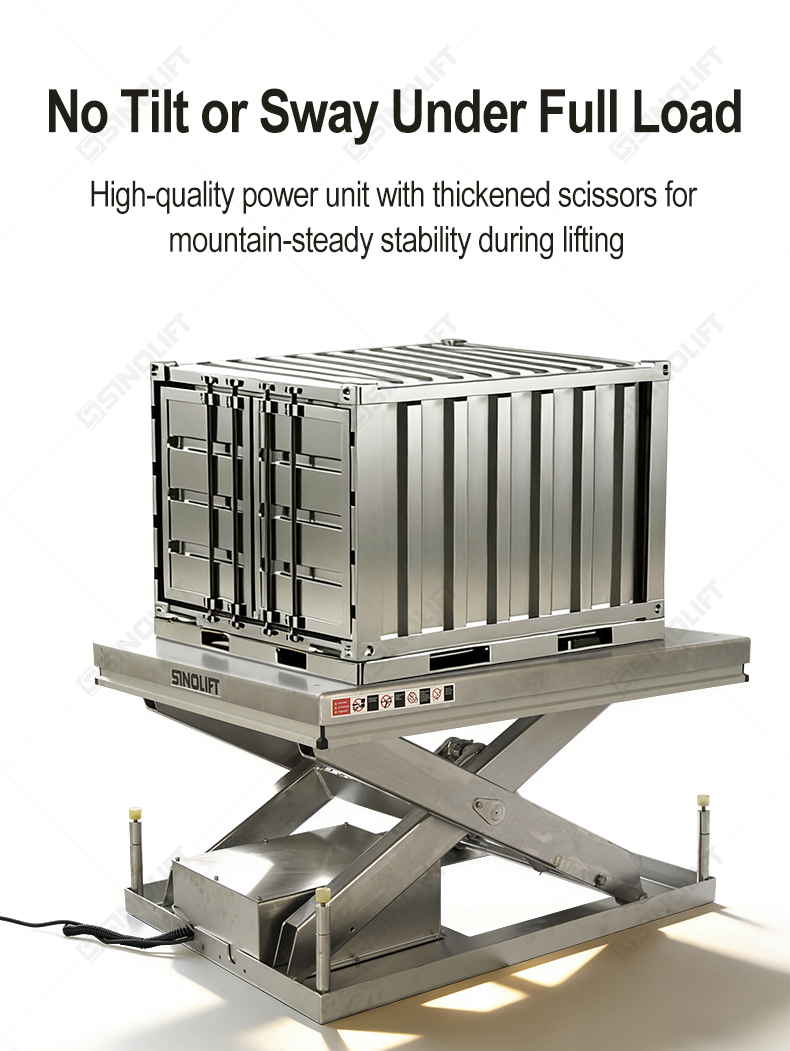

Stable Full-Load Operation

The upgraded power unit and strengthened structure ensure stable lifting without tilting, swaying, or vibration even under maximum load conditions.

Applications

• Printing plant production
• Chemical factory operations
• Port and dock handling
• Warehouse logistics
• Express cargo transfer
• Production line loading
• Food processing environments
• Pharmaceutical workshops
• Hygienic material handling
• Wet and corrosive workplaces

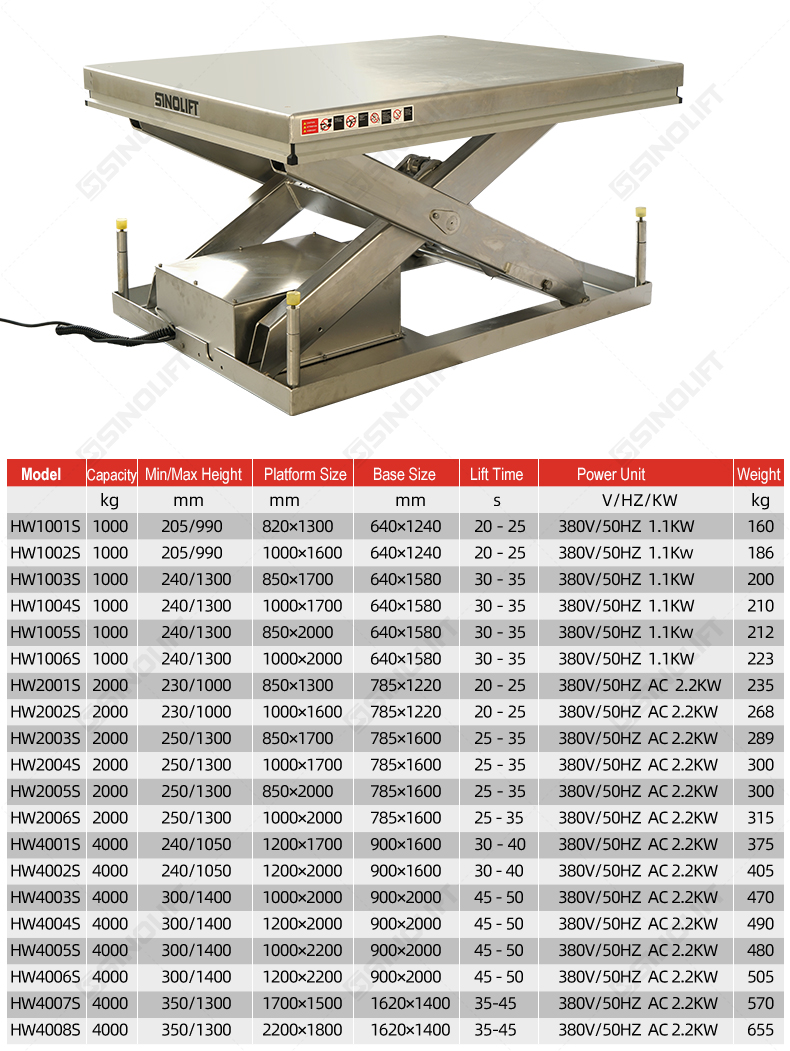

Product Specifications

Model	Capacity (kg)	Min./Max. Height (mm)	Platform Size (mm)	Base Size (mm)	Lift Time (s)	Power Unit (V/Hz/KW)	Weight (kg)
HW1001S	1000	205/990	820×1300	640×1240	20–25	380V/50HZ 1.1KW	160
HW1002S	1000	205/990	1000×1600	640×1240	20–25	380V/50HZ 1.1KW	186
HW1003S	1000	240/1300	850×1700	640×1580	30–35	380V/50HZ 1.1KW	200
HW1004S	1000	240/1300	1000×1700	640×1580	30–35	380V/50HZ 1.1KW	210
HW1005S	1000	240/1300	850×2000	640×1580	30–35	380V/50HZ 1.1KW	212
HW1006S	1000	240/1300	1000×2000	640×1580	30–35	380V/50HZ 1.1KW	223
HW2001S	2000	230/1000	850×1300	785×1220	20–25	380V/50HZ AC 2.2KW	235
HW2002S	2000	230/1000	1000×1600	785×1220	20–25	380V/50HZ AC 2.2KW	268
HW2003S	2000	250/1300	850×1700	785×1600	25–35	380V/50HZ AC 2.2KW	289
HW2004S	2000	250/1300	1000×1700	785×1600	25–35	380V/50HZ AC 2.2KW	300
HW2005S	2000	250/1300	850×2000	785×1600	25–35	380V/50HZ AC 2.2KW	300
HW2006S	2000	250/1300	1000×2000	785×1600	25–35	380V/50HZ AC 2.2KW	315
HW4001S	4000	240/1050	1200×1700	900×1600	30–40	380V/50HZ AC 2.2KW	375
HW4002S	4000	240/1050	1200×2000	900×1600	30–40	380V/50HZ AC 2.2KW	405
HW4003S	4000	300/1400	1000×2000	900×2000	45–50	380V/50HZ AC 2.2KW	470
HW4004S	4000	300/1400	1200×2000	900×2000	45–50	380V/50HZ AC 2.2KW	490
HW4005S	4000	300/1400	1000×2200	900×2000	45–50	380V/50HZ AC 2.2KW	480
HW4006S	4000	300/1400	1200×2200	900×2000	45–50	380V/50HZ AC 2.2KW	505
HW4007S	4000	350/1300	1700×1500	1620×1400	35–45	380V/50HZ AC 2.2KW	570
HW4008S	4000	350/1300	2200×1800	1620×1400	35–45	380V/50HZ AC 2.2KW	655
