SINOLIFT ESF Electric Scissor Lift Table for Material Handling
Product Name
SINOLIFT ESF Electric Scissor Lift Table for Material Handling
Product Description

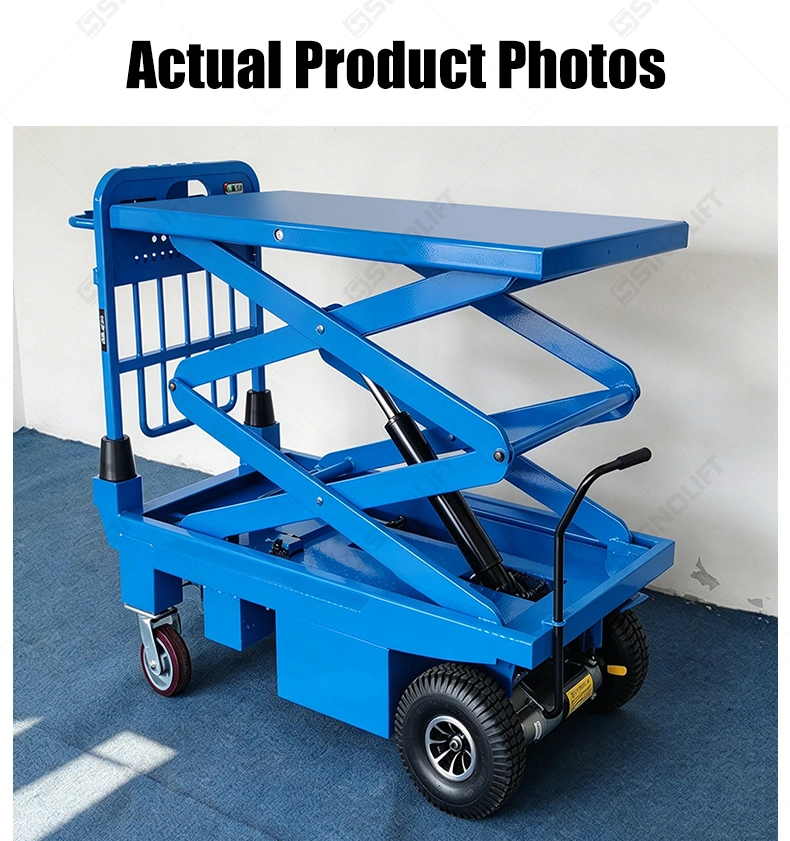

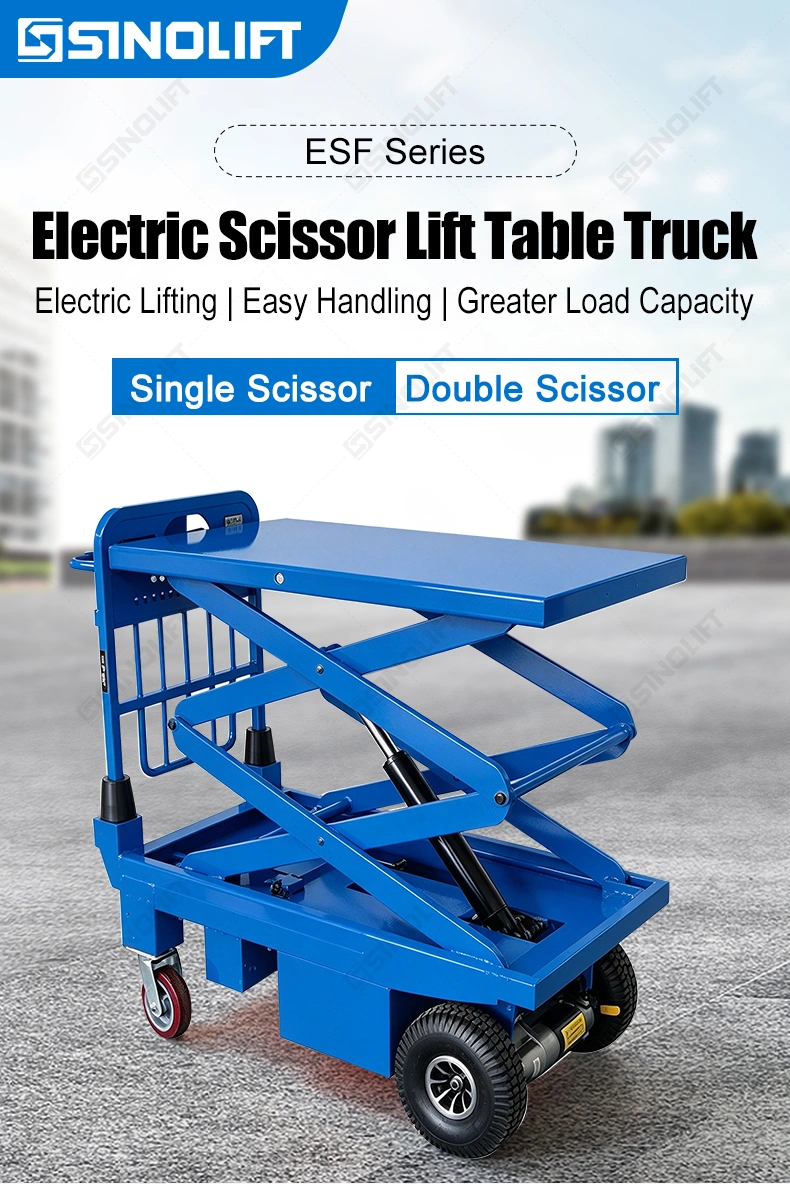

The SINOLIFT ESF Series Electric Scissor Lift Table Truck combines electric hydraulic lifting with a mobile platform for everyday material handling. It helps operators raise goods to a convenient working height for loading, unloading, packing, and transferring materials between work areas.

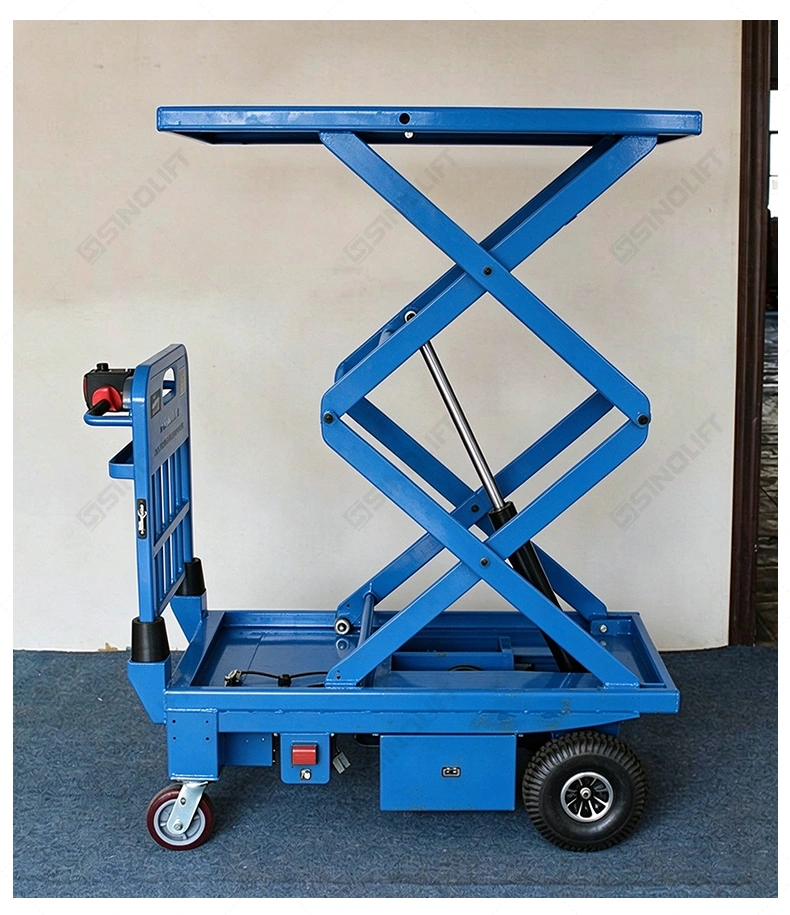

A reinforced steel platform and scissor structure support the load, while the hydraulic system provides smooth lifting and lowering. Single-scissor and double-scissor configurations allow the table to be matched to different working heights. The four-wheel chassis and stabilizing support legs support maneuverability and stability in workshops, warehouses, logistics facilities, and retail stockrooms.
Key Features
Electric Hydraulic Lifting. Raise and lower goods using electric controls, reducing the manual effort involved in repeated height adjustments.
Single and Double Scissor Configurations. Choose the scissor arrangement to suit the required platform height, load, and available working space.

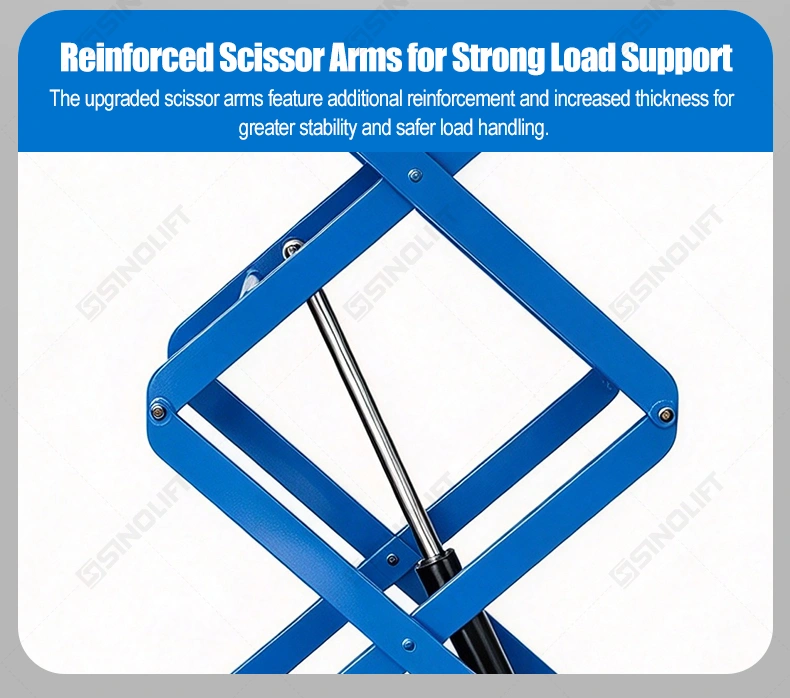

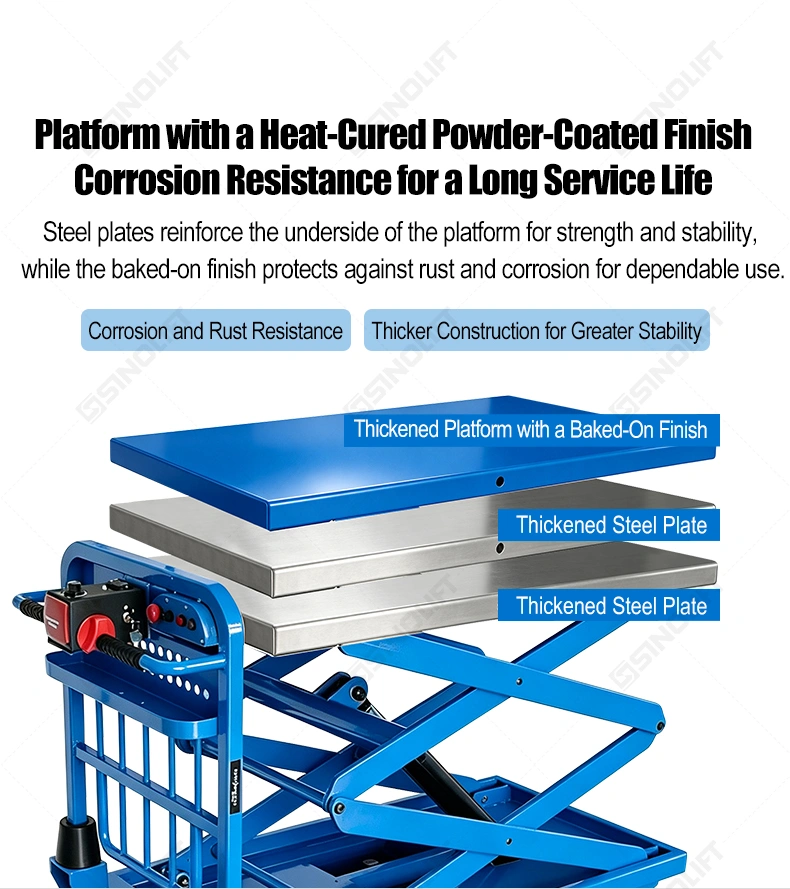

Reinforced Load Platform. Steel reinforcement beneath the platform and thickened scissor arms provide structural support during material handling.
Corrosion Resistant Finish. A heat-cured powder coating helps protect the steel platform against rust and corrosion during routine use.

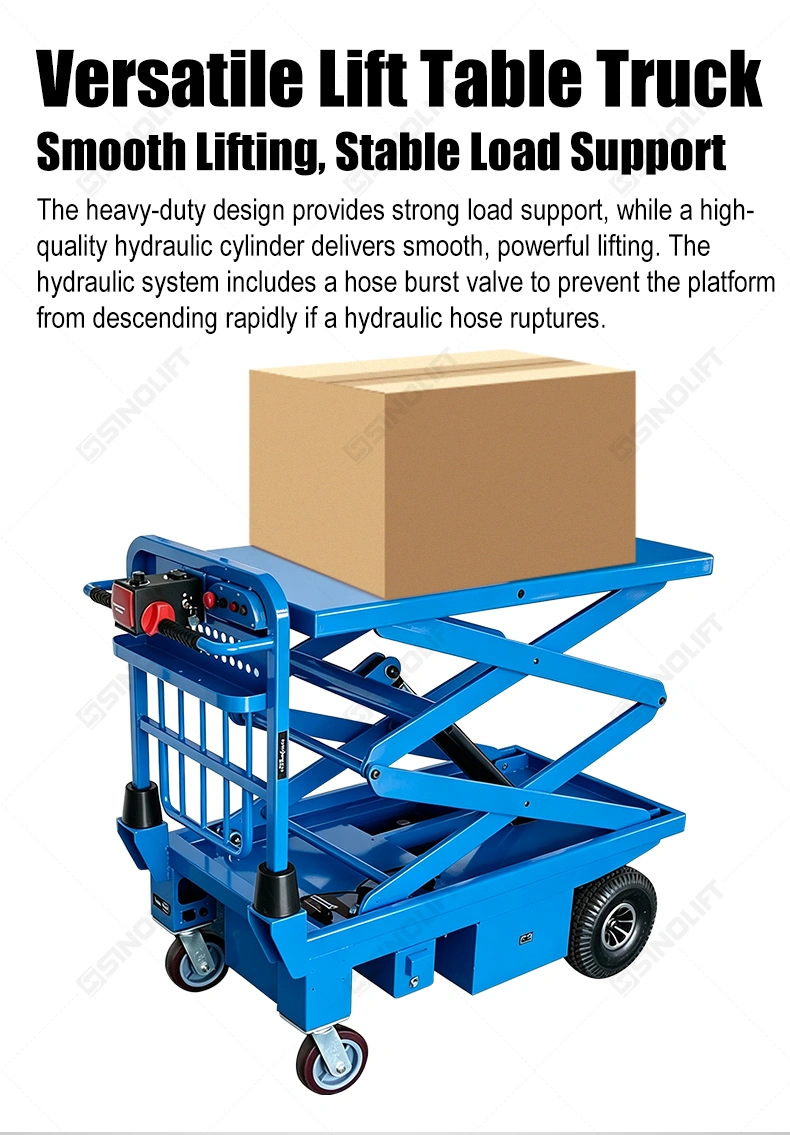

Hydraulic Hose Burst Protection. The hydraulic circuit includes a hose burst valve designed to limit rapid platform descent if a hydraulic hose ruptures.

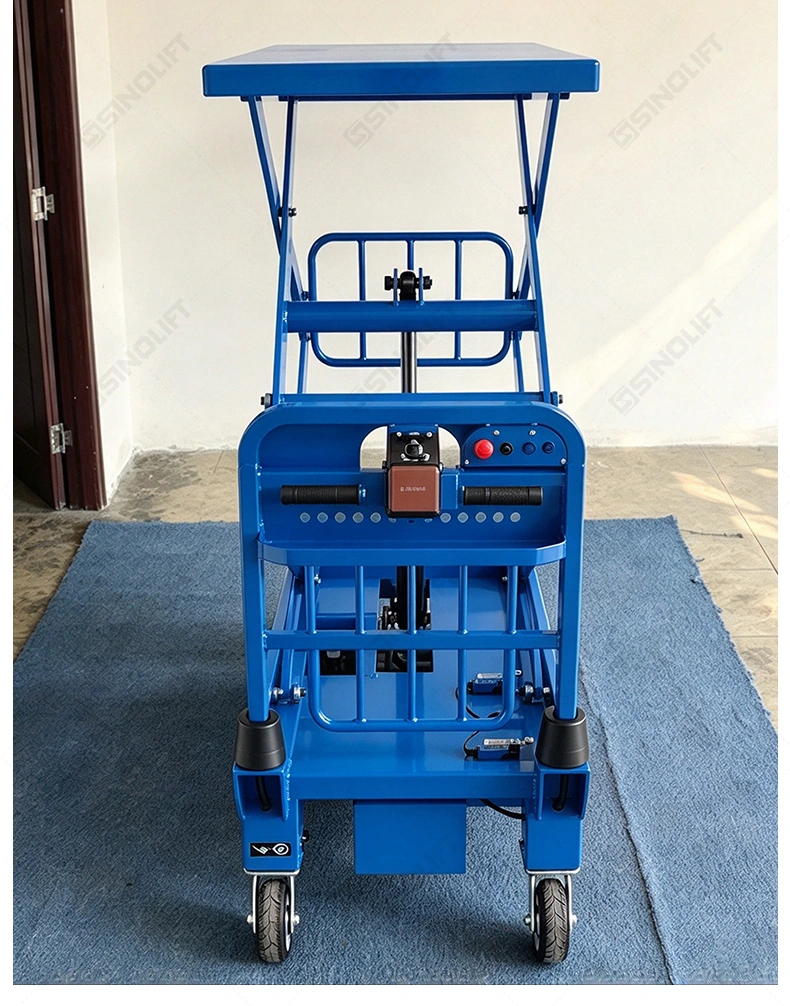

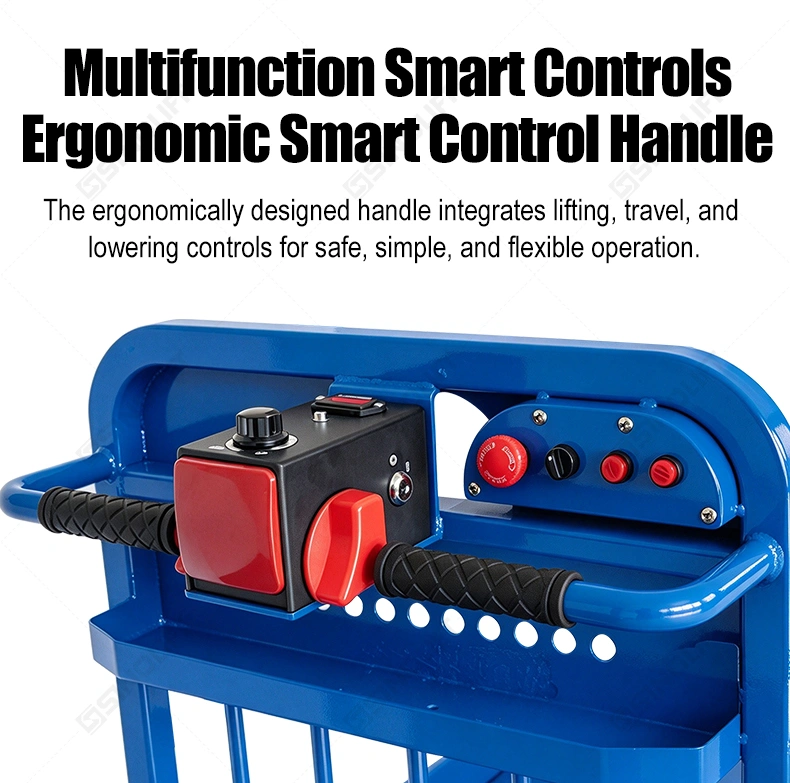

Accessible Handle Controls. An ergonomic handle groups lifting, lowering, and travel functions for convenient operation.

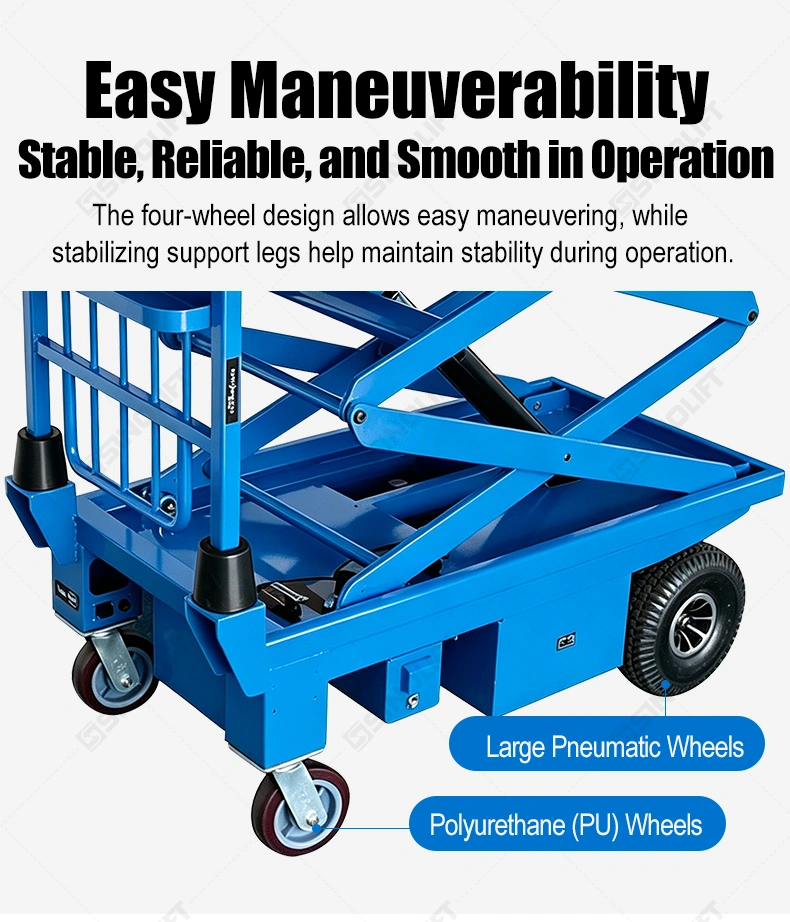

Mobile Chassis with Stabilizers. The four-wheel design supports movement between work areas, with support legs to stabilize the truck during lifting. Pneumatic and polyurethane wheel configurations are available depending on the model.

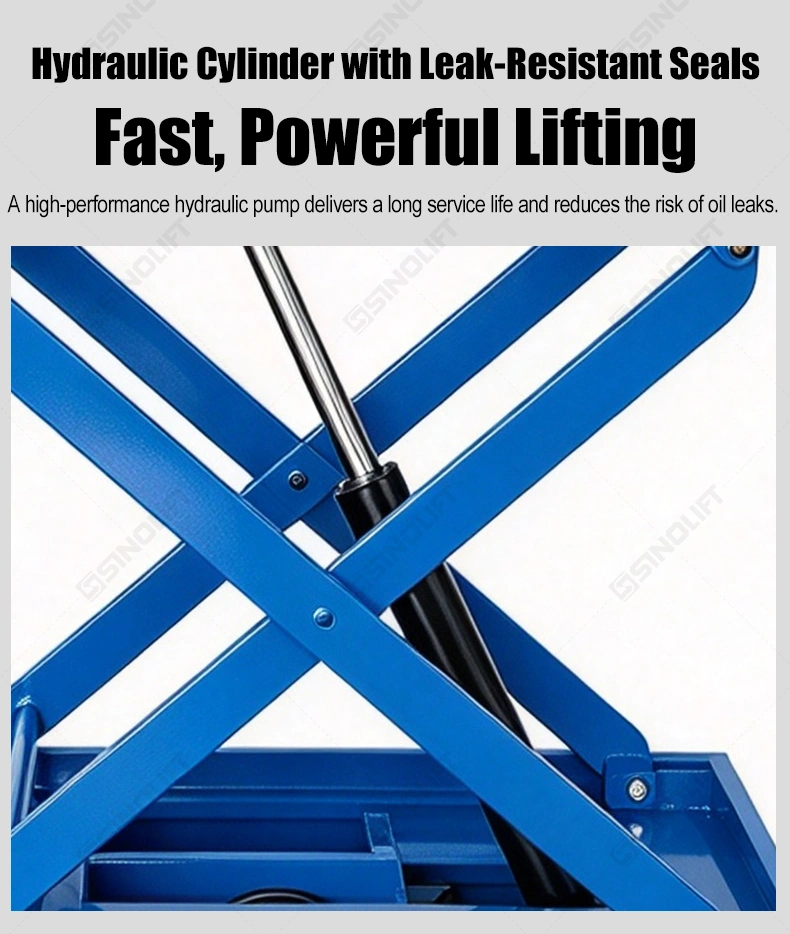

Hydraulic Cylinder with Leak Resistant Seals. The sealed cylinder and hydraulic pump support smooth lifting while helping reduce the risk of oil leakage.
Applications
Workshop Material Handling. Position parts and supplies beside workstations and adjust their height for assembly or inspection.
Warehouse Packing. Raise cartons and goods to a practical height for packing, sorting, and order preparation.
Internal Logistics. Move materials between nearby work areas and adjust the platform height for transfer tasks.
Retail Stockroom Operations. Support goods sorting, unpacking, and stock preparation before replenishment.

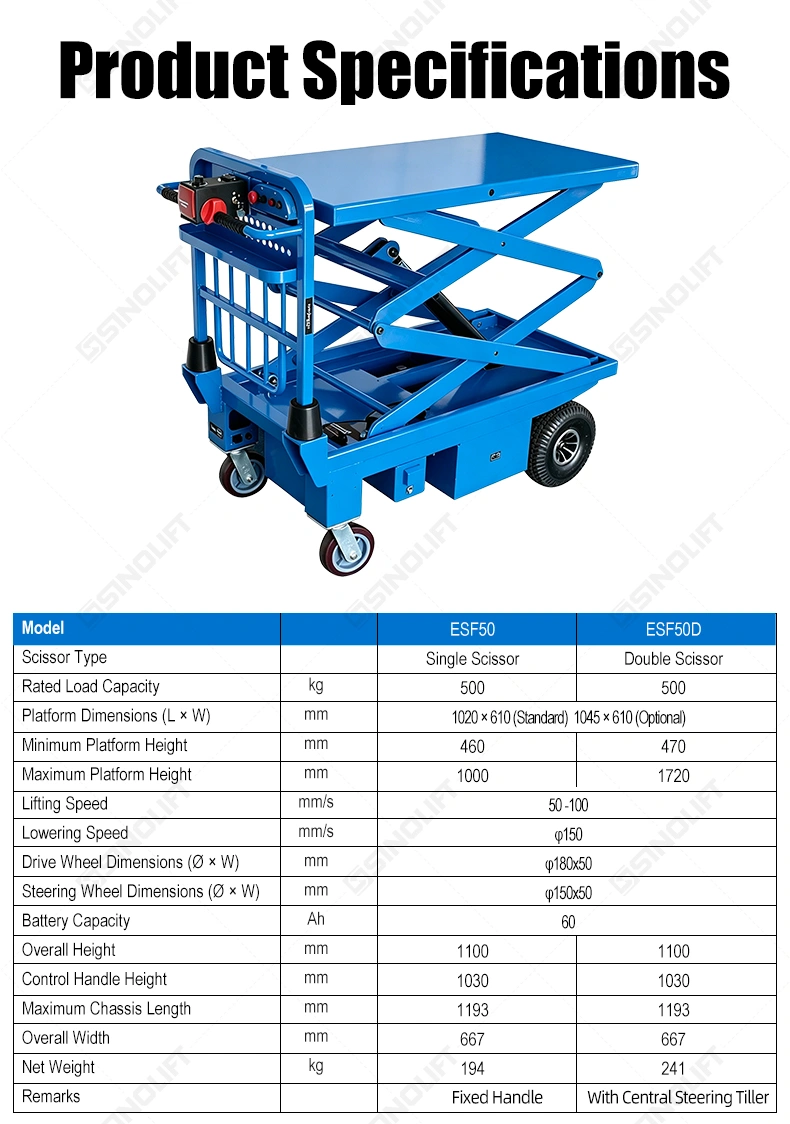

Specifications
| Model | Unit | ESF50 | ESF50D |
| Scissor Type | — | Single Scissor | Double Scissor |
| Rated Load Capacity | kg | 500 | 500 |
| Platform Dimensions (L × W) | mm | 1020 × 610 (Standard) 1045 × 610 (Optional) | 1020 × 610 (Standard) 1045 × 610 (Optional) |
| Minimum Platform Height | mm | 460 | 470 |
| Maximum Platform Height | mm | 1000 | 1720 |
| Lifting Speed | mm/s | 50–100 | 50–100 |
| Lowering Speed | mm/s | < 150 | < 150 |
| Drive Wheel Dimensions (Ø × W) | mm | Ø180 × 50 | Ø180 × 50 |
| Steering Wheel Dimensions (Ø × W) | mm | Ø150 × 50 | Ø150 × 50 |
| Battery Capacity | Ah | 60 | 60 |
| Overall Height | mm | 1100 | 1100 |
| Control Handle Height | mm | 1030 | 1030 |
| Maximum Chassis Length | mm | 1193 | 1193 |
| Overall Width | mm | 667 | 667 |
| Net Weight | kg | 194 | 241 |
| Remarks | — | Fixed Handle | With Central Steering Tiller |
FAQ
What is the ESF Series used for?
It is a mobile lift table for raising, lowering, and transferring goods. Typical tasks include workstation supply, packing, sorting, and loading or unloading at compatible transfer points.
What platform heights are available?

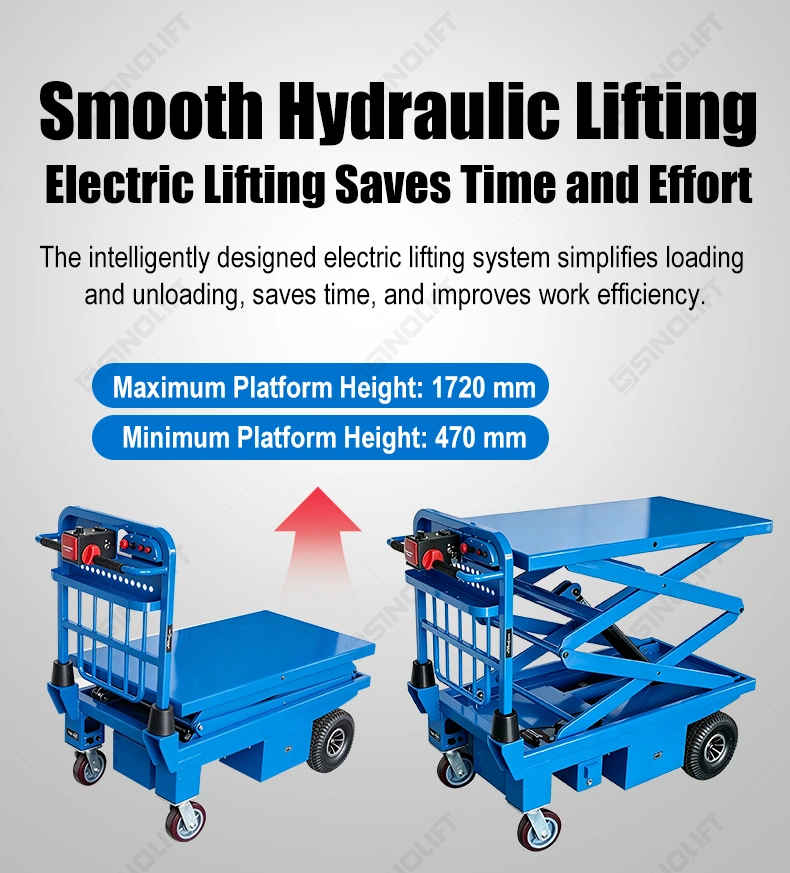

Selected ESF configurations have a lowered platform height of 470 mm and a maximum platform height of 1,720 mm. Height specifications vary by model and scissor arrangement; confirm the dimensions of the selected configuration before ordering.
How do I choose between a single and double scissor table?
Compare the required raised height and lowered height, then check the rated load capacity and platform dimensions. The configuration should match both the load and the transfer or working height.
Which wheel types are available?
The ESF range includes pneumatic and polyurethane wheel configurations. Tell us about your floor surface and travel route so we can check the suitable wheel arrangement for your application.
What information is needed to select an ESF model?
Provide the maximum load weight, load dimensions, required platform height, available floor space, and expected frequency of use. SINOLIFT can then help identify a suitable configuration.
