SINOLIFT ESZ Electric Scissor Lift Table | 500 & 800 kg
Product Name
SINOLIFT ESZ Electric Scissor Lift Table | 500 & 800 kg
Product Description
The SINOLIFT ESZ Series Electric Scissor Lift Table Truck combines powered travel and electric hydraulic lifting for moving goods and positioning them at a useful working height. It is suited to repeated handling tasks where operators need to transfer materials and adjust the platform height throughout the day.

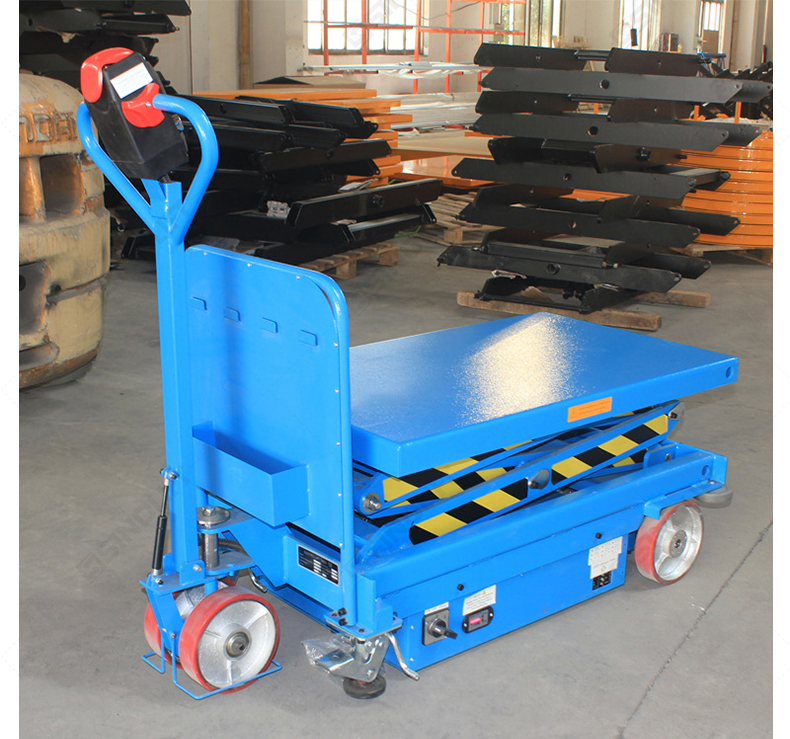

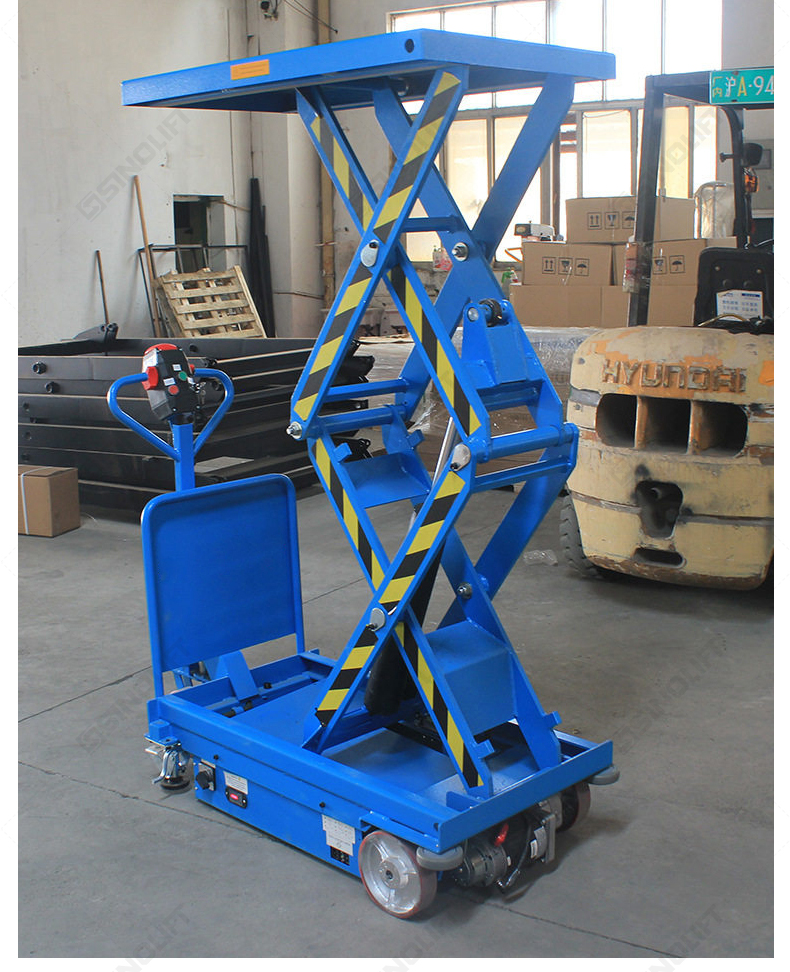

The ESZ Series features a reinforced chassis, steel platform, and scissor assembly, with single-scissor and double-scissor configurations available. Handle-mounted travel and lifting controls keep the main functions within reach, while polyurethane wheels and retractable stabilizers support movement and stationary lifting operations. Applications include workshop supply, warehouse packing, logistics handling, and retail stock preparation.
Key Features
Powered Travel and Electric Lifting. Forward and reverse travel controls work alongside electric lifting and lowering to reduce manual handling effort.

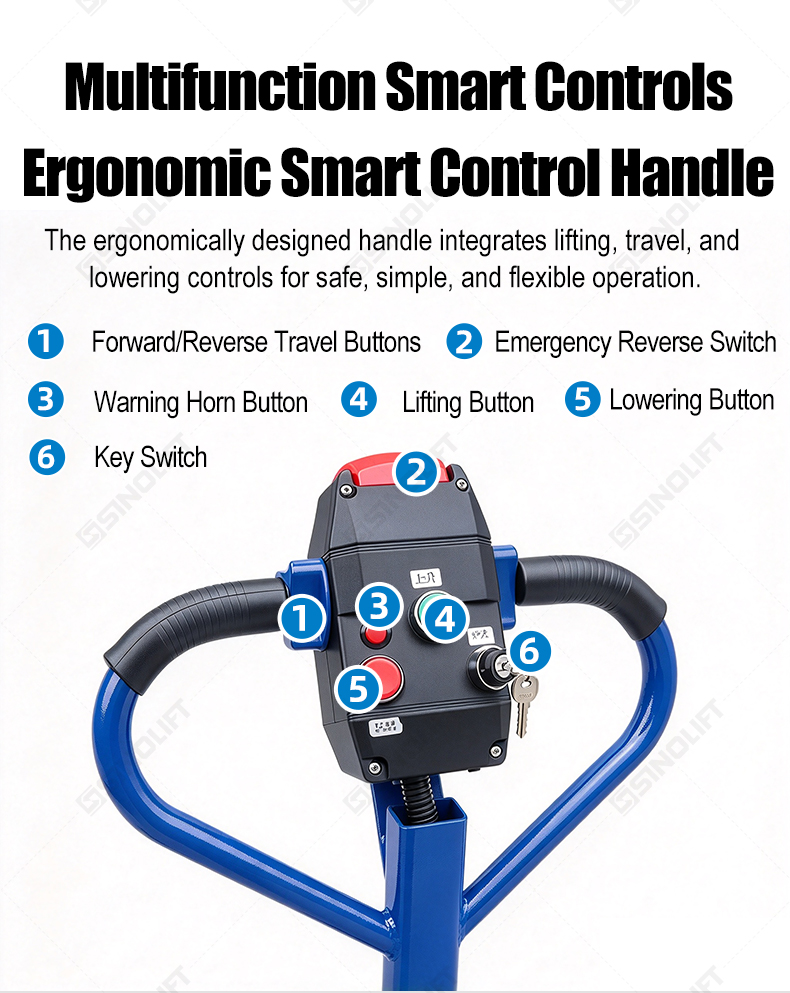

Integrated Operator Handle. The handle brings together travel, lifting, lowering, an emergency reverse switch, a warning horn, and a key switch.

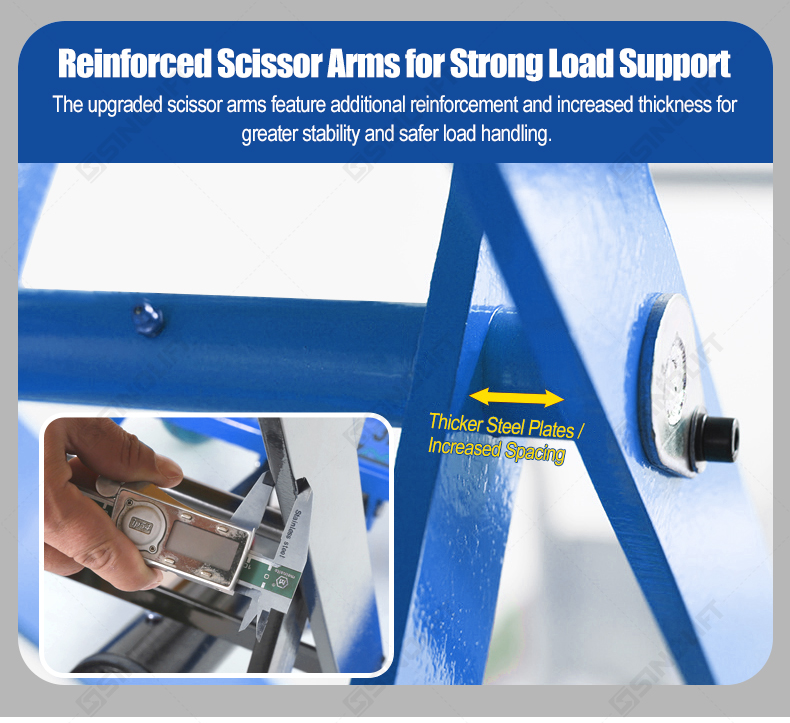

Reinforced Scissor Assembly. Thickened steel sections and a reinforced structure provide load support during lifting and positioning.

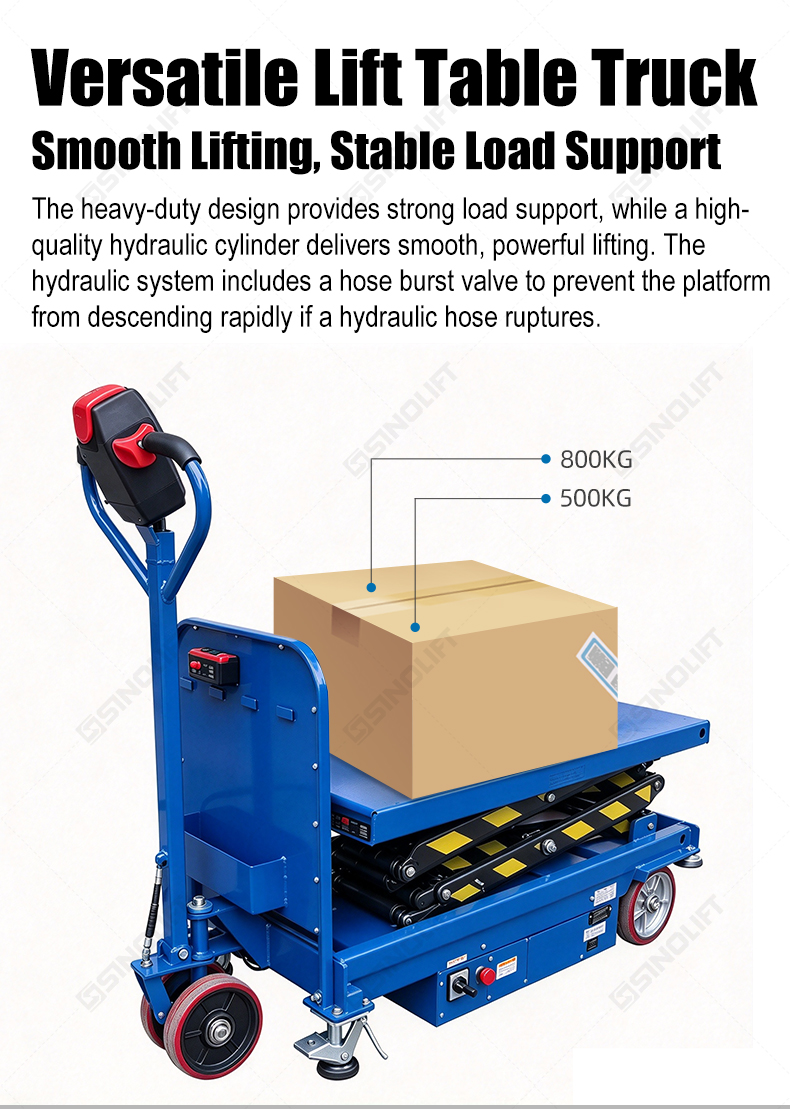

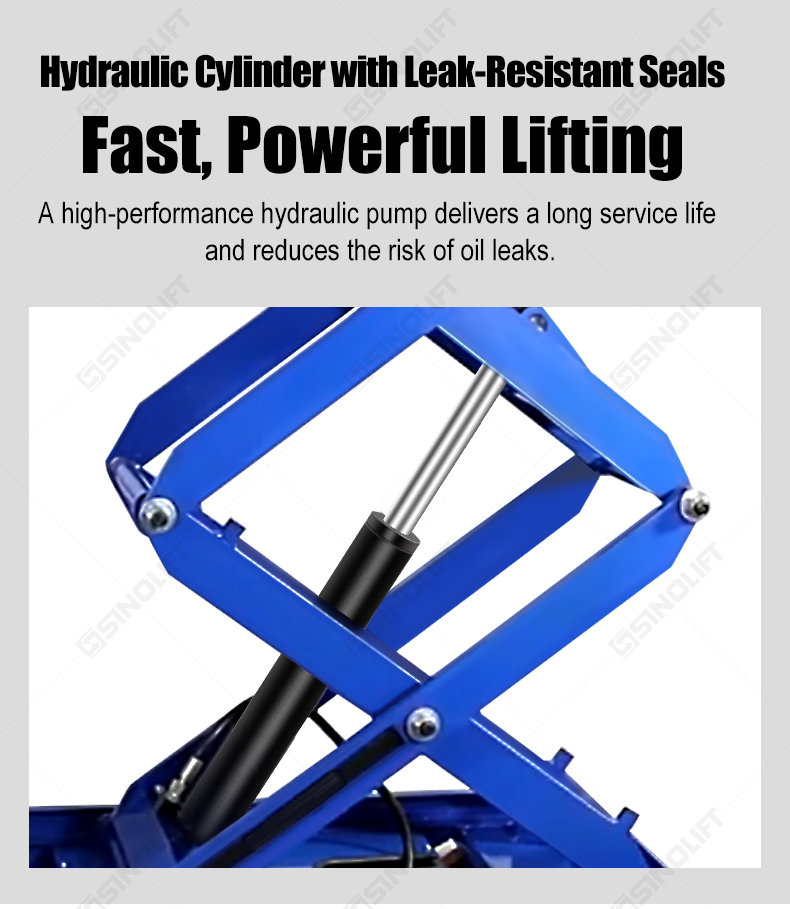

Hydraulic Hose Burst Valve. A valve in the hydraulic system is designed to limit rapid platform descent in the event of a hydraulic hose rupture.

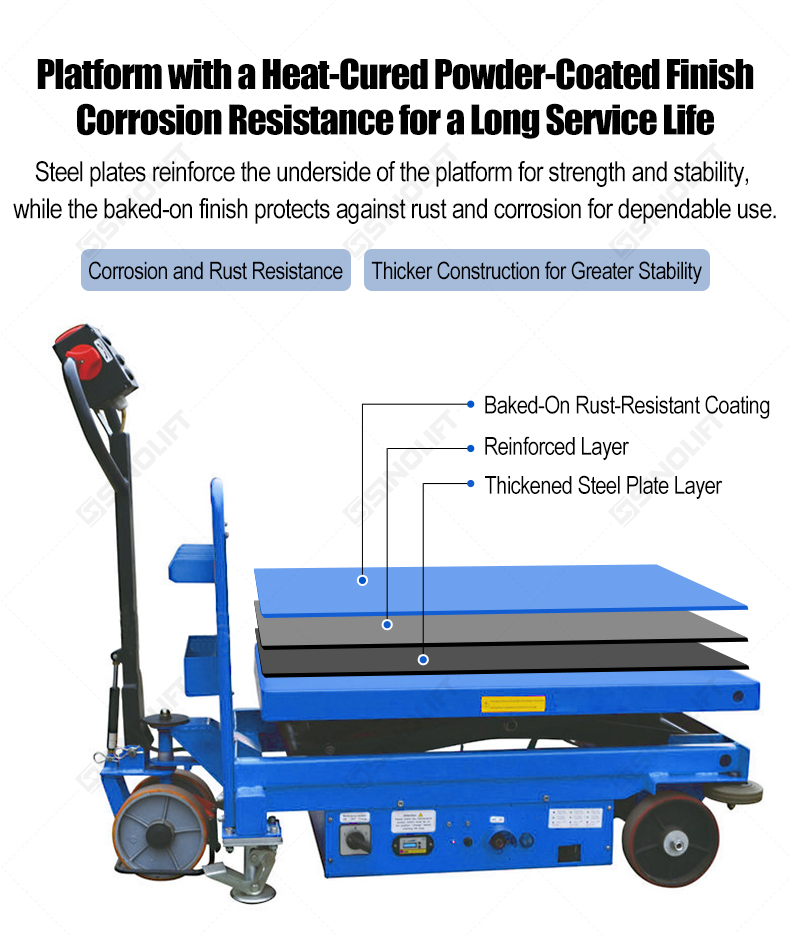

Durable Steel Platform. Steel reinforcement beneath the platform improves rigidity, while a heat-cured powder coating helps protect the surface against rust and corrosion.

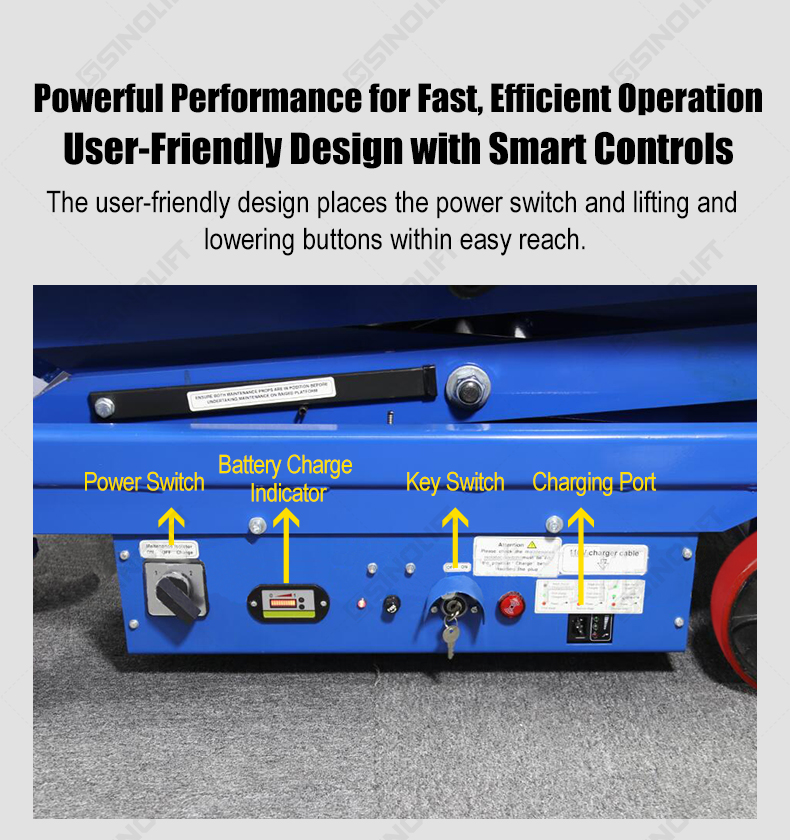

Battery Status and Charging Access. A battery charge indicator allows operators to monitor the charge level. The charging port and power controls are positioned for convenient access.

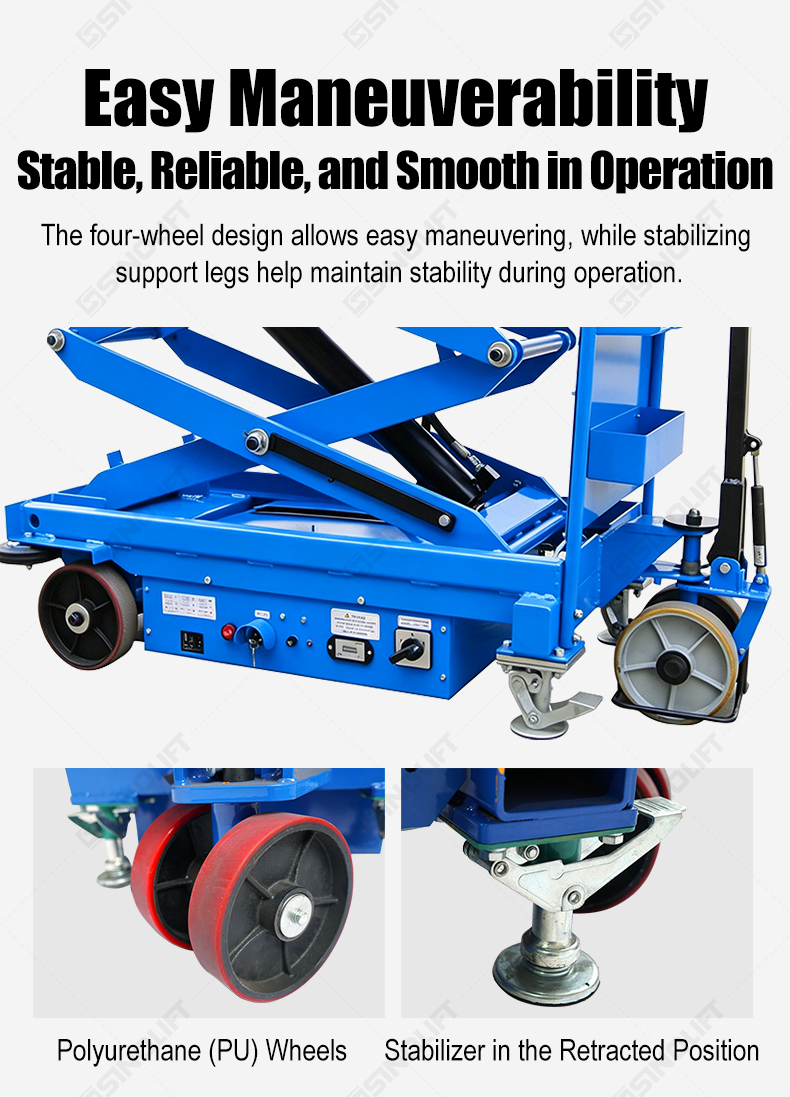

Polyurethane Wheels and Stabilizers. The four-wheel chassis uses polyurethane wheels for mobility. Retractable stabilizers provide additional support during stationary lifting.

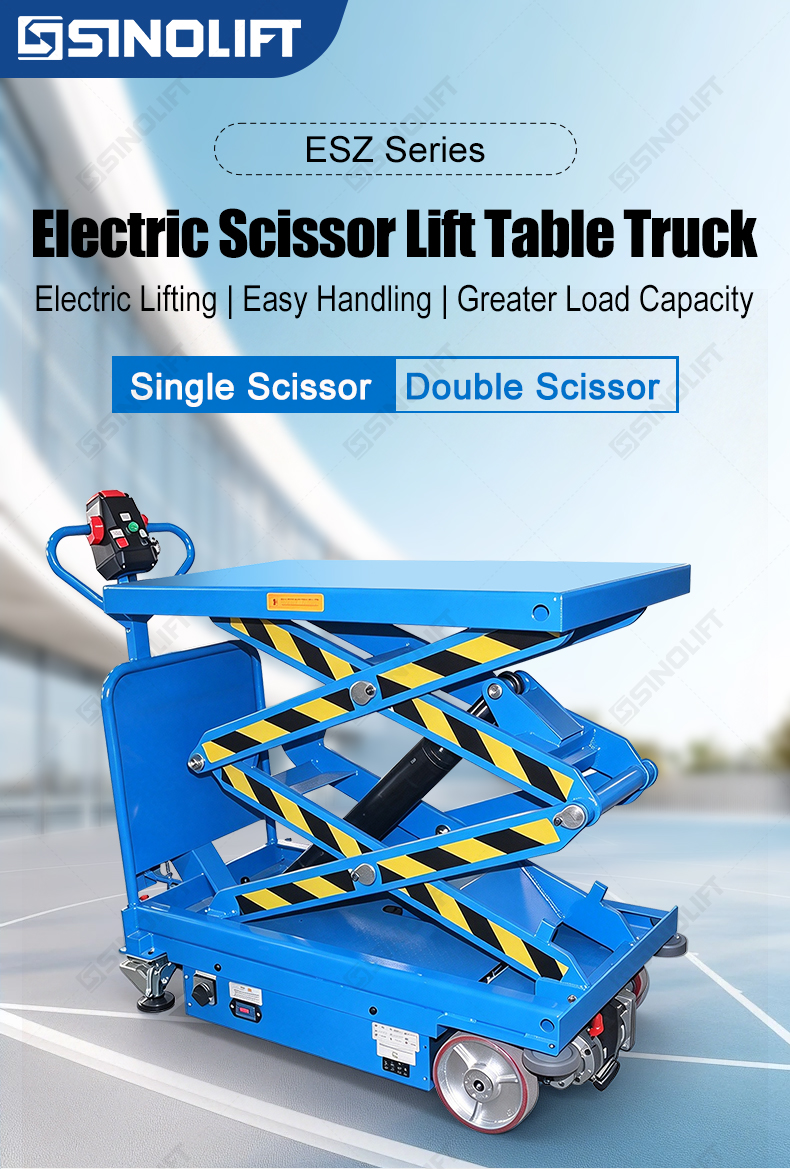

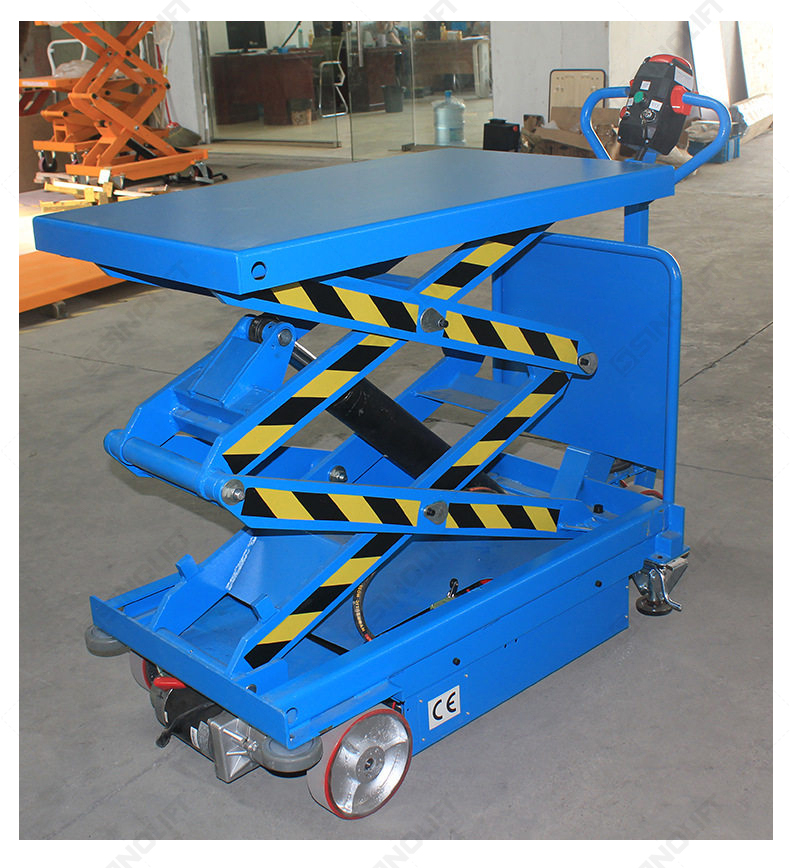

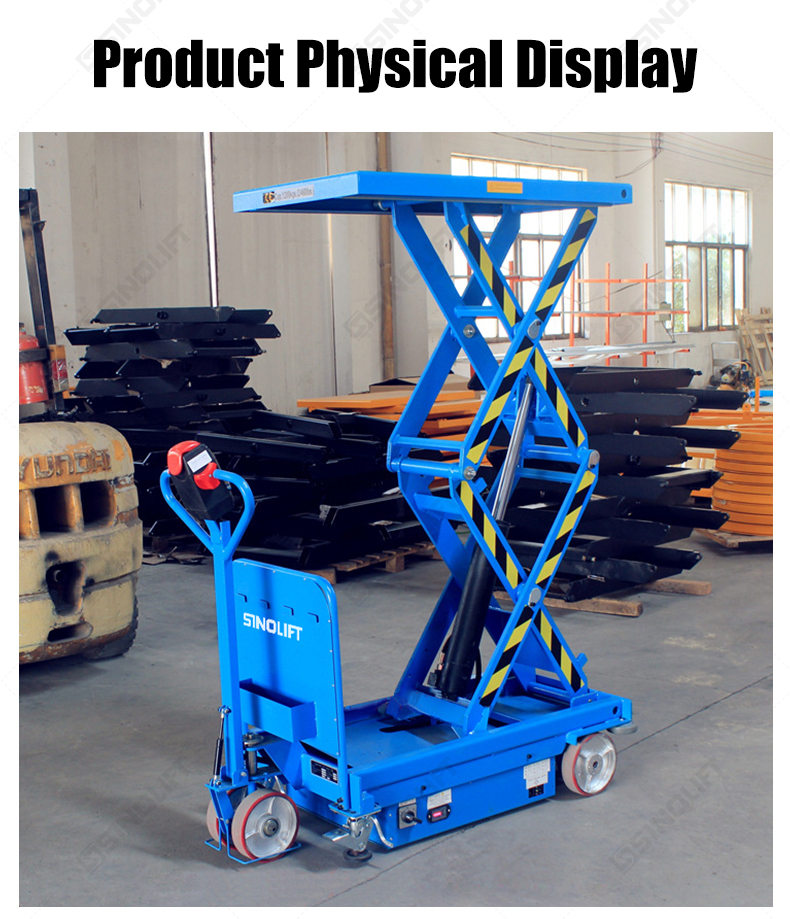

Choice of Scissor Arrangement. Single-scissor and double-scissor versions accommodate different working height requirements. Capacity and dimensions depend on the selected model.
Applications
Production Line Supply. Deliver parts or materials to workstations and raise them to a suitable handling height.
Warehouse Order Preparation. Support sorting, packing, and transfer of goods during order preparation.
Logistics Work Areas. Combine short-distance powered travel with height adjustment for material transfer tasks.
Supermarket and Retail Stockrooms. Assist with receiving, unpacking, sorting, and preparing stock for replenishment.

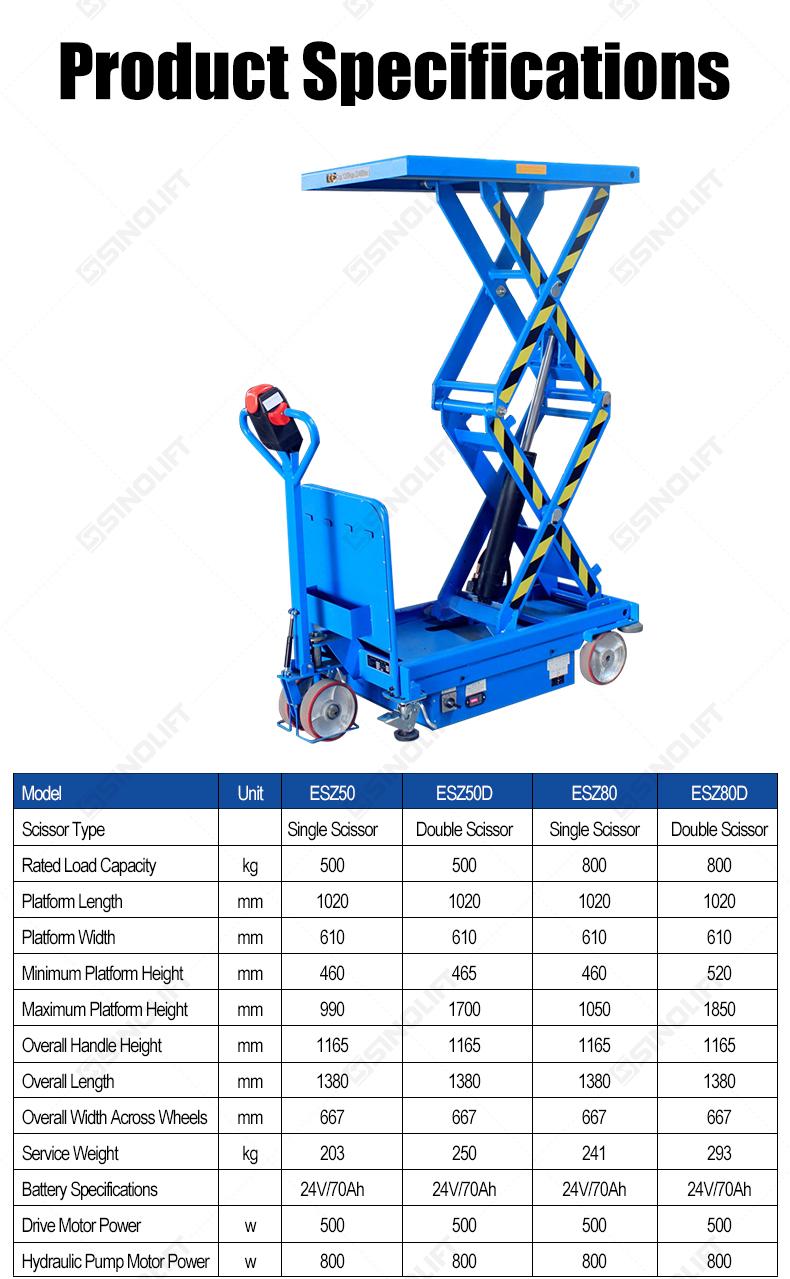

Specifications
| Model | Unit | ESZ50 | ESZ50D | ESZ80 | ESZ80D |
| Scissor Type | — | Single Scissor | Double Scissor | Single Scissor | Double Scissor |
| Rated Load Capacity | kg | 500 | 500 | 800 | 800 |
| Platform Length | mm | 1020 | 1020 | 1020 | 1020 |
| Platform Width | mm | 610 | 610 | 610 | 610 |
| Minimum Platform Height | mm | 460 | 465 | 460 | 520 |
| Maximum Platform Height | mm | 990 | 1700 | 1050 | 1850 |
| Overall Handle Height | mm | 1165 | 1165 | 1165 | 1165 |
| Overall Length | mm | 1380 | 1380 | 1380 | 1380 |
| Overall Width Across Wheels | mm | 667 | 667 | 667 | 667 |
| Service Weight | kg | 203 | 250 | 241 | 293 |
| Battery Specifications | — | 24 V / 70 Ah | 24 V / 70 Ah | 24 V / 70 Ah | 24 V / 70 Ah |
| Drive Motor Power | W | 500 | 500 | 500 | 500 |
| Hydraulic Pump Motor Power | W | 800 | 800 | 800 | 800 |
FAQ
Does the ESZ Series provide powered travel?
Yes. The control handle includes forward and reverse travel buttons as well as lifting and lowering controls, allowing the operator to manage movement and platform height from the handle.
What load capacities are available?
The ESZ range includes 500 kg and 800 kg configurations. The rated capacity depends on the model and scissor arrangement; confirm the capacity for the required lift height before ordering.
What is the maximum platform height?

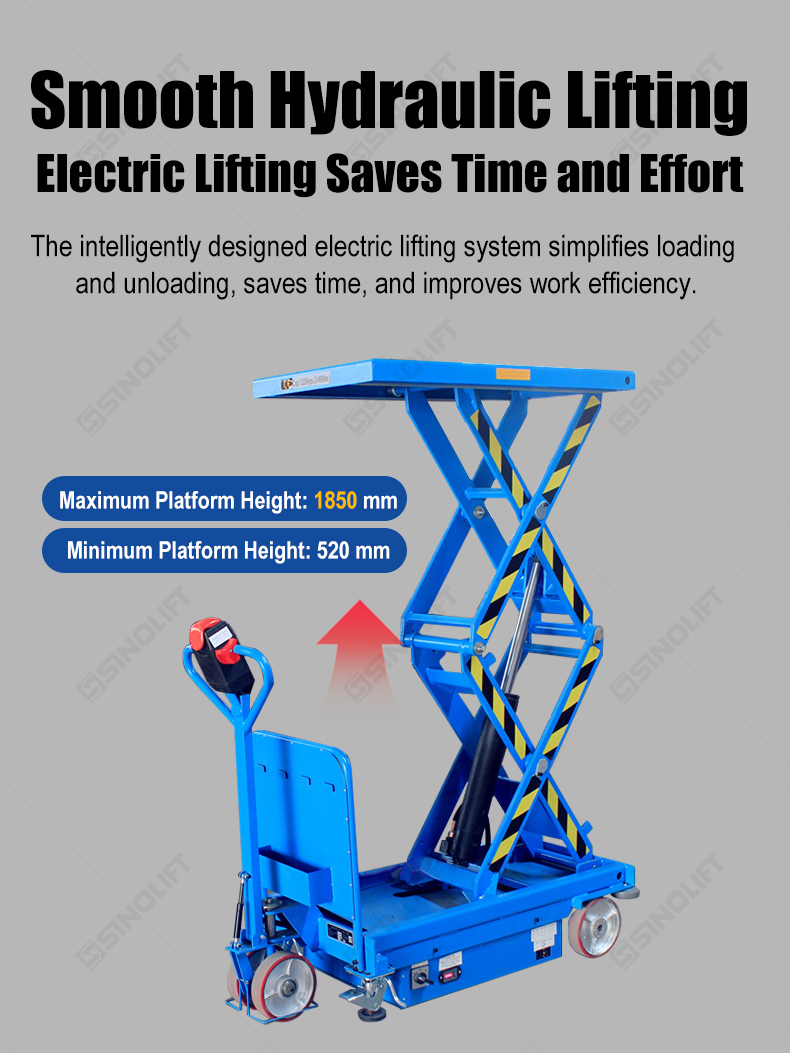

Selected ESZ configurations offer a maximum platform height of 1,850 mm and a lowered height of 520 mm. These dimensions do not apply to every model in the series.
What protective features are included?
The ESZ includes an emergency reverse switch, a warning horn, stabilizing support legs, and a hydraulic hose burst valve. The valve is designed to limit rapid descent if a hydraulic hose ruptures.
How long can the ESZ operate on one charge?
Operating time depends on the battery configuration, load, travel distance, and lifting frequency. Share your daily handling cycle with SINOLIFT so the battery configuration can be reviewed against your requirements.
