SINOLIFT ESM Electric Scissor Lift Table for Workshop and Warehouse Use
Product Name
SINOLIFT ESM Electric Scissor Lift Table for Workshop and Warehouse Use
Product Description

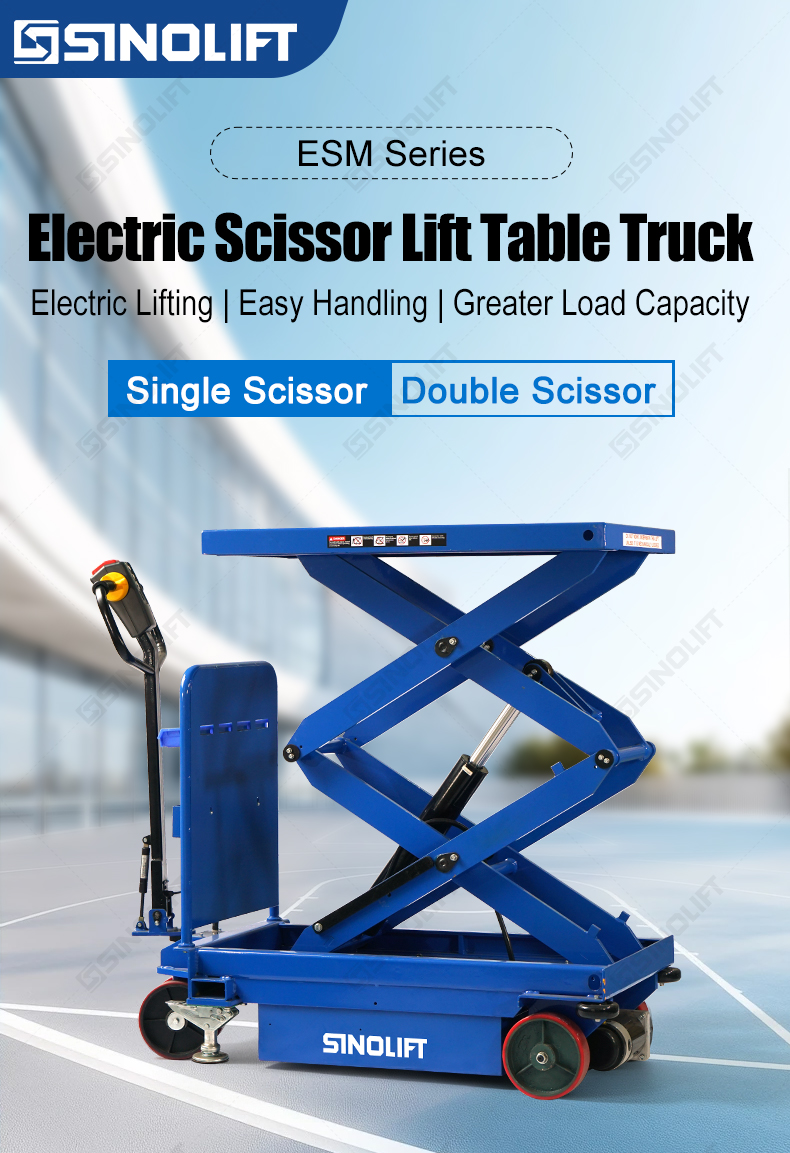

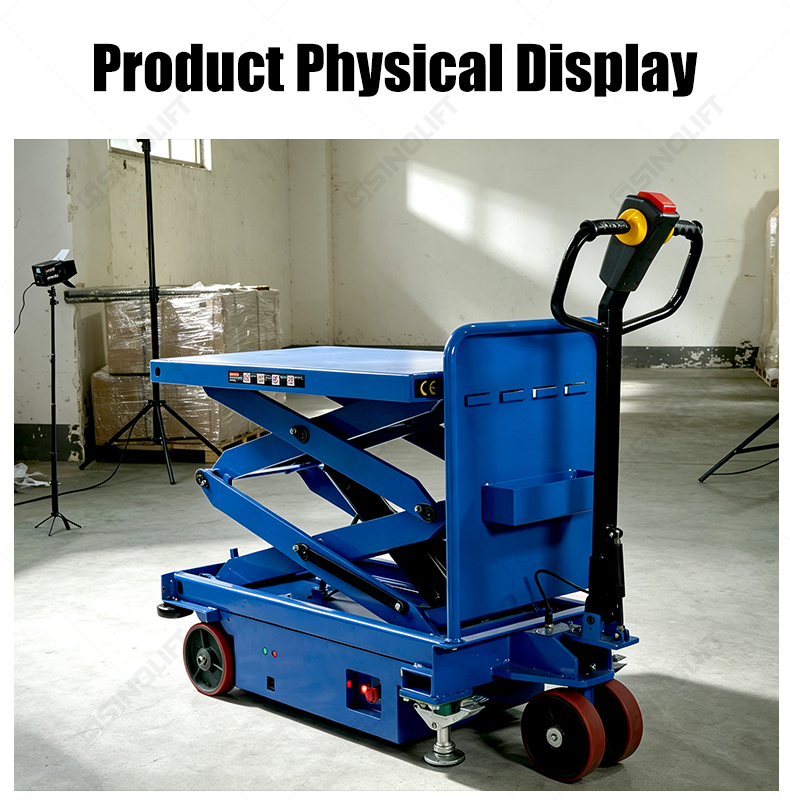

The SINOLIFT ESM Series Electric Scissor Lift Table Truck provides powered movement and electric hydraulic height adjustment for workshop and warehouse material handling. Operators can move goods between work areas and position the platform at a convenient height for assembly, packing, sorting, or transfer.
A reinforced steel platform and scissor structure support the load, while the hydraulic power unit drives lifting and lowering. The ESM Series combines handle-mounted controls with practical details such as a battery charge display, a platform limit switch, and storage bins. Single-scissor and double-scissor configurations are available to suit different lifting requirements.
Key Features
Electric Travel and Hydraulic Lifting. Powered forward and reverse movement combines with electric lifting and lowering to simplify repeated material handling tasks.

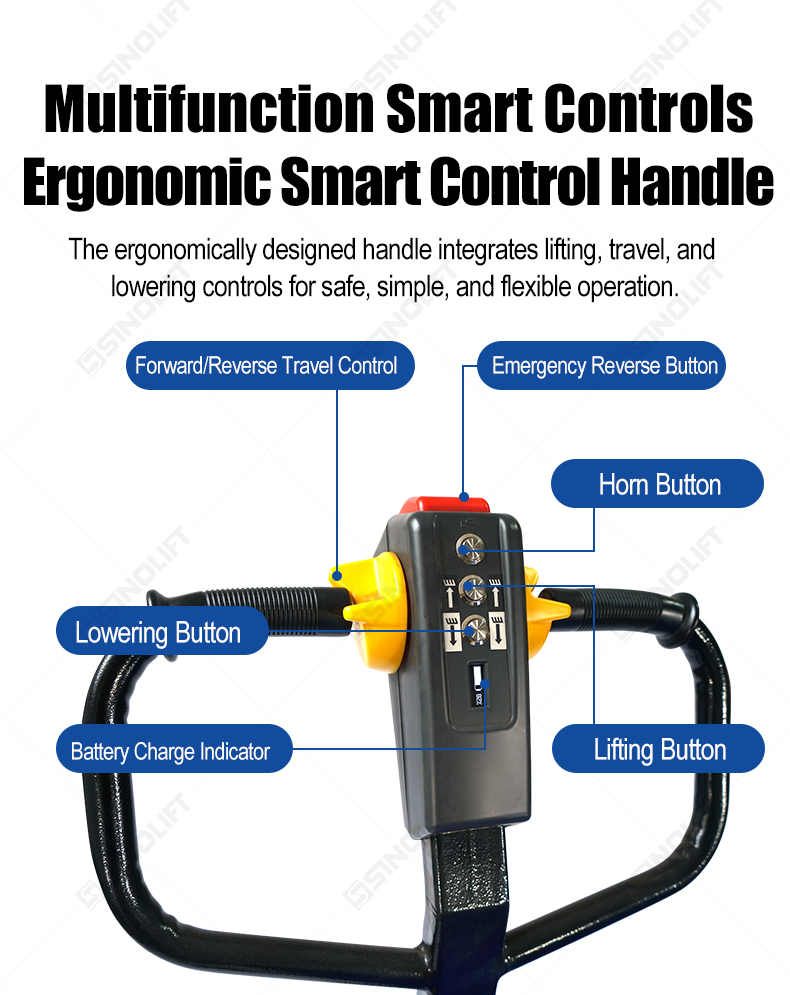

Ergonomic Control Handle. Travel, lifting, lowering, emergency reverse, and horn controls are grouped on the handle, together with a battery charge display.

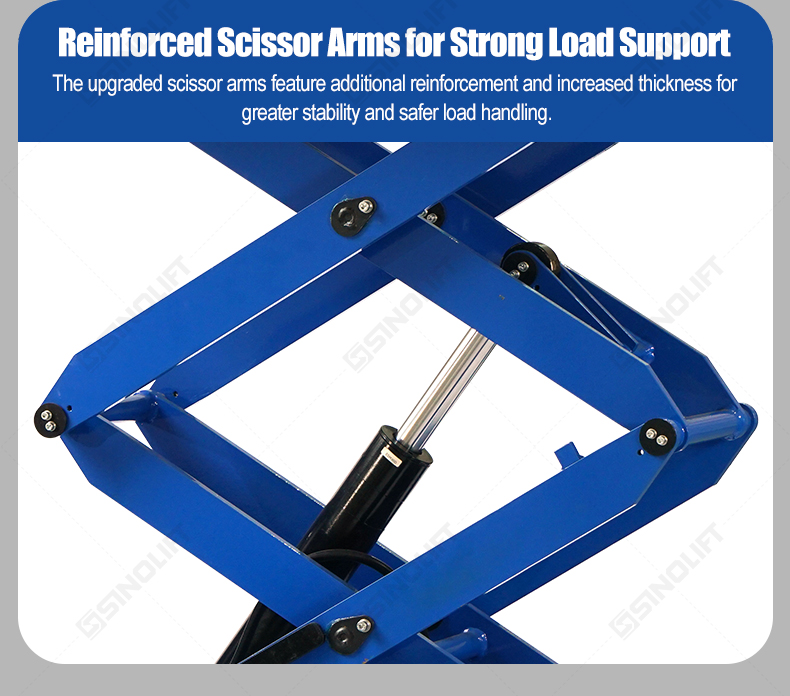

Reinforced Platform and Scissor Arms. Thickened steel plates and reinforced scissor arms provide structural support for lifting and positioning goods.

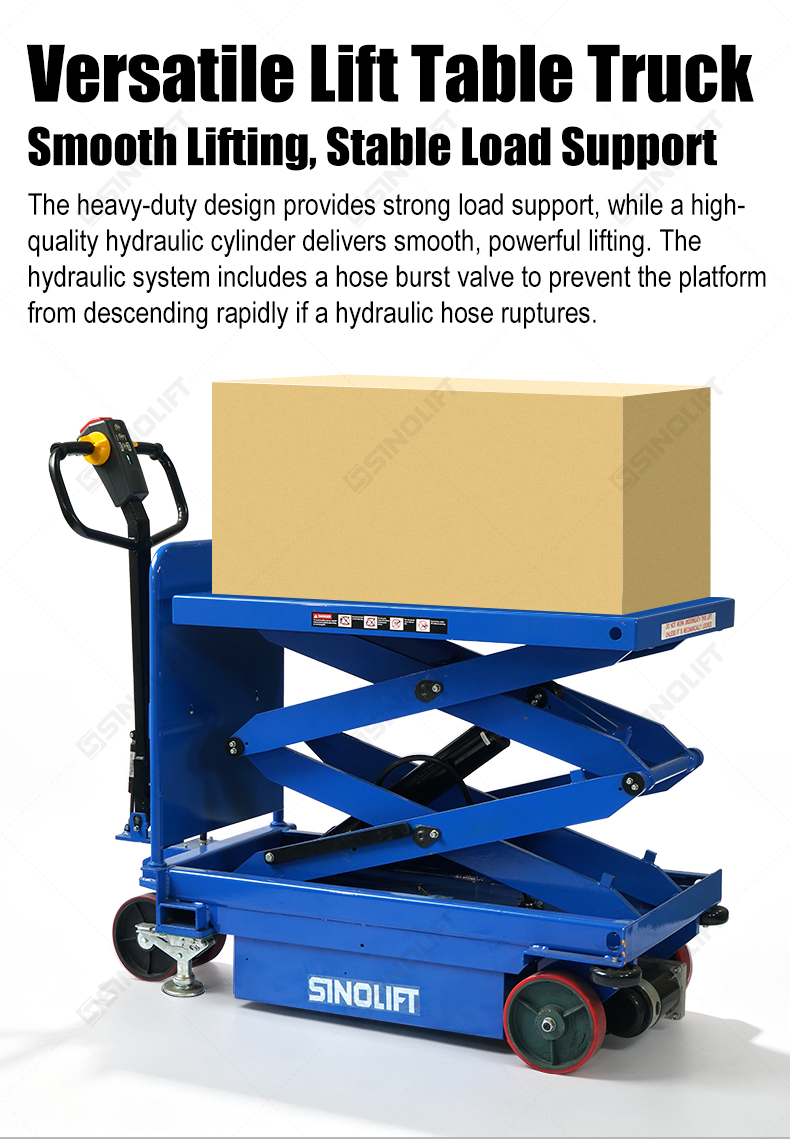

Hydraulic Descent Protection. A hydraulic hose burst valve is designed to limit rapid platform descent following a hose rupture. A platform limit switch is also included.

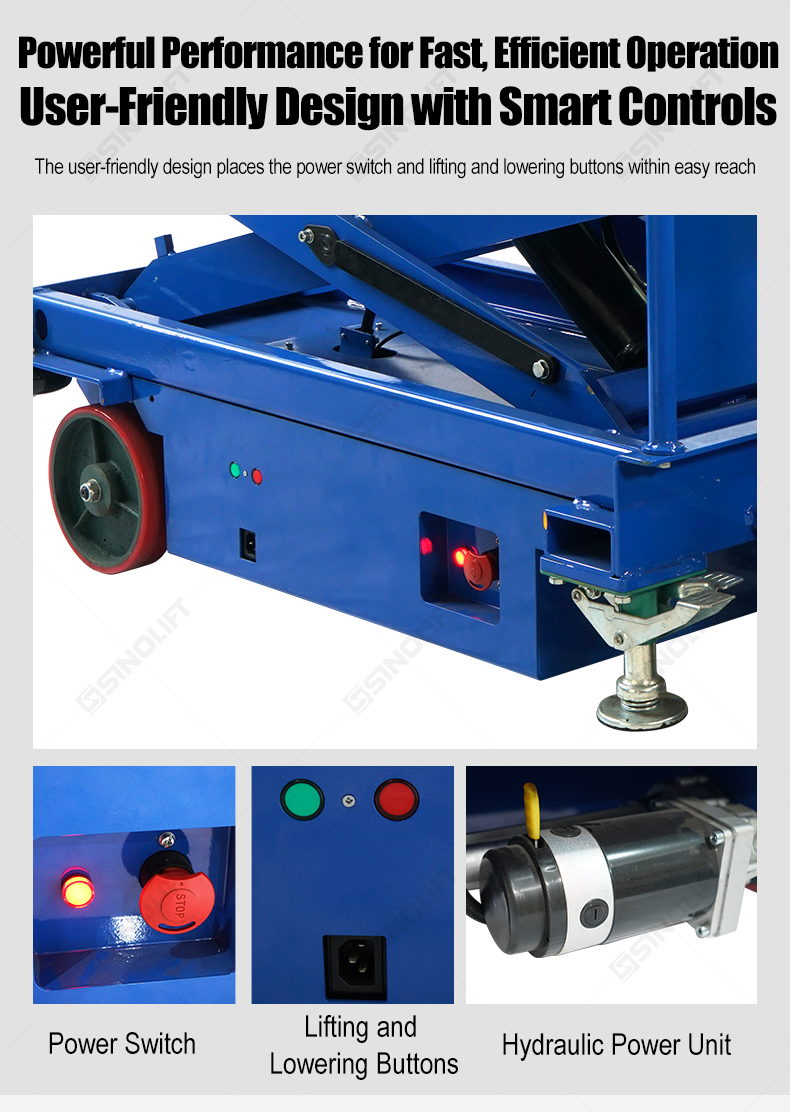

Practical Operating Details. Accessible power and lifting controls support daily use, while storage bins provide space for small items needed around the workstation.

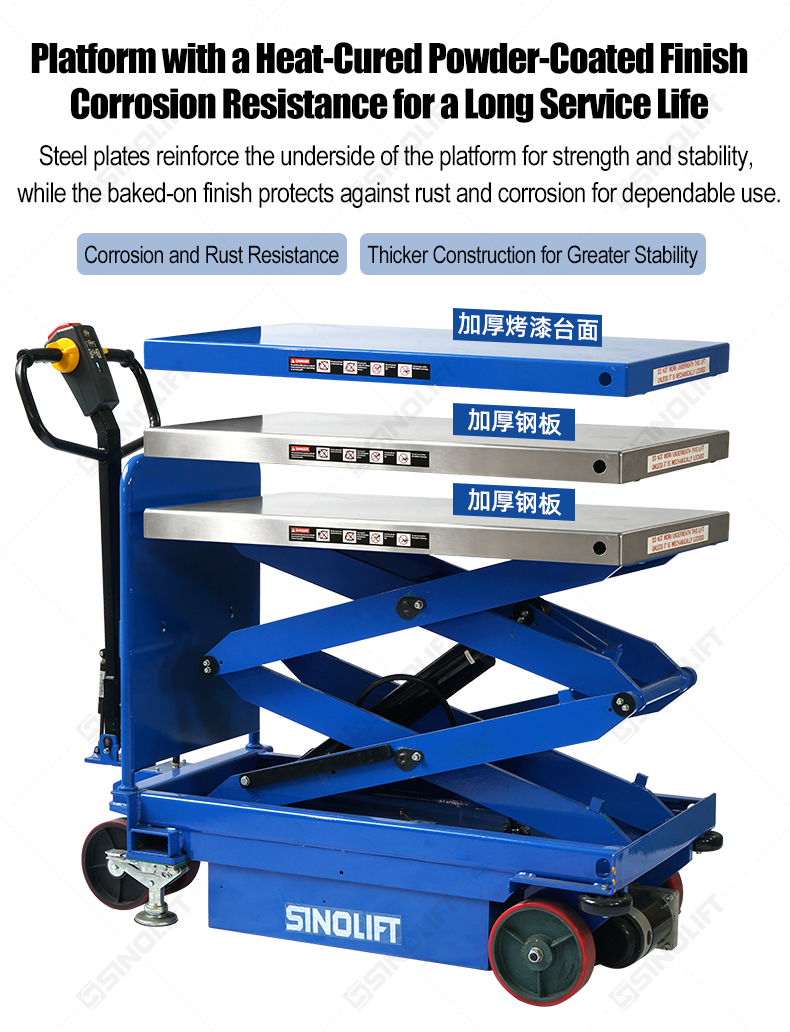

Protected Steel Surfaces. The platform has a heat-cured powder-coated finish to help resist rust and corrosion.

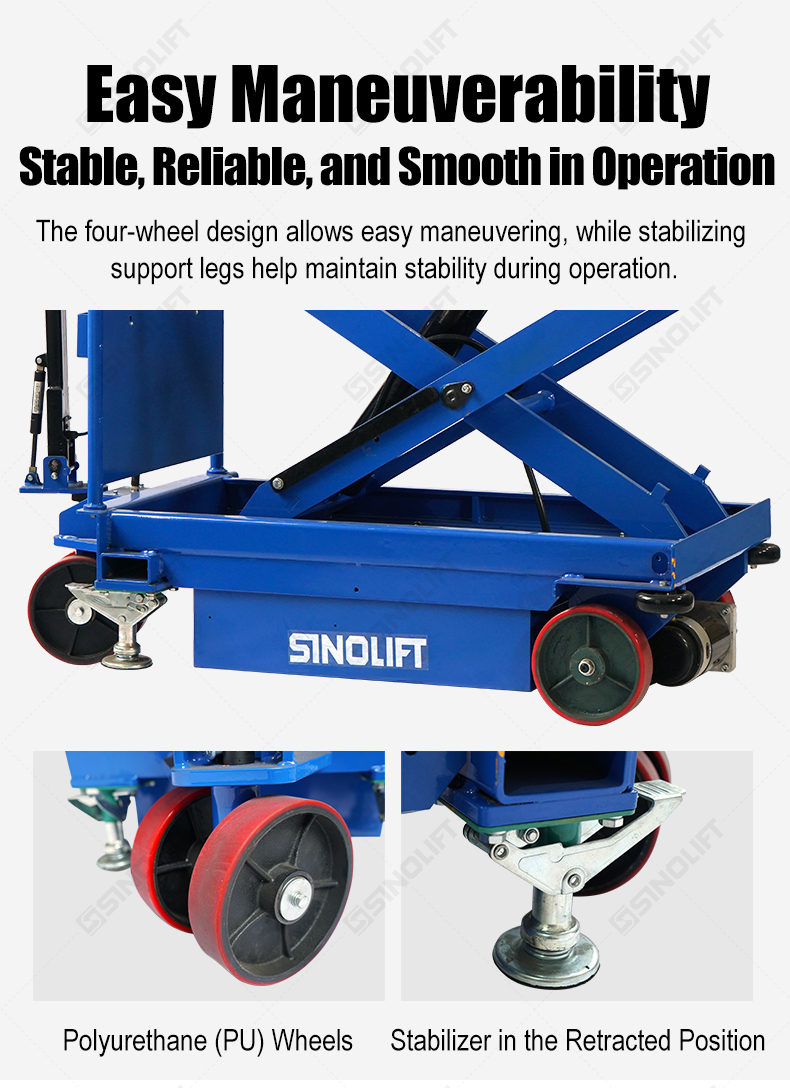

Mobile Chassis with Retractable Stabilizers. Four wheels, including polyurethane wheels, support maneuverability. Retractable support legs help stabilize the table during stationary lifting.

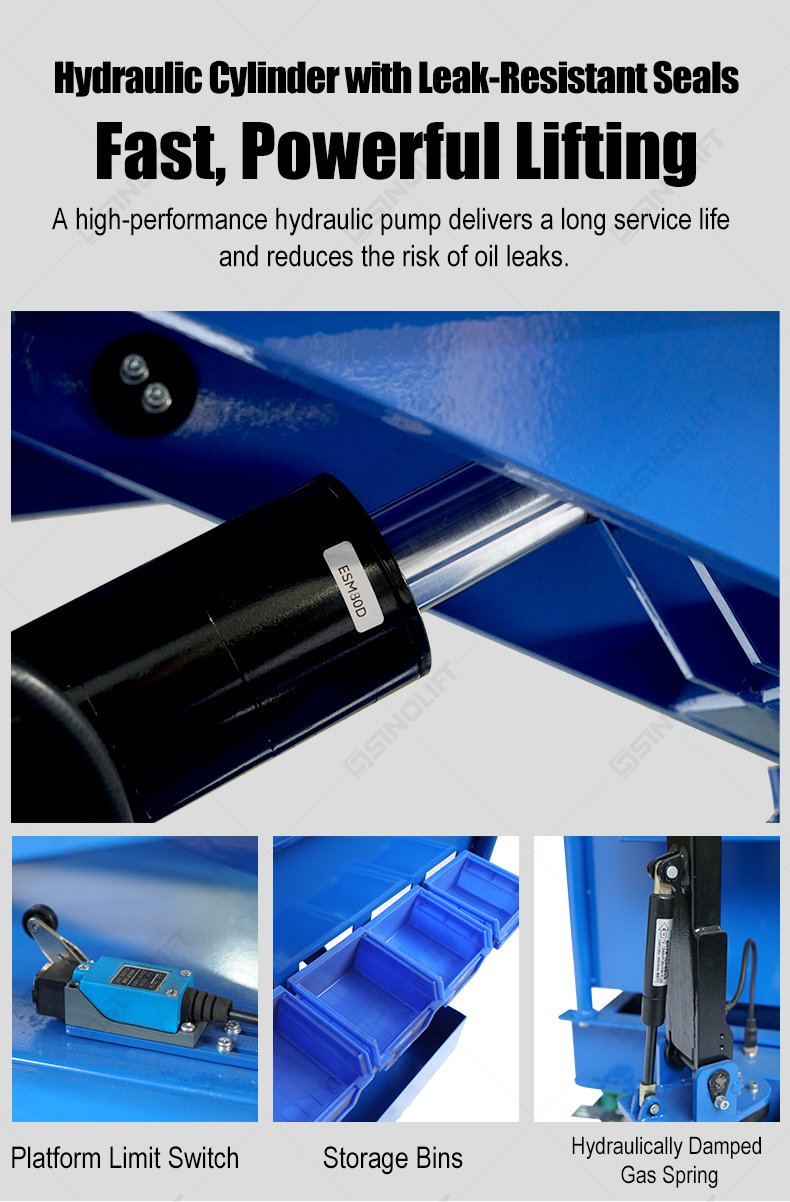

Hydraulic Power Unit and Sealed Cylinder. The hydraulic power unit and cylinder with leak-resistant seals provide smooth platform movement. A gas spring is incorporated into the assembly.
Applications
Assembly and Inspection Stations. Position components at an accessible working height during assembly or inspection tasks.
Packing and Dispatch Areas. Adjust the height of goods during packing, checking, and preparation for dispatch.
Workshop Material Supply. Transport parts between nearby work areas and keep supplies within convenient reach.
Warehouse and Retail Stock Handling. Support unpacking, sorting, and internal movement of goods during stock preparation.

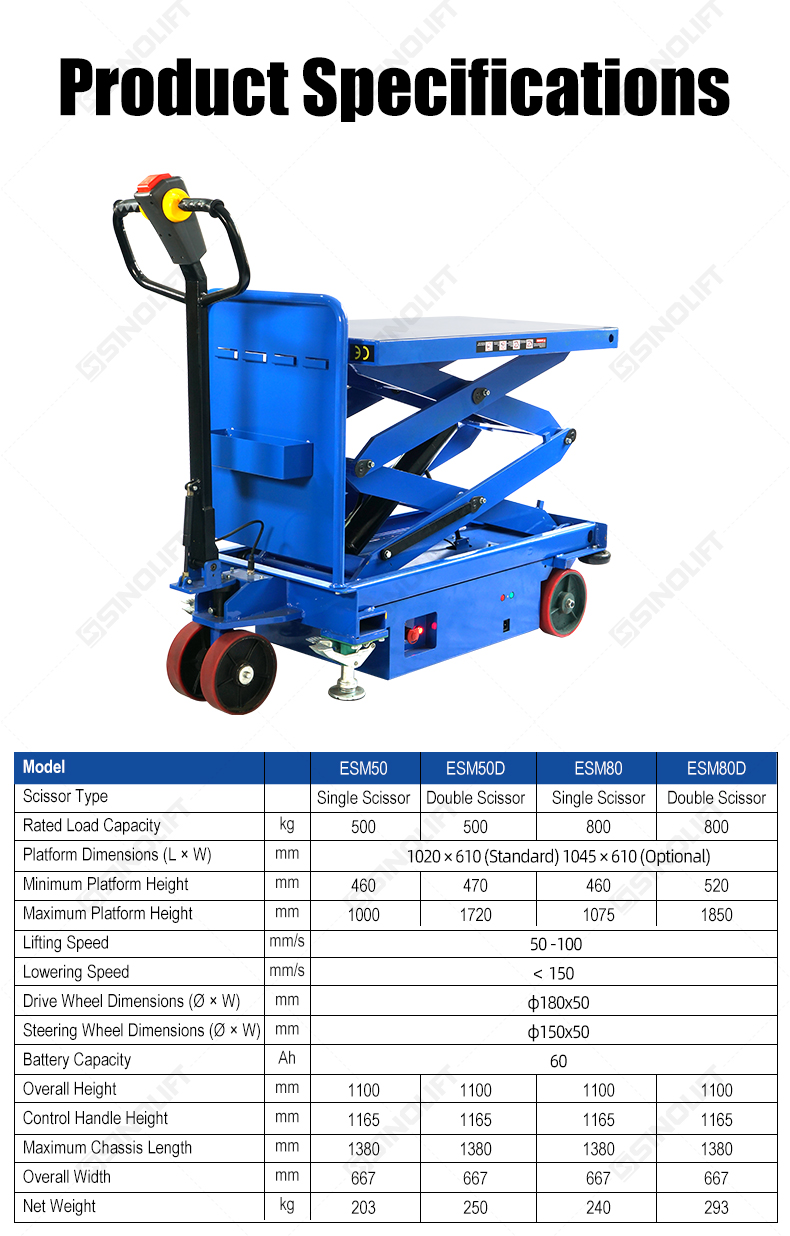

Specifications
| Model | Unit | ESM50 | ESM50D | ESM80 | ESM80D |
| Scissor Type | — | Single Scissor | Double Scissor | Single Scissor | Double Scissor |
| Rated Load Capacity | kg | 500 | 500 | 800 | 800 |
| Platform Dimensions (L × W) | mm | 1020 × 610 (Standard) 1045 × 610 (Optional) | 1020 × 610 (Standard) 1045 × 610 (Optional) | 1020 × 610 (Standard) 1045 × 610 (Optional) | 1020 × 610 (Standard) 1045 × 610 (Optional) |
| Minimum Platform Height | mm | 460 | 470 | 460 | 520 |
| Maximum Platform Height | mm | 1000 | 1720 | 1075 | 1850 |
| Lifting Speed | mm/s | 50–100 | 50–100 | 50–100 | 50–100 |
| Lowering Speed | mm/s | < 150 | < 150 | < 150 | < 150 |
| Drive Wheel Dimensions (Ø × W) | mm | Ø180 × 50 | Ø180 × 50 | Ø180 × 50 | Ø180 × 50 |
| Steering Wheel Dimensions (Ø × W) | mm | Ø150 × 50 | Ø150 × 50 | Ø150 × 50 | Ø150 × 50 |
| Battery Capacity | Ah | 60 | 60 | 60 | 60 |
| Overall Height | mm | 1100 | 1100 | 1100 | 1100 |
| Control Handle Height | mm | 1165 | 1165 | 1165 | 1165 |
| Maximum Chassis Length | mm | 1380 | 1380 | 1380 | 1380 |
| Overall Width | mm | 667 | 667 | 667 | 667 |
| Net Weight | kg | 203 | 250 | 240 | 293 |
FAQ
Are both travel and lifting electrically operated?
Yes. The ESM handle includes a forward/reverse travel control and separate lifting and lowering buttons. These functions allow the operator to move the truck and adjust platform height using the controls.
What platform height can the ESM reach?

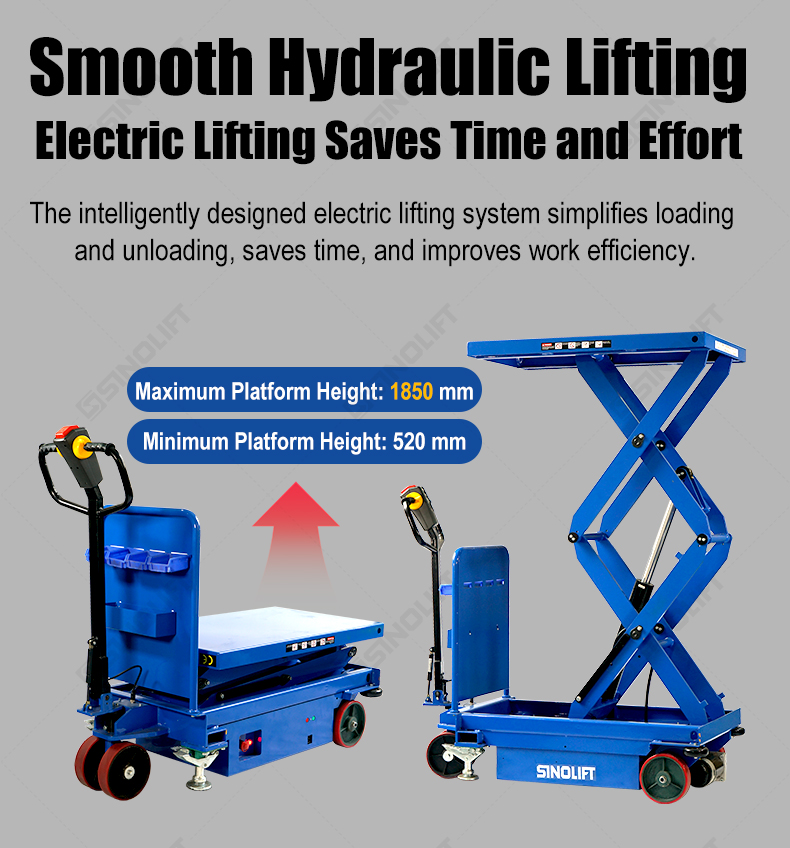

Selected ESM configurations have a maximum platform height of 1,850 mm and a lowered height of 520 mm. Confirm the height range for the selected model, as single-scissor and double-scissor versions differ.
Which features support routine workstation use?
The ESM includes storage bins, a battery charge display, accessible power and lifting controls, and a platform limit switch. These features support daily handling and height adjustment tasks.
How is the platform supported during lifting?
The reinforced platform and scissor structure support the load, while stabilizing legs provide additional support during stationary lifting. The hydraulic system also includes a hose burst valve designed to limit rapid descent after a hose rupture.
How do I select the correct ESM configuration?
Provide the load weight and dimensions, required height range, floor conditions, travel route, and daily operating cycle. Confirm the rated capacity, platform size, and battery configuration for the selected model before ordering.
