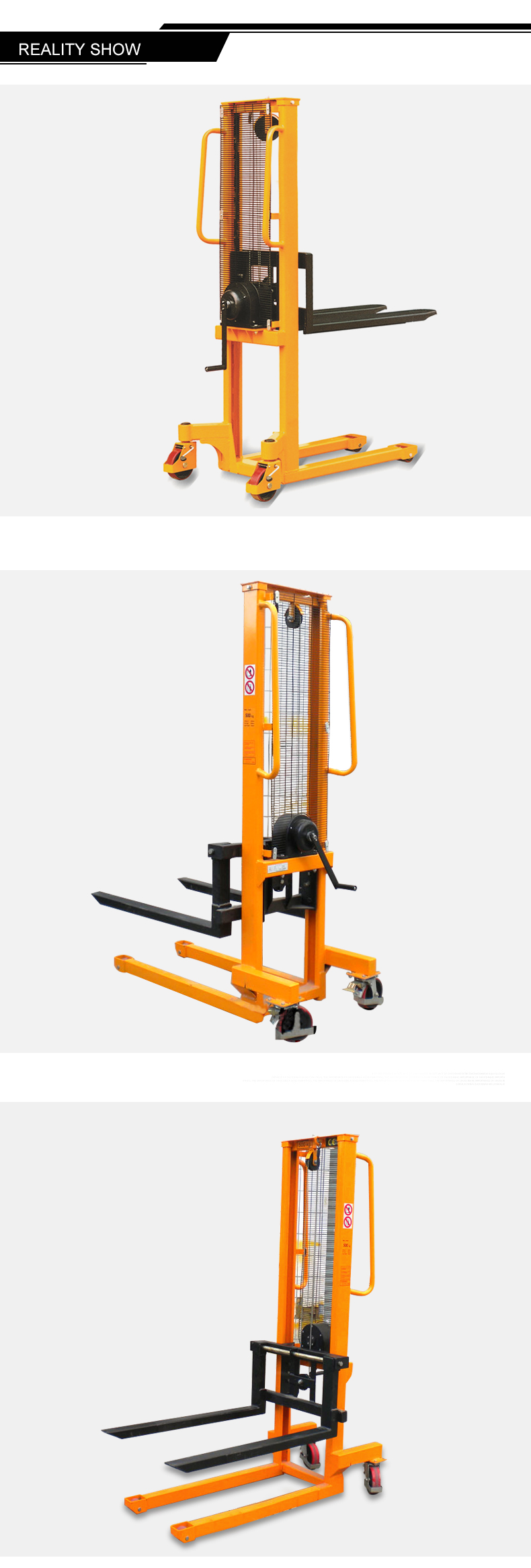

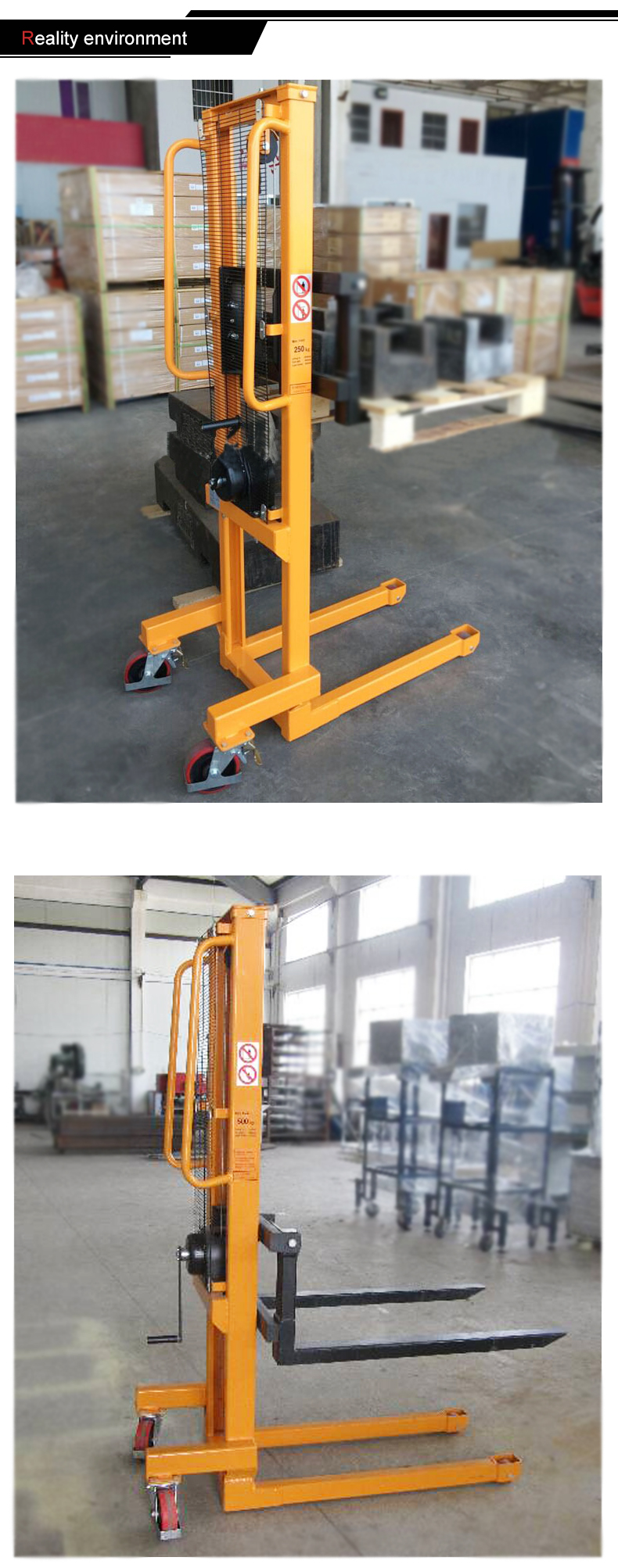

LS250 LS500 LS1000 Light Duty Winch Stacker
LS250 LS500 LS1000

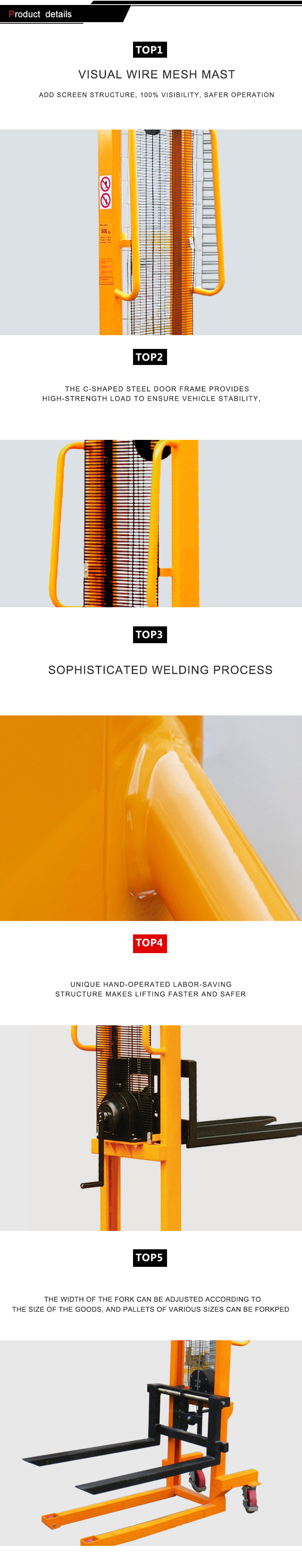

▲ Compact and service free design.
▲ Unique design of winch for easier and safe lifting.
▲ Heavy duty “C” section mast.
▲ Adjustable fork width from 160mm to 690mm (LS250, LS500).
▲ Two parking brakes on steering wheels.
▲ Conforms to EN1757-1:2001.
▲ Unique design of winch for easier and safe lifting.
▲ Heavy duty “C” section mast.
▲ Adjustable fork width from 160mm to 690mm (LS250, LS500).
▲ Two parking brakes on steering wheels.
▲ Conforms to EN1757-1:2001.
Quantity:
LS250 LS500 LS1000 Light Duty Winch Stacker
▲ Compact and service free design.
▲ Unique design of winch for easier and safe lifting.
▲ Heavy duty “C” section mast.
▲ Adjustable fork width from 160mm to 690mm (LS250, LS500).
▲ Two parking brakes on steering wheels.
▲ Conforms to EN1757-1:2001.
| Model | Winch Stacker LS250 | Winch Stacker LS500 | Winch Stacker LS1000 | |
| Capacity | kg | 250 | 500 | 1000 |
| Load Centre | mm | 400 | 500 | 575 |
| Max.Fork Height | mm | 1560 | 1560 | 1500 |
| Lowered Fork Height | mm | 90 | 90 | 88 |
| Fork Adjustable Width | mm | 150-690 | 160-690 | 540 Fixed |
| Fork Width | mm | 60 | 70 | 160 |
| Fork Length | mm | 800 | 1000 | 1150 |
| Effort Force to Rated Load | N | 100 | 120 | 100 |
| Lifting Height per Stroke | mm | 40 | 22 | 9.5 |
| Ground Clearance | mm | 18 | 18 | 24 |
| Min.Turning Radius (outside) | mm | 1075 | 1075 | 1250 |
| Front Load Roller | mm | Ø80x47 | Ø80x47 | Ø80x94 |
| Steering Wheel | mm | Ø150x40 | Ø150x40 | Ø150x50 |
| Overall Size (LxWxH) | mm | 1325x725x2030 | 1325x725x2030 | 1600x725x1930 |
| Net Weight | kg | 140 | 146 | 182 |
