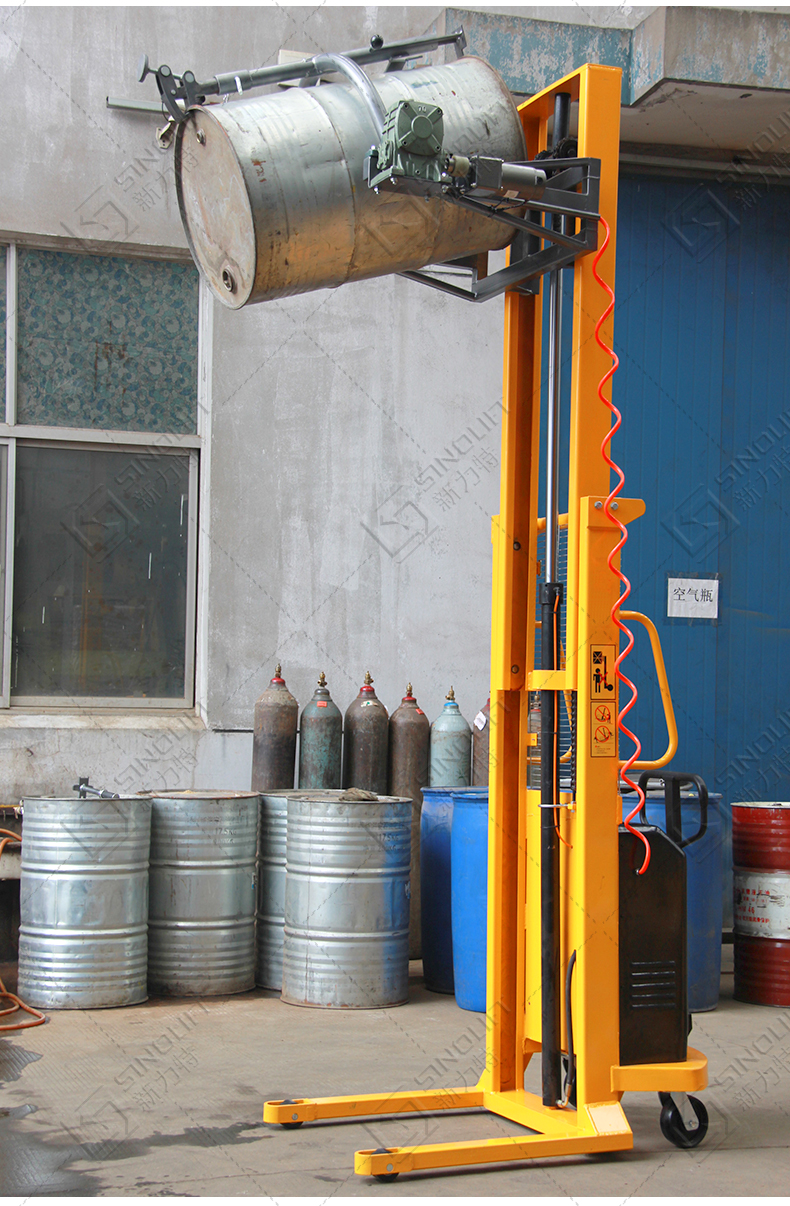

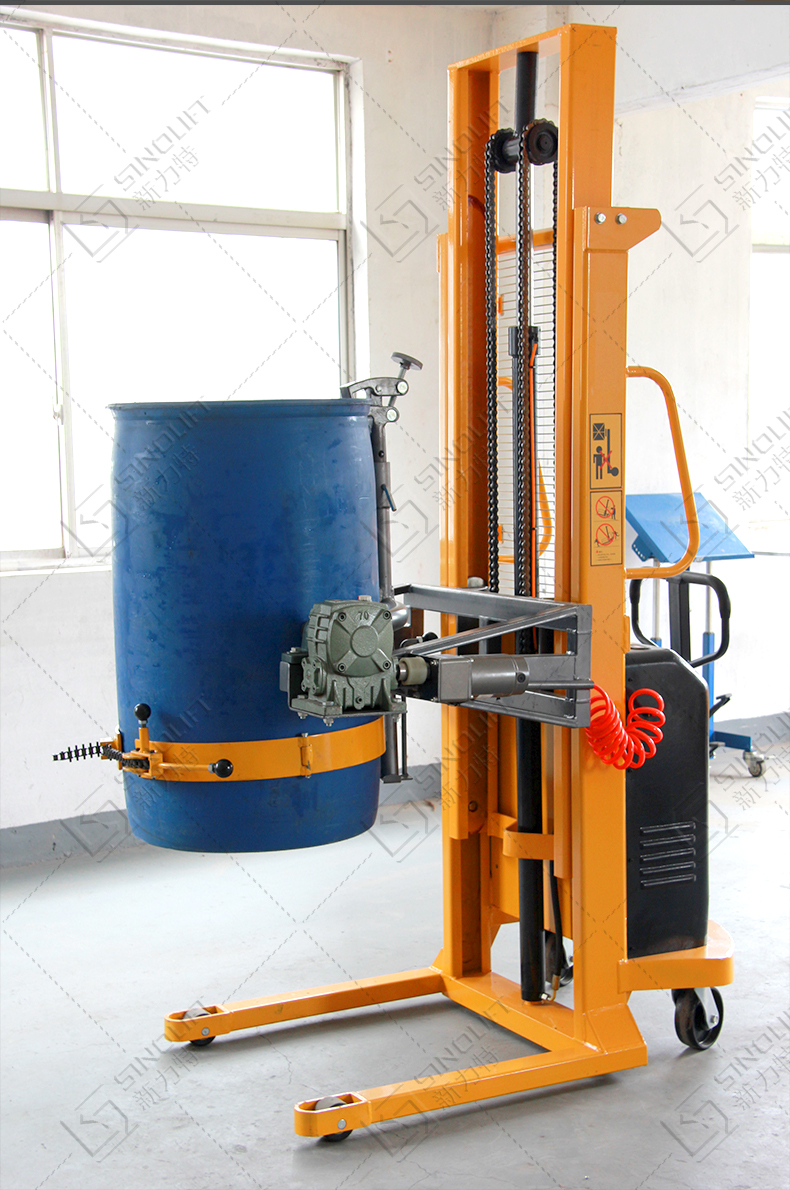

Drum Dumper

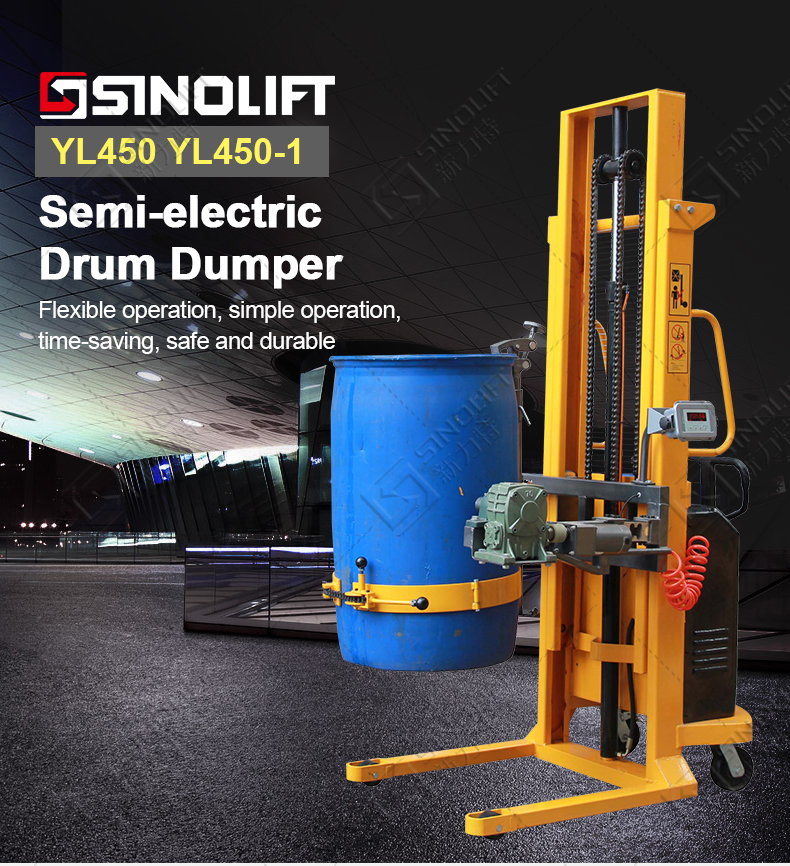

YL450 YL450-1 Semi-electric Drum Dumper

YL450 YL450-1
High quality hydraulic power unit and maintenance-free battery.
Quantity:
Contact Now
add to cart
All Products

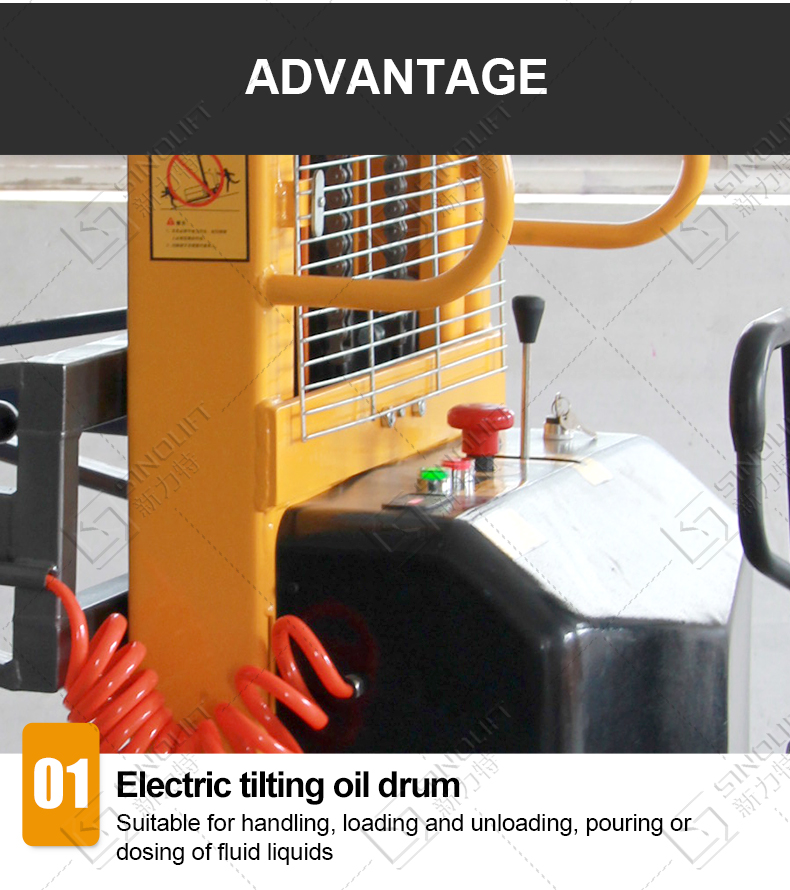

-Drum Dumper with High quality hydraulic power unit and maintenance-free battery.

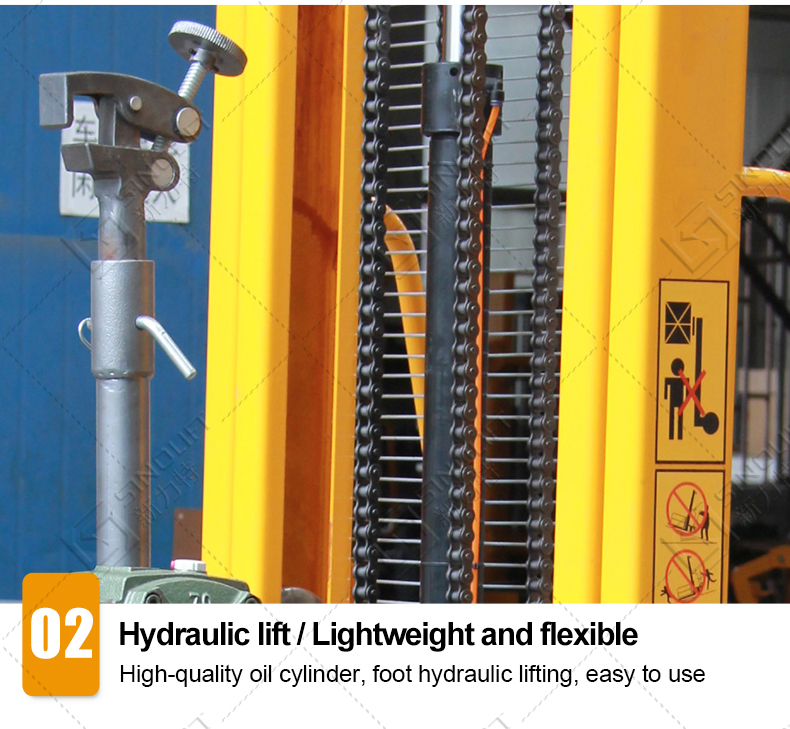

- Two-stage vertical-Lift drum pourers make max lifting height to 2450mm.

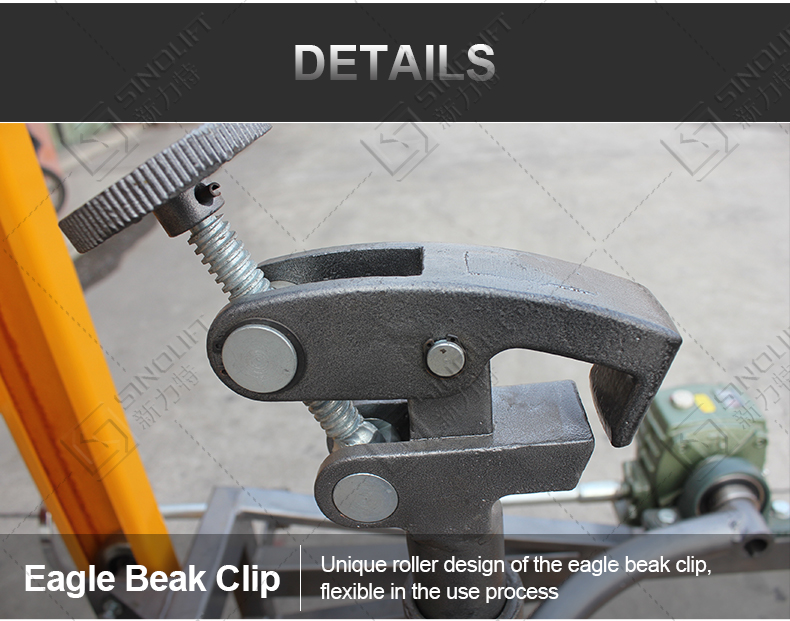

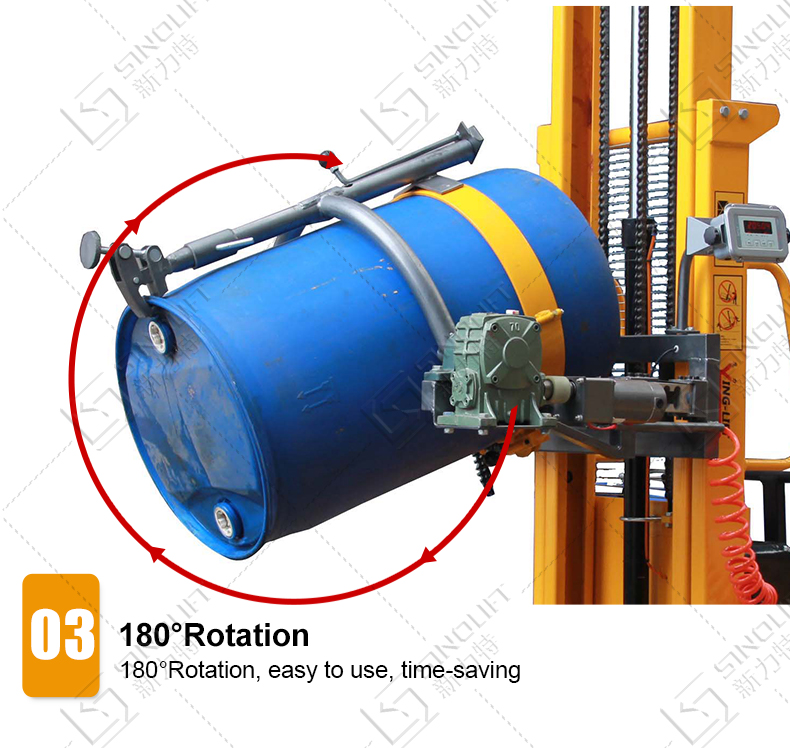

- Combined Eagle-grip and Anchor ear structure, drums can electric rotate 180 °.

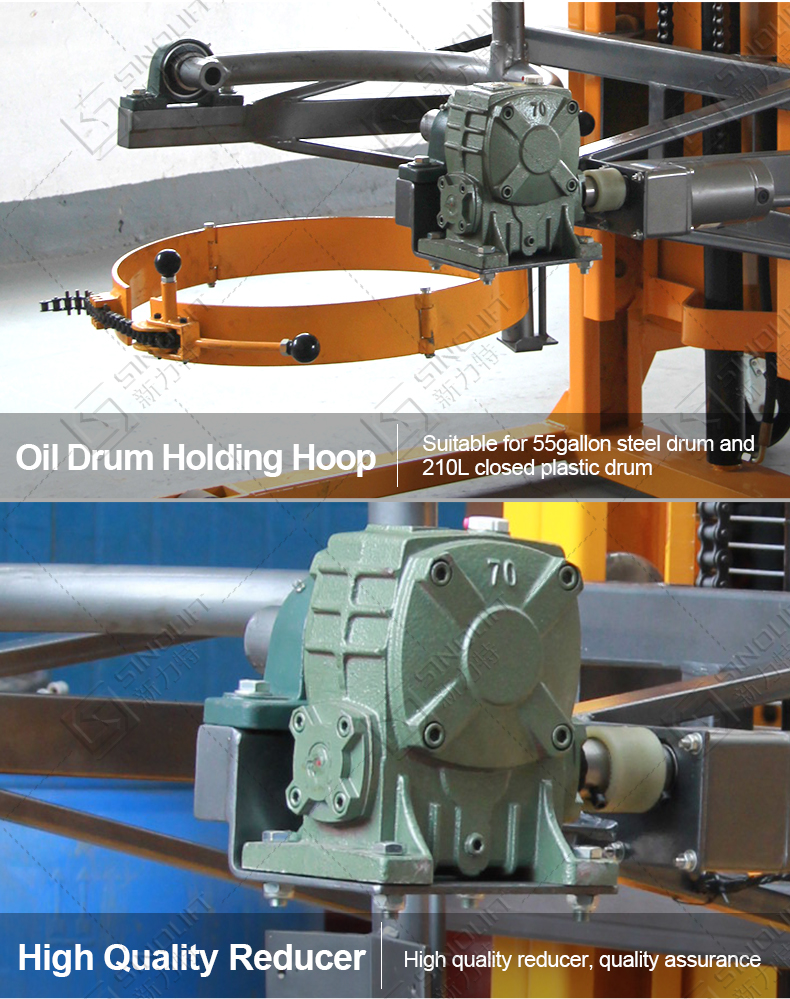

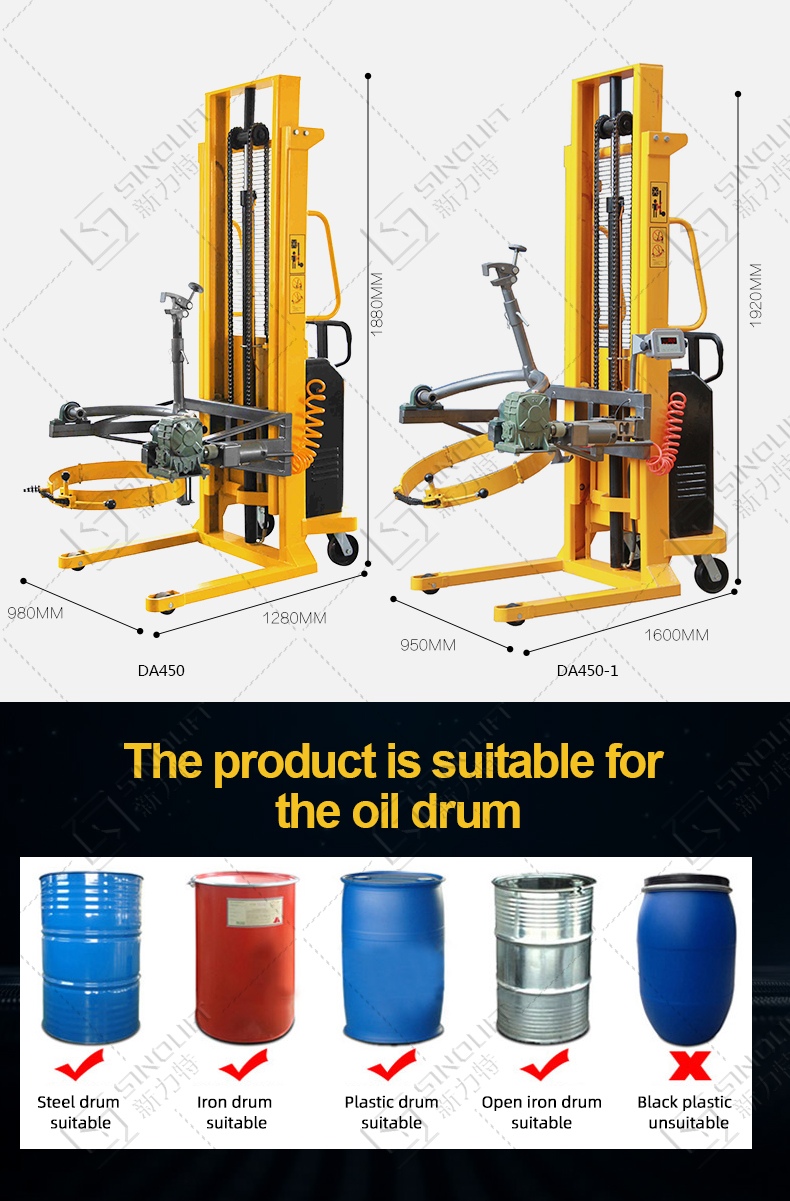

-Drum Dumper Anchor ear structure is suitable for steel drums and plastic drums; Eagle-grip structure is suitable for steel drums.

Model
Drum Dumper
YL450
Drum Dumper
YL450-1
Loading Capacitykg450450
Drum size55 gallon ( (Ø572x900) steel, 210L plastic55 gallon ( (Ø572x900) steel, 210L plastic
Wheel DimensionmmØ80*55/Ø150*50Ø80*55/Ø150*50
Inner/Outer Width of Front Legmm630/810630/810
Turning Radiusmm17501620
Pump Unit Powerkw/h1.51.5
Battery ParameterAh/V120/12120/12
Lifting Heightmm24502450
Lifting Speedmm/s120120
Outline Dimensionmm1600x950x19201680x1000x1880
Net weightkg331343

Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
Semi-electric Drum Dumper
