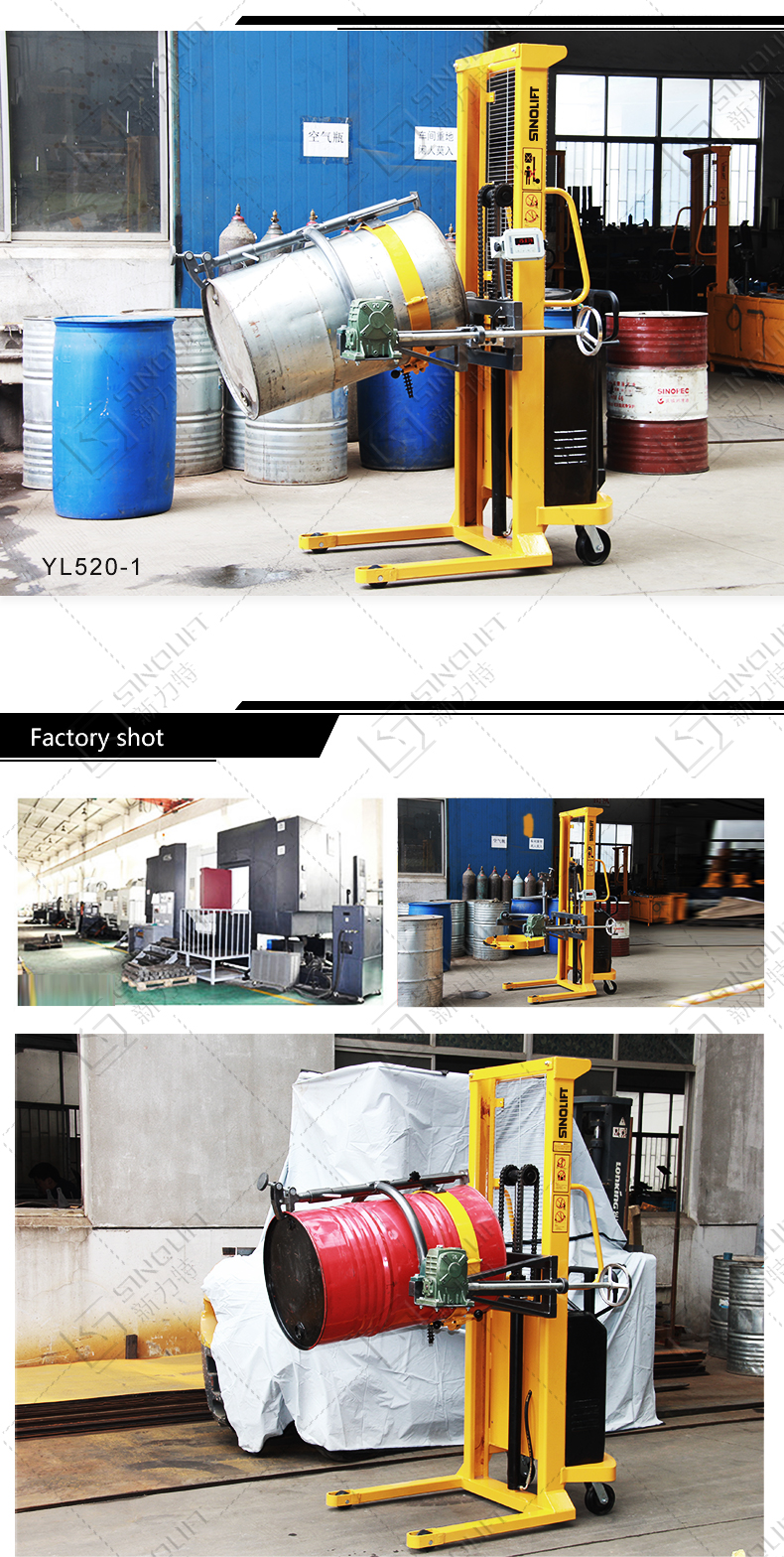

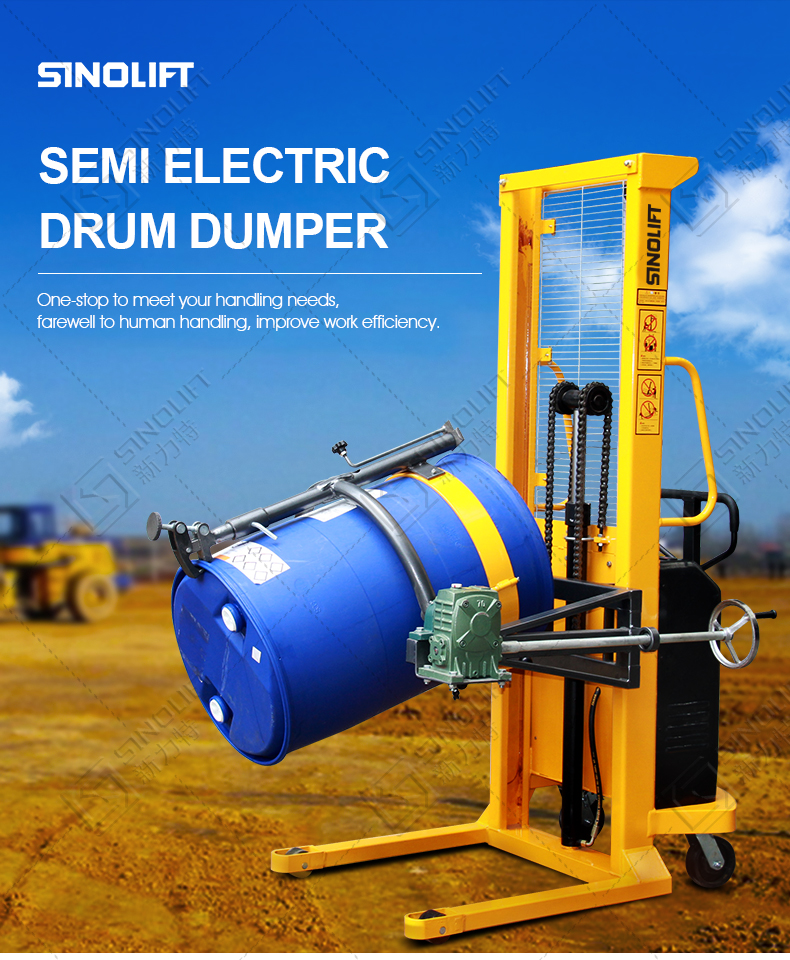

YL520A YL520A-1 Semi-electric Drum Dumper
YL520A YL520A-1
Drum Dumper The multifunctional unit has a hand pump that lifts drums from ground level to a raised height of 1500mm (61"), bottom of drum in horizontal position. A gear mechanism will provide a controlled rotation for the drum. A floor lock is standard to stabilize the unit in a fixed position.
Quantity:
Features of Drum Dumper:
1. Drum Dumper The multifunctional unit has a hand pump that lifts drums from ground level to a raised height of 1500mm (61"), bottom of drum in horizontal position. A gear mechanism will provide a controlled rotation for the drum. A floor lock is standard to stabilize the unit in a fixed position.
2. A 12V DC powered mechanism lifts drums from ground level to a raised height of 1500mm (61".) and capacity of 500kg (1100Lbs).
3. Combined Eagle-grip and Anchor ear structure, suitable for manual hand rotation of steel drums and plastic drums;

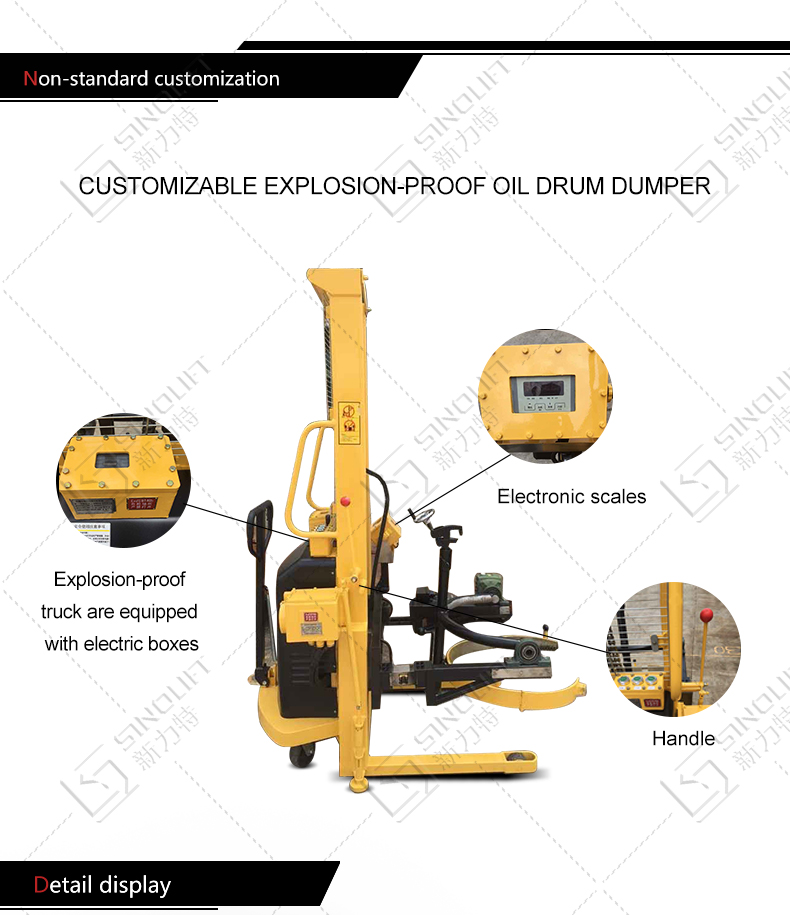

4.Drum Dumper With electronic scale built-in YL520-1; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

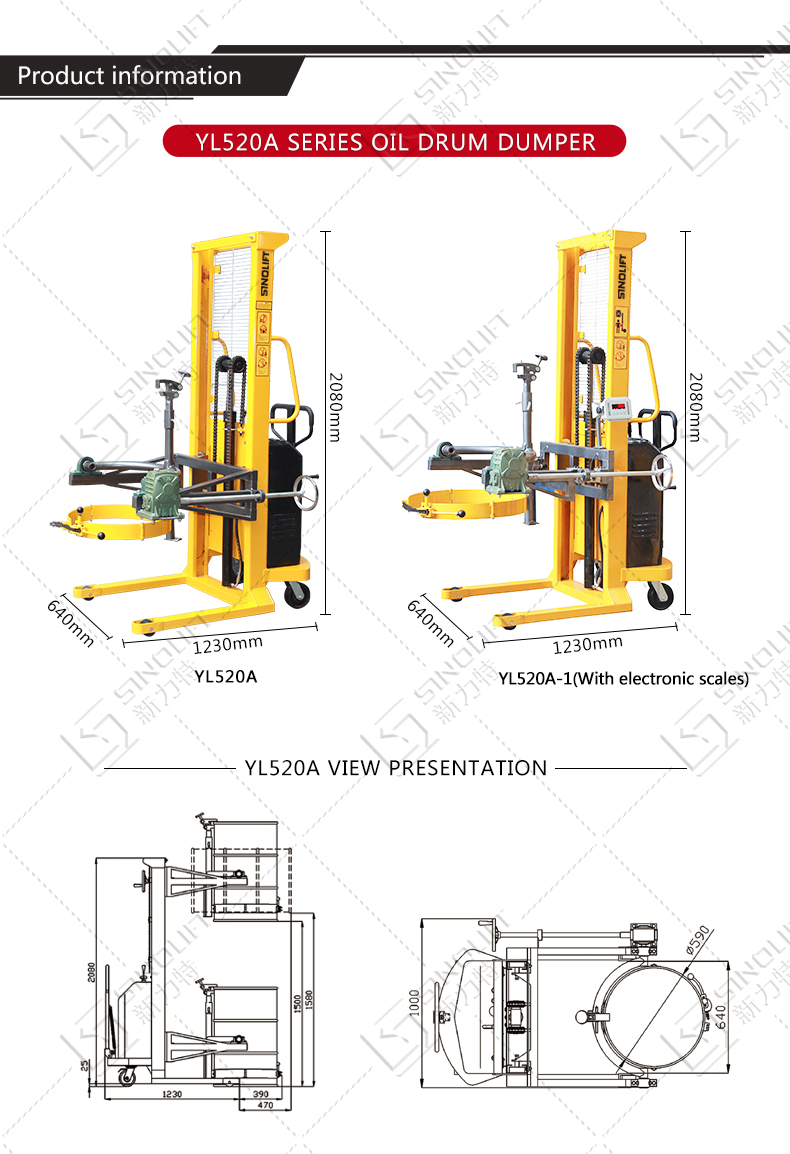

| Model | Drum DumperYL520A | Drum DumperYL520A-1 | |
| Loading Capacity | kg | 520 | 520 |
| Lifting Height | mm | 1600 | 1500 |
| Drum size | 55 gallon ( (Ø572x900) steel, 210L plastic | 55 gallon ( (Ø572x900) steel, 210L plastic | |
| Wheel Dimension | mm | Ø80x55 / Ø150x50 | Ø80x55 / Ø150x50 |
| Width of Front Leg (Inner/Outer) | mm | 640/800 | 640/800 |
| Length of Leg | mm | 630 | 630 |
| Turning Radius | mm | 1750 | 1620 |
| Lifting Motor | kw | 1.5 | 1.5 |
| Battery Parameter | Ah/V | 120/12 | 120/12 |
| Lifting Speed | mm/s | 120 | 120 |
| Outline Dimension LxWxH | mm | 1400x950x2060 | 1400x1000x2080 |
| Net weight | kg | 260 | 260 |
